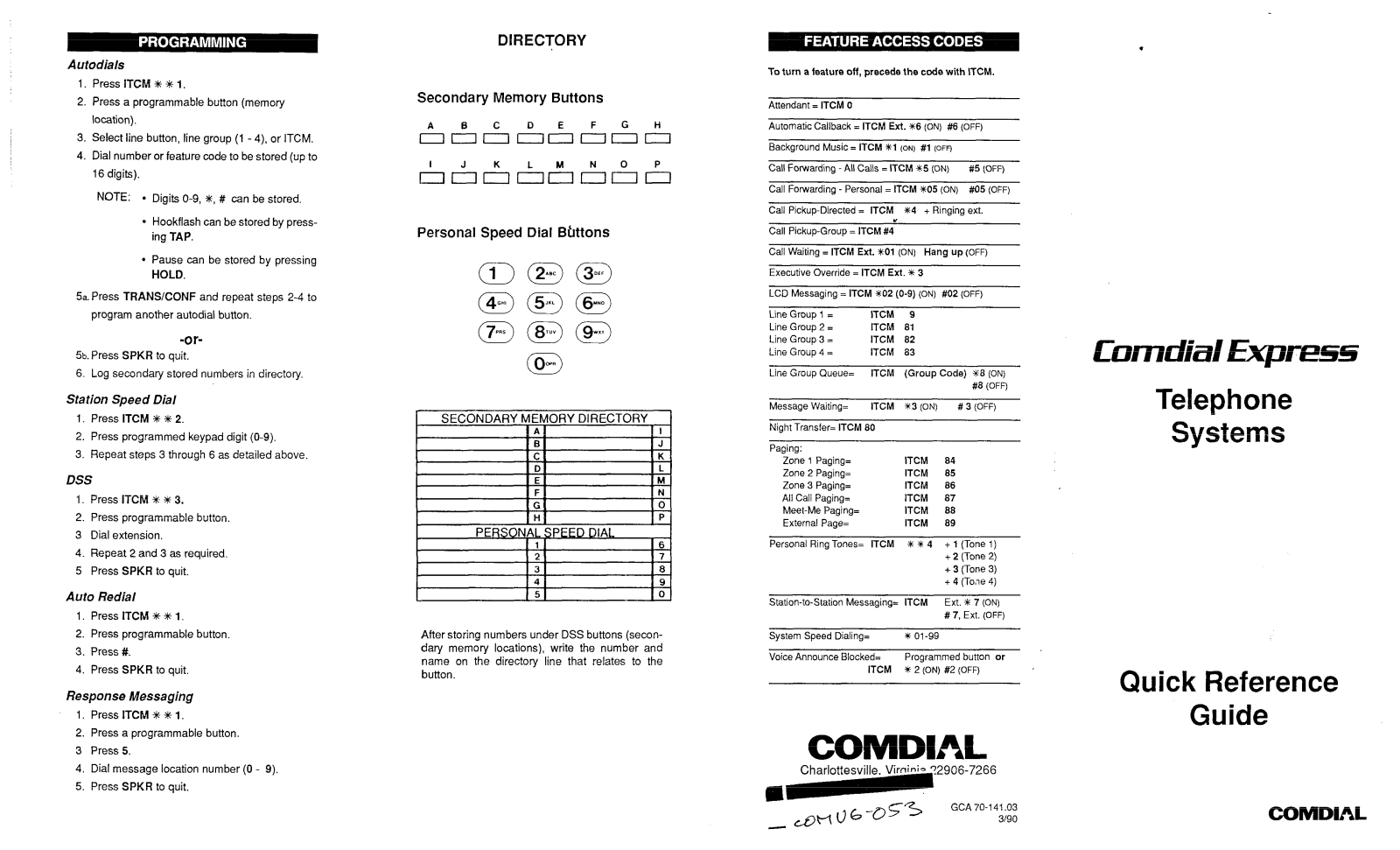

Comdial Express Service Manual

Autodials

1. PresslTCM*+i.

2. Press a programmable button (memory location).

3. Select line button, line group (1 - 4), or ITCM.

4. Dial number or feature code to be stored (up to 16 digits).

NOTE: l Digits o-9, *, # can be stored.

Hookflash can be stored by press-

ing TAP.

Pause can be stored by pressing HOLD.

5a. Press TRANSlCONF and repeat steps 2-4 to

program another autodial button.

-or-

5b.

Press SPKR to quit.

6. Log secondary stored numbers in directory.

Station Speed Dial

1. Press ITCM + * 2.

2. Press programmed keypad digit (O-9).

3. Repeat steps 3 through 6 as detailed above.

DSS

1. Press ITCM % 0 3.

2. Press programmable button.

3 Dial extension.

4. Repeat 5 Press SPKR to quit.

Auto Redial

1. PresslTCM**l.

2. Press programmable button

3. Press#.

4. Press SPKR to quit.

Response Messaging

1. PresslTCMOtl.

2. Press a programmable button. 3 Press 5.

4. Dial message location number (0 - 9).

5. Press SPKR to quit.

2 and 3 as required.

DIRECTORY

Secondary Memory Buttons

&Gr”l&~&lLG&

b&;1&&&3P7

Personal Speed Dial Bbttons

SEC-ONDARY MEMORY DIRECTORY

After storing numbers under DSS buttons (secondary memory locations), write the number and

name on the directory line that relates to the button.

IAl 1 I I RI

G IO

To turn a feature off, precede the code with ITCM.

Attendant = ITCM 0

Automatic Callback = ITCM Ext. $6 (ON) #6 (OFF) Background Music = ITCM tl (ON) #l (OFF) Call Forwarding All Calls = ITCM +?I (ON) Call Forwarding - Personal = ITCM $05 (ON) #05 (OFF) Call Pickup-Directed = ITCM %4 + Ringing ext. Call Pickup-Group = ITCM #4 Call Waiting = ITCM Ext. +Ol (ON) Hang up (OFF) Executive Override = ITCM Ext. * 3 LCD Messaging = ITCM 002 (O-9) (ON) #02 (OFF) Line Group 1 =

Line Group 2 = ITCM 81

Line Group 3 = ITCM 82 Line Group 4 = ITCM 83

Line Group Queue=

Message Waiting= ITCM ++3 (ON) Night Transfer= ITCM 80

Paging:

Zone 1 Paging= ITCM 84 Zone 2 Paging= ITCM 85 Zone 3 Paging= ITCM 86 All Call Paging= ITCM 87 Meet-Me Paging= ITCM 88

External Page= ITCM 89

Personal Ring Tones= ITCM m +I 4 + 1 (Tone 1)

Station-to-Station Messaging= ITCM Ext. t 7 (ON)

System Speed Dialing= * 01-99 Voice Announce Blocked= Programmed button or

ITCM 9

ITCM (Group Code) f8 (ON)

ITCM * 2 (ON) #2 (OFF)

#5 (OFF)

#8 (OFF)

# 3 (OFF)

+ 2 (Tone 2) + 3 (Tone 3) + 4 (To,le 4)

# 7. Ext. (OFF)

COMDIAL

Charlottesville. Virnini- ?2906-7266

GCA 70-141.03

3190

CamdialExpress

Telephone

Systems

Quick Reference

Guide

COMDIAL

Standard

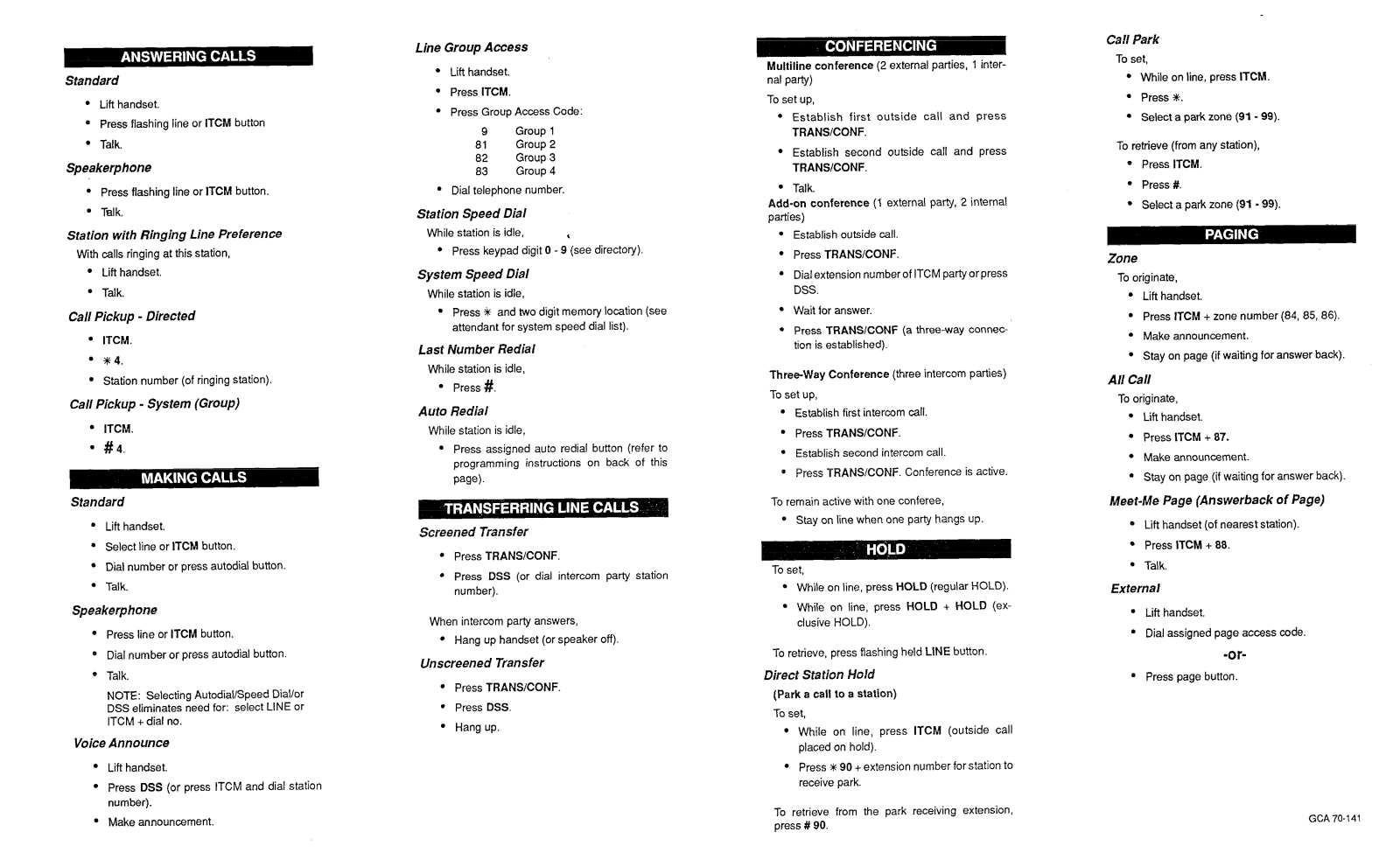

Lift handset.

. Press flashing line or ITCM button

Talk.

Press flashing line or ITCM button.

Talk.

Station with Ringing Line Preference

With calls ringing at this station,

Lift handset.

Talk.

Call Pickup - Directed

ITCM.

*4.

Station number (of ringing station).

Call Pickup - System (Group)

ITCM.

#4.

Standard

Lift handset.

Select line or ITCM button.

Dial number or press autodial button.

. Talk.

Speakerphone

Press line or ITCM button.

Dial number or press autodial button.

Talk.

NOTE: Selecting AutodiaVSpeed Dial/or DSS eliminates need for: select LINE or ITCM + dial no.

Voice Announce

Lift handset.

Press DSS (or press ITCM and dial station number).

Make announcement.

Line Group Access

Lift handset.

Press ITCM.

Press Group Access Code:

Group 1

Group 2

81 62 Group 3

Group 4

Dial telephone number.

Station Speed Dial

While station is idle, s

Press keypad digit 0 - 9 (see directory)

System Speed Dial

While station is idle,

Press % and two digit memory location (see attendant for system speed dial list).

Last Number

Redial

While station is idle,

Press #.

Auto Redial

While station is idle,

Press assigned auto redial button (refer to programming instructions on back of this page).

Screened Transfer

Press

TRANWCONF.

Press DSS (or dial intercom party station number).

When intercom party answers,

Hang up handset (or speaker off)

Unscreened Transfer

Press

TRANSEONF.

Press DSS.

Hang up.

Multiline conference (2 external parties, 1 internal party)

To set up,

Establish first outside call and press

TRANSKONF.

Establish second outside call and press

TRANSKONF.

Talk.

Add-on conference (1 external party, 2 internal parties)

Establish outside call.

Press TRANSKONF.

Dial extension number of ITCM party or press DSS.

a Wait for answer.

Press TRANSlCONF (a three-way connection is established).

Three-Way Conference (three intercom parties) To set up,

Establish first intercom call.

Press TRANSKJONF.

Establish second intercom call.

a Press TRANSKONF. Conference is active.

To remain active with one conferee,

e Stay on line when one party hangs up.

To set,

* While on line, press HOLD (regular HOLD).

While on line, press HOLD + HOLD (exclusive HOLD).

To retrieve, press flashing held LINE button.

Direct Station Hold

(Park a call to a station) To set,

While on line, press ITCM (outside call

placed on hold).

Press % 90 + extension number for station to receive park.

To retrieve from the park receiving extension, press # 90.

Call Park

To set,

While on line, press ITCM.

Press ‘M.

Select a park zone (91 - 99).

To retrieve (from any station),

. Press ITCM.

Press #.

Select a park zone (91 - 99).

Zone

To originate,

Lift handset.

Press ITCM + zone number (84, 85,86).

Make announcement.

Stay on page (if waiting for answer back).

All Call

To originate,

Lift handset.

Press ITCM + 87.

* Make announcement.

Stay on page (if waiting for answer back).

Meet-Me Page (Answerback

* Lift handset (of nearest station).

Press ITCM + 88.

Talk.

External

Lift handset.

Dial assigned page access code.

-or-

* Press page button.

Page)

GCA 70-141
