Comdial 1432 Series, 22 Series User Manual
l
Press specific telephone lineckey for line.
-ore Press 1 m 4 on the telephone dial pad for line
group.
-ore Press 0 on the telephone dial pad for no
selection. (When 0 is stored and automatic
dialing is used, system will pick line assigned to telephone or last line used.)
. Dial the number sequence to be stored from
the telephone dial pad (up to 16 digits).
l
To store a pause, press
HOLD
on
telephone.
. To store a flash, press
RECALL
on
telephone.
To store another number for automatic
dialing,
l
Press
SAVE
on telephone.
. Press next Module key (or press
HOLD
plus
Module key if DSS/BLF is programmed).
l
Select line, group or none as described
above.
e Dial number sequence as described above.
. Repeat this procedure for each desired key.
HINT:
Store often-used, host system PBX or
CENTREX feature access codes at Module key
locations. This will provide one-key access to
those host system features.
To end programming,
l
Press
MONITOR
on telephone.
To dial numbers automatically,
0 Press desired Module key.
-or-
. If desired key is also programmed for
DSS/BLF operation,
e
Press
HOLD
on telephone and then press
desired key on Module.
. When party answers, lift handset of
telephone.

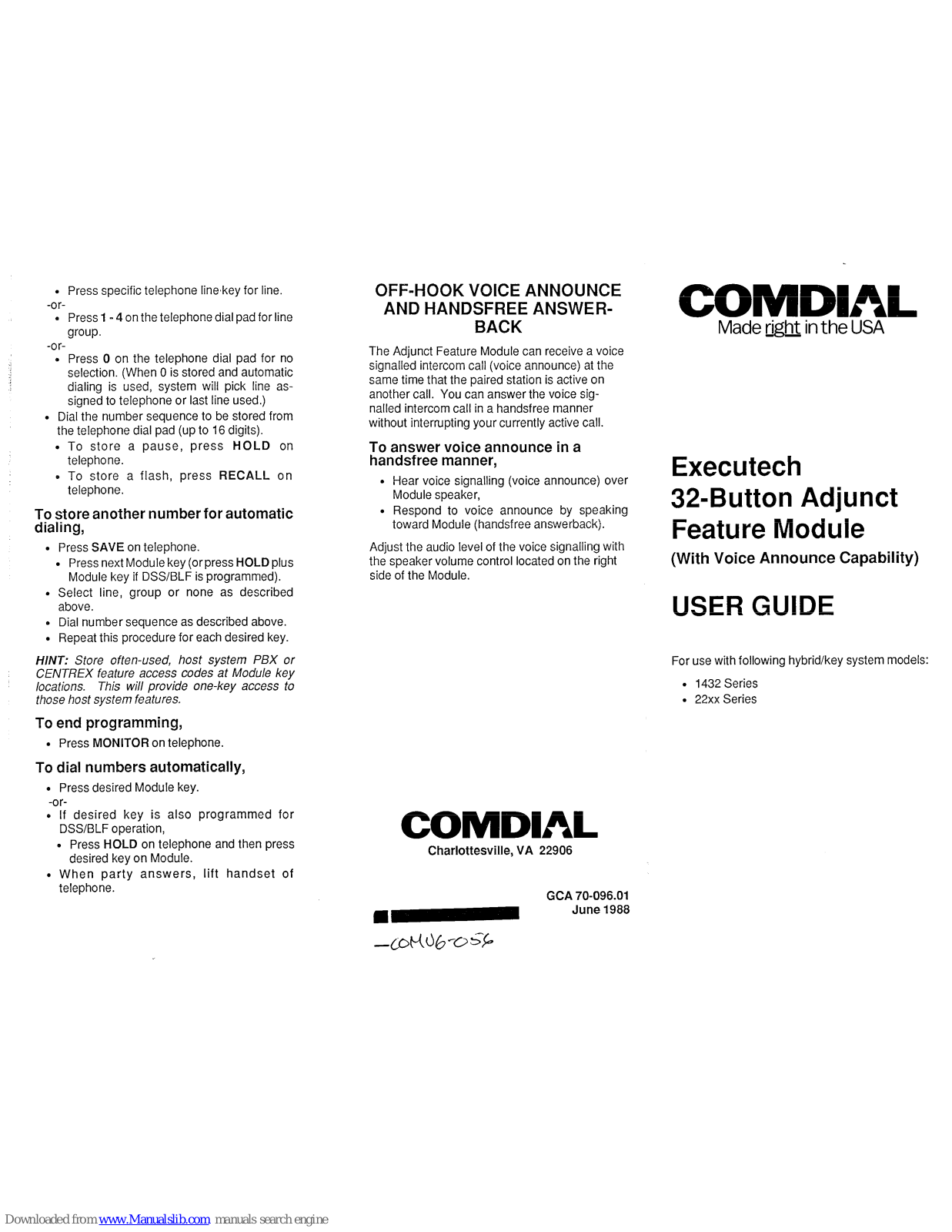

OFF-HOOK VOICE ANNOUNCE
AND HANDSFREE ANSWER-
BACK
The Adjunct Feature Module can receive a voice
signalled intercom call (voice announce) at the
same time that the paired station is active on
another call. You can answer the voice signalled intercom call in a handsfree manner
without interrupting your currently active call.
To answer voice announce in a
COMDIAL
Made rJ&t in the USA
handsfree manner,
. Hear voice signalling (voice announce) over
Executech
Module speaker,
l
Respond to voice announce by speaking
toward Module (handsfree answerback).
32-Button Adjunct
Feature Module
Adjust the audio level of the voice signalling with
the speaker volume control located on the right
(With Voice Announce Capability)
side of the Module.
USER GUIDE
For use with following hybrid/key system models:
l
1432 Series
0 22xx
Series
COMDWL
Charlottesville, VA 22906
GCA 70-096.01
II
June 1988
~@w&i0~.

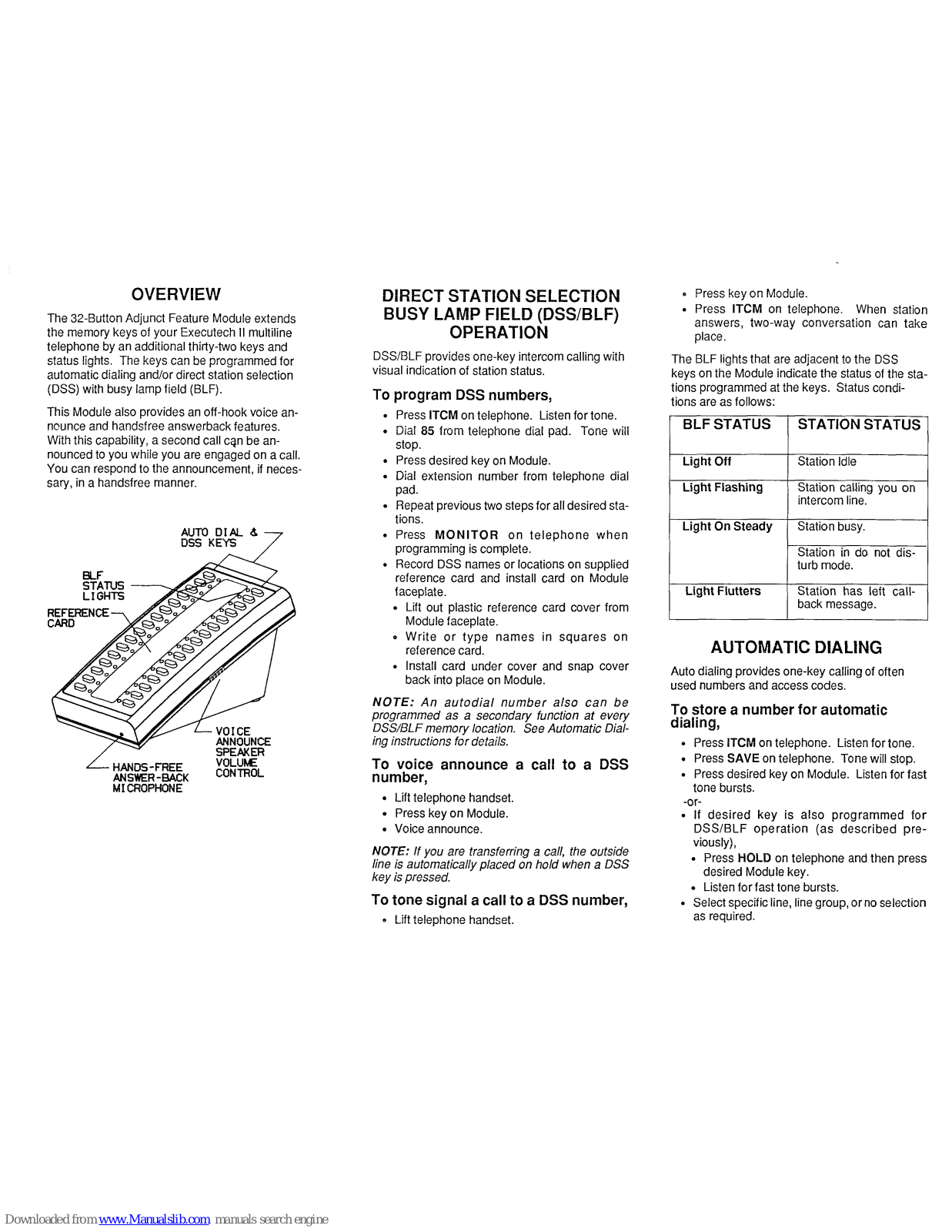

OVERVIEW
The 32Button Adjunct Feature Module extends
the memory keys of your Executech II multiline
telephone by an additional thirty-two keys and
status lights. The keys can be programmed for
automatic dialing and/or direct station selection
(DSS) with busy lamp field (BLF).
This Module also provides an off-hook voice announce and handsfree answerback features.
With this capability, a second call can be announced to you while you are engaged on a call.
You can respond to the announcement, if necessary, in a handsfree manner.
AuM DIAL &
DSS KEYS
7
DIRECT STATION SELECTION
BUSY LAMP FIELD (DSS/BLF)
OPERATION
DSS/BLF provides one-key intercom calling with
visual indication of station status.
To program DSS numbers,
l
Press ITCM on telephone. Listen for tone.
l
Dial 85 from telephone dial pad. Tone will
stop.
l
Press desired key on Module.
l
Dial extension number from telephone dial
pad.
l
Repeat previous two steps for all desired stations.
l
Press MONITOR on telephone when
programming is complete.
. Record DSS names or locations on supplied
reference card and install card on Module
faceplate.
l
Lift out plastic reference card cover from
Module faceplate.
0 Write or type names in squares on
reference card.
0 Install card under cover and snap cover
back into place on Module.
NOTE:
An autodial number also can be
programmed as a secondary function at every
DSSBLF memory location.
See Automatic Dial-
ing instructions for details.
l%;$e announce a call to a DSS
,
l
Lift telephone handset.
l
Press key on Module.
l
Voice announce.
NOTE:
If you are transferring a call, the outside
line is automatically placed on hold when a DSS
key is pressed.
To tone signal a call to a DSS number,
0 Lift telephone handset.
0 Press key on Module.
. Press ITCM on telephone. When station
answers, two-way conversation can take
place.
The BLF lights that are adjacent to the DSS
keys on the Module indicate the status of the stations programmed at the keys. Status conditions are as follows:
BLF STATUS STATION STATUS
Light Off
Light Flashing
Station Idle
Station calling you on
intercom line.
Light On Steady Station busy.
Station in do not disturb mode.
Light Flutters Station has left call-
back message.
AUTOMATIC DIALING
Auto dialing provides one-key calling of often
used numbers and access codes.
To store a number for automatic
dialing,
l
Press ITCM on telephone. Listen for tone.
l
Press SAVE on telephone. Tone will stop.
. Press desired key on Module. Listen for fast
tone bursts.
-or-
. If desired key is also programmed for
DSS/BLF operation (as described previously),
l
Press HOLD on telephone and then press
desired Module key.
l
Listen for fast tone bursts.
l
Select specific line, line group, or no selection
as required.
