Com Dev Wireless Group GLOBALCELL-IID Clock Specifications

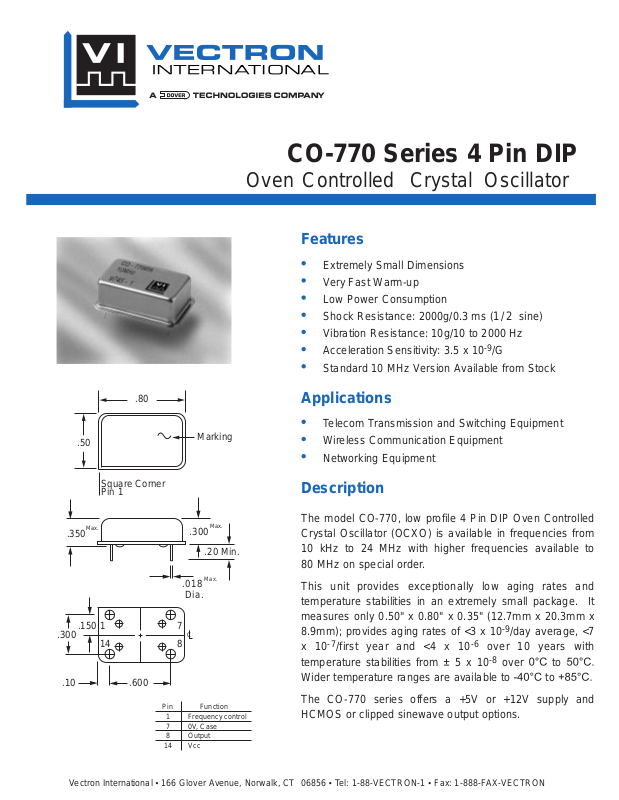

CO-770 Series 4 Pin DIP

Oven Controlled Crystal Oscillator

Features

Extremely Small Dimensions
Very Fast Warm-up
Low Power Consumption
Shock Resistance: 2000g/0.3 ms (1/2 sine)
Vibration Resistance: 10g/10 to 2000 Hz
Acceleration Sensitivity: 3.5 x 10-9/G
Standard 10 MHz Version Available from Stock

.50

Square Corner
Pin 1

Max.

.350

17

.150

.300

.10 .600

14 8

.80

Pin Function

14

.300

.018
Dia.

C

1

Frequency control

7

0V, Case

8

Output
Vcc

Marking

Max.

.20 Min.

Max.

Applications

Telecom Transmission and Switching Equipment
Wireless Communication Equipment
Networking Equipment

Description

The model CO-770, low profile 4 Pin DIP Oven Controlled
Crystal Oscillator (OCXO) is available in frequencies from
10 kHz to 24 MHz with higher frequencies available to
80 MHz on special order.

This unit provides exceptionally low aging rates and
temperature stabilities in an extremely small package. It
measures only 0.50" x 0.80" x 0.35" (12.7mm x 20.3mm x

8.9mm); provides aging rates of <3 x 10

-7

x 10
temperature stabilities from

/first year and <4 x 10-6over 10 years with

5 x 10-8over to

Wider temperature ranges are available to to
The CO-770 series offers a +5V or +12V supply and

HCMOS or clipped sinewave output options.

-9

/day average, <7

Vectron International 166 Glover Avenue, Norwalk, CT 06856 Tel: 1-88-VECTRON-1 Fax: 1-888-FAX-VECTRON

CO-770 4 Pin DIP Oven Controlled Crystal Oscillator

Performance Characteristics

Parameter

Characteristic

Frequency 10 MHz Standard. Advertised specifications available from 10 kHz to 24 MHz.

Available to 80 MHz on special order.

Temperature Stability to B58: 5 x 10

to D17: 1 x 10
to H27: 2 x 10

Aging <3 x 10

Frequency vs. Supply 4%) 1 x 10

Short Term (Allan Variance) <5 x 10

-9

/day average, <7 x 10-7first year, <4 x 10-6for 10 years

-7

-10

, 0.1 seconds to 10 seconds

Supply/Output Type Supply Voltage Output

CO-770 +12 Vdc 0.5V HCMOS*
CO-771 + 5 Vdc 0.2V Clipped Sine

(1-2VPK-PK into 1K W)
CO-772 + 5 Vdc 0.2V HCMOS*
CO-773 +12 Vdc 0.5V Clipped Sine

(1-2VPK-PK into 1K W)

*Symmetry (@50% Vdd) 60/40 to 40/60

*Rise/Fall Time: (10-90%) (15pF load) <7ns

*Level 0 and 1 <0.4V, >4.5V

Input Current +12 Vdc +5 Vdc

<25 mA @ <60 mA @
<40 mA @ - <80 mA @ -

Turn-on Current +12 Vdc +5 Vdc

<120 mA first 10 seconds <200 mA first 10 seconds

Warm-Up @ C <1 x 10

(24 hours off relative to the frequency <1 x 10

2 hours after turn-on) <5 x 10

-6

-7

-8

15 seconds
60 seconds
10 minutes

Phase Noise (Typical @ 10 MHz) +12 Vdc +5 Vdc

Sine and HCMOS Offset Phase Noise Phase Noise

1 Hz - 70 dBc/Hz - 60 dBc/Hz

10 Hz -100 dBc/Hz - 90 dBc/Hz

100 Hz -125 dBc/Hz -120 dBc/Hz

1 kHz -135 dBc/Hz -130 dBc/Hz

Acceleration Sensitivity: (Worst case axis) 3.5 x 10

-9

/G

Frequency Voltage Control 4 ppm range with 0 to +5V input

(external resistor adjustment available on special order)

Size 0.50" x 0.80" x 0.35" (12.7 x 20.3 x 8.9 mm)

Base 4 pin DIP package with standoffs

How To Order

Supply/Output Frequency

Temperature Stability Option

CO-77

at

-8

-7

-7
