User Manual MERKURY SPB82

How to use the speaker

1. Slide on/off switch to ON position, the speaker will go into Bluetooth pairing mode

automatically, and the speaker will say “Bluetooth is ready to pair”.

2. Enable the Bluetooth function on your mobile device and search for the Bluetooth

speaker.

3. Select device MERKURY SPB82 that has been newly added to pairing, then it will say

“Bluetooth is connected successfully”.

4. Play music via bluetooth with your mobile device or dial with you mobile phone.

5. Pause /Play: Short press this button to play/pause the music of the device.

6. Change Songs :Short press FORWARD or NEXT button to play forward or next music.

7. Volume Adjustment: Rotate the VOLUME to turn the volume up or down.

8. Mode: Press MODE button to change the audio source around Bluetooth/FM Radio

/AUX.

9. Hands-free: when the speaker is connected with a phone via Bluetooth, music will

temporally pause; if a phone call come in while the Bluetooth is connected with

telephone, first the speaker will read the phone number, and then Short to answer

a call and hang up a call, to reject a call and call back, just long press.

10. Charge Description : use Micro USB cable connect to the charging port of the speaker

“DC 5V”

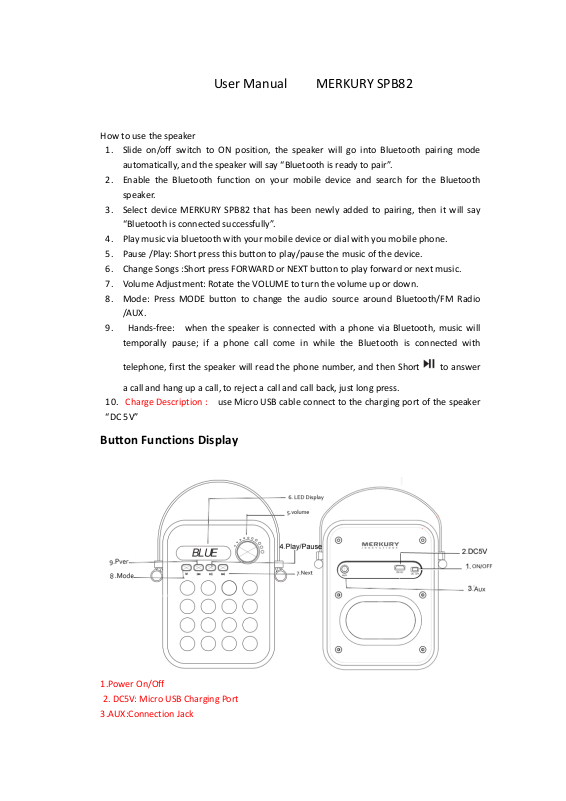

Button Functions Display

1.Power On/Off

2. DC5V: Micro USB Charging Port

3.AUX:Connection Jack

4.Play/Pause Or/ Hands-free: Hands-free: Short press to answer/ hang up a call, Long press

to reject a call redialing

5.Volume : Rotate the VOLUME to turn the volume up or down.

6.LED Display

7.Next song

8.Mode: Press MODE button to change the audio source around Bluetooth/FM Radio /AUX.

9.Previous song

Specifications

1:Bluetooth Version:V2.1+EDR(3.0)

2:Support Profiles:HFP/L2CAP/A2DP/AVCTP/AVDTP/AVCRP

3: Output Power: 3W x2

4:THD:<0.5%

5:S/N:>90dB

6:Frequency Response:80Hz-20kHz

7:Frequency :2.402-2.480GHz

8:Play Time: About 3~4 hours continuously

9:Charge Time: About 1~2 hours

10:Net Weight:2Ibs

11:Battery Capacitor: 1200mA/3.7v

12:Production Dimensions: 122*85*142 mm

Package Includes

1:LED Bluetooth Speaker x 1

2:3.5mm Audio Cable x 1

3:Micro USB Charging Cable x1

4: User Manual x 1

Friendly Reminder (FAQ) Troubleshooting

1. Make sure your mobile devices are Bluetooth-enabled before using product.

2. Make sure the speaker is fully charged when using for the first time.

3.In order to protect the circuit of this speaker and ensure the long-term performance of the

built-in battery,please do not play music while charging your mobile device.

4.If you Repeated Unsuccessful pairing: ○1 . Shutdown and reboot the speaker ○2. If you

device ask for a password. Please type in 0000

5.Staccato appears when Plying music: Check if the device exceeds the working distance ,Or if

there is any obstacles between them

6. stay silently when playing: ○1 .Check if the Volume of speaker has been adjusted

2 check if the speaker has been muted or paused

○
