Comba Telecom RX-2620 User Manual





LLTTEEW

WIIRREELLEESSSSRREEPPEE

A

ATTEERR

USER MANUAL

RX-2620 QE: 1-0-0

Comba Telecom Ltd.

RX-2620

The information contained herein is the responsibility of and is approved by the
following, to whom all enquiries should be directed in the first instance:

This is an unpublished work the copyright in which vests in Comba International
("Comba"). All rights reserved.

The information contained herein is confidential and the property of Comba and is
supplied without liability for errors or omissions. No part may be reproduced,
disclosed or used except as authorised by contract or other written permission.
The copyright and the foregoing restriction on reproduction and use extend to all
media in which the information may be embodied.

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 3

0.1 CONTENTS

Section Page

0.1 CONTENTS ........................................................................................................................... 3

0.2 INDEX TO FIGURES AND TABLES ..................................................................................... 4

0.3 HISTORY ............................................................................................................................... 5

0.4 GLOSSARY OF TERMS ....................................................................................................... 6

0.5 SAFETY NOTICES AND ADMONISHMENTS ...................................................................... 7

1 GENERAL INFORMATION ................................................................................................... 8

2 EQUIPMENT DESCRIPTION.............................................................................................. 10

2.1 SYSTEM DIAGRAM ............................................................................................................ 10

2.2 EQUIPMENT LAYOUT ........................................................................................................ 11

2.3 EQUIPMENT CONSTITUTION ........................................................................................... 11

2.4 KIT OF PARTS .................................................................................................................... 12

3 INSTALLATION ................................................................................................................... 13

3.1 WARNINGS AND ALERTS ................................................................................................. 13

3.2 SITE PLANNING CONSIDERATIONS ................................................................................ 14

3.3 INSTALLATION PROCEDURES ........................................................................................ 15

3.3.1 GOODS INWARDS INSPECTION ...................................................................................... 15

3.3.2 TOOLS ................................................................................................................................. 15

3.3.3 PREPARATION ................................................................................................................... 15

3.3.4 WALL MOUNTING .............................................................................................................. 16

3.3.5 POLE MOUNTING OF MOUNTING RACK......................................................................... 17

3.3.6 DRIP-LOOP ......................................................................................................................... 17

3.4 EQUIPMENT CONNECTORS ............................................................................................ 18

3.4.1 CONNECTORS ................................................................................................................... 18

3.4.2 GROUNDING CONNECTION ............................................................................................. 19

3.4.3 LI-ION BATTERY CONNECTION ....................................................................................... 19

3.4.4 RF CONNECTION ............................................................................................................... 19

3.4.5 EXTERNAL ALARM CONNECTION ................................................................................... 19

3.4.6 CONNECTION BETWEEN PC AND EQUIPMENT ............................................................ 20

3.4.7 EXT ALARM CONNCETION ............................................................................................... 20

4 COMMISSIONING ............................................................................................................... 21

4.1 PRE-COMMISSIONING TASKS ......................................................................................... 21

4.2 MCU LED INDICATORS ..................................................................................................... 21

4.3 COMMISSIONING PROCEDURES .................................................................................... 22

5 OMT ..................................................................................................................................... 24

5.1 LOCAL AND REMOTE CONNECTIONS TO OMT ............................................................. 24

5.2 OMT CONFIGURATION ..................................................................................................... 26

5.3 RF PARAMETER ................................................................................................................ 26

5.3.1 SWITCH ............................................................................................................................... 27

5.3.2 ATT ...................................................................................................................................... 27

5.3.3 ALARM THRESHOLD ......................................................................................................... 27

5.3.4 ALARM INFORMATION ...................................................................................................... 28

5.4 PROPERTIES INFO. ........................................................................................................... 29

5.4.1 EQUIPMENT ID ................................................................................................................... 29

5.4.2 COMM. CONFIG ................................................................................................................. 29

6 MAINTENANCE .................................................................................................................. 31

7 APPENDICES...................................................................................................................... 32

7.1 APPENDIX A: TOOLS FOR INSTALLATION AND MAINTENANCE ................................. 32

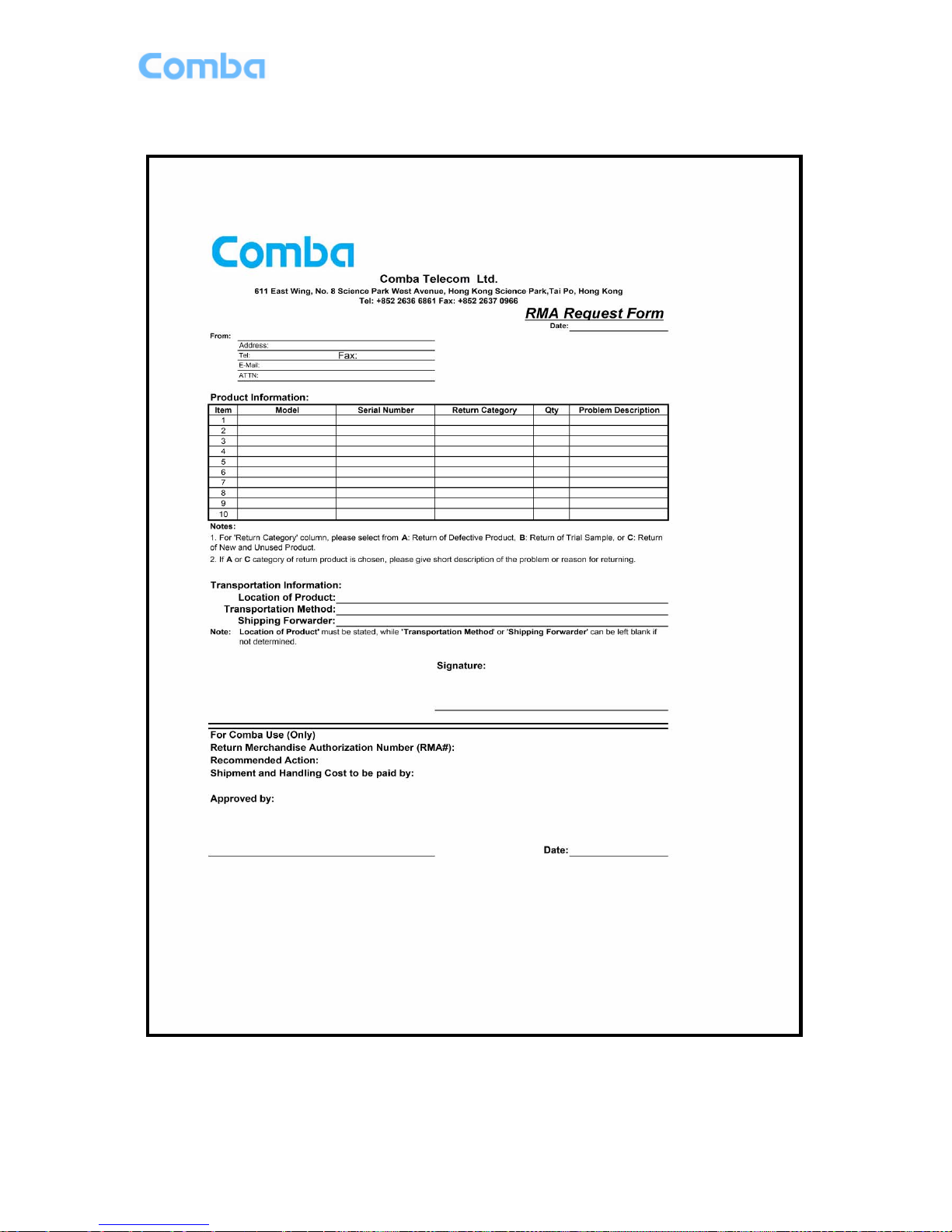

7.2 APPENDIX B: RMA (RETURN MATERIAL AUTHORIZATION) FORM ............................. 33

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 4

0.2 INDEX TO FIGURES AND TABLES

Figure 1: Views of RX-2620 Enclosure .........................................................................................................9

Figure 2: RX-2620 System Diagram .......................................................................................................... 10

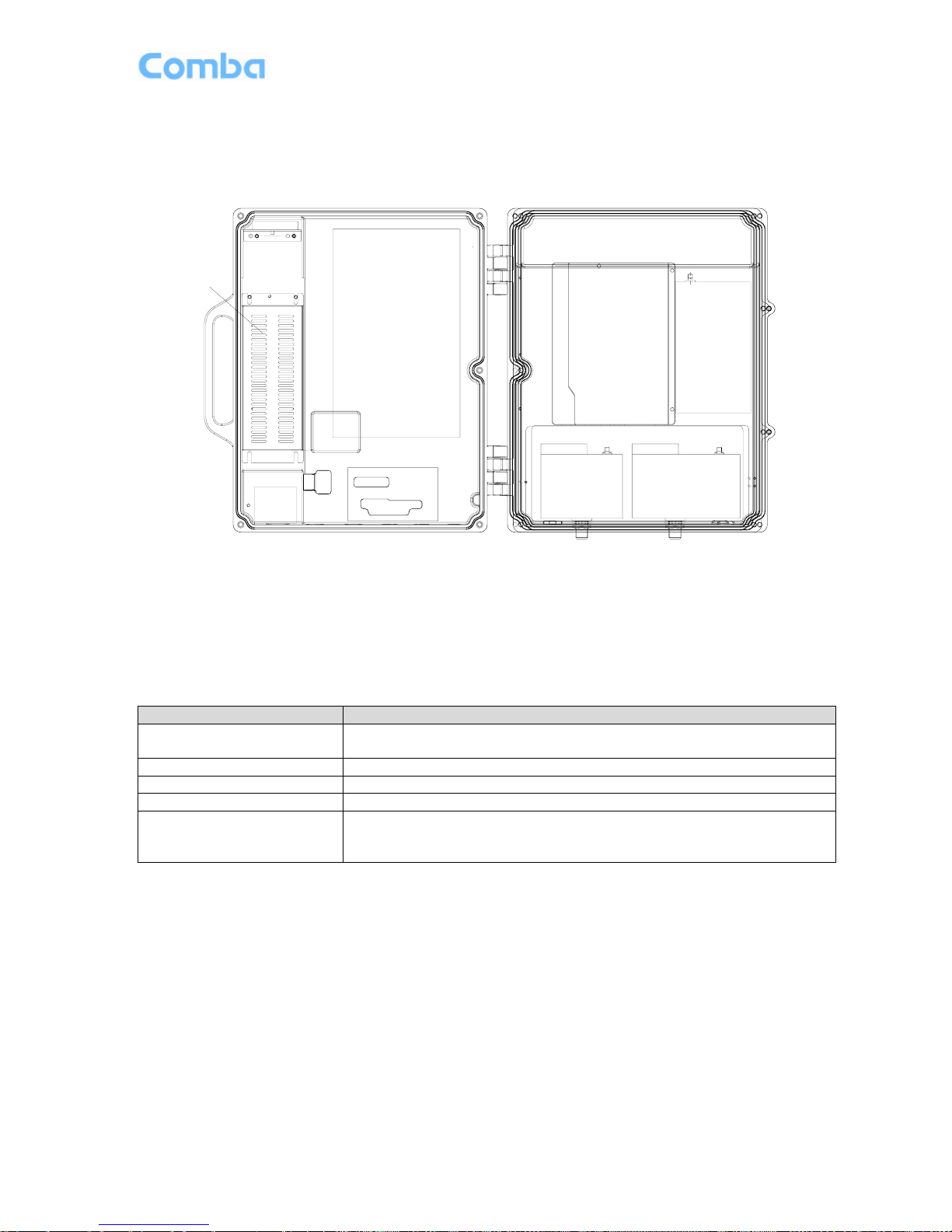

Figure 3: RX-2620 Internal Layout ............................................................................................................. 11

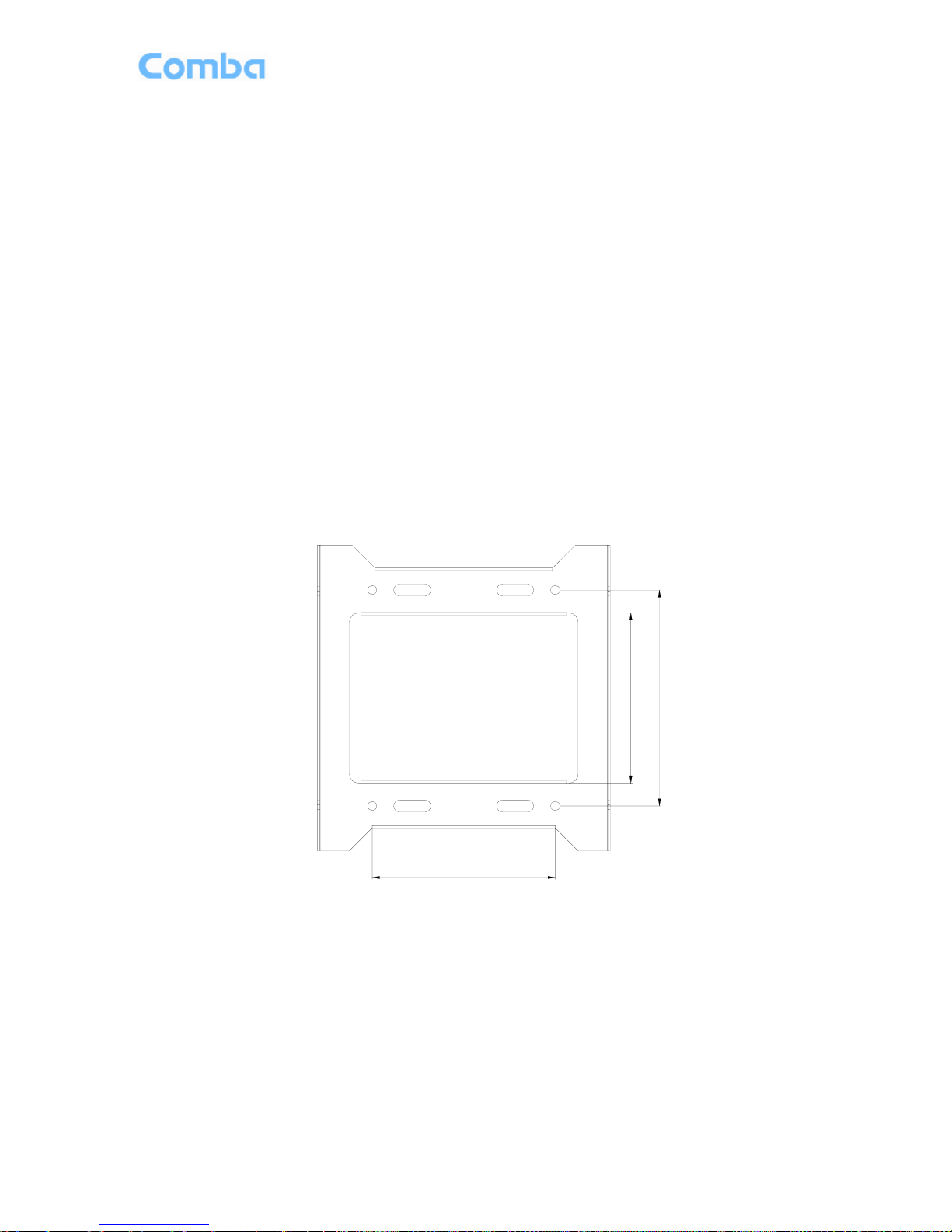

Figure 4: Mounting Rack Overview ............................................................................................................ 15

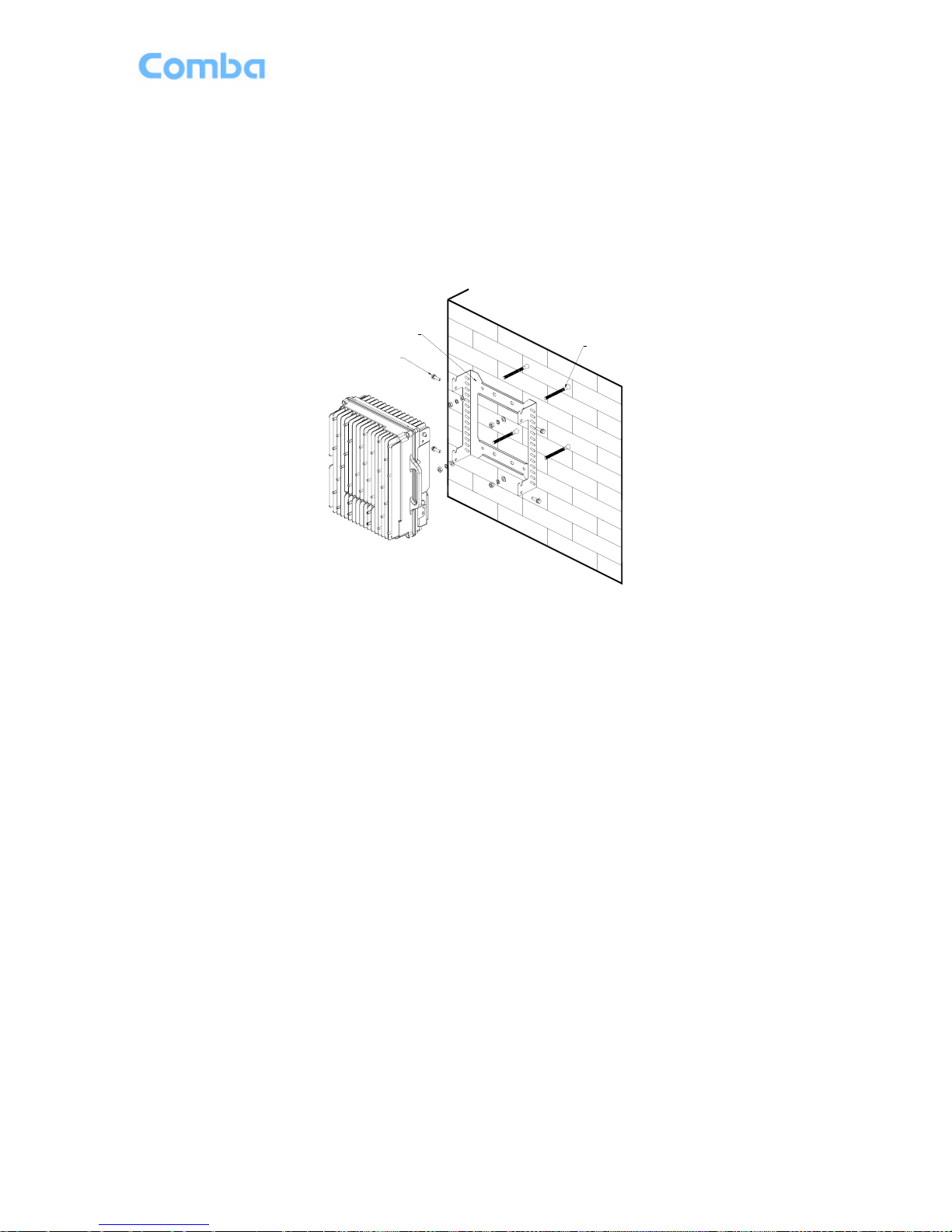

Figure 5: Wall Mounting ............................................................................................................................. 16

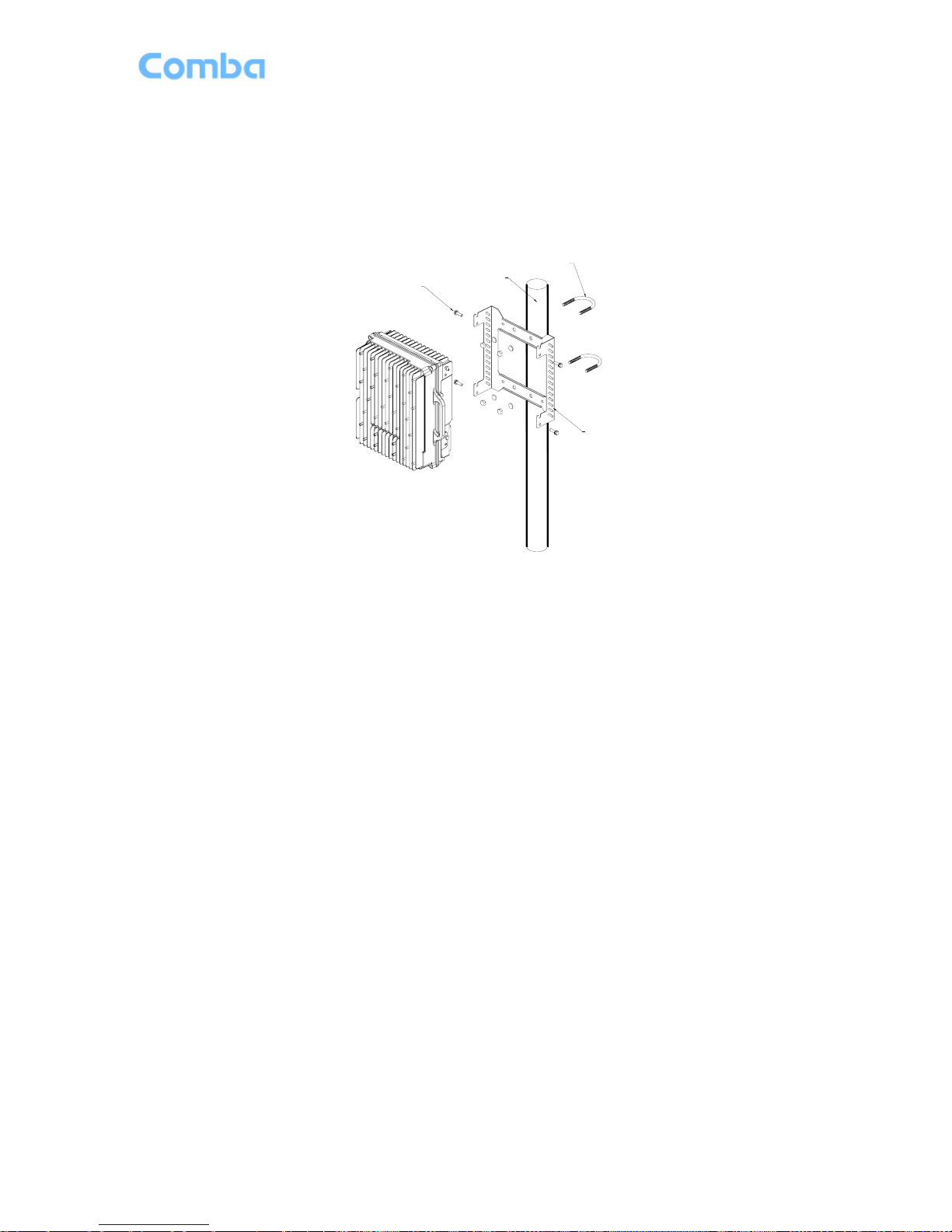

Figure 6: Pole Mounting Overview ............................................................................................................. 17

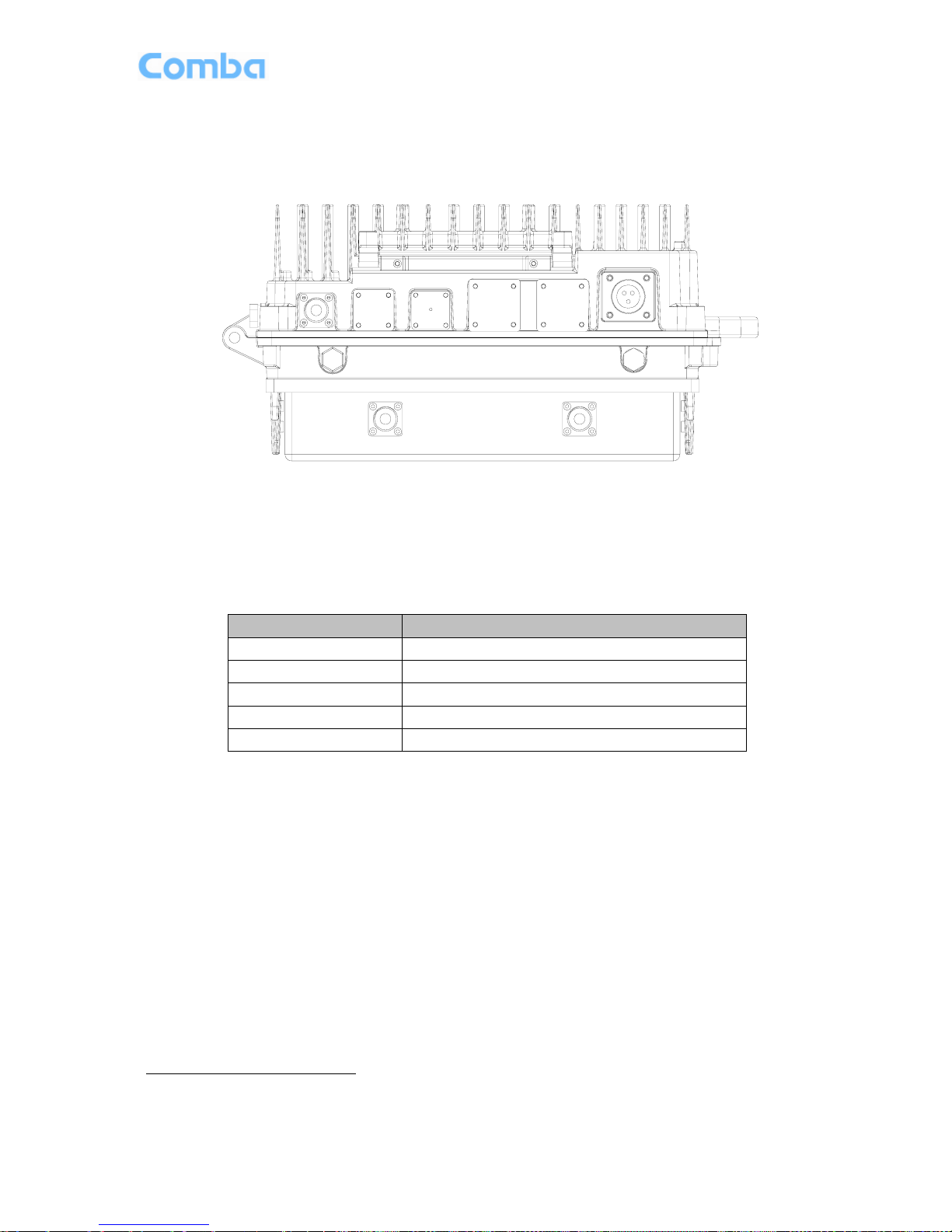

Figure 7: Bottom Panel Interface Diagram ................................................................................................ 18

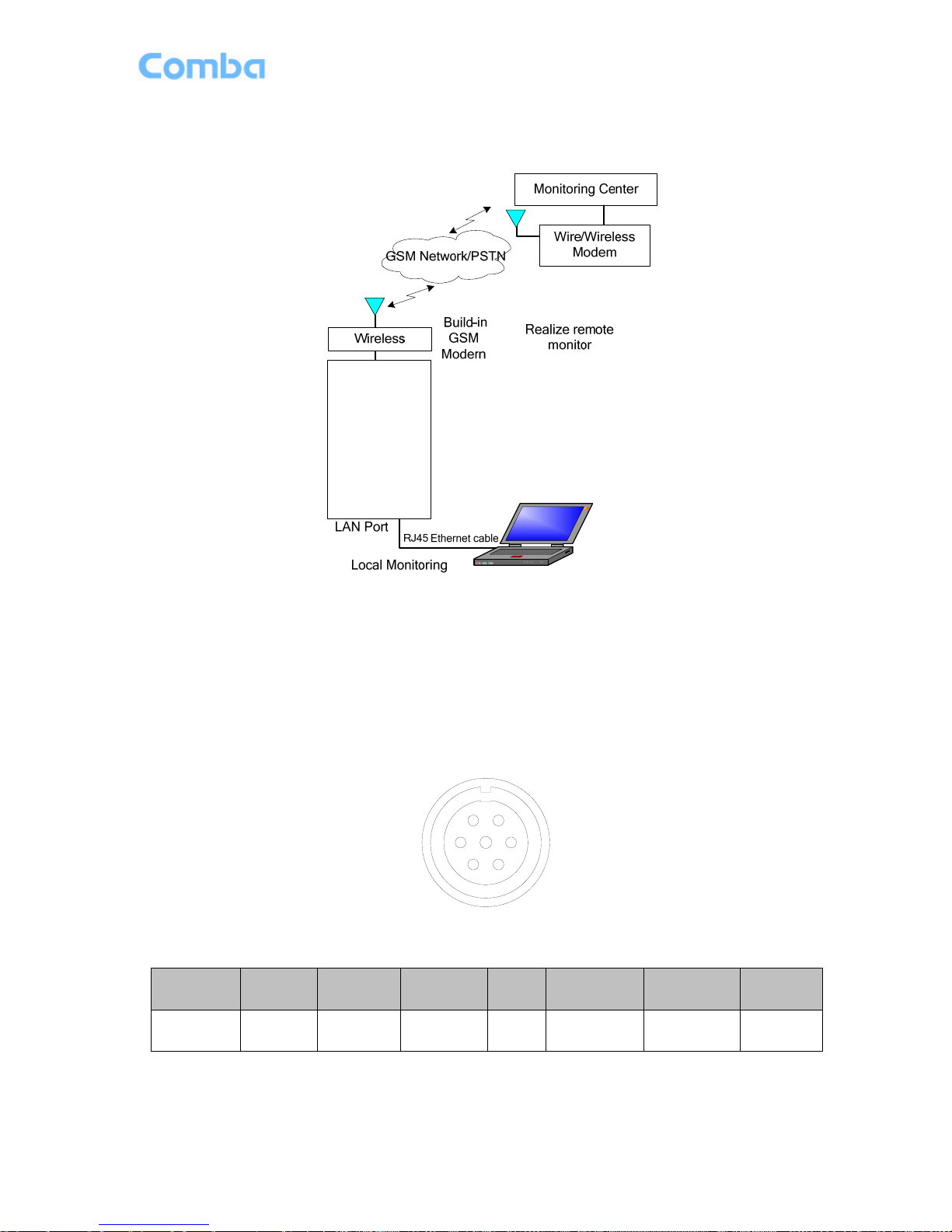

Figure 8: The Connection between Equipment and PC ............................................................................ 20

Figure 9: Pins Allocation for “EXT_ALM” Port ........................................................................................... 20

Figure 10: LEDs ......................................................................................................................................... 21

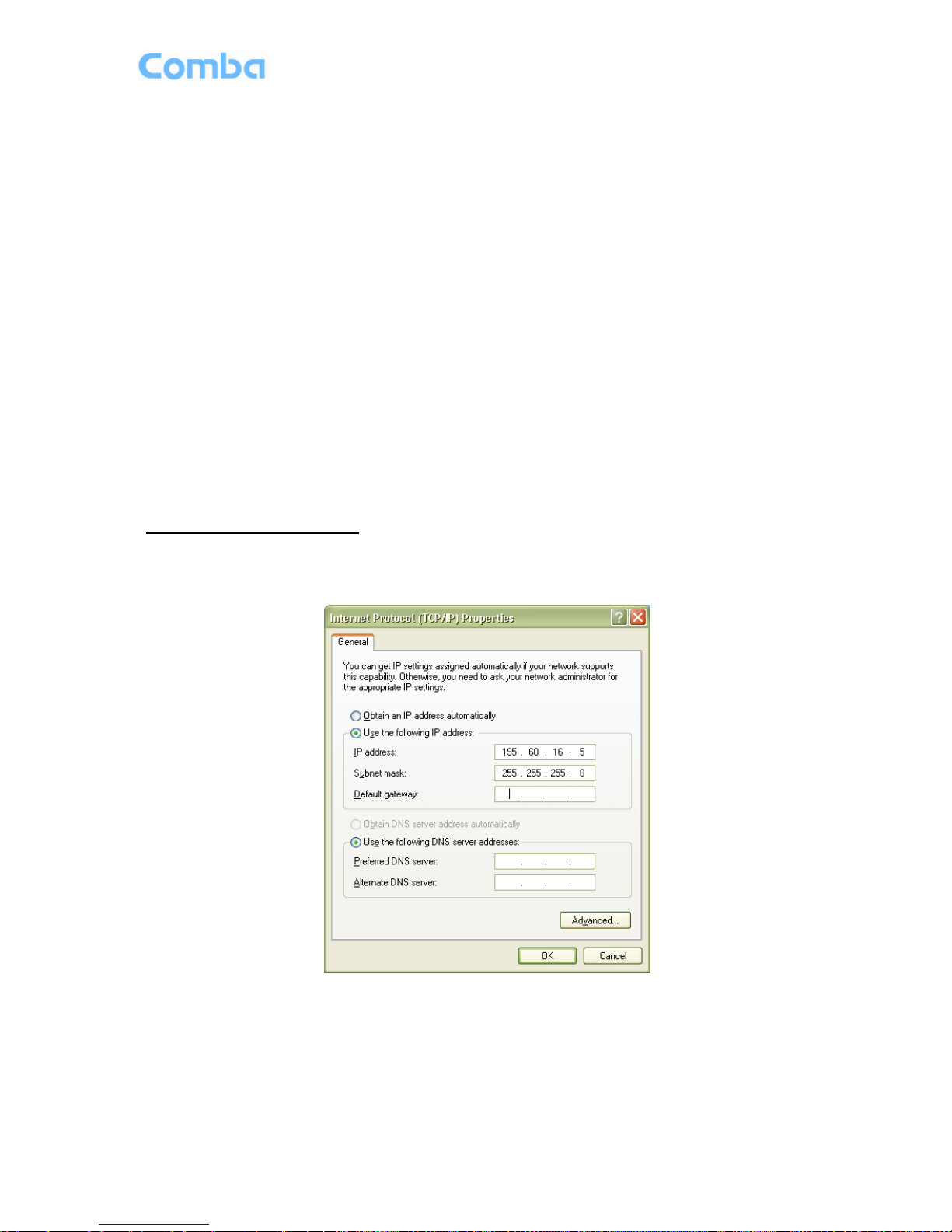

Figure 11: PC Protocol Setting .................................................................................................................. 24

Figure 12: Connection Type 1 .................................................................................................................... 25

Figure 13: Connection Type 2 .................................................................................................................... 25

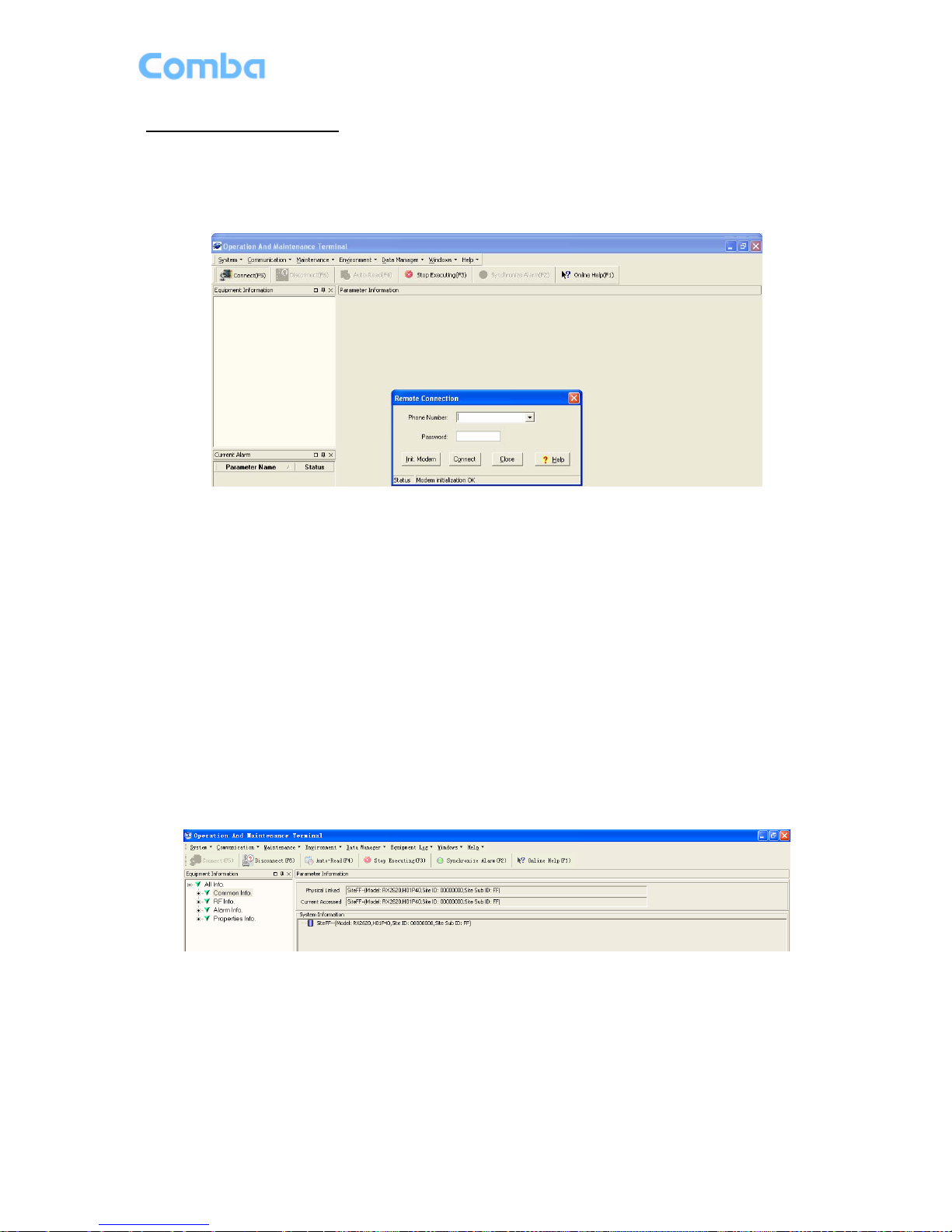

Figure 14: Remote Connection .................................................................................................................. 26

Figure 15: OMT Main Window ................................................................................................................... 26

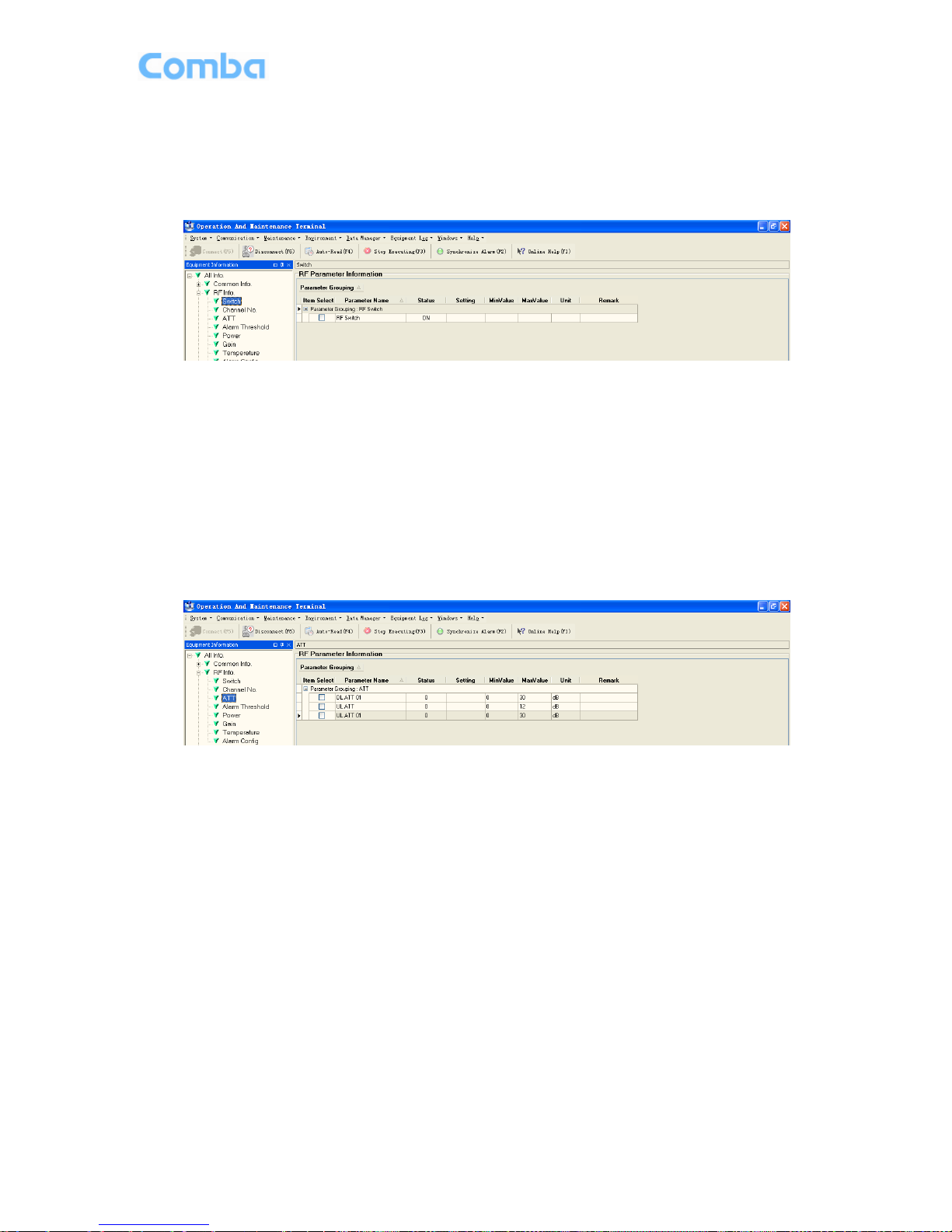

Figure 16: Switch ....................................................................................................................................... 27

Figure 17: ATT ........................................................................................................................................... 27

Figure 18: Alarm Threshold ....................................................................................................................... 28

Figure 19: Master Alarm ............................................................................................................................ 28

Figure 20: Channel Alarm .......................................................................................................................... 28

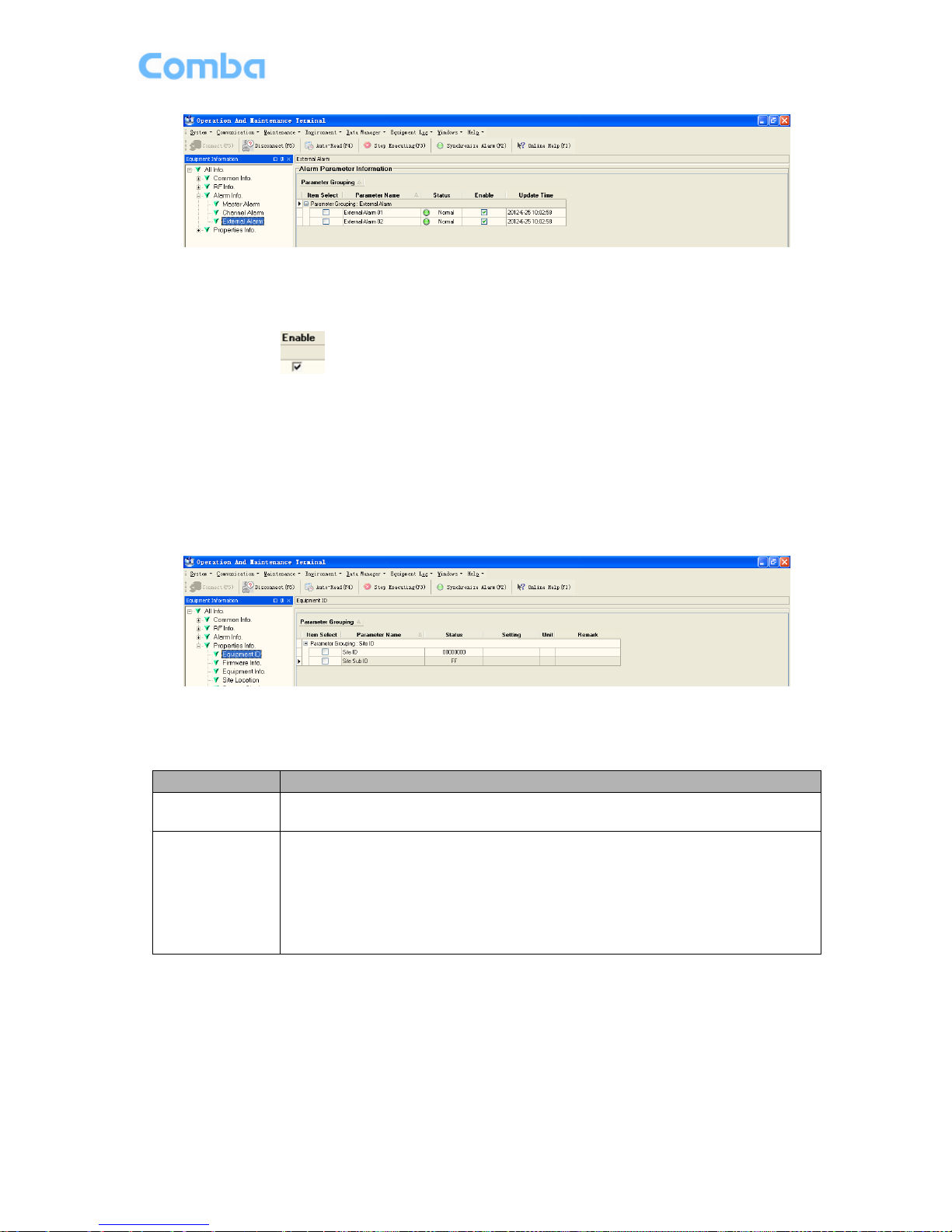

Figure 21: External Alarm .......................................................................................................................... 29

Figure 22: Equipment ID ............................................................................................................................ 29

Figure 23: Com. Config. ............................................................................................................................. 30

Table 1: Equipment Constitution ................................................................................................................ 11

Table 2: Equipment KOP ........................................................................................................................... 12

Table 3: Cable Connection ........................................................................................................................ 14

Table 4: RX-2620 Connectors ................................................................................................................... 18

Table 5: Pin Definition of “EXT_ALM” Port ................................................................................................ 20

Table 6: LED Indicators ............................................................................................................................. 21

Table 7: Commissioning ............................................................................................................................ 23

Table 8: IP Setting Quick Look-up Table ................................................................................................... 25

Table 9: Equipment ID ............................................................................................................................... 29

Table 10: Com. Config. .............................................................................................................................. 30

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 5

0.3 HISTORY

Change No. ENU Details Of Change

1 1-0-0 RX-2620 user manual first created in Aug 2012 and referred to its

Chinese manual RX-2620-1001YH.

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 6

0.4 GLOSSARY OF TERMS

ALC Automatic Level Control

ATT Attenuation

AFC Antenna Feedback Cancellation

BTS Base Transceiver Station

dB Decibel

dBm Decibels relative to 1 milliwatt

DL Downlink

DPX Duplexer

DT Donor Terminal

GSM Global Standard for Mobile Communication

Hz Hertz

ID Identification

LNA Low Noise Amplifier

MCU Main Control Unit

MHz Megahertz

MT Mobile Terminal

MTBF Mean Time Between Failures

NF Noise Figure

OMC Operation & Maintenance Center

OMT Operation & Maintenance Terminal

PA Power Amplifier

PLL Phase Locked Loop

PSU Power Supply Unit

RF Radio Frequency

RX Receive

SMA Sub-Miniature “A” Connector

SIU Slide-In-Unit

TX Transmit

UL Uplink

VAC Volts Alternating Current

VSWR Voltage Standing Wave Ratio

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 7

0.5 SAFETY NOTICES AND ADMONISHMENTS

This document contains safety notices in accordance with appropriate standards. In the interests of
conformity with the territory standards for the country concerned, the equivalent territorial admonishments
are also shown.

Any installation, adjustment, maintenance and repair of the equipment must only be carried out by trained,
authorized personnel. At all times, personnel must comply with any safety notices and instructions.

Specific hazards are indicated by symbol labels on or near the affected parts of the equipment. The
labels conform to international standards, are triangular in shape, and are coloured black on a yellow
background. An informative text label may accompany the symbol label.

Hazard labeling is supplemented by safety notices in the appropriate equipment manual. These notices
contain additional information on the nature of the hazard and may also specify precautions.

Warning:

These draw the attention of personnel to hazards that may cause death or injury to the operator or others.
Examples of use are cases of high voltage, laser emission, toxic substances, point of high temperature,
etc.

Alert:

These draw the attention of personnel to hazards that may cause damage to the equipment. An example
of use is the case of static electricity hazard.

Caution notices may also be used in the handbook to draw attention to matters that do not constitute a
risk of causing damage to the equipment but where there is a possibility of seriously impairing its
performance, e.g. by mishandling or gross maladjustment. Warnings and Cautions within the main text
do not incorporate labels and may be in shortened form.

CAUTION: danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type.

End of Section

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 8

1 GENERAL INFORMATION

RX-2620 LTE Wireless Repeater (hereinafter called “RX-2620”) is designed for 2600MHz network. RX­2620 adopts broadband digital processing technology and instant broadband reaches 60MHz.

Characteristics of RX-2620 are as follows:

• It supports FDD-LTE 2600MHz system.

• Digital channel bandwidth is settable with 10MHz, 15MHz and 20MHz.

• It satisfies the bandwidth selection by setting upper and lower band edge working channel.

• High out-of-band suppression can effectively suppress the out-of-band interference signal.

• Allows DL VSWR alarm, DL input field intensity detect and output power detect functions, easy for

installation.

• Automatic gain temperature compensation function which can maintain regular operation among
working temperature.

• It supports the remote download of monitoring master unit software.

• Local Operation and Maintenance Terminal (OMT): operating status and parameters can be set or

monitored by OMT PC locally. It can also check the downlink power and download the latest OMT
version.

• Operation Maintenance Center (OMC): system working parameters and communication configuration
can be set or inquired remotely through the build-in GSM modem. If alarm is generated, the
equipment will dial up to OMC automatically in the mode of SMS or GPRS.

• Build-in Li-ion battery ensures that alarm information can automatically report to OMC in case of
equipment power failure.

• Designed for all weather outdoor application – waterproof, damp-proof and Omni-sealed.

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 9

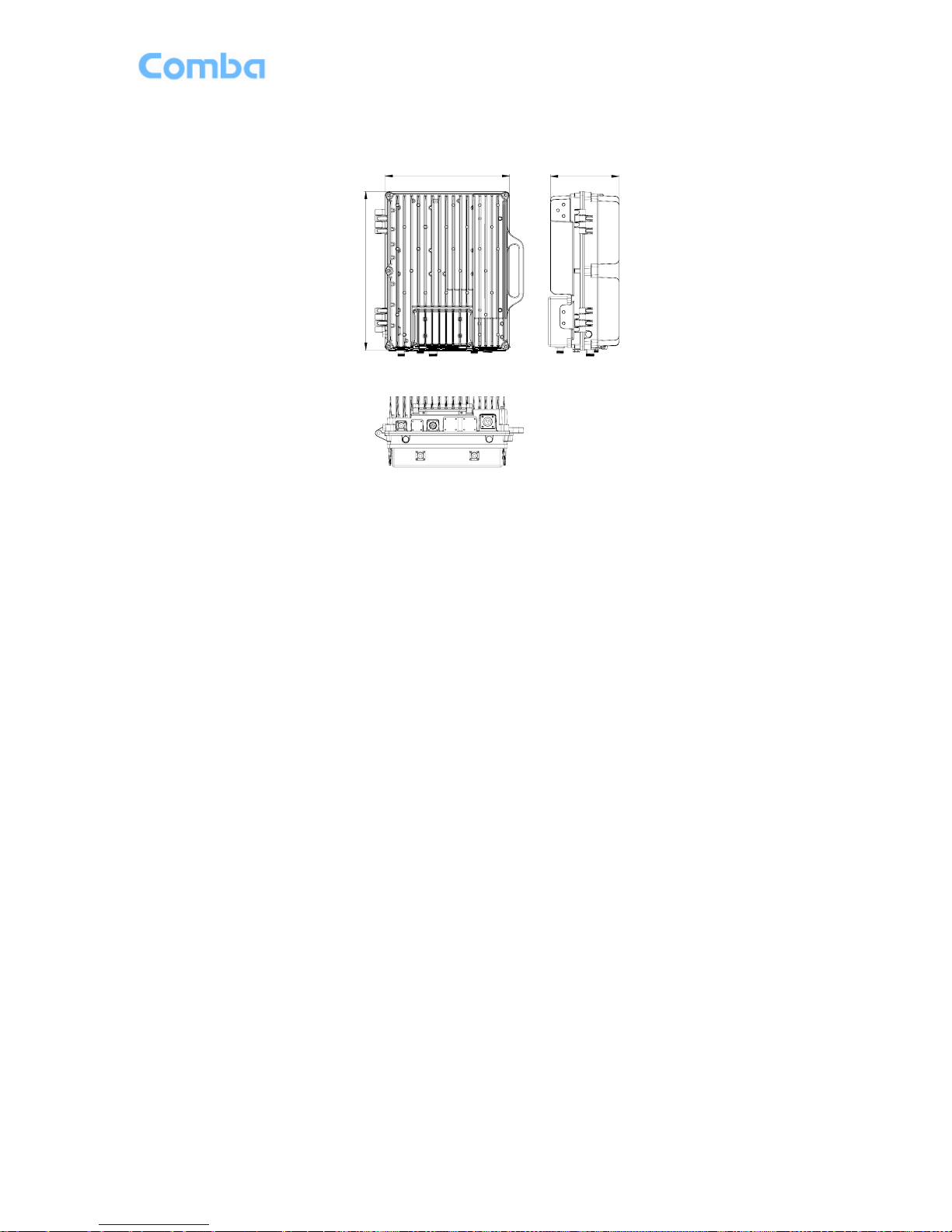

The following figure shows the enclosure of the RX-2620.

420

330

182

Figure 1: Views of RX-2620 Enclosure

End of Section

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 10

2 EQUIPMENT DESCRIPTION

2.1 SYSTEM DIAGRAM

LNA1

LNA2

Mobile

Ant

Donor

Ant

Mobile

Power

Supply

Alarm

Indicator

Main Control Unit

External
Power

OMT

Li-ion
BATT

Modem

DT

MT

OMT

Computer with

Data card

Wireless

Modem

OMC

PA1

PA2

DL Frequency

Selective Module

UL Frequency

Selective Module

BTS

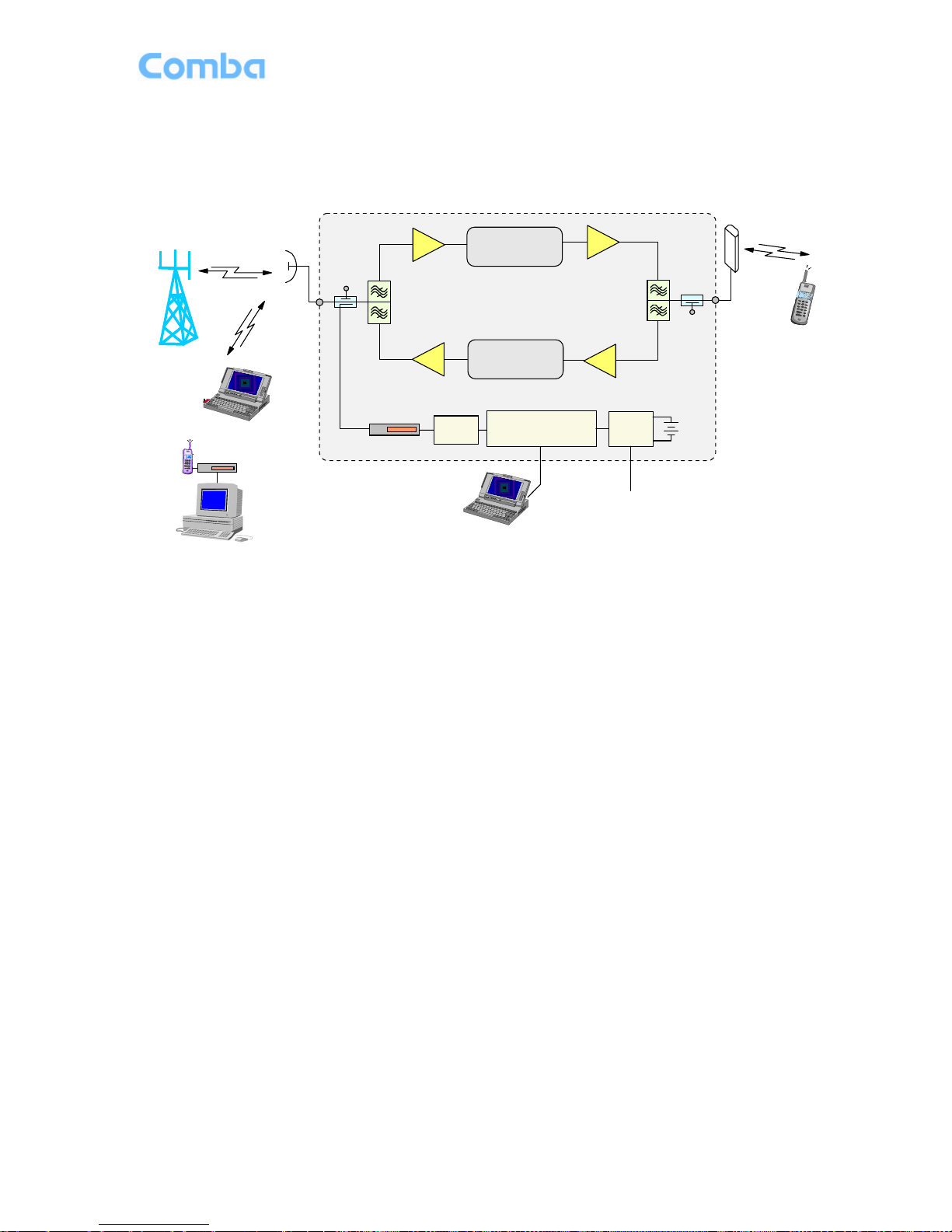

Figure 2: RX-2620 System Diagram

As shown in the above figure, the downlink BS signals go through DT port to the system and then to
downlink by duplexer separation. The DL signals will go through LNA then to digital RF monitoring
module for digital filtering and amplifying. After amplification, the signals are transmitted at the MT port to
the service antenna.

On the UL, the signals transmitted by the mobile go through MT integration duplexer and digital RF
monitoring module then to uplink PA to power amplify and filter via duplexer, finally get back to BS by
donor antenna.

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 11

2.2 EQUIPMENT LAYOUT

The following figure shows RX-2620 internal layout.

Surge
Arrestor

Integrated
Module

PSU

DL PA

UL PA

DT Duplexer

MT Duplexer

Figure 3: RX-2620 Internal Layout

2.3 EQUIPMENT CONSTITUTION

RX-2620 consists of the modules described as below:

Table 1: Equipment Constitution

Identifier Functional Description

Power Supply Unit (PSU)

Converts the input voltage into a stable DC to provide power for the
internal functional modules and to charge the internal Li-ion battery.

Power Amplifier (PA) Amplifies the UL/DL signal.
Surge Arrestor Is assumed that the antenna system will have ample lightning protection.
Integrated Module Consists of digital processing unit, RF unit and monitoring unit.
Duplexer Realizes UL/DL TX/RX isolation, build-in DL/UL LNA is used to amplify

the DL/UL low noise signal. Build-in VSWR module allows DL output
antenna port VSWR detect.

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 12

2.4 KIT OF PARTS

For this system, the following are shipped:

Table 2: Equipment KOP

Product Identifier Description Quantity

RX-2620 manual This equipment manual on CD-Rom 1

CPC Connector X14J7P 1

Ethernet Cable

2m

1

Modem Antenna

XD-WCDMA

1

Masonry Bolt M8x80 4
U Bolt (with 2 nuts, flat washer,

spring washer per bolt)

M10x85x110 2

Power Supply Cable n/a 1
T-shape Pentagon Screw

Wrench

5mm 1

OMT V5.0 or above OMT software on CD-Rom 1

Factory Test Report N/A 1

End of Section

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 13

3 INSTALLATION

3.1 WARNINGS AND ALERTS

Radio Frequency Energies

There may be situations, particularly for workplace environments near high-powered RF sources, where
recommended limits for safe exposure of human beings to RF energy could be exceeded. In such cases,
restrictive measures or actions may be necessary to ensure the safe use of RF energy.

High Voltage

The equipment has been designed and constructed to prevent, as far as reasonably, practicable danger.
Any work activity on or near equipment involving installation, operation or maintenance must be, as far as
reasonably, free from danger.

Where there is a risk of damage to electrical systems involving adverse weather, extreme temperatures,
wet, corrosive or dirty conditions, flammable or explosive atmospheres, the system must be suitably
installed to prevent danger.

Protective Earthing

Equipment provided for the purpose of protecting individuals from electrical risk must be suitable for the
purpose and properly maintained and used.

Handling Precautions

This covers a range of activities including lifting, lowering, pushing, pulling, carrying, moving, holding or
restraining an object, animal or person. It also covers activities that require the use of force or effort, such
as pulling a lever, or operating power tools.

Electrostatic Discharge (ESD)

Observe standard precautions for handling ESD-sensitive devices. Assume that all solid-state electronic
devices are ESD-sensitive. Ensure the use of a grounded wrist strap or equivalent while working with
ESD-sensitive devices. Transport, store, and handle ESD-sensitive devices in static-safe environments.

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 14

3.2 SITE PLANNING CONSIDERATIONS

Site Considerations

The site considerations are listed below:

• The distance between the donor antenna and the BS should satisfy line of sight requirements for
maximum coverage area. The received spots accept field intensity at least -70dBm.

• Make sure that TX and RX antennas isolation should more than the max gain that of -15dB.

• Supply power near by the BS and easily access to the grounding spot.

Installation Location

Mounting surface shall be capable of supporting the weight of the equipment.

In order to avoid electromagnetic interference, a proper Mounting location must be selected to minimize
interference from electromagnetic sources such as large electrical equipment.

Chassis output interface should install higher 1.2m than the ground.

Environmental

Humidity has an adverse effect on the reliability of the equipment. It is recommended to install the
equipment in locations having stable temperature and unrestricted air-flow which should under the
temperature that of -33

o

C ~+55oC and relative humidity of maximal 95%.

The installation location for the product should be well ventilated. The equipment has been designed to
operate at the temperature range and humidity level as stated in the product specifications in the
datasheet.

Direct sun light exposure to the equipment should be avoided. Provide additional shelter if necessary.

Powering

The power supply unit (PSU) provides power to all modules within the equipment. Depending on the
product variant, it is recommended that the PSU operates on a dedicated circuit breaker or fused circuit.

Grounding Requirement

Verify that the equipment has been well grounded. This includes antennas and all cables connected to
the system. Ensure lightning protection for the antennas is properly grounded.

Cable Routing

Depending on equipment configuration, a variety of types of cables are required. Where applicable,
ensure cables are properly routed and secured so that they are not damaged.

Cable requirements are as follow:

Table 3: Cable Connection

able Connection Description

Coaxial Cable N to N Connect BS cable to DT port
Coaxial Cable N to N Connect serve antenna cable

to MT port

Local Commissioning Cable RJ45 Connect with PC to realize local

commissioning

Manual Handling

During transportation and installation, take necessary handling precautions to avoid potential physical
injury to the installation personnel and the equipment.

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 15

3.3 INSTALLATION PROCEDURES

3.3.1 GOODS INWARDS INSPECTION

z Verify the number of packages received against the packing list.
z Check all packages for external damage; report any external damage to the shipping courier. If there

is damage, a shipping agent should be present before unpacking and inspecting the contents
because damage caused during transit is the responsibility of the agent.

z Open and check each package against the packing list. If any items are missing, please contact

Comba.

z Do not remove items from antistatic packing until ready for installation. If damage is discovered at the

time of installation, contact the shipping agent.

3.3.2 TOOLS

See Appendix A for a full list of the recommended tools required for installation and maintenance.

3.3.3 PREPARATION

z Wall mounting with the masonry bolts supplied, which make use of the outer holes.

z Pole Mounting with the clamp kit supplied, which make use of the inner holes.

236

186

200

Figure 4: Mounting Rack Overview

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 16

3.3.4 WALL MOUNTING

z Drill holes on the wall by using the position of the four round holes on the Mounting rack as a guide.

z Insert the masonry bolts through the round holes and tighten them to take the weight of the entire

enclosure.

z Hook the enclosure up onto the mounting rack and align the hole positions to that of the mounting

rack, then installed the hex socket bolt to complete the installation.

M8 Masonry Bolt

Mounting Rack

M8 Hex Socket Bolt

Figure 5: Wall Mounting

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 17

3.3.5 POLE MOUNTING OF MOUNTING RACK

z The equipment can be mounted on a pole of about 60~75mm in diameter.

z Insert and tighten the two U bolts to secure the mounting rack onto the pole.

z The remaining installation to secure the enclosure to the mounting rack is identical to wall mounting.

U Bolt

Pole

Mounting Rack

M8 Hex Socket Bolt

Figure 6: Pole Mounting Overview

3.3.6 DRIP-LOOP

Comba recommends that every horizontal cable entry to the equipment forms a 'U' before its entry to the
equipment. Water on the cable will drip down at the bottom of the loop and will not accumulate at the
equipment connectors.

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 18

3.4 EQUIPMENT CONNECTORS

3.4.1 CONNECTORS

.

EXT_ALM

MODEM

POWER

DT

MT

Figure 7: Bottom Panel Interface Diagram

The connection interfaces are shown below:

Table 4: RX-2620 Connectors

Connector Description

MT N-female connector, for external mobile antenna

DT N-female connector, for external donor antenna

EXT_ALM 7-pin CPC connector for external alarm interface.

POWER1 Power supply interface

MODEM ANT SMA-F connector connects with external antenna.

1

The voltage identification is a variant due to electricity system diversity of global regions. The power cable gland

might be identified for AC 220V, AC 110V, AC 220V/110V, DC -48V, or DC +24V respectively. Please refer to
specific product or contact local sales if any doubt.

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 19

3.4.2 GROUNDING CONNECTION

Ground Connection

To ensure safe operation of the product, a ground (earth) connection is required. For single phase AC
power source, the product must be grounded by connecting the “earth wire” of the power cord to the
ground terminal of the AC supply.

3.4.3 LI-ION BATTERY CONNECTION

Li-ion battery which located in the side panel of enclosure is provided with this system to ensure power is
supplied to the system integrated module and MCU and connect the connectors as illustrated below after
system commissioning to ensure the alarm message could be sent to OMC effectively in case of mains
power failure.

Caution: Be careful of the risk of explosion if battery is replaced by an incorrect type. Dispose of used
batteries according to the instructions.

3.4.4 RF CONNECTION

z Donor antenna connection: Connect the cable form donor antenna to DT port
z Mobile antenna connection: Connect the cable form mobile antenna to MT port

3.4.5 EXTERNAL ALARM CONNECTION

The external alarm port is used to connect with other external equipment and alarm ports. Connection is
not must in case there is no external alarm port.

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 20

3.4.6 CONNECTION BETWEEN PC AND EQUIPMENT

The below shows the connection:

Figure 8: The Connection between Equipment and PC

Note that when connect the RJ45 Ethernet cable with PC, the equipment should be power off and Li-ion
battery output connector is disconnected.

3.4.7 EXT ALARM CONNCETION

The EXT ALARM port is a 7-pin CPC connector. The following figure and table show the pin allocation
and definition. Pin numbering are shown looking-into the connector on the enclosure.

21

67

3

5

4

Figure 9: Pins Allocation for “EXT_ALM” Port

Table 5: Pin Definition of “EXT_ALM” Port

Pin

number

1 2 3 4 5 6 7

Alarm

definition

EXT.

Alarm 1

EXT.

Alarm 2

Reserved GND Reserved Reserved Reserved

End of Section

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 21

4 COMMISSIONING

4.1 PRE-COMMISSIONING TASKS

After equipment installation, perform the following steps before equipment powering and commissioning,
check that the expected voltage, current, and power levels do not violate any ratings. Double check all
connections including ground before applying power. Do not manipulate circuits or make changes when
power is applied:

• Visually inspect the power connection within the equipment. Ensure that the power cable is correctly
and securely connected, including grounding wire, RF cable and optical cable.

• Check grounding connection and verify that the ground resistance is less than 5Ω.

• Connect the equipment to the PC installed with OMT software.

• Check antenna system return loss which working frequency band return loss should less than -14dB

(VSWR < 1.5)

• The online commissioning can be commenced with following the commissioning steps.

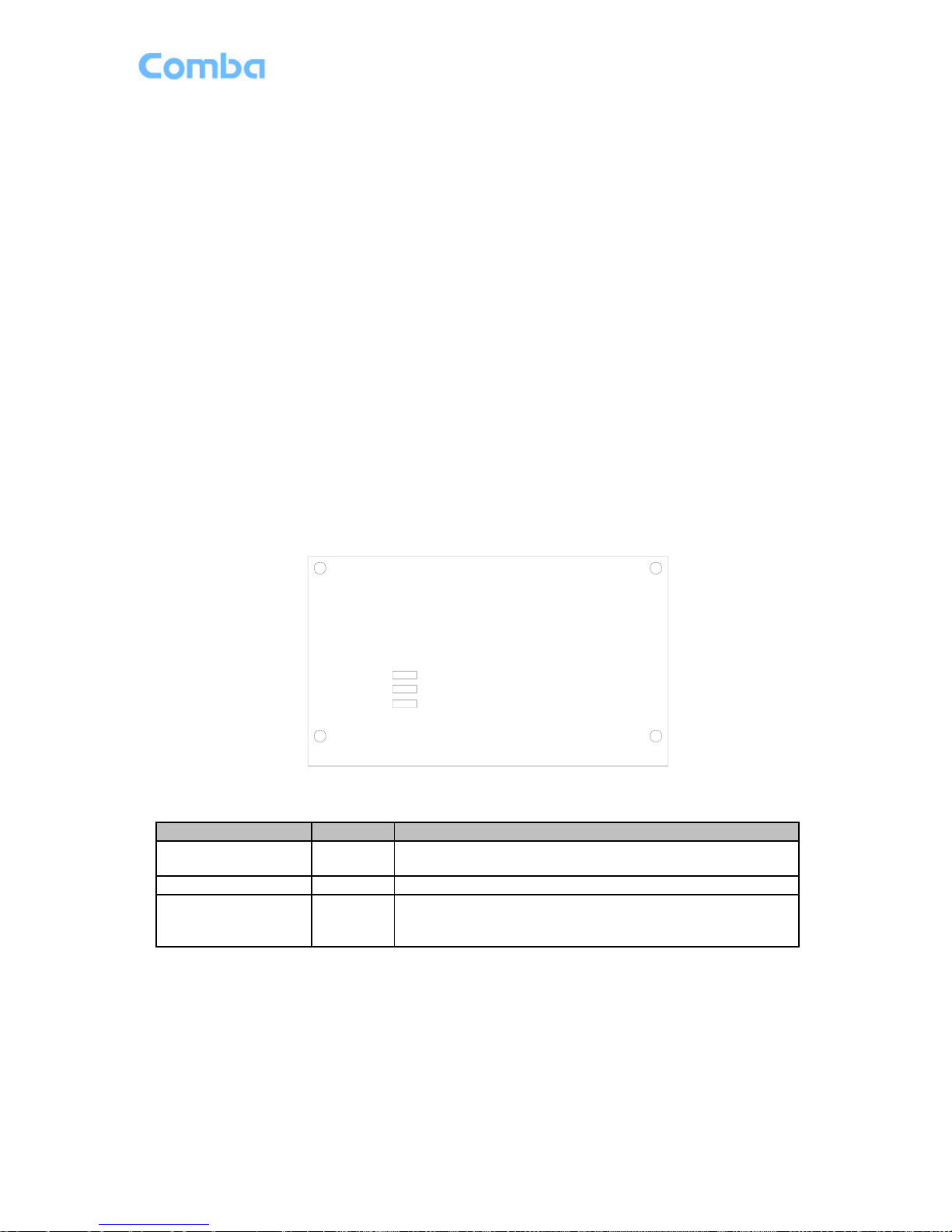

4.2 MCU LED INDICATORS

Three diagnostic LEDs are located on integrated module; each indicates the status of a particular
function:

LED_ALARM

LED_MODEM

LED_RUN

Figure 10: LEDs

Table 6: LED Indicators

Identifier Colour Indication

LED_RUN Green

Operation indicator – Flashes once every second to
indicate normal system operation.

LED_ALARM Red Alarm indicator. ON = alarm; OFF = no alarm

LED_MODEM Red

Modem status indicator. Flashes during initiating, and go off
after that. If the indicator is continuous on then the initiating
fails.

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 22

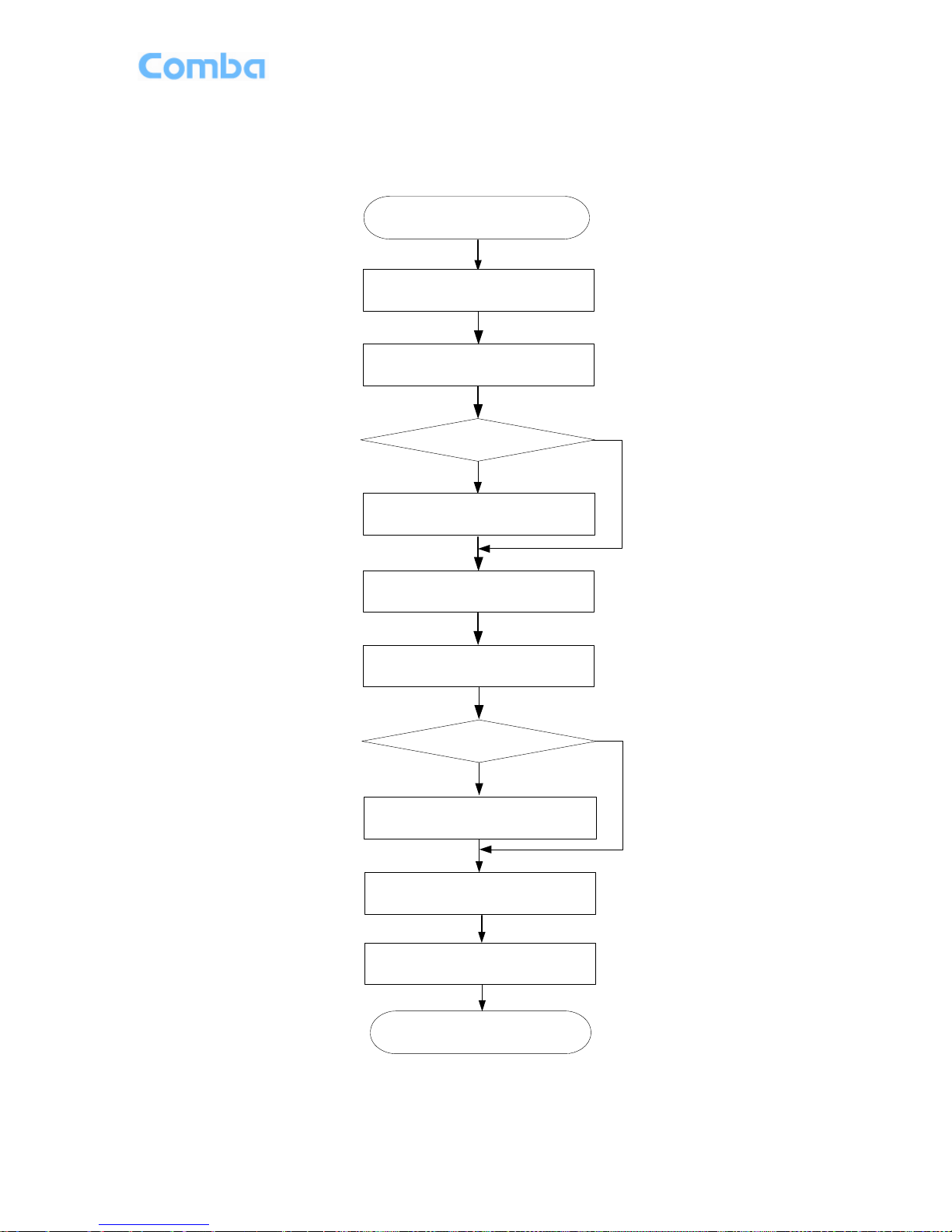

4.3 COMMISSIONING PROCEDURES

Perform the following procedures for system commissioning.

On line & Inquiry Status

External Alarm

Yes

Enable External Alarm and Configure

Voltage applied to EXT Alarm

Set Channel NO.

Adjust Downlink ATT and Measure

Downlink Output Power

Signal Input

Exit from OMT

Remote Connection to OMC

Yes

Configure [Equipment ID]

Comm. Comfig

Select Monitoring Parameters

No

No

Test-Call

Double Check No Interference to BTS and

Antenna Isolation Meets Requirements

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 23

Table 7: Commissioning

Commissioning Tasks Observation

1. On-line and Inquiry status

z Activate the OMT Main window. The system Initialization will

completed in about 2 minutes.

z Click “Connect” button to enquire the repeater’s status. Proceed if

there is no alarm; else check the failure and attend to the alarm.

2. Set Channel No.

z Keep RF switch ON and set the channel number of the repeater’s

operating frequency.

3. Adjust Downlink Output
Power and align donor
antenna

z Observe DL input power from measured value. Align the direction

of donor antenna until the DL input power reading is maximized.

z Note: To ensure that the measured DL input power is accurate, one

should set the DL ATT to “0” before performing the check.

4. Configure [Equipment ID] z Go to [Properties Info] and set [Equipment ID].

5. Comm. Config

z Enable the power supply by selecting “On” in [RF] -> [Switch]; go to

[Properties Info.] -> [Comm. Config.] and set OMC Phones No. , the
service No. of SMSC, Report Mode.

6. Select Monitoring
Parameters

z Select the equipment controlled and monitored parameters.
z If the external devices are connected to the equipment for

management, please enable in the [External Alarm Info.] Interface.

7. Test coverage area field
intensity and adjust
service antenna.

z Use test-handset to verify field intensity within the coverage area. If

needed, realign the service antenna to achieve the desired
coverage.

z Note: If during operation, the equipment gain could not be set to

maximum or the output power is not high enough due to insufficient
donor and service antennas isolation, then the antennas’ position
should be changed to increase isolation. If the output power is too
high and ALC is activated, then adjust the DL ATT to achieve
optimal DL Gain.

8. Verify UL gain and ensure
test call produces good
voice quality and there is
no interfering BTS

z Adjust UL gain and perform test calls. Typically, the UL gain is set

around 5dB less than DL gain. Perform test calls in the coverage
area while adjusting UL gain if required.

z Note: If the repeater is near the BTS and the test call performance

is poor, this may be due to UL noise interference to the BTS. Users
can calculate and determine if the repeater UL noise will interfere
with the BTS.

z Verify again that there is no unacceptable interference to BTS.

End of Section

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 24

5 OMT

The equipment can be monitored and controlled by OMT software running on a local PC with local
commissioning cable, remote connection to the equipment via wireless GSM / CDMA network.

z OMT software running on a local PC with serial connection to the equipment.
z OMC (optional) software with remote connection to the equipment over wireless GSM / CDMA

network.

This chapter is to introduce how to apply local and remote connection to OMT for the first installation, for
the detailed OMT information, please refer to OMT user manual and other references.

Notice: The OMC software with remote connection to the equipment over wireless GSM / CDMA network
is optional for customers.

5.1 LOCAL AND REMOTE CONNECTIONS TO OMT

After installing OMT software on the PC, connection to the equipment can be done locally or remotely.

Double click the OMT explorer icon, the OMT Explorer main screen window will appear.

Connection via Ethernet (UDP)

In order to access to equipment via Ethernet (UDP), the PC must be set with proper IP address and
subnet mask in advance.

Figure 11: PC Protocol Setting

The default IP address of repeater is 195.60.16.254. To access the repeater for the first time, the PC
must be set with proper IP address: 195.60.16.X (X=1~253), subnet mask: 255.255.255.0.

After the PC protocol has been properly set, please connect the RJ45 cable to PC and equipment
Ethernet port.

Choose “Connection via Ethernet (UDP)” and click “ONLINE”.

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 25

After database configuration is done successfully, the following window will pop up and select
[Connection via Ethernet (UDP)] for connection.

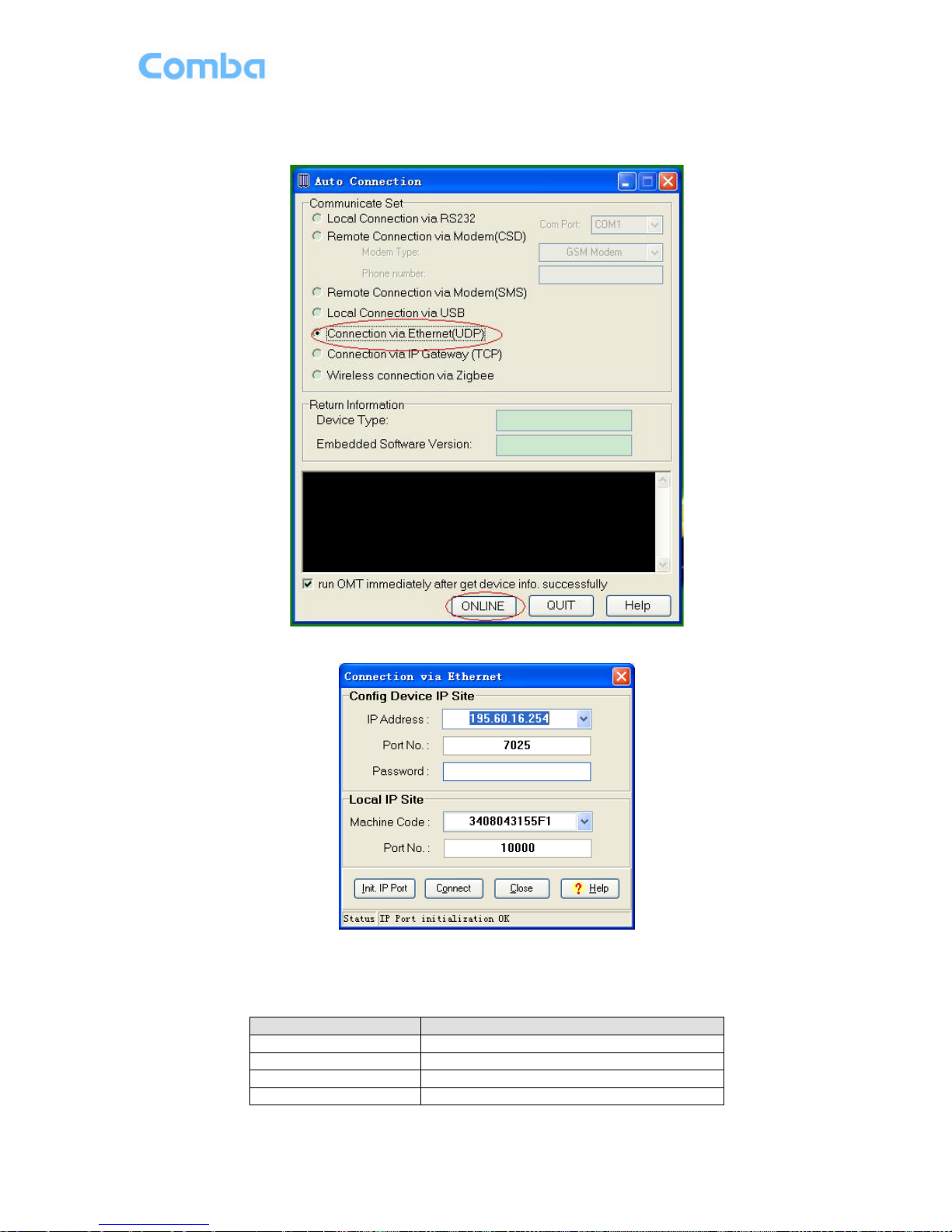

Figure 12: Connection Type 1

Figure 13: Connection Type 2

After clicking “ONLINE”, a window will pop up for user configuring IP Address and Port No.

Table 8: IP Setting Quick Look-up Table

Items Default Value
PC IP Address 195.60.16.X (X=1~253)
Device IP Site Port NO. 7025 (defaults)
PC Subnet Mask 255.255.255.0
Repeater IP Address 195.60.16.254

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 26

Remote Connection to OMT

If remote connection is needed, users can select [Remote connection via modem] in connection type
window. Select desired serial port and click “OK” in [Serial Port Configuration] window to go to OMT main
window and start modem initialization. Click “connect” and the [Remote Connection] window will show
up.

Figure 14: Remote Connection

Config: Enter the correct phone number and click “connect”, it will be connected remotely.

Notice: Please enable the SIM card to support Circuit Switch Data.

5.2 OMT CONFIGURATION

After entering the OMT main screen, click the “Connect” button on the toolbar, to connect the equipment
to the OMT. Successful connection will be indicated by a message “Online Ok” and equipment
parameters can be read and/or set.

Users can configure the parameters, and then offset the parameters according to desired coverage level
and interference to other BTS signals.

OMT parameters include: Common Information, RF Information, Alarm Information, and Properties
Information.

Figure 15: OMT Main Window

5.3 RF PARAMETER

It is recommended to configure the following RF parameters for the first installation.

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 27

5.3.1 SWITCH

Switch is to enable/disable power for internal modules. When user checks and sets non-RF parameters,
such as checking physical antenna connection, switching off will disable equipment power temporarily to
protect PA in operation.

Figure 16: Switch

Config:
Select the required state in setting columns of RF information window for RF switch, then press [Enter] or
[Config] button to finish the configuration operation.

5.3.2 ATT

ATT adjustment includes UL/DL ATT adjustment. The purpose of adjusting the ATT is to adjust system
gain.

DL/UL ATT 01setting range: 0~30dB

Figure 17: ATT

Config:
Select the required value in setting columns of RF information window for ATT, and press [Enter] or
[Config] button to finish the configuration operation.

5.3.3 ALARM THRESHOLD

Alarm Threshold includes Power threshold, Temperature threshold and VSWR threshold.
Users can set alarm threshold according to the specific situation. If the measured value is lower than the
threshold lower limit or more than the threshold upper limit, the appropriate alarm will be generated.

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 28

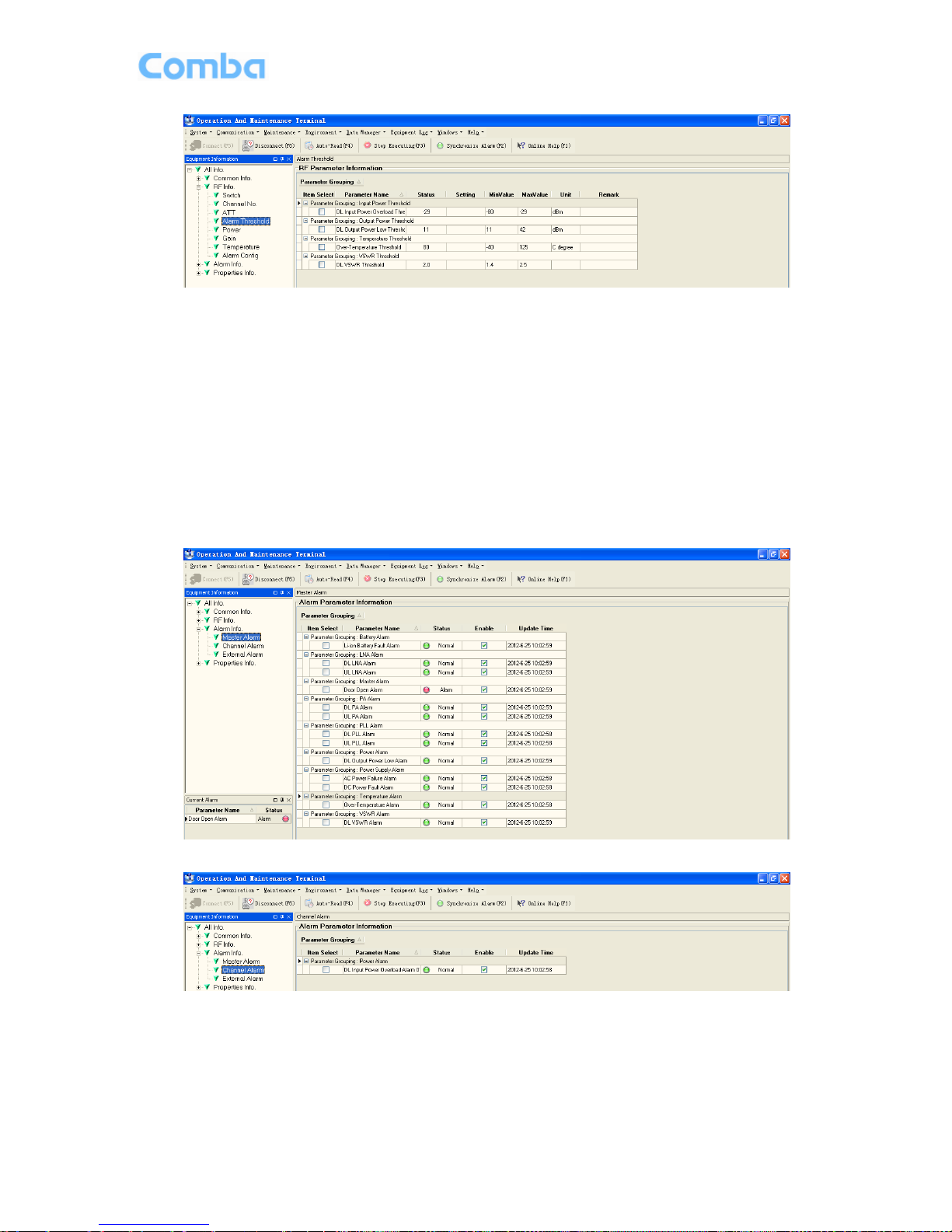

Figure 18: Alarm Threshold

Config:
Enter the required value in setting columns of RF information window for Alarm threshold, and press
[Enter] or [Config] button to finish the configuration operation.

5.3.4 ALARM INFORMATION

Alarm information operation is to select alarm parameters for monitoring. Alarm parameters include
Master Alarm, Channel Alarm, and External Alarm.

Click any tree node in [Alarm Info] group, [Alarm Parameter Information] window will appear in the right
side. The picture below shows the master alarm information.

Figure 19: Master Alarm

Figure 20: Channel Alarm

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 29

Figure 21: External Alarm

Config:
Tick the check box of [Item select] and [Enable] of the desired parameters and click [config] button to
finish configuration operation.

Notice: [Enable] box

is to enable the alarm monitoring for system. Only if users enable the alarm

by ticking the [Enable] box, the alarms can be monitored by the OMT/OMC.

5.4 PROPERTIES INFO.

5.4.1 EQUIPMENT ID

Equipment ID is to be configured after local commission has been completed, which includes Site ID, and
Site Sub ID.

Figure 22: Equipment ID

See the table below for configuration details of each parameter.

Table 9: Equipment ID

Item Description

Site ID Site ID is the unique equipment identification. It is a hexadecimal string of eight

characters in the range of [00000000~FFFFFFFF]. e.g. 00000000

Site Sub ID Site Sub ID is used for Master-Slave System. It is the unique identification of

each Master/ Slave Unit and is a hexadecimal string of two characters in the
range of [00~FF].
For the system located with single equipment, the Site Sub ID should be FF.
For Master-Slave system, the Site Sub ID for Master Unit is 00, and the Site Sub
ID for each Slave Unit is represented in the range of [01~FE] in ascending order.
e.g. Master Site ID: 00, Slave Site ID: 01

5.4.2 COMM. CONFIG

If the equipment is to be monitored by OMC software over wireless GSM / CDMA network, users must
finish the [Comm. Config.] in the next step.

The Comm. Config information requires to be manually entered by users after successful connection to
the equipment.

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 30

Figure 23: Com. Config.

See the table below for configuration details of each parameter.

Table 10: Com. Config.

Item Description

Checking Control Select “Enable” or “Disable” from the drop down menu as shown to enable

or disable the Phone Number Authentication feature. Refer to [Phone No.] in

details.

OMC Server IP Based on the current network conditions, users can enter the IP address

information of the equipment, which is connected to the OMT/OMC via

Ethernet. This connection via Ethernet is not available at this stage.

Phone No. This is designed for authentication purpose when remote connection via

modem is required. It is the phone number to dial the equipment. Only the

phone number pre-defined in this field, will it be allowed to dial the

equipment. It is required to manually enter the phone number. Up to 5 phone

numbers are allowed. The use of phone number authentication can avoid

unauthorized use of the OMT. In addition, it can prevent the equipment

receiving piles of spam short messages, thus help the operator greatly

reduce the cost.

Report Config The Report No. is the SIM card number of the modem built into the OMC

Server computer. The equipment will send alarm SMS to this number.

If remote communication is needed via modem, users have to enable SMS

mode and set the report phone No. by entering the SIM card number of the

equipment built-in modem.

SMSC No. It specifies the SMS center. Users have to set the service No. of SMSC for

the first installation, so that the alarms can be sent to OMC.

End of Section

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 31

6 MAINTENANCE

The RX-2620 repeater is designed for trouble-free operation and generally does not need maintenance.
Maintenance activities should only be carried out by trained personnel.

The equipment operation status can be observed remotely through OMC.

Periodic inspection of the repeater equipment(s) is recommended, the recommended tasks includes:

z Inspect and record operation status and output power of the repeater from OMC or OMT.
z Verify the direction and position of antennas. Re-align if necessary.
z Make sure the cable gland and sealing on the RF cable connectors are not damaged.
z Verify lightning and grounding protection is in good condition.

End of Section

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 32

7 APPENDICES

7.1 APPENDIX A: TOOLS FOR INSTALLATION AND MAINTENANCE

The following are the recommended list of tools new installation and routine maintenance:

• Slotted screwdriver

• Philips screwdriver

• Ring spanner (Assorted size: 12~20mm)

• Electrically operated drill and masonry drill bits ∅10mm

• Anti-static wrist strap

• Allen key (M5.5)

• Side cutter

• Frequency counter (e.g. FLUKE PM6685R)

• RF Power Meter (e.g. Bird 5000)

• T-shaped Pentagon Key Wrench

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 33

7.2 APPENDIX B: RMA (RETURN MATERIAL AUTHORIZATION) FORM

End of Section

End of Document

USER MANUAL FOR RX-2620

ENU STATUS : 1-0-0 Copyright - refer to title page Page 34
