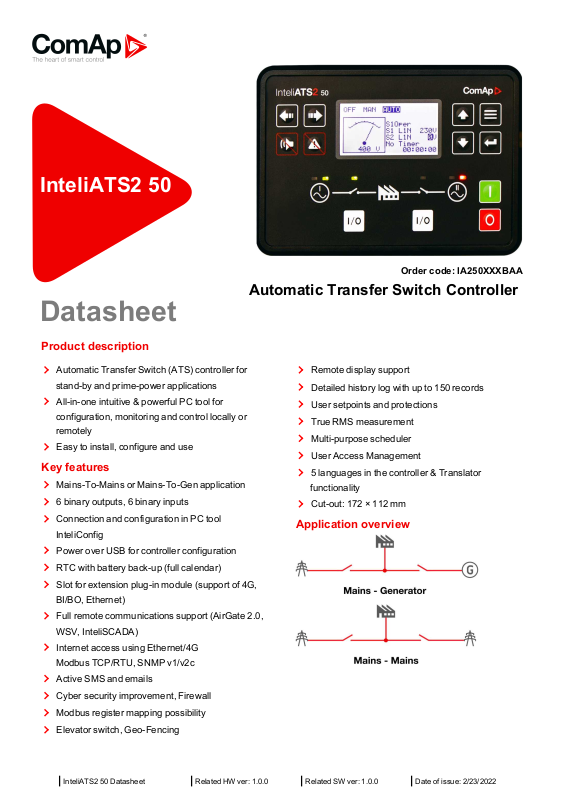

Page 1

InteliATS2 50

Datasheet

Product description

Order code: IA250XXXBAA

Automatic Transfer Switch Controller

Automatic Transfer Switch (ATS) controller for

stand-by and prime-power applications

All-in-one intuitive & powerful PC tool for

configuration, monitoring and control locally or

remotely

Easy to install, configure and use

Key features

Mains-To-Mains or Mains-To-Gen application

6 binary outputs, 6 binary inputs

Connection and configuration in PC tool

InteliConfig

Power over USB for controller configuration

RTC with battery back-up (full calendar)

Slot for extension plug-in module (support of 4G,

BI/BO, Ethernet)

Full remote communications support (AirGate 2.0,

WSV, InteliSCADA)

Internet access using Ethernet/4G

Modbus TCP/RTU, SNMP v1/v2c

Active SMS and emails

Remote display support

Detailed history log with up to 150 records

User setpoints and protections

True RMS measurement

Multi-purpose scheduler

User Access Management

5 languages in the controller & Translator

functionality

Cut-out: 172 × 112 mm

Application overview

Cyber security improvement, Firewall

Modbus register mapping possibility

Elevator switch, Geo-Fencing

| InteliATS2 50 Datasheet | Related HW ver: 1.0.0 | Related SW ver: 1.0.0 | Date of issue: 2/23/2022

Page 2

Dimensions, terminals and mounting

Plug-in module

Note: Dimension "X" depends on plug-in module

Note: Dimensions are in millimeters.

Note: The final depth of the controller depends on the selected plug-in module – it can vary between 47mm and "X"mm.

Mind also the size of connectors and cables (e.g. in case of RS232 connector, add about 60mm more for standard

RS232 connector and cable).

Note: The controller is to be mounted into panel doors as a standalone unit using provided holders. The requested cutout

size is 172 × 112 mm. Use the screw holders delivered with the controller to fix the controller into the door.

InteliATS2 50 Datasheet

Page 3

Technical data

Power supply

Power supply range

Power consumption

(without modules)

RTC battery

Fusing power

Max. Power Dissipation

Operating conditions

8-36 VDC

2.0W

Replaceable (3V)

4 A w/o BOUT consumption

4.5 W

Protection degree (front

panel)

Operating temperature

Storage temperature

Operating humidity

Vibration

Shocks

Surrounding air temperature rating 70 °C

Suitable for pollution degree 2

Voltage measurement

Measurement inputs

Measurement range

Linear measurement

and protection range

Accuracy

Frequency range

Input impedance

IP 65

-20 ˚C to +70 ˚C

-30 ˚C to +80 ˚C

95 % non-condensing

(EN 60068-2-30)

5-25 Hz, ± 1.6 mm

25-100 Hz, a = 4 g

a = 500 m/s

3ph-n S1 voltage, S2 voltage

10-277VAC / 10-480VAC (EU)

10-346V AC/ 10-600VAC

(US/Canada)

350V AC Ph-N

660VAC Ph-Ph

1 %

30-70 Hz (accuracy 0.1 Hz)

0.72 MΩ ph-ph , 0.36 MΩ ph-n

Display

Type

Resolution

Communications

USB Device

Binary inputs

Number

Close/Open indication

Binary outputs

Number

Max. current

Switching to

Build-in monochromatic 3.2"

132 × 64px

Non-isolated type B connector

0-2 VDC close contact

6-36 VDC open contact

BO1-6 = 0.5 A

positive supply terminal

InteliATS2 50 Datasheet

Page 4

Available plug-in modules

Product Description Order code

CM-RS232-485 Dual port interface

CM2-4G-GPS 4G & GPS plug-in communication module

CM3-Ethernet Internet / Ethernet plug-in communication module

EM-BIO8-EFCP 8 additional binary inputs/outputs

CM223248XBX

CM24GGPSXBX

CM3ETHERXBX

EM2BIO8EXBX

Note: Controller has 1 slot for plug-in modules.

Functions and protections

Support of functions and protections as defined by ANSI (American National Standards Institute):

Description ANSI code Description ANSI code

Master unit 1 Incomplete sequence relay 48

Stopping device 5 Breaker failure 50BF

Multi-function device 11 AC circuit breaker 52

Starting-to-running transition contactor 19 Overvoltage 59

Undervoltage 27 Aux Over Voltage 59X

Aux Battery Under Voltage 27X Reclosing relay 79

Annunciator 30 Overfrequency 81O

Master sequence device 34 Underfrequency 81U

Voltage unbalance/Negative sequence voltage 47 Auto selective control/transfer 83

Certifications and standards

EN 61000-6-2

EN 61000-6-4

EN 61010-1

EN 60068-2-1 (-20 °C/16 h)

EN 60068-2-2 (70 °C/16 h)

EN 60068-2-6 (2÷25 Hz / ±1,6 mm; 25÷100 Hz / 4.0 g)

EN 60068-2-27 (a=500 m/s2; T=6 ms)

EN 60068-2-30:2005 25/55°C, RH 95%, 48hours

EN 60529 (front panel IP65, back side IP20)

UL1008 (pending)

E-mail: [email protected]

Web: www.comap-control.com
