Page 1

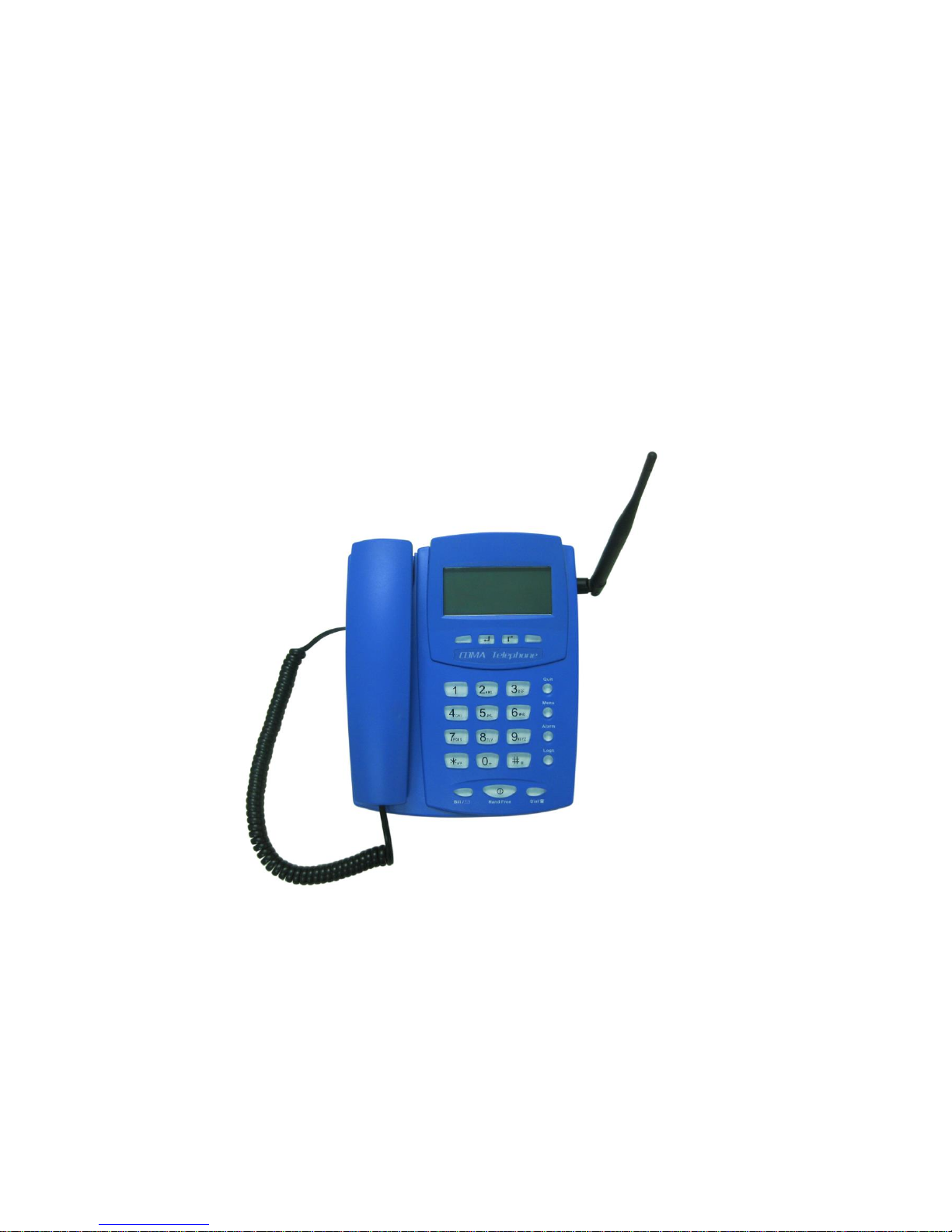

FW-C2800 Fixed Wireless Phone
User Manual
Please read the manual carefully before operating!
Page 2
Content
Ⅰ. INTRODUCTION ......................................................................................................1
II. INSTALLATION AND KEYS DESCRIPTION ...........................................................2
2.1. INSTALLATION ............................................................................................................2
2.2. KEYS DESCRIPTION ...................................................................................................3
III. MAKING CALLS ......................................................................................................5
3.1. MAKING CALLS..........................................................................................................5
3.2. PLACING A PAYMENT PHONE CALL ON CONTROLLER ..................................................6
3.3. WHEN THE PHONE RINGS ..........................................................................................7
3.4. ENDING THE CALL .....................................................................................................7
IV. MENU OPERATION—PAYMENT MODE ................................................................8
4.1. SECURITY .................................................................................................................8
4.2. SETTINGS .................................................................................................................9
4.3. APPLICATIONS ......................................................................................................... 11
V. MENU OPERATION— FREE MODE ......................................................................15
5.1. PHONEBOOK ...........................................................................................................15
5.2. CALL LOGS .............................................................................................................15
5.3. MESSAGING ............................................................................................................16
5.4. ALARM CLOCK ........................................................................................................17
5.5. SECURITY (SAME AS THE PAYMENT MODE) ................................................................17
5.6. SETTINGS (SAME AS THE PAYMENT MODE) ................................................................17
5.7. APPLICATIONS (SAME AS THE PAYMENT MODE) ..........................................................17
Page 3
FW-C2800 User Manual
1
Version: FW-C2800-20100316
Ⅰ. Introduction
Thank you for purchasing of our CDMA Fixed Wireless Phone. The Phone has been designed to
operate with the latest digital communication technology, the so called Code Division Multiple
Access (CDMA). The CDMA technology has many advanced features and provides excellent
voice quality.
The Phone has advanced features as follows:
Large, easy to read, backlit LCD with status icons
Choice of 19 ring sounds, Power On/Off
Two Way SMS, Voice Mail and caller ID
Large ergonomically designed Keyboard
Long Battery stand-by and talk time
Menu driven interface for easy operation and configuration
Last Number Redial
Adjustable ring and voice volume
AC Power Supply
Speaker Phone
CDMA technology allows privacy of the call
Optional accessories available for greater convenience and enhanced functionality
Easy Service and Repair
Page 4
FW-C2800 User Manual
2
Version: FW-C2800-20100316
II. Installation and Keys Description
2.1. Installation
Before using your new phone, follow these steps:
1) Connect the coiled cord to the handset and to the telephone base unit. (if it is connected, this
step should be neglected).
2) Attach the antenna to the mating connector on the base. (if it is connected, this step should be
neglected).

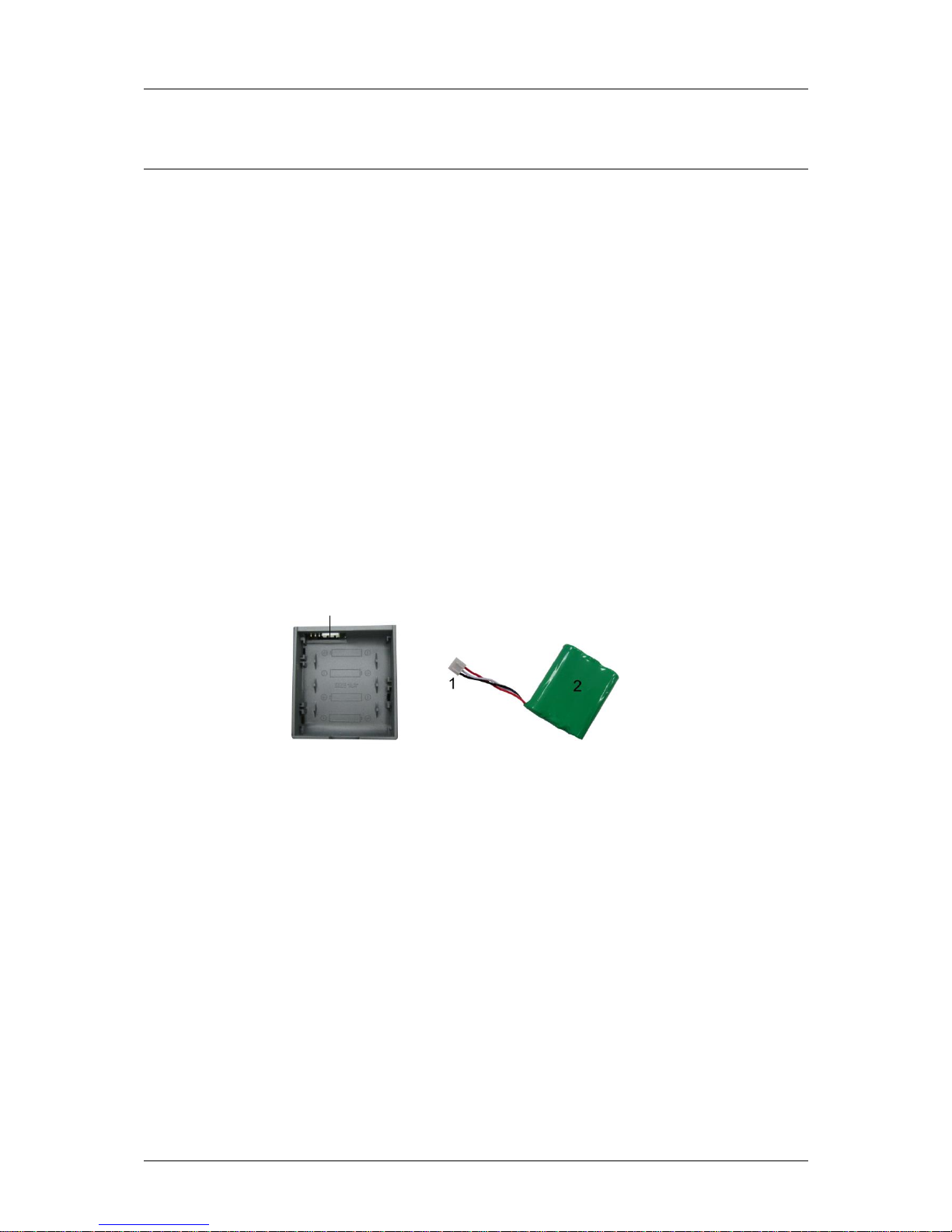

3) Turn the phone upside down and remove the battery cover.
4) Insert a valid SIM card into the SIM card holder, carefully noting the proper orientation.
(Contacts facing down and the notch in the SIM card aligned with the notch in the SIM card
holder).
5) Insert the battery pack (2) into the battery slot and connect the battery pack connector (1) to
the mating connector (3).
6) Replace the battery cover, and return the phone to an upright position.
7) Connect the AC Adapter DC plug to the telephone DC jack and plug the AC Adapter into an
AC outlet.
8) Place the phone on a flat, stable surface such as a table; or a desk or mount the phone onto
the wall. Place the antenna in a vertical position.
9) Slide the ON/OFF switch to ON. Press the Hand Free key and hold it for 5 seconds, the LCD
should light up and text should be displayed. If not, recheck all connections above.
3
Page 5
FW-C2800 User Manual
3
Version: FW-C2800-20100316

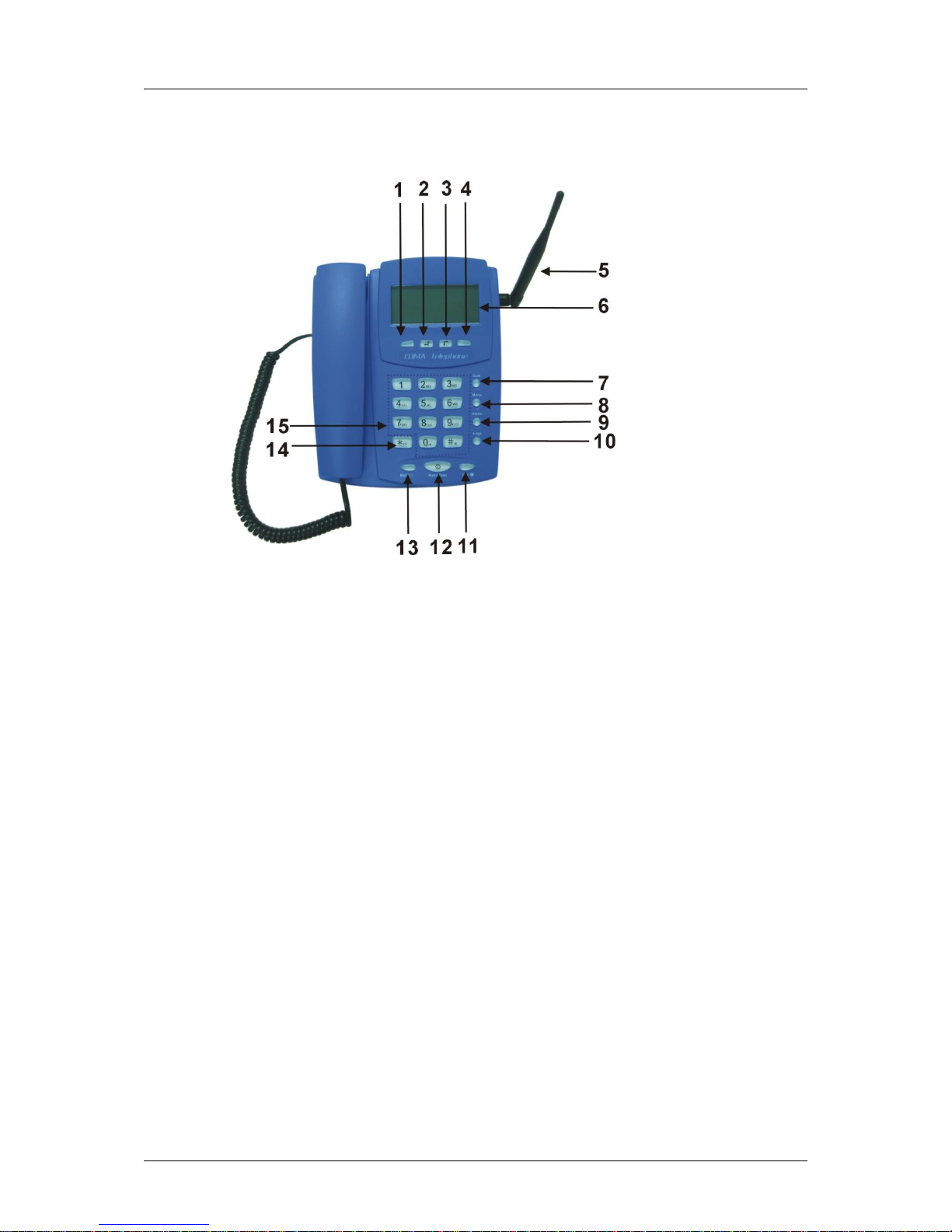

2.2. Keys Description
Top View
（1） Left key/Logs/Prepaid/CallMgr: Programmable shortcut key. In payment mode, this key
is used as Prepaid key. When the SMS BILL is selected as “Activate”, this key is used as
“CallMgr” to call the manager number. In free mode, this key is used as Logs key.
（2） Navigation key 1: During menu operation, this key is used to navigate the menu; during
hand free or off-hook mode, this key is used to increase the volume of the handset or
the ringer.
（3） Navigation key 2: During menu operation, this key is used to navigate the menu; during
hand free or off-hook mode, this key is used to decrease the volume of the handset or
the ringer.
（4） Right key/Book/Postpaid key: Programmable shortcut key. In payment mode, this key is
used as Postpaid key. In free mode, this key is used as Book key.
（5） Antenna: the antenna increases the signal strength of the phone.
（6） LCD: The Liquid Crystal Display provides the interface for the user.
（7） Quit: Press this key to go back to the upper level menu.
（8） Menu: In free mode, press this key to access the Menu directly when the phone is in
standby state. In payment mode, press this key to View Sale and Menu.
（9） Alarm: Press this key to access the Alarm Time Settings directly (only available in free
Page 6
FW-C2800 User Manual
4
Version: FW-C2800-20100316
mode).
（10） Logs: Press this key to access the Call Logs directly when the phone is in standby state
(only available in free mode).
（11） Dial: Press this key to access the Dialed Calls directly when the phone is in standby
state; this key is also used to dial out the inputted number.
（12） Hand Free: Press the button to make or receive a call without picking up the handset.
Press this button once more to end the call. This key is also used as a power on/off key;
press and hold it for about 5 seconds to turn on/off the power.
（13） Bill/ : In free mode, press this key to access the Messaging menu directly; In payment
mode, when SMS BILL is selected as “Activate”, press this key for downloading bill.
（14） 【﹡】 key : Press this key to toggle between the text input modes when editing
message. It is also used as the keypad unlock key when the keypad has been locked.
（15） Alphanumeric keys (0-9, #): The keys are used for dialing a phone number, and typing a
message.
Back View
(1) USB Port (unavailable) (2) Controller Port
(3) Power Switch (4) DC in
Page 7
FW-C2800 User Manual
5
Version: FW-C2800-20100316
III. Making Calls
3.1. Making Calls
3.1.1. Make a local call (In free mode)
Pick up the handset or press【Hand Free】button.
Enter the phone numbers and press【Dial】, or wait 5 seconds for the numbers to be
automatically dialed.
3.1.2. Make a local call（In payment mode）
Prepaid mode:
Press Prepaid key, input the prepaid value and press OK.
The LCD will display “You can dial your first call”.
Pick up the handset or press the Hand Free key.
Input the phone number and press then Dial key to dial out the number.
After the call, the LCD will display the Call Bill. Press “No call” and the user could print or view
the details; or press “Other call “to initiate a new call.
Postpaid mode:
Press Postpaid mode, the LCD will display “You can dial your first call”.
Pick up the handset or press the Hand Free key.
Input the phone number and press then Dial key to dial out the number.
After the call, the LCD will display the Call Bill. Press “No call” and the user could print or view
the details; or press “Other call “to initiate a new call.
3.1.3. Making a STD call
The operation is the same as above, but the inputted number has to be prefixed with the area
code.
Page 8
FW-C2800 User Manual
6
Version: FW-C2800-20100316
3.1.4. Make an IDD call
The operation is the same as above, but the inputted number has to be prefixed with the country
code and area code.
Note: press “0” and hold it for a second then the LCD will display the IDD call icon “+”.
3.2. Placing a Payment Phone Call on Controller
3.2.1. Prepaid
Connect the controller with the phone and activate the controller.
Press【F2: Prepaid】on the controller; key in prepaid value with the numeric keys and then
Press【F5: Finish】to confirm the value input.
The LCD of the phone will display “You can dial your first call”.
Pick up the handset or press the Hand Free key.
Input the phone number and press then Dial key to dial out the number.
After the call, the LCD will display the Call Bill. Press “No call” and the user could print or view
the details; or press “Other call “to initiate a new call.
3.2.2. Postpaid
Connect the controller with the phone and activate the controller.
Press【F1: Postpaid】on the controller.
The LCD of the phone will display “You can dial your first call”.
Pick up the handset or press the Hand Free key.
Input the phone number and press then Dial key to dial out the number.
After the call, the LCD will display the Call Bill. Press “No call” and the user could print or view
the details; or press “Other call “ to initiate a new call.
See controller activation at 4.3.1.1 Call Metering Mode
See controller operation at Remote Display Unit/ Controller Brief User Guide.
Page 9
FW-C2800 User Manual
7
Version: FW-C2800-20100316
3.3. When the Phone Rings
When the phone rings the display will indicate the incoming call numbers or associated name (if
stored in the phone book) of the person calling. Here are the options:
Answer the call by raising the handset; or
Answer the call by pressing the【Hand Free】button.
3.4. Ending the Call
Put down the handset when you answer the call by picking up the handset; or
Press【Hand Free】button when you answer the call by pressing 【Hand Free】button.
Press “Quit” to exit or “Hand Free” key to go back to the standby state.
Page 10
FW-C2800 User Manual
8
Version: FW-C2800-20100316

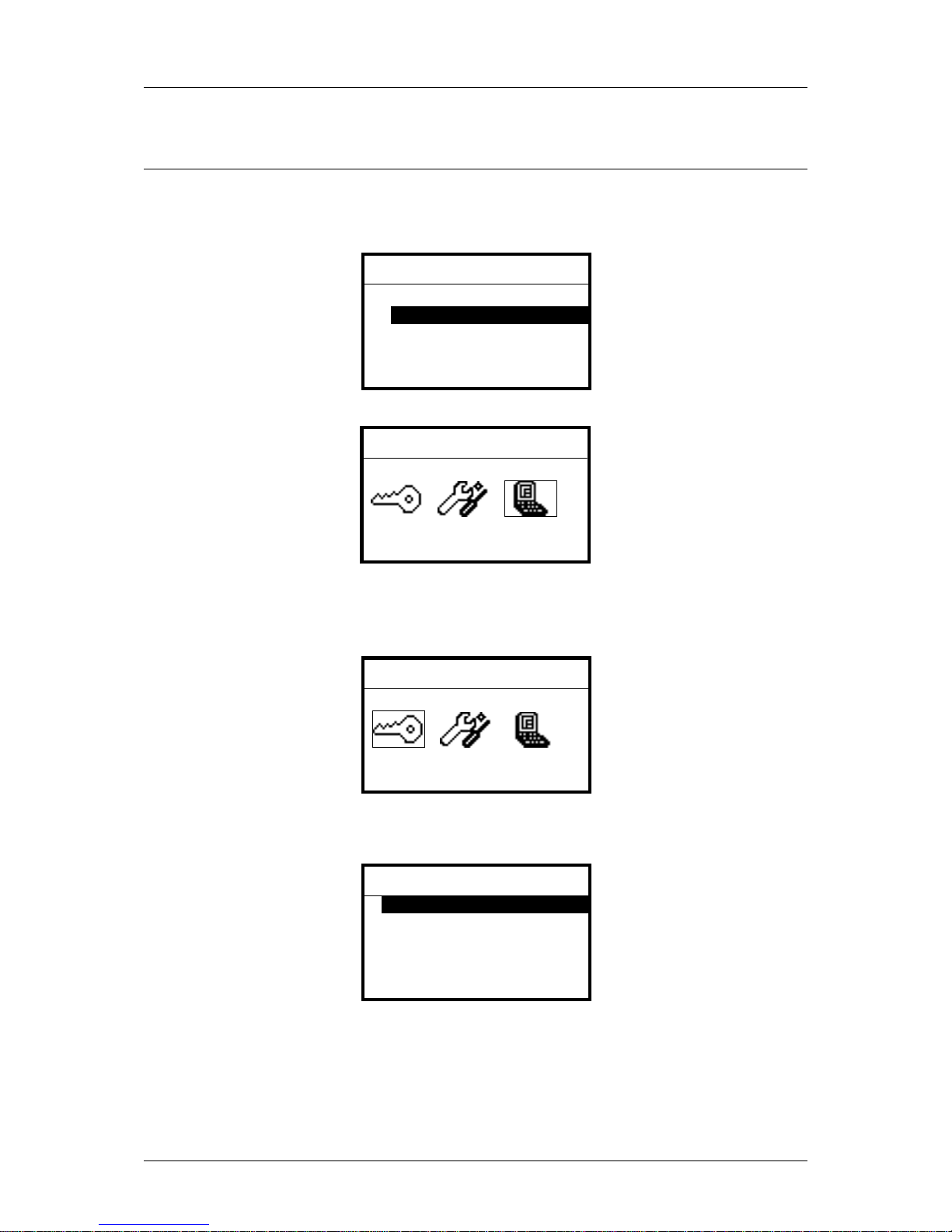

IV. Menu Operation—Payment Mode

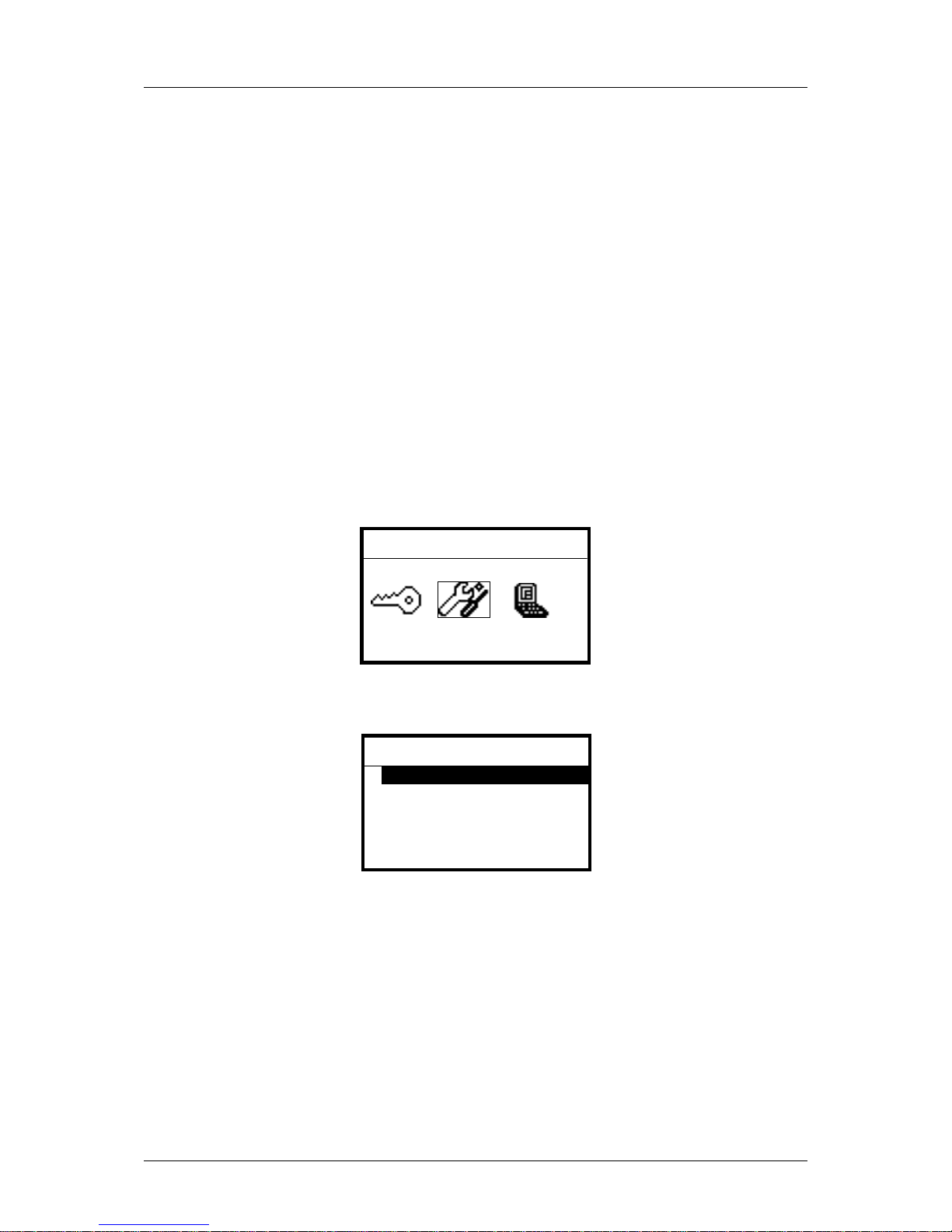

When the phone is in standby, press Menu key to enter the main menu, the LCD will display as
below:
Press “OK” to enter “2. Menu” and the LCD will display as below:
In the payment mode, the main menu has only three items: Security, Settings and Applications.
4.1. Security
Use the navigation keys to highlight “Security” in the main menu interface and then press “OK” to
enter the “Security” menu, the LCD will display:
4.1.1. Lock Phone Keypad: Highlight this menu and then press “OK” to lock the keypad (if the
user password has existed, the password/code is required before the lock).
Menu: Security
Back OK
Security
1. Lock Phone Keypad
2. Auto Lock Keypad
3. Change User Password
4. Clear User Password
Back OK
Other Option
1. View Sales
2. Menu
Back OK
Menu: Security
Back OK
Page 11
FW-C2800 User Manual
9
Version: FW-C2800-20100316
4.1.2. Auto Lock Keypad: Highlight this menu and then Press “OK”; select “Activate” and then
input the minutes, the keypad will be automatically locked in the inputted minute.
4.1.3. Change User Password: Highlight this menu and then Press “OK” to change the user
password. The user needs to enter the old code and then enter the new PIN twice if the password
has existed (when the phone is locked, the user password is required for unlocking).
4.1.4. Clear User Password: Highlight this menu and then press “OK” to clear the user password
(if the password has existed, it is required to enter the password prior to accessing this menu).
4.1.5. Lock Network: Highlight this menu and then press “OK” to activate or cancel the subsidy
lock, the user could edit the MCC and MNC.
4.1.6. Simcard: Highlight this menu and then press “OK” for simcard locking or Sim PIN change.
4.1.7. Lock Phone & Card Mutual: Highlight this menu and then press “OK” to activate or cancel
the lock phone & card mutual function.
4.2. Settings
Use the navigation keys to highlight “Settings” in the main menu interface and then press “OK” to
enter the “Settings” menu, the LCD will display:
4.2.1. Display: Including the follows:
Language: use the navigation keys to select English or Espanol.
Contrast: Use the navigation keys to increase or decrease the contrast, there are 7 steps of
contrast for selection.
Backlight: use the navigation keys to select the backlight time: wait 10 seconds, wait 30
seconds, wait 120 seconds, always on if AC, always off.
Sleep Setting: use the navigation keys to select the sleep time: Disable, 10s, 20s, 30s.
Menu: Settings
Back OK
Settings
1. Display
2. Time and Date
3. Ring and Alarm
4. Call Control
Back OK
Page 12
FW-C2800 User Manual
10
Version: FW-C2800-20100316
4.2.2. Time Format: am/pm or 24 Hour.
4.2.3. Ring and Alarm: including the follows:
Ring Tone: to select ring tone music: there are 19 different types of ring tones for selection.
Ring Volume: use the navigation keys to decrease or increase the ring tone volume.
Alarm Tone: to select the music for Alarm Tone.
New Message Tone: to select the music for New Message Tone.
Key Beep Tones: to select activate or cancel Key Beep Tones.
Minute Minder: to select activate or cancel Minute Minder.
4.2.4. Call Control: including the follows: (network dependant)
Automatic Redial: to select activate or cancel it.
Call Barring: including bar all outgoing, outgoing international, all incoming.
Set Voice Mail No. : to set the voice mail no. After the setting, the user can press and hold “1”
numeric key to dial the voice mail no. directly. (This setting is available only in the free mode).
Additional Prefix: to set the prefix added to the numbers dialed out (except the emergency
number and manager number).
4.2.5. Network: including the follows:
Network Selection: Automatic or Manual.
Available Networks: to search the available networks.
New Network: to search the new network.
4.2.6. Phone Settings: including the follows:
Phone ID: to set the phone ID.
System ID: to set the system ID.
Shortcut keys: to set the left shortcut key and right shortcut key.
Software version: to view the software version.
Page 13
FW-C2800 User Manual
11
Version: FW-C2800-20100316
4.3. Applications

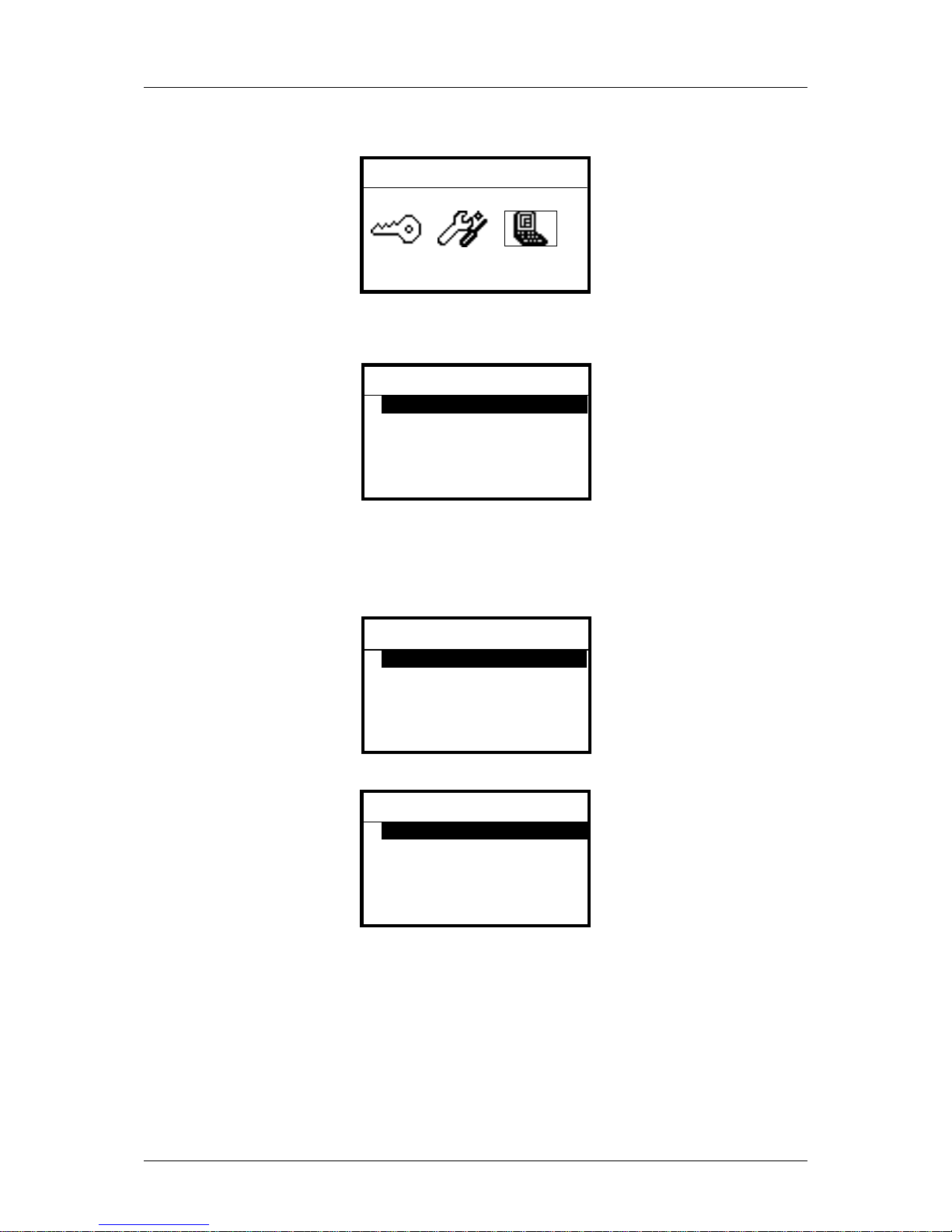

Use the navigation keys to highlight “Applications” in the main menu interface and then press “OK”
to enter the “Applications” menu, the LCD will display:
4.3.1. Call Metering
Use the navigation keys to highlight “Call Metering” and press “OK” and the LCD will display:
4.3.1.1 Call Metering Mode: highlight this menu and press “OK”, the LCD will display:
Highlight the desired item and press “Select” to select it, then press “OK’’ to confirm the selection.
4.3.1.2. CM Settings: highlight this menu and then press “OK” to confirm, the LCD will display:
Menu: Applications
Back OK
Payment or Free
Free
Payment
Select OK
Call Metering
1. Call Meter Mode
2. CM Settings
3. Charge Settings
4. Ctrl Box
Back OK
Applications
1. Call Metering
2. SMS BILL
Back OK
Page 14
FW-C2800 User Manual
12
Version: FW-C2800-20100316
1) Wait Answered Flag: to activate or cancel the wait answered flag. When it is activated, the
phone call would be charged once the phone is answered; or else it would be charged once
dialed out.
2) Set Post Paid Limit: use the numeric keys to input the postpaid limit.
3) Change CM PIN: use the numeric keys to edit the CM PIN; after the setting, the user should
enter the CM PIN before apply the postpaid or prepaid key.
4) Change Master PIN: use the numeric keys to edit the MS PIN; after the setting, the user
should enter the Master Pin before entering “Menu” and some other menus.
5) Emergency Number: to set the maximum of 3 emergency numbers.
6) Network Manager Number: to set the network manager number.
4.3.1.3. Charge Settings: highlight this menu and then press “OK”, the LCD will display:
4.3.1.3.1. Charge Set 1 （The default）
Highlight “Charge Set 1” and then press “OK”, the LCD will display:
4.3.1.3.1.1. Charge Numbers(the user should edit the charge rule before this setting）
Highlight “Charge Numbers” and then press “OK”, the LCD will display:
Edit charge Set
1. Charge Numbers
2. Charge Rules
Back OK
Charge Settings
1. Charge Set 1
2. Charge Set 2
3. Promotional Time
4. Rate Version
Back OK
CM Settings
1. Wait Answered Flag
2. Set Post Paid Limit
3. Change CM PIN
4. Change Master PIN
Back OK
Page 15
FW-C2800 User Manual
13
Version: FW-C2800-20100316
Press “New” and the LCD will display:
1) Number: edit the first number of the charge number, such as “0”.
2) Rule ID: edit the according Rule ID, such as “001”（the rule ID should have been configured in
the charge rule）.
After the setting, press “Done” to save the change. In this case, the numbers prefixed with “0” will
be charged based on Rule ID 001.
4.3.1.3.1.2. Charge Rules
Highlight “Charge Rules” and then press “OK”, the LCD will display:
Press “New” and the LCD will display:
Edit Rule
ID: 001 00:00-00:00
RT:0000 UT:0000.0000
Cancel Done
Charge Rules
Back New
Edit Charge Set
1. Charge Numbers
2. Charge Rules
Back OK
Edit Charge Numbers
1. Number:
2. Rule ID: 001
Done Edit
Charge Numbers
Back New
Page 16
FW-C2800 User Manual
14
Version: FW-C2800-20100316
Use the navigation keys to highlight the desired item and edit it with the numeric keys. After the
setting, press “Done” to save the edition.
ID: to set the charge rule ID.
00:00-00:00: to set the according charge period.
RT: to set the unit time (in second).
UT: to set the charge amount in unit time.
4.3.1.3.2. Charge Set 2（The same as charge set 1）.
4.3.1.3.3. Promotional Time: During this period, the phone will charge based on the charge rate 2.
4.3.1.3.4. Rate Version: to view the rate version.
4.3.1.3.5. Unit cost: to edit the unit cost.
4.3.1.3.6. STD No. Count: to edit the maximum length of the STD No.
4.3.1.3.7. IDD No. Count: to edit the Maximum length of IDD No.
4.3.1.3.8. Currency Symbol: to edit the currency symbol.
4.3.1.3.9. Reset Rate: to reset and clear all the charge rates.
4.3.1.4. Ctrl Box: to activate or cancel the controller connection. Highlight the desired item and
press “Select” to select it, press “OK” to confirm the selection.
4.3.2. SMS BILL
Use the navigation keys to highlight “SMS BILL” and press “OK”,
LCD will show “Enter Operator PIN”, this is only operated by Operator.
Applications
1. Call Metering
2. SMS BILL
Back OK
Page 17
FW-C2800 User Manual
15
Version: FW-C2800-20100316

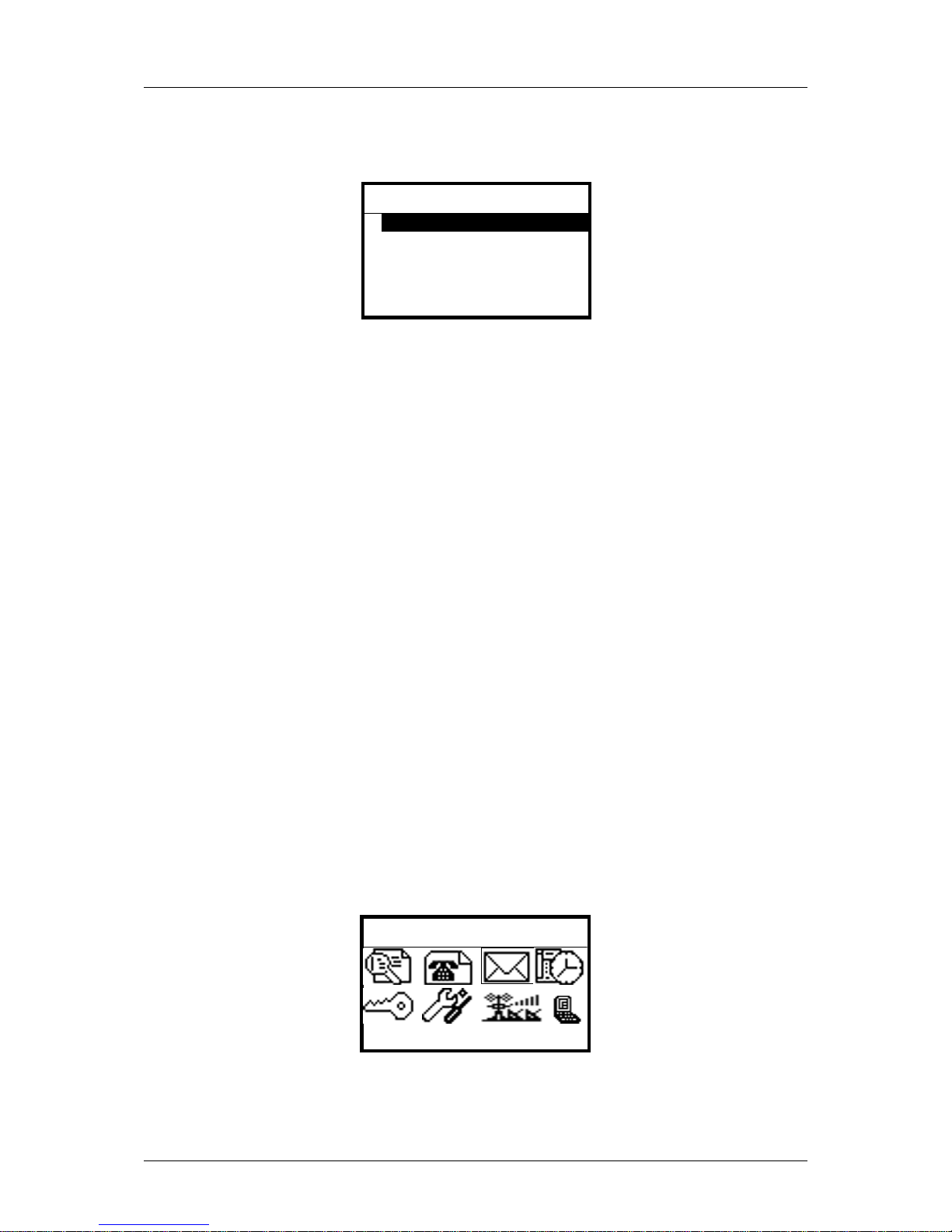

V. Menu Operation— Free Mode
When the phone is in standby, press Menu key to enter the main menu, the LCD will display as
below:
5.1. Phonebook
Use the Navigation keys to highlight “Phonebook” in the main menu interface and then press “OK”
to enter the “Phonebook menu”, the LCD will display:
5.1.1. Search
Highlight this menu and then press “OK” to access the menu. Press “Option” for the options
including Dial, New Entry, Delete Entry, Edit Entry, Capacity.
Note: “location” is for setting of the speed dial number, which could be assigned with “2-8”.
5.1.2. New Entry
Highlight this menu and then press “OK” to create the new contact.
5.1.3. Check Memory
Highlight this menu and then press “OK” to check the records and capacity of the phonebook.
5.1.4. Clear Book
Highlight this menu and then press “OK” to clear the phonebook records.
5.2. Call Logs
Phone Book
1. Search
2. New Entry
3. Check Memory
4. Clear Book
Back OK
Menu: Phonebook
Back OK
Menu: Call Logs
Back OK
Page 18
FW-C2800 User Manual
16
Version: FW-C2800-20100316

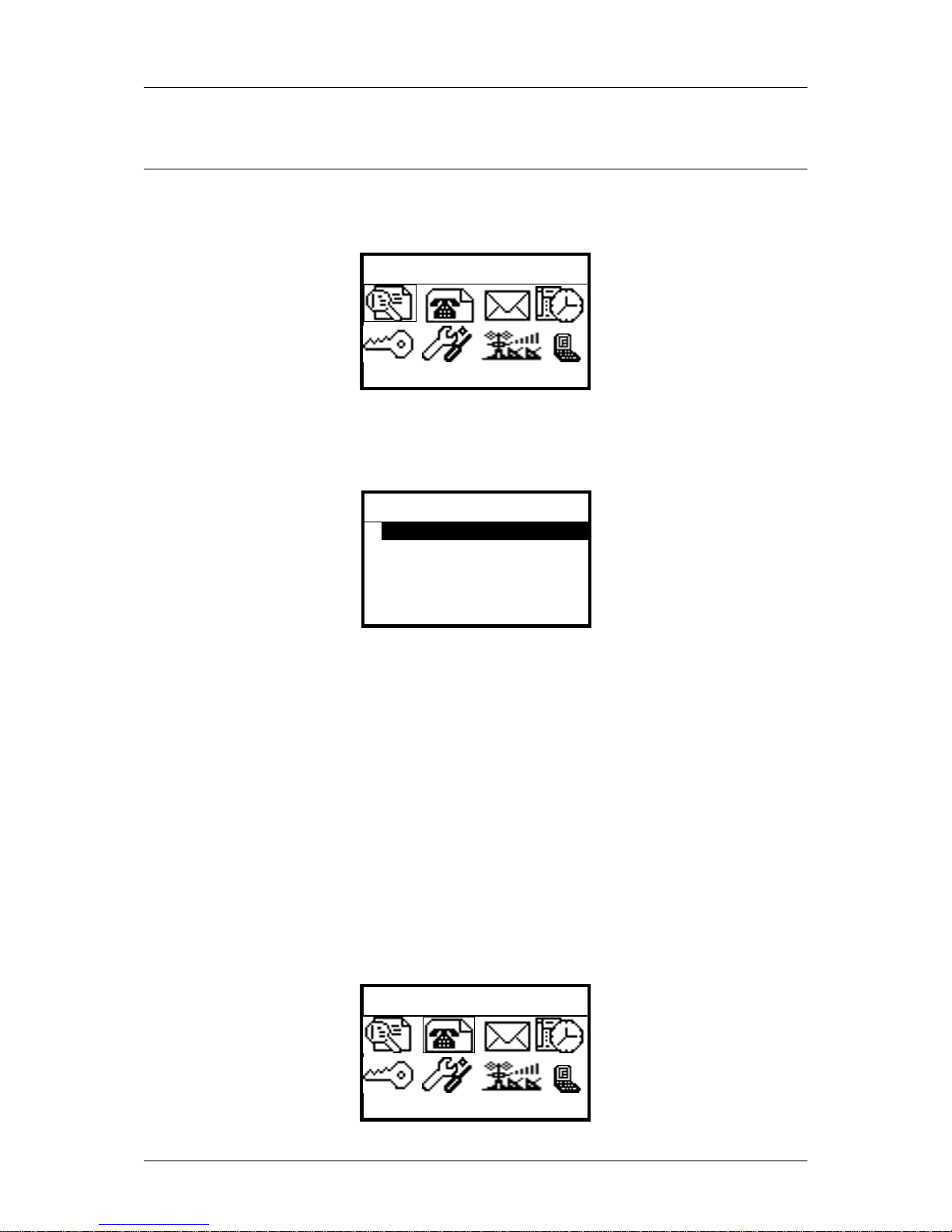

Use the navigation keys to highlight “Call Logs” in the main menu interface and then press “OK” to
enter the “Call Logs” menu, the LCD will display:
5.2.1. Dialed Calls
Highlight this menu and press “OK” to view the entry, the user can also delete the entry, copy it to
the phonebook or check the capacity.
5.2.2. Received Calls
Highlight this menu and press “OK” to view the entry, the user can also delete the entry, copy it to
the phonebook or check the capacity.
5.2.3. Missed Calls
Highlight this menu and press “OK” to view the entry, the user can also delete the entry, copy it to
the phonebook or check the capacity.
5.2.4. Call Totals
Highlight this menu and press “OK” to view call totals, including Call Timer Totals, GPRS Totals,
SMS Counter. The user could clear the data to zero.
5.2.5. Delete All Calls
Highlight the menu and press “OK” to enter the menu for the options of delete received log, dialed
log, missed calls, all log.
5.3. Messaging
Use the navigation keys to highlight “Messaging” in the main menu interface and then press “OK”
to enter the “Messaging” menu, the LCD will display:
Menu: Messaging
Back OK
Menu: Call Logs
1. Dialed Calls
2. Received Calls
3. Missed Calls
4. Call Totals
Back OK
Page 19
FW-C2800 User Manual
17
Version: FW-C2800-20100316

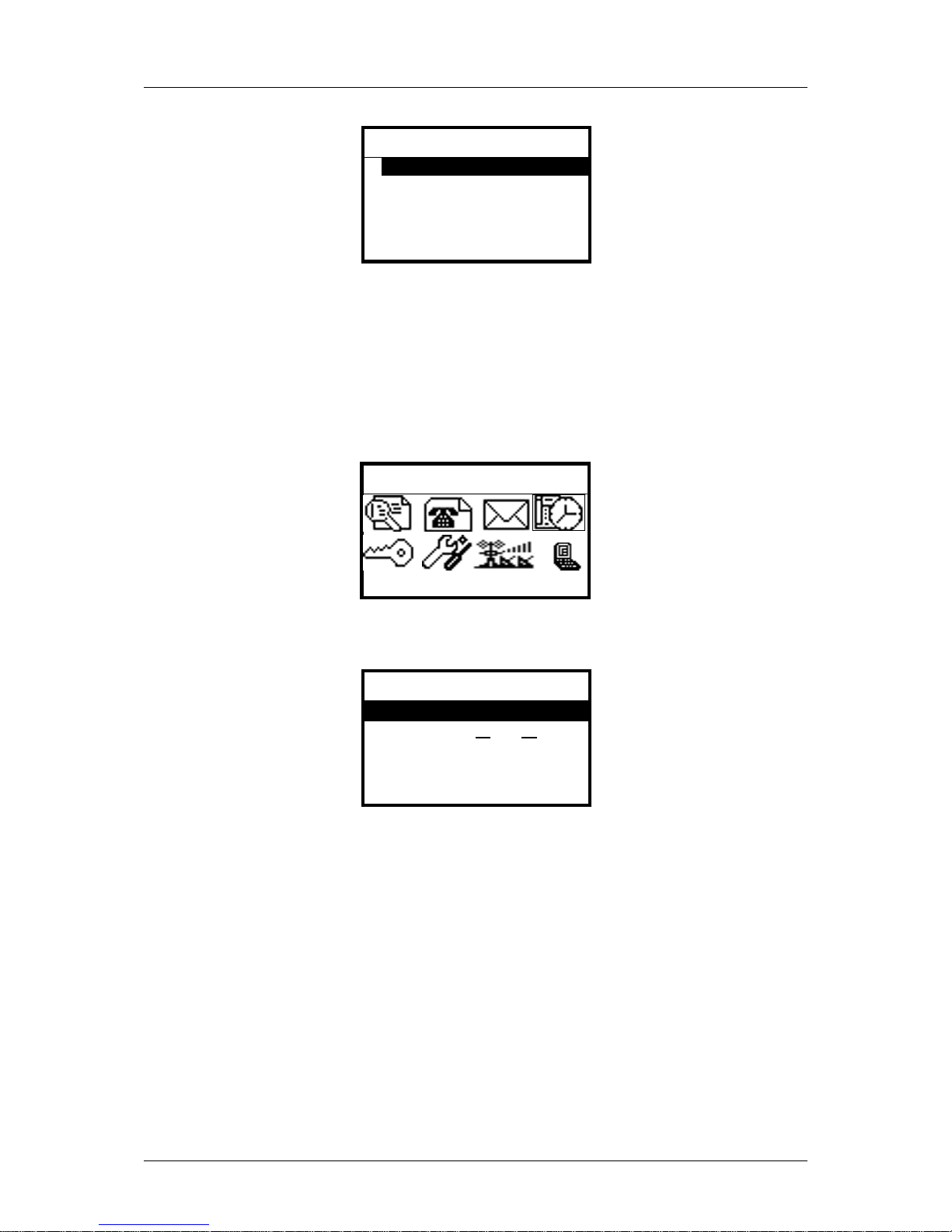

5.3.1. Create New Message: To Create the new message and then send it out.
5.3.2. Inbox: To read the received SMS; the user could also reply, forward, delete, call back etc.
5.3.3. Outbox: To read the sent SMS; the user could also resend, forward, delete, etc.
5.3.4. Delete All SMS: To delete inbox, outbox or delete all (both inbox and outbox).
5.4. Alarm Clock
Use the navigation keys to highlight “Alarm Clock” in the main menu interface and then press “OK”
to enter the “Alarm Clock” menu, the LCD will display:
5.4.1. Time: Press “Edit” to enter the menu. Use the navigation keys to select the area for editing
and use the numeric keys to edit the time.
5.4.2. Music: Press “Edit” to enter the menu. Use the navigation keys to highlight the desired
music and press “OK” to confirm the selection.
5.4.3. Mode: Press “Edit” to switch on/off the alarm clock.
5.5. Security (same as the payment mode)
5.6. Settings (same as the payment mode)
5.7. Applications (same as the payment mode)
Alarm time setting
1. Time: 06：30
2. Music: FIXED VOL RING
3. Mode: Alarm Clock Off
Done Edit
Menu: Alarm Clock
Back OK
Menu: Messaging
1. Create New Message
2. Inbox
3. Outbox
4. Delete All SMS?
Back OK
Loading...
