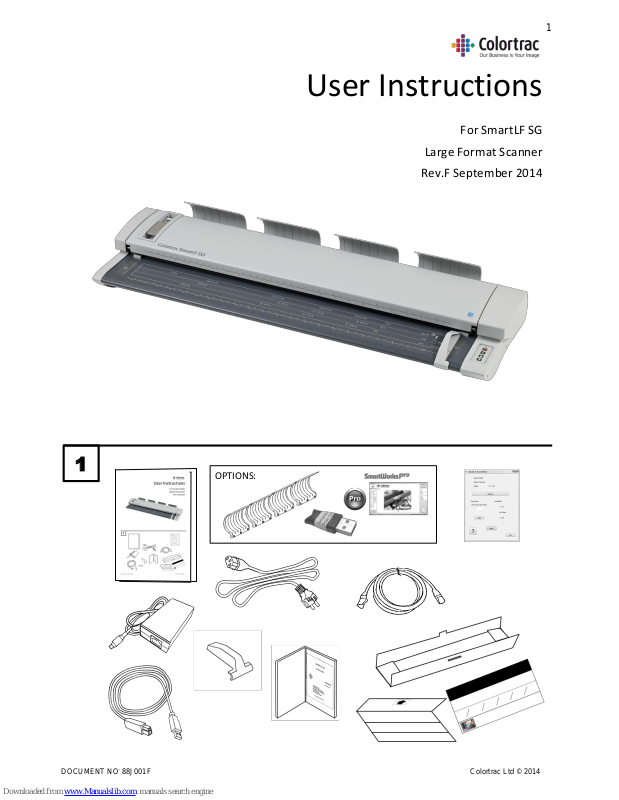

Page 1
1
DOCUMENT NO
.
88J001F Colortrac Ltd © 2014
1
OPTIONS:
User Instructions
For SmartLF SG
Large Format Scanner
Rev.F September 2014
Page 2
2
DOCUMENT NO
.
88J001F Colortrac Ltd © 2014
2
3
SmartLF SG
INSTALL
4
P/N 02S076
P/N 02S078
OPTION 09A006 / 09A008
Page 3
3
DOCUMENT NO
.
88J001F Colortrac Ltd © 2014
5
1000 GBit
ETHERNET
100~240VAC
6
7
USB2/USB3
USB3 + USB2
100~240VAC

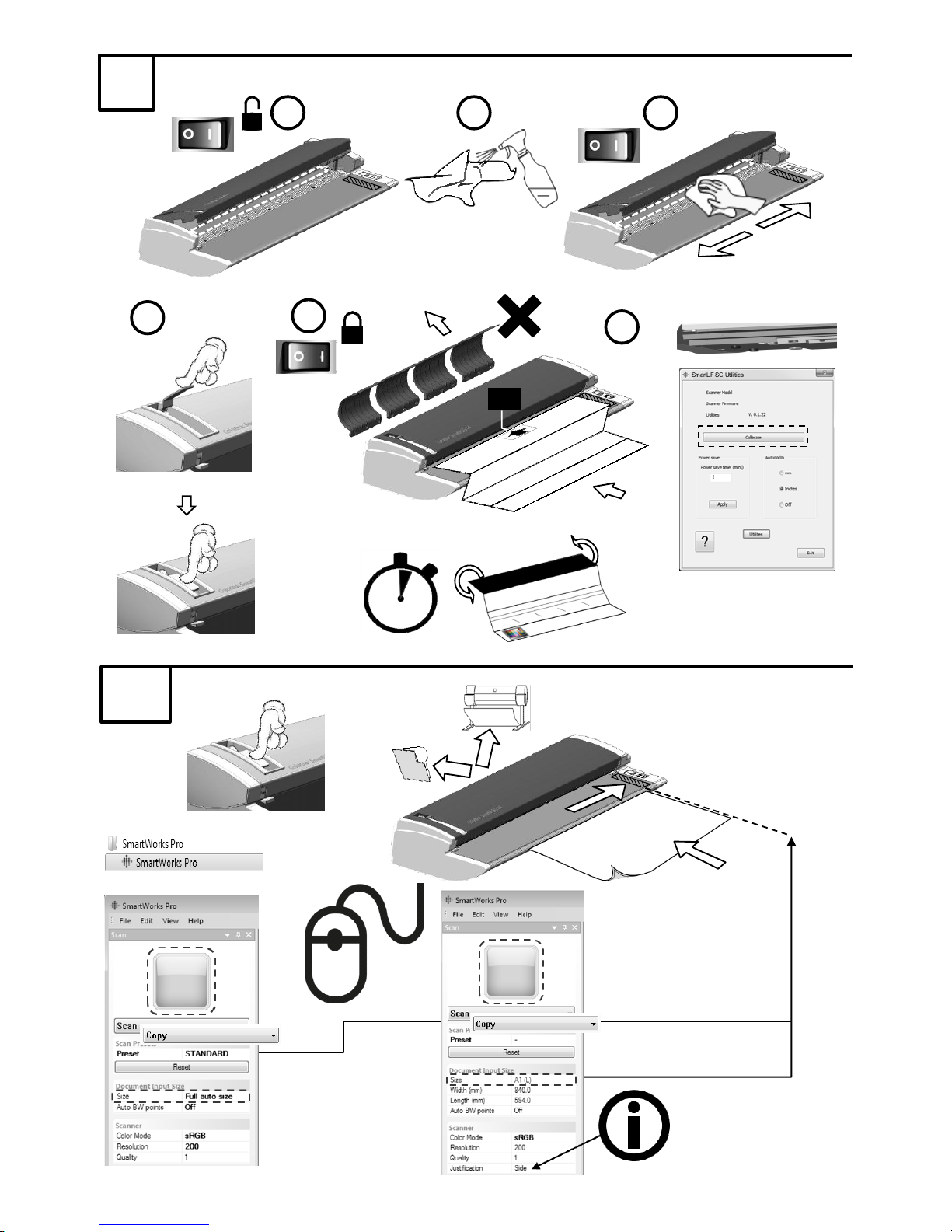

Page 4
4
DOCUMENT NO
.
88J001F Colortrac Ltd © 2014
8
180s
9
22”
PLACE CALIBRATION
TARGET IN MIDDLE OF
SCANNER
SCAN PAPER
DOCUMENTS ON
RIGHT SIDE OF
SCANNER
1 2 3
4 5 6

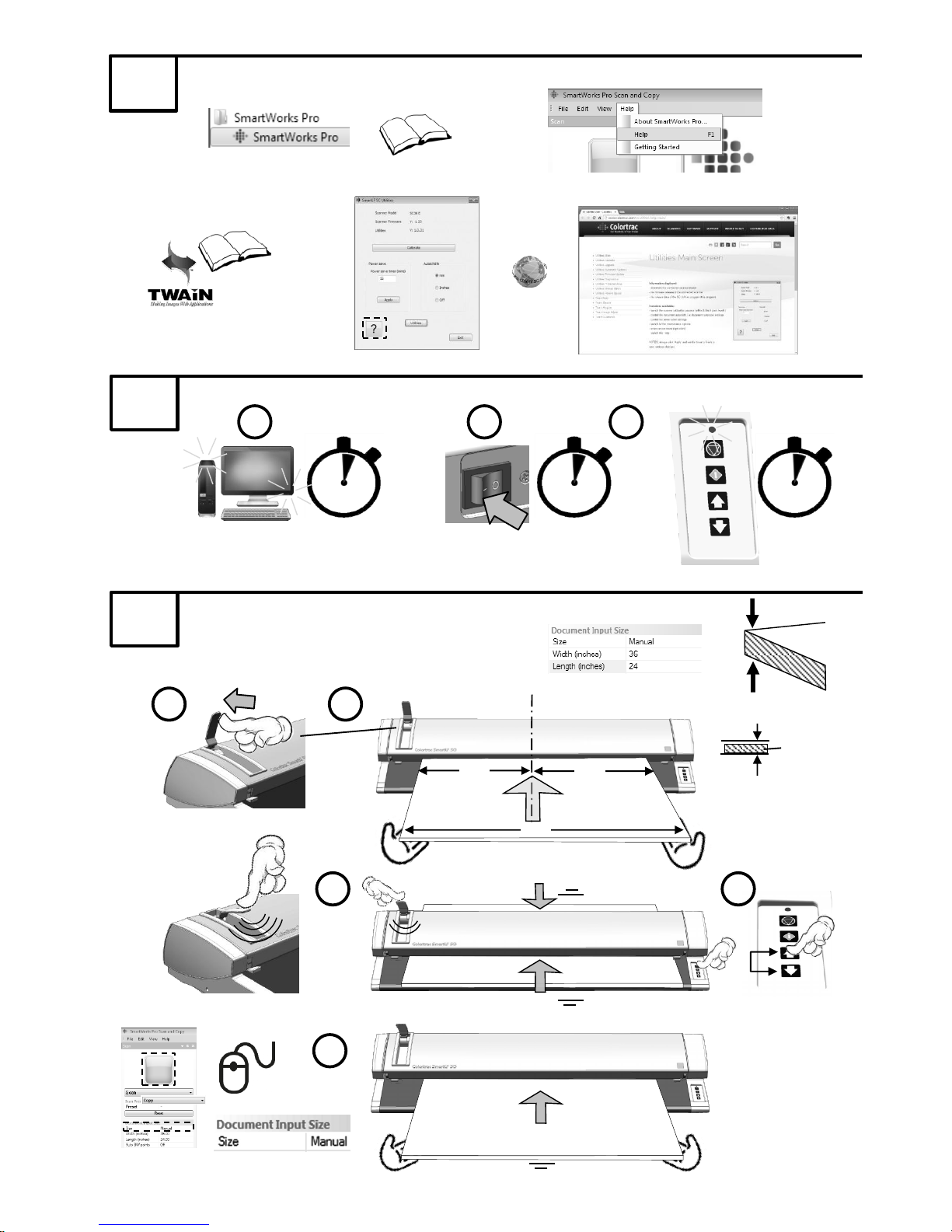

Page 5
5
DOCUMENT NO
.
88J001F Colortrac Ltd © 2014
10
>4s
4s
0s
11
12
t
W/2
W/2
+
=
SCAN THICK MEDIA IN
MIDDLE OF SCANNER
1 2 3
4
5
1 2 3
t < 15mm
15mm
Page 6
6
DOCUMENT NO
.
88J001F Colortrac Ltd © 2014

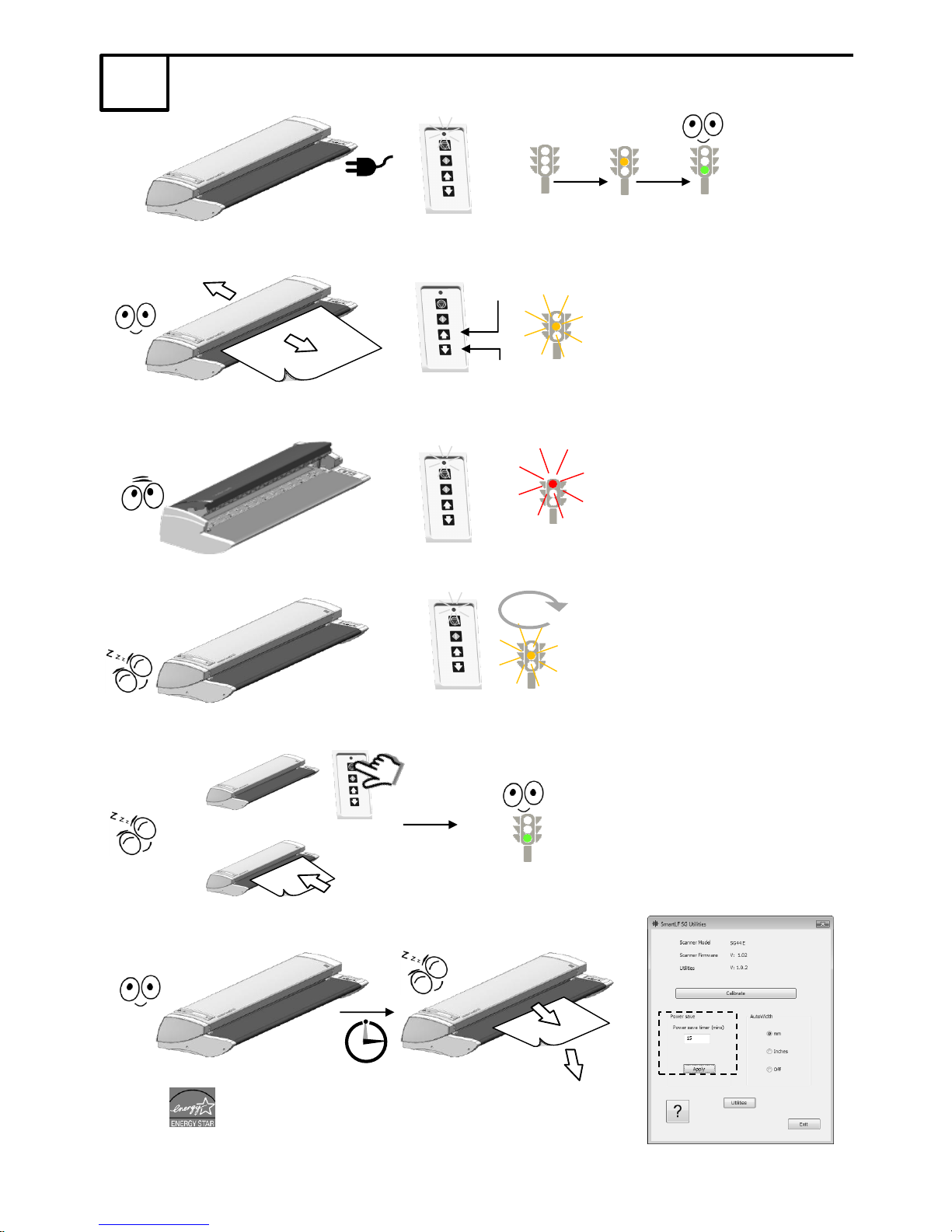

4s
13
=
=
=
=
4s
I
I
O
A
O

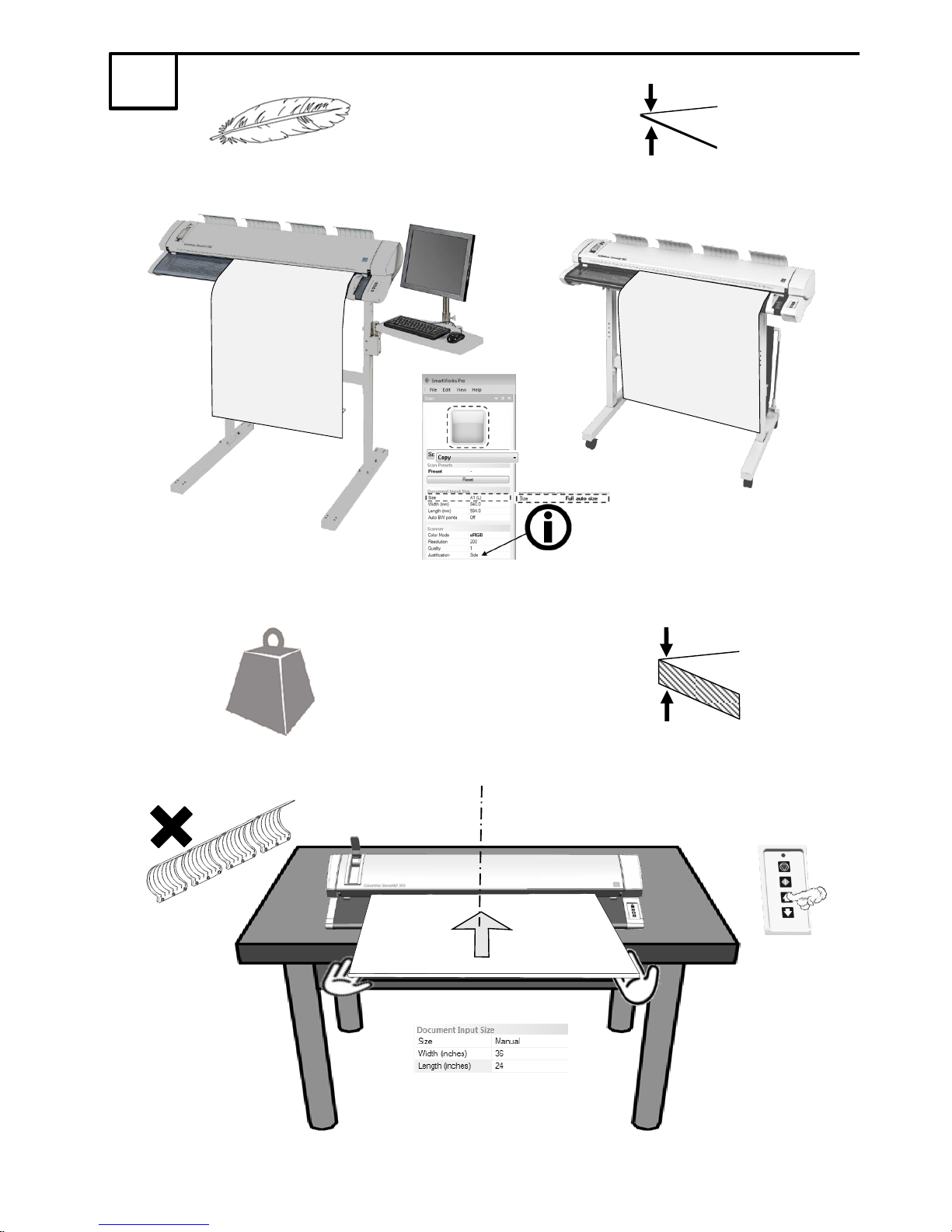

Page 7
7
DOCUMENT NO
.
88J001F Colortrac Ltd © 2014
14
t
t
t
> 3 Mil / 0.003” / .08mm
t
< 80 Mil / 0.08” / 2mm
t
> 80 Mil / 0.08” / 2mm
t
< 600 Mil / 0.6” / 15mm
SCAN PAPER DOCUMENTS ON
RIGHT SIDE OF SCANNER
SCAN THICK MEDIA IN
MIDDLE OF SCANNER
Page 8
8
DOCUMENT NO
.
88J001F Colortrac Ltd © 2014
DECLARATION OF CONFORMITY
Manufacturer:
Burrel Road
St Ives
Cambridgeshire
PE27 3LW
United Kingdom
Details of Electrical Equipment
Model Number: SmartLF SG
Description: Large Format Scanner
Directives this equipment complies with:
Low Voltage Directive 2006/95/EC, EMC Directive EN 55022:2010+AC:2011 (Class A) EN55024:2010
EN 61000-3-2:2006+ A2:2009 IEC 61000-4-2:2008
EN 61000-3-3:2008 IEC 61000-4-3:2006+A1:2007+A:2010
IEC 61000-4-4:2012
IEC 61000-4-5:2005
IEC 61000-4-6:2008
IEC 61000-4-8:2009
IEC 61000-4-11:2004
RoHS Directive 2011/65/EU
Harmonised standards applied in order to verify compliance with Directive: EN 61000-3-2:2006+A2:2009
Test Report Issue by: Cerpass Technology Corp
Year in which CE mark was affixed: 2014 (Attestation Number: SECE1404047)
Signed .......................................... Date: 30th May 2014
Peter Brown
Managing Director
Colortrac Ltd
United Kingdom
Other Standards Complied with:
China Compulsory Certificate
GB4943.1-2011 GB9254-2008(Class A) GB17625.1-2012
CB Certification (IECEE) CB SCHEME
IEC 60950-1(ed.2), IEC 60950-1(ed.2);am1
Federal Communications Commission (FCC) Declaration of Electromagnetic Conformity
Standards Complied with:
ANSI C63.4-2009
CISPR PUB.22,FCC Part 15 Subpart B Class A (Verification)
UL Certification for SmartLF SG and SmartLF SG Accessories
CSA C22.2 No. 60950-1-07, 2nd Edition, 2011-12 (Information Technology Equipment - Safety - Part 1: General Requirements)
UL 60950-1, 2nd Edition, 2011-12-19 (Information Technology Equipment - Safety - Part 1: General Requirements)
SG Scanner
SG Scanner + Floor Stand
SG Scanner + Repro Stand - PC (optional) + Monitor (optional)
SG Scanner + PC Mounting Option - PC (optional) + Monitor (optional)
FOR SAFETY CONSIDERATION WEIGHTS AND SIZES MUST BE LIMITED TO:
PC – less than 15kg, maximum dimensions 43 x 42 x 18 cm
MONITOR – less than 6kg, maximum dimension 22 inches
RoHS and WEEE Directives (European Union)
SmartLF SG complies with RoHS Directive 2011/65/EU
All Colortrac products (from mid-May 2006) have been manufactured in accordance with the RoHS (Restriction of Hazardous Substances) which imposes controls
against the use of lead in solder and other substances harmful to the environment in the production of all new electrical equipment.
This symbol on the product indicates that it must not be disposed of in unsorted municipal waste. In accordance with WEEE (Waste Electrical & Electronic
Equipment) it is your responsibility to hand it over to a designated collection point and ensure that it is recycled or disposed of properly at the end of its useful life.
The separate collection of your waste equipment will help to conserve natural resources and ensure that it is recycled in a way that will protect human health. For
more detailed information contact your local Civic Office or outlet where the equipment was purchased.
Disclaimer
The entire risk of the use or the result of the use of this hardware or documentation remains with the user. No part of this documentation may be reproduced or
transmitted in any means, electronic or mechanical, for any purpose, except with the express prior written permission of Colortrac Ltd.
Colortrac Ltd makes no warranty claims with respect to this documentation and disclaims any implied warranties of merchantability or fitness for a particular purpose.
The information contained in this document is subject to change without notice. Colortrac Ltd assumes no responsibility for errors or omissions that may appear in
this documentation © Colortrac 2014.
This document should not be copied without prior permission from: Colortrac Ltd, 3-5 Brunel Court St. Ives Cambridgeshire PE27 3LW United Kingdom Tel: +44 (0) 1480 464618, Fax: +44 (0)
1480 464620 www.colortrac.com email: [email protected]
15
Warning
This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be
required to take adequate measures
