Blaster 2R
Beam, Scanner, & Laser Simulator Effects
CKU01-1040 (US) / CKE01-1040 (EU)
USER MANUAL
Page 2
1
Introduction
Thank you for purchasing the ColorKey Blaster 2R. Please read these instructions carefully
before use. O
perating this fixture according to these instructions is important to avoid any
possible damage or
accidents caused by misuse.
Packing list
! 1x Blaster 2R fixture
! 1x DMX cable
! 1x Power cord
! User Manual
Safety
Caution! Opening this unit voids warranty. Contact ColorKey for any service requests.
Warning! To avoid electrical shock, be sure to disconnect power before any service or when moving or setting
up the fixture.
Caution! Avoid direct eye exposure with the fixture when on.
• This fixture is for indoor use only.
• This fixture must be installed a minimum distance of 5 meters (16’4”) away from any lighted objects.
• Do not install or operate this fixture near flammable materials.
• This device must be installed, operated, and maintained by a qualified professional.
• Do not touch the fixture with bare hands during operation as the surface temperature of the fixture can
exceed 60˚C (140˚F). Turn off power and wait 15 minutes for the fixture to cool before attempting to touch
it.
• Please check if the voltage is in accordance with the rated power before installing.
• Do not operate this fixture if the power cord has been damaged. Turn off fixture and replace with a power
cord of similar rating.
Page 3
2
Display Operation
• MENU: Access the menu/Scroll through menu options
• ENTER: Open/Select the current menu option
• UP: Scroll through menu selection or parameter increase
• DOWN: Scroll through menu selection or parameters decrease
DMX Values
DMX 17 Channel Mode
Channel
Function
1
Pan
2
Tilt
3
Color
4
Gobo
5
Pattern Macros
6
Pattern Rotation (double directions)
7
Pattern Rotation (horizontal/vertical)
8
Pattern Zoom
9
Horizontal Pattern Movement
10
Vertical Pattern Movement
11
Eccentri
12
Eccentri Shaking
13
Prism
14
Prism Auto Rotation
15
Dimmer
16
Shutter
17
Macro Function (active after 5 seconds)
Page 4
3
DMX 21 Channel Mode
Channel
Function
1
Pan
2
Pan Fine (16 bit)
3
Tilt 4 Tilt Fine (16 bit)
5
Pan shaking
6
Tilt shaking
7
Color
8
Gobo
9
Pattern Macros
10
Pattern Rotation (double directions)
11
Pattern Rotation (horizontal/vertical)
12
Pattern Zoom
13
Horizontal Pattern Movement
14
Vertical Pattern Movement
15
Eccentri
16
Eccentri Shaking
17
Prism
18
Prism Auto Rotation
19
Dimmer
20
Shutter
21
Macro Function (active after 5 seconds)
Page 5
4
Menu Guide & Operation
A001
DMX Address
DMX Address code set
A512
17Ch Channel Mode
Channel selection
21Ch
Sound
Show Mode
Voice control, auto control
Auto
Master
Slave Mode
Master or Slave mode selection
Slave
No
Black Out
Standby selection
Yes
On Sound State
Voice control switch
Off
Sound Sense
0--100
Acoustic sensitivity (0 min, 100 max)
MENU
No
Pan Inverse
Motor pan reverse
Yes
No
Tilt Inverse
Motor tilt reverse
Yes
On
Page 6
5
Back Light
LCD display backlight on/off
Off
On Lamp On/Off
Lamp switches
Off
Auto Test
Test unit
---°C
Not connected to the temperature sensor
Temp.
-20--200°C
Display internal temperature of the unit
Fixture Time
0--999
Total running time
Firmware Version
V1.01
Version numbering
No
Factory Defaults
Restore the factory default Settings
Yes
No System Reset
Unit reset
Yes
Page 7
6
DMX Connections

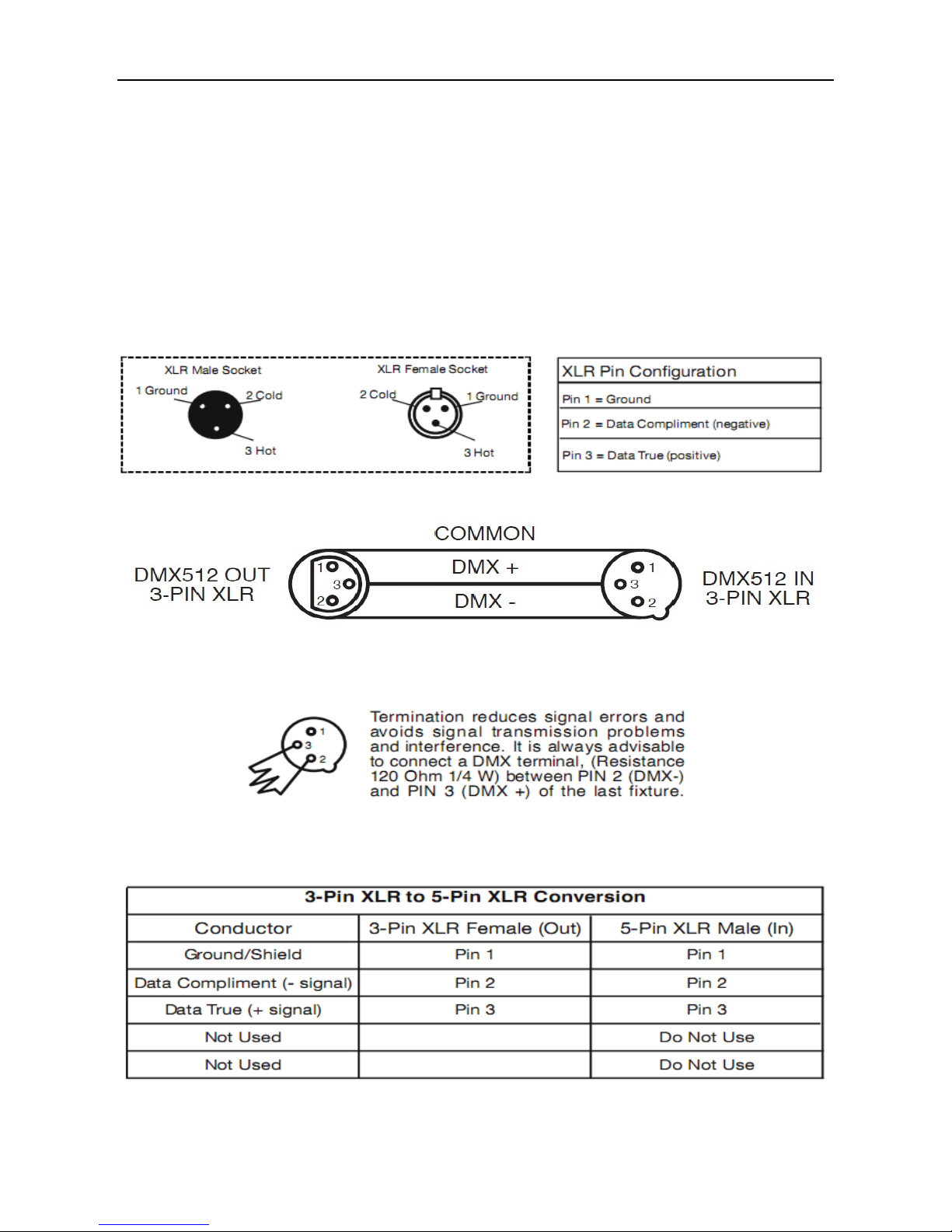

" DMX Cable：
The Blaster 2R can be controlled via DMX using a 3-pin XLR connection. The standard
DMX connection is XLR is: one end connects to the male plug, and the other connects to the
female. As below: pin 1: ground, pin 2: negative signal, pin 3: positive signal
Noted：In order to avoid failures and interference signal transmission，we connect a
resistance120Ω （ 1/4W ） at the end of the DMX connecting as below:
" The Conversion between 3 pin and 5 pin XLR
If the output cable of DMX512 controller is the 5PIN, please use 1pc 5PIN to 3PIN cable
Page 8
7
Master/Slave Mode Operation
Master/Slave
Master/Slave mode allows you to connect multiple units together using one (1) unit to control
others in a chain. When a fixture is set to ‘Master Mode,’ this unit will always act as a
controlling unit until it is switched out of ‘Master Mode’. The Master unit will send out signal
via DMX to Slave units which will react in synchronization. When a fixture is set into ‘Slave
Mode’, this fixture will receive the Master signal. To avoid master signal and DMX signal
interference, do not connect DMX when using Master/Slave mode. If using a DMX run
longer than 60 meters and/or over 32 units, a signal amplifier may be required.
Troubleshooting
Problem
Solutions
No DMX control
# Make sure that the DMX cable is properly connected
# Make sure that the DMX controller is operational
# Check the DMX cable for tears or breaks
# Make sure that the fixture is in DMX mode
Fixture does not
respond to sound
# Make sure that the fixture is in Sound Active mode.
Page 9
8
Technical Information
Power supply: AC 100-240V – 50/60Hz
Power consumption: 160W
Light source: 2R YODN Lamp
Life span: 2000 hours
Color temperature: 8000 k
Colors: 14 colors plus white
Gobos: 17 gobos plus open
Beam angle: 3˚
Channel: 17/21ch
Control: Auto, Sound active, DMX512, Master/slave
Dimmer: Electronic dimming
Prism: Three-facet prism
Display: LED display
Weight: 16.5lbs (7.5kg)
Dimensions: 14” x 10.5” x 9.5” (358 x 268 x 242mm)
Notice to consumer: ColorKey offers a 1-year limited warranty. Please visit our website at
www.ColorKeyLED.com to register your product.
Please note: As we continue to work towards improving our products and your experience
as a user, we recommend that you check our website periodically for updates to user
manuals and specifications at www.ColorKeyLED.com or you may contact us directly at
