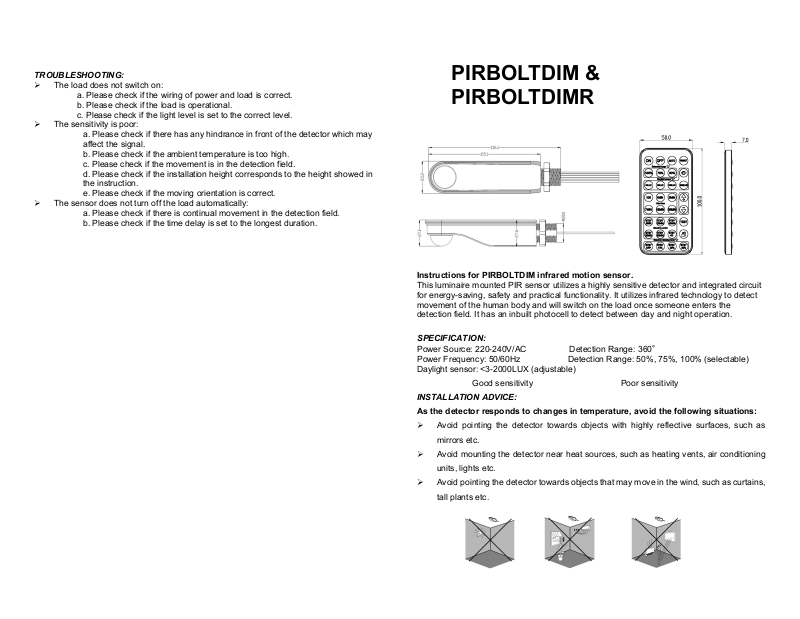

Page 1
TROUBLESHOOTING:
The load does not switch on:
a. Please check if the wiring of power and load is correct.
b. Please check if the load is operational.
c. Please check if the light level is set to the correct level.
The sensitivity is poor:
a. Please check if there has any hindrance in front of the detector which may
affect the signal.
b. Please check if the ambient temperature is too high.
c. Please check if the movement is in the detection field.
d. Please check if the installation height corresponds to the height showed in
the instruction.
e. Please check if the moving orientation is correct.
The sensor does not turn off the load automatically:
a. Please check if there is continual movement in the detection field.
b. Please check if the time delay is set to the longest duration.

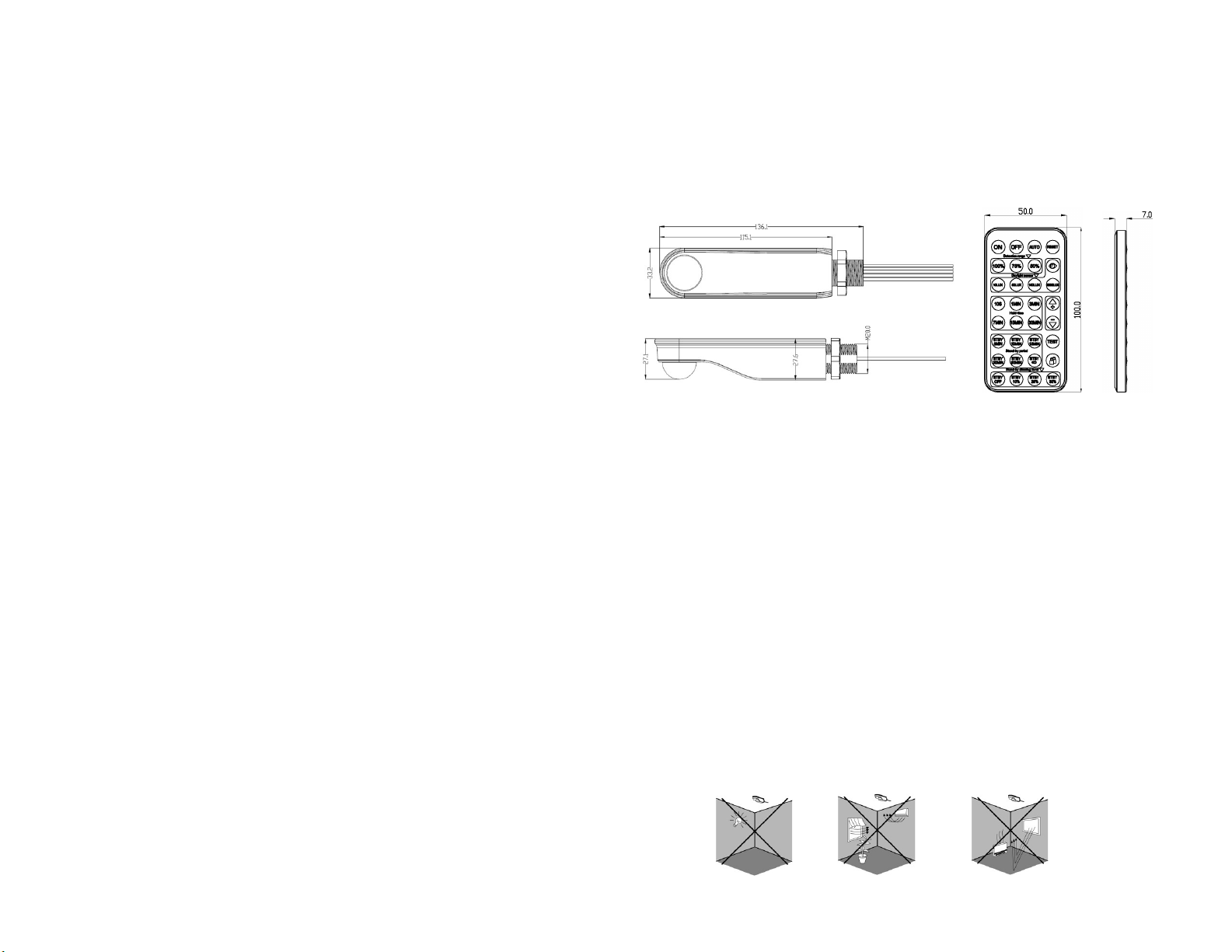

PIRBOLTDIM &
PIRBOLTDIMR
Instructions for PIRBOLTDIM infrared motion sensor.
This luminaire mounted PIR sensor utilizes a highly sensitive detector and integrated circuit
for energy-saving, safety and practical functionality. It utilizes infrared technology to detect
movement of the human body and will switch on the load once someone enters the
detection field. It has an inbuilt photocell to detect between day and night operation.
SPECIFICATION:
Power Source: 220-240V/AC Detection Range: 360°
Power Frequency: 50/60Hz Detection Range: 50%, 75%, 100% (selectable)
Daylight sensor: <3-2000LUX (adjustable)
Good sensitivity Poor sensitivity
INSTALLATION ADVICE:
As the detector responds to changes in temperature, avoid the following situations:
Avoid pointing the detector towards objects with highly reflective surfaces, such as
mirrors etc.
Avoid mounting the detector near heat sources, such as heating vents, air conditioning
units, lights etc.
Avoid pointing the detector towards objects that may move in the wind, such as curtains,
tall plants etc.
Page 2

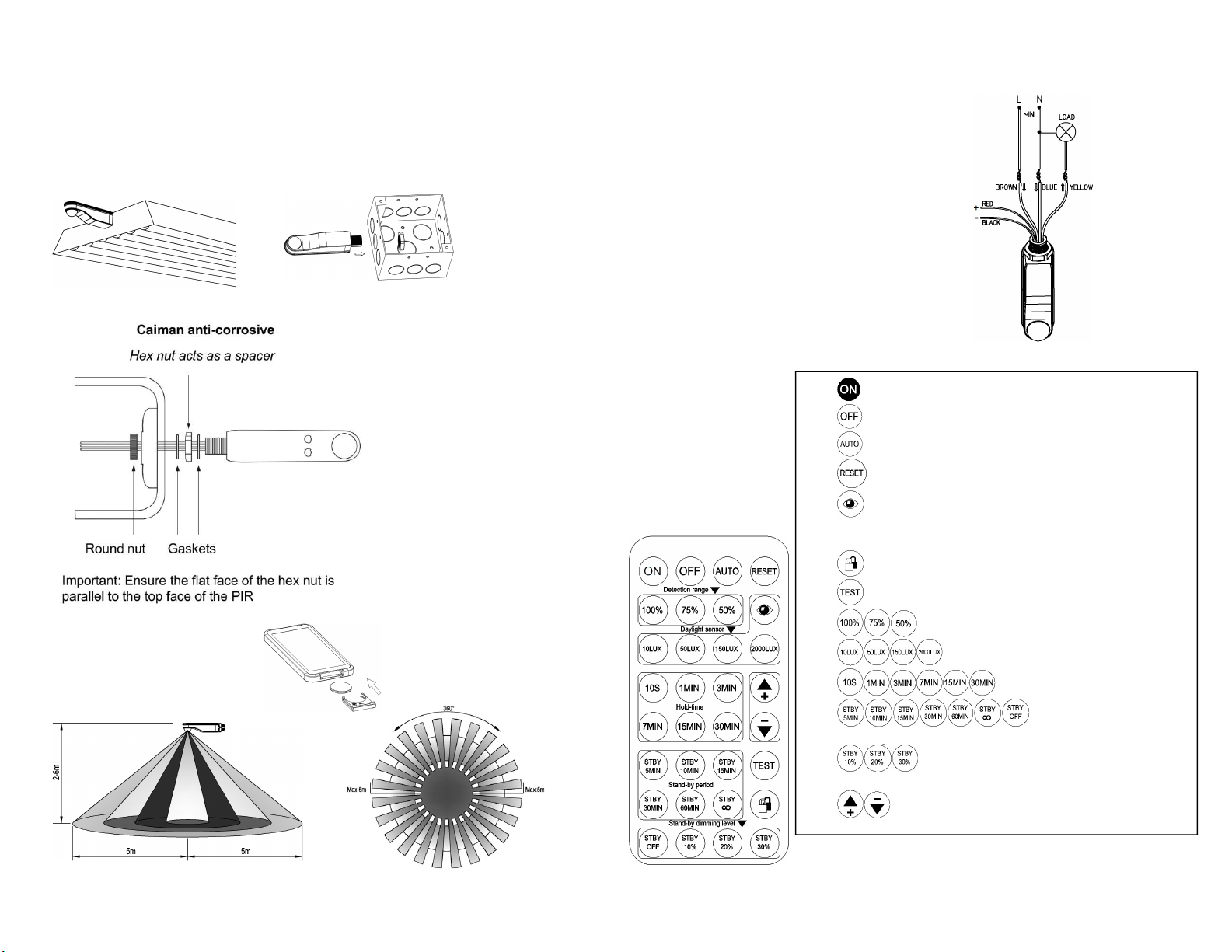

INSTALLATION: (see the diagram)
Switch off the power.
Connect the power and the load to sensor as per the wiring diagram.
Switch on the power and test the functionality.
Fixture Junction box
Battery replacement
Pull out the battery holder
Put in a new battery (CR-2025)
SENSOR INFORMATION:
Height of installation: 2-6m
WIRING DIAGRAM (See the right image)
It requires a remote control for setting all parameters, part
number
PIRBOLTDIMR.
(Sold
Separately)
Please see
information
below:
Load override ON (After 8hours, return to AUTO mode)
Load override OFF (After 8hours, return to AUTO mode)
Set load to operate depending on motion
Sensor works according to dial setting
Automatically detect the actual ambient light level and
the sensor switches according to this LUX value stored,
range 0-2000LUX
Lock & unlock remote controller buttons
Test mode
Adjust detection range
Adjust LUX value from 10-2000LUX
Set on time
Set hold time of load in
dimming level
Set load’s dimming level or switch off load
when there is no motion detection
Manually dim level from 100% to 10%
