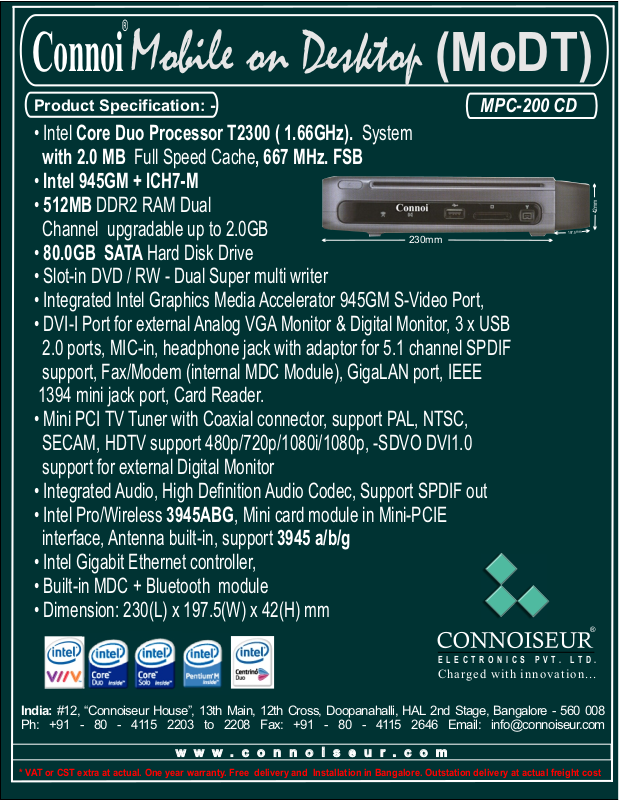

Connoi
Product Specification: -
Intel Core Duo Processor T2300 ( 1.66GHz). System
•
Mobile on Desktop (MoDT)
MPC-200 CD
with 2.0 MB Full Speed Cache, 667 MHz. FSB
Intel 945GM + ICH7-M
•
512MB DDR2 RAM Dual
•
Channel upgradable up to 2.0GB
80.0GB SATA Hard Disk Drive
•
Slot-in DVD / RW - Dual Super multi writer
•
Integrated Intel Graphics Media Accelerator 945GM S-Video Port,
•
DVI-I Port for external Analog VGA Monitor & Digital Monitor, 3 x USB
•
230mm
2.0 ports, MIC-in, headphone jack with adaptor for 5.1 channel SPDIF
9
1 .5m
mm
42
m
7
support, Fax/Modem (internal MDC Module), GigaLAN port, IEEE
1394 mini jack port, Card Reader.
Mini PCI TV Tuner with Coaxial connector, support PAL, NTSC,
•
SECAM, HDTV support 480p/720p/1080i/1080p, -SDVO DVI1.0
support for external Digital Monitor
Integrated Audio, High Definition Audio Codec, Support SPDIF out
•
Intel Pro/Wireless 3945ABG, Mini card module in Mini-PCIE
•
interface, Antenna built-in, support 3945 a/b/g
Intel Gigabit Ethernet controller,
•
Built-in MDC + Bluetooth module
•
Dimension: 230(L) x 197.5(W) x 42(H) mm
•
E L E C T R O N I C S P V T . L T D .
Charged with innovation...
®
India: #12, “Connoiseur House”, 13th Main, 12th Cross, Doopanahalli, HAL 2nd Stage, Bangalore - 560 008
Ph: +91 - 80 - 4115 2203 to 2208 Fax: +91 - 80 - 4115 2646 Email: info@connoiseur.com
w w w . c o n n o i s e u r . c o mw w w . c o n n o i s e u r . c o m
* VAT or CST extra at actual. One year warranty. Free delivery and Installation in Bangalore. Outstation delivery at actual freight cost
