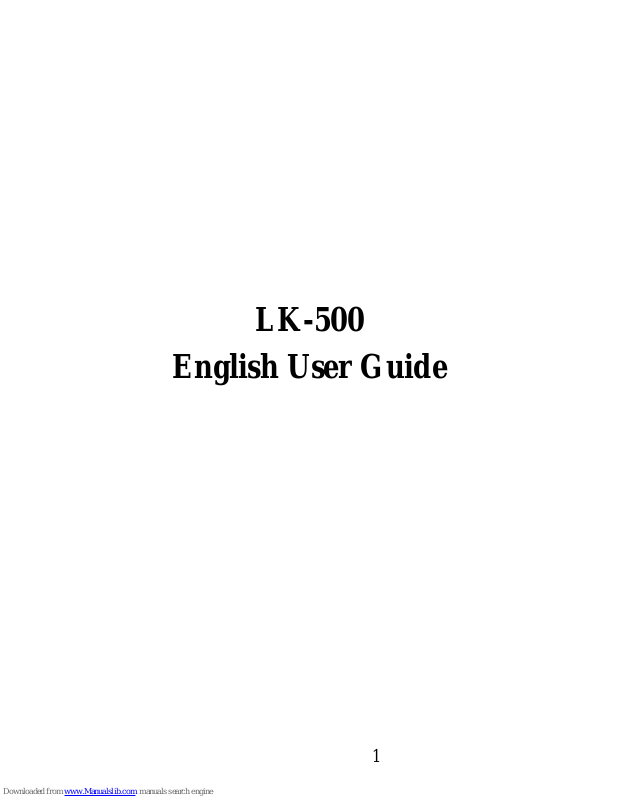

Collage LK-500 User Manual

1

LK-500

English User Guide

2

Table of contents

Table of contents .......................................................................... 2

Foreword ...................................................................................... 4

Safety ............................................................................................ 5

Glimpse of Your Phone ............................................................... 7

Knowing the Keys ....................................................................... 8

Preparing Your Phone ................................................................. 9

Installing SIM Card ................................................................. 9

Installing Memory Card ........................................................... 9

Installing Battery ..................................................................... 9

Removing Battery ................................................................... 10

Charging Battery.................................................................... 10

Security Codes ....................................................................... 10

Using Your Phone ...................................................................... 12

Powering on/off ...................................................................... 12

Making a Call ........................................................................ 12

Receiving a Call ..................................................................... 13

Emergency Service ................................................................. 13

Using the In-Call Menu ......................................................... 13

U-disk-Movable Storage ........................................................ 14

Phonebook ................................................................................ 0

Call los ..................................................................................... 0

Settings ..................................................................................... 2

Messages .................................................................................. 0

3

File manager ............................................................................ 5

Fun & Game ............................................................................ 5

FM radio .................................................................................. 6

Organizer ................................................................................. 6

Input Methods ............................................................................. 9

Accessories ................................................................................. 11

Caring for Battery ..................................................................... 12

Environment .............................................................................. 13

Technical Specifications ............................................................ 14

4

Foreword

Thank you for choosing this mobile phone – you have made a wise choice,
congratulations!
Our cellular phones are approved for GSM networks and meet stringent
European standards. Your phone may be used internationally with various
networks depending on your roaming arrangements with your service provider.
To use this phone you must subscribe to a GSM service from a provider. We
have included many features in this device but their function depends on the
features available with your subscribed wireless network.
Please contact your service provider for more information.
This User Manual is published by the manufacturer without any warranty.
Revisions and improvements resulting from typographical errors, inaccuracy of
current information, and improvements to the device or software may be done
without any prior notification, but will be incorporated into newer editions.
More information and help on your phone may be available at the

manufacturer’s website. The manufacturer reserves all rights to the contents

herein.
Copyrights and trade marks mentioned in this document remain with their
respective owner, Reproduction, transfer, storage, or distribution in whole or in
part of copyrighted materials without prior written permission is expressly
prohibited. We strongly recommend you carefully read and understand this
manual before using your phone in order to keep it under best conditions for
your effective usage and utmost satisfaction.

5

Safety

Never attempt to disassemble your phone. You alone are responsible for how
you use your phone and any consequences of its use.
As a general rule, always switch off your phone wherever the use of a phone is
prohibited.
Use of your phone is subject to safety measures designed to protect users and
their environment.

Do not use your phone in damp areas (bathroom, swimming pool…). Protect it

from liquids and other moisture.
Do not expose your phone to extreme temperatures lower than - 10°C and
higher than + 55°C.
The physicochemical processes created by chargers impose temperature limits
when charging the battery. Your phone automatically protects the batteries in
extreme temperatures.
Do not leave your phone within the reach of small children (certain removable
parts may be accidentally ingested).

Electrical safety: Only use the chargers listed in the manufacturer’s catalogue.

Using any other charger may be dangerous; it would also invalidate your

warranty. Line voltage must be exactly the one indicated on the charger’s serial

plate.
Aircraft safety: When traveling by plane, you will need to switch your phone
off when so instructed by the cabin crew or the warning signs.
Using a mobile phone may be dangerous to the operation of the aircraft and may
disrupt the phone network.
Its use is illegal and you could be prosecuted or banned from using cellular
networks in the future if you do not abide by these regulations.
Explosive materials: Please comply with warning signs at petrol station asking
you to switch your phone off. You will need to comply with radio equipment
usage restrictions in places such as chemical plants, fuel depots and at any
location where blasting operations are under way.
Electronic equipment: To avoid the risk of demagnetization, do not let
electronic devices close to your phone for a long time.

6

Electronic medical equipment: Your phone is a radio transmitter which may
interfere with electronic medical equipment or implants, such as hearing aids,
pacemakers, insulin pumps, etc. It is recommended that a minimum separation
of 15 cm be maintained between the phone and an implant. Your doctor or the
manufacturers of such equipment will be able to give you any advice you may
need in this area.
Hospitals: Always make sure that your phone is switched off in hospitals when
so instructed by warning signs or by medical staff.
Road safety: Do not use your phone when driving. In order to give your full
attention to driving, stop and park safely before making a call. You must comply
with any current legislation.
Distance of operation: This phone model has been tested and meets
radiofrequency exposure guidelines when used as follows:

·Against the ear: Place or receive a phone call and hold the phone as you would
a wire line telephone.

·Body worn: When transmitting, place the phone in a carry accessory that
contains no metal and positions the phone a minimum of 2.5 cm form your body.
Use of other accessories may not ensure compliance with radiofrequency
exposure guidelines. If you do not use a body worn accessory and are not
holding the phone at the ear, position the phone a minimum of 2.5 cm from your
body,

·Data operation: When using a data feature, position the phone a minimum of

2.5 cm from your body for the whole duration of the data transmission.

1

Glimpse of Your Phone

(The picture below is for reference only)

8

Knowing the Keys

1. Left soft key/Right soft key: Implement the functions shown in the lower

left/right hand corner.

2. Call/Answer key (Green key): Press after dialing to connect by SIM Card.
Press if there is an incoming call to answer. Press from standby to go to call
records list.

3. End/Power key (Red key): Long press to switch phone on/off; Press to end,
reject call; or to exit a menu.

4. OK key: Confirm or accept selection in menu access.
Press from standby to enter the selected shortcuts list function.

5. Navigator Keys: Press the up/down/left/right direction in menu to scroll,
browse or in edit page to move cursor. In idle mode, press the left/right direction
keys to select the shortcut function showed on the bottom of the screen, and
then press the OK key to confirm.

6. 0-9 alphanumeric keys: Press corresponding keys to input numbers when
dialing or numbers and characters when editing.
From Standby: Long press “2” to “9” key to dial speed dial numbers (as defined
in the menu [Contacts/Speed dial]).
Press the alphanumeric key [O] to input “+” symbol for international access in
the dialing interface.
Press the alphanumeric key [P] to input “p” symbol for the fixed extension
number.

7.＊(Star) Key: Press in standby to input “*” character.

8.＃(Pound) Key

Press in standby to input “#” character.Press to change input method when
editing.

9

Preparing Your Phone

Installing SIM Card
Please keep your SIM card away from reach of children.

Scratches and bends can easily damage the SIM card. Please be extra
careful when installing, removing, handling or storing your SIM card.
Before installing or removing the SIM card, make sure the phone is
switched off, and remove the back cover and battery.

Find SIM card's groove in the back of phone and slide it completely there.
During installation, please make sure that the chip is facing downwards and pay
attention to slot direction.

Installing Memory Card

This phone supports the memory card function. Please ensure the memory card
is inserted correctly before using.

Note that when the phone is shook, the memory card is likely to slide from
its groove, so please do not warp and scratch the memory card, or make it
contact static electricity, dust or immerse in water.

Find memory card's groove in the back of phone, make the chip face to back of
the phone and pay attention to the slot direction, slide the memory card until it
is entirely inserted into its groove.

Please be careful when using the memory card, especially when inserting
and removing it. Some memory cards must be formatted in PC before it is
used for the first time.
Please regularly backup information in the cards on other equipment when
you use cards like T-flash!
Improper use or other uncertain factors may cause the damage or loss to
the content in the cards.

Installing Battery

1. Align the battery chip with the metallic salient point in battery jar, insert the
battery and press top of the battery downwards as per the arrow direction until it
is inserted into the battery jar.

10

2. Slide battery cover into back of the phone until it is locked.

Removing Battery

First switch off the phone and make it face downwards, push the battery cover
to top of the phone, get its top and remove it.

Note: All settings or information stored in SIM card and the phone may be
lost when the battery is removed.
Please remove the battery when the phone is switched off, because it may
suffer from abnormity if you remove the battery when it is switched on.

Charging Battery

Unclose dustproof soft gum of attachment mode on the left side of the phone;
insert one end of the charger, i.e., the charging plug into attachment mode and
the other end into electrical outlet. If the phone is switched on and the battery
power icon stripes in right hand of the screen are rolling, then it is charging; if
the stripes are full and have stopped rolling, it is fully charged. If the phone is
switched off when charging, a large charging sign will display in screen. After
charging is finished, just pull out the plug.

Note: 1.When the battery is low; the phone display will show a warning
message. Recharge the battery as soon as possible to avoid inconvenience of
the phone shutting off during a call. Your phone will power off
automatically if the voltage becomes too low. Prolong use of battery in low
charge state will adversely affect the quality and life of the battery.

2. To ensure normal operations, please use approved chargers.

3. Do not remove the battery when charging.

4. Before you first use, please charge the battery for at least 4 hours. It will
achieve maximum efficiency after several charge and discharge cycles.

Security Codes

- PIN Code

The PIN (Personal Identification Number) code protects your SIM card against
unauthorized use. It is normally supplied with the SIM card package. Be careful
while entering PIN code, 3 wrong tries in entering PIN code will block the SIM
from use, requiring input of PUK code to unblock. Please contact your operator

11

for further details.

- PIN2 Code

The PIN2 code is required when activating certain special features (such as call
costs and fixed dialing). It is normally supplied with the SIM card package. Be
careful while entering PIN2 code, 3 wrong tries in entering PIN2 code will
block the SIM from use, requiring input of PUK2 code to unblock. Please
contact your operator for further details.

- PUK Code

The PUK (Personal Unblocking Key) code is required to unblock a blocked PIN
code. It is normally supplied with the SIM package; otherwise contact your
service provider for the code. Keep your PUK code in a safe place, do not throw
it away. Contact your service provider if it is lost.
If your SIM is blocked，your phone will ask you to enter PUK code to unblock.
You have 10 tries to enter the right PUK code, after which your SIM might be
permanently blocked.

- Phone Password

The Phone Code is a 4 to 8 digit security code that protects unauthorized use of
your phone. The factory default code is “1122”. Once activated, the phone will
ask you to enter Phone code every time it is turned on. For your protection,
change the default phone code as soon as possible.
Do not forget your phone password.

12

Using Your Phone

Powering on/off

Press and hold the Red key to switch your phone on or off.

1. If there is no SIM card, SIM card is defective, or SIM card contact is loose,
you will be prompted with a warning after powering on, Shut down and check
your SIM and its installation.

2. If inserted SIM card into the phone, meanwhile phone code and PIN code is
turned on. When switched on, after entering the phone code and PIN code, the
phone enter the standby mode by the current SIM.

After switched on, the phone will automatically search the network. If the
phone detected authorized network, the screen will display the network
name and signal strength；If no authorized network is found，the phone can
only make emergency calls or use non-communications features.

Making a Call

In standby mode, press the corresponding numeric keys to enter the phone
number that you want to dial, including necessary area codes. Press C key to
delete erroneous inputs; press the Call/Answer key to make a call when done to
connect.

1. Dialing Fixed/Land Line Extensions: You cannot directly get through some
fixed line extensions, and need to dial the telephone exchange or trunk line first
and then press [P] key to switch until “P” appears on the screen. And then dial
the extension.

2. Making an International Call: To make an international call, press [*] key to
switch until the prefix symbol "＋" of inter-national call displays in screen.

3. Dialing from Phonebook: Enter the Phonebook via the menu to enter the
phonebook list, use the Up/Down Navigator keys to scroll to the desired contact,
or press the first letter of the name of the desired contact as saved in your
phonebook for quick access to names beginning with the letter then scroll to the
desired one.

4. Dialing from Call history: Enter the Call center (press the Call/Answer key
from standby or via the menu), use the Up/Down navigator keys to scroll to the

13

desired contact.

Receiving a Call

When there is an incoming call, the phone will give corresponding alert, if your
network supports caller ID, the screen will display caller’s name or number
(depending on whether there is information about the caller in your phonebook).

1. Press the Call/Answer key or press the Left soft key and confirm [Answer]
to answer the incoming call.

2. If function of [Call settings] is selected as [Any key], press the any key to
answer the incoming call except the Right soft key or the Red key.

3. If you do not want to answer an incoming call, press the Red key to reject it.
You can also press the Red key to end a call.

4. During a call, you can press the up/down navigator keys to adjust receiver
volume.

5. You can contact emergency service numbers without the need of SIM card.
Different networks uses different emergency numbers, please contact your
network operator for details.

Emergency Service

You can directly dial the emergency service number without SIM card. Different
networks use different urgency service numbers, so for details please inquire the
network operation company.

Using the In-Call Menu

The feature provides some operations and features while you are in active call
with a party or several parties. Some of which are network dependent, please
inquire with your network operator or service provider of their availability.
Press the Right soft key [H-Free/H-Held] to activate the loudspeaker function
while on an activate call; following the same procedure can deactivate the
function.

14

U-disk-Movable Storage

This phone supports movable storage, i.e., the U-disk function, when the phone
is switched off, it can be used as U-disk when connected with PC by data line.
When the phone is switch on, it will give alert and show “Mass storage” when
connected with PC by data line, and then you can take the memory card as a
U-disk when you select [OK] option, or select [Back] to return to continue using
the phone functions and charging it.

1. If you select [Mass Storage] mode, please disconnect the data line after
downloading, otherwise you can not operate the functions related to U-disk like
multimedia, and the user set content (wallpaper and ring tone etc) with
original documents stored in memory card will automatically retrieve the default
setting and the user setting after quitting the U disk function.

2. When you disconnect the data line, please make the operation of "Unplug or
eject hardware" until you can safely disconnect the data line, otherwise you may
damage the U-disk.

Menu functions

Services

Internet surfing using the phone is based on Wireless Application Protocol (WAP).
WAP translates the internet language into WML and HTML languages
understandable by your phone. It requires only the phone and a WAP server support
to surf the net. Your network will need to support this feature for you to surf the
internet using your phone.

Phonebook

Select contacts option to browse the phone book list Press the Left soft key [Options] to
access the menu options:

• View: Display details of currently contact.

• Call: Dial the selected phone number.

• Add new contact: This menu allows you to add the new record to the SIM card or the

Phone.

• Send message: Send message to this number.

·IP dial: If set and activated IP number, you can dial the currently selected phone number

that adds IP number.

• Edit: Modify the currently selected contactor record.

• Delete: Delete the currently selected record

• Copy: Copy the selected records to SIM card if it is saved in phone and vice versa. You

can select ‘from SIM to phone, from phone to SIM’ option to copy the phonebook you

want.
Note: Copy the record from the phone to SIM card, only the name and number of record
can be transferred.

·Move: Move this record to SIM card if it is saved in phone and vice versa.
Note: Copy or move the record from the phone to SIM card, only the name and number of
record can be transferred.

·Add to Speed dial: Add the currently number to speed dial list.

• Mark several: Mark one or several phonebook record and make the options

Messages

Message service is a network dependent function, which allows you to send, receive and

1

edit all kinds of messages.
Please contact the network operator for more details.

- Write message

Function: Compose a new message, save and/or send it to the recipient.
Note: to send SMS, you need to set the correct SMS service center number which can be
obtained from network provider.
While composing, press the # key to change input method, a text message can be up to 160
characters in length and may contain pictures and ring tones (EMS).
Press the Left Soft key [Options] to select options when editing:
Note: 1. to send SMS, you need to set the correct SMS service center number which can be
obtained from network provider.

2. If [SMS settings/Common settings/Save sent message] is [On], the sent
successfully/unsuccessfully SMS will be both saved to Outbox; otherwise the SMS will not
be saved.

- Inbox

Received SMS messages can be stored either in phone or in SIM memory, and are accessed
here.

If the message memory is full, the indication “Memory full” and the message icon will be

shown on the screen and flashed. Before you can receive new messages, delete some of
your old messages in the inbox folder. If the capacity of new messages is beyond the
capacity of the inbox, the information will be lost and incomplete.
In message list, press the OK key or the Left soft key [Ok] to read the selected message,
press the OK key or the Left soft key [Options] to make the following menu:

- Outbox
If [Save and send] option is selected when sending the message, the sent SMS will be
saved to Outbox.
In sent message list, press the OK key or the Left soft key [Ok] to read the selected
message, press the OK key or the Left soft key [Options] to make the operations of [Send

2

from SIM1/SIM2, Edit, Delete, Copy to phone/SIM, Move to phone/SIM, Delete all, Copy
all, Move all, Use number, Use URL].

- Drafts

Incompletely composed and saved messages can be organized and accessed here.

- Settings

Sets and save messages service parameters.

-Memory status

view the percentage of the messages memory consumption.

-Voicemail (supported by the network)

Set and call your voice mail number.
Your network may provide or support voice mailboxes. It is a service that lets your callers
leave a voice message at a voice mailbox assigned to you for your later retrieval. You may
have to apply for the service and secure the voice mailbox number from your operator.

- Bro. messages(supported by the network)

Set and activate receive of local information broadcast from the network.
Choose whether you want to receive information broadcast from your network such as
weather forecast, traffic update, news, and taxi service info. Please contact your local
network operator for more details.

Call los

This phone can record all received calls, dialed calls and missed calls as well as their call
time. Only when related function is supported by network and phone is switched on and in
network service area, it can record the answered and missed calls.
Dialed/Received/Missed/Allcalls: Display list of dialed /accepted incoming/missed/all
calls.

Once on the call records list, press the OK key to view the details, press the Left soft key
[Options] to make the following options:

View, Call, Save, Delete,Edit before call,Send message.

Settings

Date and time

Set the phone’s current time and date and its format, home city.

Display

Personalize your display according to your preference.

-Wallpaper: Select wallpaper for your phone; it is the background image on your standby

3

screen.

-LCD backlight: Set the backlight of the time.

-Brightness: Set the Brightness of backlight.
Phone settings
You can set Language,Shortcuts,home city,auto keypad lock and Iput method settings.

Call settings

-SIM1/SIM2 call settings

You can select SIM1 or SIM2 to set the call settings options.

·Call waiting (supported by the network): You can switch on and off or checking for the
call waiting function.
Switch on call waiting, and you will hear warning alert tone if there is a new incoming call
during a call, with a phone number of another call on the screen.

·Call divert (supported by the network): Divert your incoming calls to voicemail or
other numbers. There are three diverting ways, each of which can be set to divert to voice
Mail or to the other number, off or check status.

·Call barring : Restrict to answer or dial the call in any situation. You need to apply to the
network operator for opening the international long-distance function and get network
restricting code for barring setups. Any item of call barring can be set to on, off or check
status. Call barring includes:

·Line switching*: Some SIM cards and operators may support two lines, this function
allows you to switch between the lines. It will be indicated by an icon on your standby
screen status bar. Please inquire with your service provider for more details.

- Common call settings

·Call time reminder: To have your phone alert you with a beep for every fixed
time intervals (Periodic) or once (Single) during a call, press the OK key and select
either Off; Single; or Periodic; if selected to activate, press the OK key again and
input time interval in number of seconds (1-3000 for single; 30 – 60 for periodic)
and then press the OK key again to confirm.

·Auto redial: Switch on or off auto redialing function. When switched on, if the

4

receiver does not answer in dialing, the phone will automatically redial the number.
The maximum redial times are 10. And during this period, the subscriber cannot dial
any other number. Press the End/Power key or the Right soft key [Cancel] to end
auto redial.

·Answer mode: use the OK key or the Left soft key to turn any key on or off, if
activated, you can answer incoming calls just by any key except the Red key and the
Right soft key.

Network settings

• Network selection: Choose to Automatic or Manual select network. If automatic
selection, the phone will select the current network where your SIM is registered to. If
manual, your phone will search for and list down available networks for your selection,
note that you must select the network where your SIM is registered to.

• Preferences networks: Set or modify your preferred network. It will display the network
preference list as stored in your SIM.

Network status

Display the status of network.

Security settings

You can set security options of the phone under this menu so that the phone or the SIM
card cannot be illegally used.

• SIM security: Press the OK key to activate or deactivate SIM Lock, the current status is
displayed in a dialogue box when you scroll to this option. To activate SIM PIN, you will
be asked to enter the PIN code. If activated, you will be required to enter the PIN every
time you turn on the phone. Please consult with your service provider for more details.
Note: If you key in the incorrect PIN code for three times consecutively, the SIM card will
be locked. The PIN code and PUK code may be offered with the SIM card, otherwise
contact your service provider. The default PIN code is usually 1234. Please change your
initial phone code promptly.

• Phone security: Press the OK key to activate or deactivate phone lock, the current
status is displayed in a dialogue box when you scroll to this option. To activate phone lock,
you will be asked to enter the phone password. If activated, you will be required to enter
the phone password every time you turn on the phone. Please consult with your service
provider for more details.
Note: The default phone lock code is 1122. Please change your initial phone code promptly.
The above code should be set in the format, such as 0000~00000000.

Restore factory settings

5

To return your phone’s settings to their original values as when it came out of the factory,

enter the phone password, select [Yes] to reset and reboot (power off and on again the
phone).

File manager

The currently available memory locations are shown in the file manager interface, the Total
and Free memory are shown on top.
Press the Left soft key [Options] for:

• Open: enter or open the selected drive.

• New folder: create a folder in the currently selected drive.

• Format: format the drive, this will erase all current contents.

• Details: view the percentage of the memory consumption.

Fun & Game

- topwatch

Use your phone as a stopwatch.

Typical stopwatch

The Typical Stopwatch has two modes and an option:

·Split timing: record up to 20 split times, press the Left soft key [Start] to start timer,
press again to stop, and press the Left soft key to resume. To record another split time,
press the Right soft key [Split], the split time is recorded as a split the total time or
continuance of the previous split. After recorded all times, stop the time and press the
Right soft key and select ‘Yes’ to Save and enter a name for the record.

·Lap timing: similar to the split timer, but instead recording the times as laps (all laps
time starts at 00:00:00:00 at the same time but with individual finishing times).

nWay stopwatch

The nWay Stopwatch allows four different stopwatches to start and stop at individual
instance all from 00:00:00:00, only one timer may run at a time, either one may stop and
continue timing again from where it stops.
The total time is shown on top of the screen.

6

Use the navigator keys as indicated on screen to control the four timers, press the Left soft

key to stop or resume, press and hold the Left soft key to reset the timer.

FM radio

FM radio is supported by the phone. Access the function only when you plug the earphone.
In FM radio interface, press the down navigator key to open/close FM radio function, press
the up navigator key to open/close auto search. If activated auto search, press the left/right
navigator key to forward/backward the channel auto search, unless a channel is found. You
can search the channel by manual, each press left /right navigator key can decrease/
increase by 0.1MHz.
Note: 1. when background play function is activate, you can listen the tuner in standby or
other menu interface. When loud speaker function is activate, you can listen the tuner loud
speaker if plug the earphone.

2. Quality of radio subscription is possibly influenced by environment like indoor or under
shield. You can improve this situation as following: stand closer to the window, adjust the
position of earphone line or adjust the channel manually.

Organizer

Calendar

Select the calendar menu, and the screen will display the calendar of that month, with date
of that day shown by a special color. Press the up/down navigator key to modify date and
calendar in screen upside will be correspondingly renewed.
Select a date and press the OK key or the Left soft key [Options] and make the following
options: View today, View all, Add event, Delete event, Jump to date, Go to
weekly/monthly view or Print.

To do list

With this function you could expediently manage all kinds of missions in work and life as
well as arrange and record your future matters.

Alarm

This phone can set five alarm clocks at most, which still work in phone switched-off status.
When the alarm time is reached, press the Left soft key or the Red key to stop; press the
Right soft key to snooze, the alarm will remind you again after snooze time if snooze is
selected.
From alarm clock list displayed in alarm clock menu select an alarm clock and press the
Left soft key [Edit] to enter its setting menu, after editing above options, press the Right
Soft key [Done] and confirm saving, then alarm clock icon displays in idle mode upside.

World clock

7

View the current time of major world cities.
Check the current time and date of different major cities in the world. Enter the function, a
world map will be displayed, the current city is indicated by a longitude line on the x-axis
and a latitude line on the y-axis, press the left and right navigator key to move between the
cities.

The city’s current date and time with an icon indicating if it is day time or night are

displayed under the map as you scroll to it.

Calculator

Your phone provides you a calculator with four basic functions, which facilitates simple
calculations.
Note: The accuracy rate of calculator is 12 effective numbers, and calculations of over nine
effective numbers will cause errors.

Shortcuts

Set eight functions that you often want to use.

Profiles

Customize alert preferences.
You can customize your alert profiles for different events and environments. Follow the
above path and scroll to either: General; Meeting; Outdoor; Indoor; Headset,Silent, press
[Options] and select ‘Activate’ to use the profile. Select ‘Customize’ to set the following:

• Incoming call: scroll to select one ring to set as incoming call ring tone.

• Alert type: Set alert type: Ring only; Vibration only; Vibration and ring, Vibration then

ring or Silent.

• Ringtone volume: Adjust ring tone volumes.

• Ring type: Scroll to Single (play ring tone once), Repeat (play ring tone repeatedly until

you have acted on the event), Ascending (increasing volume) and press the OK key to set
as ring mode.

• Message tone: scroll to select one ring to set as message ring tone.

• Keypad tone: select Silent, Click, or Tone type keypad tones.

• Keypad volume: Adjust Keypad tone volumes.

Note: The headset profile will automatically be activated if you plugged in the headset and
deactivated and return to default profile when the headset is removed.

Multimedia

Audio player

Play the audio files saved in the phone or memory card.

8

In playing interface, press Up navigator keys to select / ‘play/pause’,

‘stop’, press Left/right navigator keys to select / ‘previous/next’ ; press the
Up/Down navigator keys to adjust player volume.

press the Left soft key [Options] to access the operation menu of MP3 player.

1. When play list is empty, it has only [Add] and [Settings] functions ([Settings/List
auto gen] is [Off]).

2. When play list is not empty, you can make the following operations for each
option: All songs, Settings ,Help, Stop.

Camera

Your phone is fitted with camera allows you to take photos whenever possible. You
can store the pictures in phone or customize the wallpaper.
Select this option to enter photo preview interface. In this interface, press the
Up/Down Navigator keys to zoom; press the Left/Right Navigator keys to adjust
exposure compensation.
Press the OK key to take photos which will be stored in [Image viewer]
automatically, if [Cont. shot] option is off, you will be notify to save the photo or not
after taking a photo, press the Left soft key to save it and press the Right soft key
to cancel the photo and back the photo preview interface.
In photo preview interface, you can choose the following operations by pressing the
Left soft key [Options] in a pop-up menu:

·Camera settings: use the Left/Right navigator keys to adjust Cont. shot, Effect
settings, White balance, Scene mode, Anti-flicker,Delay timer, After adjustment,
please press the OK key or the Left Soft key to confirm current position.

·Image settings: Select image quality and size.

·Restore default: restore camera parameters to default settings.

·Album: enter the album function.

Video recorder
Enter video preview interface by selecting this option, press the Left soft key

9

[Options] to make the correspond operations.
Press the OK key to begin video recording, during which press the same keys or to
pause or continue; the Right soft key [Stop] to stop video recording, the phone will
give alert whether to save the video, press the Left soft key to save the video and
return to the preview interface, press the Right soft key not to save and return to the
preview interface.

Input Methods

This phone provides diversified input modes for you to enter letter information when
editing SMS and adding phonebook.
Use the # key to switch between different input methods and there is corresponding input
method icon at the bottom of the screen.

9.1 ABC (abc) input Method

General operation methods of English input method:

1. Each key is used to input several characters. Fast and repeatedly press key until your
required character appears.

2.When you need to input English punctuation and some special signs, press the [1]
numeric key to call out special sign input box in English input status (include English
capitalization).

3. Press the # key to switch input methods.

4. In majuscule or minuscule input status, once press the [0] key to input blank.

9.2 The Numeric Input Method

To input numerical values, press the respective numeric keys.
Long press the [1] numeric key to call out special sign input box and input some special
signs.

10

9.3 Smart English input method

Smart English input method is divided into majuscule, minuscule and initial, i.e. smart
majuscule ABC, smart minuscule a b c.
This input method possesses sort of association function which makes you just need to
press every letter once to change the whole word. Every key on keyboard represents
characters, and this input method would automatically compare in phone's language
database and select correct word, so it requires less time than traditional English input
method. Smart English input method has the same specific keyboard definition as English
input method. General operation methods of smart English input method:

1. Every key is used to input its corresponding character and automatically change to
compose word according to previous key's corresponding character. Fast and repeatedly
press the Up/Down Navigator keys until your requisite character or word appear, and you
can select it.
You can press the Left soft key to select word or characters and press the [0] key to
complete word confirmation and input blank.

2. Press the # key to switch input methods.

11

Accessories

Use only batteries, chargers, and accessories approved by the manufacturer with this
device. Use of any other types will invalidate the warranty and may be dangerous. Check
with your dealer for available accessories. You may opt to buy:

Extra battery

Extra batteries of various capacities are available from our company or through your
dealer.

Charger plug, data cable

Charger plug used to connect with the charger cable for charging on wall outlets. Also you
can use the data cable to connect with the other devices such as the personal computers to
charge the phone.
Charging time is about 2 to 3 hours. The charging condition is displayed on screen. You
may use your phone while charging.

Earphone

A mini, practical, hands-free device; you can use its button to answer and end calls. Some
models may also come with a volume control knob.
Do not plug or unplug the earphone when connecting dialed or incoming calls.
Please to adjust the incoming call alert volume to the felicitousness before you plug in the
earphone.

12

Caring for Battery

This phone uses a rechargeable battery as power source, when the charge is weak, recharge
immediately to protect the batter life. It is best to drain the battery charge first.
When not using the charger, unplug it from the power source and the phone. Over charging
will shorten the battery life. Not leave the charger connected to the unit or battery for more
than a week.
Temperature affects battery charge capacity.
Your battery may need to be warm up or cool down before charging. If the battery
temperature is lower than 0°C and higher than + 45°C, it will not recharge.
Use the battery as it is originally intended. Do not short circuit the battery by connecting
the positive and negative terminals with a conductor.
Do not use a damaged battery.
The battery will not perform properly and its life will be shortened if exposed to extreme
temperatures.
Do not place the battery in fire; follow local laws and ordinances in disposing used battery.

13

Environment

Packaging

To facilitate the recycling of packaging materials, please obey the sorting rules instituted
locally for this type of waste.

Batteries

Spent batteries must be deposited at the designated collection points.

The product

The crossed-out waste bin mark affixed to the product means that it belongs to the family
of electrical and electronic equipment.
To promote the recycling and recovery of waste electrical and electronic equipment
(WEEE) and at the same time safeguard the environment, European regulations require
you to obey the sorting rules instituted locally for this type of waste.

14

Technical Specifications

Weight:
Dimensions:
Band: GSM850MHz/DCS1900MHz
Battery Type:
Battery Capacity:
Talk Time:
Standby Time:

Battery Time (No prior or separate notice is required for capacity changes)

Note: Actual operating conditions depend on the local network environment, SIM,
and user behavior.
Warning: Any consequence caused by misuse, abuse, or not following any and all of
the above-written suggestions and instructions shall not hold the producer in any way
responsible to any degree.
Announcement: The manufacturer reserves the right to change or upgrade
specifications or software versions without prior or separate notice. Trade marks
mentioned or used in this material belong to their respective owners.

This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference. (2) This device must accept any interference received, including
interference that may cause undesired operation.
NOTE: Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:

15

---Reorient or relocate the receiving antenna.

---Increase the separation between the equipment and receiver.

---Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.

---Consult the dealer or an experienced radio/TV technician for help.
Body-worn Operation
This device was tested for typical body-worn operations. To comply With
RF exposure requirements, a minimum separation distance of 1.5cm must be
maintained between the user’s body and the handset, including the antenna.
Third-party belt-clips, holsters, and similar including the antenna. Third-party
belt-clips, holsters, and similar accessories used by this device should not
contain any metallic components. Body-worn accessories that do not meet these
requirements may not comply with RF exposure requirements and should be
avoided.

Specific Absorption Rate (SAR) information:

This wireless phone meets the government's requirements for exposure to radio waves.
The guidelines are based on standards that were developed by independent scientific
organizations through periodic and thorough evaluation of scientific studies. The
standards include a substantial safety margin designed to assure the safety of all
persons regardless of age or health.
FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6
W/kg averaged over one gram of tissue. Device types: LK-500 (FCC ID: GAOLK-500)
has also been tested against this SAR limit. The highest SAR value reported under
this standard during product certification for use at the ear is 1.206W/kg and when
properly worn on the body is 0.654W/kg. This device was tested for typical
body-worn operations with the back of the handset kept 1.5cm from the body. To
maintain compliance with FCC RF exposure requirements, use accessories that
maintain a 1.5cm separation distance between the user's body and the back of the
handset. The use of belt clips, holsters and similar accessories should not contain
metallic components in its assembly. The use of accessories that do not satisfy these
requirements may not comply with FCC RF exposure requirements, and should be
avoided.

16
