Cole-Parmer HP-200-AR User guide

Cole-Parmer

HP-200 Series

Acid Resistant

Hotplate

®

Instruction Manual

98030(ES) Version 2.4

Hotplate

Model

Power

Fuse

HP-200-AR

Instructions for use

Introduction

Thank you for purchasing this piece of Cole­Parmer equipment. To get the best

performance from the equipment and for
your own safety, please read these
instructions carefully before use. Before
discarding the packaging check that all parts
are present and correct.

This equipment is designed to operate under
the following conditions:

 For indoor use only
 Use in a well ventilated area
 Ambient temperature range +5ºC to

+40ºC

 Altitude to 2000m
 Relative humidity not exceeding 80%
 Mains supply fluctuation not exceeding

10%

 Over-voltage category II IEC60364-4-443
 Pollution degree 2
 Use with a minimum distance all around

of 200mm from walls or other items

preparing the cable and connecting to the re­wireable plug in accordance with its
instructions.

THIS OPERATION SHOULD ONLY BE
UNDERTAKEN BY A QUALIFIED
ELECTRICIAN

The wires in the mains cable are coloured as
follows:

BROWN - LIVE
BLUE - NEUTRAL
GREEN/YELLOW - EARTH

The control unit is fitted with an IEC socket at
the rear for connection of the mains lead.
The appropriate mains lead should be
connected BEFORE connection to the mains
supply.

Should the mains lead need replacement, a
cable of 1mm2 of harmonised code H05W-F
conn

ected to an IEC320 plug should be

used.

NOTE: Refer to the equipment’s rating plate
to ensure that the plug and fusing are
suitable for the voltage and wattage stated.
The UK mains lead is protected by a 10A
fuse mounted in the plug top.

If the equipment is not used in the manner
described in this manual and with
accessories other than those recommended
by Cole-Parmer, the protection provided
may be impaired.

Electrical Installation

THIS EQUIPMENT MUST BE
EARTHED

Before connection please ensure that the
line supply corresponds to that shown on
the rating plate.

Model

HP-200-AR

The unit is supplied with two mains leads
fitted with IEC plugs for connection to the
control box. One has a U.K. 3 pin plug and
the other has a 2 pin “Shuko” plug for
connection to the mains. Choose the lead
appropriate for your electrical installation and
discard the other. Should neither lead be
suitable, take the lead with the U.K. plug and
replace the plug with a suitable alternative.
This involves cutting off the moulded plug,

Supply requirements

230V, 50 or 60Hz,~, single phase

HP-200-AR

Fuse fitted in both live and neutral lines.

IF IN DOUBT CONSULT A QUALIFIED
ELECTRICIAN

900W T5A

Safety Advice Before Use

 Do not use to heat flammable materials.
 Position the instrument on a firm level

surface away from any heat sensitive or
flammable material.

 Never move or carry the unit while it is in

use or connected to the mains supply.
Switch off and allow to cool for at least 30
minutes.

 The unit should be carried using both

hands with fingers under each side frame.

 In the case of mains interruption, a fault

or failure, the unit WILL continue to
operate on removal of the fault.

 NEVER immerse the hotplate unit in acid

or any other liquid. The unit has breather
holes in the base which will allow liquid
access that will destroy sensitive
components.

2

General Description

The acid resistant hotplate consists of a
ceramic tile and heater assembly mounted in
a block of high grade PTFE. The hotplate is
controlled via a separate control unit which is
connected by a 2 metre lead (partly covered
with a PTFE sleeve). This allows the hotplate
to be located in a fume hood and the
controller outside, away from the corrosive
environment.

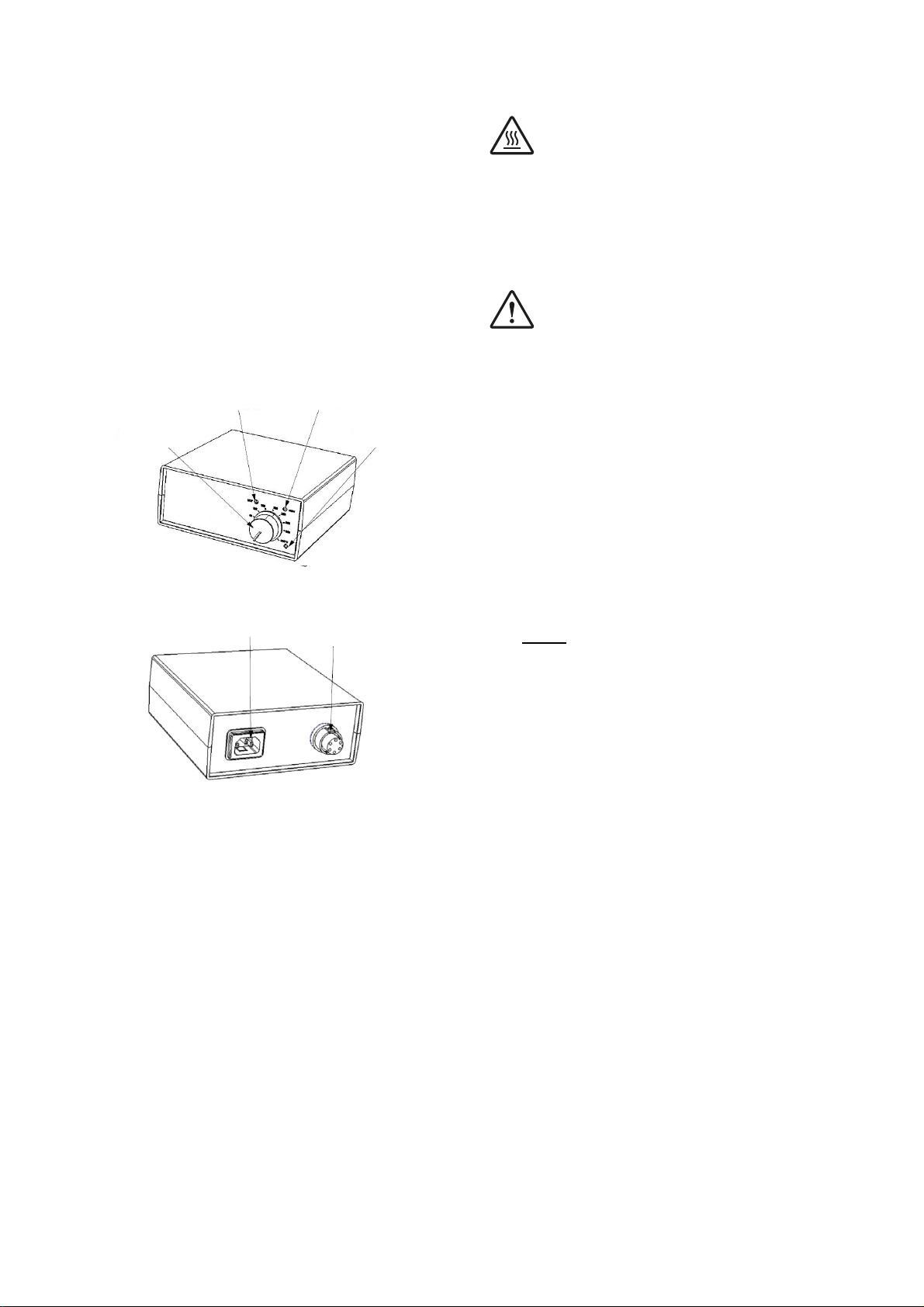

Controls

Front of control unit

Hot warning light Heater on light

Hot warning light Heater on light

Temperature

Temperature

control knob

control knob

Rear of control unit

Mains

Mains

indicator light

indicator light

WARNING: When the hotplate surface
is hot (>50ºC) the hot warning light will

begin to flash red. This will continue to

flash while the plate temperature is above 50ºC

even after the hotplate has been switched off
(the control unit must remain connected to the
mains supply).

Maintenance

WARNING: Before attempting to
clean the unit, ensure that the

hotplate is cool and that the
control unit is disconnected from the
mains electricity supply.

The control unit should be cleaned using a
damp cloth and mild detergent solution. Do
not use harsh or abrasive cleaning agents.

The hotplate body can be cleaned with
almost any cleaning agent compatible with
PTFE. A damp cloth will remove most types

of contamination. For more difficult stains a

domestic cleaner is recommended.

Rear of control unit

Main IEC inlet

Main IEC inlet

socket

socket

Hotplate inlet

Hotplate inlet

socket

socket

Operation

1. Position the hotplate unit on a firm level

surface away from any heat sensitive or

flammable material.

2. Plug the hotplate lead into the hotplate
inlet socket of the control unit.

3. Connect the control unit to the mains
supply (the green mains indicator light will
illuminate).

Cleaning is made easier if spillages are
attended to promptly. In any case, spillages

of alkali, phosphoric acid and hydrofluoric

acid MUST be removed immediately as
these chemicals can attack and damage the
glass ceramic. Ensure the appropriate safety
precautions are observed.

NEVER immerse the hotplate unit in acid
or any other liquid. The unit has breather
holes in the base which will allow liquid
access that will destroy sensitive
components.

WARNING: A ceramic top which is

scratched, chipped, chemically etched or
damaged must not be used.

4. Position the control unit in the area it is to
be used (e.g. outside the fume hood).

5. Turn the control unit ON using the
temperature control knob and select the
temperature of the hotplate by using the
printed scale around the knob. The heater
on light will illuminate.

3

Servicing

This product does not require any routine
servicing.

NOTE: There are no internal user­replaceable parts.

In the event of a product failure any
repairs or replacement of parts MUST
only be undertaken by suitably qualified
personnel.

For advice, please contact the Service
Department, quoting both the model number
and serial number:
Email: [e-mail]
Tel: [phone]

Only spare parts supplied or specied by
Antylia Scientific or its agents should be used.
Fitting of non-approved parts may affect the
performance of the safety features designed
into the instrument. If in any doubt, please
contact the Service Department of Antylia
Scientific or the point of sale.

Technical Specification

Plate material (hotplate)

Body material (hotplate)
Plate dimensions
Heated area
Heater power
Maximum plate temperature
Hotplate dimensions (w x d x h)
Control unit dimensions (w x d x h)
Lead length
Net weight
Electrical supply

HP-200-AR

Glass Ceramic

PTFE
300 x 300mm
200 x 200mm
900W
400ºC
320 x 360 x 60mm
150 x 160 x 65mm

2m

11kg
230V, 50-60Hz

For any other technical enquiries, please
contact the Technical Support Department:
Email: [e-mail] ,
Tel: [phone].

4

NOTES

5

NOTES

6

This product meets the applicable CE Directives
and UKCA Legislation for radio frequency
interference and may be expected not to

interfere with, or be affected by, other equipment with similar

qualifications. We cannot be sure that other equipment used in its

vicinity will meet these standards and so we cannot guarantee

Declaration of Conformity is available to view online at www.coleparmer.com

that interference will not occur in practise. Where

there is a possibility that injury, damage or loss might
occur if equipment malfunctions due to radio
frequency interference, or for general advise before

use, contact the manufacturer.

EU Representative address

Antylia Scientific GmbH
Futtererstraße 16
97877 Wertheim
Deutschland
Tel: [phone]
Email: [e-mail]

UK Representative address

Antylia Scientific
9 Orion Court
Ambuscade Road
Colmworth Business Park
St. Neots
PE19 8YX
United Kingdom
Tel: [phone]
Email: [e-mail]

Ordering Information
