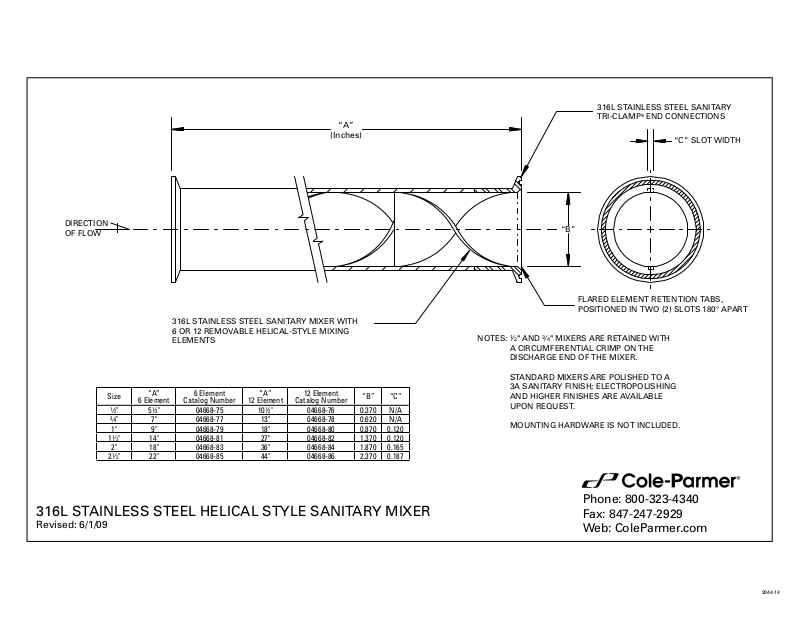

Cole-Parmer 316L Drawing

“A”

(Inches)

316L STAINLESS STEEL SANITARY
TRI-CLAMP® END CONNECTIONS

“C” SLOT WIDTH

DIRECTION
OF FLOW

316L STAINLESS STEEL SANITARY MIXER WITH
6 OR 12 REMOVABLE HELICAL-STYLE MIXING
ELEMENTS

Size

1

⁄2" 51⁄2" 04668-75 101⁄2" 04668-76 0.370 N/A

3

⁄4" 7" 04668-77 13" 04668-78 0.620 N/A

1" 9" 04668-79 18" 04668-80 0.870 0.120

11⁄2" 14" 04668-81 27" 04668-82 1.370 0.120

2" 18" 04668-83 36" 04668-84 1.870 0.165

21⁄2" 22" 04668-85 44" 04668-86 2.370 0.187

“A”

6 Element

6 Element

Catalog Number

“A”

12 Element

12 Element

Catalog Number

“B” “C”

316L STAINLESS STEEL HELICAL STYLE SANITARY MIXER

Revised: 6/1/09

“B”

FLARED ELEMENT RETENTION TABS,
POSITIONED IN TWO (2) SLOTS 180° APART

NOTES: 1⁄2" AND 3⁄4" MIXERS ARE RETAINED WITH

A CIRCUMFERENTIAL CRIMP ON THE
DISCHARGE END OF THE MIXER.

STANDARD MIXERS ARE POLISHED TO A
3A SANITARY FINISH; ELECTROPOLISHING
AND HIGHER FINISHES ARE AVAILABLE
UPON REQUEST.

MOUNTING HARDWARE IS NOT INCLUDED.

Phone: [phone]
Fax: [phone]
Web: ColeParmer.com

2844-14
