Coleman Evcon DGAM075BDD, DGAT070BDD, DLAS075BDD, DGAT075BDD Installation Guide

035-20530-001 Rev. B (0804)

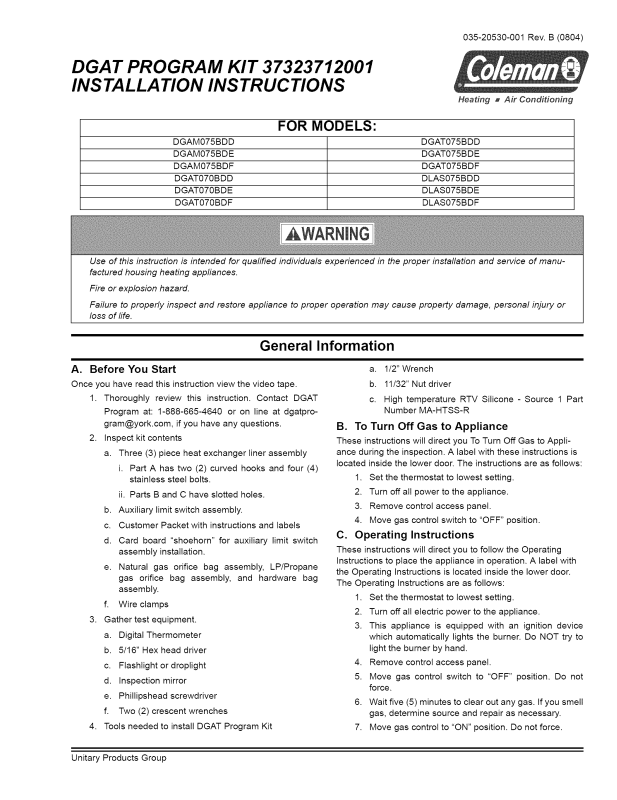

DGAT PROGRAM KIT 37323712001

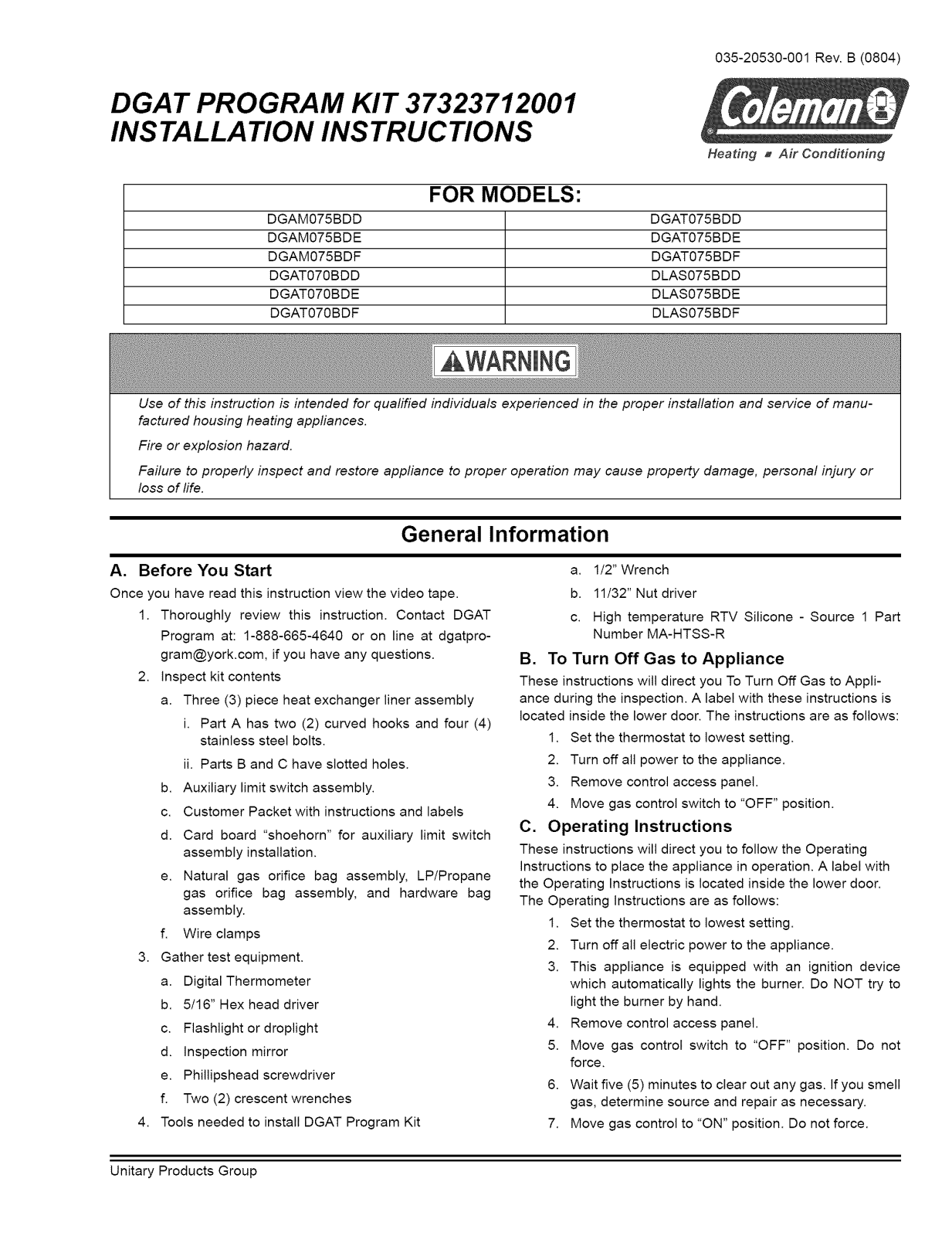

INS TALLA TION INSTRUCTIONS

Heating _ Air Conditioning

FOR MODELS:

DGAM075BDD DGAT075BDD
DGAM075BDE DGAT075BDE

DGAM075BDF DGAT075BDF
DGAT070BDD DLAS075BDD

DGAT070BDE DLAS075BDE
DGAT070BDF DLAS075BDF

Use of this instruction is intended for qualified individuals experienced in the proper installation and service of manu-
factured housing heating appliances.

Fire or explosion hazard.
Failure to properly inspect and restore appliance to proper operation may cause property damage, personal injury or

loss of life.

General Information

A. Before You Start

Once you have read this instruction view the video tape.

1. Thoroughly review this instruction. Contact DGAT
Program at: 1-888-665-4640 or on line at dgatpro-

[e-mail], if you have any questions.

2. Inspect kit contents

a. Three (3) piece heat exchanger liner assembly

i. Part A has two (2) curved hooks and four (4)

stainless steel bolts.

ii. Parts B and C have slotted holes.

b. Auxiliary limit switch assembly.
c. Customer Packet with instructions and labels

d. Card board "shoehorn" for auxiliary limit switch

assembly installation.

e. Natural gas orifice bag assembly, LP/Propane

gas orifice bag assembly, and hardware bag
assembly.

f. Wire clamps

3. Gather test equipment.

a. Digital Thermometer
b. 5/16" Hex head driver

c. Flashlight or droplight
d. Inspection mirror
e. Phillipshead screwdriver
f. Two (2) crescent wrenches

4. Tools needed to install DGAT Program Kit

a. 1/2" Wrench

b. 11/32" Nut driver

c. High temperature RTV Silicone - Source 1 Part

Number MA-HTSS-R

B. To Turn Off Gas to Appliance

These instructions will direct you To Turn Off Gas to Appli-
ance during the inspection. A label with these instructions is

located inside the lower door. The instructions are as follows:

1. Set the thermostat to lowest setting.

2. Turn off all power to the appliance.

3. Remove control access panel.

4. Move gas control switch to "OFF" position.

C. Operating Instructions

These instructions will direct you to follow the Operating
Instructions to place the appliance in operation. A label with

the Operating Instructions is located inside the lower door.
The Operating Instructions are as follows:

1. Set the thermostat to lowest setting.

2. Turn off all electric power to the appliance.

3. This appliance is equipped with an ignition device
which automatically lights the burner. Do NOT try to

light the burner by hand.

4. Remove control access panel.

5. Move gas control switch to "OFF" position. Do not
force.

6. Wait five (5) minutes to clear out any gas. If you smell
gas, determine source and repair as necessary.

7. Move gas control to "ON" position. Do not force.

Unitary Products Group

035-20530-001Rev.B(0804)

8. Replacecontrolaccesspanel.

9. Turnonallelectricalpowertotheappliance.

10.Setthermostattothedesiredsetting.Burnerwill
light,whichmaytake30-60seconds.

11.Afterthree(3)trials,iftheappliancewillnotoperate,
followtheinstructionsTO TURNOFFGASTO

APPLIANCEandrefertotroubleshootingguideinthe

InstallationInstructionsorOwner'sManual.

Part 1: Basic Information

Record the following on the DGAT Program Claim Form.
Record information clearly and legibly.

Most of this information should be available before travelling
to the job site.

A. Rating Plate Data

1. Model Number

Part 2: Inspection

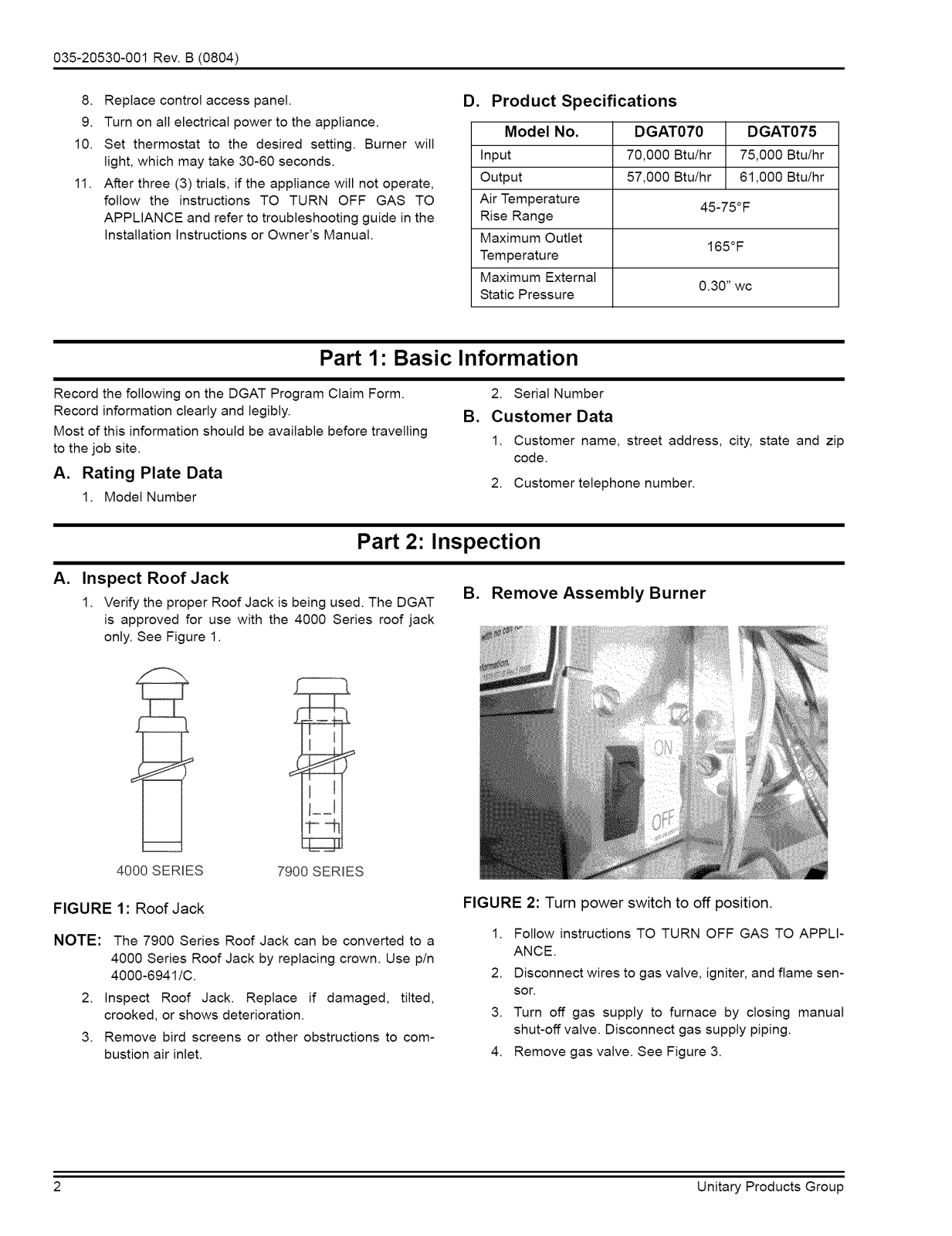

D. Product Specifications

Model No. DGAT070 DGAT075

Input 70,000 Btu/hr 75,000 Btu/hr
Output 57,000 Btu/hr 61,000 Btu/hr

Air Temperature 45_75OF

Rise Range
Maximum Outlet

Tem peratu re
Maximum External

Static Pressure

2. Serial Number

g.

Customer Data

1. Customer name, street address, city, state and zip
code.

2. Customer telephone number.

165°F

0.30" wc

A.

Inspect Roof Jack

1. Verify the proper Roof Jack is being used. The DGAT
is approved for use with the 4000 Series roof jack

only. See Figure 1.

4000 SERIES

7900 SERIES

FIGURE 1: Roof Jack
NOTE:

The 7900 Series Roof Jack can be converted to a

4000 Series Roof Jack by replacing crown. Use pin
4000-6941tC.

2.

inspect Roof Jack. Replace if damaged, tilted,

crooked, or shows deterioration.

3.

Remove bird screens or other obstructions to com-

bustion air inlet.

B. Remove Assembly Burner

FIGURE 2: Turn power switch to off position.

1. Follow instructions TO TURN OFF GAS TO APPLI-
ANCE.

2. Disconnect wires to gas valve, igniter, and flame sen-
sor.

3. Turn off gas supply to furnace by closing manual
shut-off valve. Disconnect gas supply piping.

4. Remove gas valve. See Figure 3.

2 Unitary Products Group

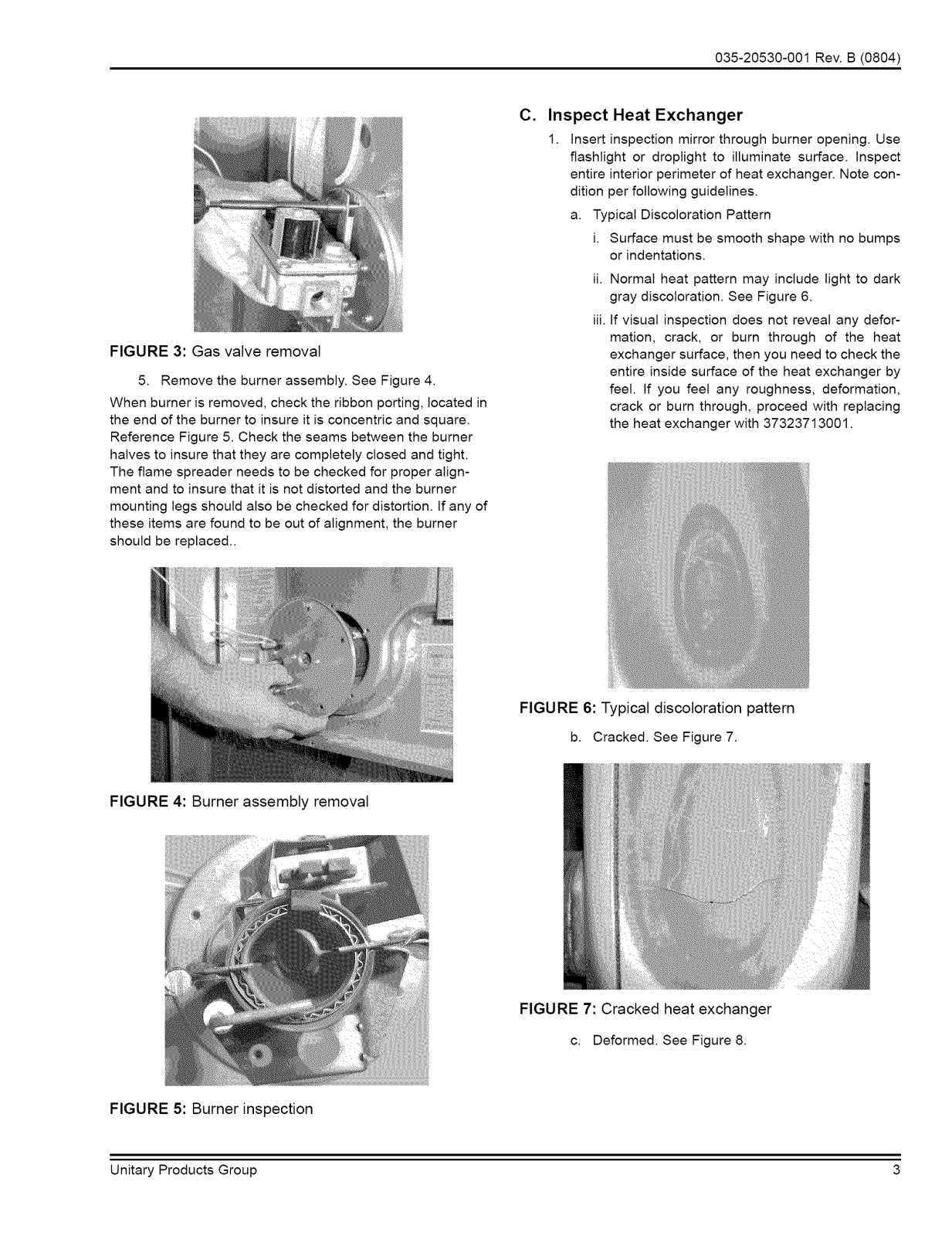

FIGURE 3: Gas valve removal

5. Remove the burner assembly. See Figure 4.

When burner is removed, check the ribbon porting, located in
the end of the burner to insure it is concentric and square.
Reference Figure 5. Check the seams between the burner
halves to insure that they are completely closed and tight.
The flame spreader needs to be checked for proper align-

ment and to insure that it is not distorted and the burner
mounting legs should also be checked for distortion. If any of

these items are found to be out of alignment, the burner

should be replaced..

035-20530-001Rev.B(0804)

C. Inspect Heat Exchanger

1. Insert inspection mirror through burner opening. Use
flashlight or droplight to illuminate surface. Inspect
entire interior perimeter of heat exchanger. Note con-
dition per following guidelines.

a. Typical Discoloration Pattern

i. Surface must be smooth shape with no bumps

or indentations.

ii. Normal heat pattern may include light to dark

gray discoloration. See Figure 6.

iii. If visual inspection does not reveal any defor-

mation, crack, or burn through of the heat
exchanger surface, then you need to check the
entire inside surface of the heat exchanger by

feel. If you feel any roughness, deformation,

crack or burn through, proceed with replacing

the heat exchanger with 37323713001.

FIGURE 4: Burner assembly removal

FIGURE 5: Burner inspection

FIGURE 6: Typical discoloration pattern

b. Cracked. See Figure 7.

FIGURE 7: Cracked heat exchanger

c. Deformed. See Figure 8.

Unitary Products Group 3

035-20530-001Rev.B(0804)

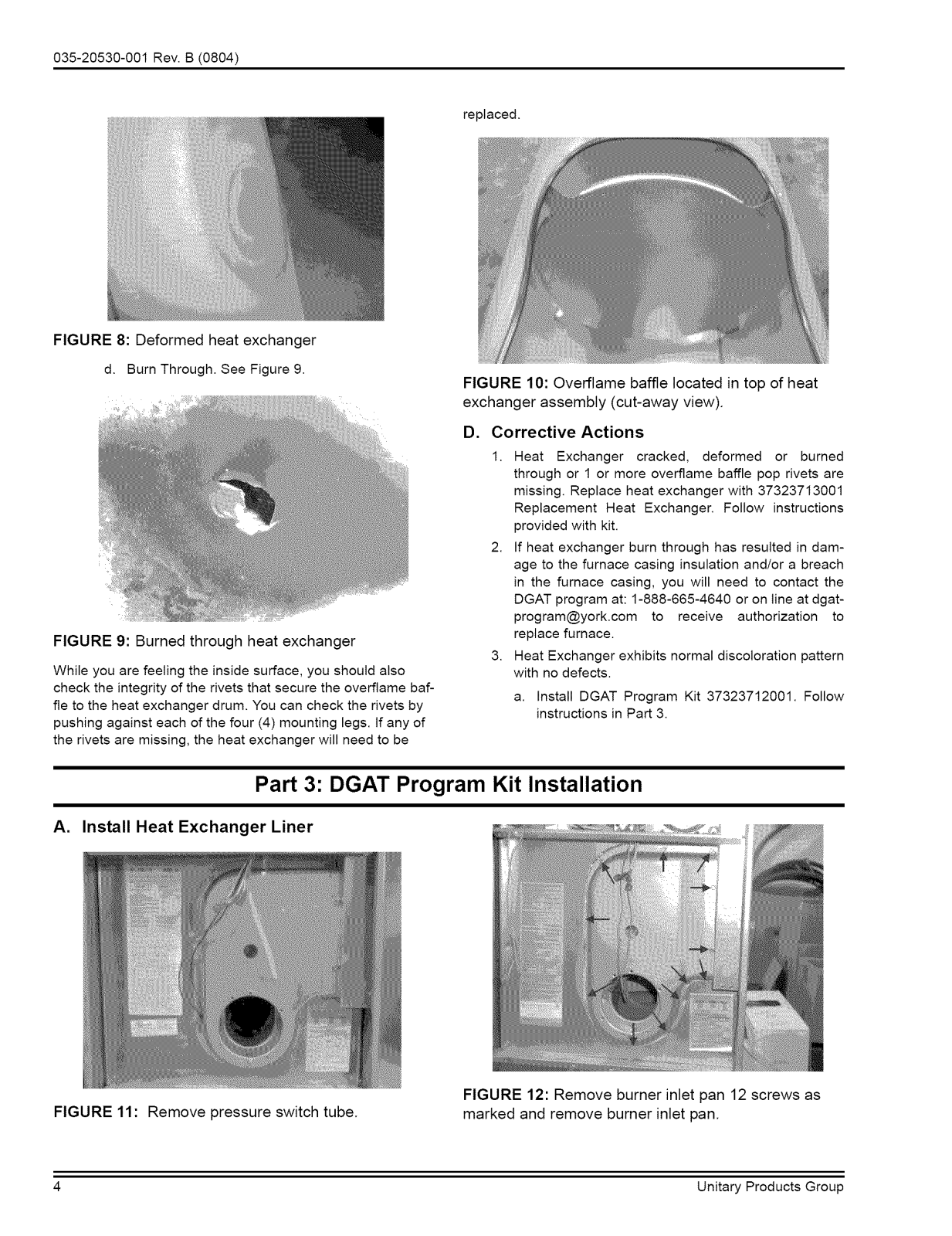

FIGURE 8: Deformed heat exchanger

replaced.

d. Burn Through. See Figure 9.

FIGURE 9: Burned through heat exchanger

While you are feeling the inside surface, you should also
check the integrity of the rivets that secure the overflame baf-

fle to the heat exchanger drum. You can check the rivets by

pushing against each of the four (4) mounting legs. If any of

the rivets are missing, the heat exchanger will need to be

Part 3: DGAT Program Kit Installation

FIGURE 10: Overflame baffle located in top of heat
exchanger assembly (cut-away view).

D, Corrective Actions

1. Heat Exchanger cracked, deformed or burned
through or 1 or more overflame baffle pop rivets are

missing. Replace heat exchanger with 37323713001
Replacement Heat Exchanger. Follow instructions
provided with kit.

2. If heat exchanger burn through has resulted in dam-
age to the furnace casing insulation and/or a breach

in the furnace casing, you will need to contact the
DGAT program at: 1-888-665-4640 or on line at dgat-

[e-mail] to receive authorization to
replace furnace.

3. Heat Exchanger exhibits normal discoloration pattern
with no defects.

a. Install DGAT Program Kit 37323712001. Follow

instructions in Part 3.

A. Install Heat Exchanger Liner

FIGURE 12: Remove burner inlet pan 12 screws as

FIGURE 11: Remove pressure switch tube.

4 Unitary Products Group

marked and remove burner inlet pan.

035-20530-001Rev.B(0804)

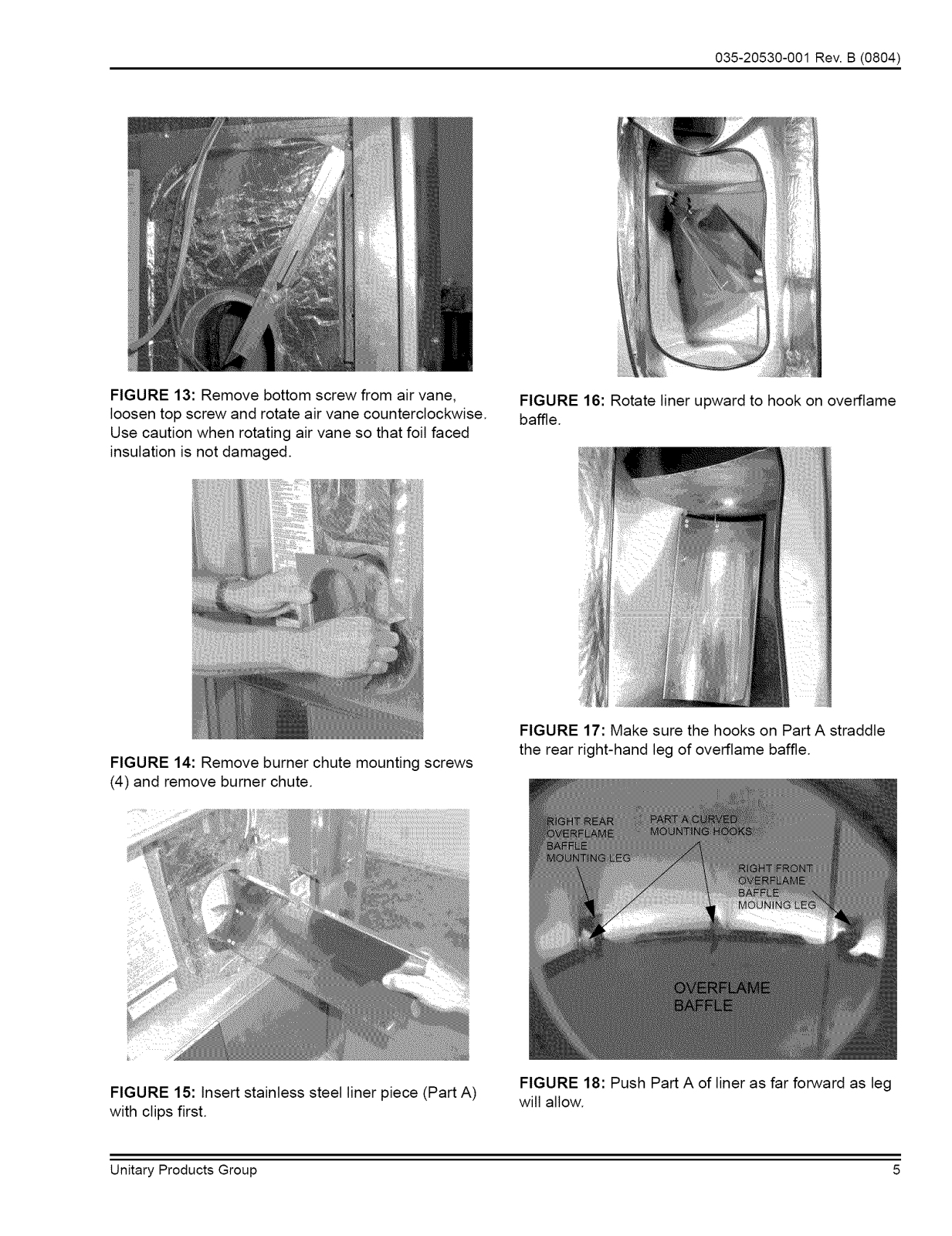

FIGURE 13: Remove bottom screw from air vane,
loosen top screw and rotate air vane counterclockwise.

Use caution when rotating air vane so that foil faced
insulation is not damaged.

FIGURE 14" Remove burner chute mounting screws
(4) and remove burner chute.

FIGURE 16: Rotate liner upward to hook on overflame
baffle.

FIGURE 17: Make sure the hooks on Part A straddle
the rear right-hand leg of overflame baffle.

FIGURE 15: Insert stainless steel liner piece (Part A)

with clips first.

Unitary Products Group 5

FIGURE 18: Push Part A of liner as far forward as leg

will allow.

035-20530-001Rev.B(0804)

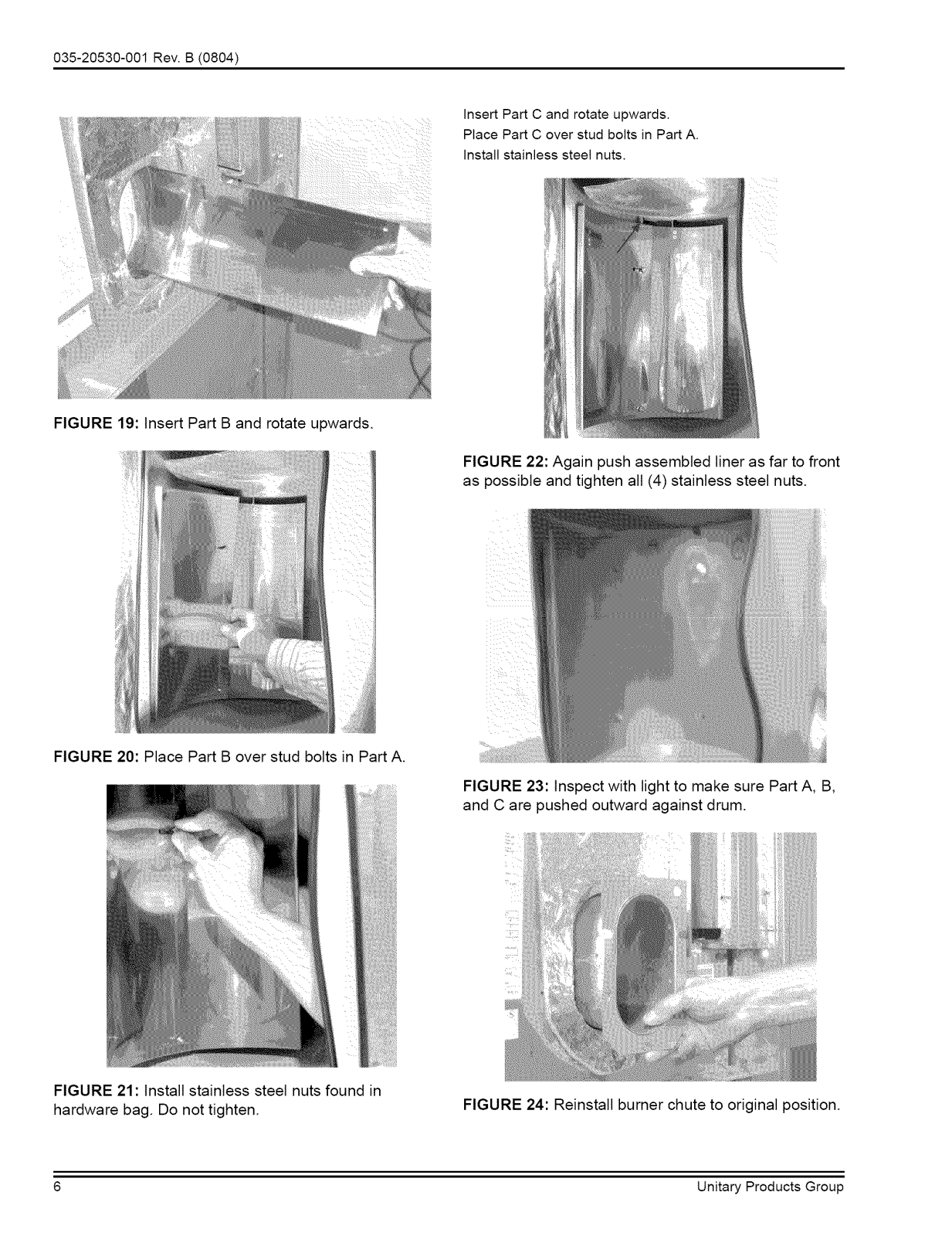

FIGURE 19: Insert Part B and rotate upwards.

insert Part C and rotate upwards.
Place Part C over stud bolts in Part A.

install stainless steel nuts.

FIGURE 22: Again push assembled liner as far to front
as )ossible and tighten all (4) stainless steel nuts.

FIGURE 20: Place Part B over stud bolts in Part A.

FIGURE 23: Inspect with light to make sure Part A, B,
and C are pushed outward against drum.

FIGURE 21: Install stainless steel nuts found in
hardware bag. Do not tighten.

6 Unitary Products Group

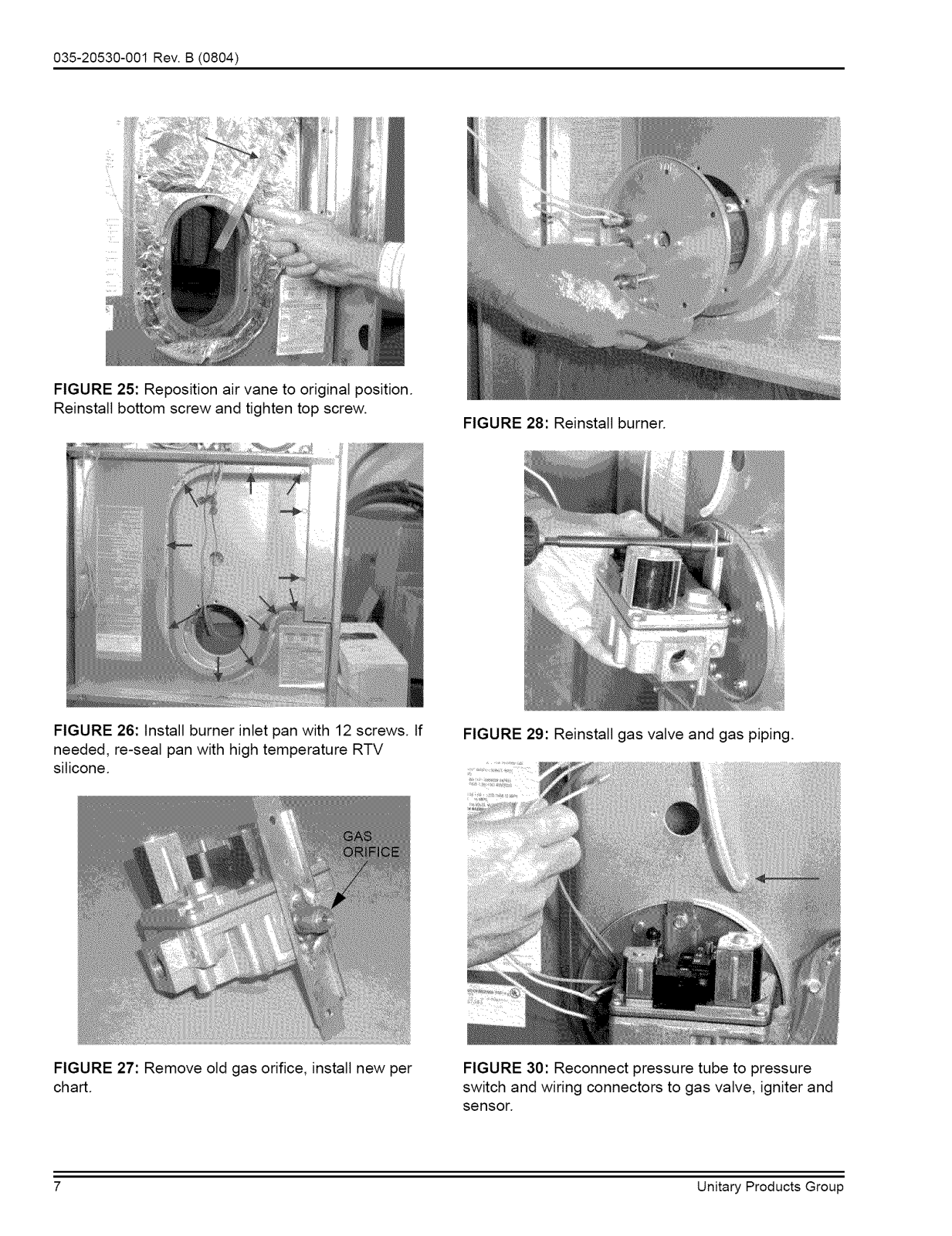

FIGURE 24: Reinstall burner chute to original position.

035-20530-001Rev.B(0804)

FIGURE 25: Reposition air vane to original position.
Reinstall bottom screw and tighten top screw.

FIGURE 28: Reinstall burner.

FIGURE 26: Install burner inlet pan with 12 screws. If
needed, re-seal pan with high temperature RTV

silicone.

FIGURE 27: Remove old gas orifice, install new per
chart.

FIGURE 29: Reinstall gas valve and gas piping.

FIGURE 30: Reconnect pressure tube to pressure
switch and wiring connectors to gas valve, igniter and

sensor.

7 Unitary Products Group

035-20530-001Rev.B(0804)

FIGURE 31: Install warning label directly below rating
plate on vestibule panel.

B. Install Auxiliary Limit Switch Assembly

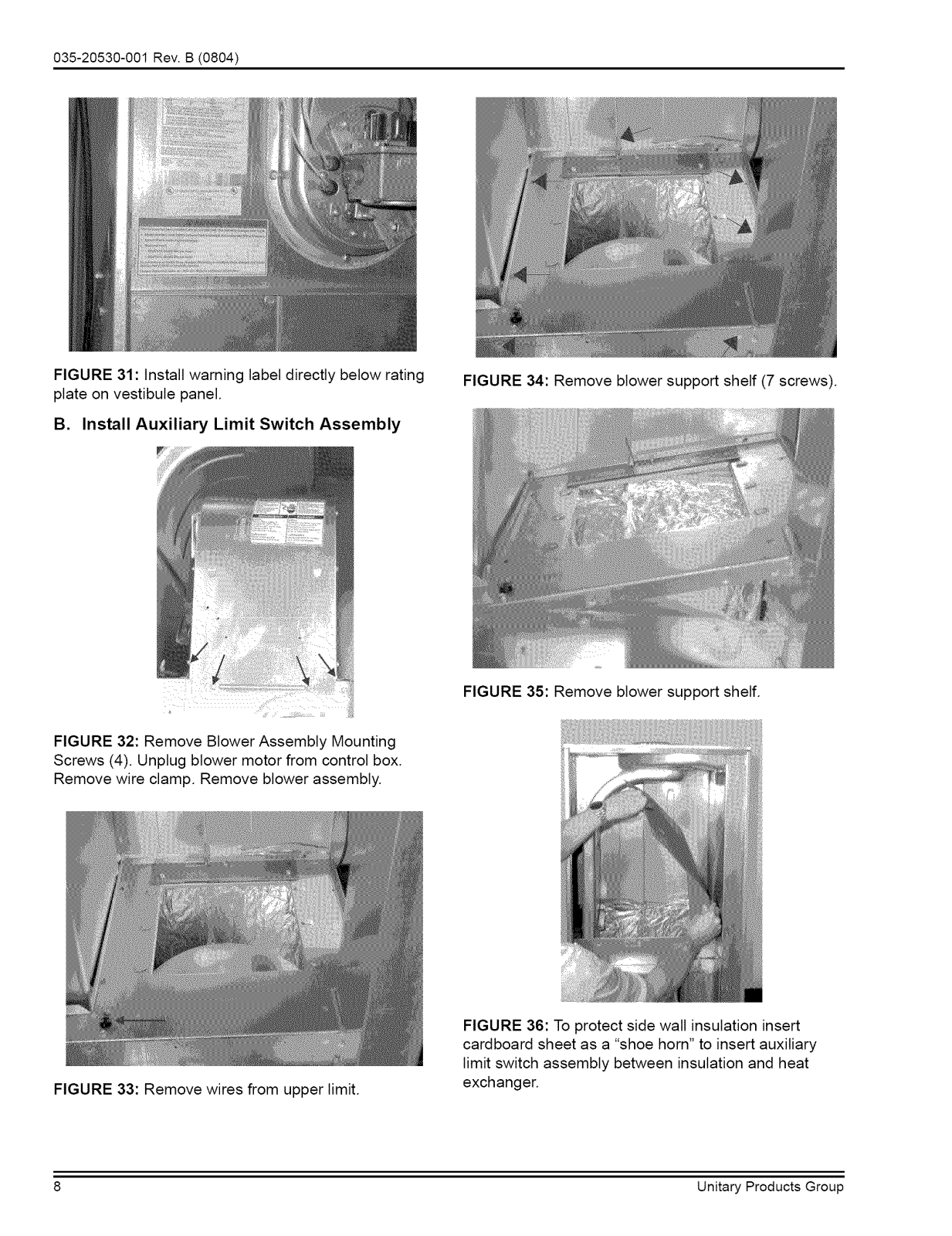

FIGURE 32: Remove Blower Assembly Mounting
Screws (4). Unplug blower motor from control box.
Remove wire clamp. Remove blower assembly.

FIGURE 34: Remove blower support shelf (7 screws).

FIGURE 35: Remove blower support shelf.

FIGURE 36: To protect side wall insulation insert
cardboard sheet as a "shoe horn" to insert auxiliary
limit switch assembly between insulation and heat

FIGURE 33: Remove wires from upper limit.

8 Unitary Products Group

exchanger.

035-20530-001Rev.B(0804)

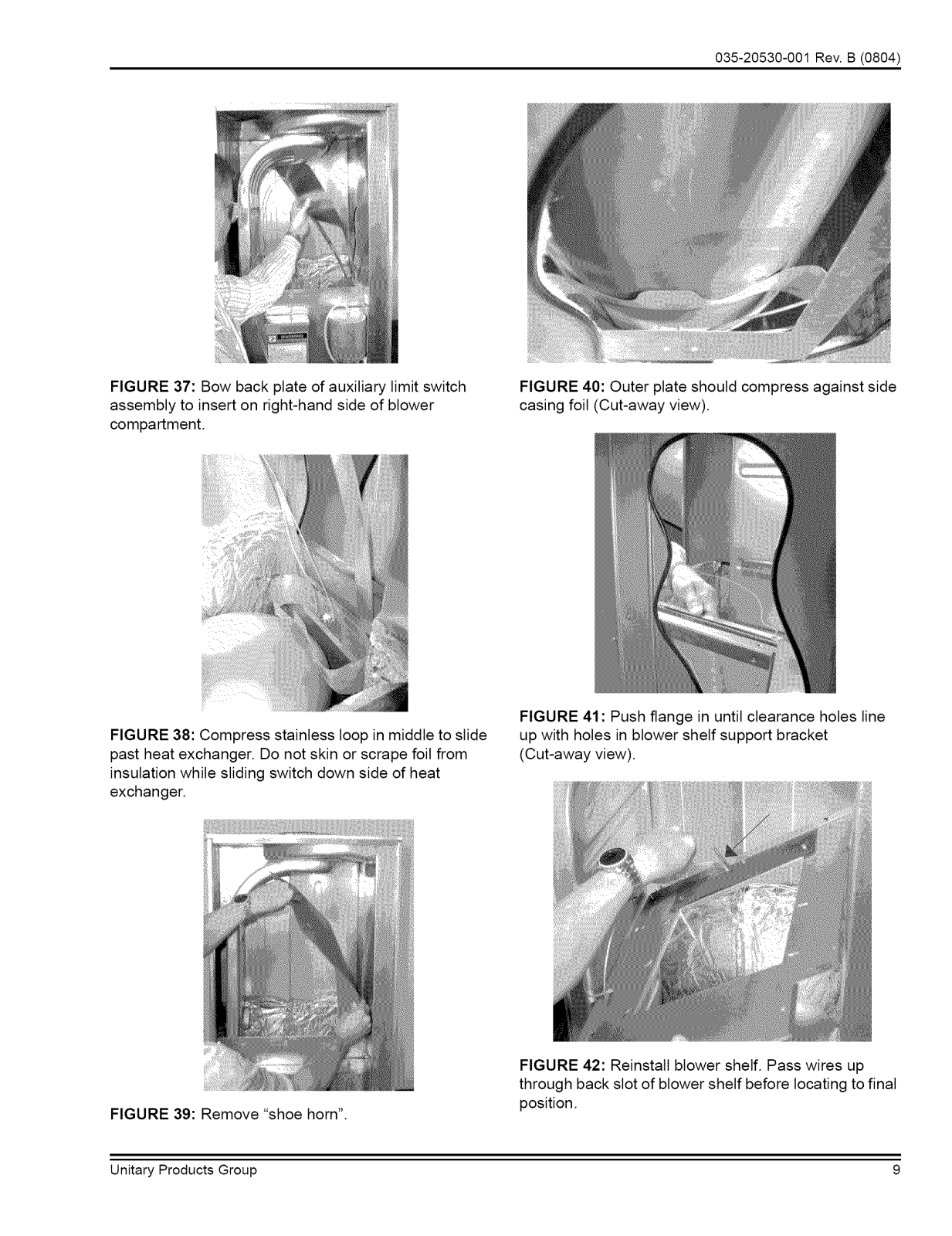

FIGURE 37: Bow back plate of auxiliary limit switch
assembly to insert on right-hand side of blower
compartment.

FIGURE 38: Compress stainless loop in middle to slide
past heat exchanger. Do not skin or scrape foil from
insulation while sliding switch down side of heat
exchanger.

FIGURE 40: Outer plate should compress against side
casing foil (Cut-away view).

FIGURE 41 : Push flange in until clearance holes line
up with holes in blower shelf support bracket
(Cut-away view).

FIGURE 42: Reinstall blower shelf. Pass wires up
through back slot of blower shelf before locating to final

FIGURE 39: Remove "shoe horn".

Unitary Products Group 9

position.

035-20530-001Rev.B(0804)

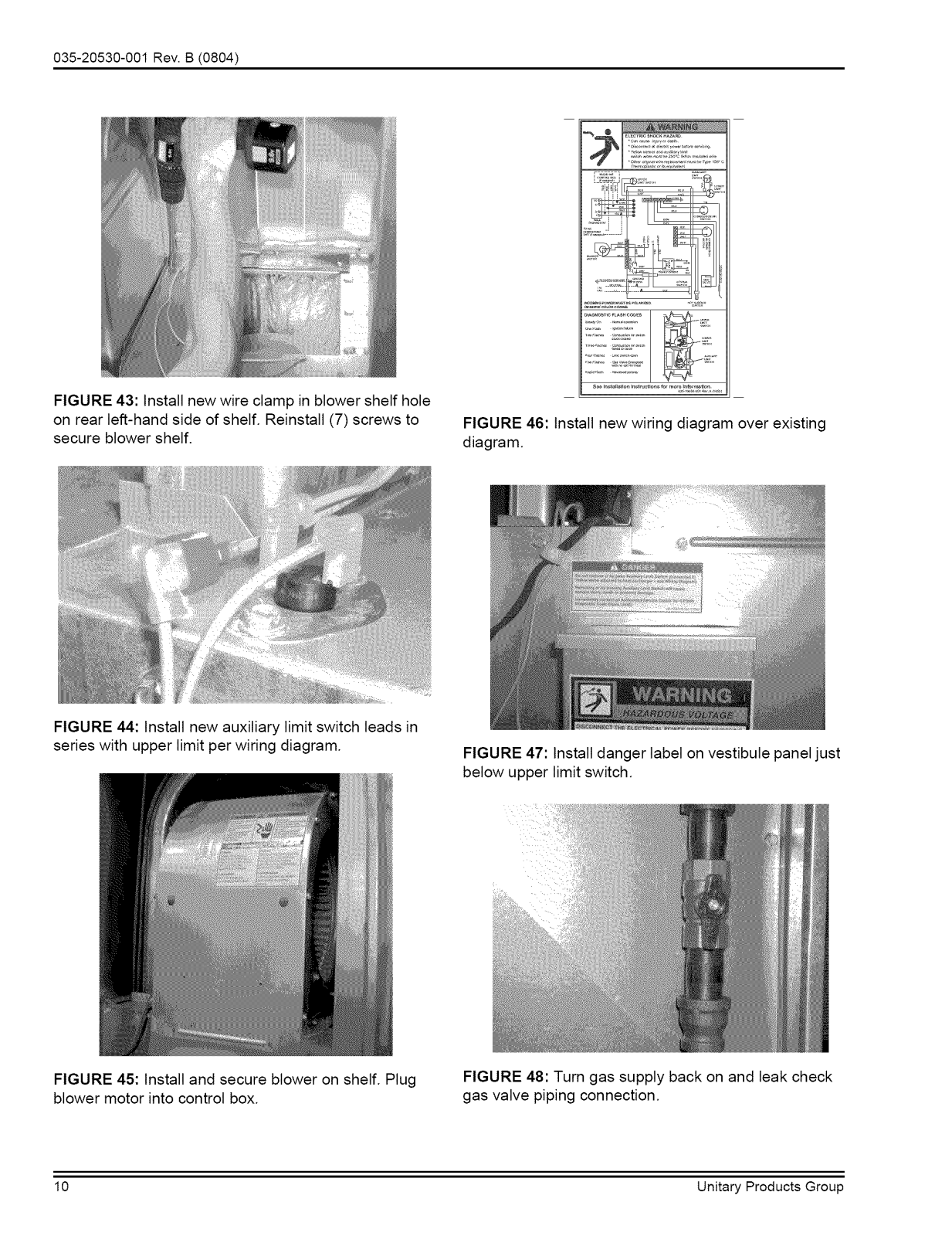

FIGURE 43: Install new wire clamp in blower shelf hole
on rear left-hand side of shelf. Reinstall (7) screws to

secure blower shelf.

FIGURE 46" Install new wiring diagram over existing
diagram.

FIGURE 44: Install new auxiliary limit switch leads in
series with upper limit per wiring diagram.

FIGURE 45" Install and secure blower on shelf. Plug
blower motor into control box.

FIGURE 47: Install danger label on vestibule panel just
below upper limit switch.

FIGURE 48: Turn gas supply back on and leak check
gas valve piping connection.

10 Unitary Products Group

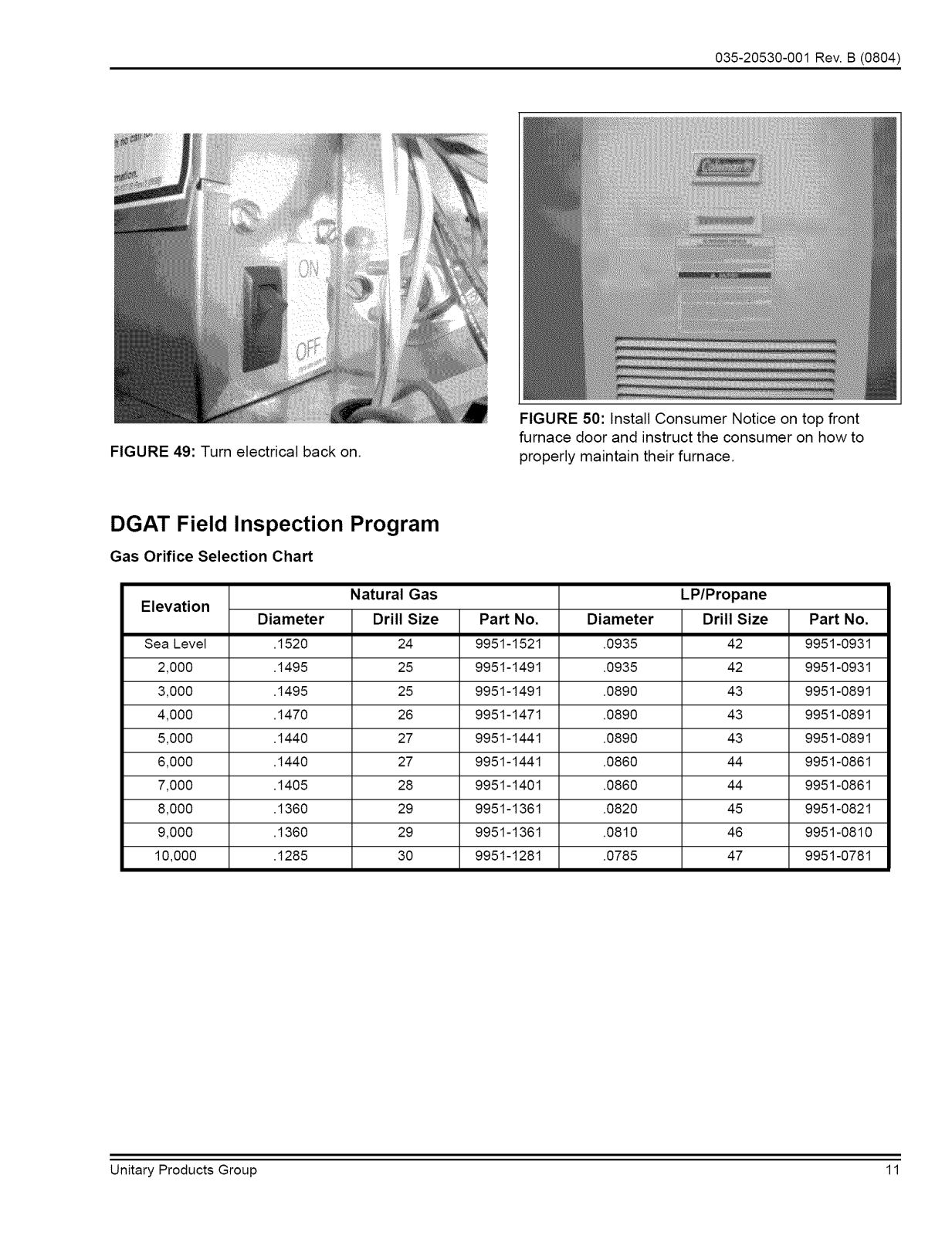

FIGURE 49: Turn electrical back on.

035-20530-001Rev.B(0804)

FIGURE 50: Install Consumer Notice on top front

furnace door and instruct the consumer on how to

properly maintain their furnace.

DGAT Field Inspection Program

Gas Orifice Selection Chart

Elevation

Diameter Part No. Diameter Part No.

Sea Level .1520 9951-1521 .0935 9951-0931

2,000 .1495 9951-1491 .0935 9951-0931
3,000 .1495 9951-1491 .0890 9951-0891

4,000 .1470 9951-1471 .0890 9951-0891
5,000 .1440 9951-1441 .0890 9951-0891
6,000 .1440 9951-1441 .0860 9951-0861

7,000 .1405 9951-1401 .0860 9951-0861
8,000 .1360 9951-1361 .0820 9951-0821
9,000 .1360 9951-1361 .0810 9951-0810

10,000 .1285 9951-1281 .0785 9951-0781

Natural Gas

Drill Size

24

25
25
26

27
27

28

29
29

30

LP/Propane

Drill Size

42
42
43
43
43
44
44
45
46
47

Unitary Products Group 11

035-20530-001Rev.B(0804)

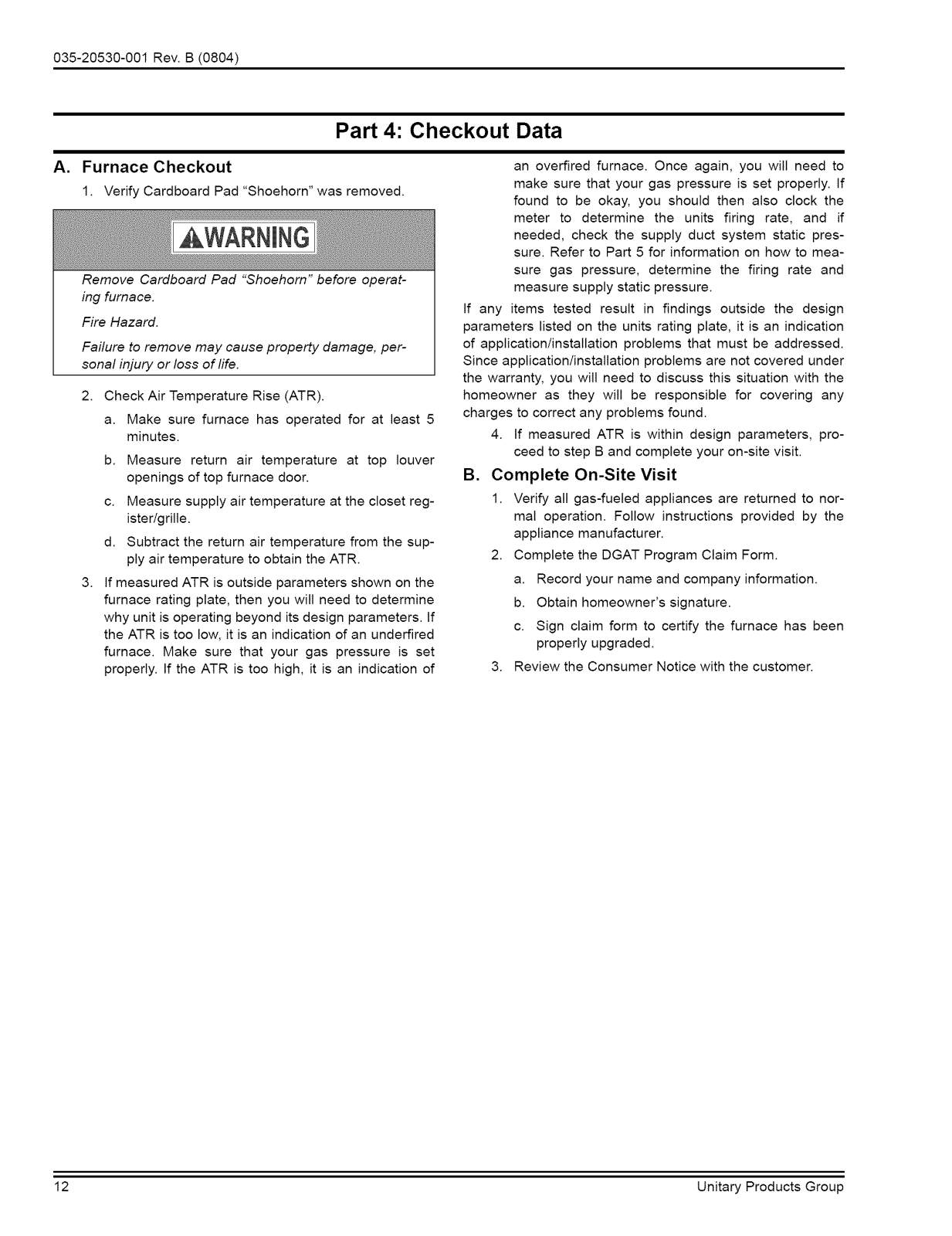

Part 4: Checkout Data

A. Furnace Checkout

1. Verify Cardboard Pad "Shoehorn" was removed.

Remove Cardboard Pad "Shoehorn" before operat-
ing furnace.

Fire Hazard.
Failure to remove may cause property damage, per-

sonal injury or loss of fife.

2. Check Air Temperature Rise (ATR).
a. Make sure furnace has operated for at least 5

minutes.

b. Measure return air temperature at top louver

openings of top furnace door.

c. Measure supply air temperature at the closet reg-

ister/grille.

d. Subtract the return air temperature from the sup-

ply air temperature to obtain the ATR.

3. If measured ATR is outside parameters shown on the
furnace rating plate, then you will need to determine
why unit is operating beyond its design parameters. If

the ATR is too low, it is an indication of an underfired
furnace. Make sure that your gas pressure is set

properly. If the ATR is too high, it is an indication of

an overtired furnace. Once again, you will need to

make sure that your gas pressure is set properly. If

found to be okay, you should then also clock the

meter to determine the units firing rate, and if
needed, check the supply duct system static pres-

sure. Refer to Part 5 for information on how to mea-
sure gas pressure, determine the firing rate and

measure supply static pressure.

If any items tested result in findings outside the design
parameters listed on the units rating plate, it is an indication
of application/installation problems that must be addressed.
Since application/installation problems are not covered under
the warranty, you will need to discuss this situation with the
homeowner as they will be responsible for covering any
charges to correct any problems found.

4. If measured ATR is within design parameters, pro-
ceed to step B and complete your on-site visit.

B. Complete On-Site Visit

1. Verify all gas-fueled appliances are returned to nor-
mal operation. Follow instructions provided by the

appliance manufacturer.

2. Complete the DGAT Program Claim Form.
a. Record your name and company information.

b. Obtain homeowner's signature.

c. Sign claim form to certify the furnace has been

properly upgraded.

3. Review the Consumer Notice with the customer.

12 Unitary Products Group

035-20530-001Rev.B(0804)

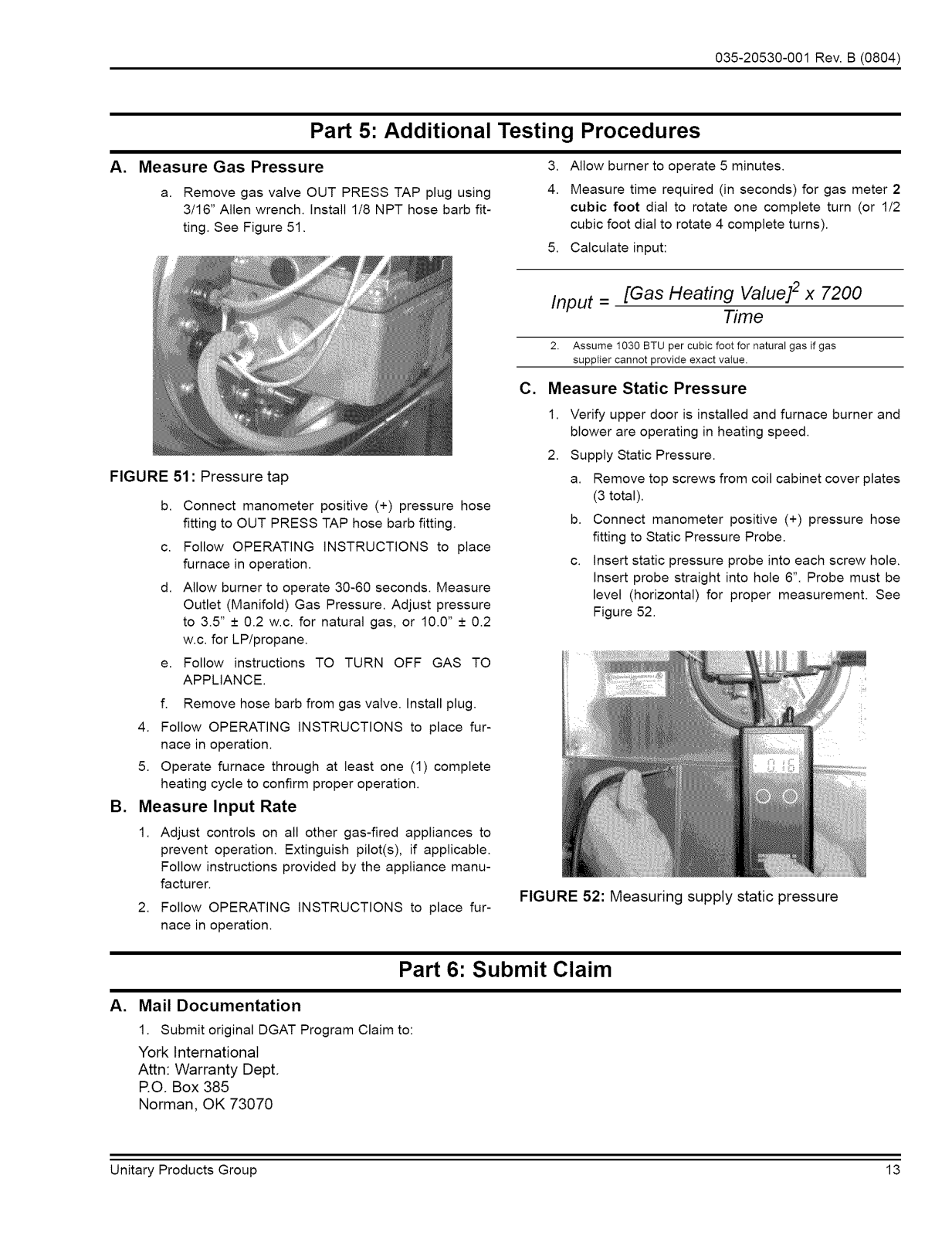

Part 5: Additional Testing Procedures

A. Measure Gas Pressure 3. Allow burner to operate 5 minutes.

a. Remove gas valve OUT PRESS TAP plug using 4. Measure time required (in seconds) for gas meter 2

3/16" Alien wrench. Install 1/8 NPT hose barb fit- cubic foot dial to rotate one complete turn (or 1/2

ting. See Figure 51. cubic foot dial to rotate 4 complete turns).

5. Calculate input:

FIGURE 51 : Pressure tap

b. Connect manometer positive (+) pressure hose

fitting to OUT PRESS TAP hose barb fitting.

c. Follow OPERATING INSTRUCTIONS to place

furnace in operation.

d. Allow burner to operate 30-60 seconds. Measure

Outlet (Manifold) Gas Pressure. Adjust pressure
to 3.5" + 0.2 w.c. for natural gas, or 10.0" _+0.2
w.c. for LPipropane.

e. Follow instructions TO TURN OFF GAS TO

APPLIANCE.

f. Remove hose barb from gas valve. Install plug.

4. Follow OPERATING INSTRUCTIONS to place fur-
nace in operation.

5. Operate furnace through at least one (1) complete
heating cycle to confirm proper operation.

B,

Measure Input Rate

1. Adjust controls on all other gas-fired appliances to
prevent operation. Extinguish pilot(s), if applicable.

Follow instructions provided by the appliance manu-

facturer.

2. Follow OPERATING INSTRUCTIONS to place fur-
nace in operation.

Input

[Gas Heating Value] 2 x 7200

Time

2. Assume 1030 BTU per cubic foot for natural gas if gas
supplier cannot provide exact value.

C. Measure Static Pressure

1. Verify upper door is installed and furnace burner and
blower are operating in heating speed.

2. Supply Static Pressure.
a. Remove top screws from coil cabinet cover plates

(3 total).

b. Connect manometer positive (+) pressure hose

fitting to Static Pressure Probe.

c. Insert static pressure probe into each screw hole.

Insert probe straight into hole 6". Probe must be
level (horizontal) for proper measurement. See
Figure 52.

FIGURE 52: Measuring supply static pressure

Part 6: Submit Claim

A. Mail Documentation

1. Submit original DGAT Program Claim to:

York International
Attn: Warranty Dept.

P.O. Box 385
Norman, OK 73070

Unitary Products Group 13

035-20530-001Rev.B(0804)

NOTES

14 Unitary Products Group

NOTES

035-20530-001Rev.B(0804)

Unitary Products Group 15

NOTES

Subject to change without notice. Printed in U.S.A.
Copyright t7 by York International Corp. 2004. All rights reserved.

Unitary
Products

Group

RO.

Box
19014

Supersedes: 035-20530-001 Rev. A (0804)

035-20530-001 Rev. B (0804)

Wichita

KS

67204-901
