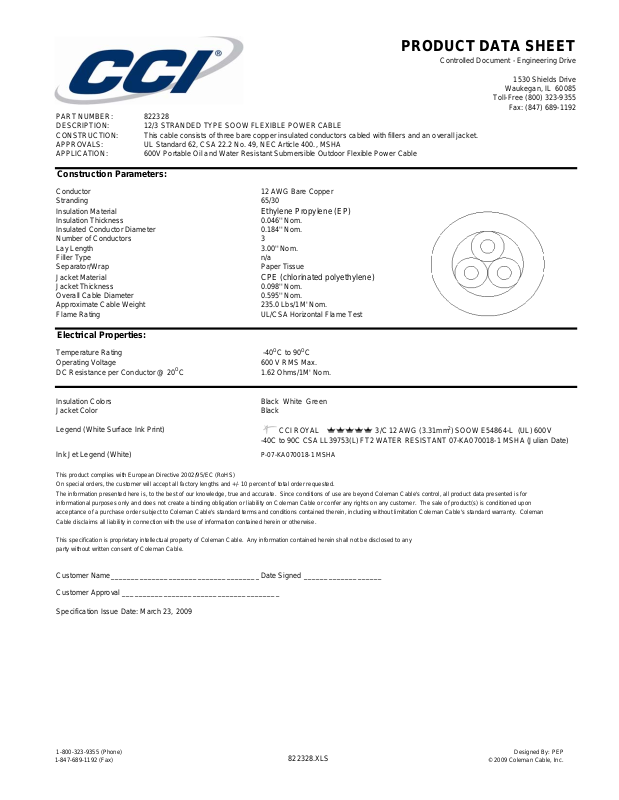

PRODUCT DATA SHEET
Controlled Document - Engineering Drive
PART NUMBER: 822328
DESCRIPTION: 12/3 STRANDED TYPE SOOW FLEXIBLE POWER CABLE
CONSTRUCTION: This cable consists of three bare copper insulated conductors cabled with fillers and an overall jacket.
APPROVALS: UL Standard 62, CSA 22.2 No. 49, NEC Article 400., MSHA
APPLICATION: 600V Portable Oil and Water Resistant Submersible Outdoor Flexible Power Cable
Construction Parameters:
Conductor 12 AWG Bare Copper
Stranding 65/30
Insulation Material
Insulation Thickness 0.046'' Nom.
Insulated Conductor Diameter 0.184'' Nom.
Number of Conductors 3
Lay Length 3.00'' Nom.
Filler Type n/a
Separator/Wrap Paper Tissue
Jacket Material
Jacket Thickness 0.098'' Nom.
Overall Cable Diameter 0.595'' Nom.
Approximate Cable Weight 235.0 Lbs/1M' Nom.
Flame Rating UL/CSA Horizontal Flame Test
Electrical Properties:
Temperature Rating
Operating Voltage 600 V RMS Max.
DC Resistance per Conductor @ 20
O
C
Ethylene Propylene (EP)
CPE (chlorinated polyethylene)
O
-40
C to 90OC
1.62 Ohms/1M' Nom.
1530 Shields Drive
Waukegan, IL 60085
Toll-Free (800) 323-9355
Fax: (847) 689-1192
Insulation Colors Black White Green
Jacket Color Black
Legend (White Surface Ink Print)
CCI ROYAL 3/C 12 AWG (3.31mm
2
) SOOW E54864-L (UL) 600V
-40C to 90C CSA LL39753(L) FT2 WATER RESISTANT 07-KA070018-1 MSHA (Julian Date)
Ink Jet Legend (White)
This product complies with European Directive 2002/95/EC (RoHS)
On special orders, the customer will accept all factory lengths and +/- 10 percent of total order requested.
The information presented here is, to the best of our knowledge, true and accurate. Since conditions of use are beyond Coleman Cable's control, all product data presented is for
informational purposes only and does not create a binding obligation or liability on Coleman Cable or confer any rights on any customer. The sale of product(s) is conditioned upon
acceptance of a purchase order subject to Coleman Cable's standard terms and conditions contained therein, including without limitation Coleman Cable's standard warranty. Coleman
Cable disclaims all liability in connection with the use of information contained herein or otherwise.
This specification is proprietary intellectual property of Coleman Cable. Any information contained herein shall not be disclosed to any
party without written consent of Coleman Cable.
P-07-KA070018-1 MSHA
Customer Name____________________________________Date Signed ___________________
Customer Approval ______________________________________
Specification Issue Date: March 23, 2009
1-800-323-9355 (Phone)
1-847-689-1192 (Fax)
822328.XLS
Designed By: PEP
