Coleman XP-2H38WC User Manual

Application and Instruction Manual

Motion Activated

Solar Powered LED Security Light

with Camera

MODEL: XP-2H38WC

Please do not return this item to the store. If you have

any questions, please contact Apex Digital directly

(866.427.3946 or visit www.apexdigitalinc.com)

Introduction

Thank you for purchasing the Coleman solar powered security light (XP-2H38WC)
with built-in wireless camera and microphone. This solar security light will allow
you to illuminate and monitor activities in real time from locations up to 100 ft. from
the included receiver. Because the unit is solar powered there is no need for an
AC power outlet: simply place the unit where security lighting is needed. You will
need to locate an area within 15 ft. of the unit with unobstructed sunlight (usually
on the roof) to place the included solar panel. Plug the panel into the solar security
unit and that’s it. This product harvests clean energy from the sun that is
converted into electricity.

When motion is detected, the unit will broadcast a video and audio signal to the
included receiver. An audible beep at the receiver will let you know that motion
has been detected. The receiver can be plugged into any monitoring device (TV,
Computer, or Monitor) with the enclosed connecting cables and view and hear in
real time what has activated your solar security light. The unit has a photocell
that activates the LED lights for nighttime monitoring.

Important Safety Information

 Do not expose the light to fire or intense heat.
 Do not dispose of battery in fire.
 Do not immerse in water.
 Never look directly into the light or shine in another person’s eyes.
 Do not dispose of the rechargeable battery in a regular waste system,

waterway, stream or any other body of water.

 Preserve the environment by disposing battery in accordance with local,

state and federal regulations

 Consult your local construction safety guidelines for installing the light

fixture on a building.

 Only use batteries from XEPA TECHNOLOGIES to ensure compatibility.

(Refer to the product’s original battery for correct size.)

 The battery should be positioned so it has the correct polarity (+) and (-).

What’s Inside the Package

 LED XP-2H38WC solar security light w/ Camera
 Mounting Screws
 Mounting Template
 Solar charging panel with 15’ Cable

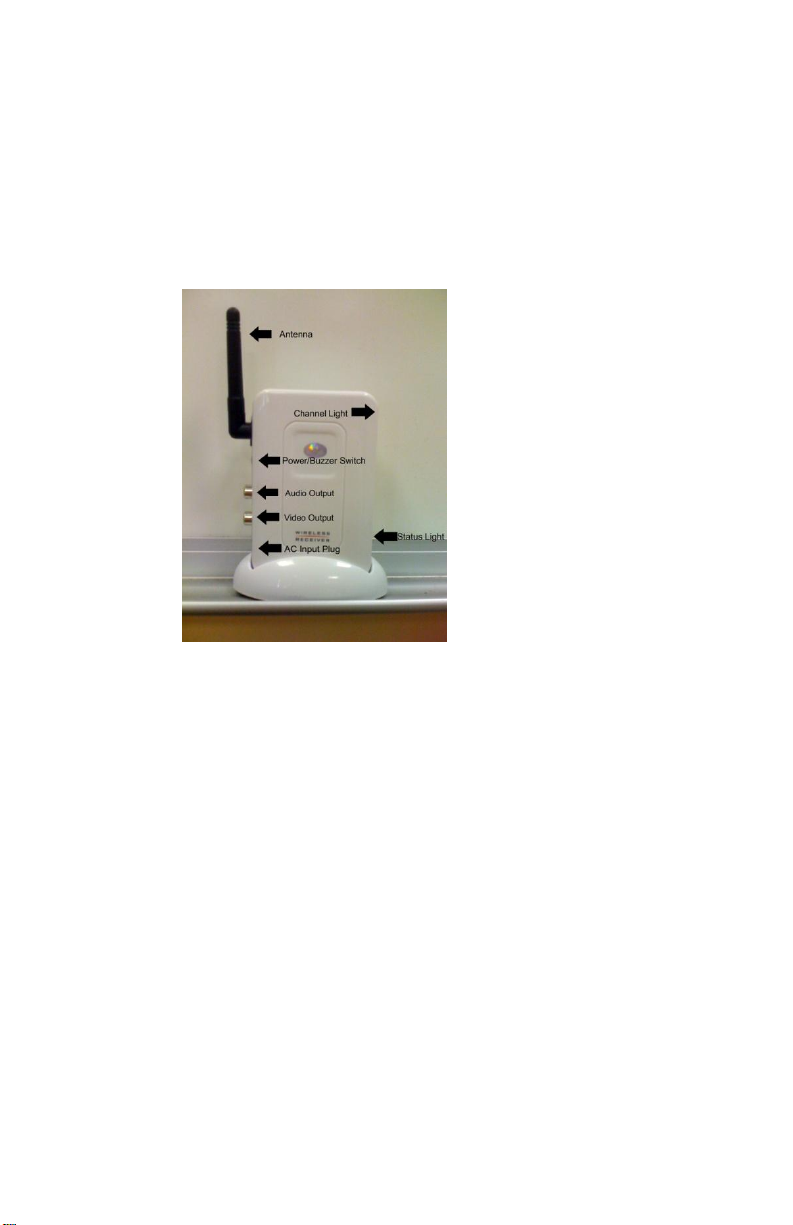

 Receiver
 A/C Adapter (Receiver)
 Audio/Video connecting cables
 Owner/Installation Manual

Features

 High efficiency, rechargeable Lithium battery.
 Detects motion at over 30 ft.
 Lithium-ion battery emits zero pollution, protecting the environment.
 High brightness illumination.
 Wireless broadcast of audio and video to a remote monitoring source.

Installation

 The XP-2H38WC light fixture should be installed on a flat and stable

surface: the higher the installation the larger the area of illumination.

 Avoid installing the light near an air conditioner, heater, or high voltage

system as quick changes in temperature may cause the motion detection
system to produce false triggers and illuminate the light needlessly.

 Avoid positioning the motion sensor head towards street traffic or

anywhere other movements may trigger the light needlessly and drain the
battery prematurely.

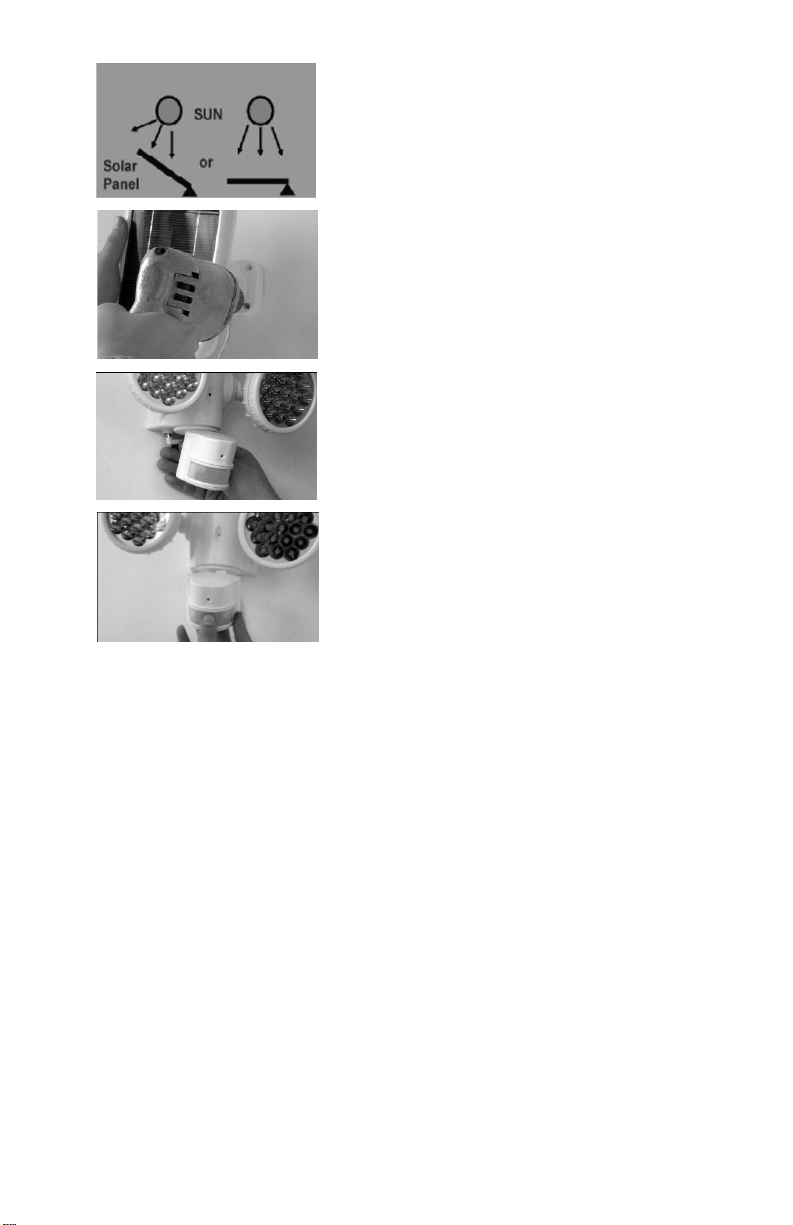

 The solar panel should be installed facing the sky (typically on the roof)

with maximum sun exposure. Try to avoid areas of shade keeping in
mind that obstacles will cast shadows at different times during the day
or seasons.

 Use a soft damp cloth to periodically clean the solar panel from

accumulated dust or snow. This will help preserve the life of the battery
and maximize charging efficiency.

1) Use the enclosed mounting template to
locate and mark mounting holes. Using a
¼” drill, drill two holes in the marked spots.

Gently tap the mounting anchors into drilled
holes. Secure screws into mounting anchors
leaving aprox. 1/8” of screw exposed.

2) Place the light over the screws.
