Coleman 5036 User Manual

Propane Catalytic
Heater

INSTRUCTIONS FOR USE

Model 5036

Propane Series

CAN1-11.3-M79 Camp Heater

U.S. Patent 6,213,761 and other patents pending
© 2004 The Coleman Company, Inc.
www.coleman.com

IMPORTANT

Read this manual carefully before assembling,
using or servicing this heater.Keep this manual f or
future reference. If you have questions about
assembly, operation, servicing or repair of this
heater, please call Coleman at 1-800-835-3278
or TDD:316-832-8707. In Canada call
1-800-387-6161.

AAA Battery Included

2

Contents

General Safety Information
To Set Up
To Light
Support Leg Assembly
To Tur n O ff
To Store
Things You Should Know
Replacement Parts List
Warranty

Safety precautions are essential when any
mechanical or propane fueled equipment is
involved.These precautions are necessary when
using, storing, and servicing. Using this equipment
with the respect and caution demanded will reduce
the possibilities of personal injury or property
damage.

The following symbols shown below are used
extensively throughout this manual.Always heed
these precautions, as they are essential when
using any mechanical or propane fueled
equipment.

General Safety Information

Warning

THIS APPLIANCE CONSUMES AIR

If you smell gas:

1. Do not attempt to light appliance.

2. Extinguish any open flame.

3. Disconnect from fuel supply.

FOR YOUR SAFETY

Do not store or use gasoline or
other liquids with flammable vapors
in the vicinity of this or any other
appliance.

FOR YOUR SAFETY

• When used in any inside area,
provide a fresh air opening of at
least six square inches (39
square centimeters).

• Never operate the heater while
sleeping.

• Do not use other burning
appliances inside.

This manual contains important information about
the assembly, operation and maintenance of this
heater.General safety information is presented in
these first few pages and is also located
throughout the manual. Particular attention should
be paid to information accompanied by the safety
alert symbol “ DANGER”, “ WARNING”,
“ CAUTION”.

Keep this manual for future reference and to
educate new users of this product.This manual
should be read in conjunction with the labeling on
the product.

DANGER

DANGER indicates an imminently hazardous
situation which, if not avoided, will result in
death or serious injury.

WARNING

WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate personal injury, or property
damage.

3

General Safety Information cont.

• EXPLOSION - FIRE HAZARD

• Never store propane near high heat, open flames,
pilot lights, direct sunlight, other ignition sources or
where temperatures exceed 120 degrees F (49°C).

• Propane is heavier than air and can accumulate in low
places.If you smell gas, leave the area immediately.

• Never install or remove propane tank while catalytic
heater is lighted, near flame, pilot lights, other ignition
sources or while catalytic heater is hot to touch.

• During operation, this product can be a source of
ignition.Never use the catalytic heater in spaces that
contain or may contain volatile or airborne combustibles ,
or products such as gasoline, solvents, paint thinner,
dust particles or unknown chemicals.Minimum
clearances from combustible materials:24 inches.

• Provide adequate clearances around air openings
into the combustion chamber.

DANGER

Failure to comply with the precautions and
instructions provided with this heater can result in
death, serious bodily injury and property loss or
damage from hazards of fire, explosion, burn
and/or asphyxiation.

Only persons who can understand and follow the
instructions should use or service this heater.

DANGER

WARNING

We cannot foresee every use which may be made
of our products.

Check with your local fire safety authority if
you have questions about use.

Other standards govern the use of fuel gases and
heat producing products for specific uses.Y our local
authorities can advise you about these.

• Never refill disposable cylinders.

• Use the preset regulator that came with the
catalytic heater. Do not attempt to adjust.

WARNING

• This product is fueled by propane gas. Propane
gas is invisible, odorless, and flammable. An
odorant is normally added to help detect leaks
and can be described as a “rotten egg” smell.
The odorant can fade over time so leaking gas is
not always detectable by smell alone.

• Propane gas is heavier than air and leaking
propane will sink to the lowest level possible. It
can ignite by ignition sources including matches,
lighters, sparks or open flames of any kind many
feet away from the original leak. Use only
propane gas set up for vapor withdrawal.

• Propane gas should be stored or used in
compliance with local ordinances and codes or with
ANSI/NFPA 58.Turn off propane when not in use.

CALIFORNIA PROPOSITION 65:

WARNING:This fuel, and byproducts of
combustion of this fuel, contain chemicals known
to the state of California to cause cancer, birth
defects, or other reproductive harm.

• BURN HAZARD

• Never leave catalytic heater unattended when
hot or in use.

• Keep out of reach of children.

WARNING

• SERVICE SAFETY

• Keep all connections and fittings clean.Inspect

propane cylinder and catalytic heater propane
connections for damage before attaching.

• During set up, check all connections and fittings

for leaks using soapy water.Never use a flame.
Bubbles indicate a leak.Check that the connection
is not cross-threaded and that it is tight. Perform
another leak check.If there is still a leak, remove
the cylinder and contact Coleman for service or
repairs.

• Use as a heating appliance only. Never alter in any

way or use with any device or part not specifically
designed and sold for this product.

CAUTION

4

To Set Up

CAUTION

NOTE:Use 16.4 oz disposable propane cylinders
only. Do not connect to bulk propane systems.The
LP-gas cylinder(s) used with catalytic heaters must be
constructed and marked in accordance with the
specifications for LP-gas cylinders of the U.S.
Department of Transportation or

Transport Canada,

CAN/CSA B339

.

• SERVICE SAFETY

• Keep all connections and fittings clean.Inspect
propane cylinder and heater propane connections
for damage before attaching.

• During set up, check all connections and fittings
for leaks using soapy water. Bubbles indicate a
leak. Never use a flame.

■ Features identified are Burner, Heater Valve,
Ignition Button, Support Leg, Cup Holder Adapter,
and AAA Battery. Propane tank is not included.

Support
Leg

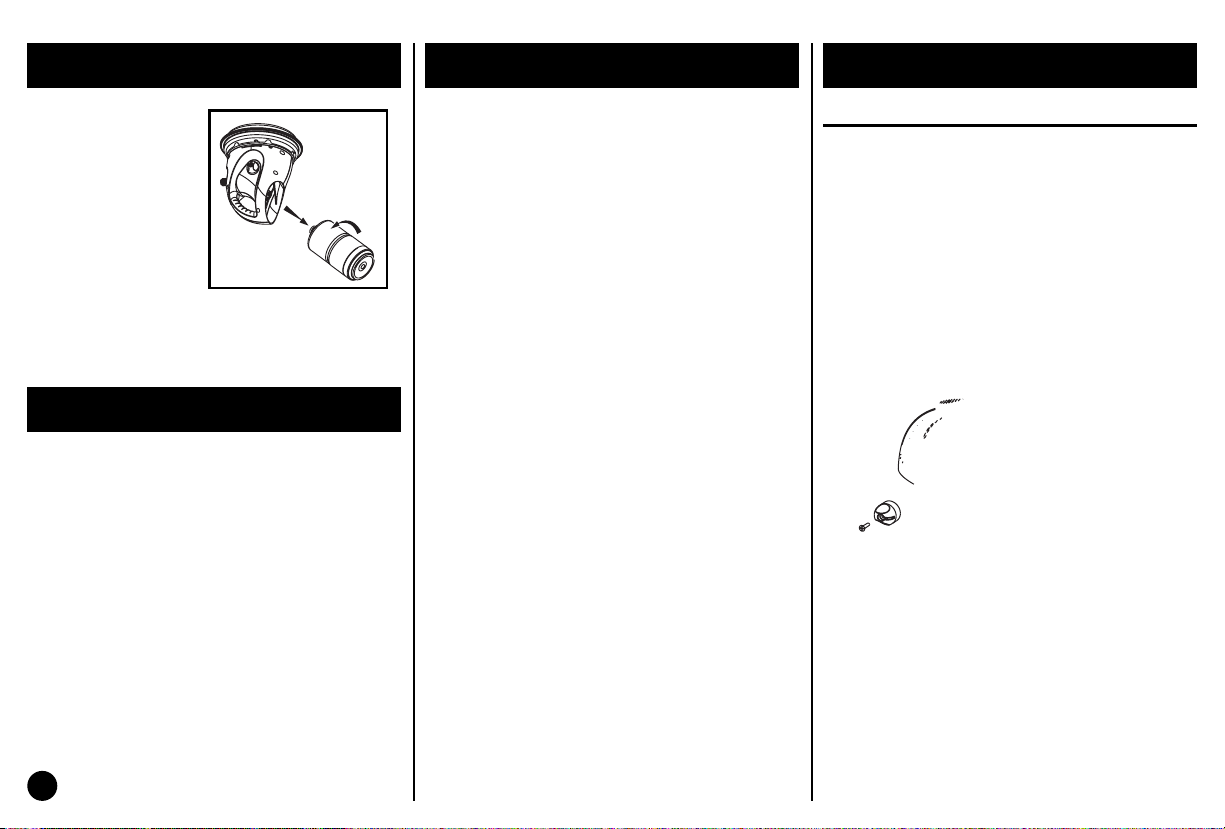

■ Attach CYLINDER to
HEATER outdoors.

■ Turn HEATER VALVE
to OFF.

Electronic Ignition

■ Turn valve to HI
position and push the red
IGNITOR BUTTON until
heater ignites (10-12
seconds).

■ Heater will ignite with a
brief visible flame.

■ Heater is adjustable to “HI”and “LOW”.

■ NOTE:Heater is

designed to be lit with
the valve fully open until
it reaches full output.
Observe heat build up
for a few minutes to
ensure heater is lit. If
heater fails to develop
substantial heat, turn
heater “OFF” and repeat
lighting procedure.

To Light cont

To Turn Off

■ Turn FUEL VALVE to
OFF.

■ Allow HEATER to
cool for 10-15 minutes.

DANGER

• EXPLOSION - FIRE HAZARD

• Never store propane near high heat, open flames,

pilot lights, direct sunlight, other ignition sources or
where temperatures exceed 120 degrees F (49°C).

To Store

Support Leg Assembly

Support Leg

Match Light

■ Hold match as shown.

■ Turn valve to HI

position.

■ Heater will ignite with a
brief visible flame after
10-12 seconds.

■ Heater is adjustable to
“HI” and “LOW”.

6

7. For repair service call one of the numbers listed
below for location of your nearest Coleman Service
Center.If heater must be mailed to Service Center,
attach your name, address, and a description of
problem to product and and send to Service
Center either by UPS or Parcel Post insured with
shipping and insurance prepaid.

Do not mail

propane cylinders.

If necessary to write the
Service Center or factory, refer to your heater by
model number.

8. If not completely satisfied with performance of
this product, please call one of the numbers listed
below.

9. As with any new heating appliance, a small
amount of smoke may be seen during the initial
operation as a result of residual manufacturing oils
being heated. This is normal. Coleman suggests
the owner operate the heater for 30 minutes when
first purchased. This will also familiarize the owner
with all the features of the heater.

The Coleman Company, Inc.

3600 N. Hydraulic

Wichita, KS 67219 U.S.A.

1-800-835-3278

TDD: 316-832-8707

Sunbeam Corporation (Canada) Limited

5975 Falbourne Street

Mississauga, Ontario

Canada L5R 3V8

800 387-6161

www.coleman.com

Replacement Parts List

Limited Lifetime Warranty

The Coleman Company, Inc.(“Coleman”) warrants that for the period that you own this
product, it will be free from defects in material and workmanship.Coleman, at its option, will
repair or replace this product or any component of the product found to be defective during
the warranty period. Replacement will be made with a new or remanufactured product or
component. If the product is no longer available, replacement may be made with a similar
product of equal or greater value.This is your exclusive warranty.

This warranty is valid for the original retail purchaser from the date of initial retail purchase
and is not transferable. Keep the original sales receipt. Proof of purchase is required to
obtain warranty performance.Coleman dealers, service centers, or retail stores selling
Coleman products do not have the right to alter, modify or in any way change the terms and
conditions of this warranty.

This warranty does not cover normal wear of parts or damage resulting from any of the
following:negligent use or misuse of the product, use on improper voltage or current, use
contrary to the operating instructions, disassembly, repair or alteration by anyone other than
Coleman or an authorized service center.Further, the warranty does not cover Acts of God,
such as fire, flood, hurricanes and tornadoes.

COLEMAN SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES CAUSED BY THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY
OR CONDITIONS. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW,
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE IS LIMITED IN DURATION TO THE DURATION OF THE
ABOVE WARRANTY OR CONDITIONS. SOME STATES, PROVINCES, OR
JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL
OR CONSEQUENTIAL DAMAGES OR LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSION MAY NOT APPLY
TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY
ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE OR PROVINCE TO
PROVINCE.

Warranty

How to Obtain Warranty Service

Take the product to an authorized Coleman service center.You can find the nearest
authorized Coleman service center by calling 1-800-835-3278 or TDD 316-832-8707 in the
United States or 1 800 387 6161 in Canada. If a service center is not conveniently located,
attach to the product a tag that includes your name, address, daytime telephone number
and description of the problem. Include a copy of the original sales receipt. Carefully
package the product and send either by UPS or Parcel Post insured with shipping and

insurance prepaid to:

For products purchased in the United States:

The Coleman Company, Inc.
3600 North Hydraulic
Wichita, KS 67219

For products purchased in Canada:

Sunbeam Corporation (Canada) Limited
5975 Falbourne Street
Mississauga, Ontario
Canada L5R 3V8

Do not mail products with fuel in tanks, or with disposable propane cylinders.Remove
glass globes from lanterns and wrap separately.

DO NOT RETURN THIS PRODUCT TO THE PLACE OF PURCHASE.

If you have any questions regarding this warranty please call 1-800-835-3278 or TDD 316­832-8707 in the United States or 1 800 387 6161 in Canada.

7

Notes:
