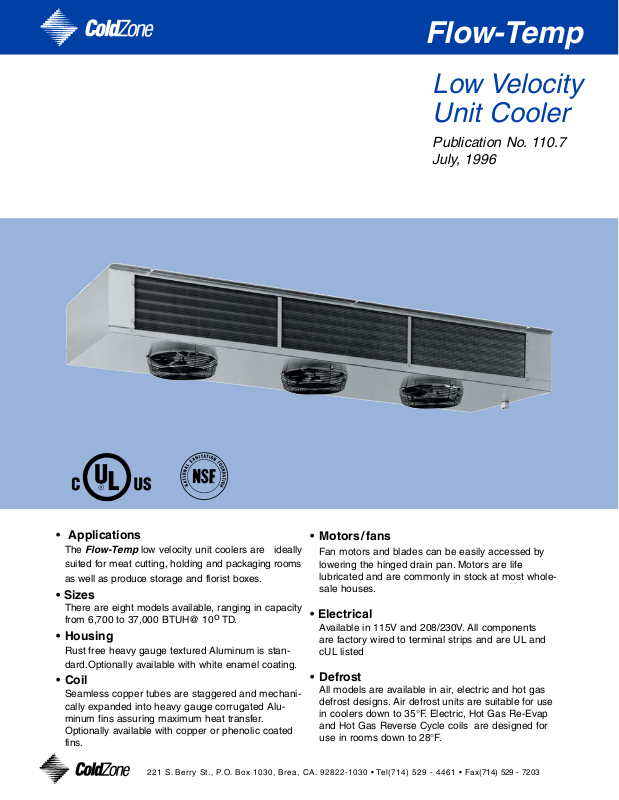

ColdZone FL26-67 User Manual
Flow-Temp
Low Velocity
Unit Cooler
Publication No. 110.7
July, 1996
221 S. Berry St., P.O. Box 1030, Brea, CA. 92822-1030 • Tel(714) 529 - 4461 • Fax(714) 529 - 7203
• Applications
The
Flow-Temp
low velocity unit coolers are ideally
suited for meat cutting, holding and packaging rooms
as well as produce storage and florist boxes.
• Sizes
There are eight models available, ranging in capacity
from 6,700 to 37,000 BTUH@ 10oTD.
• Housing
Rust free heavy gauge textured Aluminum is standard.Optionally available with white enamel coating.
• Coil
Seamless copper tubes are staggered and mechanically expanded into heavy gauge corrugated Aluminum fins assuring maximum heat transfer.
Optionally available with copper or phenolic coated
fins.
• Motors/fans
Fan motors and blades can be easily accessed by
lowering the hinged drain pan. Motors are life
lubricated and are commonly in stock at most wholesale houses.
• Electrical
Available in 115V and 208/230V. All components
are factory wired to terminal strips and are UL and
cUL listed
• Defrost
All models are available in air, electric and hot gas
defrost designs. Air defrost units are suitable for use
in coolers down to 35°F. Electric, Hot Gas Re-Evap
and Hot Gas Reverse Cycle coils are designed for
use in rooms down to 28°F.
ELECTRIC DEFROST
MODEL
NUMBER
8.6
13.0
13.0
13.0
17.5
17.5
17.5
21.6
14.8
22.5
22.5
22.5
21.3
21.3
21.3
28.5
17.2
26.0
26.0
26.0
35.0
35.0
35.0
43.1
3940
5960
5960
5960
8060
8060
8060
9920
2 1.2 0.6
3 1.8 0.9
3 3.3 1.65
3 3.3 1.65
4 4.4 2.2
4 4.4 2.2
4 4.4 2.2
5 5.5 3.3
AMPS AMPS
115V 230/1
DIMENSIONS (in)
AB CDW
48 7-1/2 6-1/4 8-1/2 58-1/2
36 7-1/2 6-1/4 8-1/2 82-1/2
36 10-1/2 9-3/4 12 82-1/2
36 10-1/2 9-3/4 12 82-1/2
48 10-1/2 9-3/4 12 106-1/2
48 10-1/2 9-3/4 12 106-1/2
48 13-1/2 12-3/4 12 106-1/2
60 13-1/2 12-3/4 15 130-1/2
FL26-67
FL36-100
FL36-135
FL36-160
FL46-180
FL46-220
FL46-265
FL56-370
Performance and Electrical Data
FL26-67
FL36-100
FL36-135
FL36-160
FL46-180
FL46-220
FL46-265
FL56-370
CFM
1050
1220
1670
1820
2230
2420
2420
2830
SHIP WT.
(LBS)
155
205
265
285
325
340
370
490
CONNECTIONS (in.)
1
LIQUID SUCTION DRAIN
1/2 ODS 7/8 ODS 3/4 MPT
1/2 ODS 7/8 ODS 3/4 MPT
1/2 ODS 1-1/8 ODS 3/4 MPT
1/2 ODS 1-1/8 ODS 3/4 MPT
1/2 ODS 1-1/8 ODS 3/4 MPT
1/2 ODS 1-1/8 ODS 3/4 MPT
1/2 ODS 1-1/8 ODS 3/4 MPT
1/2 ODS 1-1/8 ODS 3/4 MPT
QTY
MODEL
NUMBER
CAPACITY (Btu/hr)
10°F 15°F 20°F
TD TD TD
6,700 10,050 13,400
10,000 15,000 20,000
13,500 20,250 27,000
16,000 24,000 32,000
18,000 27,000 36,000
22,000 33,000 44,000
26,500 37,950 53,000
37,000 55,500 74,000
MOTOR
Flow-Temp
221 S. Berry St., P.O. Box 1030, Brea, CA. 92822-1030 • Tel(714) 529 - 4461 • Fax(714) 529 - 8503
WATTS 230V/1 230V/3
460V/1
1
All models require externally equalized TXV.
ORDERING INFORMATION REQUIRED:
1. Model number
2. Type of defrost
3. Electrical characteristics
4. Refrigerant type
5. Suction temperature
6. Evaporator TD
NOTE:
Air defrost models are suitable for +35°F room temperature and above. Electric and Hot Gas defrost
suitable for +28°F room temperature and above.
MODEL NOMENCLATURE: FL
2 6 -67 E
Flow-Temp design
Number of fans
Fins Per Inch
Capacity (BTUH in hundreds)
Defrost type
A = Air
E = Electric
H = Hot Gas Re-Evap
G = Hot Gas Reverse Cycle
B
1 3/4"
W
A A4-1/4"
C
D
3/4" MPT Drain
ALL MOUNTING HOLES ARE 3/8" DIA.
Suction
Liquid
13"
28 3/4"
27-1/4"
Air Flow
Air Flow
2-1/2"
6-1/4"
Physical Data
REV.2 7/96 R-5000
