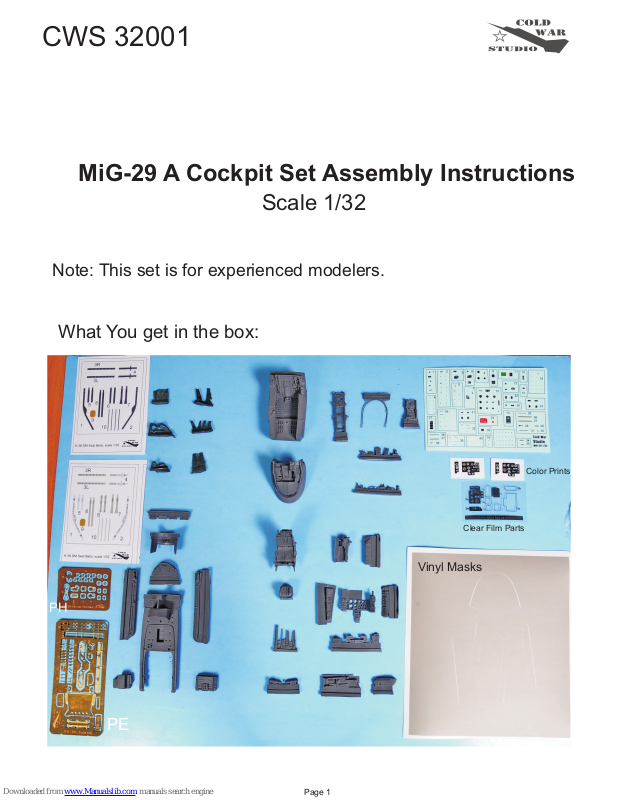

CWS 32001
MiG-29 A Cockpit Set Assembly Instructions
Note: This set is for experienced modelers.

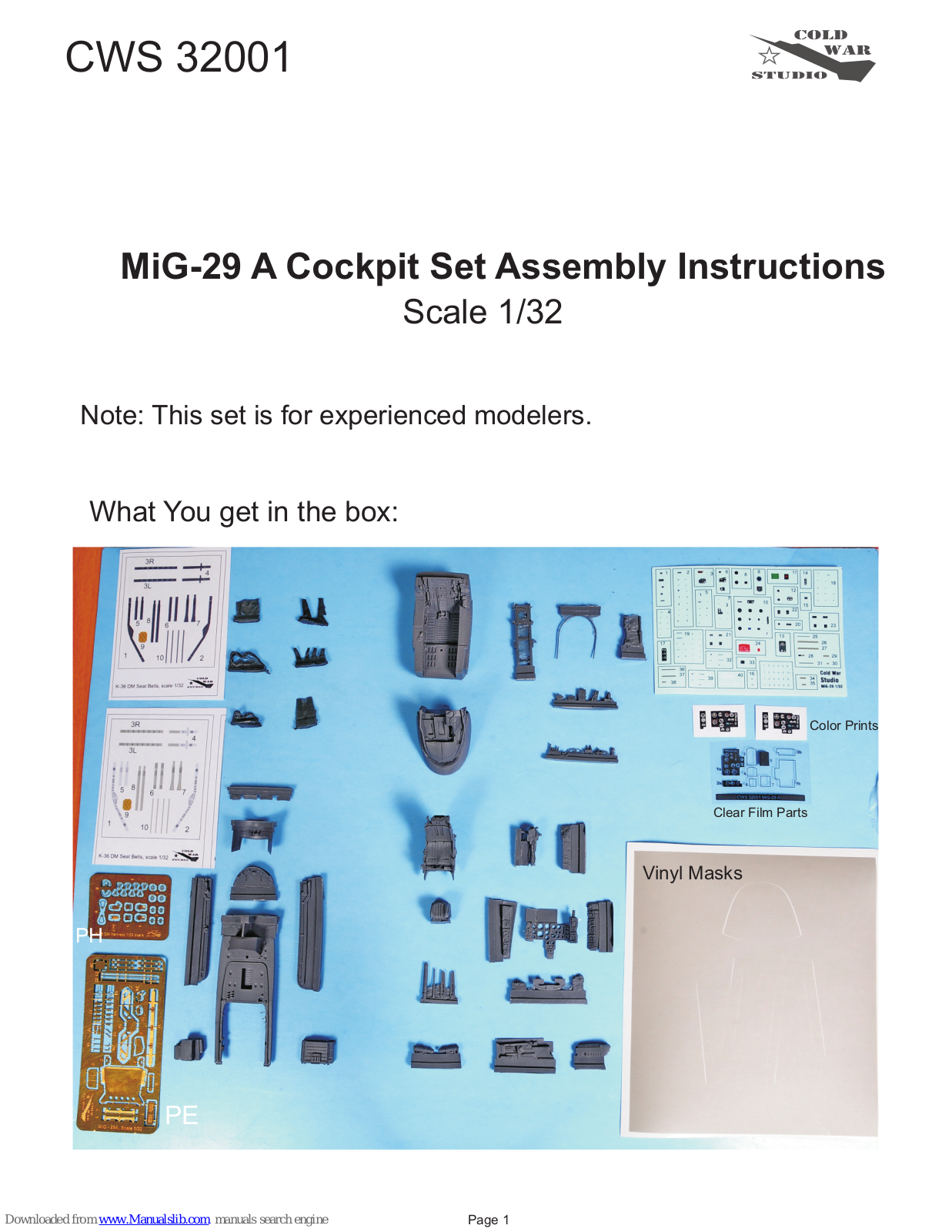

What You get in the box:
Page 1
PE
PH
Vinyl Masks
Clear Film Parts
Color Prints
Scale 1/32
29
29

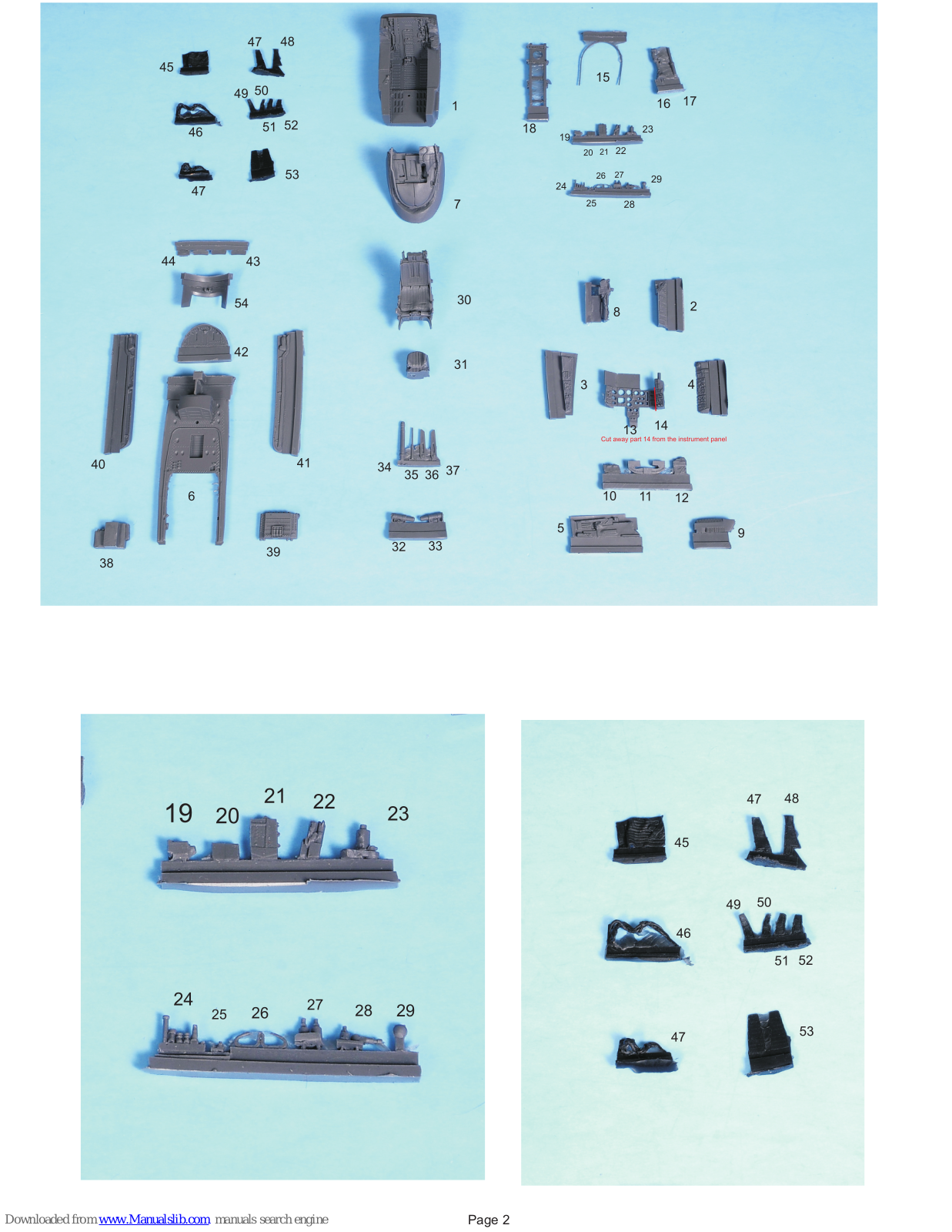

Page 2
1.5 mm
1.5 mm
1.
2.
3.
PE 21
PE 22
PE 12
PE 12
PE 14
PE 14
PE 11
43
40
42
41
You may add a plastic strip here inside to make the frame thicker
54
PE 7

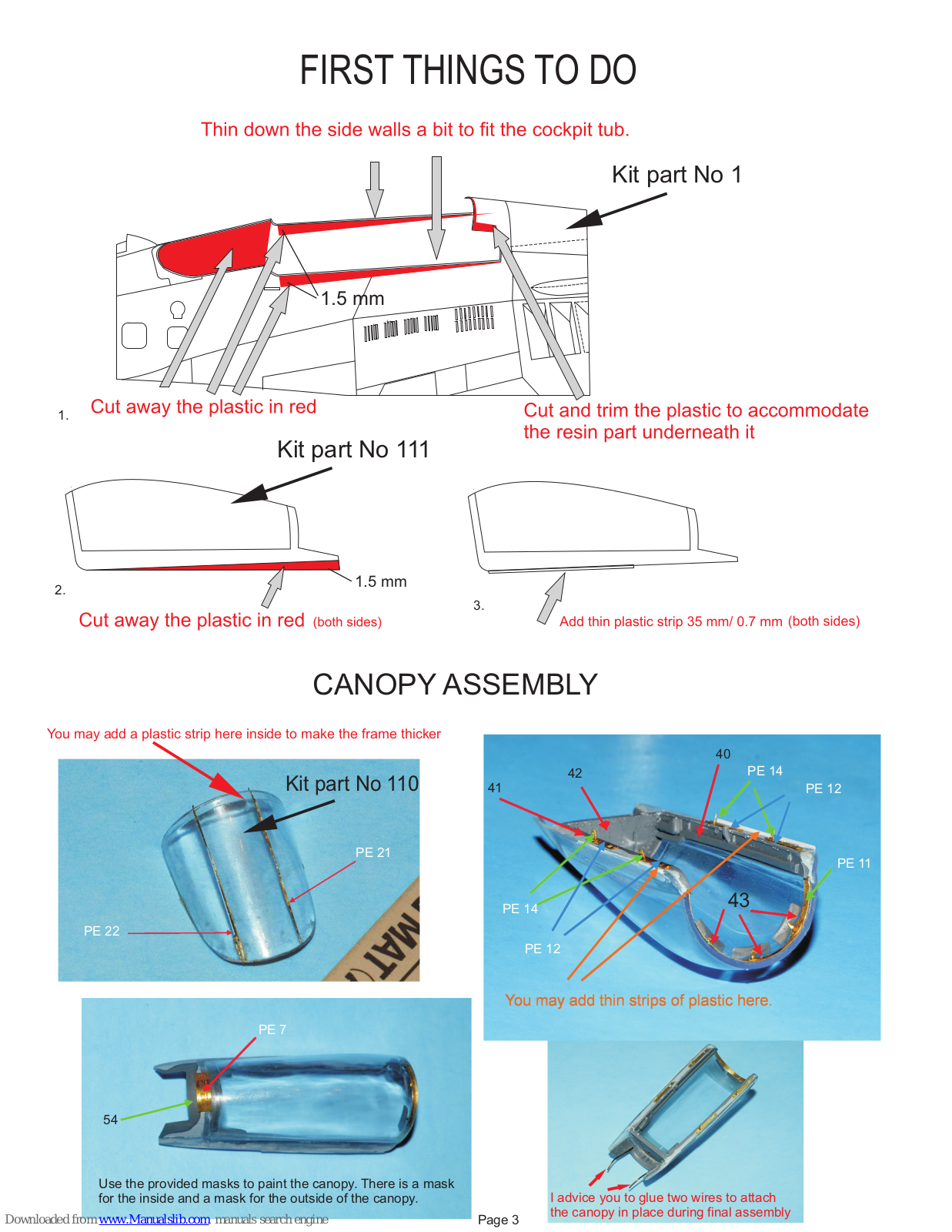

CANOPY ASSEMBLY
FIRST THINGS TO DO
I advice you to glue two wires to attach
the canopy in place during final assembly
Kit part No 111
Kit part No 1
Kit part No 110
Page 3
Use the provided masks to paint the canopy. There is a mask
for the inside and a mask for the outside of the canopy.
29
PE 2
PE 18+19

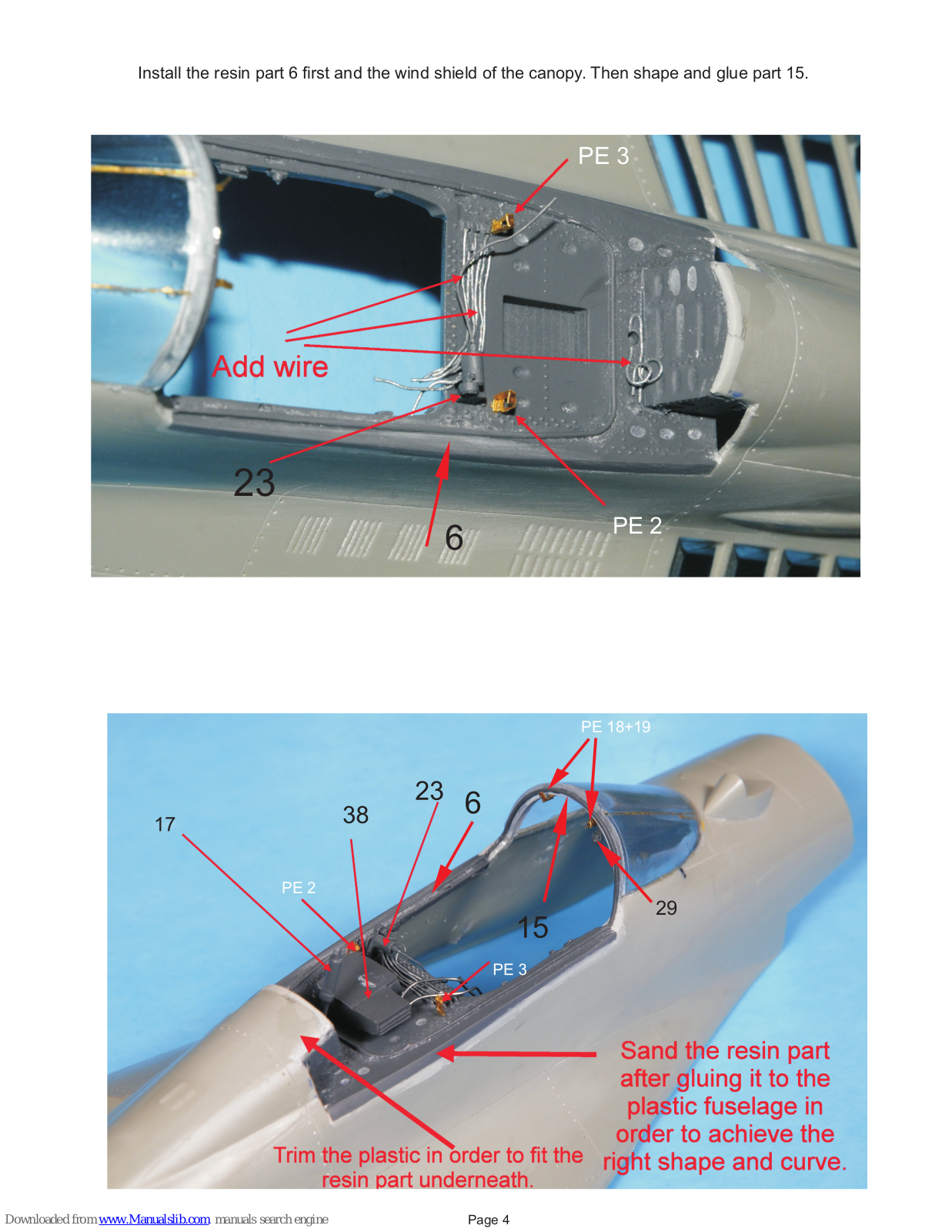

Install the resin part 6 first and the wind shield of the canopy. Then shape and glue part 15.
PE 2
PE 3
23
6
Page 4

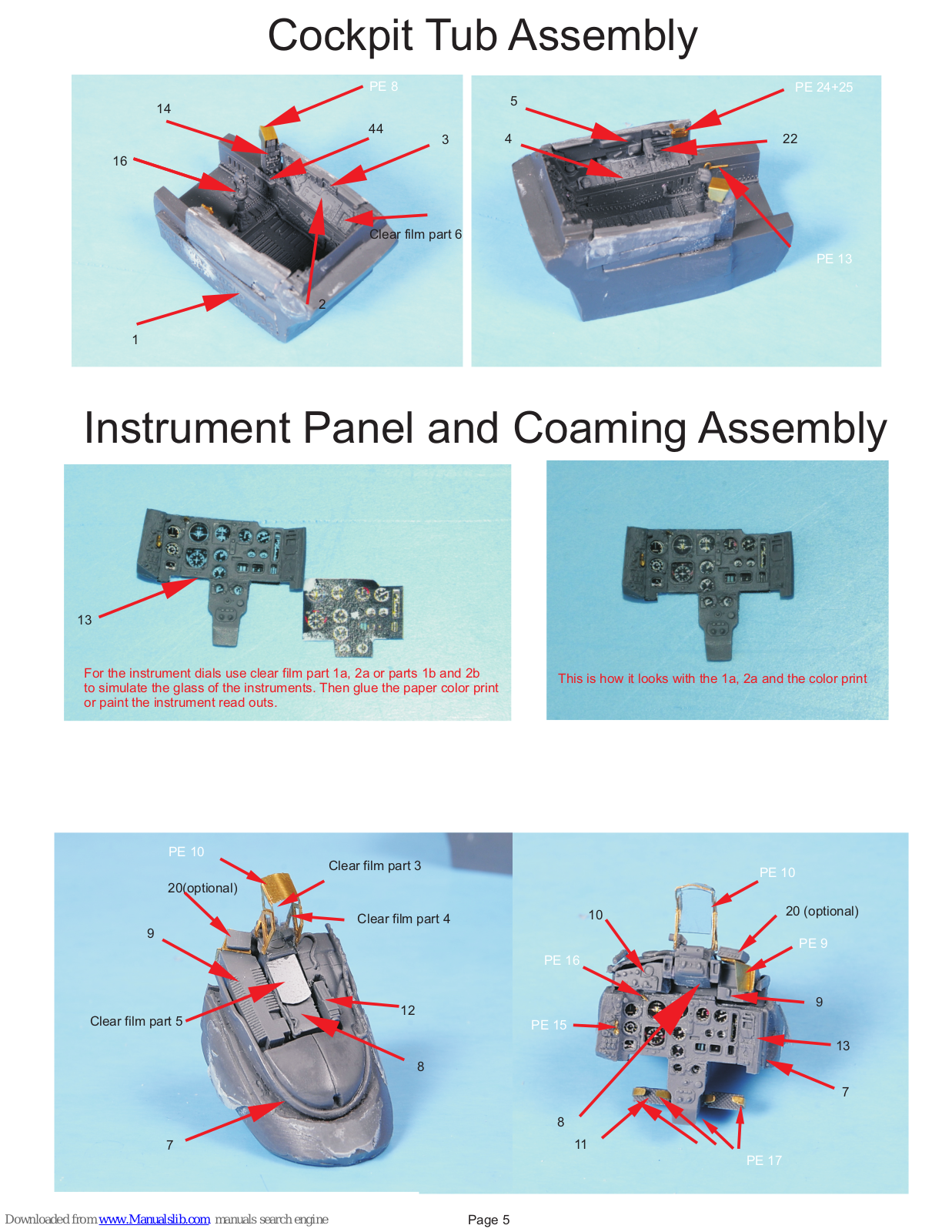

Cockpit Tub Assembly
Instrument Panel and Coaming Assembly
1
2
3
PE 8
Clear film part 6
14
44
16
4
5
22
PE 13
PE 24+25
PE 15
PE 16
PE 9
PE 10
Clear film part 3
Clear film part 4
Clear film part 5
PE 17
11
10
13
20 (optional)
PE 10
12
9
20(optional)
13
For the instrument dials use clear film part 1a, 2a or parts 1b and 2b
to simulate the glass of the instruments. Then glue the paper color print
or paint the instrument read outs.
This is how it looks with the 1a, 2a and the color print
Page 5
8
8
9
7
7
Glue the rail in place.

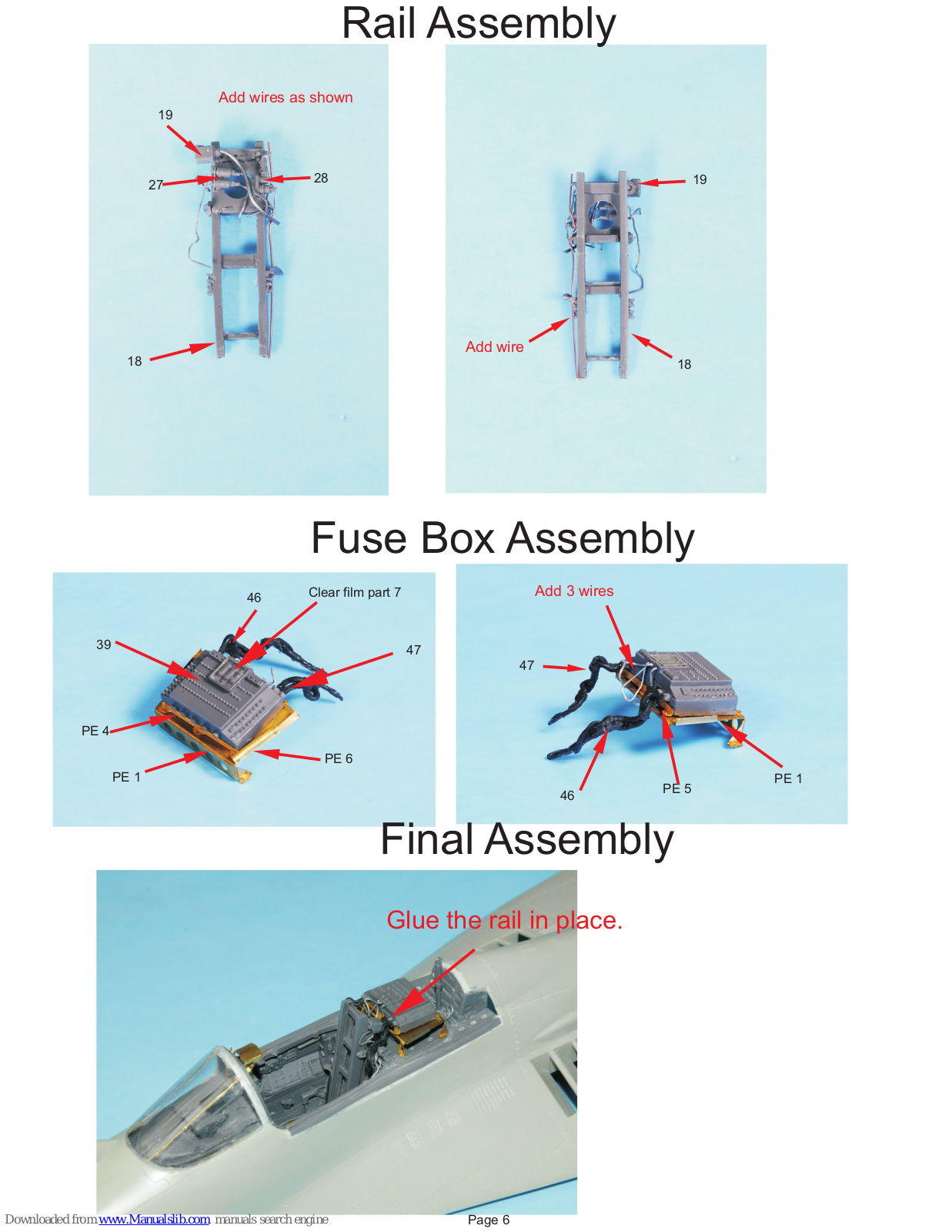

Rail Assembly
Fuse Box Assembly
Final Assembly
18
19
19
18
27
28
39
46
47
Clear film part 7
PE 1
PE 6
PE 4
PE 5
46
47
PE 1
Add 3 wires
Add wire
Add wires as shown
Page 6

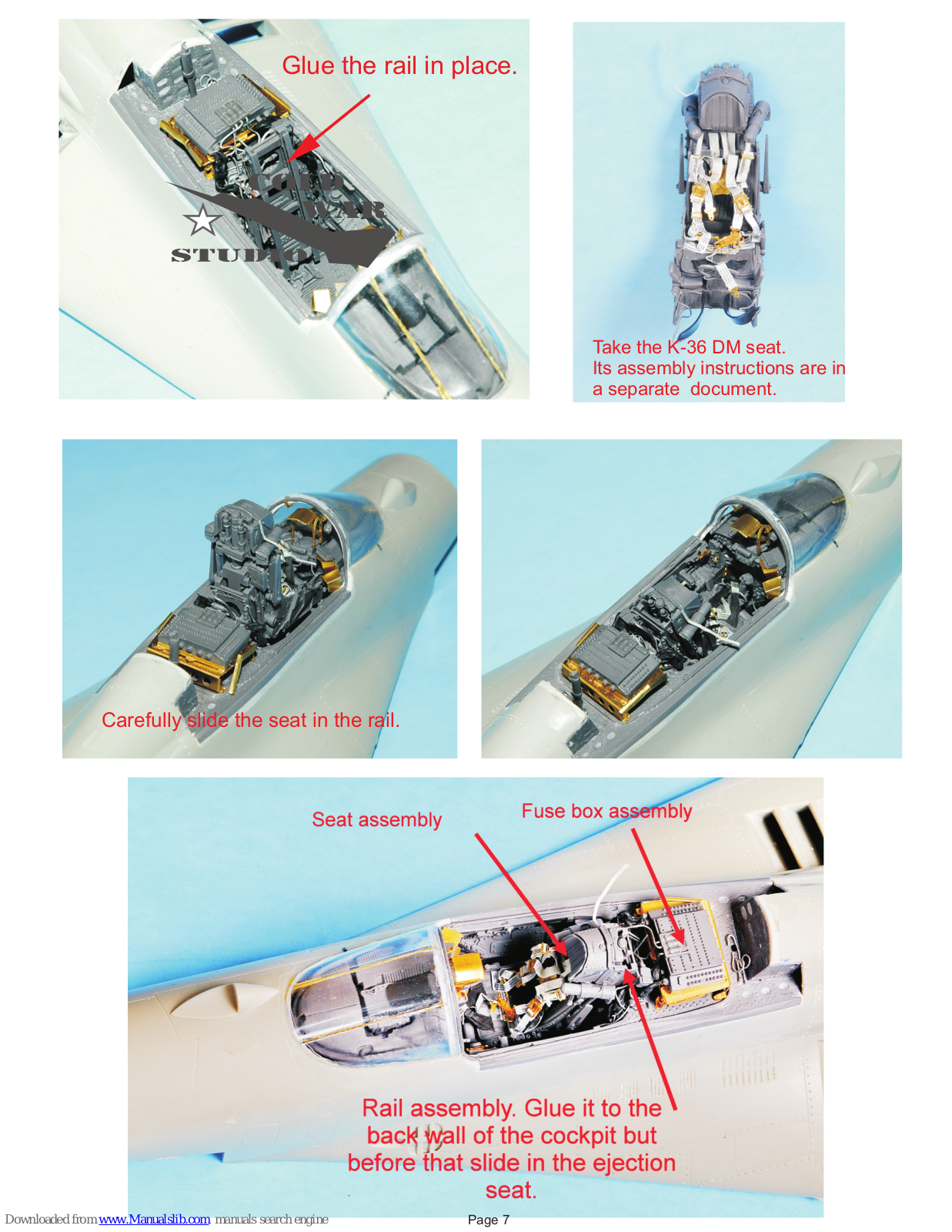

Glue the rail in place.
Take the K-36 DM seat.
Its assembly instructions are in
a separate document.
Carefully slide the seat in the rail.
Page 7

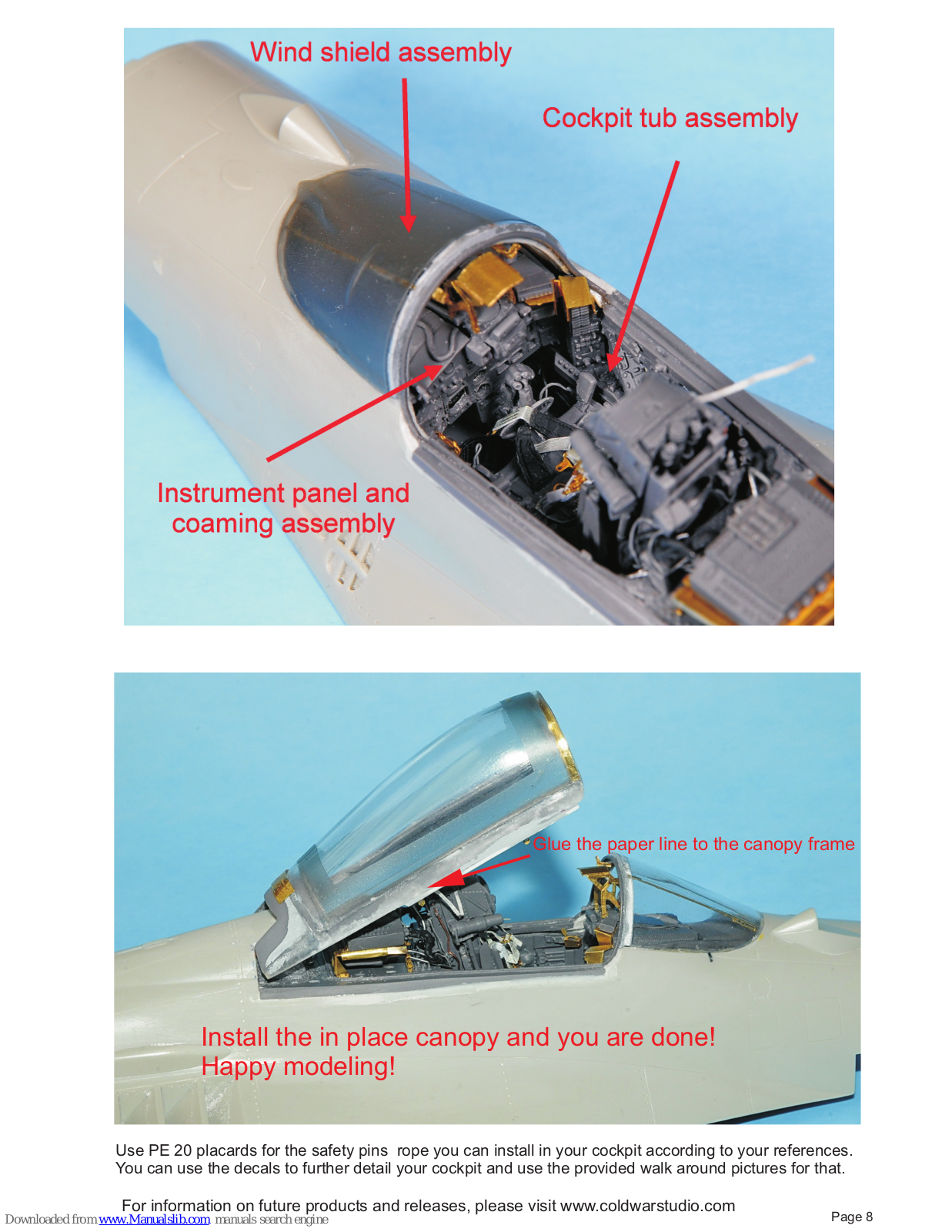

Install the in place canopy and you are done!
Happy modeling!
Glue the paper line to the canopy frame
Use PE 20 placards for the safety pins rope you can install in your cockpit according to your references.
You can use the decals to further detail your cockpit and use the provided walk around pictures for that.
Page 8
For information on future products and releases, please visit www.coldwarstudio.com
