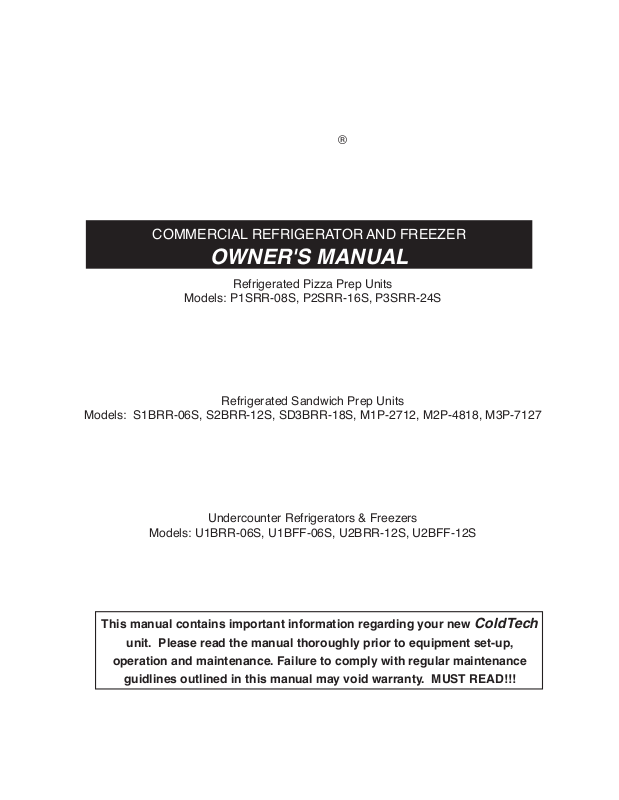

COMMERCIAL REFRIGERATOR AND FREEZER
OWNER'S MANUAL
Refrigerated Pizza Prep Units
Models: P1SRR-08S, P2SRR-16S, P3SRR-24S
Refrigerated Sandwich Prep Units
Models: S1BRR-06S, S2BRR-12S, SD3BRR-18S, M1P-2712, M2P-4818, M3P-7127
Undercounter Refrigerators & Freezers
Models: U1BRR-06S, U1BFF-06S, U2BRR-12S, U2BFF-12S
This manual contains important information regarding your new ColdTech unit. Please read the manual thoroughly prior to equipment set-up, operation and maintenance. Failure to comply with regular maintenance guidlines outlined in this manual may void warranty. MUST READ!!!
|
TABLE OF CONTENTS |
Page 2............................................................... |
ColdTech Limited Warranty |
Page 3, 4................................................................... |
Installation/ Operation |
Page 5................................................................................. |

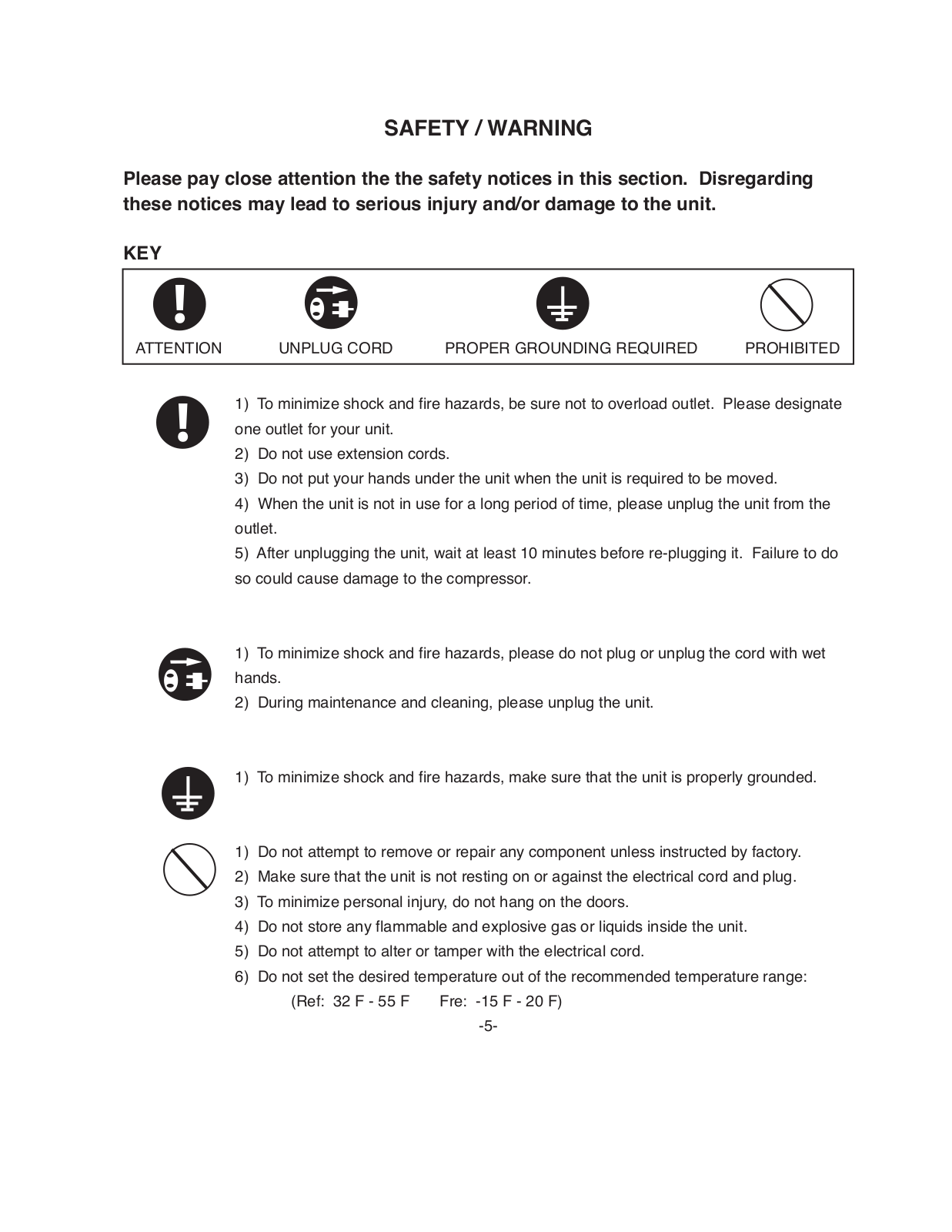

Safety/ Warning |
Page 6........................ ............................................................ |

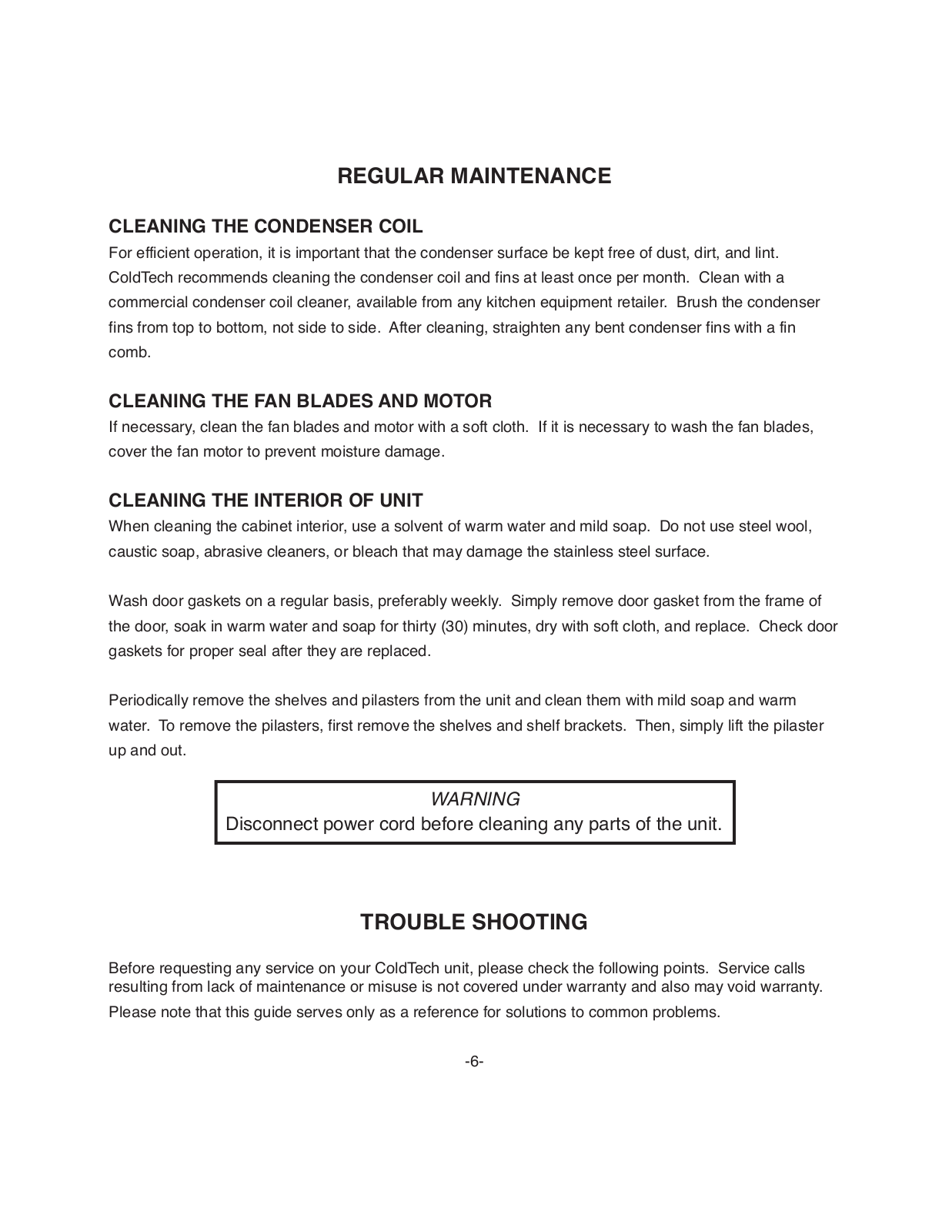

Maintenance |
Page 6, 7............................................................................ |

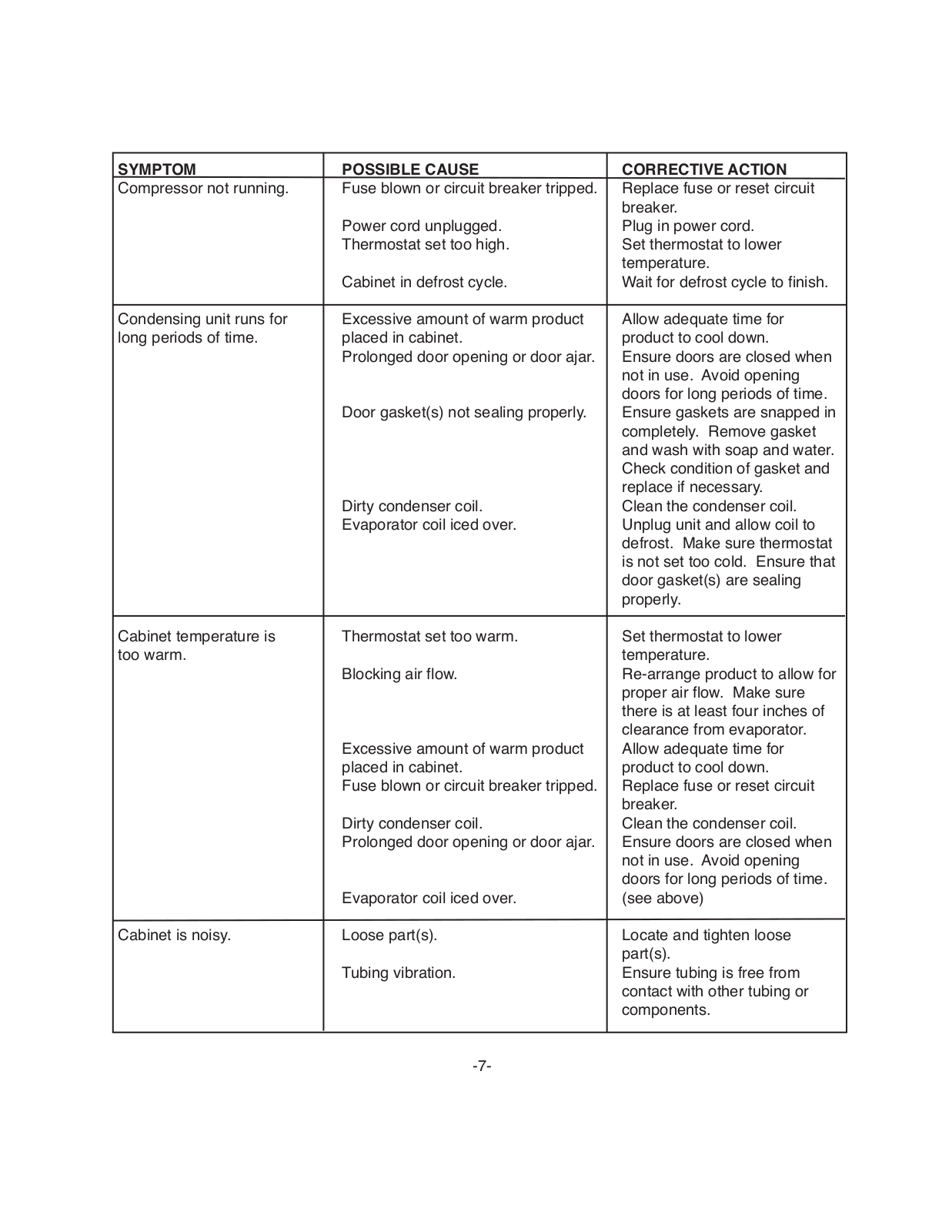

Troubleshooting |
Page 8........................................................................ |
Important Information |
LIMITED WARRANTY
Jimex Corp. warrants to the original purchaser the ColdTech unit sold and all parts thereof to be free from defects in material or workmanship, under normal use and service for a period of one (1) year from the date of purchase.
In addition to the warranty set forth above, Jimex Corp. warrants the hermetically-sealed compressor for an additional four (4) years, not to exceed sixty (60) months from the date of shipment from the corresponding distribution location.
Please read the attached Original Warranty Certificate for details.
EXCLUSION FROM WARRANTY
1.Normal start-up, maintenance, adjustments, and cleaning.
2.Damage caused by improper installation of the ColdTech unit as outlined in this manual.
3.Labor charges resulting from the inaccessibility of the ColdTech cabinet.
4.Damage to parts due to misuse, abuse, neglect, or accidents.
5.Premium labor rates due to holidays, overtime, travel time, mileage, etc., not specifically authorized by Jimex Corp. prior to service.
6.Repairs due to modifications to the ColdTech unit or refrigeration system, including remoting location of compressor(s), door hinge reversal, etc.
7.Claims for indirect or consequential damages, including food spoilage or product loss.
8.Damage due to faulty or incorrect power supply, floods, storms, or other acts of God.
WARRANTY SERVICE
To insure warranty coverage, a qualified service company, authorized by Jimex Corp., must perform the warranty repair. Please contact the ColdTech Service Department for assistance. All service calls must be authorized by a qualified Jimex Corp. employee.
-2-
INSTALLATION/ OPERATION
IMPORTANT!!! PLEASE READ BEFORE INSTALLATION
1)If the unit has recently been transported please let unit stand still for a minimum of 24 hours before plugging it in.
2)Make sure that the unit drops down to desired temperature before loading the unit with product.
3)Make sure that there is proper ventilation around the unit in the area where it will operate.
4)Make sure all accessories are installed (i.e. shelves, shelf clips, casters) before plugging the unit in.
5)Please read through the Operation / Owners Manual in its entirety. Lack of maintenance or misuse of the unit will VOID warranty. Please fill out the registration card and send it to the factory.
CABINET LOCATION GUIDELINES
1) Install the unit on strong and leveled surfaces
-unit may make unpleasant noises if surface is uneven -unit may malfunction if surface is uneven
2) Install the unit in an indoor, well-ventilated area
Pizza prep units
NO
REAR
CLEARANCE
NECESSARY
-unit performs more efficiently in a well-ventilated area |
BACK SIDE VIEW FRONT |
|
-for best performance, please maintain clearance of 3" on the back of the unit -outdoor use may cause decreased efficiency and damage to the unit
3) Avoid installation in a high humidity and/or dusty area
Sandwich Preps / Undercounters
3.0" REAR CLEARANCE REQUIRED
BACK |
SIDE VIEW |
FRONT |
-humidity could cause unit to rust and decrease effeciency of the unit
-dust collected on condenser coil will cause unit to malfunction. Clean the condenser at least once a month with a brush or clean cloth
-malfunction due to dirty condenser will void warranty
4) Select a location away from heat and moisture-generating equipment
-high ambient temperatures will cause the compressor to overwork, leading to higher energy bills and gradual breakdown of the unit
-malfuNction due to high ambient temperature will void warranty
ELECTRICAL
Please ensure that the required voltage of the compressor is being supplied at all times. Low or high voltage can detrimentally affect the refrigeration unit and thereby void its warranty.
All units should be plugged into a grounded and properly-sized electrical outlet with appropriate overcurrent protection. Please refer to the electrical requirements on the unit serial tag located inside the unit. Please make sure that your unit has its own dedicated outlet. Do not use an extension cord.
-3-
