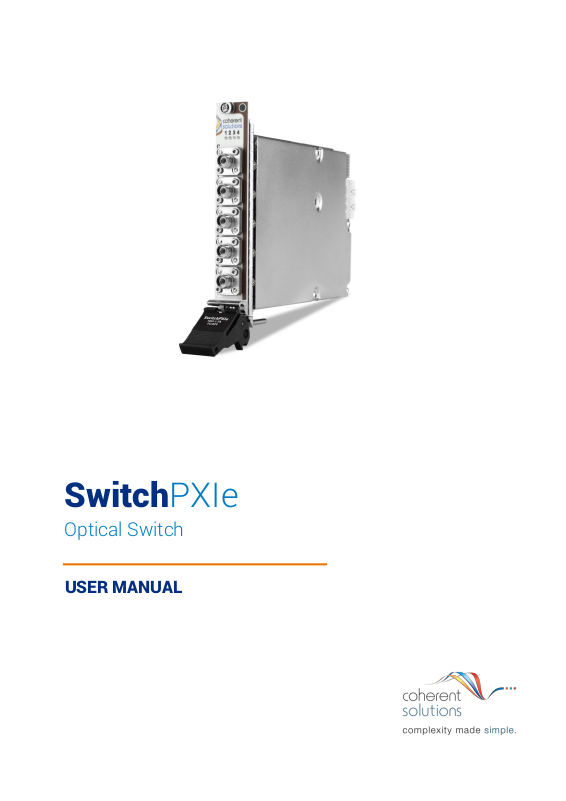

Coherent Solutions SwitchPXIe-1106, SwitchPXIe-1003, SwitchPXIe Series, SwitchPXIe-1103, SwitchPXIe-1009 User Manual
...
SwitchPXIe
Optical Switch
USER MANUAL
PXIe Platform Optical Switch Module|SwitchPXIe
i
Copyright © 2018 Coherent Solutions Ltd. All rights reserved. No part of this publication may
be reproduced, stored in a retrieval system or transmitted in any form, be it electronically,
mechanically, or by any other means such as photocopying, recording or otherwise, without
the prior written permission of Coherent Solutions Ltd. (Coherent Solutions).
Information provided by Coherent Solutions is believed to be accurate and reliable.
However, no responsibility is assumed by Coherent Solutions for its use nor for any
infringements of patents or other rights of third parties that may result from its use. No
license is granted by implication or otherwise under any patent rights of Coherent Solutions.
The information contained in this publication is subject to change without notice.
Trademarks
Coherent Solutions’ trademarks have been identified as such. However, the presence or
absence of such identification does not affect the legal status of any trademark.
Units of Measurement
Units of measurement in this publication conform to SI standards and practices.
Version 2.01
PXIe Platform Optical Switch Module|SwitchPXIe
ii
Contents
1 Conventions .................................................................................................................... 4
2 Safety Information ......................................................................................................... 5
3 Introducing the SwitchPXIe – Optical Switch Module .............................................. 6
SwitchPXIe Overview & Features- Single Slot Models ....................................................... 6
SwitchPXIe Overview & Features- Double Slot Models ...................................................... 7
SwitchPXIe Overview & Features- Crossover Modules ...................................................... 8
Status LED .................................................................................................................................. 9
3.4.1 For SwitchPXIe-1003 and SwitchPXIe-1103 ............................................................... 9
3.4.2 For SwitchPXIe-1006/1009/1107 ................................................................................. 9
3.4.3 For SwitchPXIe-1004 ........................................................................................................ 9
4 Connecting Optical Input ............................................................................................ 10
Cleaning and Connecting Optical Fibers ............................................................................. 10
5 Handling the SwitchPXIe Module .............................................................................. 11
SwitchPXIe Module Installation ............................................................................................ 11
SwitchPXIe Module Uninstallation ....................................................................................... 13
6 Software Installation Information ............................................................................. 14
Installation Overview ............................................................................................................... 14
7 Windows Driver Installation for CSL Devices .......................................................... 15
8 CSL Server Installation ............................................................................................... 18
9 cohesionUI Installation ............................................................................................... 22
10 CSL Firmware Updater ............................................................................................... 29
Overview of the Firmware Updater Main Display .............................................................. 29
Downloading the Firmware file ............................................................................................. 30
Running the CSL Firmware Updater .................................................................................... 30
11 cohesionUI™ ................................................................................................................. 35
Finding the IP address ............................................................................................................ 35
Home ......................................................................................................................................... 36
Modules ..................................................................................................................................... 37
Settings ..................................................................................................................................... 38
Info ............................................................................................................................................. 39
12 SwitchPXIe control with cohesionUI ........................................................................ 40
13 Programming Guide .................................................................................................... 42
Programming Conventions ................................................................................................... 42
PXIe Platform Optical Switch Module|SwitchPXIe
iii
Common System Command Summary ............................................................................. 43
Common System Command Descriptions ........................................................................ 44
Specific Command Summary ............................................................................................... 45
Specific Command Descriptions .......................................................................................... 46
13.5.1 Slot Commands ............................................................................................................... 46
13.5.2 Configuration Commands ............................................................................................. 47
Multi Chassis Mode Operation ............................................................................................. 48
13.6.1 NI-MAX .............................................................................................................................. 48
13.6.2 SCPI Multi Chassis Commands ................................................................................... 49
14 Maintenance ................................................................................................................ 50
15 Technical Support ....................................................................................................... 53
Contacting the Technical Support Group ........................................................................... 53
Transportation ......................................................................................................................... 53
16 Warranty ....................................................................................................................... 54
General Information ................................................................................................................ 54
Liability ....................................................................................................................................... 54
Exclusions ................................................................................................................................. 54
Certification .............................................................................................................................. 55
Service and Repairs ................................................................................................................ 55
PXIe Platform Optical Switch Module|SwitchPXIe
Coherent Solutions Ltd. Version 2.01 4
1 Conventions
Before using the instrument described in this manual, take note of the following conventions:
WARNING
Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury. Do not proceed unless the required
conditions are met and understood.
CAUTION
Indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury. Do not proceed unless the required
conditions are met and understood.
CAUTION
Indicates a potentially hazardous situation which, if not avoided, may
result in component damage. Do not proceed unless the required
conditions are met and understood.
IMPORTANT
Refers to information about this product you should not overlook.
PXIe Platform Optical Switch Module|SwitchPXIe
Coherent Solutions Ltd. Version 2.01 5
2 Safety Information
Before using the SwitchPXIe module, ensure that the following safety information had been
read and understood.
WARNING
• Do not install or terminate fibers while a light source is active.
Care must be taken to ensure that the instrument has been turned
OFF before inspecting the end face(s) of the instrument, or any
optical patch cords connected to this instrument. Never look
directly into a live fiber; ensure that your eyes are protected at all
times.
• The use of controls, adjustments and procedures other than those
specified herein may result in exposure to hazardous situations or
impair the protection provided by this unit.
CAUTION
The SwitchPXIe modules are sensitive to electrostatic discharge (ESD).
Store the modules that are not installed in protective electrostatic
packaging.
IMPORTANT
• For electromagnetic compatibility, this instrument is a Class A
product. It is intended for use in an industrial environment. There
may be potential difficulties in ensuring electromagnetic
compatibility in other environments, due to conducted as well as
radiated disturbances.
• Wherever the symbol is printed on the unit, refer to the
instructions provided in the device documentation for related
safety information Ensure that the required conditions are met
and understood before using the product.
PXIe Platform Optical Switch Module| SwitchPXIe
Coherent Solutions Ltd. Version 2.01 6
3 Introducing the SwitchPXIe – Optical Switch Module
The SwitchPXIe is an efficient solution for test procedure automation designed to be used on
the National Instruments PXIe platform. The MEMS based optical switch ensures repeatable
and low-loss switching to various test set-ups while taking advantage of the PXIe
mainframe’s flexible connectivity and high channel density form-factor.
SwitchPXIe Overview & Features- Single Slot Models
Note: Number of common and routing ports will depend on the selected model. SwitchPXIe-1003 shown above.
1
Fastening screw
2
Routing Indicator LED
3
Common Optical port
4
Routing Optical ports
5
PXIe Headers
6
PXIe Module/Optical Connector Information
7
Fastening clip
PXIe Platform Optical Switch Module| SwitchPXIe
Coherent Solutions Ltd. Version 2.01 7
SwitchPXIe Overview & Features- Double Slot Models
Note: Number of common and routing ports will depend on the selected model. SwitchPXIe-1106 shown above.
1
Fastening screw
2
Error Status LED
3
Common Optical port
4
Routing Optical ports
5
PXIe Module/Optical Connector Information
6
Fastening clip
7
SwitchPXIe Module Information
8
PXIe Headers
PXIe Platform Optical Switch Module| SwitchPXIe
Coherent Solutions Ltd. Version 2.01 8
SwitchPXIe Overview & Features- Crossover Modules
1
Fastening screw
2
Routing Indicator LEDs
3
Red Optical ports
4
Blue Optical ports
5
PXIe Module/Optical Connector Information
6
Fastening clip
7
SwitchPXIe Module Information
8
PXIe Headers
IMPORTANT
All Crossover switch modules DO NOT HAVE A PARK STATE. When
plugging optical fibres into the ports or inspecting fibres, ensure that
the optical source is off to prevent user injury.
PXIe Platform Optical Switch Module| SwitchPXIe
Coherent Solutions Ltd. Version 2.01 9
Status LED
The Status LEDs are used to denote the operation state of the SwitchPXIe. The different
colours have slightly different meanings for the different SwitchPXIe models.
3.4.1 For SwitchPXIe-1003 and SwitchPXIe-1103
• Blinking yellow: Indicates initialization on startup.
• All off- Indicates that the SwitchPXIe is in the PARK state (State 0).
• Solid green- Indicates which state the SwitchPXIe is routed to.
• Solid red- Indicates a Switch error. Most often this means an invalid route position.
3.4.2 For SwitchPXIe-1006/1009/1107
• Blinking yellow: Indicates initialization on startup.
• Solid green- Indicates successful initialization and communication.
• Solid red- Indicates a Switch error. Most likely an initialization error at startup.
3.4.3 For SwitchPXIe-1004
The SwitchPXIe-1004 is a 2x2 crossover switch. This means that it has only 2 valid states:
Transmit (T) and Cross.(C) The front panel LEDs on this switch will indicate which state the
switch is in. Further information can be gathered from the colour of the LEDs as such:
• Solid green- Indicates which state the SwitchPXIe is in (default is T)
• Solid red- Indicates there was an error in switching states. Only 1 LED will light up.
PXIe Platform Optical Switch Module| SwitchPXIe
Coherent Solutions Ltd. Version 2.01 10
4 Connecting Optical Input
IMPORTANT
To ensure maximum power and to avoid erroneous readings always
inspect fiber end faces. Make sure they are cleaned as detailed below
before inserting into any port. Coherent Solutions is not responsible for
damage or errors caused by bad fiber cleaning or handling.
CAUTION
The type of optical connectors on the SwitchPXIe module can be found
printed on the front plate of the module. Joining mismatched
connectors will damage the ferrules and fibre faces.
Cleaning and Connecting Optical Fibers
To connect the fiber-optic cable to the port:
1. Inspect the fiber using a fiber inspection microscope. If the fiber is clean, proceed to
connect it to the desired port. If the fiber is dirty, clean it as detailed below.
2. Clean fiber ends as follows:
a Gently wipe the fiber end with a lint-free swab dipped in isopropyl alcohol.
b Use compressed air to dry completely.
c Visually inspect the fiber end to ensure its cleanliness.
3. Carefully align the connector and port to prevent the fiber end from touching the outside
of the port or rubbing against other surfaces. If the connector features a key, ensure that
it is correctly mated into the corresponding notch of the port bulkhead.
4. Push the connector in so that the fiber-optic cable is firmly in place, thus ensuring
adequate contact. If your connector features a screw sleeve, tighten the connector
enough to firmly maintain the fiber in place. Do not over tighten, as this will damage the
fiber and the port bulkhead.
Note: If your fiber-optic cable is not properly aligned and/or connected, you will notice large
signal loss and reflection.
Coherent Solutions uses high quality connectors in compliance with EIA-455-21A standards.
To keep connectors clean and in good condition, Coherent Solutions strongly recommends
inspecting them with a fiber inspection probe before connecting them. Failure to do so will
result in permanent damage to the connectors and degradation of future measurements.
PXIe Platform Optical Switch Module| SwitchPXIe
Coherent Solutions Ltd. Version 2.01 11
5 Handling the SwitchPXIe Module
SwitchPXIe Module Installation
WARNING
DO NOT attempt to remove or adjust any component of the PXIe
chassis while the power is on. Ensure the chassis is powered OFF first,
and that the correct installation and removal procedure detailed herein
is followed.
CAUTION
• Do not remove the SwitchPXIe from the antistatic packaging
until instructed during the following installation procedure.
• The SwitchPXIe is sensitive to ESD. Please be sure to wear a
grounded wrist strap at all times when handling the SwitchPXIe
module to prevent such damage.
• Take care not to handle the connectors on the SwitchPXIe
module, as once they are exposed to skin contact this may
leave corrosive residue which can damage the connector.
1. Shutdown the PXIe chassis.
2. If present, remove the current module or
blanking plate in the intended installation
slot.
3. Carefully remove the SwitchPXIe module
from the antistatic packaging bag it was
shipped in.
Retain the bag for storage of the
SwitchPXIe module.
4. Insert the SwitchPXIe module into the
desired slot.
Align the top and bottom lip of the
SwitchPXIe module with the chassis
guide rails. With a firm grip push the
module into the chassis.
PXIe Platform Optical Switch Module| SwitchPXIe
Coherent Solutions Ltd. Version 2.01 12
5. Push the module into the chassis until a
resistance is felt.
This is to confirm the header pins on the
back of the module are properly
connected to the chassis.
6. Secure the module into the chassis by
pulling up on the black locking clip.
A click should be heard when the locking
clip is properly engaged into the front
chassis rail.
Secure the fastening screw with a
screwdriver.
7. Perform a visual check to ensure no
loose items or tools have been left in the
chassis after installation.
Power on the PXIe chassis.
PXIe Platform Optical Switch Module| SwitchPXIe
Coherent Solutions Ltd. Version 2.01 13
SwitchPXIe Module Uninstallation
IMPORTANT
After powering on the PXIe chassis, please wait at least 2 minutes
before attempting to communicate with the instrument. This will allow
the chassis enough time to finish boot procedures and initialize the
communication server.
1. Shutdown the PXIe chassis.
2. Unfasten the locking clip on the
SwitchPXIe module. Unscrew the
fastening screw.
Pull out the module from the chassis while
firmly gripping the front plate edges of the
SwitchPXIe module. DO NOT PULL THE
MODULE OUT BY GRIPPING ANY OF THE
CONNECTORS.
3. Insert the SwitchPXIe module in the
antistatic bag it was shipped in. Store
appropriately.
4. Power on the PXIe chassis.
PXIe Platform Optical Switch Module| SwitchPXIe
Coherent Solutions Ltd. Version 2.01 14
6 Software Installation Information
IMPORTANT
The software requires installation on the Controller for the PXIe Chassis
where the CSL Modules will be installed.
Minimum System Requirements: 64bit OS, Windows 7 or above
In order for the PXIe controller to communicate with the SwitchPXIe installed in the chassis,
some software packages are necessary. These software packages are:
• CSLDriverInstaller: Drivers for Coherent Solutions PXIe Modules
• CSLServer: VXI11 server for remote communication
• cohesionUI: Web based Graphical User Interface
Installation Overview
The following is an installation guide of the minimum required NI and CSL resources to install
so that the CSL Modules can be used:
1. Install the CSLDriverInstaller Software Package
2. Install the latest NI Platform Services Software Package (as per Chassis and
Controller)
3. Power off the Chassis.
4. Install all the desired CSL Hardware Modules into the Chassis.
5. Power on the Chassis.
6. Windows Device Manager will list the new CSL Hardware Devices
7. Install the CSLServer Software Package.
8. Restart the Chassis.
Optional:
• Install cohesionUI Software Package
• Restart the Chassis
IMPORTANT
It recommended that you save all work and close any open programs
before attempting to install the required software packages above.
All installation processes may require a system reboot to complete the
installation.
PXIe Platform Optical Switch Module| SwitchPXIe
Coherent Solutions Ltd. Version 2.01 15
7 Windows Driver Installation for CSL Devices
Windows 10 64bit:
1. Locate installer setup.exe in the CSLDriverInstaller folder on the provided media.
2. Allow installation by clicking ‘Yes’ in the User Account Control prompt and proceed
with installing the NI CSL Driver package.
3. Accept the NI License Agreements to continue the installation.
4. Accept the Microsoft License Agreements to continue the installation.
PXIe Platform Optical Switch Module| SwitchPXIe
Coherent Solutions Ltd. Version 2.01 16
5. Select the Always trust software from National Instruments Corporation option to
allow uninterrupted installation.
6. Disabling Windows fast startup is recommended.
PXIe Platform Optical Switch Module| SwitchPXIe
Coherent Solutions Ltd. Version 2.01 17
7. Once completed, select the ‘Shut Down’ option in the final prompt to power down the
Chassis. Install the desired CSL PXIe Modules into the Chassis now.
8. Once the new modules are installed, turn on the Chassis.
The Chassis will now install the new drivers for the installed modules and you are able to
install the CSLServer VXI11 service to the Chassis (see the following section).
The modules will show up in device manager under CSL Devices:
Loading...
