DataMan®8072 DL
Quick Reference Guide
2019 October 08
Revision: 6.1.6SR1.5
Precautions
To reduce the risk of injury or equipment damage, observe the following precautions
when you install the Cognex product:
l Route cables and wiresawayfrom high-current wiring or high-voltage
power sources to reduce the risk of damage or malfunction from the
following causes: over-voltage,line noise, electrostatic discharge (ESD),
power surges, or other irregularities in the power supply.
l Changes or modificationsnot expressly appr oved by the party responsible
for regulatory compliance could void the user’s authority to operate the
equipment.
l Ensure that the cable bend radiusbegins at least six inchesfrom the
connector. Cable shielding can be degraded or cables can be damaged or
wear out faster if a service loop or bend radius istighter than 10X the cable
diameter.
l This device should be used in accordance with theinstructions in this
manual.
l Allspecificationsare for r eference purposes only and can change without
notice.
2

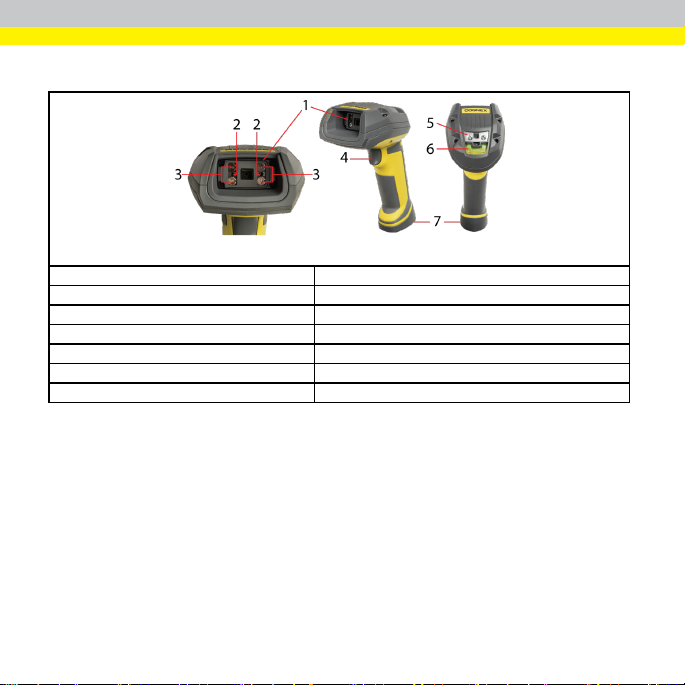

Product Overview
1 Illumination module
2 LEDaim ers
3 Illumination LEDs
4 Trigger (press and hold toread)
5 Lanyard hook
6 Indicator light
7 Communication module insertion point
3

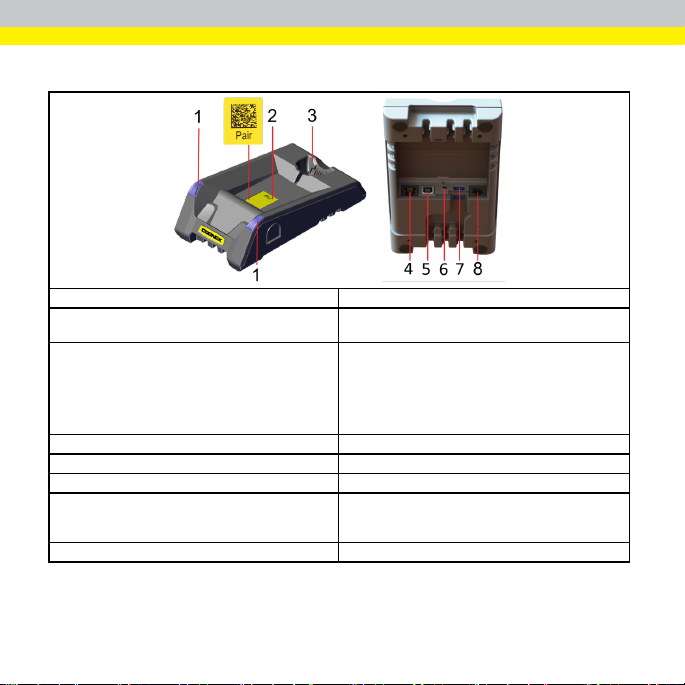

Base Station Overview
1 Basestation status indicators
2 PAIR sticker - Reading the code pairs thebase station
3
4 RS-232
5 USB
6 Power plug (24V, max. 15W)
7 Alternative power supply connector (24V, m ax. 15W,
8 Ethernet
with thedevice
Connection point to the reader:
l pai ringr eader and base station
l non-wi reless comm unication
l char ging
pol ari ty m arked on the plastic partnear theconnector).
Recommended wire diameter is 14- 18 AWG
4

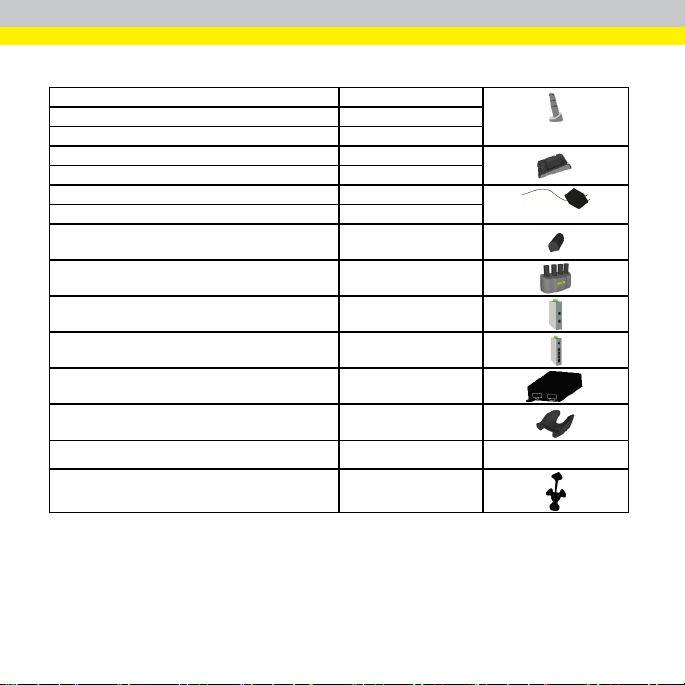

DataMan 8072 DL Accessories
Serial/USBslide-in DMCM -SERIALM-00
Ethernet slide-in DMCM -ENETM-00
Bluetoothsl ide-in DMCM -BTM-00
Charging base station DMA-CBASE-01
Intelli gent Bluetooth basestation DMA-IBASE- BT- 02
Power Supply for base station DMA-24VPW R-xx*
Power Supply for r eader DM100-PWR-000
Battery for the wireless reader
Multi-battery charger DMA-MBC- xx*
POE adapter CPS-24V-POE1
POE adapter CPS-24V-POE4
POE adapter CPS-AC-POE1A-xx*
Wall m ount DMA-W ALL-8000-00
Wall m ount for basestation DMA-IBASE- WALL-00
Stand DM-STAND- 00
*xxcan be US, EN, UK, or JP.
DMA-HH BATTERY-01
5

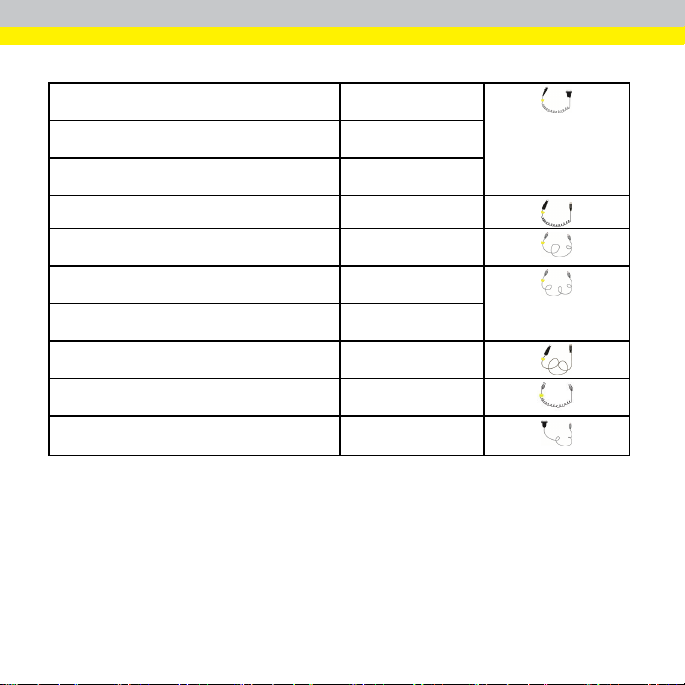

Cables
Coiled RS-232 cable for reader, 2.5 m
Industrial RS-232 cable for reader, 2.5 m DM8000-R S232IND -02
Coiled RS-232 cable for reader, 4 m DM8000-R S232-05
DM8000-R S232-02
Coiled USB cable, 2.5m
DM8500-U SBC-02
Ethernet cable, 2.5 m D M8000-ECABLE-02
Ethernet cable, 30 m DM8000-ECABLE-30
Ethernet cable, 5 m DM8000-ECABLE-05
USB cable, 2.5 m DM8500-USB-00
Coiled Ethernet cable, 5m DM8000-ECABLEC-05**
RJ25 (RJ12) to DSUB9cable for base station, 5 m DMA-RS232RJ-05
** Collimated cable length includingD M8000-ECABLE-X should not exceed 50m .
l USB cable for base station: Use any standard USB-A to USB-B 2.0 cable up to 3 meters.
l Ethernet cable for base station: Use any standard CAT5/5e, SF/FTP or S/FTP cable.
l DMA-USB-00: Str aight 10ft USB cable.
6

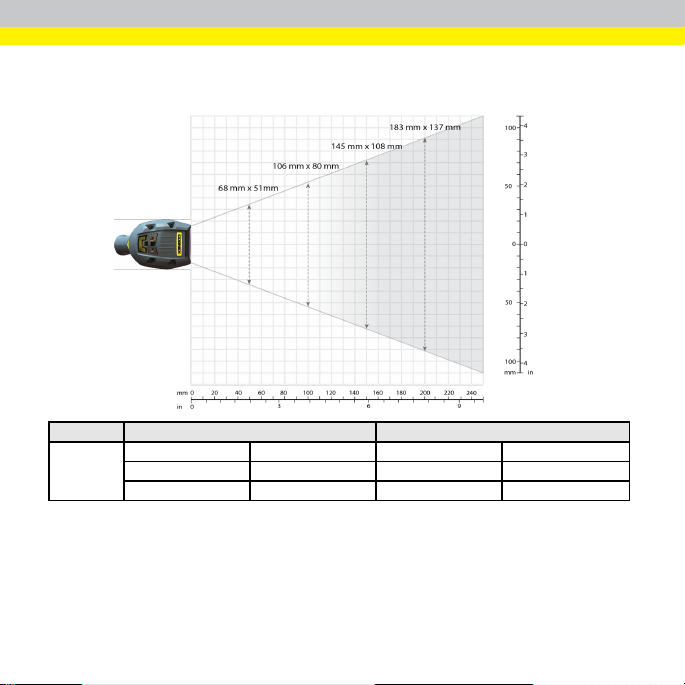

Field of View and Reading Distances
DataMan 8072 DL with a 6.2mm Lens (Standard Range, Focused to 75 mm)
Device Distances in mm/1D min. code Distances in mm/2D min. code
DM8072 20- 170 6 MIL 0-200 10 MIL
0-200 10 MIL 0-260 15 MIL
0-260 15 MIL 0-300 20 MIL
7

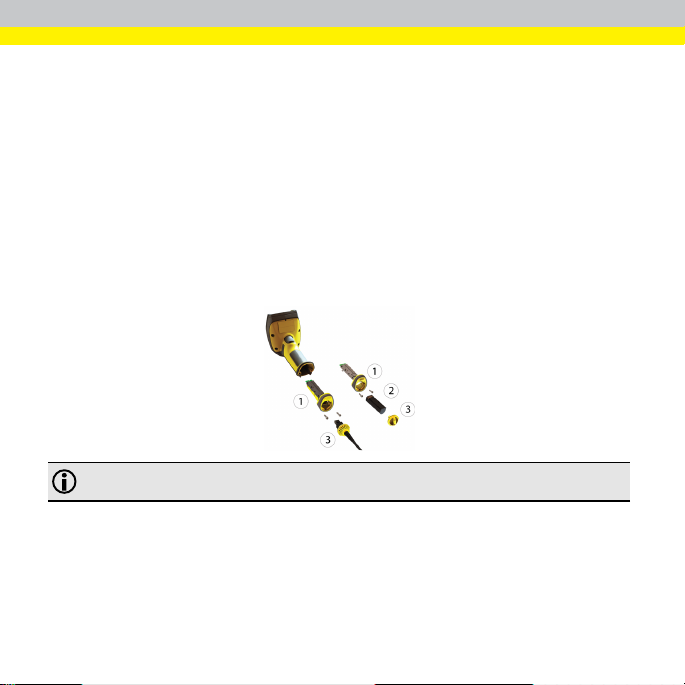

Connecting the Reader
Bluetooth Readers
1. Connect the slide-in to the reader and tighten the screws to lock the slide-in.
2. Insert the battery.
3. Insert the plug.
Corded Readers
1. Connect the slide-in to the reader and tighten the screws to lock the slide-in.
2. Insert the plug. Slide the cable lock up to the reader and twist the cable lock
in place.
Note: Disconnect the DataMan 8072 from power or remove the battery before inserting/removing the
communication modules.
8
Installation
Installation proceduresand specificationsare presented in detail in the DataMan
8072 DL ReferenceManual, which isinstalled with the DataMan Setup Tool. From
the Windows Start menu, select the following to access the manual: All Programs>
Cognex > DataMan Software vx.x.x > Documentation.
Note:
l Cables are sold separately.
l If a standard component is missing or damaged, immediatelycontact
your CognexAuthorized Service Provider (ASP) or Cognex
Technical Support.
CAUTION: All cable connectors are"keyed" to fit the connectors on the
DataMan system;do not force the connectors or damage mayoccur.
Install Software and Documentation and Connect the Reader
To configure a DataMan 8072 DL r eader, the DataMan Setup Toolsoftware must
be installedon a networked PC. The DataMan Setup Tool is available from the
DataMan support site: http://www.cognex.com/support/dataman.
1. After installing the software, connect the DataMan 8072 DL to your PC.
2. Launch the DataMan Setup Tooland click Refresh.
3. Select your DataMan8072 DL reader from the list and click Connect.
9
DataMan 8072 Specifications
Weight
Operating Temperature
Stor age Temperature
Maximum Humidity < 95% (non-condensing)
Environemntal IP65
Codes
Power Supply Requirements
Inrushcurr ent peak
Battery li fe for wir eless
reader ( typical use case)
Ethernet 10/100 Base-T FULL/HALF DUPLEX, IEEE 802.3
Bluetooth Bluetooth™ 2.1, 2.4 GHz
DataMan 8072 Imager Specifications
ImageSensor
ImageSensor Proper ties
ImageR esolution( Pixels)
Lens Type
254 g (wi thout slide- in)
0ºC — 40ºC (32ºF — 104ºF)
-10ºC — 60ºC (14ºF — 140ºF)
1-D barcodes: Codabar, Code 39, Code 128, and Code 93, Interl eaved 2of 5,
Pharm a, GS1 DataBar, Postal, UPC/EAN/JAN, DataBar
2-D barcodes: Data MatrixTM; QR Code and microQR Code, RSS/CS, PDF 417,
MicroPDF 417, MaxiCode, Aztec C ode
USB: external 5.0W maximum LPS or NEC cl ass 2 power supply: +5V - + 6V DC
RS232 external 5.0W max LPS or NEC class 2 pow er supply
ETH: Class 2 PoE supply IEEE 802.3af (connect only toPoE networks w ithout
routing to theoutside plant)
5A maximum
Duration: appr ox. 30μs
Electrical charge: 60μAs at 6V
ca. 4100 triggers can be operated within a 13 hour working shift
Specification DataMan 8072 Imager
+6.0V1A DC (5.0m RS-232cable)
+6.0V1A DC (2.5m RS-232cable)
1/3i nch CMOS
3.75 μm squar epixels
1280 x 960
6.2m m F:10 lens
10
DataMan Base Station Specifications
DMA- IBASE-BT-02
Weight 300 g
Operating Temperature 0ºC — 45ºC (32ºF — 113ºF)
Stor age Temperature -40ºC — 60ºC (-40ºF — 140ºF)
Maximum Humidity 95% ( non-condensing)
Power Supply
Requir ements
24V + -10%, 15 W maximum LPS or NEC class 2 power supply
Recommended wire diameter is 14-18 AW G
LED Wavelengths
The following table shows LED types and the related wavelengths:
LED λ [nm]
RED
660
11
Regulations/Conformity
The DataMan 8072 has Regulator yModel R00049, and meets or exceeds the
requirementsof allapplicable standards organizations for safe operation. However,
as with any electricalequipment, the best way to ensure safe operation isto operate
them according to the agencyguidelines that follow. Please readthese guidelines
carefully before using your device.
Note: For the most curr ent CE declaration and regulatoryconformity
information, see the Cognex supportsite: cognex.com/support.
Regulator Specification
USA
Canada ICES-003, Class A
European Community
Japan
Korea KN32/KN35
Safety and Regulatory
Manufacturer
Cognex Corporation
OneVisi on Dri ve
Natick, MA 01760 USA
This is a class A product. In a domestic environment this product may cause radio
interference in which case the user m ay be requiredto take immediatem easures. This
equipment com plies wi th the essential requir ements of the EU Directive 2014/30/EU.
Declarations are available from your local representative.
FCC Part 15B, Class A
CE, Class A
EN55032
EN55024
VCCI-3/2015.04 CISPR 22 Class A
12
FCC F CC Par t 15, Class A
Canadian Compliance
This equipment has beentested and found to comply w iththe limi ts for a Cl ass A digital
devi ce, pursuant to part 15 of the FCC Rules. Thesel imits are designedto provide
reasonable protectionagainst harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not install ed andused in accordance with the instruction
manual, may cause harmful interference to radio comm unications. Operation of this
equipment in a residential areai s likely to cause harmful interference in whichcase the
user wil l ber equired to corr ect the interference at his own expense.
This Class A digital apparatus complies with Canadian ICES-003. Cet appareil
num éri que dela classe A est conforme à la norme NMB-003 du Canada.
Safety and Regulatory
LED Safety Statement
For European Community Users
Cognex complies with Directive 2012/19/EU OF THEEUROPEAN PARLIAMENT
AND OF THECOUNCIL of 4 July 2012 on waste electrical and electronic equipment
(WEEE).
This product hasrequired the extraction and use of naturalresources for its
production. It maycontain hazardoussubstances that could impact health and the
environment, if not properly disposed.
In order to avoid the dissemination of those substances in our environment and to
diminish the pressure on the natural resources, we encourage you to use the
appropriate take-back systems for product disposal. Those systems willr euse or
recyclemost of the materials of the product you ar e disposing in a sound way.
13
The crossed out wheeled bin symbol informs you that the product should not
be disposed of along with municipal waste and invites you to use the appropriate
separate take-back systems for productdisposal.
If you need more information on the collection, r euse, and recycling systems, please
contact your local or regional waste administration.
You may also contact your supplier for more information on the environmental
performance of this product.
14
Compliance Statements: DataMan Base Station
The DataMan Base Stations have the following Regulatory models respectively:
DMA-IBASE-BT-XX has 1AAG, DMA-CBASE-01has R00046, and theymeet or
exceed the requirementsof allapplicable standards organizations for safe
operation. However, as with any electrical equipment, the best wayto ensure safe
operation is to oper ate them according to the agencyguidelines that follow.
Note: For the most curr ent CE declaration and regulatoryconformity
information, see the Cognex supportsite: cognex.com/support.
Please read these guidelines carefullybefore using your device.
Safety and Regulatory
Manufacturer
European Compliance
Cognex Corporation
OneVisi on Dri ve
Natick, MA 01760 USA
This is a class A product. In a domestic environment this product may cause radio
interference in which case the user m ay be requiredto take immediatem easures. This
equipment com plies wi th the essential requir ements of the EU Directive 2014/30/EU.
Declarations are available from your local representative. D MA-IBASE-BT-XX: This
equipment com plies wi th the essential requir ements of EU Directives 2014/30/EU and
2014/53/EU as applicable. Declarations are avail able from your local representative.
DMA-IBASE- 01 andD MA-CBASE-01: This equipment complies withthe essential
requir em ents of EU Directives 2014/30/EU and2014/53/EU as applicable. Declar ations
are available from your local representative.
15
FCC C lass A
ComplianceStatement
Canadian Compliance This Class A digital apparatus complies with Canadian ICES-003. Cet appareil
UL andcULStatem ent
This equipment has beentested and found to comply w iththe limi ts for a Cl ass A digital
devi ce, pursuant to part 15 of the FCC Rules. Thesel imits are designedto provide
reasonable protectionagainst harmful interference when the equipment is operated in a
commercial environment.
This equipment generates, uses, and can radiate radio fr equency energy and, if not
installedand used in accordance with the instruction manual, may cause harmful
interference to radio communications. Oper ation of this equipment in a residential area
is likely to cause harmful interference in which case the user will be requiredto correct
thei nterference at his own expense.
This device complies wi th Part 15 of the FCC Rules and with RSS-210 of Industry
Canada.
Operation is subject to the following two conditions:
(1) this device may not causeharmful interference, and
(2) this device must accept any interference received, including interferencethat may
cause undesired operation.
Changes or modifications made tothis equipm ent not expressly approved by Cognex
may void the FCC authorization tooperate this equipment.
num éri que dela classe A est conforme à la norme NMB-003 du Canada.
UL andcULlisted: UL60950- 12nd ed. and CSA C22.2 No.60950-1 2nd ed.
Safety and Regulatory
Mexican Compliance
Chinese Compliance
DMA-IBASE- BT- XX: RCPCO1A15-0073
DMA-IBASE- 01: RCPCODM12-0655
DMA-IBASE- BT- XX: CMIIT ID: 2015DJ0237
DMA-IBASE- 01: CMIIT ID: 2012DJ2857
For European Community Users
Cognex complies with Directive 2012/19/EU OF THEEUROPEAN PARLIAMENT
AND OF THECOUNCIL of 4 July 2012 on waste electrical and electronic equipment
(WEEE).
This product hasrequired the extraction and use of naturalresources for its
production. It maycontain hazardoussubstances that could impact health and the
environment, if not properly disposed.
16
In order to avoid the dissemination of those substances in our environment and to
diminish the pressure on the natural resources, we encourage you to use the
appropriate take-back systems for product disposal. Those systems willr euse or
recyclemost of the materials of the product you ar e disposing in a sound way.
The crossed out wheeled bin symbol informs you that the product should not
be disposed of along with municipal waste and invites you to use the appropriate
separate take-back systems for productdisposal.
If you need more information on the collection, r euse, and recycling systems, please
contact your local or regional waste administration.
You may also contact your supplier for more information on the environmental
performance of this product.
17
中 国 大 陆 RoHS (Information for China RoHS Compliance)
根 据中国 大 陆《电 子信息 产 品污染 控 制管理 办 法》(也称为 中 国大陆 RoHS)，
以 下部份 列 出了本 产 品中可 能 包含的 有 毒 有 害 物质 或 元 素的名 称 和含量 。
Table of toxicand hazardous substances/elementsand their content, as required by
China’s management methodsfor controlling pollution by electronic information
products.
Part Name
部 件名 称
Regulatory Model R00049
Regulatory Model 1AAJ
Regulatory Model 1AAG
Regulatory Model R00046
This table is preparedi naccordance with the pr ovisi ons of SJ/T 11364.
这 个标 签是 根据 SJ / T 11364 的规 定 准备 的。
O: Indicates that said hazardous substance contained in all of the homogeneous m aterials for this part is below the
limi t requirement of GB / T26572 - 2011.
表 示本 部件 所有 均 质材 料中 含有 的有害 物质 低于 GB / T26572 - 2011 的 限量 要求 。
X: Indicates that said hazardous substance contained in at least oneof the homogeneous m aterials used for this
par t is above thel imit requir em ent of GB / T26572- 2011.
表 示用 于本 部件 的 至少 一种 均质 材料中 所含 的危 害物 质 超过 GB / T26572- 2011的 限制要 求。
Lead (Pb)铅Mercury
(Hg)
汞
X O O O O O
Hazardous Substances 有 害物 质
Cadmium
(Cd)
镉
Hexavalent
Chromium
(Cr (VI))
六 价铬
Polybr omi nated
biphenyls
(PBB)
多 溴联 苯
Polybr omi nated
diphenyl ethers
(PBDE)
多 溴二 苯醚
18
Cognex Corporation. All Rights Reserved.
Copyright © 2019
Loading...
