Cognex DataMan 60 Quick Reference Manual

DataMan®60

Quick Reference Guide

2019 October 08 Revision: 6.1.6SR1.5

Precautions

To reduce the risk of injury or equipment damage, observe the following precautions when you install the Cognex product:

l Route cables and wiresawayfrom high-current wiring or high-voltage

power sources to reduce the risk of damage or malfunction from the following causes: over-voltage,line noise, electrostatic discharge (ESD), power surges, or other irregularities in the power supply.

l Changes or modificationsnot expressly appr oved by the party responsible

for regulatory compliance could void the user’s authority to operate the equipment.

l Ensure that the cable bend radiusbegins at least six inchesfrom the

connector. Cable shielding can be degraded or cables can be damaged or wear out faster if a service loop or bend radius istighter than 10X the cable diameter.

l This device should be used in accordance with theinstructions in this

manual.

l Allspecificationsare for r eference purposes only and can change without

notice.

Product Overview

1 Internal illumi nation

2 3-position lens cap

3 Focal position indicator

4 Exter nal ill umi nation connector

6 LED aimer

Status LEDs

Lens

1 Directly connected cable terminatingi na DB15 connector providing: power, I/O, USB, and

2 Ethernet RJ-45 connector

3 Mounting points

RS-232connectivi ty

DataMan 60 Accessories

CABLES

USB Cable, 1.5 m (DM 100-USB-000), USB Cable, 3 m (DM100-USB-030)

USB and Flying Leads I/O Cable, 2.0 m (DM -USBIO-00)

RS-232and Flying Leads I/O Cable, 2.5 m (DM- RS232IO- 00)

RS-232C able, 1.5m (D M100-RS232-000), Extension Cabl e, 5 m ( DM100-EXTCBL-000)

Flying Leads Connection Cable, 5 m (D M50-PWR IO-05)

RS-232/USB adapter connector (DM 100-PATCH-000)

Ethernet Cable: use CBL-C10E or any standard CAT5/5e, SF/FTP or S/FTP cabl e

OTHER

Power Supply, 6 V (DM 100-PWR-000)

Pivot Mounting Bracket (DM 100-PIVOTM -00)

Universal Mounting Bracket ( DM50-U BRK-000)

Control Box (DM-C TRLBOX-00)

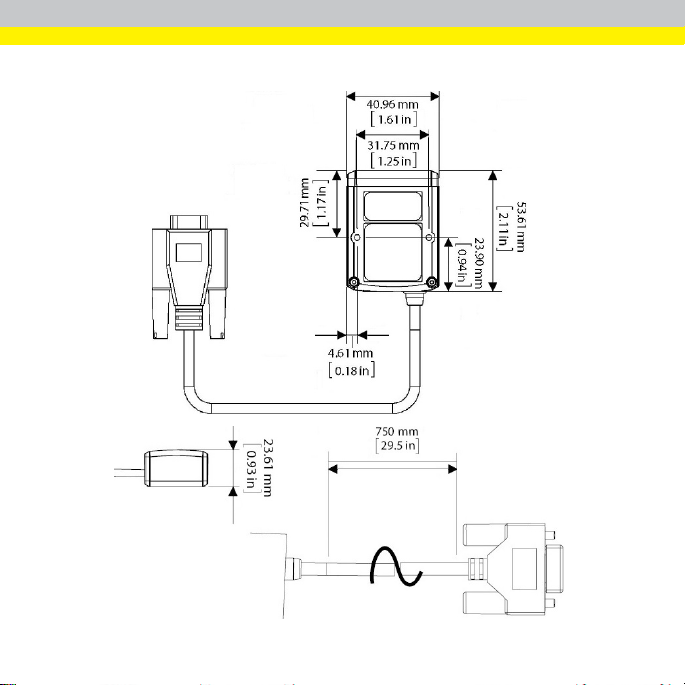

Dimensions

Field of View and Reading Distances

Focus position Distances in mm/2D min. code Distances in mm/1D min. code

45 mm 33- 51

31- 57 8 MIL 30- 56 6 MIL

27- 60 10 MIL 37- 66 10 MIL

25- 61 12 MIL

70 mm 44- 74 6 MIL 52- 73 4 MIL

42- 78 8 MIL 45- 83 6 MIL

39- 80 10 MIL 33- 89 10 MIL

34- 89 12 MIL

110 mm 58-121 10 MIL 66- 122 6 MIL

54- 133 12 MIL 50- 141 10 MIL

6 MIL

34- 51 4 MIL

58- 168 15 MIL

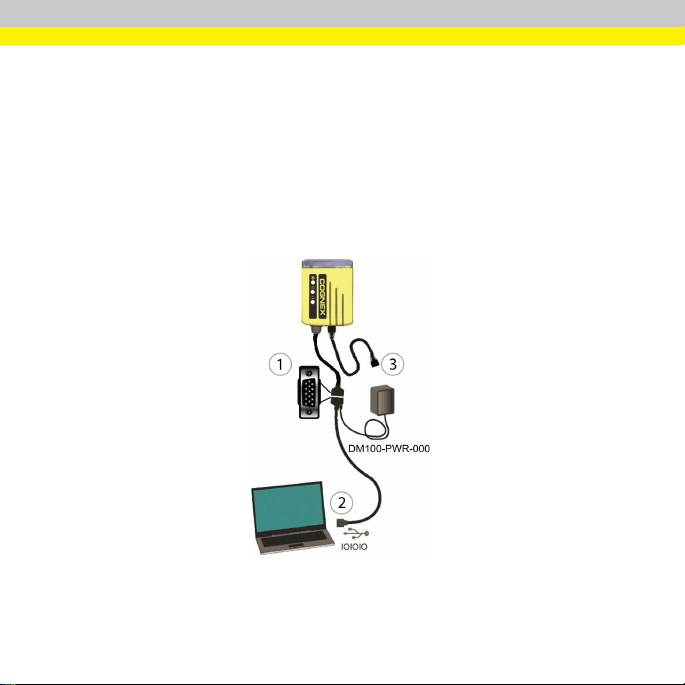

Connecting the Reader

Perform the following steps:

1. Connect the breakout cable.

2. Connect the reader to the PC.

3. Connect the reader to an Ether net networkwith a standard CAT5/5e, SF/FTP or S/FTP cable.

For information on the pinout and the wire colors, see section Connections, Optics and Lighting in the DataMan 60 ReferenceManual.

Installation

Installation proceduresand specificationsare presented in detail in the DataMan®60 Reference Manual, which is installed with theDataMan Setup T ool. From the Windows Start menu, select the following to accessthe manual: AllPrograms > Cognex > DataMan Software vx.x.x > Documentation.

Note:

l Cables are sold separately.

l If a standard component is missing or damaged, immediatelycontact

your CognexAuthorized Service Provider (ASP) or Cognex Technical Support.

CAUTION: All cable connectors arekeyed to fit the connectors on the reader.

Do not force the connectionsor damage may occur.

Mounting

Mounting the DataMan reader at a slight angle (15°) can reduce reflectionsand improve performance.

Use the set of mounting holes on the rear part to mount the DataMan reader.

Connect the Ethernet Cable

1. Connect the Ethernet cable's RJ-45 connector to a switch/router or PC, as applicable.

Connect the Breakout Cable

Note: You can clip unused wires shortor use a tie made of non-conductive

material to tie them back. For RS-232, use the Power Supply return path for ground.

1. Verifythat the power supply being used is unplugged and not receiving power.

2. Connect the cable on the back of the device to an RS-232 adapter cable with power tab.

3. Connect a 6 V power supply.

4. Restore power to the power supplyand turn it on if necessary.

Install Software and Documentation and Connect the Reader

Follow the steps below to connect your reader to power and network:

1. Connect the RS-232 cableto your reader.

2. Connect the cable to a power supply.

To configure a DataMan 60 reader , the DataManSetup Tool software must be installed on a networked PC. The DataMan Setup Toolis available from the DataMan support site: http://www.cognex.com/support/dataman.

1. After installing the software, connect the DataMan 60 reader to your PC.

2. Launch the DataMan Setup Tooland click Refresh.

3. Select your DataMan60 reader from the list and click Co nnect.

DataMan 60 Specifications

Weight

Operating Temperature

Stor age Temperature -10 ºC — 60 ºC (-14 ºF — 140 ºF)

Maximum Humidity 95% (non-condensing)

Environmental

Vibration IEC 60068-2-6 and 60068-2-27

LED Safety IEC 62471: Exempt risk group, no further labelingi s required.

Codes

Discrete I/O Operating Limits

Power Supply Requir ements

Duplex Mode

98 g

(includingcable)

0 ºC — 40 ºC (32 ºF — 104 ºF)

IP40

1-D barcodes: Codabar, Code 39, Code128, and Code93, Interleaved 2of 5, Pharm a, GS1 DataBar, Postal, U PC/EAN/JAN 2-D barcodes: Data Matrix™ QR Code and microQR Code, MaxiCode, RSS/CS, PD F 417, MicroPDF 417

Output 0,1

Output 2

Input 0 (Trigger) Input 1

4,5— 24 VDC

PSU

2.5W m axim um LPSor NEC class 2 power supply

Full duplex or half duplex

@ 24 VDC 25 mA

MAX

Source V

TYP

Sink V

TYP

4 V

4 V - V

0 — 2 V

4 — 26 V

0 — 2 V

3 mA

PSU

DataMan 60 Imager Specifications

Specification DataMan 60 SeriesImager

ImageSensor 1/3i nch CMOS

ImageSensor Proper ties 4.51 mm x 2.88 mm (H x V), 6.0 µm squar epixels

ImageR esolution( pixels) 752 x 480

Electronic Shutter Speed 18 µs to 25m s exposure

ImageAcquisition up to60 fps atfull r esolution

Lens Type 6.2m m, F:5,3 focal position M12 lens with IR blocking filter

LED Wavelengths

The following table shows LED types and the related wavelengths:

LED λ [nm]

RED 617

Compliance Statements

DataMan 60 readers meet or exceed the requirementsof allapplicable standards organizations for safe oper ation. However, as with any electricalequipment, the best way to ensuresafe operation is to operate them according to the agency guidelines that follow. Please read these guidelinescar efully before using your device.

Regulator Specification

USA

European Community

Note: For the most curr ent CE declaration and regulatoryconformity information, see the Cognex supportsite: cognex.com/support.

FCC Part 15, Subpar t B, Cl ass A

EN55022, Class A

EN55024 EN60950

European Compliance

FCC C lass A ComplianceStatement

This is a class A product. In a domestic environment this product may cause radio interference in which case the user m ay be requiredto take immediatem easures. This equipment com plies wi th the essential requir ements of the EU Directive 2014/30/EU. Declarations are available from your local representative. The CE mark on the product indicates that the system has been tested toand conforms wi th the provi sions noted within the2014/30/EU Electromagnetic Compatibility. For further infor mation please contact: Cognex Corporation, OneVision DriveN atick, MA 01760 USA. Cognex Corporation shall not be liable for useof our product with equipment (i.e., pow er supplies, personal computers, etc.) that is not CEm arked.

This equipment has beentested and found to comply w iththe limi ts for a Cl ass A digital devi ce, pursuant to Part 15 of the FCC rules. Thesel imits are designed to provide reasonable protectionagainst harmful interference when the equipment is operated in commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not install ed andused in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to causeharmful interference, in which casethe user will be requir ed to correct theinterference at per sonal expense.

Safety and Regulatory

UL andcULStatem ent

UL andcULlisted: UL60950- 11st ed. and CSA C22.2 No.60950-1 1st ed. Certified to CB scheme IEC 60950-1:20011st ed.

LED Safety Statement

This device has been tested in accordance with IEC62471, and has been certified to be under the limits of Exempt Risk Group. No further labeling is required.

For European Community Users

Cognex complies with Directive 2012/19/EU OF THEEUROPEAN PARLIAMENT AND OF THECOUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE).

This product hasrequired the extraction and use of naturalresources for its production. It maycontain hazardoussubstances that could impact health and the environment, if not properly disposed.

In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural resources, we encourage you to use the appropriate take-back systems for product disposal. Those systems willr euse or recyclemost of the materials of the product you ar e disposing in a sound way.

The crossed out wheeled bin symbol informs you that the product should not be disposed of along with municipal waste and invites you to use the appropriate separate take-back systems for productdisposal.

If you need more information on the collection, r euse, and recycling systems, please contact your local or regional waste administration.

You may also contact your supplier for more information on the environmental performance of this product.

China RoHS

Part Name

部件名称

This table is preparedi naccordance with the pr ovisi ons of SJ/T 11364. 这个标签是根据 SJ / T 11364 的规定准备的。

O: Indicates that said hazardous substance contained in all of the homogeneous m aterials for this part is below the limi t requirement of GB / T26572 - 2011. 表示本部件所有均质材料中含有的有害物质低于 GB / T26572 - 2011 的限量要求。

X: Indicates that said hazardous substance contained in at least oneof the homogeneous m aterials used for this par t is above thel imit requir em ent of GB / T26572- 2011. 表示用于本部件的至少一种均质材料中所含的危害物质超过 GB / T26572- 2011的限制要求。

DM60

Lead (Pb)铅Mercury

(Hg)

汞

X O O O O O

Hazardous Substances 有害物质

Cadmium (Cd)

镉

Hexavalent Chromium (Cr (VI))

六价铬

Polybr omi nated biphenyls (PBB)

多溴联苯

Polybr omi nated diphenyl ethers (PBDE)

多溴二苯醚
