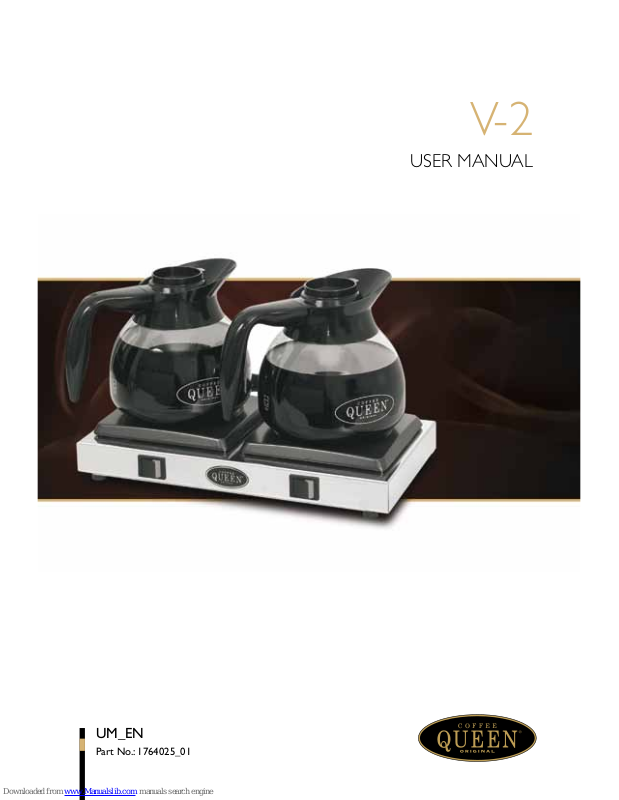

Coffee Queen V-2 User Manual

V-2

USER MANUAL

UM_EN

Part No.: 1764025_01

V-2

2

CONTENT

CONTENT ........................................................................................................................................................ 2

GENERAL ........................................................................................................................................................... 3

Introduction ..............................................................................................................................................................3

Warnings ....................................................................................................................................................................3

Precautions ................................................................................................................................................................3

Intended use ..............................................................................................................................................................3

Facts & weight .........................................................................................................................................................4

OVERVIEW OF COMPONENTS ........................................................................................................ 5

Function......................................................................................................................................................................5

INSTALLATION AND START-UP ........................................................................................................ 6

Positioning..................................................................................................................................................................6

Electrical connection ...............................................................................................................................................6

Turn on the hot plates ............................................................................................................................................ 6

CLEANING AND CARE ........................................................................................................................... 7

Daily cleaning ............................................................................................................................................................7

Fault and solution .....................................................................................................................................................7

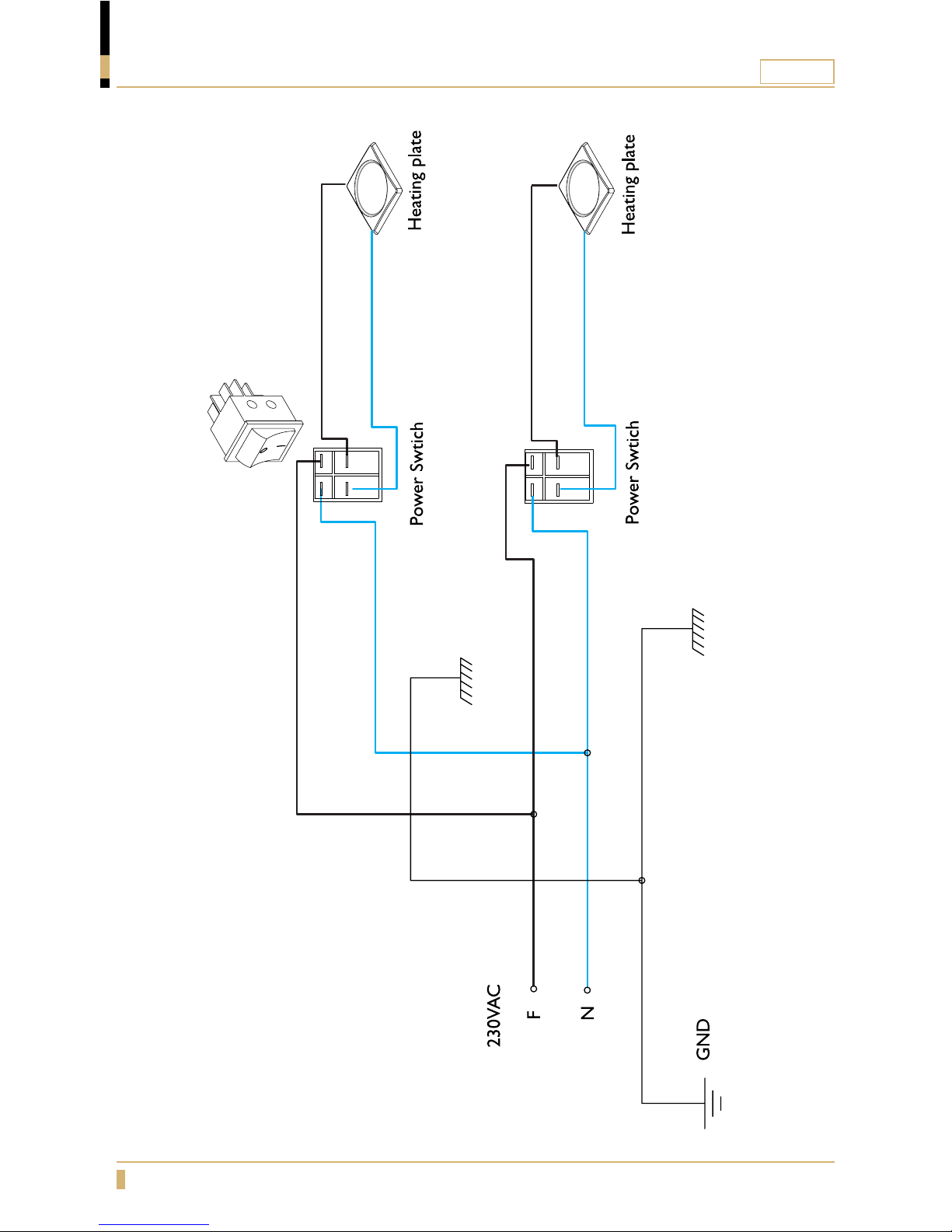

ELECTRICAL DIAGRAM........................................................................................................................... 8

EXPLODED VIEW ......................................................................................................................................... 9

DIMENSION SKETCH ............................................................................................................................. 10

IMPORTANT!

INFO.

CAUTION!

INFO.

More INFO.

INFO.

Some important information may appear in textboxes seen below

Note

V-2

3

GENERAL

Read the user guide before using the appliance.

This guide contains important instructions for

proper and safe use of the appliance.

Always keep this guide close at hand for future

reference.

Introduction

Thank you for choosing a V-2 glass decanter heater. We hope you enjoy it !

Warnings

Never immerse the appliance, plug or mains

cable in water because there is a danger of
electric shock.

The appliance is not intended for use by

persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they
have been given supervision or instruction
concerning the use of the appliance by a person
responsible for their safety.

Children should be supervised to ensure they

do not play with the appliance.

Do not use the appliance if the mains cable,

plug is damaged or the appliance has fallen
down.

If the mains cable is damaged it must be

replaced by the manufacturer, service agent or
similarly qualified persons in order to avoid a
hazard.

Only plug the appliance into a properly installed

earthed safety socket whose line voltage
matches the technical data for the appliance.

Do not use the appliance outdoors so it can be

exposed to weather (rain, snow, frost). It will
cause material damage to the appliance.

Do not try to open the appliance or repair it in

any way. To avoid danger only have the appliance
repaired in a technical workshop, Service
Centre or by a qualified person.

Remove the mains cable from the socket when

the appliance is not in use for longer periods. To
do this, pull the plug not the cable.

This appliance must be placed in a horizontal

position which is resistant to any water that
may leak.

Place the appliance out of the reach of children.

Position the mains cable so that people cannot

trip over it. Keep it away from sharp edges and
heat sources.

This appliance must not be cleaned by a water

jet.

This appliance is intended to be used in

household and similar applications such as:

- Staff kitchen areas in shops.

- Offices and other commercial working
environments.

- On agricultural estates.

- By clients in hotels, motels and other
residential type environments.

- Bed and breakfast type environments.

For the optimal performance of the appliance

these parameters shall not be exceeded:

- Maximum working temperature: 40°ºC

- Minimum working temperature: 10°ºC

Precautions

Intended use

V-2

4

GENERAL

FACTS V-2

Height, Width, Depth

62mm, 359mm, 198mm

Hot plates

2

Heatup time

1.5min

Power supply

220-230VAC 1N~190W 50-60Hz

Facts & weight

MODEL/NAME V-2

Weight 2.5kg
