Coffee Freshness CF055 Quick Start Manual

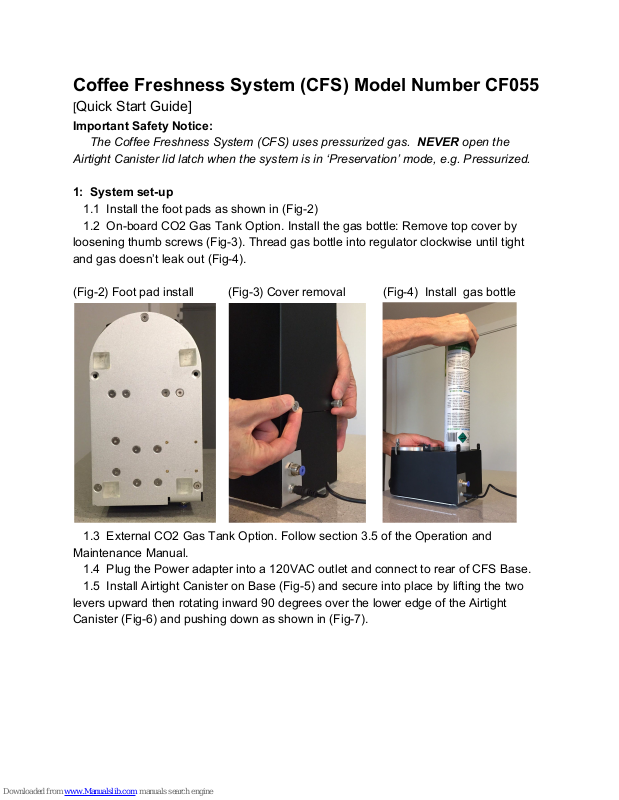

Coffee Freshness System (CFS) Model Number CF055
[Quick Start Guide]
Important Safety Notice:
The Coffee Freshness System (CFS) uses pressurized gas. NEVER open the
Airtight Canister lid latch when the system is in ‘Preservation’ mode, e.g. Pressurized.
1: System set-up
1.1 Install the foot pads as shown in (Fig-2)
1.2 On-board CO2 Gas Tank Option. Install the gas bottle: Remove top cover by
loosening thumb screws (Fig-3). Thread gas bottle into regulator clockwise until tight
and gas doesn’t leak out (Fig-4).
(Fig-2) Foot pad install (Fig-3) Cover removal (Fig-4) Install gas bottle
1.3 External CO2 Gas Tank Option. Follow section 3.5 of the Operation and
Maintenance Manual.
1.4 Plug the Power adapter into a 120VAC outlet and connect to rear of CFS Base.
1.5 Install Airtight Canister on Base (Fig-5) and secure into place by lifting the two
levers upward then rotating inward 90 degrees over the lower edge of the Airtight
Canister (Fig-6) and pushing down as shown in (Fig-7).
(Fig-5) Install Airtight Canister. (Fig-6) Move levers up. (Fig-7) Move levers down.
2: Filling the canister with coffee
WARNING - BEFORE OPENING: ENSURE AIRTIGHT CANISTER IS NOT
PRESSURIZED.
(Note: The Airtight Canister can be filled with whole bean or ground coffee.)
2.1 Open Airtight Canister lid by lifting the latch and unhooking from the lid.
2.2 Fill with coffee.
2.3 Re-connect the latch to the slot in the lid and close the latch.
3: Run the preservation cycle
3.1 Turn the Main Power ‘I/O’ On.
3.2 Turn the ‘VENT / PRESERVE’ switch ON. Preservation cycle runs automatically
(Green LED flashes) and stops when complete (Green LED remains on).
3.3 If the Red ‘PRESERVING’ LED flashes, refer to section 10 “Alarms” of the
Operation and Maintenance Manual.
3.4 Leave system in preservation mode until you need to take out coffee for brewing.
4: Opening the Airtight Canister to remove a dose of coffee for brewing
Reminder - NEVER open the latch to the Airtight Canister when Pressurized.
4.1 Turn Off the ‘VENT / PRESERVE’ switch. Wait 30 seconds while system vents.
4.2 [IMPORTANT FOR SAFETY] Ensure Green LED labeled ‘OK TO OPEN’ is
illuminated before opening. If not, contact Coffee Freshness System Support either by
email at ‘support@coffeefreshness.com’ or by phone at (408)-649-4124.
4.3 Open Airtight Canister lid by lifting the latch.
4.4 Remove dose of coffee, then ensure lid seal and Airtight Canister top are clean
(see section 7.1.1), then reconnect latch to lid and close latch.
4.5 Turn the ‘VENT / PRESERVE’ switch ON.
