Coemar i spot S Instruction Manual

Download

Page 1

manuale di istruzioni

instructions manual

Version 1.0

Page 2

numero di serie/serial number

data di acquisto/date of purchase

fornitore/retailer

indirizzo/address

cap/città/suburb

provincia/capital city

stato/state

tel./fax/

Prendete nota, nello spazio apposito, dei dati relativi al modello e al rivenditore del vostro iSpot S: in caso di richiesta di informazioni, pezzi di ricambio, servizi di riparazione o altro ci permetteranno di assistervi con la massima rapidità e precisione.

Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your

iSpot S

: This information will assist us in providing spare parts, repairs or in answer-

ing any technical enquiries with the utmost speed and accuracy.

ATTENZIONE

la sicurezza dell’apparecchio è garantita solo con l’uso appropriato delle presenti istruzioni, per-

tanto è necessario conservarle.

WARNING

: t

he security of the fixture is granted only if these instructions are strictly followed; therefore it is

absolutely necessary to keep this manual.

Users Manual Version 1.0

edition December 2005

Page 3

Index

1. Packaging and transportation Pag. 4

1.1. Packaging “4

1.2. Transportation “4

2. General information Pag. 4

2.1. Important safety information “4

2.2. Warranty conditions “5

2.3. CE norms “5

3. Product specifications Pag. 5

3.1. Technical characteristics “5

3.2. Dimensions “5

3.3. Projector components “5

4. Installation Pag. 6

4.1. Mechanical installation “6

4.2. Safety connections “6

5. Powering up Pag. 7

5.1. Operating voltage and frequency “7

5.2. Altering the operating voltage “7

5.3. Mains connection “8

6. DMX signal connection Pag. 9

7. Turning on the projector Pag. 10

7.1. DMX addressing “10

7.2. DMX functions “11

8. Display panel functions Pag. 13

8.1. Quick guide to menu navigation “13

8.2. Measure and test (MEAS) “14

8.3. Function settings (FUNC) “15

8.4. Rapid scrolling “15

8.5. Connecting the DR1 “16

8.6. Use of RJ45 connector “16

8.7. Turning on the projector with no articulated movement “16

8.8. Resetting counters “16

9. Lamp installation and alignment Pag. 17

9.1. Lamp installation “17

9.2. Aligning the lamp in the optical path “18

10. Interchanging gobos Pag. 19

10.1. Gobo dimensions “19

10.2. Opening up the projector housing “19

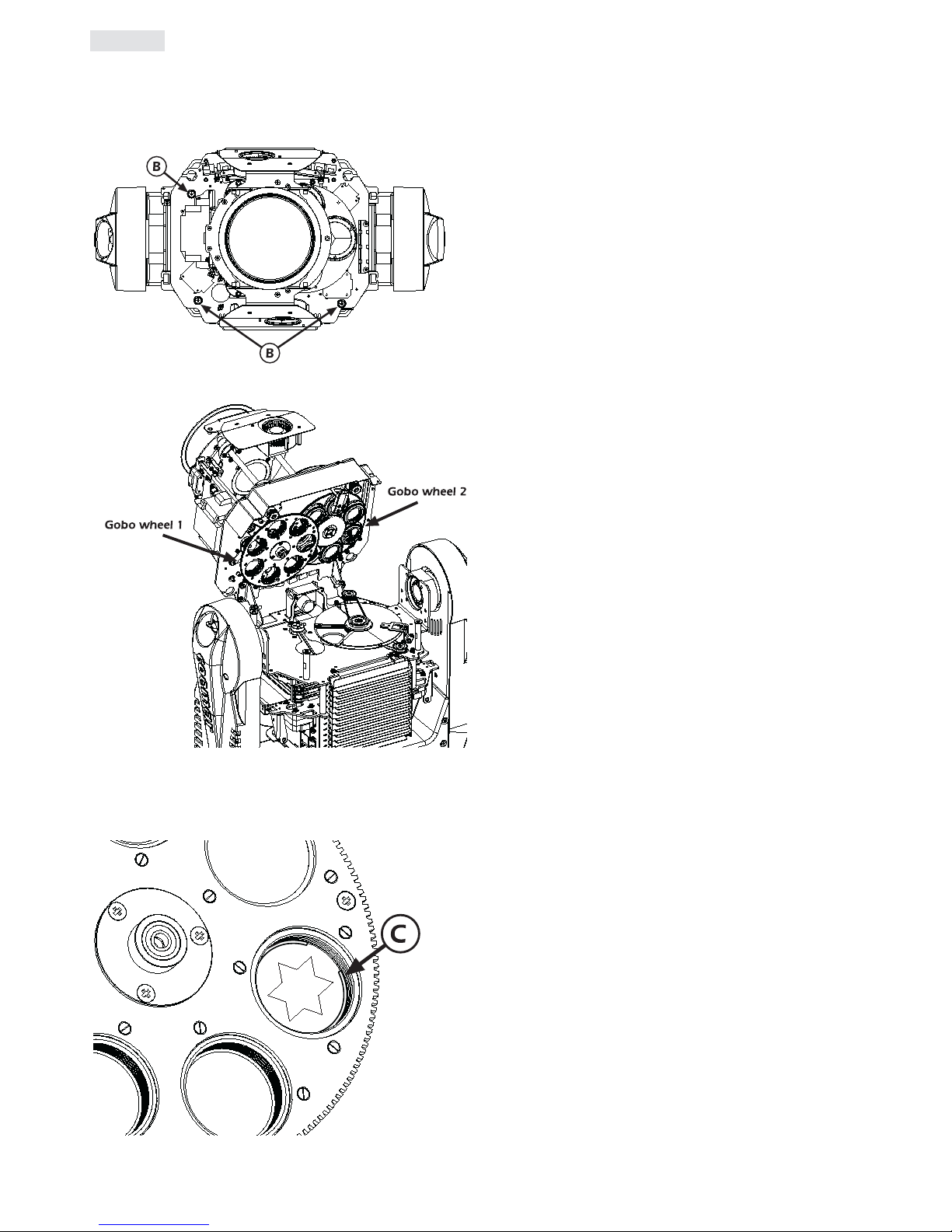

10.3. Access to the gobos wheels “20

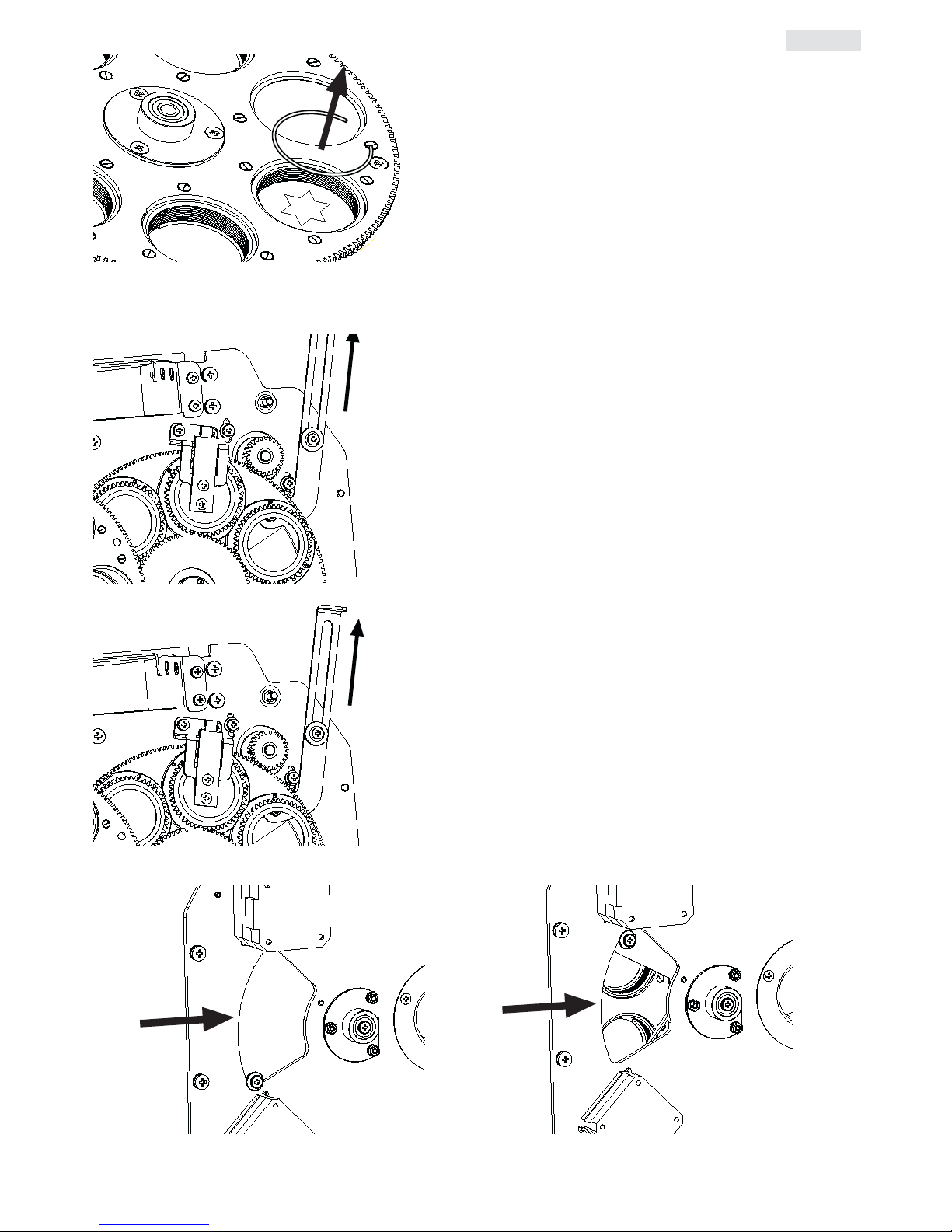

10.4. Replacing gobos on gobo wheel 1 “20

10.5. Replacing gobos on gobo wheel 2 “21

10.6. Gobo positioning “22

11. Thermal protection Pag. 23

12. Maintenance Pag. 23

12.1. Periodic cleaning “23

12.2. Periodic maintenance “23

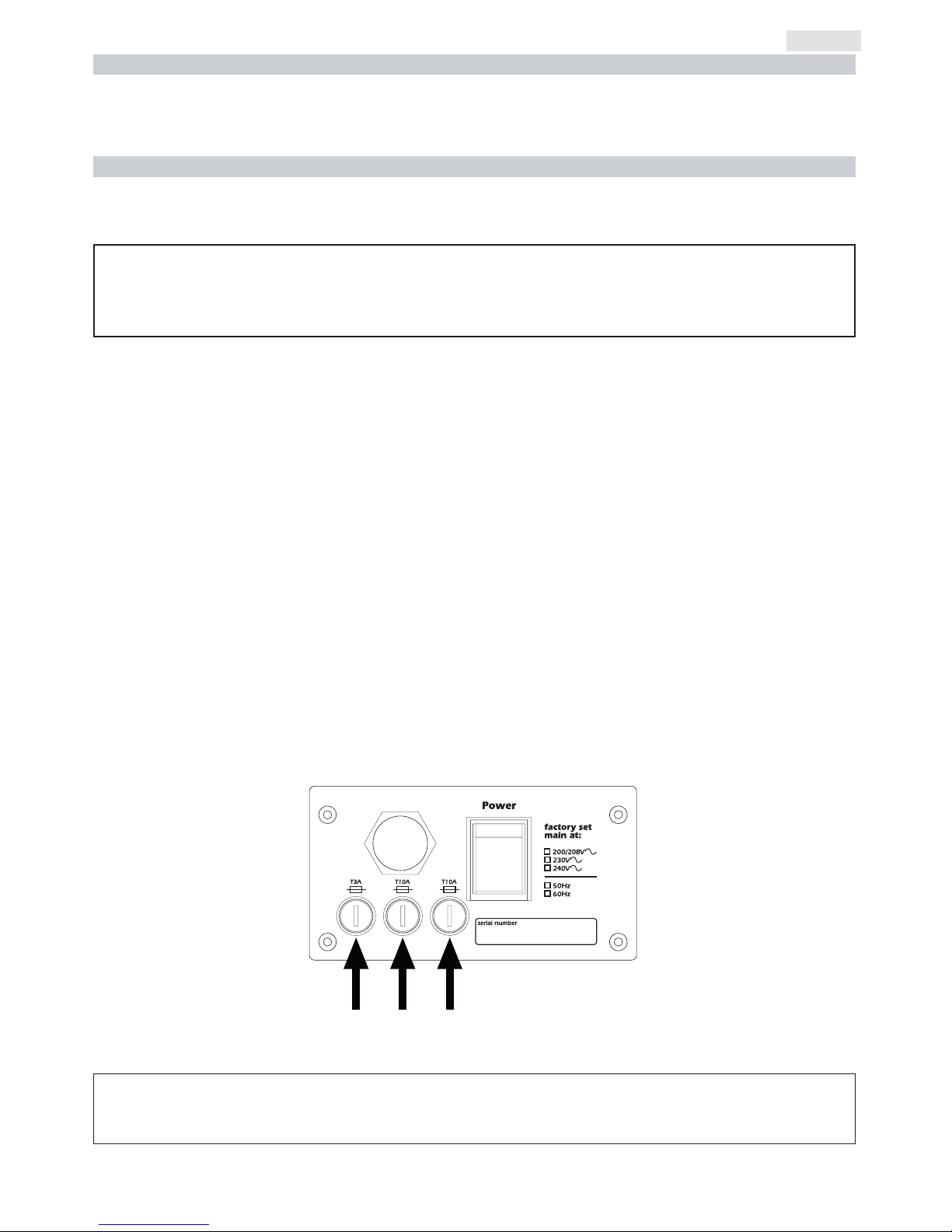

12.3. Fuse replacement “23

12.4. Electronic motor alignment “23

13. Spare parts Pag. 24

14. Error messages Pag. 25

15. Frequently asked questions Pag. 26

English

Page 4

Congratulations on having purchased a coemar product. You have assured yourself of a fixture of the highest quality, both in componentry and in the technology used. We renew our invitation to you to complete the service information on the previous page, to expedite any request for service information or spares (in case of problems encountered either during, or subsequent to, installation). This information will assist in providing prompt and accurate advice from your coemar service centre.

Following the instructions and procedures outlined in this manual will ensure the maximum efficiency of this product for years to come.

1.1. Packaging

Open the packaging and ensure that no part of the equipment has suffered damage in transit. In case of damage to the equipment, contact your carrier immediately by telephone or fax, following this with formal notification in writing.

Packing list

Ensure the packaging contains:

1 iSpot S 1 instruction manual 2 cam-lock support brackets

1.2. Transportation

The iSpot S should be transported in its original packaging or in an appropriate flight case.

2.1. Important safety information

Fire prevention:

1. iSpot S utilises a Philips MSR 1200 SA/DE; the use of any alternative lamp is not recommended and will null and void the fixture’s

warranty.

2. Never locate the fixture on any flammable surface.

3. Minimum distance from flammable materials: 0,5 m.

4. Minimum distance from the closest illuminable surface: 2 m.

5. Replace any blown or damaged fuses only with those of identical values. Refer to the schematic diagram if there is any doubt.

6. Connect the projector to mains power via a thermal magnetic circuit breaker.

Preventing electric shock:

1. High voltage is present in the internals of the unit. Isolate the projector from mains supply prior to performing any function which

involves touching the internals of the unit, including lamp replacement.

2. For mains connection, adhere strictly to the guidelines outlined in this manual.

3. The level of technology inherent in the iSpot S requires the use of specialised personnel for all service applications; refer all work to

your authorised Coemar service centre.

4. A good earth connection is essential for proper functioning of the projector. Never operate the unit without proper earth connection.

5. Mains cables should not come into contact with other cables.

6. Do not operate the projector with wet hands or in an area where water present.

7. The fixture should never be located in an exposed position, or in areas of extreme humidity. A steady supply of circulating air is essen-

tial.

Protection against ultraviolet radiation:

1. Never turn on the lamp if any of the lenses, filters, or the carbon fibre housing is damaged; their respective functions will only operate

efficiently if they are in perfect working order.

2. Never look directly into the lamp when it is operating.

Safety:

1. The projector should always be installed with bolts, clamps, and other fixings which are suitably rated to support the weight of the

unit.

2. Always use a secondary safety chain of a suitable rating to sustain the weight of the unit in case of the failure of the primary fixing

point.

3. The external surface of the unit, at various points, may exceed 150°C. Never handle the unit until at least 10 minutes have elapsed

since the lamp was turned off.

4. Always replace the lamp if any physical damage is evident.

5. Never install the fixture in an enclosed area lacking sufficient air flow; the ambient temperature should not exceed 35°C.

6. A hot lamp may explode. Wait at least 10 minutes after the unit has been turned off prior to attempting to replace the lamp.

7. The proejctor contains electronic and electrical components which should under no circumstances be exposed to contact with water,

oil or any other liquid. Failure to do so will compromise the proper functioning of the projector.

Articulated movement

The projector has a pan range of 540° in its base and a tilt range 252° in its yoke; do not obstruct the projector whilst it is undertaking articulated movement.

Forced ventilation

You will note several air vents on the body of the projector. To avoid any problems associated with overheating, never obstruct any of these vents as this may seriously compromise the proper operation of the unit.

Protection rating against penetration by external agents:

1. The fixture is classified ordinary apparatus ; its protection grade against penetration by external agents,solid or liquid, is IP 20

2. General information

1. Packaging and transportation

English

Page 5

2.2. Warranty conditions

1. The fixture is guaranteed for a period of 12 months from the date of purchase against manufacturing or materials defects

2. The warranty does not extend to damage caused by inappropriate usage or use by inexperienced operators.

3. The warranty is immediately void if the projector has been operated or dismantled by unauthorised personnel

4. The warranty does not extend to fixture replacement

5. The serial number of the projector is required for any advice or service fro your authorised coemar service centre

2.3. CE norms

The projector meets or exceeds all applicable CE requirements.

3.1. Technical characteristics

Power: 208/230/240 Vac 50/60Hz Nominal current: 7.3A @ 230V Maximum current: 9A

Power factor: cos ϕ = 0,9

Lamp wattage: 1200W Maximum ambient temperature: 35°C / 95° F Weight: 38 Kg / 83.77 Lbs IP rating: IP20

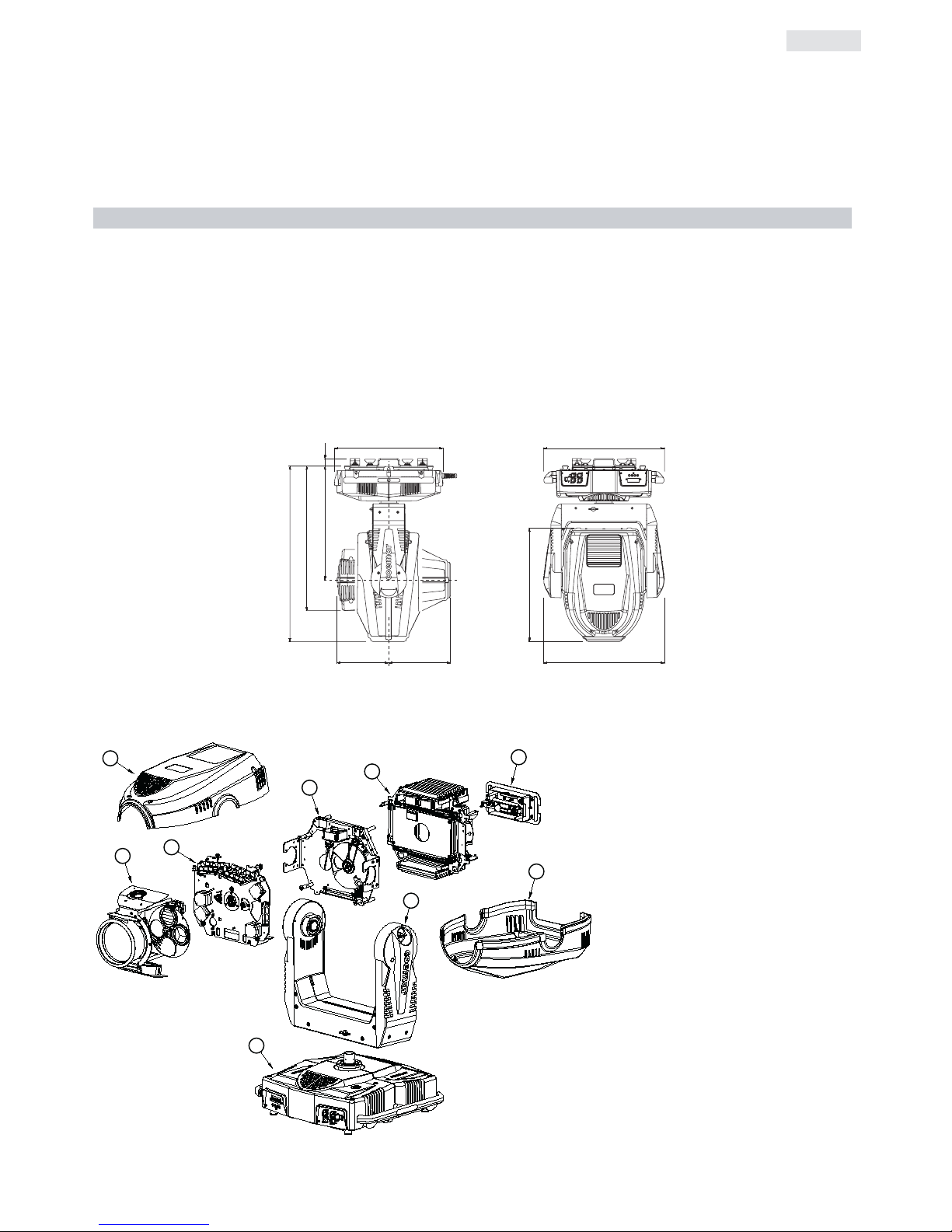

3.2. Dimensions

3.3. Components

Component description

A. Zoom group B. Gobo wheel group C. Colours wheel group D. Colours changer group E. Lamp group F. Lower cover G. Yoke H. Base J. Upper cover

510mm

20.08”

35mm

1.38”

230mm

9.06”

275mm

10.83”

485mm

19.09”

534mm

21”

780mm

30.71”

505mm

19.88”

540mm

21.26 ”

650mm

25.6”

3. Product specifications

English

Page 6

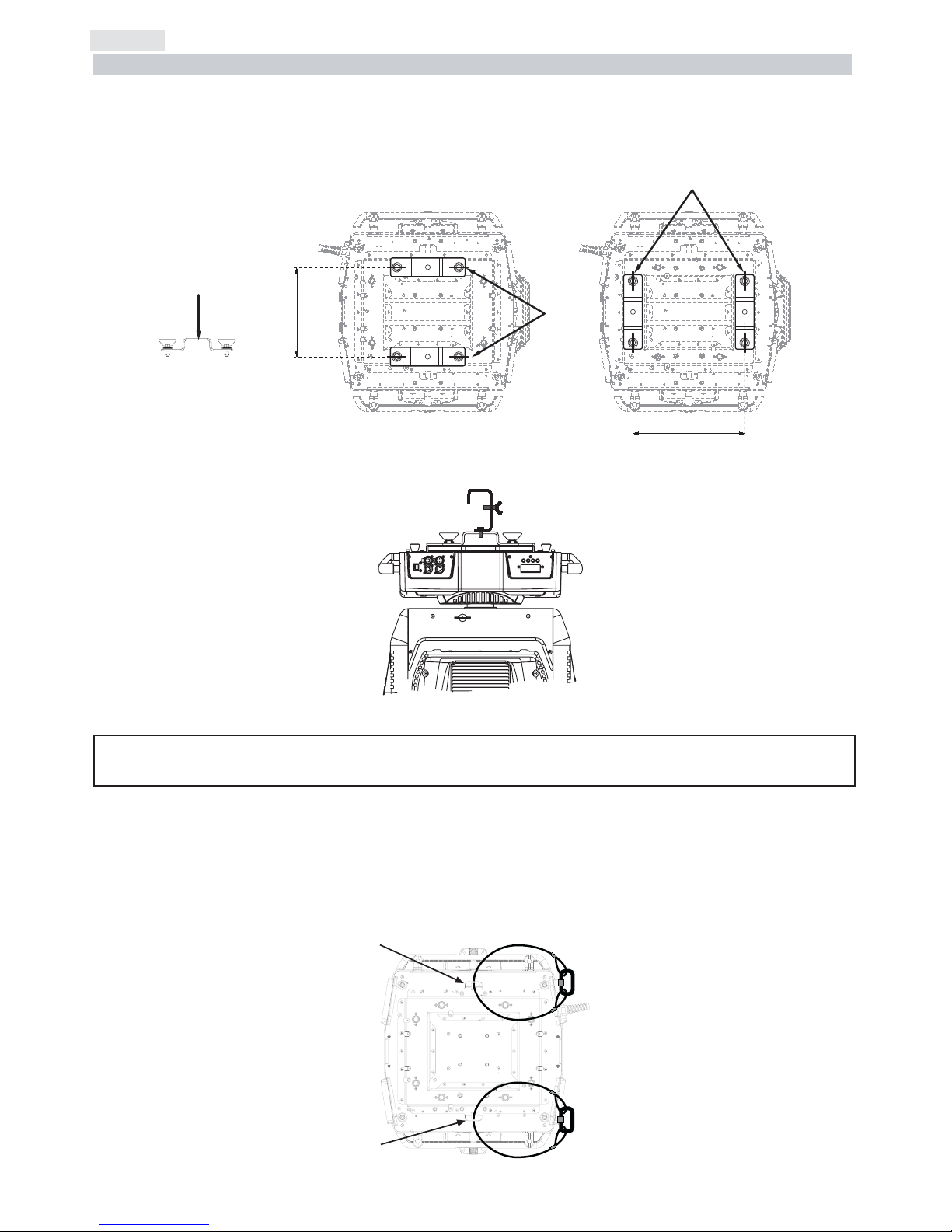

4.1. Mechanical installation

iSpot S may be either floor or ceiling mounted. For floor mounting, the unit is provided with four rubber mounting feet. For ceiling mounted installations, Coemar includes two cam-lock (A) support brackets. The two cam-lock brackets may be mounted in two different positions (B & C) on the base of the iSpot S. The cam-lock brackets are affixed via a 1/4 nut. Please ensure that they are correctly seated and firmly tightened into position.

For ceiling mounted installations we suggest the use of appropriate clamps or fixings to attach the fixture to the mounting surface. Clamps may be attached to the central hole provided in the cam-lock brackets, as shown in the following diagram.

The structure should also be sufficiently rigid so as not to move or shake whilst the projector moves during its operation. Do not install the projector in locations where it is readily accessible by aunthorised or untrained personnel.

4.2. Safety connections

If the iSpot S is affixed to a mobile structure the use of a safety chain designed to meet relevant safety standards is recommended. You may attach the safety chain to the holes “D” located on the base of the fixture and to the structure itself. If using an after-market safety chain not manufactured by Coemar, ensure that it is of sufficient rating to hold the weight of the unit.

ATTENTION!!

Ensure that the structure from which the unit is hung is of sufficient rating to hold the weight of the unit,

as are any clamps, nuts and bolts used to hang the unit.

240mm

9.44”

300mm

11.81”

4. Installation

English

Page 7

5.1. Operating voltage and frequency

The projector may operate at voltages of 208, 230 or 240VAC at a frequency of 50 or 60Hz. Coemar presets (barring specific requests) a voltage of 230V. The preset voltage is indicated on the base of the projector.

iSpot S will automatically adjust its operation to suit a frequency of 50Hz or 60Hz.

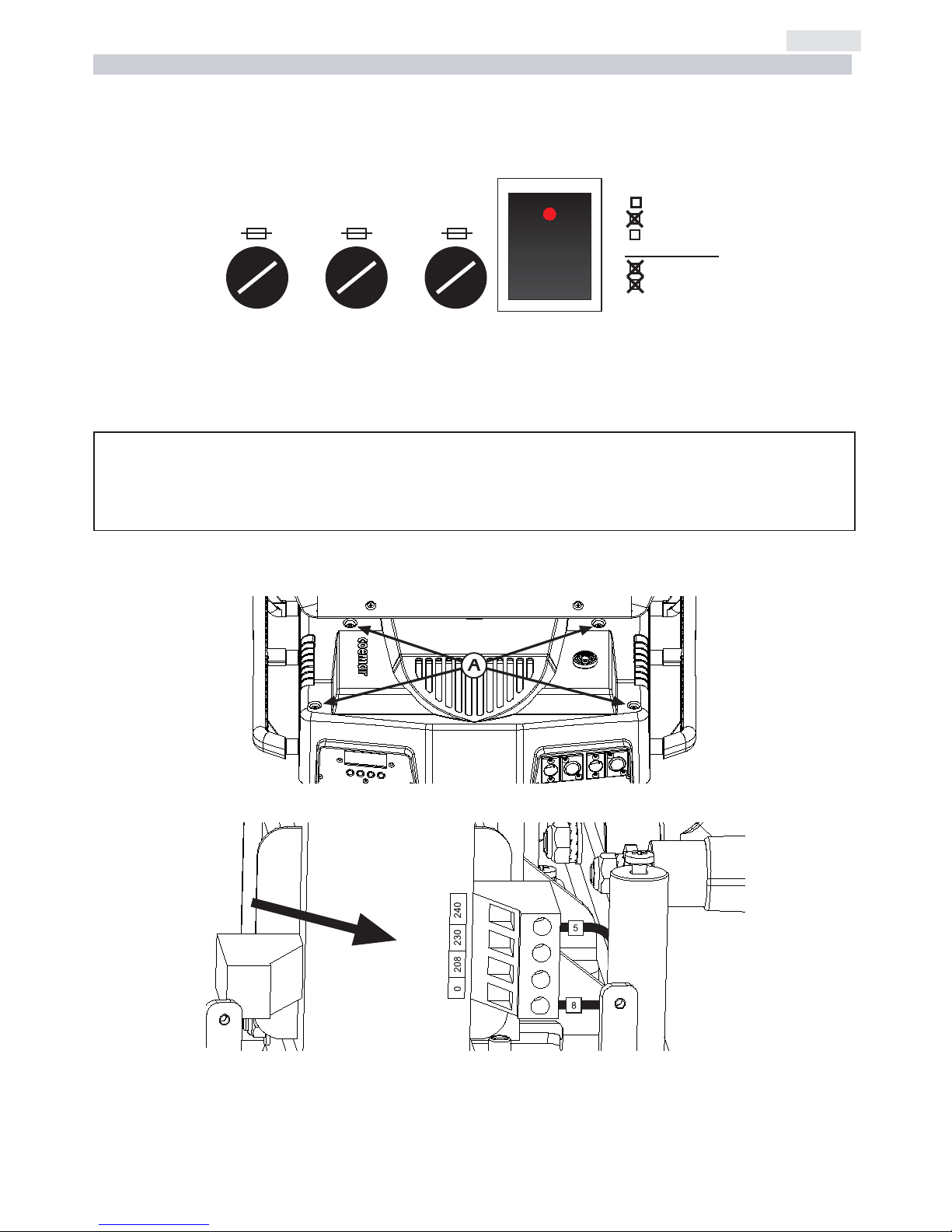

5.2. Altering the operating voltage and frequency (Reserved for technical personnel only)

If the factory preset operating voltage and frequency do not correspond to those in use in your country of operation, you may alter the settings as described in the following paragraphs.

Loosen the screws on the cover of the base of the unit, as shown in the diagram below, using an appropriate screwdriver, thereby removing the cover completely and allowing access to the internal components of the base of the iSpot S.

Locate the transformer in the base of the unit.

Select a voltage from amongst 208, 230 or 240V by disconnecting cable n° 5 and moving it to the correct voltage. Refer to the sticker located on the transformer to ensure the proper terminal is selected for your requriements. Cable number 8 must not have its position altered under any circumstances! When you have made changes, note these on the outside of the iSpot S. Replace and fasten all the housings as per their original positions.

ATTENTION!!

Incorrect selection of operating voltage and frequency will seriously compromise the

functioning of the projector and will immediately void the warranty.

208V

230V 240V

50Hz 60Hz

T10A

Power

T10AT 3A

factory set main at:

5. Powering up

English

Page 8

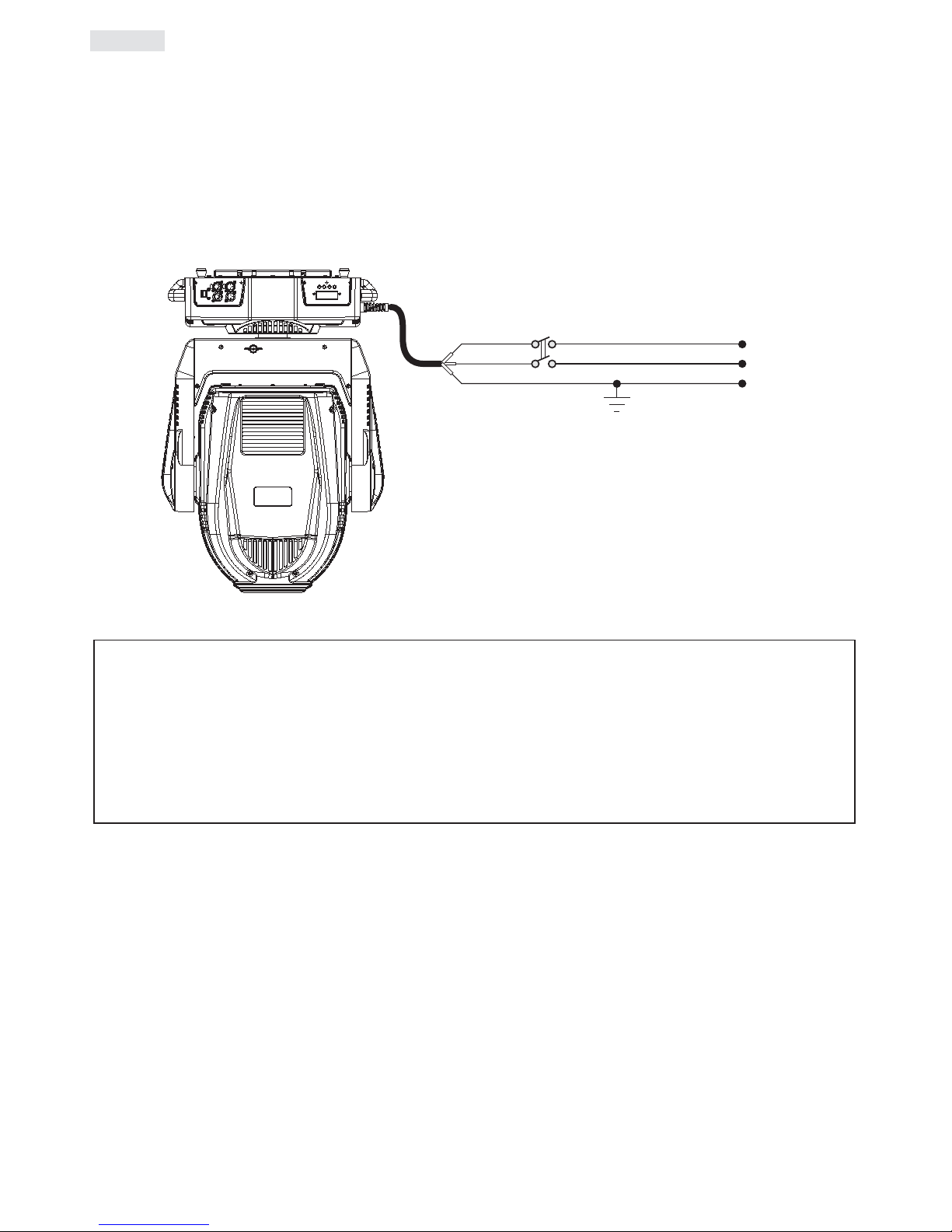

5.3. Mains connection

Mains cable characteristics

The mains cable provided is thermally resistant, complying to the most recent international standards. It meets or exceeds VDE and IEC norms, IEC 331,IEC 332 3C,CEI 20 35. NB: In case of cable replacement, similar cable with comparable thermal resistant qualities must be used exclusively (cable 3x1.5 ø external 10 mm, rated 300/500V, tested to 2KV, operating temperature -40° +180°, Coemar cod. CV5309).

Connecting to mains power

For connection purposes, ensure your plug is of a suitable rating to sustain the maximum current:

•208/230/240V 8 amps constant current in normal operation

Locate the mains cable which exits the base of the unit and connect as shown below:

ATTENTION!!

• The use of a thermal magnetic circuit breaker is recommended for each projector. Strict adherance to all regulatory norms is higly recommended.

• iSpot S should never be supplied mains power via a Dimmer; this is potentially dangerous.

• Prior to powering up the projector, ensure that the model in your possession correctly mathces the mains supply available to you.

• A good earth connection is essential for the correct operation of the iSpot S. Never connect the projector to main power if the green/yellow earth cable is not correctly connected

• All cable and plug connections should be carried out by fully qualified and licenced personnel only.

ground

neutral

live

brown

blue

yellow/green

main

English

Page 9

Control signal is digital and is transmitted via two pair screened ø0.5mm cable as per international standards for the transmission of DMX512 data. Connection is serial, utilising XLR3 and XLR5 male and female sockets located on the base of the iSpot S, labeled DMX

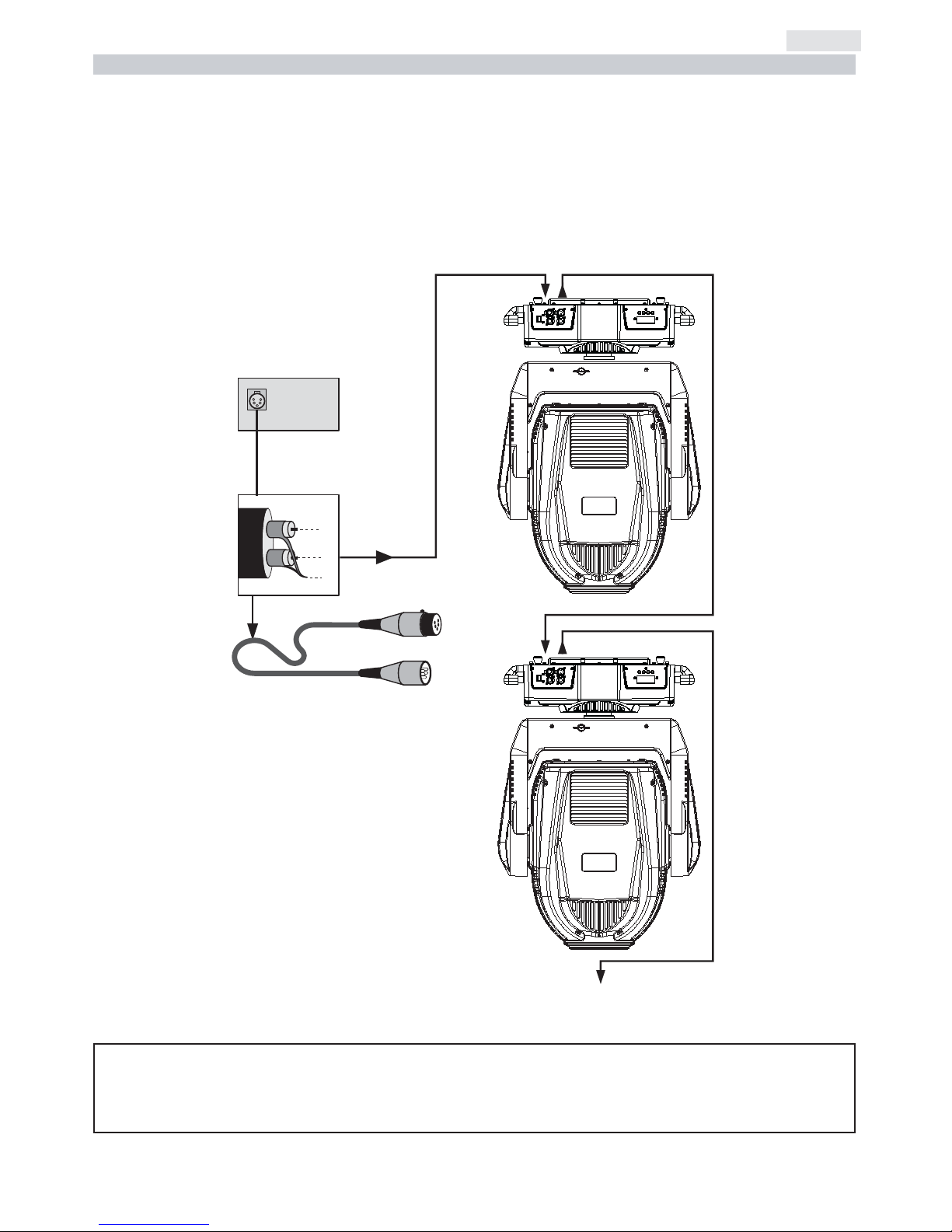

512 IN and OUT (see diagram).

Plug/socket connections for XLR3 and XLR5 connectors

Pin connections conform to the international standard as per the following table:

pin 1 = GND pin 2 = data - pin 3 = data +

If using a controller which output signal via an XLR 5 (5 pin) socket, do not use pins 4 and 5, leave them unconnected.

ATTENTION!!

Ensure that all data conductors are isolated from one another and the metal housing of the connector.

Pin number 1 should never be connected to the device’s power supply.

Controller Standard DMX 512

OUT

out

Ad altri iSpot S

Connect to other iSpot S

out

6. DMX signal connection

English

Page 10

After having followed the preceding steps, turn on the projector via the main Power switch.

The display and will show in sequnece the software version installed in the 3 onboard microprocessors - the display

“D” and the two

master

“A” and “B”.

For example, upon turning on power, the iSpot S may show:

D1.02 (display pcb “D” software version) A1.03 (master pcb “A” software version) B 1.00 (master pdb “B” software version)

The projector will perform a reset function on all the internal and external motors. This will last some few seconds, after which it will be subject to the external signal from the controller. The display will remain fixed on indicating correct DMX 512 signal reception. If the display flashed, there is no DMX signal being received. Check your cabling and your controller.

7.1. DMX addressing

Each unit can be set to use either 24 or 26 address channels. When the gobo index resolution is modified (see section 8.3 Functional settings FUNC GOBO function), the number of channels used by the units varies in number. Changing the resolution from 8 to 16 bits

the DMX channels change from 24 to 26.

iSpot S features are listed in paragraph 7.2 DMX functions chart.

DMX addresses

To ensure that each projector accesses the correct signal, it is necessary to correctly address each fixture. This procedure must be carried out on every projector being used. When powered up initially, each projector will show A001 which indicates DMX address 001; a projector thus addressed will respond to commands on channel 1 to 26 (16 bit setting) from your DMX controller. A second unit should be addresses as 23, a third as 45 and so on until the final projector has been addressed.

Altering DMX addresses

1. Press the + or - buttons until the display shows the required DMX address. The characters in the display will flash to indicate that the

selection is not yet stored in memory.

2. Press the enter button to confirm your selection. The display panel will cease to flash and the projector will now respond to the new DMX 512 address.

Important Note: holding down the + or - buttons will cause the display to alter at an increased speed, allowing a faster selection to be made.

ATTENTION!!

If you alter the DMX with no DMX controller connected, the characters in the display panel will continue to flash

even after you have pressed the ENTER button.

AOO1

7. Turning on the projector

English

Page 11

7.2. DMX functions

X axis, base movement

(pan) coarse

proportional proportional coarse control of the base motor movement 0 - 255 0% - 100%

X axis, base movement

(pan) fine

proportional proportional fine control of the base motor movement 0 - 255 0% - 100%

Y axis, yoke movement (tilt)

coarse

proportional proportional coarse control of the yoke motor movement 0 - 255 0% - 100%

Y axis, yoke movement (tilt)

fine

proportional proportional fine control of the yoke motor movement 0 - 255 0% - 100%

step standard (fast)

0-10 0%-4%

step

ultra fast movement (best for programming positions) 11 - 25 4% - 10%

proportional vector mode (from fast to slow)

26 - 127 10% - 50%

proportional tracking mode (from fast to slow)

128 - 247 50% - 97%

step tracking mode (slow)

248 - 255 97% - 100%

66 dimmer proportional gradual adjustment of luminous intensity from 0 to 100% 0 - 25 5 0% - 100%

step shutter closed (zap off) 0 - 9 0% - 4%

proportional strobe effect with variable speed from slow to fast 10 - 66 4% - 26%

step shutter open (zap off) 67 - 68 26% - 27%

proportional

sequenced pulse effect, slow closing, fast opening (with variable speed from slow to fast)

69 - 125 27% - 49%

step shutter open (zap off) 126 - 127 49% - 50%

proportional

sequenced pulse effect, fast closing, slow opening (with variable speed from fast to slow)

128 - 184 50% - 72%

step shutter open (zap off) 185 - 187 73% - 73%

proportional

random strobe effect, non-synchronised, variable speed from slow to fast

188 - 244 74% - 96%

step shutter open (zap off) 245 - 255 96% - 100%

step open 0 - 9 0% - 4%

proportional from maximum to minimum aperture 10 - 255 4% - 100%

step open 0 - 9 0% - 4%

proportional from maximum to minimum aperture 10 - 124 4% - 49%

step minimum diameter 12 5 - 129 49% - 51%

proportional pulsing with proportional increase in speed 130 - 189 51% - 74%

step open 190 - 192 75% - 75%

proportional pulse and flash effect with proportional increase in speed 193 - 255 76% - 100%

99 zoom proportional proportional control of zoom from wide beam to narrow 0 - 255 0% - 100%

10 10 focus proportional proportional control of focus 0 - 255 0% - 100%

no gobo 0 - 10 0% - 4%

gobo 1 11 - 40 4% - 16%

gobo 2 41 - 70 16% - 27%

gobo 3 71 - 100 28% - 39%

gobo 4 101 - 130 40% - 51%

gobo 5 131 - 160 51% - 63%

gobo 6 161 - 192 63% - 75%

proportional continuous rotation of the gobo wheel from slow to fast 193 - 255 76% - 100%

step no gobo 0 - 10 0% - 4%

proportional proportional positioning of gobo wheel 1 at 360° 11 - 192 4% - 75%

proportional continuous rotation of gobo wheel from slow to fast 193 - 255 76% - 100%

step no effect 0 - 10 0% - 4%

proportional proportional indexing of the gobos through 360° 11 - 255 4% - 100%

fine indexing of the gobos

16 bit

proportional fine indexing of the gobo (gobo wheel 1) 0 - 255 0% - 100%

step no effect 0 - 10 0% - 4%

proportional

continuous rotation of the gobo in a clockwise direction with proportional control over decreasing speed

11 - 131 4% - 51%

step gobo stop 132 - 134 52% - 53%

proportional

continuous rotation of the gobo in a counter-clockwise direction with proportional control over increasing speed

135 - 255 53% - 100%

11 14

13 11

rotating gobo selection

on wheel 1

(SPEC special)

Note 2: depending on the gobo selection on display panel (standard STRD or proportional SPEC) the gobo wheel has a different function

Note 1: the iris diaphragm operation will vary according to the selection made for IRIS on the display panel (linear LIN or with internal PULS effect)

rotating gobo selection

on wheel 1

(closest to lamp)

(STRD standard)

gobo rotation

on wheel 1

step

movement speed

shutter,strobe

and zap effect

iris diaphragm

(LIN-Linear)

effect

function

type of control

channel

16 bit

channel

8 bit

percentage

Note 3: when channel 12 is set to a level between 0 and 10, gobo rotation (channel 14 at 16bit or channel 13 at 8bit) does not effect indexing,

the gobo stops instantly

iris diaphragm

(with internal PULS effect)

indexing gobo rotation on

wheel 1 through 360°

decimal

English

Page 12

no gobo 0 - 10 0% - 4%

gobo 1 11 - 40 4% - 16%

gobo 2 41 - 70 16% - 27%

gobo 3 71 - 100 28% - 39%

gobo 4 101 - 130 40% - 51%

gobo 5 131 - 160 51% - 63%

gobo 6 161 - 192 63% - 75%

proportional continuous rotation of the gobo wheel from slow to fast 193 - 255 76% - 100%

step no gobo 0 - 10 0% - 4%

proportional proportional positioning of gobo wheel 2 at 360° 11 - 192 4% - 75%

proportional continuous rotation of gobo wheel from slow to fast 19 3 - 255 76% - 100%

step no effect 0 - 10 0% - 4%

proportional proportional indexing of the gobos through 360° 11 - 255 4% - 100%

fine indexing of the gobos

16 bit

proportional fine indexing of the gobo (gobo wheel 2) 0 - 255 0% - 100%

step no effect 0 - 10 0% - 4%

proportional

continuous rotation of the gobo in a clockwise direction with proportional control over decreasing speed

11 - 131 4% - 51%

step

gobo stop 13 2 - 134 52% - 53%

proportional

continuous rotation of the gobo in a counter-clockwise direction with proportional control over increasing speed

135 - 255 53% - 100%

step no effect 0 - 10 0% - 4%

proportional insert frost filter in the optical path 11 - 99 4% - 39%

step prism 1 100 - 105 39 % - 41%

proportional

continuous rotation of prism 1 in a counter-clockwise direction, with proportional control over speed from maximum to minimum

106 - 137 42% - 54%

step stop rotation prism 1 1 38 - 142 54% - 56%

proportional

continuous rotation of prism 1 in a clockwise direction, with proportional control over speed from minimum to maximum

143 - 174 56% - 68%

step stop rotation prism 1 1 75 - 179 69% - 70%

step prism 2 180 - 184 71 % - 72%

proportional

continuous rotation of prism 2 in a counter-clockwise direction, with proportional control over speed from maximum to minimum

185 - 216 73% - 85%

step stop rotation prism 2 2 17 - 221 85% - 87%

proportional

continuous rotation of prism 2 in a clockwise direction, with proportional control over speed from minimum to maximum

222 - 255 87% - 100%

no colour, white beam 0 - 5 0% - 2%

colour 1 6 - 14 2% - 5%

colour 2 15 - 22 6% - 9%

colour 3 23 - 30 9% - 12%

colour 4 31 - 38 12% - 15%

colour 5 39 - 45 15% - 18%

from colour 5 to colour 1, proportional positioning 46 - 127 18% - 50%

rainbow effect from fast to slow in an anticlockwise direction 128 - 190 50% - 75%

rainbow effect from slow to fast in a clockwise direction 191 - 255 75% - 100%

21 19 cyan proportional

proportional control of the percentage of cyan colour in the light beam from 0 to 100%

0-255 0% - 100%

22 20 magenta proportional

proportional control of the percentage of magenta colour in the light beam from 0 to 100%

0-255 0% - 100%

23 21 yellow proportional

proportional control of the percentage of yellow colour in the light beam from 0 to 100%

0-255 0% - 100%

step no colour temperature correction, open beam 6500°K 0 - 10 0% - 4%

proportional

control of the colour temperature of the light beam from 6500°K to 3200°K

11 - 250 4% - 98%

step control of the colour temperature of the light beam to 8000°K 251 - 255 98% - 100%

no effect

0-10 0%-4%

zap effect synchronised with the strobe effect, speed and mode selected by strobe channel 7

11 - 30 4%-12%

zap effect, flicker and speed adjustable, speed and mode selected by strobe channel 7

31 - 249 12% - 98%

black-out of the light beam during PAN/TILT movement, colours and gobos

250 - 255 98% - 100%

park, no function 0 - 10 0% - 4%

lamp off 11 - 29 4% - 11%

pan and tilt reset (once only) 30 - 65 12% - 25%

reset all motors except black-out, pan and tilt (once only) 66 - 100 26% - 39%

reset all motors except black-out (once only) 101 - 135 40% - 53%

reset all motors (once only) 136 - 170 53% - 67%

lamp on - manual focus 171 - 212 67% - 83%

lamp on - autofocus 213 - 255 84% - 100%

percentage

decimal

effect

function

type of control

channel

16 bit

channel

8 bit

Note 4: depending on the gobo selection on display panel (standard STRD or proportional SPEC) the gobo wheel has a different function

rotating gobo selection

on wheel 2

(SPEC special)

step

proportional

step

25 24

conversion filters

zap effect

(effect varies depending upon

channel 7 strobe)

selecting frost and prisms

rotation

indexing gobo rotation on

wheel 2 through 360°

15 15

Note 5: when channel 16 or 15 (16bit or 8bit) is set to a level between 0 and 10, gobo rotation (channel 18 at 16bit or channel 16 at 8bit) does not affect

indexing, the gobo stops instantly

rotating gobo selection

on wheel 2

(STRD standard)

step

lamp on/off and

motors reset

step

selecting saturated colours

from the colour wheel

gobo rotation

on wheel 2

Note 6: the display panel may be used to disable the switching off of the lamp via DMX

Note 7: turning off the lamp and all reset functions are delayed by 6 seconds to prevent accidental activation

Note 8: the lamp on/off function can only be effected if an opposite level is set

English

Page 13

The display panel of the iSpot S shows all the functions available; it is possible to change some of those parameters and to add some functions. Changing the preset settings made by Coemar can vary the functions of the device so that it may not respond to a DMX 512 controller being used to control it. Carefully follow the instructions before applying any variations or selections. NOTE: the symbol

☞

shows which key has to be pushed to obtain the desired function .

8.1. Quick guide to menu navigation

For your convenience, the following is a guide to navigating the menu system of the projector.

F U NC

☞

enter

MEAS

☞

enter

PDIR

☞

+o –

TDIR

☞

+o –

OPTO

☞

+o –

FANS

☞

+o –

DISP

☞

+o –

LED

☞

+o –

RESE

☞

+o –

OFSE

☞

+o –

DEMO

☞

+o –

IRIS

☞

+o –

PAN

☞

+o –

☞

+o –

TEMP

☞

+o –

V.FAN

☞

+o –

DMIN

☞

+o –

RATE

☞

+o –

ALRM

☞

+o –

HOUR

☞

+o –

AOO1

☞

TEST

☞

+o –

A023

new DMX address

☞

+o –

A023 DMX address 23

select new DMX address and press ENTER to confirm.

☞

enter

☞

+o –

LAMP

☞

+o –

LAMP

☞

+o –

GOBO

☞

+o –

X.Y

☞

+o –

ZAP.E

☞

+o –

S.COL

☞

+o –

Press together enter and menu keys

for 10 seconds: the display will show

alignement functions menu

8. Display panel functions

English

Page 14

8.2. Measure and test (MEAS)

The internal microprocessor of the iSpot S allows for several diagnostic and output parameters to be

displayed. You may record, in this menu, determine the position in which the projector will come to rest when turned on with no dmx signal attached.

☞

AOO1

MEAS

☞

enter

V.FAN voltage to fans

to measure the DC voltage to the fans located in the unit. Values higher than 25,8V are anomalous.

25.2V

voltage measurement

☞

enter

CH01

from ch 1

CH22

to ch 26

DMX value

255

DMX value

☞

enter

☞

+o –

DMIN DMX value on each channel

reading of DMX value (0/255), received by each of the 26 channels on DMX 512 line.

☞

enter

☞

enter

RATE DMX rate

reading of DMX 512 signal value.

☞

enter

value reading

NDMX

no dmx signal

NO .AL

no alarm message

ALRM alarm

Reading of Warning message sequences (errors) shown during reset operation

☞

enter

☞

+o –

O PER

alarm message

58C

temperature measurement

TEMP temperature

to measure the internal temperaturein C°

☞

enter

☞

+o –

☞

+o –

☞

+o –

☞

+o –

☞

+o –

☞

+o –

TEST test

function test

☞

+o –

value reading

☞

+o –

☞

enter

☞

enter

☞

enter

☞

+o –

HOUR working time

working time (in hours)

589

value reading

1230

value reading

LIFE

lamp life after last reset

LIFS

life of all lamps

used on the unit

UNIT

projector life

☞

enter

N.B.: reset the LIFE value when

changing the lamp

1200

reading lamp power

LAMP lamp status

Reading lamp status

☞

enter

☞

+o –

OFF

lamp off

☞

+o –

☞

enter

0128

☞

enter

☞

enter

☞

+o –

PAN

pan movement

☞

enter

es.

0150

☞

enter

0128

☞

enter

☞

enter

☞

+o –

TILT

tilt movement

☞

enter

es.

☞

enter

☞

enter

☞

enter

☞

+o –

DIMM

dimmer activation

☞

enter

es.

☞

enter

☞

enter

☞

enter

☞

+o –

SHUT

shutter activation

☞

enter

es.

☞

enter

SURE

☞

enter

☞

enter

STOR

to record the position of the

unit and of its internal

components. If DMX signal is

not applied, the recorder

setting will appear at the end

of reset operation when the

unit is switched on.

☞

enter

☞

enter

☞

enter

☞

enter

☞

+o –

IRIS

iris activation

☞

enter

es.

☞

enter

☞

enter

☞

enter

☞

+o –

ZOOM

zoom activation

☞

enter

es.

☞

enter

☞

enter

☞

enter

☞

+o –

FOCU

focus activation

☞

enter

es.

☞

enter

☞

enter

☞

enter

☞

+o –

GOB1

gobo wheel 1 selection

☞

enter

es.

☞

enter

☞

enter

☞

enter

☞

+o –

GBP1

gobo 1 positioning

☞

enter

es.

☞

enter

☞

enter

☞

enter

☞

+o –

GBR1

gobo 1 rotation

☞

enter

es.

☞

enter

☞

enter

☞

enter

☞

+o –

GOB2

gobo wheel 2 selection

☞

enter

es.

☞

enter

☞

enter

☞

enter

☞

+o –

GBP2

gobo 2 positioning

☞

enter

es.

☞

enter

☞

enter

☞

enter

☞

+o –

GBR2

gobo 2 rotation

☞

enter

es.

☞

enter

☞

enter

☞

enter

☞

+o –

EFCT

frost and prisma wheel

activation

☞

enter

es.

☞

enter

☞

enter

☞

enter

☞

+o –

COLR

color wheel selection

☞

enter

es.

☞

enter

☞

enter

☞

enter

☞

+o –

CYAN

cyan selection

☞

enter

es.

☞

enter

☞

enter

☞

enter

☞

+o –

MAGE

magenta selection

☞

enter

es.

☞

enter

☞

enter

☞

enter

☞

+o –

YELL

yellow selection

☞

enter

es.

☞

enter

☞

enter

☞

enter

☞

+o –

CONV

conversion filter selection

☞

enter

es.

☞

enter

☞

enter

☞

enter

☞

+o –

ZAP.E

zap effect activation

☞

enter

es.

0128

0150

English

Page 15

8.3. Function settings (FUNC)

The projector allows the altering of several functions and for selecting personalised settings.

8.4. Rapid scrolling

Via the iSpot S display it is possible to rapidly scroll through the various numbers displayed in the menu in the following manner:

1. Pressing the + or - buttons will cause the number to scroll more quickly.

2. Pressing and holding the + button and then the - button will cause the numbers to jump to the highest value.

3. Pressing and holding the - button and then the + button will cause the numbers to jump to the lowest value.

☞

AOO1

FUNC

-– -– -– -–

reset activation

clockwise

CCW

Counter-clockwise

clockwise

CCW

Counter-clockwise

sensor activation

OFF

sensor deactivation

☞

+o –

☞

+o –

☞

enter

☞

enter

☞

enter

☞

enter

☞

+o –

☞

+o –

☞

enter

☞

enter

☞

+o –

☞

+o –

STRD

fan speed control

fan always on

☞

enter

☞

enter

☞

+o –

☞

+o –

base downwards

base upwards

☞

enter

☞

enter

☞

+o –

☞

+o –

☞

enter

☞

enter

☞

enter

☞

enter

☞

enter

☞

enter

OFSE default function setting

To set all the functions at the original values, but for the alignement operations.

SURE

☞

enter

PAN pan control

reduce rotation angle from 530° to 400°.

5 4 0

pan 540°

400

pan 400°

☞

enter

☞

enter

☞

+o –

☞

+o –

☞

enter

O N

Pan/Tilt active

OFF

Pan/Tilt inactive

☞

enter

☞

enter

☞

+o –

☞

+o –

☞

enter

display acti ved

AUTO

display switch off after 6 second

☞

enter

☞

enter

☞

+o –

☞

+o –

☞

enter

☞

enter

IDID number setting

To set the unit’s ID number from 0 (no ID, to 250)

1--250

numeric value

☞

+o –

☞

+o –

X.Y Pan e Tilt setting

Function without pan/tilt

☞

+o –

☞

+o –

☞

+o –

☞

+o –

☞

+o –

☞

+o –

☞

+o –

☞

+o –

☞

+o –

☞

+o –

☞

enter

DEMO

(flashing)

demo program activation

PDIR pan movement inversion

To reverse horizontal movement direction of the beam on DMX level variation.

TDIR tilt an movement inversion

To reverse vertical movement direction of the beam on DMX level variation.

OPTO optic sensor de-activation

To deactivate the optic sensor function with return inposition of the unit if accidentally knocked out of the place.

STRD

switching on through DMX 512

lamp always on

☞

enter

☞

enter

☞

+o –

☞

+o –

☞

enter

☞

+o –

LAMP Lamp control

To disable on/off control of the lamp by DMX signal.

FANS fans control

Fan status control through PCB (Strd) or fans always on (On).

DISP reverse display

To reverse the display reading depending on mounting position (base or suspended).

LED display control

To disable display visualisation.

RESE reset

Reset function

DEMO demo program

To see all the unit function

L I N

linear iris

PULS

pulse iris

☞

enter

☞

enter

☞

+o –

☞

+o –

☞

enter

IRIS iris

Iris function mode

☞

+o –

GOBOgobo setting

Change gobo resolution from16 bit to 8 bit (change channel dmx from 24 to 26)and from step to proportional

☞

+o –

☞

enter

☞

enter

STOR

step gobo

SPEC

proportional gobo

☞

enter

☞

enter

☞

+o –

☞

+o –

MODE

To change gobo wheels

function from step

to proportional

RES

To change gobo

resolution

from 8 to 16 bit.

☞

+o –

8.BT

resolution 8 bit

1 6.BT

resolution 16 bit

☞

+o –

☞

+o –

O N

zap on

OFF

zap off

☞

enter

☞

enter

☞

+o –

☞

+o –

☞

enter

ZAP.E zap effect

Zap effect

☞

+o –

☞

enter

S.COL color speed

Allow to modify speed color change

☞

enter

☞

enter

S T R D

color change slow

F A S T

color change fast

☞

enter

M E D

color change

medium speed

☞

enter

☞

+o –

☞

+o –

☞

+o –

☞

+o –

☞

+o –

☞

enter

☞

enter

English

Page 16

8.5.Connecting the DR1

All the functions available via the display menu are also available via the DR1 (cod. 9703). The DR1 duplicates the display of the projector and eliminates the need for climbing up truss structures to gain direct physical access to the projector to alter such parameters as DMX address, reading outputs such as lamp life, setting master/slave configurations as well as all other functions available via the digital display unit on the projector. The DR1 is a remote device designed for technical users who need to perform tasks on the projectors whilst they may be located in inaccessible positions. It acts as a remote control. In order to utilise the DR1 remote device, you must first activate the identifying number of the projector ID, which must be unique in the particular DMX universe in which it is currently installed.

The method for setting an identification number

ID is shown below.

For further information, consult the DR1 instruction manual.

8.6. Use of RJ45 connector

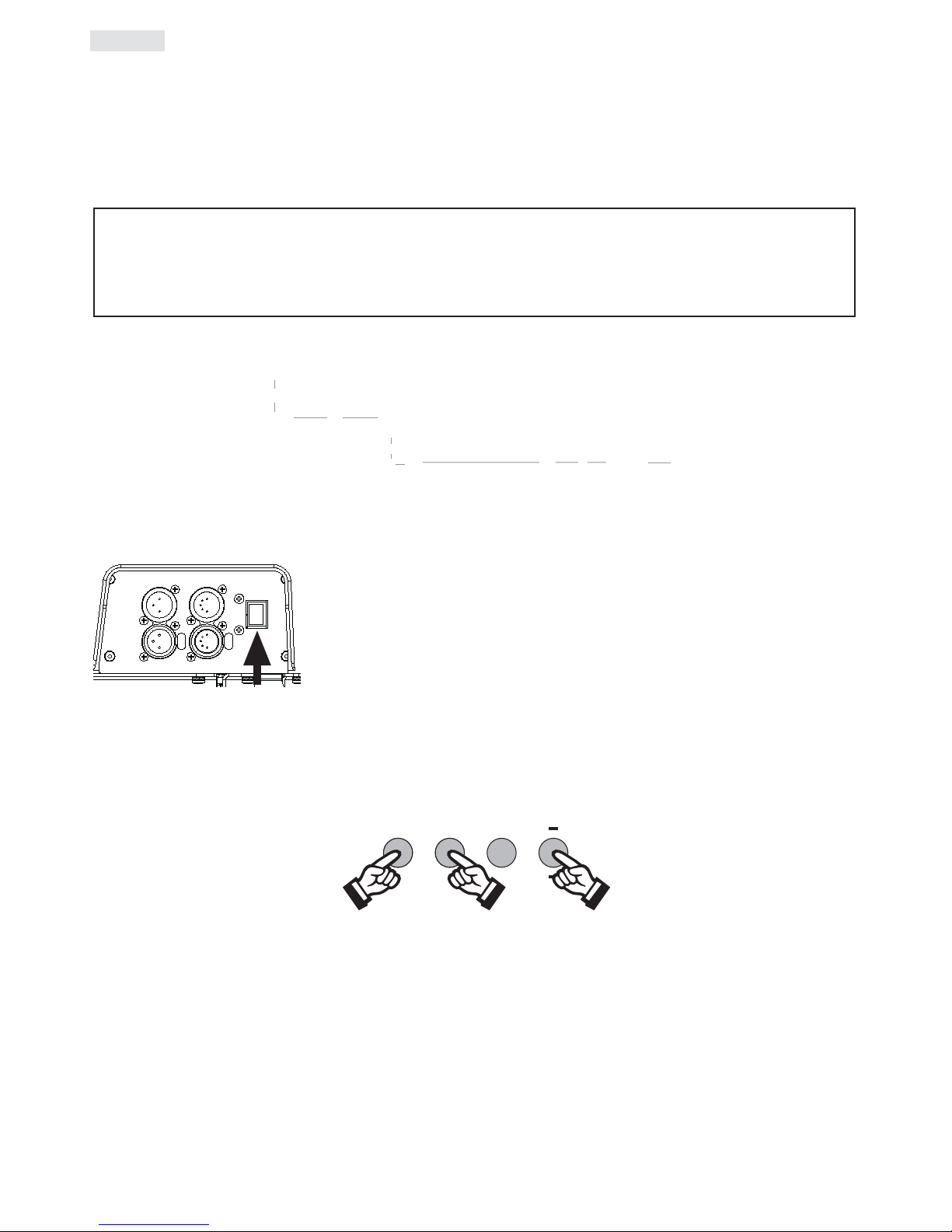

On panel of iSpot S base you find a RJ45 connector , as shown in oicture, that can be used either for display supply and for software upgrade function. It’s possible to supply the display through an external battery, and access to menu functions, without connectinf the unit to the mains. RJ45 connector can also be used for the connection of DR1+, the remote control that allows to supply the display, to upgrade the software and to access to all the functions that are usually selectable from the DR1. For more information pls. Read the manual of the different devices.

8.7. Turning on the projector with no articulated movement

This function may be useful should you need to power up the iSpot S whilst it is in its flight case or to re-address it or alter any parameters and you wish to in the absence of any articulated movement.

1. Turn on the projector whilst holding down the enter, menu and – buttons The The projector will proceed with a reset of all its motors with the exception of those which control articulated movement, the pan and tilt motors, which remain static.

2. You may alter the DMX address or any other parameter without any articulated movement occuring

3. To return to normal functioning of the iSpot S simply turn the projector off and on via the Power switch or activate the Reset func-

tion.

FUNC

functions menu

The unit gives the possibility to vary some functions settings and to apply personalizations.

ID ID number setting

To set the unit’s ID number from 0(no ID, to 250).

☞

enter

☞

+/-

☞

enter

1--250

numeric value

☞

enter

☞

AOO1

☞

+o –

MEAS

☞

+/-

ATTENTION!!

• If you set a projectors identification number to “0” it will not be able to communicate with the DR1.

• Never assign the same ID to two or more projectors. This may jeapordise the functioning of the entire system. (The DR1 will show an error message).

English

Page 17

8.8. Resetting the counter

The lamp life counter needs to be reset to zero at every lamp change to provide accurate information on lamp life. When turning on the iSpot S , simultaneously hold down the + and – buttons. The projector will restart with its counter reset.

The projector has reset the

LIFE counter.

To verify that this operation has occured:

1. Press the menu button and then press enter.

2. Press the + or - buttons until

MEAS is displayed, then press enter.

3. Press the + or - buttons until

HOUR (hours) is displayed, then press enter.

4. Press the + or - buttons until

LIFE (lamp life) is displayed, then press enter.

5. If the display shows

0000, the counter has been reset.

N.B. You may also wish to verify that other electronic counters such as

LIFS (total lamp operating lives) and UNIT (total proejctor ope-

rating life) have remained unaltered.

The iSpot S utilises the Philips MSR GOLD 1200 SA/SE PGJ50 base lamps. These lamps are available via your Coemar distributor or service centre.

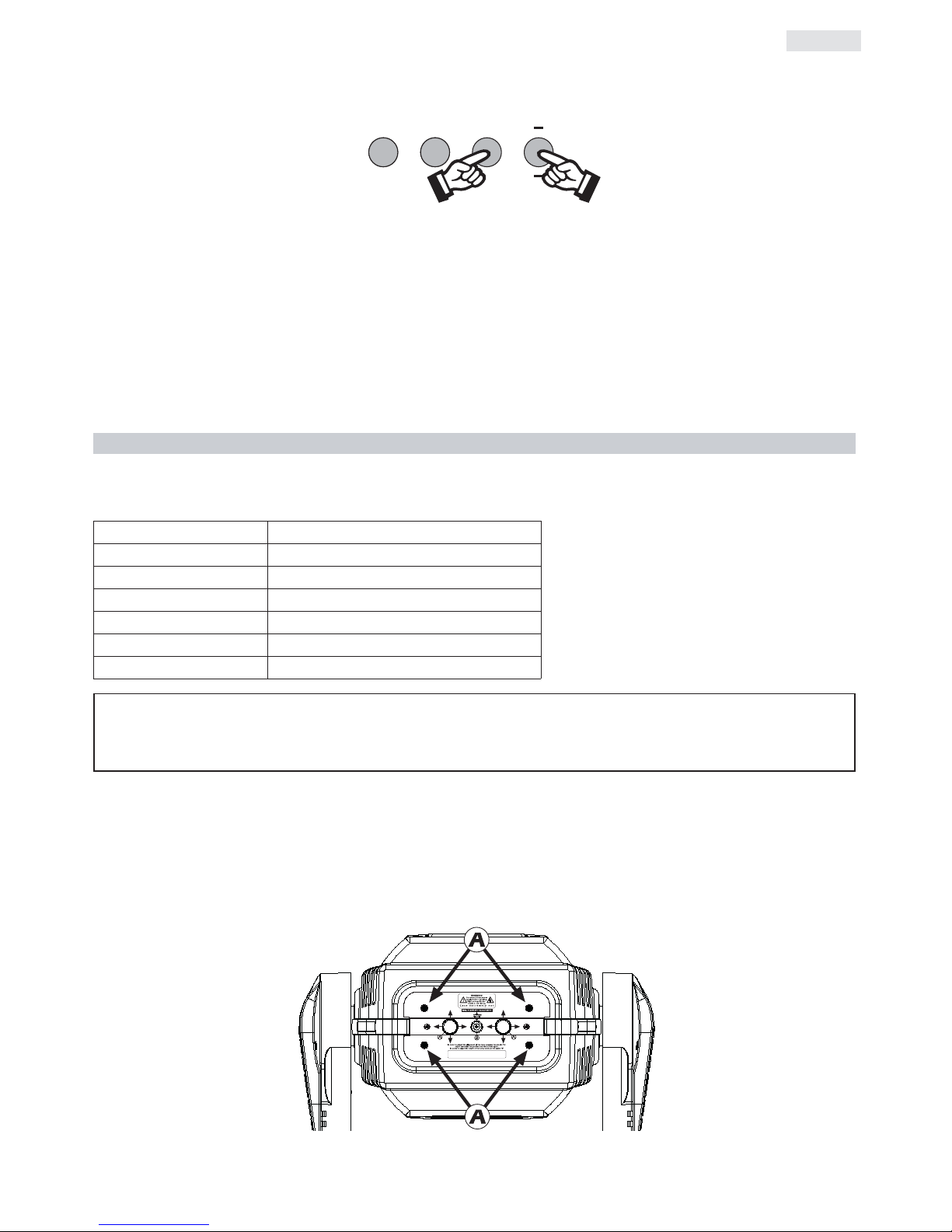

The fixture’s internal temperature can reach 250° C after 5 minutes, with a maximum peak of 450° C; ensure that the lamp is cold prior to attempting removal. The fixture should be allowed to stand and cool for 10 minutes prior to its removal. The lamps are part of the mercury vapour family of discharge lamps and must be handled with great care. The lamp operates at high pressure, and the slight risk of explosion of the lamp exists if operated over its recommended life. We recommend, therefore, that the lamp be replaced within the manufacturer’s specified lamp life.

9.1. Lamp installation

1. Use a suitable tool to loosen the four screws “A“ which affix the lampholder assembly at the rear of the projector.

Do not install on flammable surfaces.

Min distance from flammable materials to all exterior surfaces: 0.5m.

The lamps can be re-ignited only after 10 minutes. Do not attempt hot restrike.

Important safety information, see instruction manual before use.

ATTENTION!!

Disconnet the unit from mains power prior to attempting lamp installation or replacement

Make sure the projector is sufficiently cooled.

Lamp Philips MSR 1200 SA/DE

Coemar code 105099/2

Power 1200W

Luminous flux 110.000 lm

Colour temperature 6000° K

Base SFc10-4

Approximate lamp life 750 ore

9. Lamp installation and alignment

English

Page 18

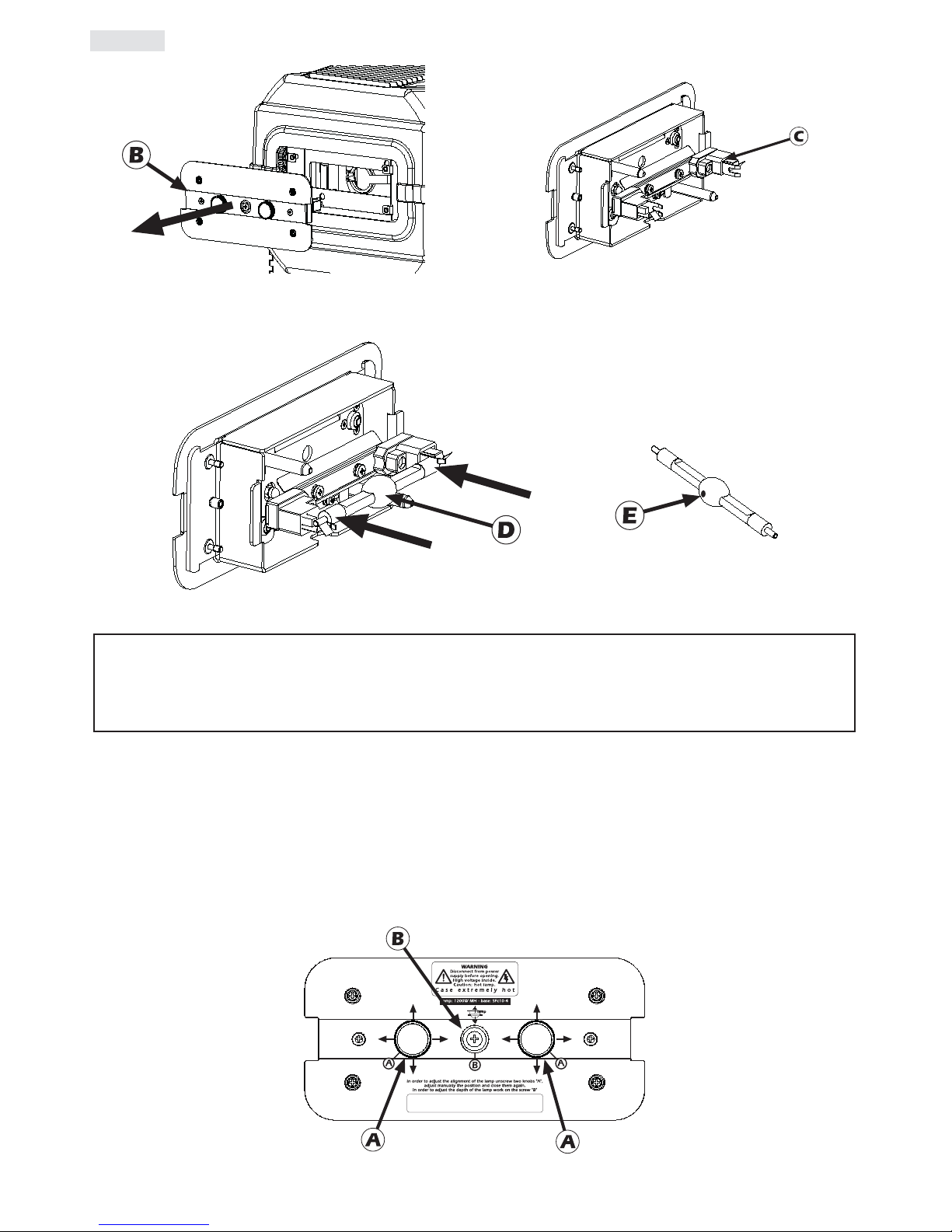

2. Remove the lampholder assembly “B”. 3. Identify the lampholder “C“.

4. Fit in the lamp “D” in the lampholder pressing on the 2 terminals and position the welding of the glass “E” towards the back side of

the unit. The lamp used is manufactured from quartz glass and should be handled with care; always adhere to the instructions supplied in the lamp’s packaging. Never touch the glass directly, use the tissue provided in the lamp’s packaging. DO NOT USE UNDUE FORCE.

5. Replace the lampholder assembly in its original position and refasten the two screws “A” which were previously removed.

9.2. Aligning the lamp in the optical path

Aligning the lamp in the optical system is achieved via the 3 adjusters at the rear of the projector. This procedure should be undertaken to maximise output, properly align the lamp in the optical system and to avoid the possible overheating of the internal components due to the incorrect focusing of the beam onto components not intended to be exposed to this.

Alignment procedure

The lamp should be on, black-out and dimmer fully open, and no colours selected. If the lamp is not correctly aligned, a hot-spot will be readily noticeable. Using the 3 adjusters in unison, you will need to bring the hot-spot to the centre of the beam and then flatten the beam to maximum uniformity. Unscrew the two knobs “A”, move it until the correct vertical and horizontal alignement is achieved and close them again. Screw “B“ moves the entire lamp assembly axially within the unit; rotate it until correct positioning is achieved, resulting in a flat, even beam.

Do not install on flammable surfaces.

Min distance from flammable materials to all exterior surfaces: 0.5m.

The lamps can be re-ignited only after 10 minutes. Do not attempt hot restrike.

Important safety information, see instruction manual before use.

ATTENTION!!

Each time you change the lamp, we recommend the following be carried out:

• realign the lamp in the optical path to avoid overheating dichroics and/or gobos .

• reset the lamp life counter (as described in section 8.8. Resetting the counter).

English

Page 19

iSpot S utilises a mechanical system which allows the fixture’s gobos to be removed without the need for specialised equipment. Replacement gobos should be made of either heat resistant glass or metal. An ever-increasing range of gobos is available from your Coemar sales network.

10.1. Gobo dimensions

iSpot S utilises gobos with thicknesses between 0.2 and 3.5 mm. The external gobo and image dimensions are:

10.2. Opening up the projector housing

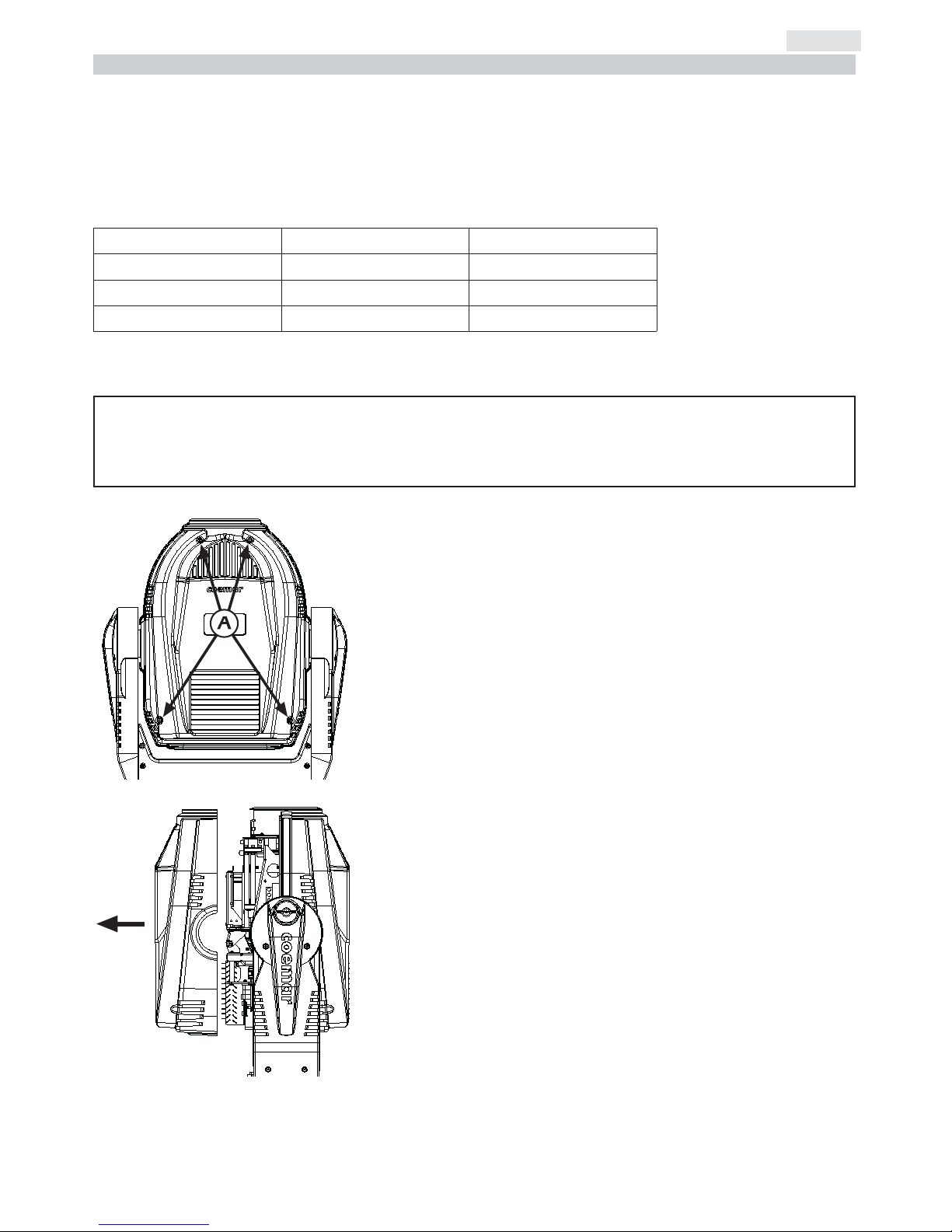

By removing the housing in the manner shown below, compete access to the projector’s internals is possible.

Using an appropriate screwdriver, remove the screws “A” which affix the front and rear housings as shown in the diagram.

Remove the housings to expose the projector’s internals.

ATTENTION!!

Always remove mains power and ensure the unit is sufficiently cooled prior to opening up the housing.

Gobo dimensions Ø external (mm) Ø image (mm)

Metal 33 28

Glass undefined image 32.8 32.8

Glass defined image 32,8 28

10. Interchanging gobos

English

Page 20

10.3. Access to the gobos wheels

To replace gobos, proceed as follows:

1. Open up the projector housing as discussed in section 10.2. Opening up the projector housing.

2. Loosen the thumbscrews “B” as shown in this diagram.

3. Remove the gobo group as shown in the diagram. You will the

gobo wheels in a position where access to the individual gobos is quite straightforward.

Proceed with the changing of the individual gobos as required.

10.4 Replacing gobos on gobo wheel 1

1. Use a tool such as a screwdriver as a lever on the spring “C” on the

inside of the gobo wheel.

English

Page 21

2.Lifting it from its seat, after which you can remove the gobo.

3. Place the new gobo into position and reverse the above procedure, ensuring that

the spring sits firmly back in its proper place.

10.5 Replacing gobos on gobo wheel 2

1. Use a screwdriver to loosen the screw “D”.

2. Sliding the lever towards the top.

On the opposite side, yo will note an opening as shown in figure.

At this point proceed as per previous section (Replacing gobos on gobo wheel 1). Ultimate the gobos substitution sliding the lever in the opposite direction in order to close up the opening and retighening screw “D”.

English

Page 22

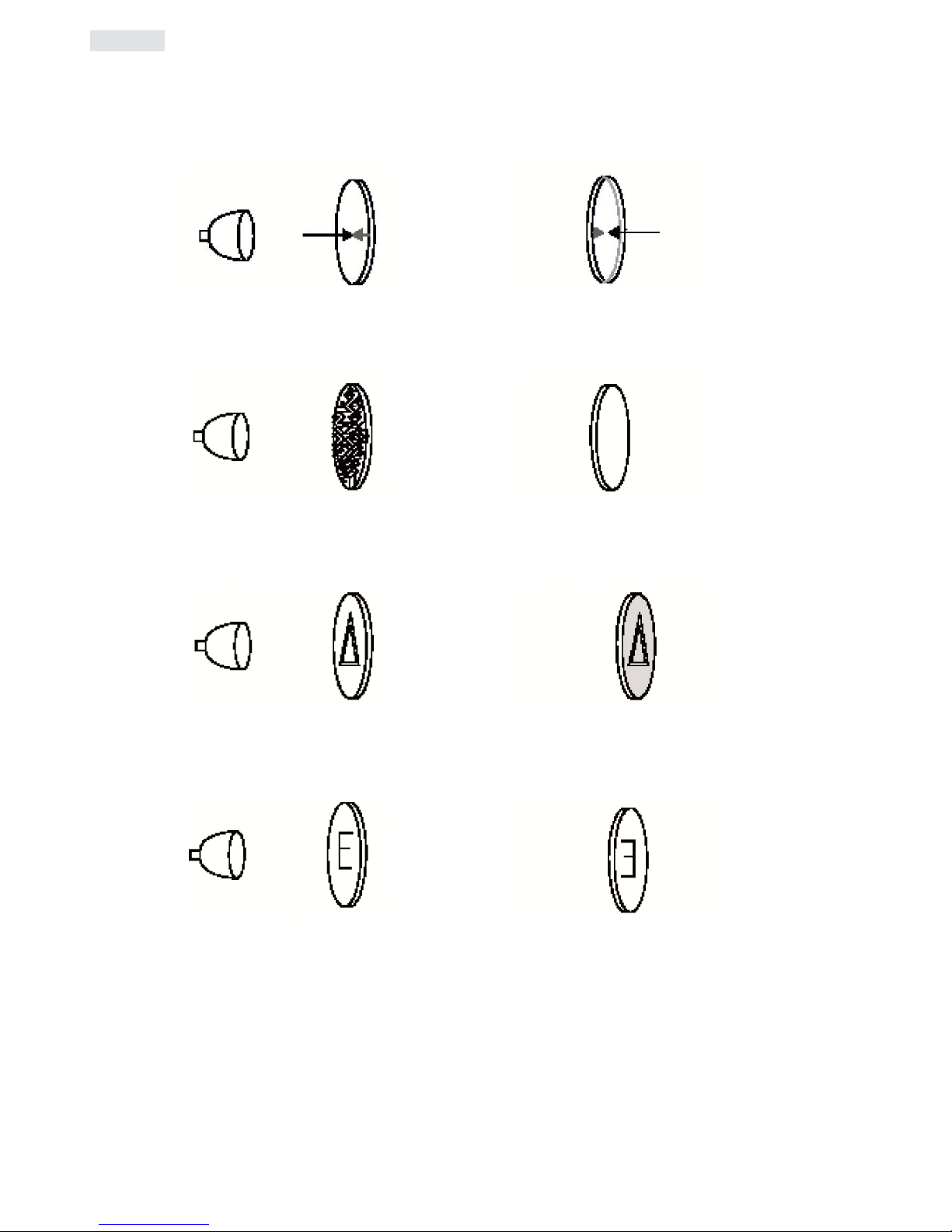

10.6. Gobo positioning

The diagrams below illustrate how to correctly position the various types of gobos.

Treated glass Gobos

Treated side facing the lamp Untreated side facing the projector front

Textrued glass Gobos

Textured side facing the lamp Smooth side facing the projector front

Metal Gobos

Reflective side facing the lamp Treated side facing the projector front

Image/Test Gobos

Positive image / readable text facing the lamp Negative image / reversed text facing the projector front

English

Page 23

A thermal sensor in the body of the iSpot S protects the unit against overheating. The thermal sensor operates by removing voltage to the lamp if the ambient temperature rises above a preset maximum due to either less than ideal air circulation around the fixture or in the event of cooling fan failure.

Whilst every possible precaution has been taken to ensure the trouble-free operation of your iSpot S, the following periodic maintenance is highly recommended.

To gain access to the internals of the unit refer to section 10.2. Opening up the projector housing of this manual.

12.1. Periodic cleaning

Lenses and reflectors

Even a fine layer of dust can reduce the luminous output substantially. Regularly clean all lenses and the reflector using a soft cotton cloth, dampened with a specialist lens cleaning solution.

Fans and air passages

The fans and air passages must be cleaned approximately every 6 weeks; the period for this periodic cleaning will depend, of course, upon the conditions in which the projector is operating. Suitable instruments for performing this type of maintenance are a brush and a common vacuum cleaner or an air compressor.

12.2. Periodic maintenance

Lamp

The lamp should be replaced if there is any observable damage or deformation due to heat. This will avoid the danger of the lamp exploding.

Mechanicals

Periodically check all mechanical devices for wear and tear; gears, guides, belts, etc., replacing them if necessary. Periodically check the lubrication of all components, particularly the parts subject to high temperatures. If necessary, lubricate with suitable lubricant, available from your coemar distributor.

Electrical components

Check all electrical components for correct earthing and proper attachment of all connectors, refastening if necessary.

12.3. Fuse replacement

Locate the fuse, which protects the lamp and electronics, in the base of the iSpot S. Using a multimeter, test the condition of the fuse, replacing it with one of equivalent type if necessary.

12.4. Electronic motor alignment

The display panel of the iSpot S allows for the electronic alignment of the projector’s motors in the optical system. This procedure is per-

ATTENTION!!

This procedure should only be undertaken by qualified and experienced technical personnel..

ATTENTION!!

Always remove mains power and ensure the unit is sufficiently cooled prior to opening up the housing.

12. Maintenance

11 Thermal protection

English

Page 24

formed by Coemar at the factory. It may be useful to perform this procedure in the case of internal components being replaced (motors, electronic parts, sensor, ecc.). Altering the factory settings may radically alter the functioning of the projector. Carefully read all of the following prior to attempting any changes.

Electronic calibration

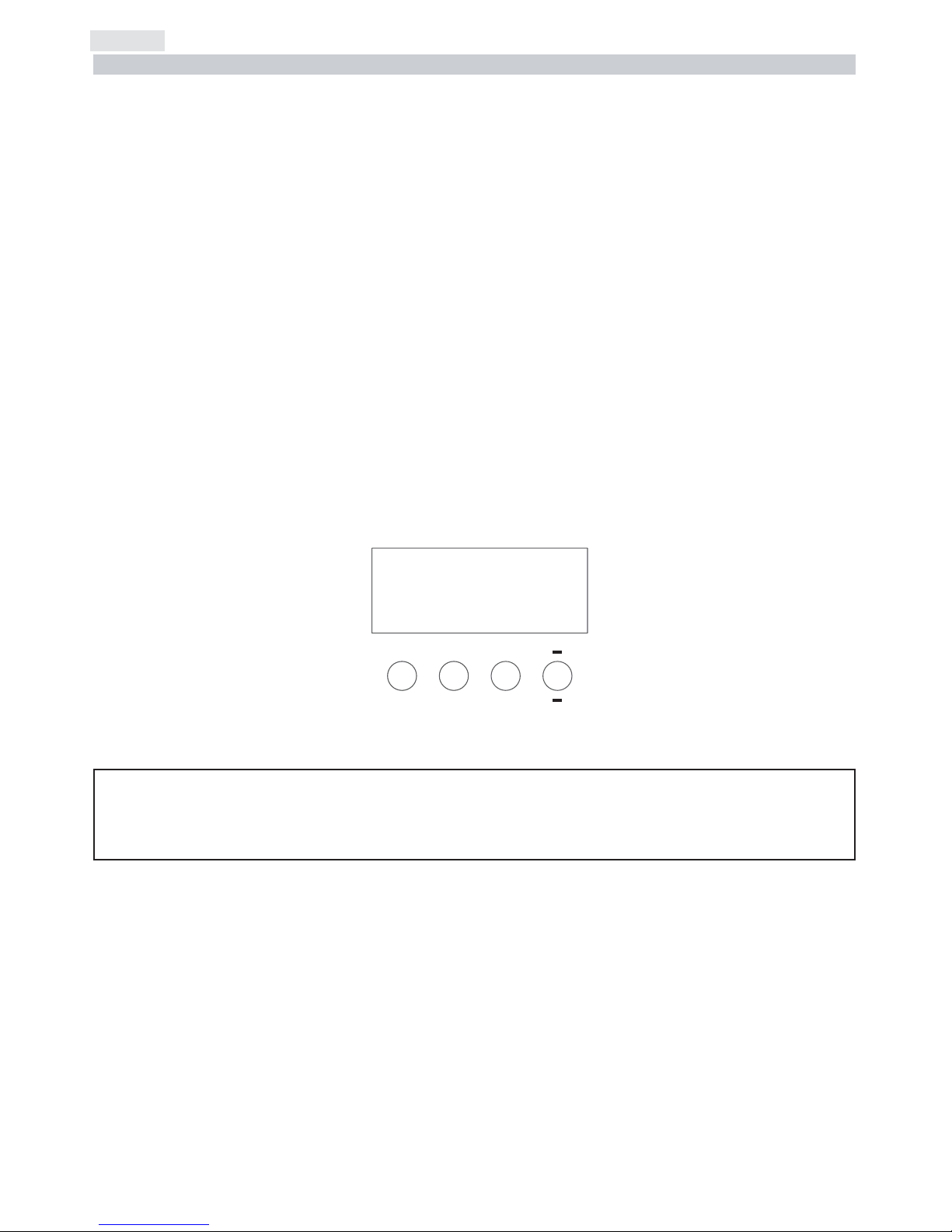

1. Press the menu button and then enter to confirm.

2. Press the + or - button until

FUNC is displayed. Then press enter.

3. Press the + or - button until

RESE is displayed.

4. Press the enter and menu buttons simultaneously, holding them for at least 10". The motors will perform a reset and the display will show

- -- -- -- for a few seconds. After this, the display will show PAN confirming that you have entered electronic calibration mode.

Note: Simultaneously pressing the + and - buttons will return the calibration value to 128 (default).

All the components of the iSpot S are available as replacement spares from your authorisded Coemar service centre. Accurate description of the fixture, model number, and type will assist us in providing for your requirements in an efficient and effective manner.

13. Spare parts

PAN pan alignment

pan movement alignment

☞

enter

0128

☞

enter

☞

+o –

es.

0120

☞

enter

0128

☞

enter

☞

+o –

es.

0120

☞

enter

0128

☞

enter

☞

+o –

es.

0120

☞

enter

0128

☞

enter

☞

+o –

es.

0140

☞

enter

0128

☞

enter

☞

+o –

es.

0130

☞

enter

0128

☞

enter

☞

+o –

es.

0125

☞

enter

0128

☞

enter

☞

+o –

es.

0135

☞

enter

0128

☞

enter

☞

+o –

es.

0132

☞

enter

0128

☞

enter

☞

+o –

es.

0127

☞

enter

0128

☞

enter

☞

+o –

es.

0121

☞

enter

0128

☞

enter

☞

+o –

es.

0140

☞

enter

0128

☞

enter

☞

+o –

es.

0127

☞

enter

0128

☞

enter

☞

+o –

es.

0127

☞

enter

0128

☞

enter

☞

+o –

es.

0127

☞

enter

A001

☞

enter

0128

☞

enter

☞

+o –

es.

0127

☞

enter

0128

☞

enter

☞

+o –

es.

0127

☞

enter

0128

☞

enter

☞

+o –

es.

0127

☞

+o –

☞

+o –

☞

+o –

☞

+o –

☞

+o –

☞

+o –

☞

+o –

☞

+o –

☞

+o –

☞

+o –

☞

+o –

☞

+o –

☞

+o –

☞

+o –

☞

+o –

☞

+o –

☞

+o –

☞

+o –

RESE

AOO1

☞

+o --

FUNC

☞

+o --

☞

TILT tilt alignment

tilt movement alignment

DIMM dimmer alignment

Alignment of dimmer

SHUT shutter alignment

Alignment of shutter

COLR color wheel alignment color

wheel alignment

ZOOM zoom alignment

alignment of zoom

FOCU focus alignment

focusing lens alignment

GOB1 gobo wheel 1 alignment

gobo wheel 1 alignment

GOB2 gobo wheel 2 alignment

gobo wheel 2 alignment

GB P 1 gobos alignment

rotating gobos alignment on gobo wheel 1 (the one nearest to the lamp)i

GBP2gobos alignment

rotating gobos alignment on gobo wheel 2

EF CT frost prisms alignment

frost and prisms wheel alignment

IRIS iris alignment

iris diaphragm alignment

CYAN cyan alignment

cyan filter alignment

MAGE magenta alignment

magenta filter alignment

YELL yellow alignment

yellow filter alignment

COMV CTO alignment

CTO filter alignment

END end

To end the electronic motor calibration procedure and to record it

Press together enter and menu keys for

10 seconds: the display will show this menu

ATTENTION!!

The alignment procedure can only be carried out when DMX 512 signal is connected.

English

Page 25

MBER: COMMUNICATION Error

This message indicates that the motherboard within the unit is not communicating properly with the control source. Check the connectors located on both boards.

OPER: PAN ENCODER Error

This message indicates that there is a problem with the PAN encoders. Check the sensors on the encoder wheel located near the pan movement motor, as well as the relevant cabling.

OTER : TILT ENCODER Error

This message indicates that there is a problem with the TILT encoder locate on the fixture yoke. Check the sensors on the encoder wheel located near the pan movement motor, as well as the relevant cabling.

EPER: EEPROM Error

The EEPROM is either defective or absent; refer to your coemar service centre for a replacement component.

DTER: DATA Error

The initial parameter settings are incorrect or corrupt; the projector has reloaded its factory default settings. Turn the projector off and on again. Should the error reoccur, refer the unit to your authorised coemar service centre to have the EEPROM check and possibly replaced.

ADER: DMX ADDRESS Error

The projector is not receiving all DMX channels needed to operate correctly. Check the DMX address indicated on the display and the channel numbers being outputted from the controller. Note that not all controllers will output all 512 channels.

S2ER: Control circuit error relating to position sensors controlling the 4 right-hand motors:

(located in the yoke at right when viewed from the rear or the unit)

Sensor is continuously reading the magnet. Check the cabling and the RESET sensors the motors and the integrity of the connecting belts.

S3ER: Control circuit error relating to position sensors controlling the 5 rear motors:

(located in the rear of the body when viewed from the rear of the unit)

Sensor is continuously reading the magnet. Check the cabling and the RESET sensors the motors and the integrity of the connecting belts.

S4ER: Control circuit error relating to position sensors controlling the 5 front motors:

(located in the front of the body when viewed from the rear of the unit)

Sensor is continuously reading the magnet. Check the cabling and the RESET sensors the motors and the integrity of the connecting belts.

COER: COLOUR WHEEL POSITION Error

Check for correct functioning of the motor and the magnetic sensor and the correct positioning with respect to the sensor and encoder wheel.

CUER: CONVERSION FILTER POSITION Error

Check for correct functioning of the motor and the magnetic sensor of the CONVERSION wheel.

G1ER: GOBO WHEEL 1 POSITION Error

Check for correct functioning of the motor and the magnetic sensor of GOBO WHEEL 1. (wheel furthest from lamp).

G2ER: GOBO WHEEL 2 POSITION Error

Check for correct functioning of the motor and the magnetic sensor of GOBO WHEEL 2. (wheel closest to lamp).

R1ER: GOBO WHEEL 1 INDEXING Error.

Check for correct functioning of the motor and the magnetic sensor for gobo indexing.

R2ER: GOBO WHEEL 2 INDEXING Error.

Check for correct functioning of the motor and the magnetic sensor for gobo indexing.

EFER: FROST/PRISM FILTER POSITION Error

Check for correct functioning of the motor and the magnetic sensor of the FROST/FILTER wheel.

ZOER: ZOOM LENSE POSITION Error

Check for correct functioning of the motor and the magnetic sensor of the ZOOM lense.

FCER: FOCUSING LENSE POSITIONING Error

Check for correct functioning of the motor and the magnetic sensor of the focusing lense.

ER20÷ER99: SYSTEM Error

Turn the unit off and on again. If the error persists, contact your authorised coemar service centre.

14. Error messages

English

Page 26

The projector is completely immobile.

Projector not powered up.

The circuit breaker is switched off

The protection fuse is blown

Check that the mains power cable is connected to power.

Set the circuit breaker to ON.

Disconnect the projector and replace the fuse.

The projector resets correctly, but either does not respond, or responds incorrectly, to DMX signal.

Incorrect signal connection

Incorrect DMX address

Inspect the signal cable, rectify any incorrect wiring, repair or replace any damaged cables or connectors.

Check the DMX address.

No light output and the display shows the message “LAER”.

The lamp may have reached the end of its life.

The lamp is not installed.

The lamp circuit protection fuse may be blown

Disconnect mains power and check the lamp condition, checking the lamp life display.

Disconnect mains power and install a lamp.

Check with your coemar service centre prior to replacing the fuse.

The lamp turns off intermittently The projector is too hot. Let the fixture cool down.

Check that the air vents above the cooling fans are not obstructed and that the fans are working correctly.

Ensure that the ambient temperature is below 35 °C.

One of the fans does not work correctly and causes the overheating of the projector.

Question Possible cause Possible solution

15. Frequently asked questions

English

Page 27

Coemar s.p.a.

via Inghilterra 2/A - 46042 Castel Goffredo (Mantova) Italy

ph. +39 0376/77521 - fax +39 0376/780657

[email protected]

Coemar si riserva il diritto di apportare modifiche senza preavviso.

Coemar reserves the right to effect modifications without notification
