Coef MP 300 SPOT User Manual

Code ZL-013101-01

•

• OPERATING INSTRUCTIONS

Revision 1.0

SUMMARY

DECLARATION OF CE CONFORMITY.....................................................................................................3

ADVICES FOR A CORRECT INSTALLATION.............................................................................................3

GENERAL WARRANTY CONDITIONS .....................................................................................................4

PACKING CONTENTS..........................................................................................................................4

1.0 DIMENSIONS & POSITIONING

2.0 TECHNICAL NOTES........................................................................................................................5

3.0 INSTALLATION.............................................................................................................................6

3.1 LAMP MOUNTING OR REPLACING ..................................................................................................6

3.2 PROJECTOR INSTALLATION ..........................................................................................................7

4.0 POWER SUPPLY CONNECTION .......................................................................................................8

4.1 DMX 512 CONNECTIONS ................................................................................................................8

5.0 SPECIAL FUNCTIONS AND PROJECTOR ASSIGNMENT ........................................................................9

6.0 MENU, FUNCTION & SUB-FUNCTIONS ............................................................................................10

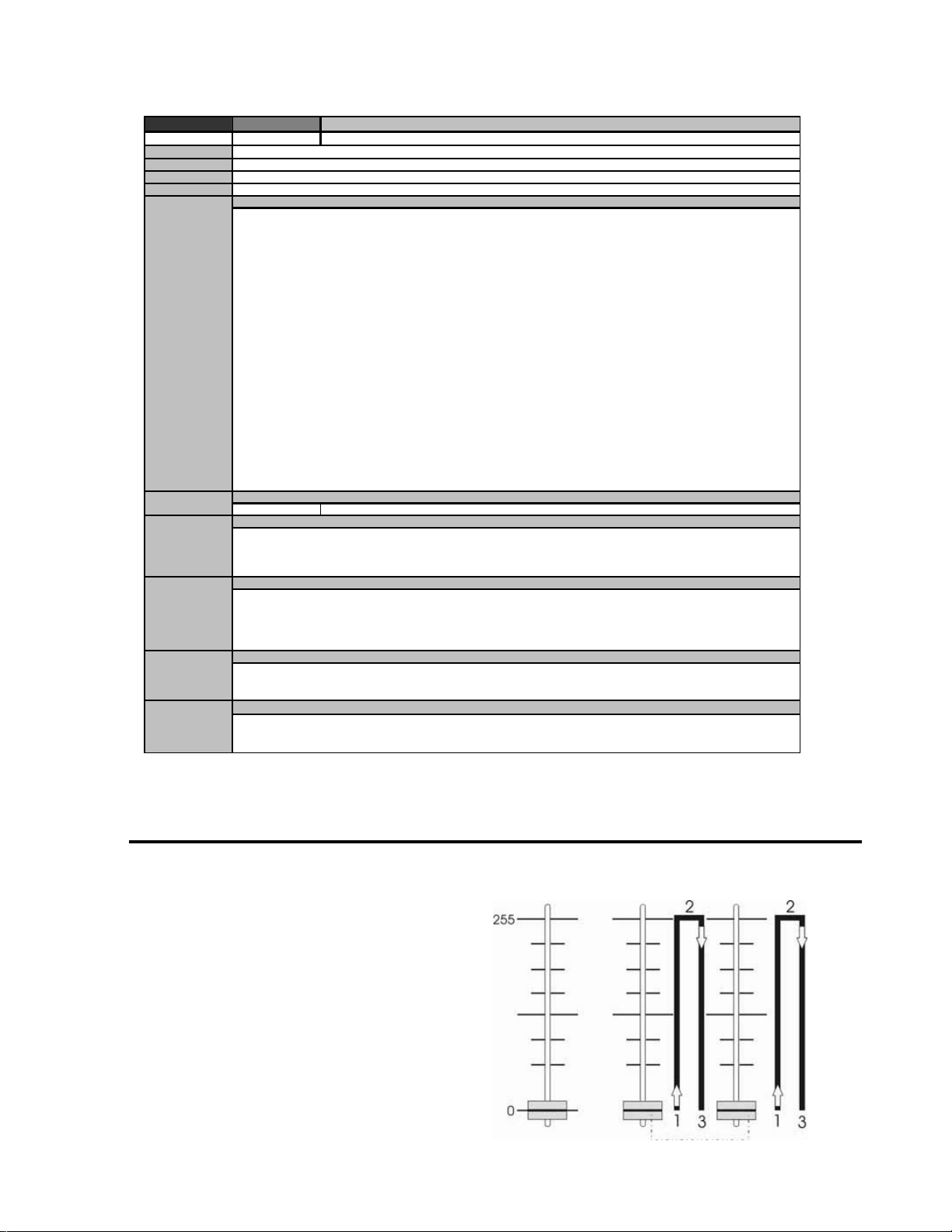

7.0 CHANNELS AND DIGITAL VALUES..................................................................................................11

7.1 SPECIAL ACTION........................................................................................................................12

8.0 LAMP ADJUSTMENT................................................................................................................... 13

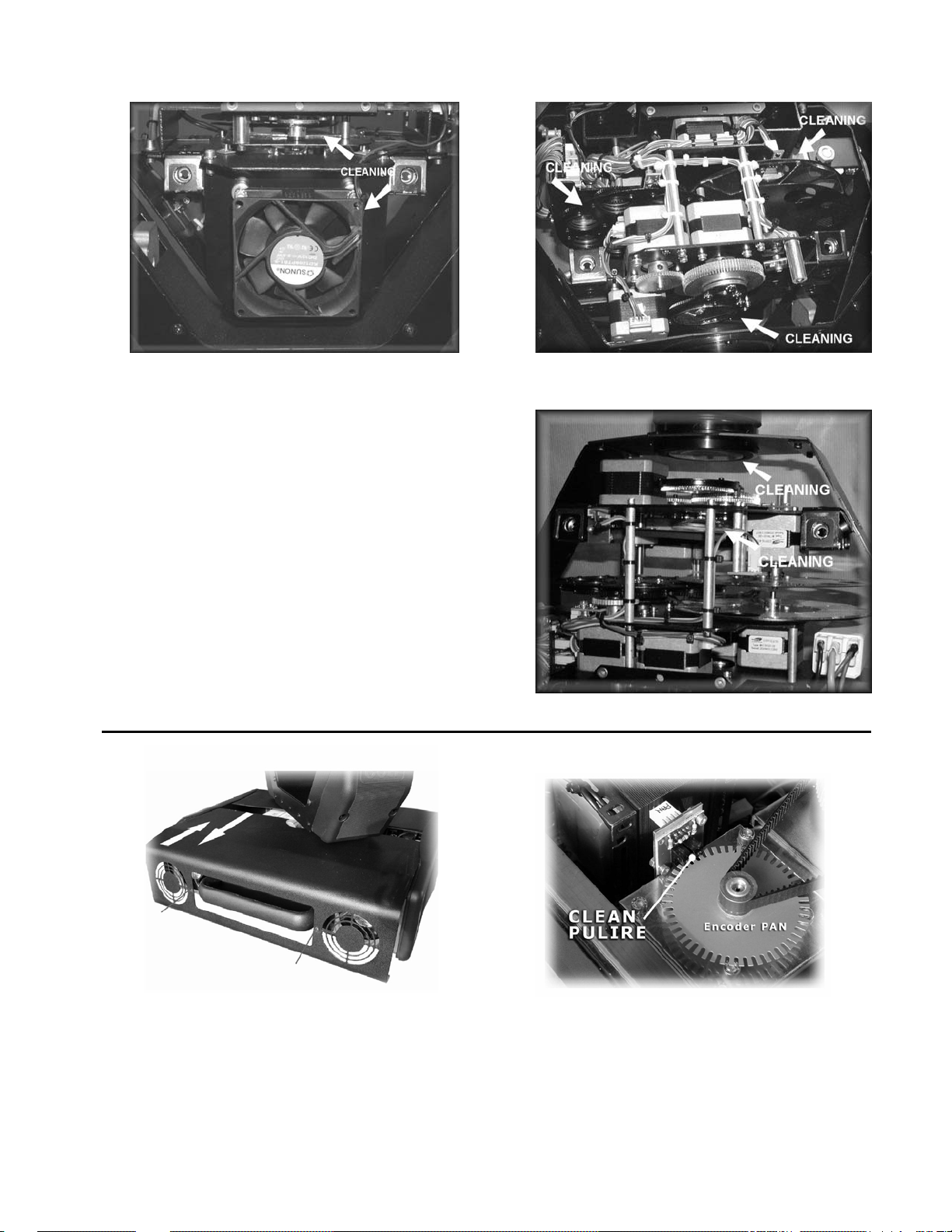

9.0 ORDINARY MAINTENANCE.......................................................................................................... 13

9.1 EXTRAORDINARY MAINTENANCE ............................................................................................... 13

.........................................................................................................5

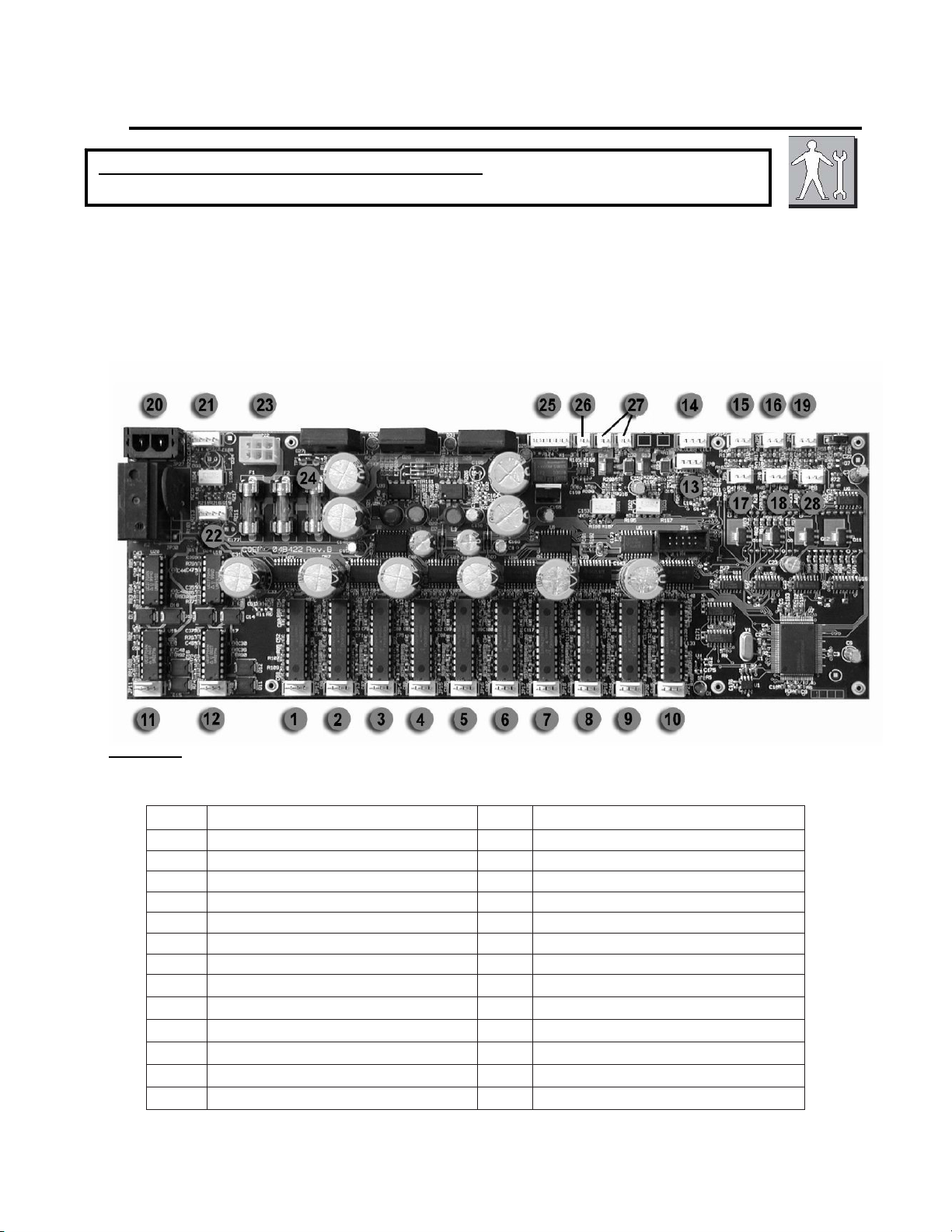

9.2 ELECTRONIC MAINTENANCE ...................................................................................................... 15

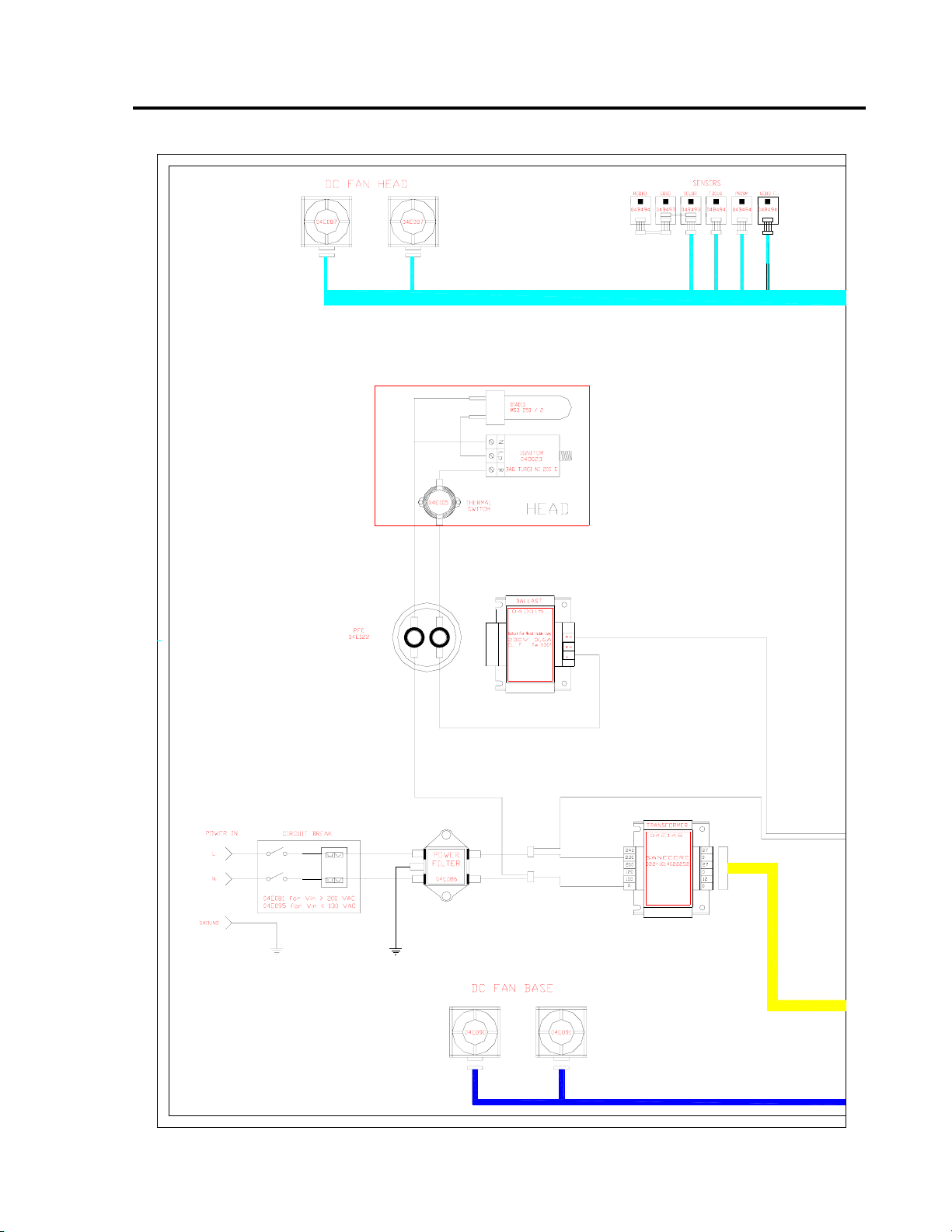

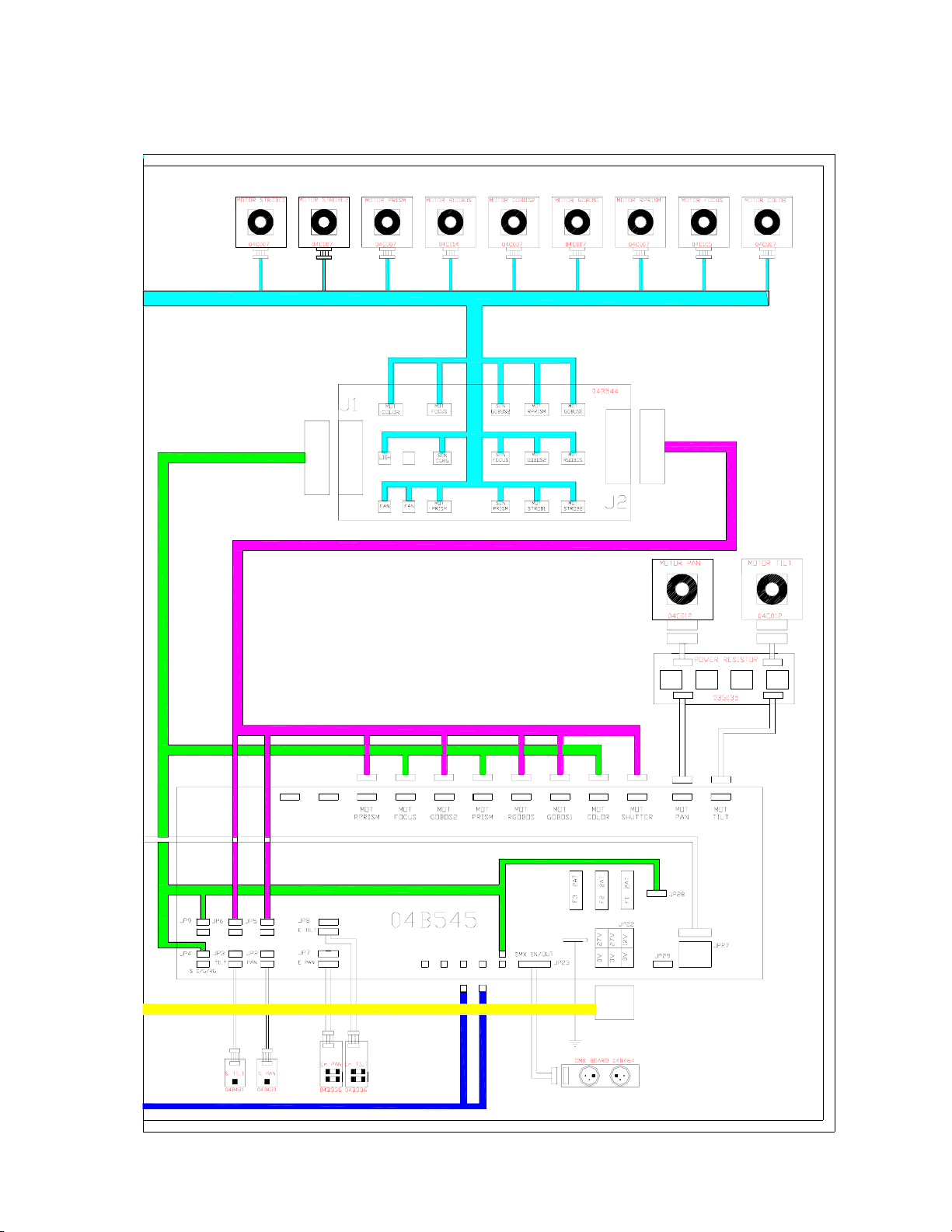

10.0 WIRING DIAGRAMS .............................................................................................................16-17

11.0 TROUBLESHOOTING ................................................................................................................ 18

Please note that as part of COEF's ongoing commitment to continuous product development, specifications are subject to
change without notice. Whilst every care is taken in the preparation of this manual COEF reserves the right to change
specifications in the course of product improvement. The publishers cannot be held responsible for the accuracy of the
information herein, or any consequence arising from them.

Declaration of CE conformity

We Manufacturer IAG Room 2310-2311, Press Building, No 2 Shennan Zhong Road, Shenzhen, China, 518027
Declare that the product
required safety standars in accordance with LVD 73/23 EEC

Shenzhen, 05 May 2006

ATTENTION: carefully read the directions of this manual. Exclusivel y follow the safety rules in force and do not carry out ass embl y and/or
maintenance operations without taking all preca ut ions as indicated in the different sections or without the necessary specialization.

This manual must always accompany the equipment, therefore it must be available and readable at any moment if necessary. Also in

case of sale, rent, change of place and/or ownership, t hese documents shall be enclosed with the relative equipment.

ADVICES FOR A CORRECT INSTALLATION

MP300 Spot DV is in conformity with 89/336 EEC-EMC directive and with the actual

This equipment is destined to an exclusively Professional use.

1) Make sure that all the fastening parts of the spotlight are in good condition. Regulate the proportions of the fastening accessories (screws,
bushes, nuts, supports, etc.) in order to be slightly over-dimensioned as compared to the actual requirements.

2) Carefully check the contents of the packaging and the completeness of the components. If any of the parts listed hereunder is missing,
please contact your Dealer immediately.

3) Do not install the projector outside where the influence of atmospheric factors could damage the unit working (rain, wind, intense heat
etc.) or indoor if there is a high percentage of humidity.

4) Do not clean the projector using water jets or immersion in different liquids. Scrupulously follow the indications given in the chapter
MAINTENANCE.

5) Make the electric connections and the installation / replacement of the lamp after having disconnected the power supply and after haved

positioned the power switch to OFF. The apparatus is classified as belonging to Class 1 type of protection against electric shocks. Its
connection to an earthed mains unit is compulsory. The equipment must be protect by an adeguated magneto-thermal switch. You are
recommended to equip the system with aptly dimensioned differential switches.

6) Do not touch in any case the internal and external parts of the projector without previous authorization of the constructor and make
modifications only by the intervention of qualified staff.

7) Make sure that the projector is correctly fixed on the support as indicated in par. 3.2

8) If the bulb explodes, the particular design of the apparatus prevents the splinters from going outside the projector. All the parts, therefore,
shall be complete and perfectly assembled. The lenses, if visibly damaged, shall be replaced by original spare parts.

9) Minimum distance from illuminated objects: The projector must be positioned in such a way that objects struck by the light beam are

located at least 1,5 metres from the projector objective

10) Minimum distance from inflammable materials: 0.4 meters

11) MAX ambient temperature: 40° C.

12) MAX external surface temperature: 80° C.

13) Don’t look directly the lamp trough the lens.

14) We recommend not to look at the lamp without wearing a proper protection; also ensure that the covers are assembled to
the equipment.

15) Inside the equipment there are high temperatures and tension/current values which might be very dangerous. It is necessary to
disconnect the equipment from the mains before removing its protection covers and wait for 30 minutes at least before touching any part
inside.

16) Do not switch on the equipment if its lamp is not inserted.

17)

Leave sockets and air outlets free from encumbrances and clean them periodically (see “Maintenance” section).
Do not leave the packaging elements (polystyrene, nylon, metal parts, etc.) unattended; they might be dangerous for children.

18)

.

Pag. 3

This manual has been organized in order support the user, the installer or the maintenance operator of the described unit with those

necessary informations for a correct use of the installation and working procedures of the same unit. The various procedures will be just
signalled by indicators (when necessary) evidencing the operation dangers and the necessity of technical support.

Please find here below a list of symbols and relative meaning.

OPERATOR : Not particulary qualified staff, that can operate when no specific knowledge is required.

COEF OPERATOR : Technical staff, qualified and trained by the constructor, for repair and extraordinary operations.

MECHANICAL OP ERATORS: Staff employed in the ordinary mechanical maintenance.

SPECIALIZED MECHANICAL OPERATOR: Qualified staff employed in extraordinary authorized installations and

repair.

ELECTRIC OPERATORS: Staff employed in the ordinary electric maintenance.

SPECIALIZED ELECTRIC OPERATORS: Qualified staff employed in extraordinary authorized installations and repairs.

DANGER SIGNAL: Generic dager signal and electric shock danger signal.

GENERAL WARRANTY CONDITIONS

• The guarantee is valid for a period of 12 months from the date of purchase of the equipment.

• The guarantee is not valid in case a wrong voltage or frequency is selected.

• The parts which are proved to have manufacturing defects are also covered by the guarantee.

• The external parts of the equipment, its removable elements and lamps are excluded from the guarantee; for these parts we recommend
to follow the directions supplied by their manufacturers.

• The guarantee is not valid in case of tampering or repairs carried out by non-authorized personnel.

• The replacement of the equipment during the validity of the guarantee is not provided for.

• The transport freights from and to the manufacturer for repairs under guarantee are at Customer’s charge.

• When applying for the repair, always mention the serial number and the model of the equipment.

PACKING CONTENTS

Carefully check the contents of the packaging and the completeness of the components. If any of the parts

listed hereunder is missing, please contact your Dealer immediately:

• Complete MP300 Spot unit

• This user manual

• 1 cable with 1 XLR 3 pin male and 1 XLR 3 pin female

• 1 safety-chain equipped with two snaps.

• 1 complete bracket for the ceiling fixing

PROTECT NATURE.

DO NOT DISPOSE OF THE PACKAGING IN THE ENVIRONMENT.

CAREFULLY KEEP THE BOX AND T HE COMPONENTS OF THE PACK AG ING FOR ANY DISPLACEMENT

OR RE-SHIPMENT OF THE EQUIPMENT.

Do not leave the packaging elements (polystyrene, nylon, metal parts, etc.) unattended; they

might be dangerous for children.

Pag. 4

1.0 DIMENSIONS & POSITIONING

It is possible to set up the MP300 Spot in any position.

540 mm

380 mm

450mm

2.0 TECHNICAL NOTES

MP300 Spot Code: ZL-013101-01

• Lamp: MSD 250/2 –250 W – 2000 H life – 8000 K

• 16 bit movement resolution -PAN 540° / TILT 270°with automatic repositioning

• Optical system with 3 lenses + dichroic reflector

• 10 colors + white + bi-colors (with Black light filter)

• 7 rotating dicroich / metal gobos all interchangeable and indexable on 540°

• Adjustable strobe

• Shutter motorized

• Linear Dimmer from 0 to 100%

• Rainbow effect adjustable in speed

• Focus motorized

• Rotating 3 faces prism adjustable in speed for both directions

• Multifunction display

• Remote reset via DMX

• Remote On/Off lamp via DMX

• Software upgrade via DMX (with UNI-PROG 8 Accessory)

• Automatic fault survey

• Internal power factor correction

• DMX 512 standard

• Weight:22Kg

Power supply | Absorbed power

Volts Hz I W

230V~ 50Hz 1.7A 380W

Pag. 5

3.0 INSTALLATION

The constructor is not be considered responsible in case of:

•

Improper use of the unit or use by not trained staff

• Use in contrast with the directions on work safety

• Wrong installation

• Defective power supply

• Serious lacks in the necessary maintenance

• Unauthorized modifications and interventions

• Use of spare parts that are not original or not specific for the unit

• Total or partial inobservance of instructions

• Unusual events

3.1 LAMP MOUNTING OR REPLACING

WARNING: read carefully

• Switch off the projector before operating.

• The lamp used in the fixture is a high pressure lamp and must be han dled very carefully.

• The unit is realized to use only MSD 250/2 or compatible lamps; absolutely don’t use other types of lamp.

• The lamp must be changed if damaged or deformed by heat.

• Wait at least 15 minutes after the project or has been switched off before o perating again, in order to l et it cool down
and avoid the lamp explosion.

• Wear protection gloves and glasses.

• Read carefully the lamp builder’s instructions.

• Don’t look directly the lamp.

Wait 30 minutes in order to avoid burns.

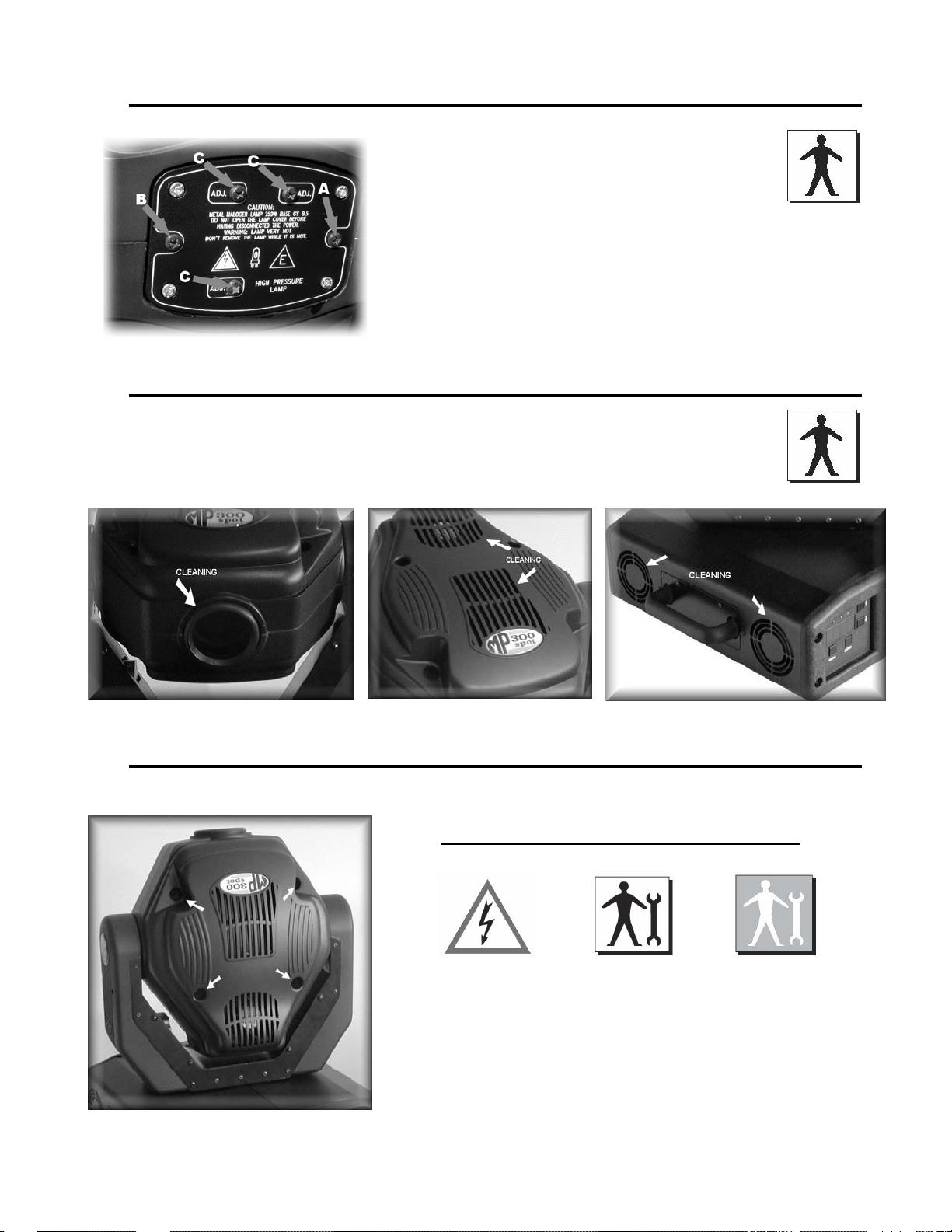

• Unscrew with a cross screwdriver the first screw A for a single turn; unscrew the second one completely B; unscrew completely the
screw A and to remove the cover that supports the lampholder.

• Insert delicately the lamp in the projector support, driving it with the round cover. Pay attention: the lampholder’s wires must
correctly reenter in the projector.

• Block the cover screwing the screws up ( part. A-B).

Pag. 6

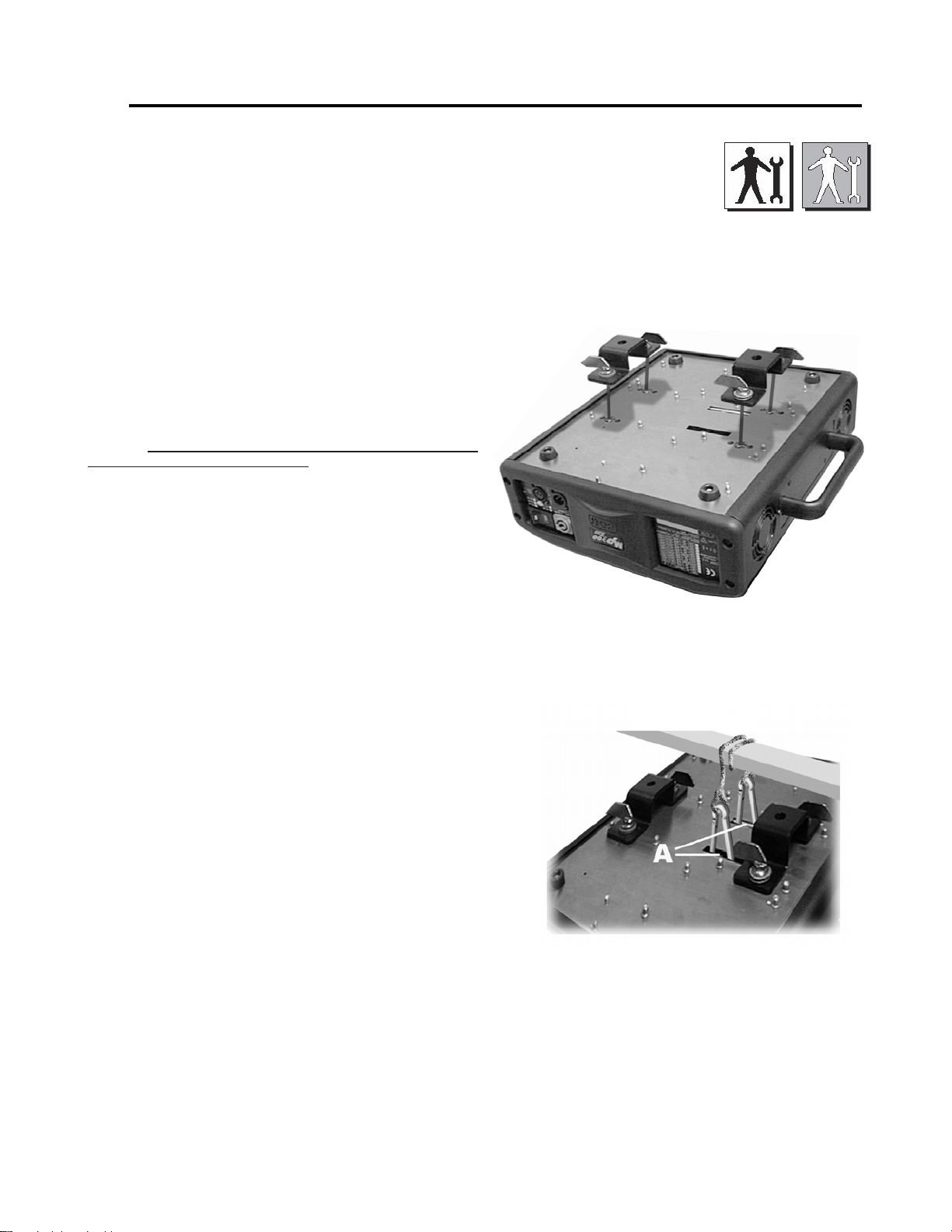

3.2 PROJECTOR INSTALLATION

To fix the MP 300 Spot is necessary, when the installation has to be on a raised-from-the ground

support, to block the quick lock / release brackets of the unit by means of a screw provided with nut and
locknut measuring not less than M10 X 50, to insert in the central pre-arranged hole on the fixing bracket.

In addiction to the provided quick lock/release (omega) brackets, in order to guarantee a
necessary security and in respect of the actual safety rules concerning the projectors’ installation, it is
compulsory to install a safety-chain, equipped with two snaps, provided with the projector, to connect
fixing structure.

ATTENTION: the safety chain, equipped with two snaps which
can be hooked to the two pivots placed under the base of the MP
300 Spot, (see part. A), must be properly installed and fixed to the
supporting structure, in a way that an incidental giving in of the
main bracket would leed to the shortest possible fall of the
projector.

replaced with another original part.

After such an intervention the safety-chain must be

the MP 300 Spot‘s body to the

ATTENTION: COEF is not responsible for installations not

correctly made or made without respecting the above
indications: those installations are considered dangerous

.

Pag. 7

4.0 POWER SUPPLY CONNECTION

WARNING: In order to guarantee the utmost safety, connect the apparatus only to a properly earthed mains system.
The projector is designed to work at the tension and frequency indicated by the electrical data label on the rear. Before

connecting the projector to the mains, a qualified electrician must check its conformity.

The projector must be protect by an adeguated magneto-thermal switch .

•

• Don't power the unit with a dimmer circuit.

Power : indicated in the the serigraphy table (tollerance: +5% / -10%)

Should there be different electrical characteristics or special steps to be carried out, please contact COEF by telephone or e-mail

[e-mail]

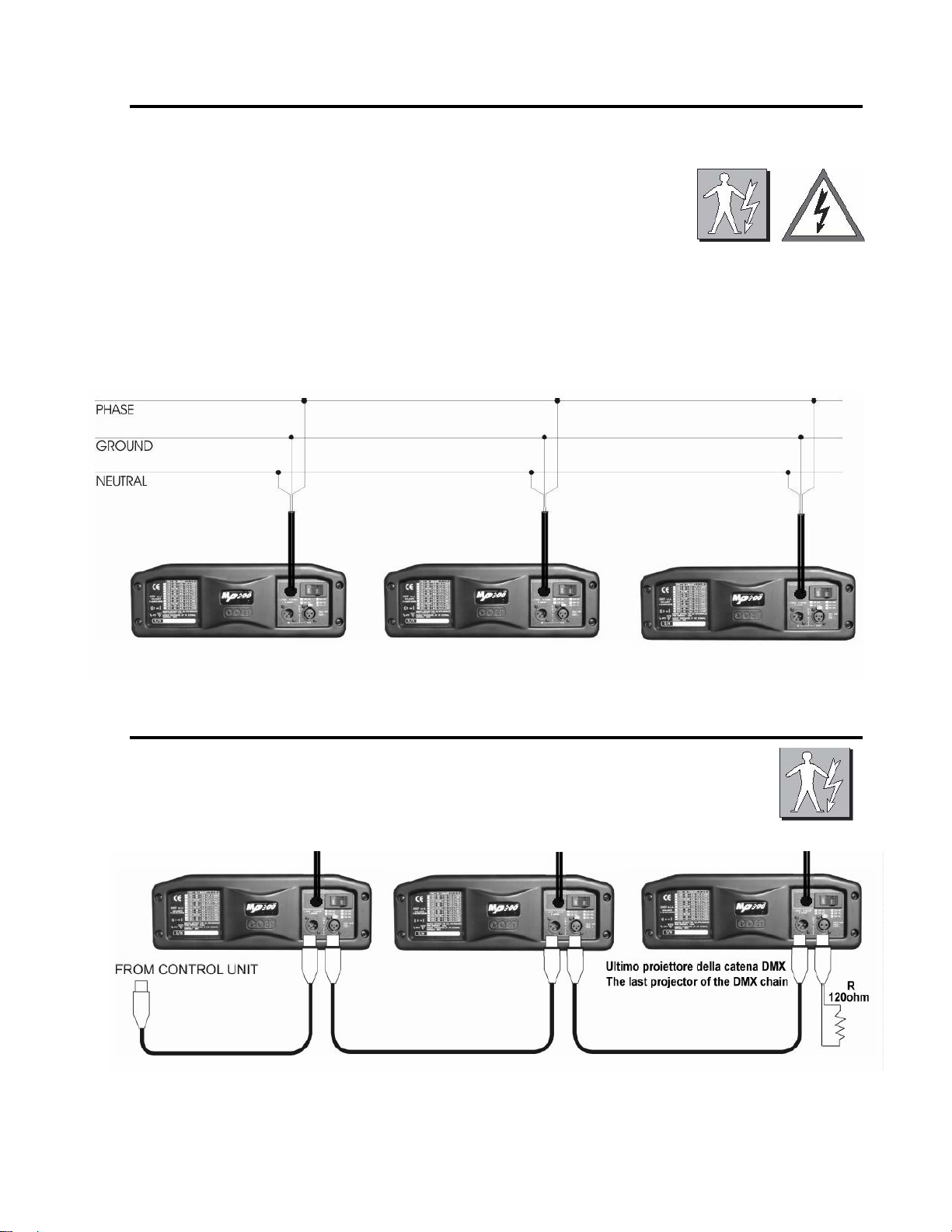

Supply the projector by connecting it as indicated in picture.

4.1 DMX 512 CONNECTIONS

Connect the projector and the control unit to a wire in conformity with the EIA RS-485 standards: braided bipolar,
shielded, 120 ohm of characteristic impedance, 22-24 AWG, equipped with Cannon 3 Pin XRL plugs. Respect the
DMX 512 signal input and output according to the panel indications. A terminal pin with 120 ohm resistance (¼ Watt
minimum) must be inserted between the terminals 2 and 3 in the last piece of apparatus.

Pag. 8

5.0 SPECIAL FUNCTIONS AND PROJECTOR ASSIGNMENT

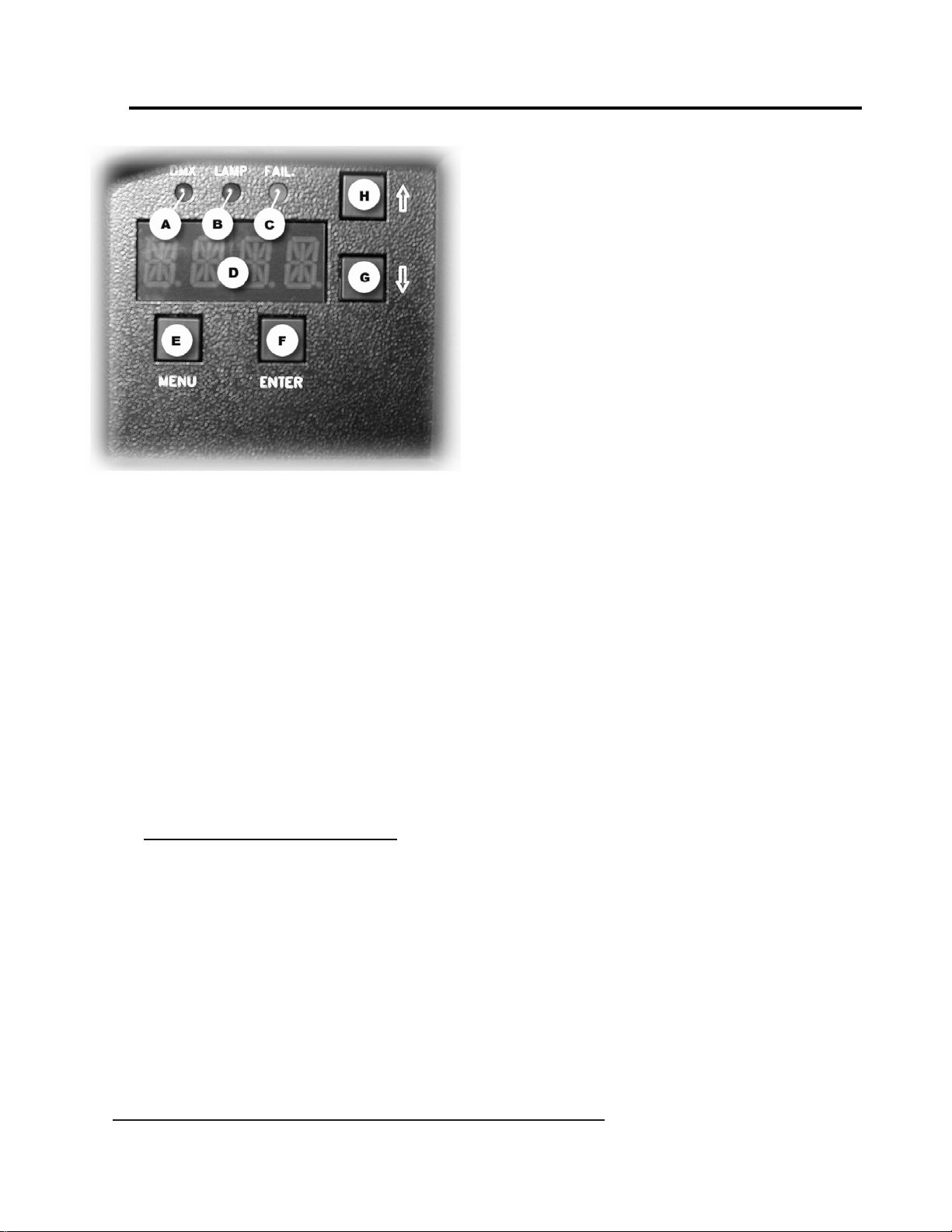

On the front panel of MP 300 Spot you'll find a section for

the additional functions and for setting the projector.

Following the picture, you can see all the offered

possibilities in detail.

All operations are to be carried out with the E, F, G, H

buttons, respectively indicated as MENU, ENTER, DOWN and

UP.

The display D will inform you about the selected functions.

The 3 A, B and C leds will allow you to know:

A = reception of the DMX line.
B = lamp ON.
C = errors indicated on the ERR table (see table 6.0).

On switching the projector on, the display will indicate the type of projector and the version of control software which have been
installed. To this purpose, please remember that this type of projector belongs to a new generation of projectors, designed with the
possibility of updating the software version through the normal DMX connection by means of a programmer deliberately created:
UNI-PROG 8.

After the indication MSTR HOME, the projector carries out the RESET and gets ready to be controlled from the connected
console.

The display will indicate 1 as default value. This means that the first channel occupied by the projector will respond to the values
sent to channel 1 by the DMX line. This enables us to make MP 300 Spot (which we are installing) completely independent from
control or integral with any other installed projector.

General Rules:

By pressing Button MENU (E) and buttons UP and DOWN (H and G) you can select the menu you have to modify.
Once the wished menu is reached, press Button F (ENTER) to confirm your selection and enter the function.
Press G or H to enter the sub-functions if available.

Always confirm your selection with ENTER.

Press MENU to go out of the function and press again to go back to the starting level.

Refer to the Table of Section 6.0 in the following page.
By each pressure, Button MENU (E) permits to go backwards by one level.
G and H(DOWN and UP) buttons select functions and sub-functions.
Button F (ENTER) enters the function and confirms a control.

Example: We installed our projector on the ceiling and for this reason we want the visualization of the display to be correct.

Press MENU

Press H (UP) 15 times up to “MISC”

Press ENTER the Display will show “RSET”

Press H (UP) twice up to “DSPL”

Press ENTER the Display will show “ONOF”

Press H (UP) once up to “STRV”

Press ENTER the Display will show “STND”; this is the actual configuration state.

Press H (UP) once up to R.E.V..; the blinking point indicate the available configuration.

Press ENTER ...... The Display visualization as been rotated to 180°.

Press MENU 3 times to return to starting MENU.

The indication of the display will automatically come back after 120 sec. and inform on the set starting channel DMX.

If we are now in a sub-function, this automatic device will not assume control.

Pag. 9

6.0 MENU, FUNCTION & SUB-FUNCTIONS (*) = default value -factory assigned

DMX 1/498 DMX start channel

TIME

ERR

SHUT

COL

GOBO

RGOB

FCUS

GOBF

PRIS

RPRS

PAN

TILT

SCH

LAM P

MISC

LAMP

MACH SH O W KH,H PROJECTOR w orking hours ( KH = thousa nds H = hours)
E OK No error
E110 EEPROM failure
E22 0 Malfunct io n o f the CO L O R m o to r/ senso r
E230 Malfunction of the GOBOS motor/sensor
E24 0 Malfunct io n o f th e R OTA TION G O BOS m o to r/s e n so r
E25 0 Malfunct io n o f the PA N m ot o r/s e n s o r
E26 0 Malfunct io n o f the TIL T m o to r/ se n s o r
E27 0 Malfunct io n o f the FO C U S m ot o r/s e n s or
E28 0 Malfunct io n o f the GO BOS II moto r/ senso r
E29 0 Malfunct io n o f the PR ISM m o to r/ senso r
E420 No ign ition of the L A M P b e yo n d 3 a tte mpts.
E51 0 Ma lfu nc tio n enco d e r PA N
E52 0 Ma lfu nc tio n enco d e r T ILT
W310 Checksum Setu

W410 LAMP working hours for more than 1500 hours
HOME Home SHUTTER
TEST Test SHUTTER
ADJ P1 -49/ 4 9 F in e re gu la t io n o f the clos in g S H U T T E R

SET Reserved
HOME Home COLOR
TEST Test COLOR
CSHU T (*) OFF/ ON COLOR change in black-out position

ADJ P1/P20 -29/29 Fine reg
HOME Home GOBOS
TEST Test GOBOS
GSHU T (*) OFF/ ON GOBOS change in black-out position

ADJ P1 -29/ 2 9 F in e re g
HOME Home ROTATION GOBOS

TEST Test ROTATION GOBOS
HOME Home FOCUS

TEST Test FOCUS
HOME Home GOBOS FIXED
TEST Test GOBOS FIXED

ADJ P1 -29/ 2 9 F in e re g
HOME Home PRISM
TEST Test PRISM

ADJ P1 -50/50 Fine reg
TEST Test of the PRISM ROTATION
HOME Home PAN
TEST Test PAN
STRV (*) STDN / REV Switch movements direction
ENC O (*) O N / O FF ON/ O FF th e a uto matic re po sition ing of the P A N
HOME Home TILT
TEST Test TILT
STRV (*) STDN / REV Switch movements direction (U P / DOW N )
ENC O (*) O N / O FF ON/ O FF th e a uto matic re po sition ing of the T ILT
CH1 / CH14 DMX value for the indicate channel
ONOF (*) O N / OFF / AUTO Lamp ON / OFF / Lamp Off after 1 hours of no DMX change
CD MX (* ) NO / Y ES Lamp sw itching on by D M X control
RSET M A STER H O ME (Starting RESET)
RDMX (*) YES / NO MASTER HOME via DMX control

DSPL

SWPT (*) STND / SW AP Channel control switch PAN / TILT
VE R Sho w the inst a lle d s o ftware v ersion

SHOW KH,H LAMP w orking hours (KH = thousand H = hours)
RST GO? LAMP working hours reset (confirm by ENTER)

(*) ON / O FF D is
(*) STND / R EV 1 8

p not valid

ulation of the COLOR position (P1/P20)

ula tio n o f th e N eutra l G O BO p o s itio n

ula tio n o f th e N eutra l G O BO F IX ED Po s itio n

ulation of the PRISM Position

(DX / SX)

play On / Display OFF

0 degree rot a tio n o f th e v is u a litation d isp lay

Pag. 10

7.0 CHANNELS AND DIGITAL VALUES

CHANNEL DMX VALUE

1

2

3

4

SHUTTER-STROBO

0-5

6-100
101-110
111-120
121-126 DIMMER 0> 100% slow Faster shut down
127-132 DIMMER 0> 100% middle Faster shut down
133-138 DIMMER 0> 100% fast Faster shut down
139-144 DIMMER 0> 0% slow Faster open
145-150 DIMMER 0> 0% middle Faster open
151-156 DIMMER 0> 100% fast Faster open
157-162 DIMMER 0> 100% > 0 slow
163-168 DIMMER 0> 100% > 0 middle
169-174 DIMMER 0> 100% > 0 fast
175-180 STROBE lamp from 1 to 6 random [ reg 0.0-0.5 sec.]
181-186 STROBE lamp from 1 to 6 random [ reg 0.6-1.5 sec.]
187-192 STROBE lamp from 1 to 6 random [ reg 1.6-2.5 sec.]
193-250 STROBE Speed adjiustament
251-255 SHUTTER OPEN

COLORS

0-5

6-15
16-25
26-35
36-45
46-55
56-65
66-75
76-85
86-95

96-105
106-115
116-125
126-135
136-145
146-155
156-165
166-175
176-185
186-195
196-200
201-205
206-225
226-245
246-255

GOBOS

0-11
12-23 GOBO 1 Channel 4 control rotation
24-35 GOBO 2 Channel 4 control rotation
36-47 GOBO 3 Channel 4 control rotation
48-59 GOBO 4 Channel 4 control rotation
60-71 GOBO 5 Channel 4 control rotation
72-83 GOBO 6 Channel 4 control rotation
84-95 GOBO 7 Channel 4 control rotation

96-107 GOBO 1 Channel 4 control position
108-119 GOBO 2 Channel 4 control position
120-131 GOBO 3 Channel 4 control position
132-143 GOBO 4 Channel 4 control position
144-155 GOBO 5 Channel 4 control position
156-167 GOBO 6 Channel 4 control position
168-179 GOBO 7 Channel 4 control position
180-191 GOBOS Random FAST
192-203 GOBOS Random SLOW
204-229 CW Rotation Adjustment
230-255 CCW Rotation Adjustment

GOBOS ROTATION

0-5

6-130 CW Rotation speed adjustment of the gobo ( if he value of the channel 3 is from 12 to 95)

131-255 CCW Rotation speed adjustment of the gobo ( if he value of the channel 3 is from 12 to 95)

6-255 GOBOS POS. Position adjustment of the gobo ( if

FUNCTION

SHUTTER CLOSED
DIMMER from channel 12 value
DIMMER 0>100 % Automatic 6 sec
DIMMER 100% > 0 Automatic 6 sec.

NEUTRAL
YELLOW
BLUE
MAGENTA
LIGHT GREEN
ORANGE
CYAN
PINK
RED
DARK GREEN
WOOD
WHITE-YELLOW
YELLOW-BLUE
BLUE-MAGENTA
MAGENTA - LIGHT GREEN
LIGHT GREEN - ORANGE
ORANGE - CYAN
CYAN - PINK
PINK - RED
RED - DARK GREEN
RANDOM FULL-COLOR ( fast )
RANDOM FULL-COLOR ( slow )
CW ROTATION ADJUSTMENT
CCW ROTATION ADJUSTMENT
RAINBOW EFFECT

NEUTRAL

STOP

the value of the channel 3 is from 96 to 179)

Pag. 11

t

t

CHANNEL DMX VALUE

5
6
7
8

9

10

11

12

PAN MOVEMENT
PAN MOVEMENT FINE ADJUSTM ENT
TILT MOVEMENT
TILT MOVEMENT FINE ADJUSTMENT
GOBOS FIXED

0-10

11-20 GOBO 1 BEAM REDUCER

21-30 GOBO 2

31-40 GOBO 3

41-50 GOBO 4

51-60 GOBO 5

61-70 GOBO 6

71-80 GOBO 7

81-90 GOBO 8

91-100 GOBO 9

101-110 GOBO 1 shake BEAM REDUCER Adjiustment speed

111-120 GOBO 2 shake Adjiustment speed

121-130 GOBO 3 shake Adjiustment speed

131-140 GOBO 4 shake Adjiustment speed

141-150 GOBO 5 shake Adjiustment speed

151-160 GOBO 6 shake Adjiustment speed

161-170 GOBO 7 shake Adjiustment speed

171-180 GOBO 8 shake Adjiustment speed

181-190 GOBO 9 shake Adjiustment speed

191-197 GOBOS Random FAST

198-205 GOBOS Random SLOW

206-230 CW Rotation Adjustment

231-255 CCW Rotation Adjustmen

FOCUS ADJUSTMENT

0-255 FOCUS

PRISM

0-10 NEUTRAL

11-80 PRISM 3 FACES

81-170 CW PRISM rotation with speed adjustment
171-255 CCW PRISM rotation with speed adjustmen

DIMMER

0-5 DIMMER Closed

6-250 DIMMER Regolation

251-255 DIMMER Open

13

14

EFFECT T IME ADJUSTM ENT ( WORK ON CHANNEL 10)

0-5 NO delay

6-250 ADJUSTMENT delay

251-255 MAX delay

MOVIMENT S TIME ADJUSTMENT ( WORK ON CHANNELS 5-7 )

0-5 NO delay

6-250 ADJUSTMENT delay

251-255 MAX delay

FUNCTION

NEUTRAL

Warning:

Linear Adjustment

Channel 1 at a value between 6 and 250, in order to control DIMMER whit this channel

7.1 SPECIAL ACTION

When the lamp control via DMX (CDMX) and the reset via DMX (RDMX) function have been activated in the configuration menu,

it’s possible, by a combination of the channels values, to control the lamp switch ON/OFF or to allow the projector MASTER RESET.

Lamp ON via DMX

:

CHANNEL 2 = value 0
CHANNEL 3 and CHANNEL4=value0>255>0

Lamp OFF via DMX:
CHANNEL 2 = value 255
CHANNEL 3 and CHANNEL4=value0>255>0

MASTER RESET via DMX:
CHANNEL 1 = value 0
CHANNEL 2 and CHANNEL3=value0>255>0

Pag. 12

8.0 LAMP ADJUSTMENT

• Don’t look directly the beam trough the lens.

• The lamp is pre-regulated by the factory. Only fine-adjustment.

• Don’t move the screws ” C ” up to upper or lower extremities.

Lamp adjustment is necessary to obtain a uniform and powerful light beam.

Switch on the projector and set the channels without gobo and colors. Adjust the
three screws C until you reach the ideal condition between power and
homogeneity.

9.0 ORDINARY MAINTENANCE

Ordinary maintenance on the projectors MP 300 Spot is necessary to maintain the perfect efficiency of the unit

and to avoid defects like the low luminosity of the light beam or the elevated overheating of the equipment.

In the figures you can see those components that can easily accumulate dust and grease. Clean them using a

soft cloth and common glass-cleaners.

9.1 EXTRAORDINARY MAINTENANCE

WARNING: Switch Off the projector before operating

To make an extraordinary maintenance, it is necessary the presence of a
generic or qualified mechanical operator, according to the type of the needed
intervention.

Open the cover of MP 300 Spot by the 4 + 4 screw indicated in the picture.
Clean carefully the indicated parts.

Pag. 13

It is very important that the two fans of the ventilation system locaded
over the lamp are kept clean by carefully using slightly compressed air to
remove dust.

To obtain a correct projection, we recommend that the entire optical
trajectory with its components (the parabolic reflector, the anti-heat filters,
the gobos, the colour wheel, the focusing lens and the external lenses)
are kept clean.

respectively. The picture clearly show how you can reach these components and where you can correctly operate for their
maintenance.

The sensors of the encoders concernine PAN and TILT movements are located in the base and in the arm of MP 300 Spot

Pag. 14

9.2 ELECTRONIC MAINTENANCE

WARNING: switch off the projector before operating.

This section is dedicated in detail to the electronic connections between the card and the mechanical components, assembled in the
projector.These information will be absolutely necessary when the mechanical unit has to be removed from the projector for
maintenance and / or repair.

The connections are made using handy connectors and are detailed in figure where you can find indications about the
connection between a specific connector and a specific component of the mechanical unit. This includes the motors and the sensors
of the various effects wheels ( color, gobos, prisms, shutter etc.).

WARNING! An improper use of this documentation made by not specifically qualified staff can damage
irremediably the electronic and/or mechanical components of the projector.

1 Motor SHUTTER / STROBE 15 Sensor PAN

2 Motor COLOR 16 Sensor TILT

3 Motor GOBOS 17 Sensor PRISM

4 Motor ROTATION GOBOS 18 Sensor GOBOS FIX

5 Motor PRISM 19 Sensor COLOR / GOBOS / GOBOS ROT.

6 Motor GOBOS FIX 20 ON / OFF Lamp

7 Motor FOCUS 21 Electronic ballast connector (not in use)

8 Motor PRISM ROTATION 22 LIGHT Sensor

9 No connect 23 Power Connector

10 No connect 24 Faston Ground Connection

11 Motor TILT 25 DMX IN / OUT

12 Motor PAN 26 Head FAN

13 Encoder TILT 27 Base FAN

14 Encoder PAN 28 Sensor FOCUS

Pag. 15

10.0 WIRING DIAGRAMS

Pag. 16

Pag. 17

11.0 TROUBLESHOOTING

The projector doesn’t swich on

- The power supply is not present - Check if the regular power supply is present

on the projector.

- The lamp is not working - Replace the lamp.

The projector swiches on but
doesn’t answer to commands.

Defecting projection.

Projection with halo.

The color or other effects doesn’t
coincide to the selected value.

The PAN and TILT movement
doesn’t coincide to the selected
value.

- The thermal switch is active

- Wrong DMX configuration

- Defective cables

- LED A is off

- Defective control unit

- The lens is broken

- Dust or grease stored on the all
parts of projector

- Dust or grease stored on the all
parts of projector

- Defective motor

-Electronic board

- Defective motor

-Electronic board

- Just to wait for little of time.

- Make sure that the projector is correctly

configurated.

- Replace or repair the DMX cable.

- Check the control unit & DMX cable.

- Check the control unit by means of other

working projectors. Technical aid is required.

- Check that the lens are not broken.

- Remove dust or grease stored on lenses.

- Carefully clean the optical group lenses and
the projector components (see “Maintenance”
chapter).

- Technical aid is required.

- Technical aid is required.

- Technical aid is required.

- Technical aid is required.

The projector does not carry out
the automatic repositioning of the
PAN or TILT movements.

-ENCO off in the PAN/TILT confi­guration menu (cap. 6.0)

Pag. 18

- Set ON ENCO Function of PAN/TILT con­ figuration menu (cap. 6.0).

®
