Coef MP 150 SPOT DV User Manual

Download

http://www.coef.it e-mail:info@coef.it

150

Code ZL-013001-01

OPERATING INSTRUCTIONS

Revision 2.

Revision 2.0

SUMMARY

DECLARATION OF CE CONFORMITY................................................................................ 2

ADVICES FOR A CORRECT INSTALLATION...................................................................... 2

GENERAL WARRANTY CONDITIONS............................................................................... 3

PACKING CONTENTS ..................................................................................................... 3

1.0 DIMENSIONS & POSITIONING................................................................................. 4

2.0 TECHNICAL NOTES .................................................................................................. 4

3.0 INSTALLATION........................................................................................................ 5

3.1 LAMP MOUNTING OR REPLACING ............................................................................ 5

3.2 PROJECTOR INSTALLATION..................................................................................... 6

4.0 POWER SUPPLY CONNECTION ................................................................................. 7

4.1 DMX 512 CONNECTIONS.......................................................................................... 7

5.0 SPECIAL FUNCTIONS AND PROJECTOR ASSIGNMENT............................................... 8

6.0 MENU, FUNCTION & SUB-FUNCTIONS ...................................................................... 9

7.0 CHANNELS AND DIGITAL VALUES.......................................................................... 10

7.1 SPECIAL ACTION ................................................................................................... 11

7.2 AUTONOMOUS OPERATION.................................................................................... 11

8.0 LAMP ADJUSTMENT ............................................................................................... 12

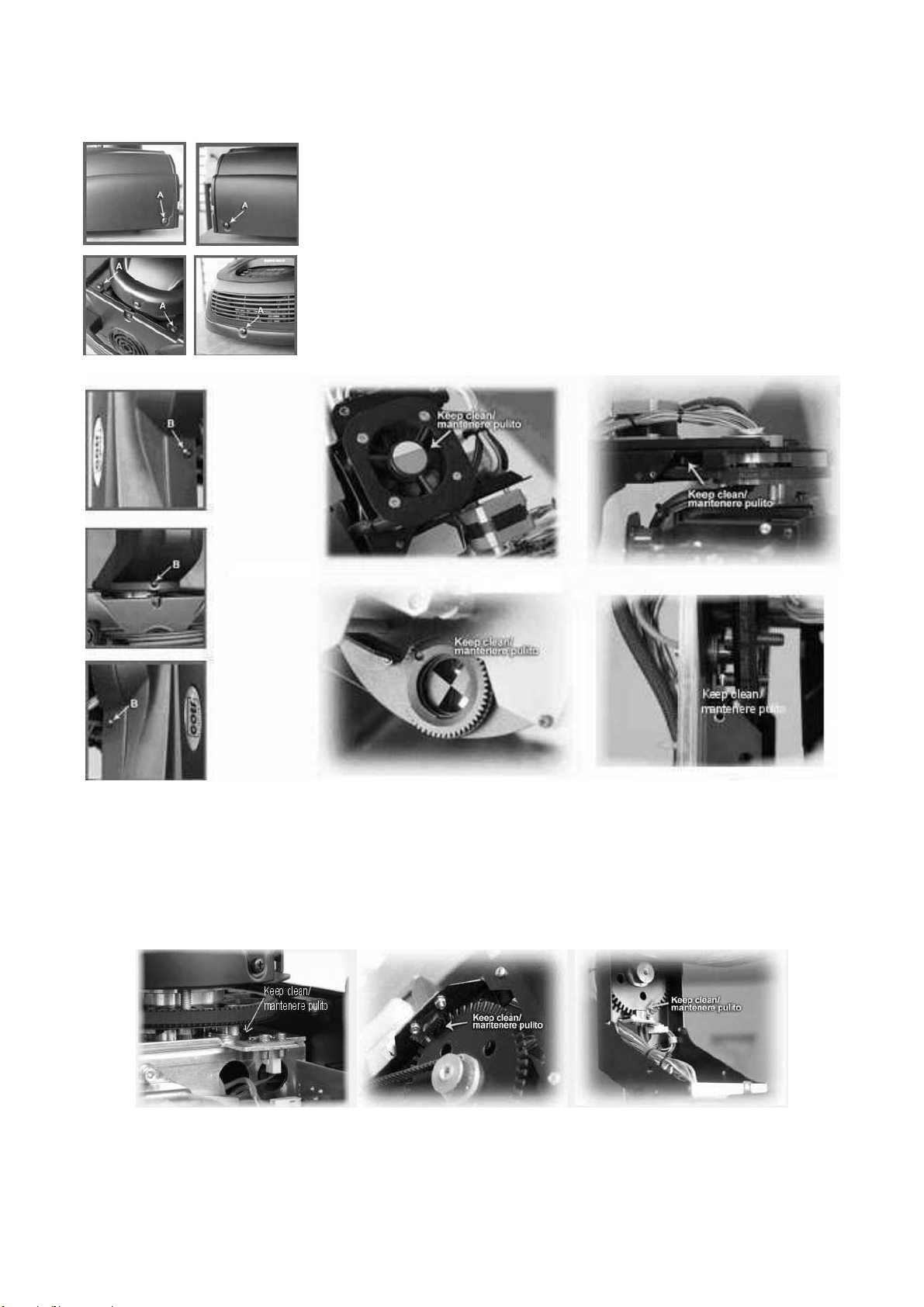

9.0 ORDINARY MAINTENANCE..................................................................................... 12

9.1 EXTRAORDINARY MAINTENANCE........................................................................... 12

9.2 ELETTRONIC MAINTENANCE .................................................................................. 14

10.0 TROUBLESHOOTING ............................................................................................ 15

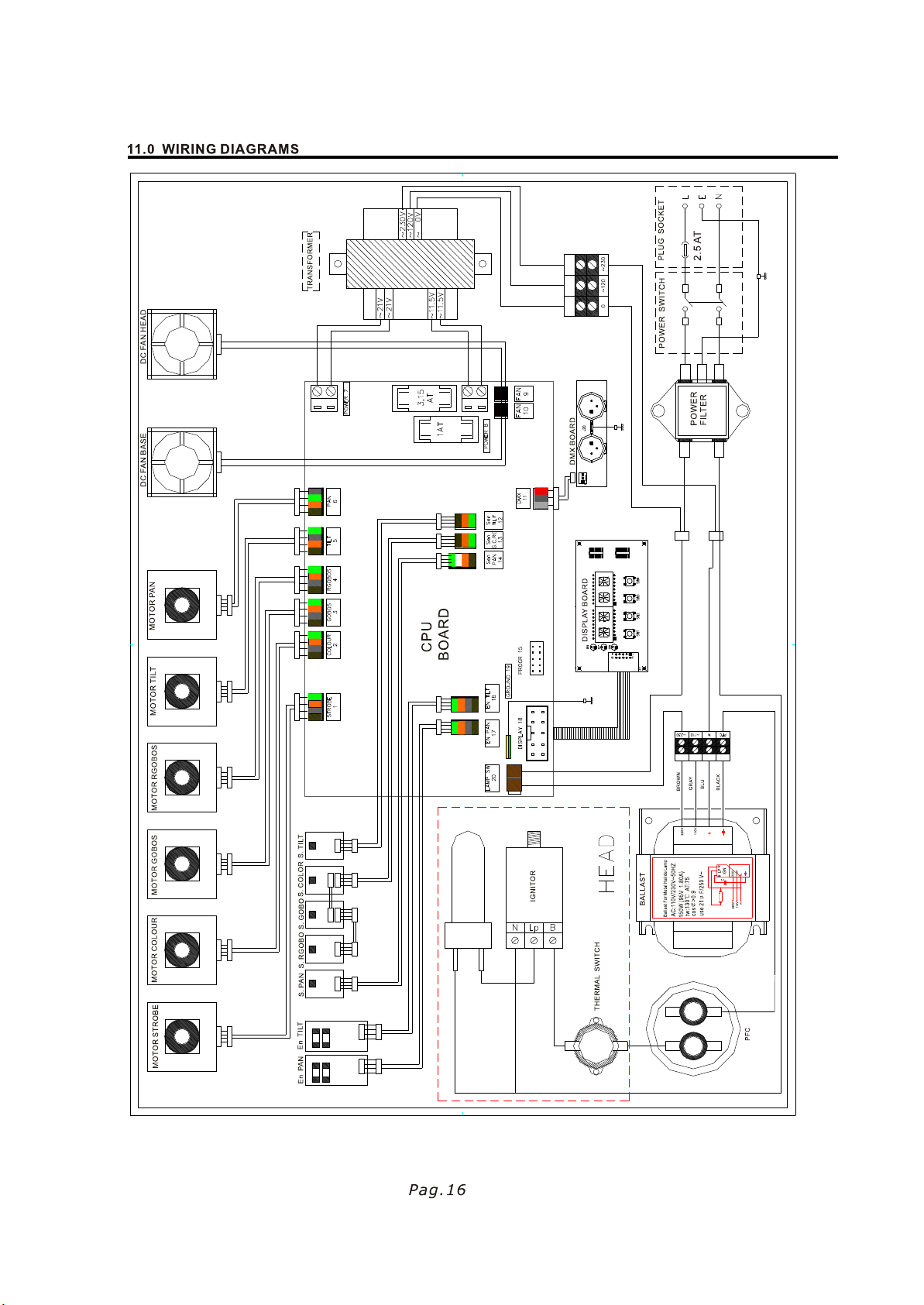

11.0 WIRING DIAGRAMS............................................................................................. 16

Pag.1

1 m

We Manufacturer

IAG

Declare that the product

Declaration of CE conformity

Room 2310-2311, Press Building, No 2 Shennan Zhong Road, Shenzhen,

MP150 Spot DV is in conformity with 89/336 EEC-EMC directive and with the actual

, 518027

China

required safety standars in accordance with LVD 73/23 EEC

Shenz

hen, 01 October 2005

ATTENTION: carefully read the directions of this manual. Exclusively follow the safety rules in force and do not carry out assembly and/or maintenance operations without taking all precautions as indicated in the different sections or without the necessary specialization.

This manual must always accompany the equipment, therefore it must be available and readable at any moment if necessary. Also in

case of sale, rent, change of place and/or ownership, these documents shall be enclosed with the relative equipment.

ADVICES FOR A CORRECT INSTALLATION

This equipment is destined to an exclusively Professional use.

1) Make sure that all the fastening parts of the spotlight are in good condition. Regulate the proportions of the fastening accessories (screws, bushes, nuts, supports, etc.) in order to be slightly over-dimensioned as compared to the actual requirements.

2) Carefully check the contents of the packaging and the completeness of the components. If any of the parts listed hereunder is missing, please contact your Dealer immediately.

3) Do not install the projector outside where the influence of atmospheric factors could damage the unit working (rain, wind, intense heat etc.) or indoor if there is a high percentage of humidity.

4) Do not clean the projector using water jets or immersion in different liquids. Scrupulously follow the indications given in the chapter MAINTENANCE.

5) Make the electric connections and the installation / replacement of the lamp after having disconnected the power supply and after haved

positioned the power switch to OFF.The apparatus is classified as belonging to Class 1 type of protection against electric shocks. Its connection to an earthed mains unit is compulsory. The equipment must be protect by an adeguated magneto-thermal switch. You are recommended to equip the system with aptly dimensioned differential switches.

6) Do not touch in any case the internal and external parts of the projector without previous authorization of the constructor and make modifications only by the intervention of qualified staff.

7) Make sure that the projector is correctly fixed on the support as indicated in par. 3.3

8) If the bulb explodes, the particular design of the apparatus prevents the splinters from going outside the projector. All the parts, therefore, shall be complete and perfectly assembled. The lenses, if visibly damaged, shall be replaced by original spare parts. Minimum distance from illuminated objects: The projector must be positioned in such a way that objects struck by the light beam are

located at least 1 metres from the projector objective

10) Minimum distance from inflammable materials: 0.4 meters

11) MAX ambient temperature:

12) MAX external surface temperature:

13) Don’t look directly the lamp trough the lens.

14) We recommend not to look at the lamp without wearing a proper protection; also ensure that the covers are assembled to the equipment.

15) Inside the equipment there are high temperatures and tension/current values which might be very dangerous. It is necessary to disconnect the equipment from the mains before removing its protection covers and wait for 30 minutes at least before touching any part inside.

16) Do not switch on the equipment if its lamp is not inserted.

Leave sockets and air outlets free from encumbrances and clean them periodically (see “Maintenance” section).

17)

18)

Do not leave the packaging elements (polystyrene, nylon, metal parts, etc.) unattended; they might be dangerous for children.

40° C.

80° C.

Pag. 2

This manual has been organized in order support the user, the installer or the maintenance operator of the described unit with those necessary

informations for a correct use of the installation and working procedures of the same unit.The various procedures will be just signalled by indicators (when necessary) evidencing the operation dangers and the necessity of technical support.

Please find here below a list of symbols and relative meaning.

OPERATOR

: Not particulary qualified staff, that can operate when no specific knowledge is required

COEF OPERATOR: Technical staff, qualified and trained by the constructor, for repair and extraordinary operations.

MECHANICAL OPERATORS

SPECIALIZED MECHANICAL OPERATOR

repair.

: Staff employed in the ordinary mechanical maintenance.

ELECTRIC OPERATORS

SPECIALIZED ELECTRIC OPERATORS

DANGER SIGNAL: Generic dager signal and electric shock danger signal.

GENERAL WARRANTY CONDITIONS

: Staff employed in the ordinary electric maintenance.

: Qualified staff employed in extraordinary authorized installations and

: Qualified staff employed in extraordinary authorized installations and repairs.

•

The guarantee is valid for a period of 12 months from the date of purchase of the equipment.

• The guarantee is not valid in case a wrong voltage or frequency is selected.

• The parts which are proved to have manufacturing defects are also covered by the guarantee.

• The external parts of the equipment, its removable elements and lamps are excluded from the guarantee; for these parts we recommend

to follow the directions supplied by their manufacturers.

• The guarantee is not valid in case of tampering or repairs carried out by non-authorized personnel.

• The replacement of the equipment during the validity of the guarantee is not provided for.

• The transport freights from and to the manufacturer for repairs under guarantee are at Customer’s charge.

• When applying for the repair, always mention the serial number and the model of the equipment.

PACKING CONTENTS

Carefully check the contents of the packaging and the completeness of the components. If any

of the parts listed hereunder is missing, please contact your Dealer immediately:

•

Complet MP150 Spot DV unit

• This user manual

•

1 cable with 1 XLR 3 pin male and 1 XLR 3 pin female

• 1 AC Power cord

•

1 safety-chain equipped with two snaps.

• 1 complete bracket for the ceiling fixing

•

1 bee M10

PROTECT NATURE.

DO NOT DISPOSE OF THE PACKAGING IN THE ENVIRONMENT.

CAREFULLY KEEP THE BOX AND THE COMPONENTS OF THE PACKAGING FOR ANY DISPLACEMENT

OR RE-SHIPMENT OF THE EQUIPMENT.

Do not leave the packaging elements (polystyrene, nylon, metal parts, etc.) unattended; they might be

dangerous for children.

Pag.3

1.0 DIMENSIONS & POSITIONING

It is possible to set up the MP150 Spot DV in any position.

2.0 TECHNICAL NOTES

MP150 Spot DV Code: ZL-013001-01

•

Lamp: HSD 150/70 -12.000 lumen

•

16 bit movement resolution -PAN 540° / TILT 270°with automatic repositioning

• Optical system with 3 lenses + dichroic reflector

•

11 colors + white + bi-colors

• 5 rotating metal gobos all interchangeable+2dichroic gobo

•

Adjustable strobe

• Rainbow effect adjustable in speed

•

Focus adjustable

• Black light filter

•

Shutter motorized

• Multifunction display

•

Remote reset via DMX

•

Remote On/Off lamp via DMX

•

Software upgrade via DMX (with UNI-PROG 8 Accessory)

•

Automatic fault survey

• Internal power factor correction

•

DMX 512 standard

• Weight:13Kg

Power supply | Absorbed power

Volts Hz I W

230V~ 50Hz 0,9A. 210W

Pag.4

3.0 INSTALLATION

The constructor is not be considered responsible in case of:

•

• Use in contrast with the directions on work safety

• Wrong installation

• Defective power supply

• Serious lacks in the necessary maintenance

• Unauthorized modifications and interventions

• Use of spare parts that are not original or not specific for the unit

• Total or partial inobservance of instructions

• Unusual events

Improper use of the unit or use by not trained staff

3.1 LAMP MOUNTING OR REPLACING

WARNING: read carefully

•

• The lamp used in the fixture is a high pressure lamp and must be handled very carefully.

• The unit is realized to use only HSD 150/70 or compatible lamps; absolutely don’t use other types of lamp.

• The lamp must be changed if damaged or deformed by heat.

• Wait at least 15 minutes after the projector has been switched off before operating again, in order to let it cool down

• Wear protection gloves and glasses.

• Read carefully the lamp builder’s instructions.

• Don’t look directly the lamp.

Switch off the projector before operating.

and avoid the lamp explosion.

Wait 30 minutes in order to avoid burns. Unscrew with a cross screwdriver the 4 screw A and to remove the cover that supports the lampholder. Insert delicately the lamp in the projector support, driving it with the cover. Pay attention: the lampholder’s wires must correctly reenter in the projector. Block the cover screwing the screws up ( part. A).

Pag.5

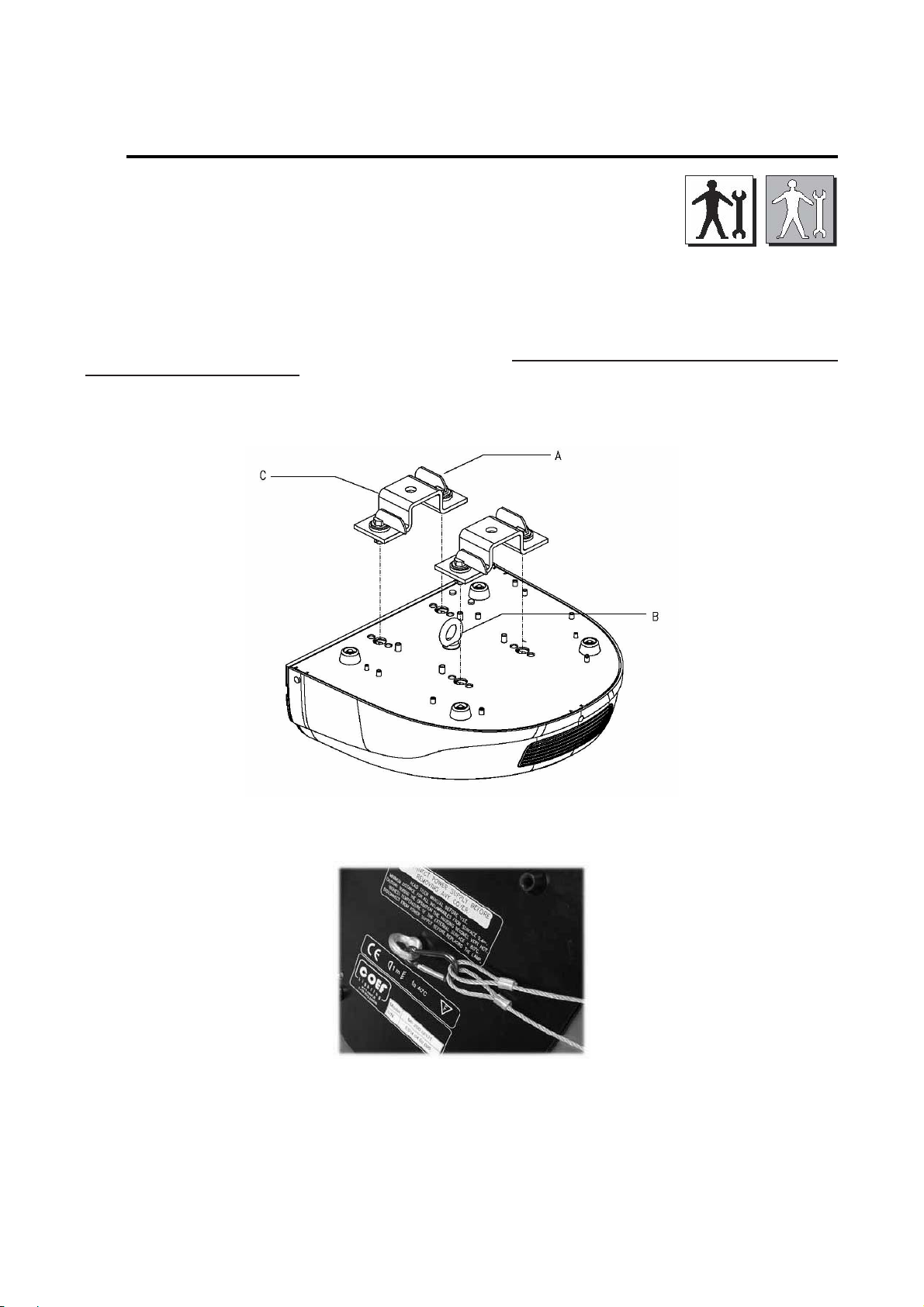

3.2 PROJECTOR INSTALLATION

To fix the MP150 Spot DV is necessary, when the installation has to be on a raised-from-the ground support, to block the quick lock/release brackets of the unit by means of a screw provided with nut and locknut measuring not less than M10X50, to insert in the central pre-arranged hole on the fixing bracket. In addiction to the provided quick lock/release (omega) brackets, in order to guarantee a necessary security and in respect of the actual safetyrules concerning the projectors’ installation, it is compulsory to install a safetychain, equipped with two snaps, provided with the projector, to connect

ATTENTION: the safety chain, equipped with two snaps which can be hooked to the two pivots placed under the base of the MP150 Spot Dv, (see part. B), must be properly installed and fixed to the supporting structure, in a way that an incidental givin in of the main bracket would leed to the shortest possible fall of the projector. After such an intervention the safetychain must be replaced with another original part.

the MP150 Spot DV 's body to the fixing structure.

ATTENTION: COEF is not responsible for installations not correctly made or made without respecting the above

indications: those installations are considered dangerous

Pag.6

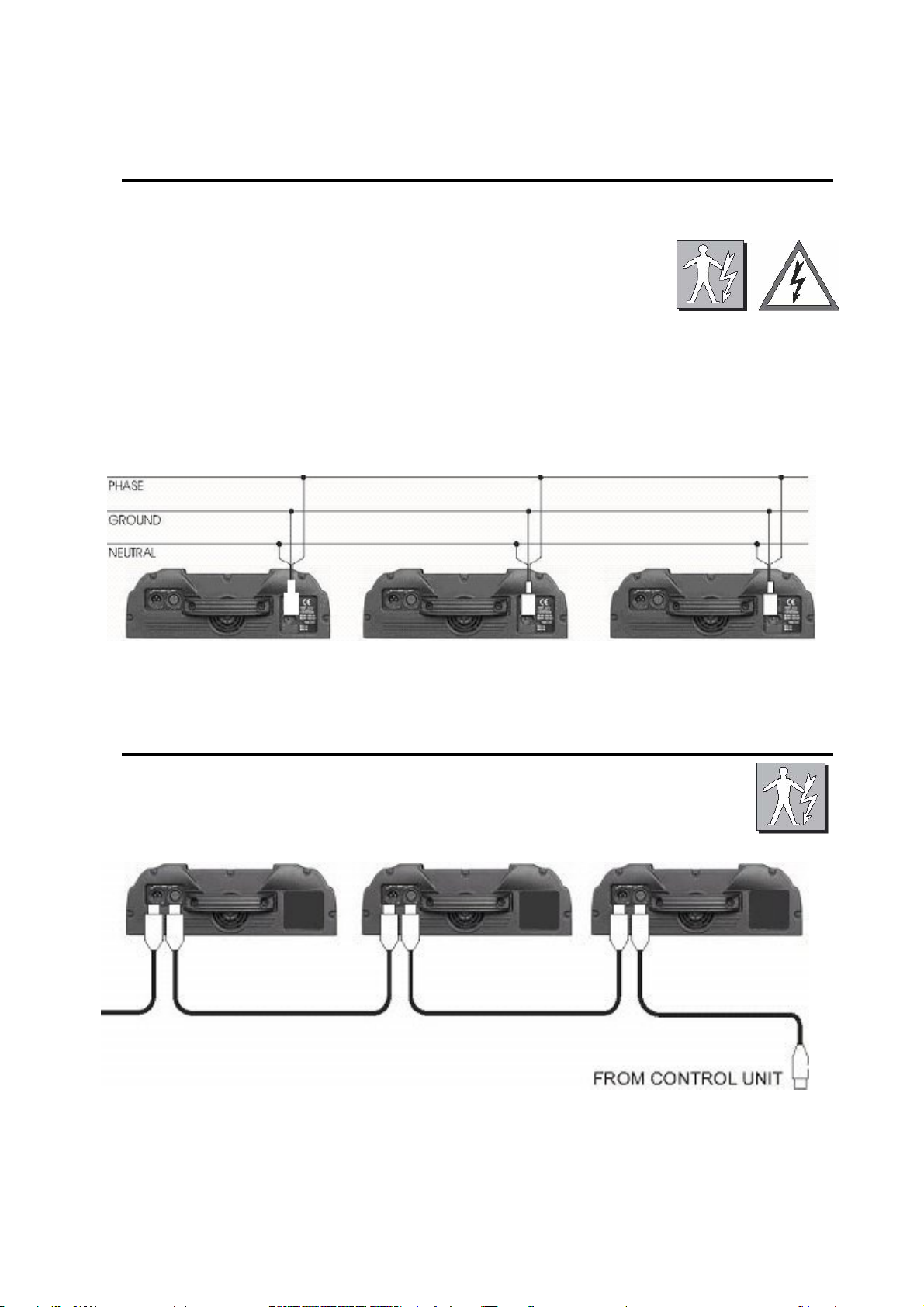

FROM CONTROL UNIT

PHASE

GROUND

NEUTRAL

4.1 DMX 512 CONNECTIONS

4.0 POWER SUPPLY CONNECTION

WARNING: In order to guarantee the utmost safety, connect the apparatus only to a properly earthed mains system.

The projector is designed to work at the tension and frequency indicated by the electrical data label on the rear. Before

connecting the projector to the mains, a qualified electrician must check its conformity.

•

The projector must be protect by an adeguated magneto-thermal switch .

• Don't power the unit with a dimmer circuit.

Power : indicated in the the serigraphy table (tollerance: +5% / -10%)

Should there be different electrical characteristics or special steps to be carried out, please contact COEF by telephone or e-mail

Supply the projector by connecting it as indicated in picture.

Connect the projector and the control unit to a wire in conformity with the EIA RS-485 standards: braided bipolar, shielded, 120 ohm of characteristic impedance, 22-24 AWG, equipped with Cannon 3 Pin XRL plugs. Respect the DMX 512 signal input and output according to the panel indications. A terminal pin with 120 ohm resistance (¼ Watt minimum) must be inserted between the terminals 2 and 3 in the last piece of apparatus.

Pag.7

5.0 SPECIAL FUNCTIONS AND PROJECTOR ASSIGNMENT

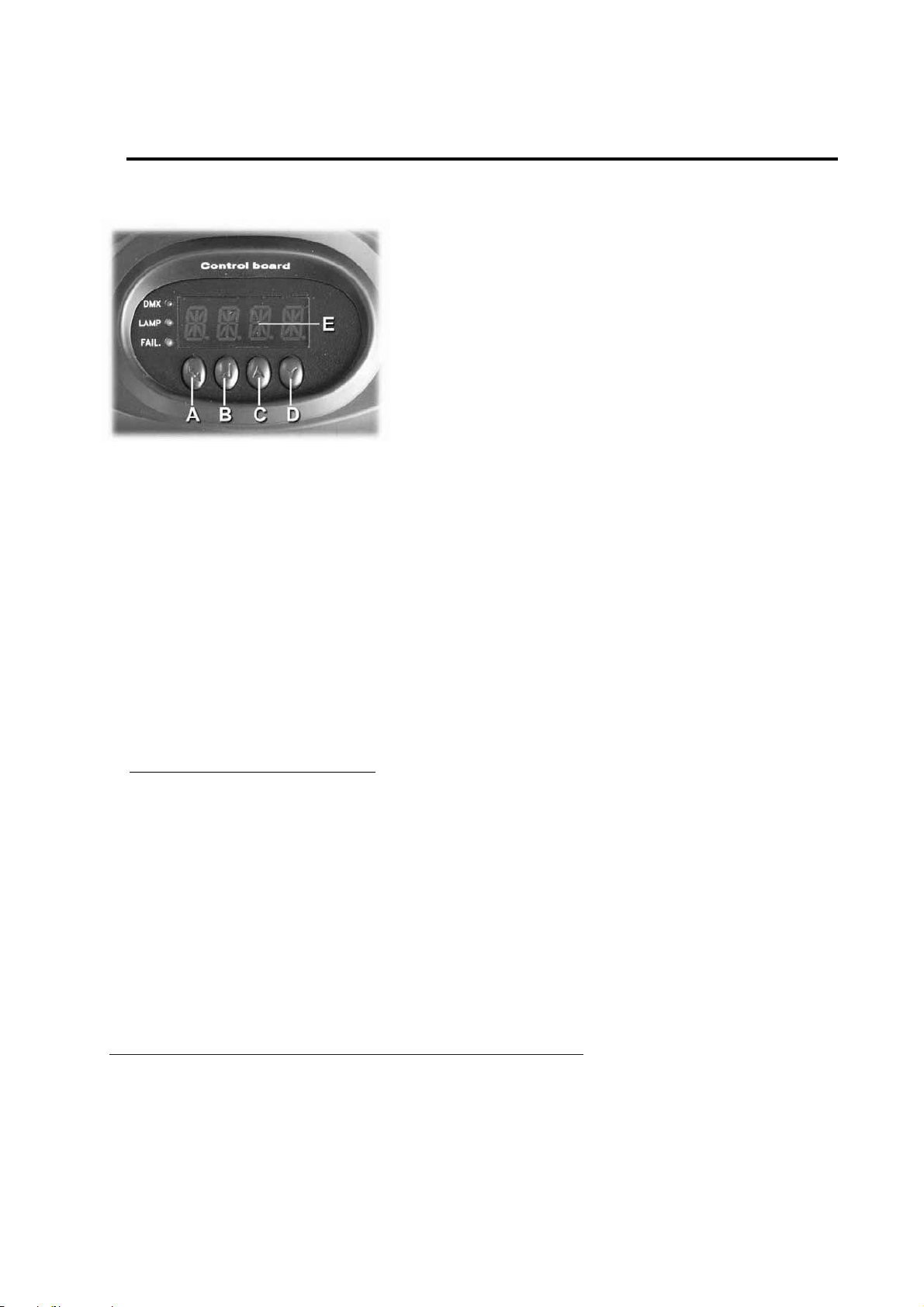

On the front panel of MP150 Spot DV you'll find a section for the additional functions and for setting the projector. Following the picture, you can see all the offered possibilities in detail. All operations are to be carried out with the A, B, C, D.

The display E will inform you about the selected functions.

The 3 leds will allow you to know:

DMX = reception of the DMX line. LAMP = lamp ON. FAIL = errors indicated on the ERR table (see table 6.0).

On switching the projector on, the display will indicate the type of projector and the version of control software which have been installed. To this purpose, please remember that this type of projector belongs to a new generation of projectors, designed with the possibility of updating the software version through the normal DMX connection by means of a programmer deliberately created:

UNI-PROG 8

After the indication MSTR HOME, the projector carries out the RESET and gets ready to be controlled from the connected console.

The display will indicate 1 as default value. This means that the first channel occupied by the projector will respond to the values sent to channel 1 by the DMX line. This enables us to make MP150 Spot DV (which we are installing) completely independent from control or integral with any other installed projector.

General Rules:

By pressing Button MENU (A) and buttons UP and DOWN (C and D) you can select the menu you have to modify. Once the wished menu is reached, press Button B (ENTER) to confirm your selection and enter the function. Press C or D to enter the sub-functions if available.

Always confirm your selection with ENTER.

Press MENU to go out of the function and press again to go back to the starting level.

Example: We installed our projector on the ceiling and for this reason we want the visualization of the display to be correct.

Press B MENU Press C (UP) 12 times up to “MISC” Press ENTER the Display will show “RSET” Press C (UP) twiceupto“DSPL” Press ENTER the Display will show “ONOF” Press C (UP) once up to “STRV” Press ENTER the Display will show “STND”; this is the actual configuration state. Press C (UP) once up to R.E.V..; the blinking point indicate the available configuration. Press Press MENU 3 times to return to starting MENU.

The indication of the display will automatically come back after 120 sec. and inform on the set starting channel DMX. If we are now in a sub-function, this automatic device will not assume control.

Refer to the Table of Section 6.0 in the following page. By each pressure, Button MENU (A) permits to go backwards by one level.

and C (DOWN and UP) buttons select functions and sub-functions.

ENTER

Button B (

...... The Display visualization as been rotated to 180°.

) enters the function and confirms a control.

ENTER

Pag.8

6.0 MENU, FUNCTION & SUB-FUNCTIONS (*) = default value -factory assigned

DMX (*)1/504 O (*) 1/505 DMX start channel

TIME

ERR

SHUT

COLOR

GOBO

RGOB

PAN

TILT

SELF

SCH CH1 / CH9 DMX value for the indicate channel

LAMP

MISC

LAMP

MACH SHOW KH,H

E OK No error

E110 EEPROM failure

E220 Malfunction of the COLOR motor/sensor

E230 Malfunction of the GOBOS motor/sensor

E240 Malfunction of the ROTATION GOBOS motor/sensor

E250 Malfunction of the PAN motor/sensor

E260 Malfunction of the TILT motor/sensor

E510 Malfunction encoder PAN

E520 Malfunction encoder TILT

W310 Checksum Setup not valid

W410 Lamp working hours for more than 500 hours

HOME HOME SHUTTER

TEST TEST SHUTTER

ADJ P1 -10/10 Fine regolation of the closing shutter

HOME HOME COLOR

TEST TEST COLOR

CSHUT (*) OFF/ ON Color change in black-out position

ADJ P1/ P20 -29/29 Fine regolation of the COLOR position (P1/P20)

HOME HOME GOBOS

TEST TEST GOBOS

GSHUT (*) OFF/ ON Gobos change in black-out position

ADJ P1 -29/29 Fine regolation of the NEUTRAL GOBO position

HOME HOME ROTATION GOBOS

TEST TEST Rotation GOBOS

HOME HOME PAN

TEST TEST PAN

STRV (*) STDN / REV Switch movements direction (DX / SX)

ENCO (*) ON / OFF ON/OFF the automatic repositioning of the PAN

HOME HOME TILT

TEST TEST TILT

STRV (*) STDN / REV Switch movements direction (UP / DOWN)

ENCO (*) ON / OFF ON/OFF the automatic repositioning of the TILT

RUN (*)OFF/PR1/PR2/PR3/PR4 Automatic operation with 4 different programs

MIC (*) OFF / ON Automatic microphone start programs

MICL 0 / 99 (*) 80 Gain microphone regulation

MICF 1 / 9 (*) 8 Frequency regulation ( 1 = low 9 = high)

MSTR (*) OFF / ON Master -slave function

ONOF (*) ON / OFF / AUTO Lamp ON / OFF / Lamp Off after 1 hours of no DMX change

CDMX (*) NO / YES Lamp s witching on bu DMX control

RSET MASTER HOME (Starting RESET)

RDMX (*) YES / NO MASTER HOME via DMX control

DSPL

SWPT (*) STND / SWAP Channel control switch PAN / TILT

CH8/9 (*) CH8 / CH9 Projector channel control 8 / 9 channels

VER Show the installed software version

SHOW KH,H Lamp working hours (KH = thousand H = hours)

RST GO? Lamp working hours reset (confirm by ENTER)

(*) ON / OFF Display On / Display OFF

(*) STND / REV 180° rotation of the visualitation display

Pag.9

7.0 CHANNELS AND DIGITAL VALUES

CHANNEL DMX VALUE

SHUTTER-STROBO

0-5 6-20 21-40 41-60 61-250 251-255

COLORS

0-5

6-15

16-25

26-35 36-45 46-55

56-65 66-75

76-85

86-95 96-105

106-115 116-125

126-135 136-145

146-155 156-165 166-175

176-185

186-195

196-200

201-205 206-225 226-245

246-255

GOBOS

0-10 11-23 24-36

37-49 50-61 62-74 75-87

88-100 101-113

114-126

127-139 140-151

152-164

165-177 178-190 191-198 199-205

206-230 231-255

GOBOS ROTATION

0-5 6-130

131-255

6-255

PAN MOVEMENT

PAN MOVEMENT FINE ADJUSTMENT

TILT MOVEMENT

TILT MOVEMENT FINE ADJUSTMENT

MOVEMENTS TIME ADJUSTMENT (For use this channel set CH8/9 to 9 channels)

0-5 6-250

251-255

FUNCTION

SHUTTER CLOSED FLASH RANDOM FAST FLASH RANDOM MEDIUM FLASH RANDOM SLOW STROBE SPEED ADJUSTMENT SHUTTER OPEN

NEUTRAL YELLOW BLUE

MAGENTA

GREEN LIGHT ORANGE CYANO

PINK RED BLUE LIGHT GREEN

WOOD

WHITE-YELLOW

YELLOW-BLUE

BLUE-MAGENTA GREEN LIGHT-ORANGE

ORANGE-CYANO

CYANO-PINK RED-BLUE LIGHT

BLUE LIGHT-GREEN

RANDOM FULL-COLOR(fast) RANDOM FULL-COLOR(slow)

CW ROTATION ADJUSTMENT

CCW ROTATIC RAINBOW EFFECT

NEUTRAL

GOBO1 Channel 4 control rotation

GOBO2 GOBO3

GOBO4 GOBO5

GOBO6 GOBO7

GOBO1 GOBO2 GOBO3 GOBO4

GOBO5

GOBO6

GOBO7 GOBOS GOBOS

CCW CW

STOP CW CCW GOBO Position

NO DELAY

ADJUSTMENT DELAY

MAX DELAY

Channel 4 control rotation

Random FAST

Random SLOW

Rotation Adjustment

Rotation speed adjustment of the gobo (if the value of the channel 3 is from 11 to 100)

Rotation speed adjustment of the gobo (if the value of the channel 3 is from 101 to 190)

Pag.10

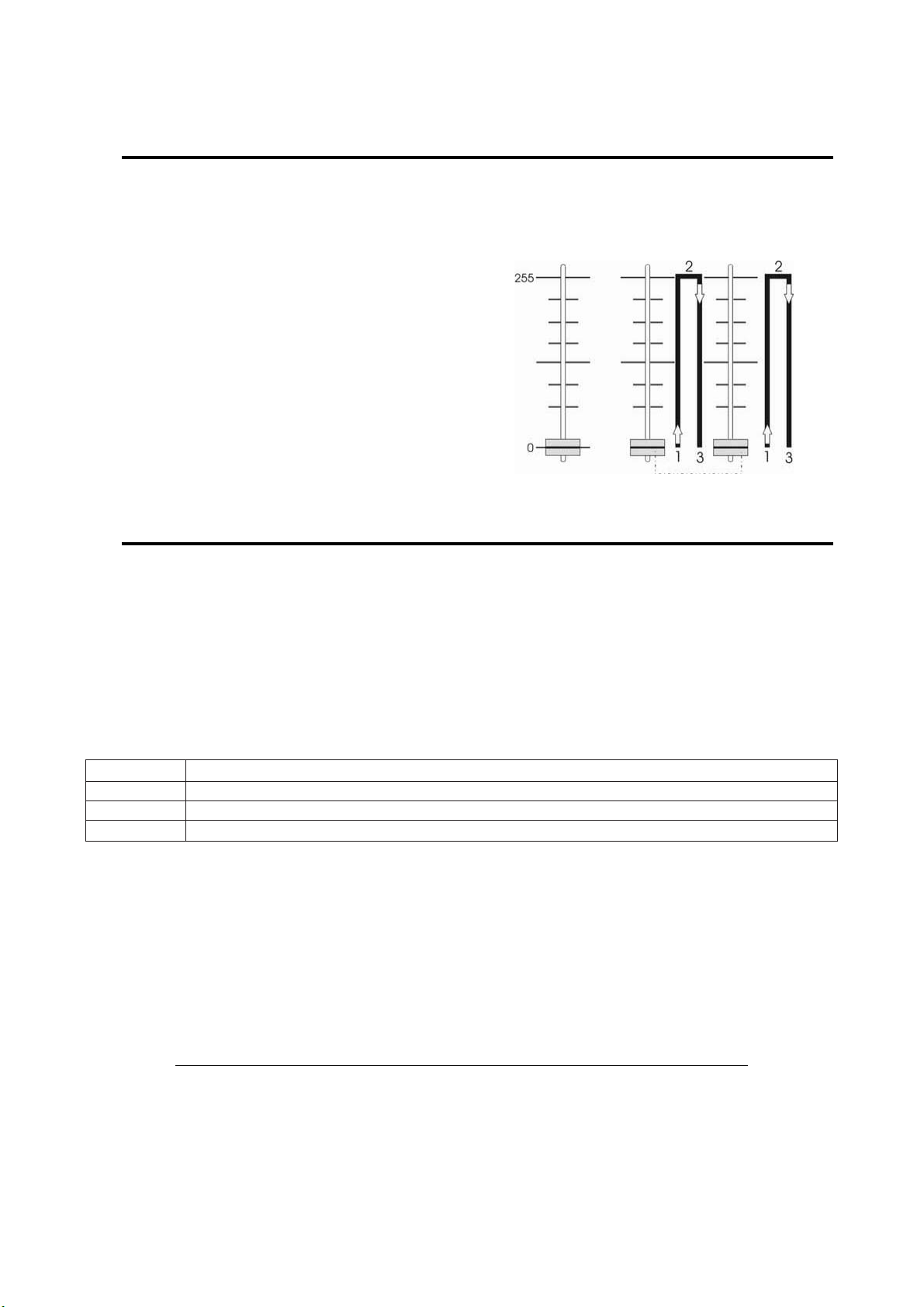

7.1 SPECIAL ACTION

When the lamp control via DMX (CDMX) and the reset via DMX (RDMX) function have been activated in the configuration menu,

it’s possible, by a combination of the channels values, to control the lamp switch ON/OFF or to allow the projector MASTER RESET.

Lamp ON via DMX:

CHANNEL 2 = value 0 CHANNEL 3 and CHANNEL4=value0>255>0

Lamp OFF via DMX: CHANNEL 2 = value 255 CHANNEL 3 and CHANNEL4=value0>255>0

MASTER RESET via DMX: CHANNEL 1 = value 0 CHANNEL 2 and CHANNEL3=value0>255>0

7.2 AUTONOMOUS OPERATION

The Mp 150 Spot DV has a particularity that marks it from most of similar product: the possibility of an entirely autonomous

operation, free from connection to any control unit.

This feature allows the projector, or the projectors connected between them, to perform 4 different programs pre-planned selectable easily across the control panel of the projector (you see paragraph MENU -FUNCTIONS and SUB-FUNCTION section “SELF”). To the feature of operation of complete autonomy there is another support of it determined interesting and it is the possibility to assign a projector, deputy part of a group of projectors (until a maxim of 10) connected together through a dmx cable, like MASTER and therefore total controller of the other connected as SLAVE. The program chosen will be therefore performed in perfect synchrony from all the projectors connected to fall down.

The 4 programs include two different typologies of planning and the same two further typologies, can be performed in fast or

slow manner. For clarity please see the table:

PROGRAM 1

PROGRAM 2

PROGRAM 3

PROGRAM 4

arranged for an involvement to 360° of the area of projection and with Fast feature of operation

arranged for an involvement to 180° of the area of projection and with Fast feature of operation

arranged for an involvement to 360° of the area of projection and with Slow feature of operation

arranged for an involvement to 180° of the area of projection and with slow feature of operation

Every program is composed from 64 scene and the change of scene can be planned either automatic (value of default) either made conditional from the musical impulses received from the inside microphone of the projector. In such microphone is adjustable either the sensibility and the frequency of calculation of the number of beat (BIT) before the change of scene; this regulation takes on values from 1 (high frequency BIT) to 9 (low frequency BIT).

To perform the automatic programs proceed as follows:

a) choose the MENU “SELF” on the display

b) establish if the projector should take the function of MASTER or SLAVE with the sub-function “MSTR”

c) establish if the control of the scene stage should be driven from the microphone or in automatic manner across the sub-

function “MIC”

d) choose the program, in base to the table above restored with the sub-function “RUN” and then confirm with ENTER

ATTENTION! All the projectors, both MASTER that SLAVE, must be assigns with DMX value=1

Pag.11

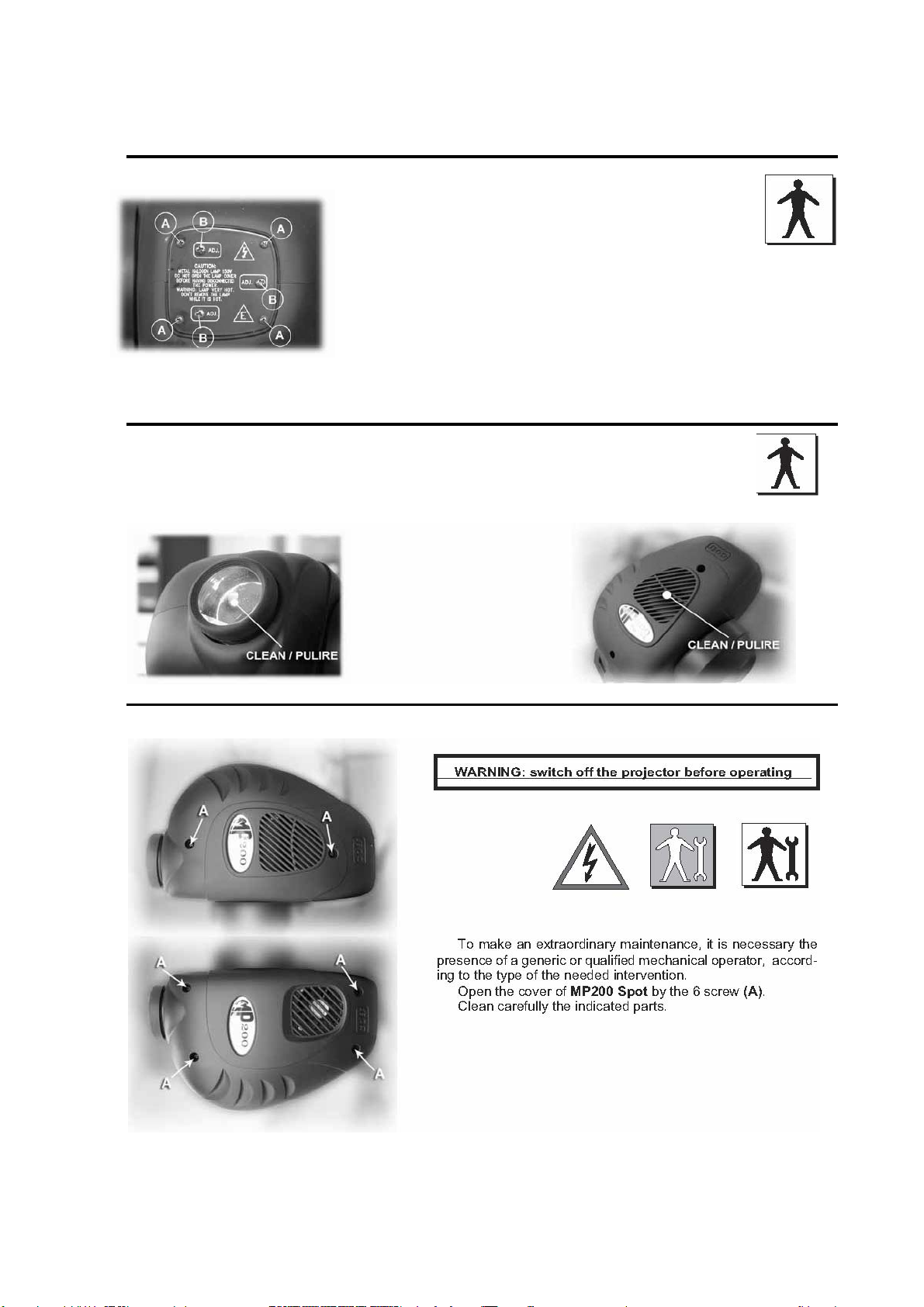

8.0 LAMP ADJUSTMENT

To make an extraordinary maintenance, it is necessary the

Presence of a generic or qualified mechanical operator,

according to the type of the needed intervention.

Open the cover of MP150 Spot by the 6 screw (A).

Clean carefully the indicated parts.

WARNING:switch off the projector before operating

9.0 ORDINARY MAINTENANCE

•

Don’t move the screws ”B” up to upper or lower extremities.

on the projector and set the channels without gobo and colors. Adjust the three screws B until you reach the ideal condition between power and homogeneity.

Don’t look directly the beam trough the lens. The lamp is pre-regulated by the factory. Only fine-adjustment.

Lamp adjustment is necessary to obtain a uniform and powerful light beam. Switch

Ordinary maintenance on the projectors unit and to avoid defects like the low luminosity of the light beam or the elevated overheating of the equipment.

In the figures you can see those components that can easily accumulate dust and grease. Clean them using a soft cloth and common glass-cleaners.

MP150 Spot DV

is necessary to maintain the perfect efficiency of the

9.1 EXTRAORDINARY MAINTENANCE

Pag.12

After had access to the inside part of the projector ( unscrew the 5 Screw (A) to take out the cover of the base to enter the sensors of the PAN movement ) special caution will be dedicated to the sensors that put on a fundamental role in the operation of the equipment. The sensors are indispensable in the moment of the general reset of the projector, function that if not perform correctly, harms in total manner the normal operation of the projector, at least for what pertains the group associated to the sensor.

Maintain clean also all the openings that allow the convey of the flows of air destined to the ventilation forced. The Fan are in general a catalysts for dust and fat and when these deposit themselves on the pale of the same fan, the values and the essential features change themselves and compromise the good operation of the component destined to the cooling.

For the access to the parts of the arm (particularly are present the sensors dedicated to the TILT movement ) unscrew the

lives (B) and dismiss the cover in plastic of the arm.

The sensors of the relevant encoder of the PAN and TILT movements are located respectively in the base and in the arm of the MP150 Spot DV. The images illustrate clear these components and where to intervene with precision for the intervention of maintenance.

Pag.13

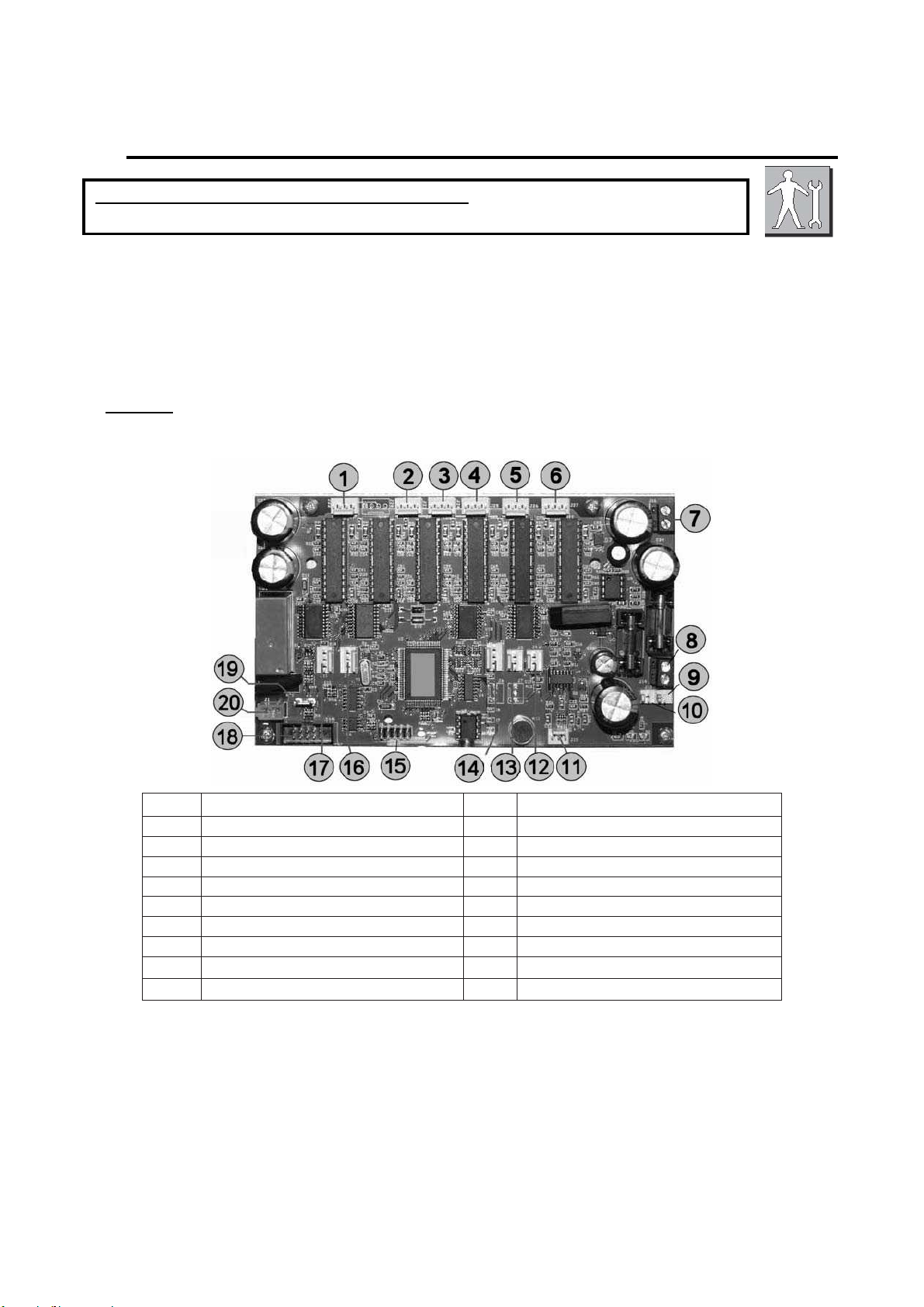

9.2 ELETTRONIC MAINTENANCE

WARNING: switch off the projector before operating

This section is dedicated in detail to the electronic connections between the card and the mechanical components, assembled in the projector.These information will be absolutely necessary when the mechanical unit has to be removed from the projector for maintenance and/or repair.

The connections are made using handy connectors and are detailed in figure where you can find indications about the connection between a specific connector and a specific component of the mechanical unit. This includes the motors and the sensors of the various effects wheels ( color, gobos, prisms, shutter etc.).

WARNING!

electronic and/or mechanical components of the projector.

An improper use of this documentation made by not specifically qualified staff can damage irremediably the

1 Motor SHUTTER / STROBE 11 DMX in

2 Motor COLOR 12 Sensor TILT

3 Motor GOBOS 13 Sensor GOBOS / COLOR / GOBOR

4 Motor GOBOS ROTATION 14 Sensor PAN

5 Motor TILT 15 NC FACTORY USE

6 Motor PAN 16 Encoder TILT

7 Power Supply 21V~ 17 Encoder PAN

8 Power Supply 11,5V ~ 18 DISPLAY CARD

9 Fan BASE 19 GROUND

10 Fan HEAD 20 Lamp ON / OFF

Pag.14

10.0 TROUBLESHOOTING

The projector doesn’t swich on

- The power supply is not present - Check if the regular power supply is present

on the projector.

- The lamp is not working - Replace the lamp.

Just to wait for little of time.

- The thermal switch is active

The projector swiches on but doesn’t answer to commands.

Defecting projection.

Projection with halo.

The color or other effects doesn’t coincide to the selected value.

The PAN and TILT movement doesn’t coincide to the selected value.

The projector does not carry out the automatic repositioning of the PAN or TILT movements.

- Wrong DMX configuration

- Defective cables - Replace or repair the DMX cable.

- LED A is off

- Defective control unit

- The lens is broken

- Dust or grease stored on the all parts of projector

- Defective motor - Technical aid is required.

-Electronic board

- Defective motor

-Electronic board

-ENCO off in the PAN/TILT confi guration menu (cap. 6.0)

- Make sure that the projector is correctly

configurated.

- Check the control unit & DMX cable.

Check the control unit by means of other

working projectors. Technical aid is required.

- Check that the lens are not broken.

- Remove dust or grease stored on lenses.

- Carefully clean the optical group lenses and the projector components (see “Maintenance” chapter).

- Technical aid is required.

Technical aid is required.

- Technical aid is required.

- Set ON ENCO Function of PAN/TILT con figuration menu (cap. 6.0).

Pag.15

Coef MP 150 SPOT DV User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
