Codex XL-Series
Safety Warnings
Please observe any warnings and follow all instructions.
• Do not use this equipment near water and clean only with a dry cloth.
• Install in accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other equipment (including ampliers) that produce
heat.
• Do not expose to excessive vibration, or drop this product.
• Do not defeat the safety purpose of the polarised or grounding-type plug. A polarised plug has two blades with one wider than the
other. A grounding-type plug has two blades and a third grounding prong. The wide blade, or the third prong, is provided for your
safety.
• If the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched, particularly at plug ends, convenience receptacles, and the point where they
exit from the equipment.
• Only use accessories specied by the manufacturer.
• Unplug this equipment during lightning storms or when not in operation for long periods of time.
• Refer all servicing to qualied service personnel. Servicing is required when the equipment has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the equipment, has been exposed to rain or
moisture, does not operate normally, or has been dropped.
• To reduce the risk of re or electric shock, do not expose equipment to rain or moisture.
• To avoid electrical shock, do not attempt to open this equipment. Refer servicing to qualied personnel only.
Disclaimer
Codex products are continually developed to remain at the forefront of the industry, and as such the information in this
guide is subject to change without notice. Whilst Codex endeavours to ensure that all documentation provided is correct at
the time of writing, this document is not guaranteed to be error-free.
Codex does not assume responsibility for issues or losses due to misinterpretation of the information in this document,
errors in this document, or incorrect conguration or installation of the equipment described herein.
This document is issued in conjunction with the software to be used as per the conditions of the associated beta
agreement.
Please report any errors found in this document to support@codex.online
Support and Servicing
For assistance with your XL-Series please contact support@codex.online
User Guides are available from https://www.codex.online/support/user-guides
FCC Regulatory Compliance Notice
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Modifying the equipment without Codex’s authorization may result in the equipment no longer complying with FCC requirements for Class A digital devices. In that event, your right to use the equipment
may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
EU EMC Compliance Statement
Warning: This equipment is compliant with Class A of CISPR 32. In a residential environment, this equipment may cause radio interference.
Note: the use of USB extension cables may cause interference and is not recommended.
PAGE 3
CODEX USER GUIDE - CODEX XL-SERIES 27. 07. 17
Contents
Safety Warnings ................................................................................................................................................................................................................ 2
Disclaimer ........................................................................................................................................................................................................................... 2
Support and Servicing...................................................................................................................................................................................................... 2
1. Introduction ............................................................................................................................................................................................................. 4
2. Product Diagrams .................................................................................................................................................................................................. 4
2.1. Front .......................................................................................................................................................................................................................... 4
2.2. Rear ........................................................................................................................................................................................................................... 4
3. Power Requirement ............................................................................................................................................................................................... 5
4. Power On and Shutdown ...................................................................................................................................................................................... 5
5. Display, Mouse, and Keyboard ............................................................................................................................................................................ 6
5.1. Display ...................................................................................................................................................................................................................... 6
5.2. Mouse ....................................................................................................................................................................................................................... 6
5.3. Keyboard .................................................................................................................................................................................................................. 6
6. SDI Monitor ............................................................................................................................................................................................................. 6
7. Logging In ................................................................................................................................................................................................................ 6
8. Codex Production Suite ........................................................................................................................................................................................ 6
9. Loading and unloading media ............................................................................................................................................................................. 7
9.1. Transfer Drive .......................................................................................................................................................................................................... 7
9.2. Capture Drive ..........................................................................................................................................................................................................7
9.3. External Drives ........................................................................................................................................................................................................ 8
10. Formatting the Transfer Drive .............................................................................................................................................................................. 8
11. Network Setup ........................................................................................................................................................................................................ 9
12. Network Shares .................................................................................................................................................................................................... 10
13. Connecting with a remote User Interface ...................................................................................................................................................... 11
14. Preparing the XL-Series for a project .............................................................................................................................................................11
14.1. Saving Logs ...........................................................................................................................................................................................................11
14.2. Clear media history .............................................................................................................................................................................................12
14.3. Setting up Project information ..........................................................................................................................................................................13
14.4 Setting up templates ...........................................................................................................................................................................................13
14.5. Loading LUTs ......................................................................................................................................................................................................... 13
14.6. Setting up user accounts ...................................................................................................................................................................................14
15. Remote Connection (TeamViewer) ...................................................................................................................................................................14
Notes ................................................................................................................................................................................................................................. 15
PAGE 4
CODEX USER GUIDE - CODEX XL-SERIES 27. 07. 17
1. Introduction
Welcome to this guide for the Codex XL-Series - a production-proven, rack-mounted network attached device ready to
integrate into your production or post infrastructure, whether it’s near-set or in a post facility.
The XL-Series comes installed with Codex Production Suite software. This guide will focus on aspects unique to the XLSeries. For information on Production Suite features that are available on both XL-Series and macOS platforms, please refer
to the Production Suite User Guide.
This guide assumes that the XL-Series is installed with the latest CodexOS operating system. Some features detailed in the
guide are not available in the previous Fedora based operating system.
2. Product Diagrams

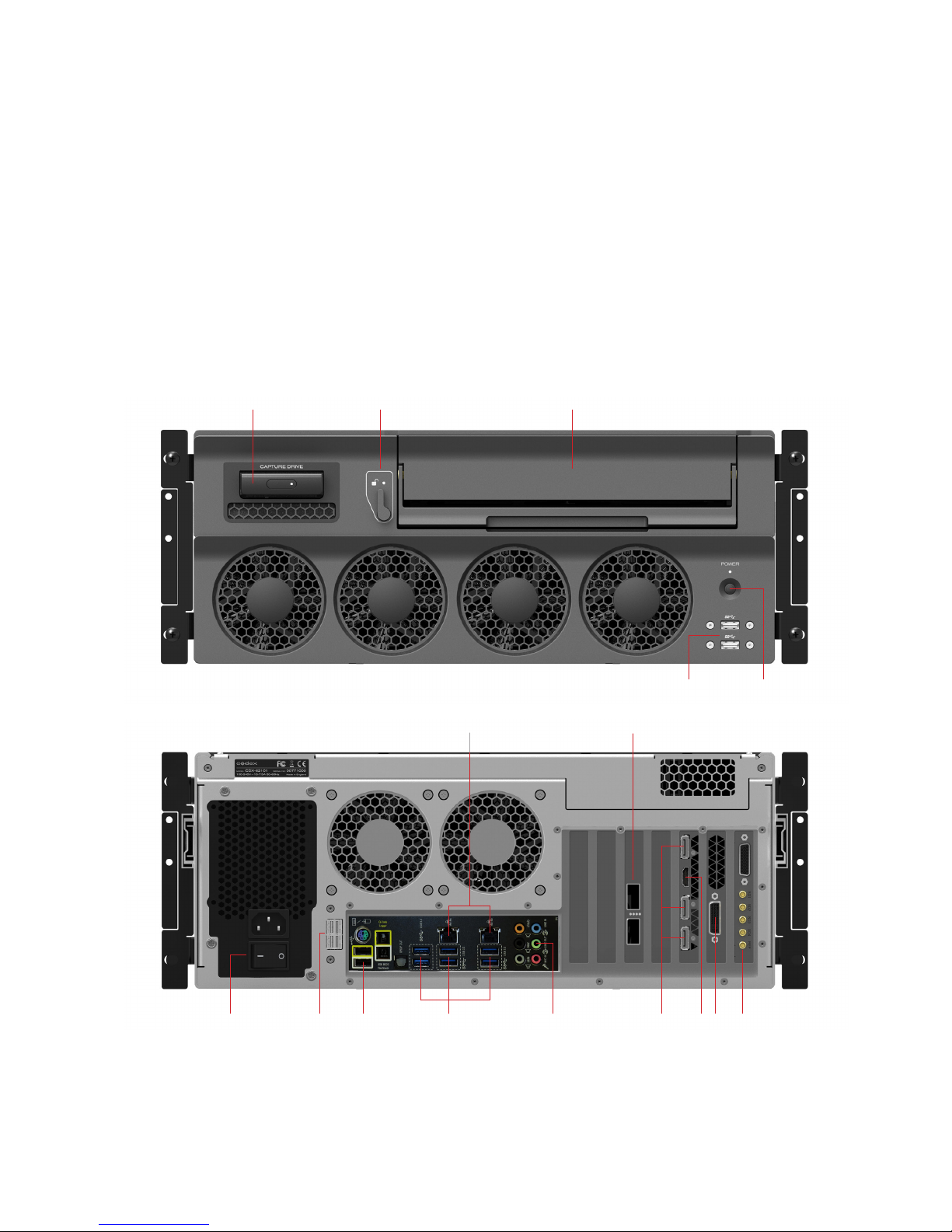

2.1. Front
LOCKING LEVER TRANSFER DRIVE PORT
POWER BUTTONUSB3.0 PORTS
CAPTURE DRIVE PORT
2.2. Rear
USB2.0
40Gb NETWORK
DVI SDI x 4HDMI
DISPLAY PORTSAS CONNECTORSPOWER SWITCH USB3.0
1Gb NETWORK
AUDIO OUT
The front fans are for air intake, and the rear fans are for air exhaust. Do not block any fans as this may lead to the system
overheating. Some connectors on the rear of the XL-Series are inactive: D-SUB connector above SDI outputs, and audio
connectors except for labelled AUDIO OUT.
Note: the XL-Series should always be installed and used in the orientation shown in the diagrams above. Installation in a
different orientation may cause damage to the system.
PAGE 5
CODEX USER GUIDE - CODEX XL-SERIES 27. 07. 17
3. Power Requirement
The XL-Series requires mains power from 110V-240V AC. The power supply can draw up to 1250W.
4. Power On and Shutdown
Connect mains power to the XL-Series and ensure the power switch on the rear of the machine is set to On. Press the
Power Button on the front panel to start the machine.
The boot up process is complete when the attached monitor displays the Login screen.
At the bottom left of this screen is a power icon. Click this and then click ‘Shut down now’ to initiate the shutdown process.
When logged in, open the Main Menu (blue ring) to access the power icon.
The shutdown process is complete when the light above the Power Button is switched off.
PAGE 6
CODEX USER GUIDE - CODEX XL-SERIES 27. 07. 17
5. Display, Mouse, and Keyboard
5.1. Display
The display for controlling the XL-Series can be connected to the HDMI or DisplayPort connector on the GPU. A wide
range of display resolutions can be used, from HD to 4K (1920 x 1080 to 4096 x 2160). The resolution of the display will be
detected automatically from the EDID information it provides.
It is possible to force the GPU to output to the display at a different resolution, but not through the Codex Production Suite
software. Contact support@codex.online for support if this is required.
5.2. Mouse
A standard PC mouse can be used with the XL-Series.
5.3. Keyboard
A standard PC keyboard can be used with the XL-Series. It is recommended to use a PC keyboard, and not a Mac
keyboard (some key mappings are different and may not be correct).
The default keyboard layout is ISO (UK) rather than ANSI (US). This can be modied with a setting during installation of the
CodexOS base image.
Alternately, the following command line can be applied from a Terminal window to change to a US keyboard layout:
localectl set-keymap us
Contact support@codex.online for support if this is required.
6. SDI Monitor
The XL-Series has a video card with 4 SDI outputs. These can be used to connect to a single SDI monitor, at resolutions
from 1920x1080 to 4096x2160. Playback can be at frame rates from 23.98 to 60fps, depending on the video format setting.
The output setting can be changed when Codex Production Suite has clips loaded in Vault Review. For full instructions on
using Vault Review see the Codex Production Suite User Guide, available from https://codex.online/support/user-guides
7. Logging In
When the XL-Series is started you will need to log in. By default there is no password, so simply click the Login button. If a
password has been set, the details should be checked with the owner of the XL-Series.
Once logged in you can set up accounts for other users from Main Menu (blue ring) -> Preferences -> Users.
8. Codex Production Suite
The XL-Series runs the Codex Production Suite software. The features and functions of the software are detailed in the
Codex Production Suite User Guide, available from https://codex.online/support/user-guides
In summary, Codex Production Suite is a fully-featured dailies and archiving system featuring sophisticated tools for colour
grading and LUT management, QC, metadata editing and audio sync so you can manage and create all your deliverables
within one unied system. Transcode to all the formats you need to deliver, faster than real-time, even with an input LUT,
CDL and a 3D LUT.
Codex Production Suite provides a comprehensive feature set including:
• Support for many popular cameras - ARRI ALEXA/MINI/AMIRA, Codex Action Cam, Canon C700/C500/C300 Mark II,
Panasonic VariCam 35 and Pure, Sony F65/F55/F5, RED EPIC/WEAPON, Phantom Flex 4K and GoPro.
• View, edit and add metadata in the Library.
• Clone camera original data to local and networked storage.
PAGE 7
CODEX USER GUIDE - CODEX XL-SERIES 27. 07. 17
• Primary colour correction - play back, adjust and apply LUTs and CDL looks in Vault Review.
• Synchronise audio, either with timecode or manually.
• Add Quality Control (QC) notes and create PDF QC reports.
• Transcode to common deliverable formats such as ProRes, DNxHR/DNxHD, DCP and H264 with LUTs, CDL, burn-ins
and masks.
• VFS (Virtual File System) for fast, exible and powerful deliverables creation.
• Framings to allow customisable extraction of ‘region of interest’ from source image into deliverables.
• Archive to disk or LTFS tape with md5 verication.
9. Loading and unloading media
Following the correct procedures for loading and unloading media is very important. Failure to do so may result in damage
to the media and compromise data integrity.
Media will be unloaded automatically when the XL-Series is shut down.
WARNING: Do not unload media when it is reading or writing.
9.1. Transfer Drive
Loading – with the handle on the Transfer Drive lifted, gently insert it fully into the port on the front of the XL-Series. Lower
the handle to lock the Transfer Drive in place and the loading process will begin. During this time the LED next to the
Transfer Drive will ash blue. When the Transfer Drive has loaded the LED will turn green.

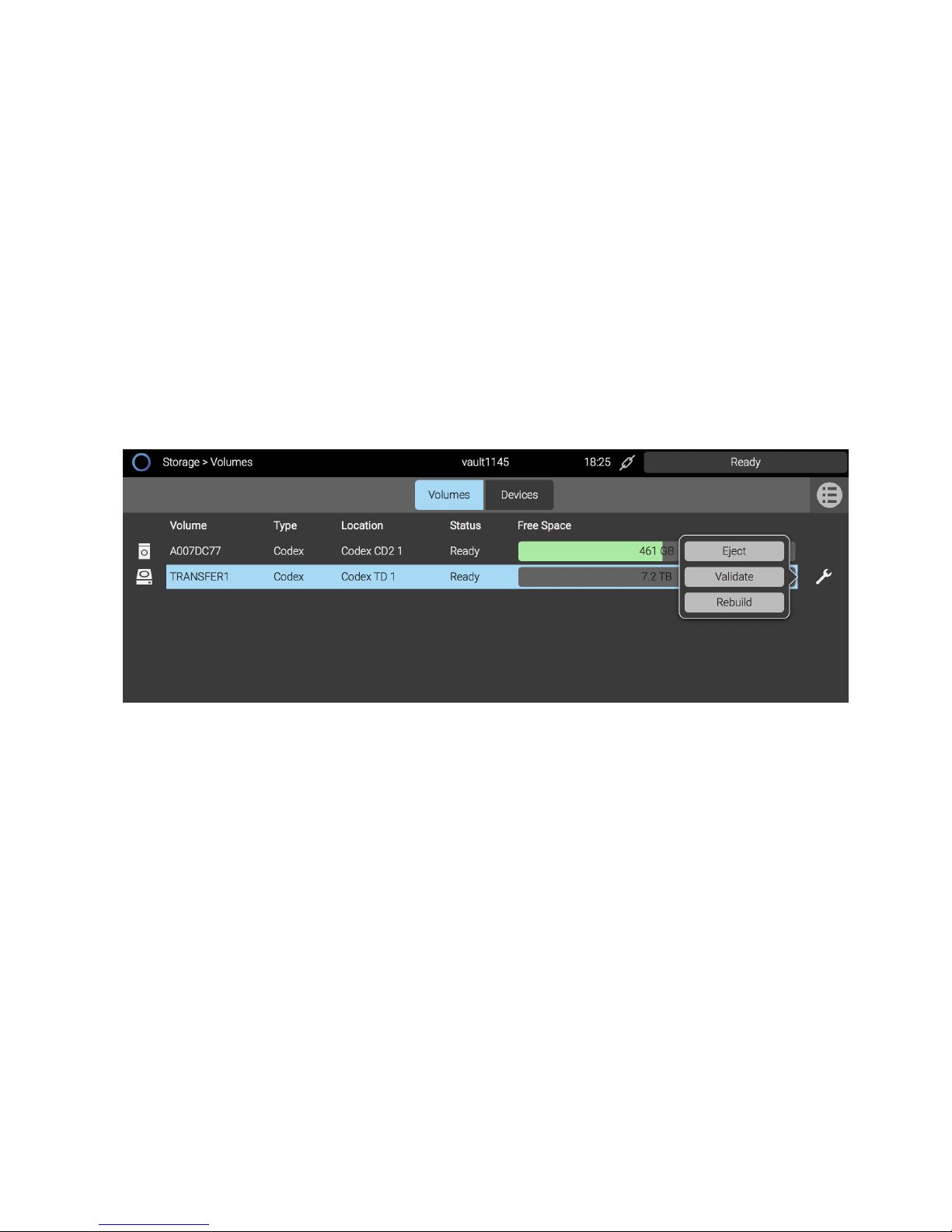

Unloading – go to the Storage screen of the software, select the Transfer Drive (“Codex TD 1”). Click the Wrench symbol,
and then click Eject. While unloading the LED next to the Transfer Drive will ash blue, and become solid blue when
unloading is complete. Push the locking latch to the left, then raise the handle on the Transfer Drive and pull gently to
remove it from the XL-Series.
An alternate unloading method is to push the locking latch to the left, and raise the handle slightly. This will trigger the
unload sequence. Wait until the LED stops ashing and becomes solid blue, then raise the handle fully and pull gently to
remove the Transfer Drive.
9.2. Capture Drive
Loading – gently insert the Capture Drive fully into the port on the front of the XL-Series. The loading process will begin,
and during this time the LED on the Capture Drive will ash blue. When the Capture Drive has loaded the LED will turn off.
Reading/writing - when the Capture Drive is reading or writing, the LED will be green.
Unloading – go to the Storage screen of the software, select the Capture Drive (“Codex CD2 1”). Click the Wrench symbol,
and then click Eject. While unloading the LED on the Capture Drive will ash blue, and become solid blue when unloading
is complete. Pull the Capture Drive gently to remove it from the XL-Series.
PAGE 8
CODEX USER GUIDE - CODEX XL-SERIES 27. 07. 17
An alternate unloading method is to press the Eject button on the end of the Capture Drive. This will trigger the unload
sequence. Wait until the LED stops ashing and becomes solid blue, then pull gently to remove the Capture Drive.
9.3. External Drives
The XL-Series allows general purpose hard drives and SSDs to be loaded via a range of connections: USB3.0, SAS, and
eSATA. The drive must be formatted with one of the following lesystems before it can be used with the XL-Series:
• ExFAT
• FAT
• Ext3
• HFS
• HFS+
• NTFS
• XFS
• UDF
Note: APFS (Apple File System) is not supported.
Loading – connect the external drive and it will be mounted automatically. When the drive has has mounted it will be
shown on the Storage screen.
Unloading – go to the Storage screen and select the drive. Click the Wrench symbol, and then click Eject. The drive will
stop showing on the Storage screen when it has unmounted. It is now safe to disconnect the drive.
Note: if an external drive has been badly unmounted/ejected, this may prevent successful mounting on the XL-Series.
To resolve this, reconnect the drive to a Mac and use Disk Utility to check/repair the volume, before performing a proper
unmount. The drive should then mount on the XL-Series successfully.
10. Formatting the Transfer Drive
A Transfer Drive can be formatted with either a ‘RAID-3 Codex’ or ‘RAID-5 XFS’ lesystem. The option selected will
determine which types of material can be stored on the Transfer Drive:
Type Supported material
RAID-5 XFS
When formatted in this way, the Transfer Drive can contain any le format supported by Codex Production Suite*:
• ARRI ALEXA Classic/XT/SXT/Mini - ARRIRAW (16:9, 4:3, Open Gate), all ProRes variants.
• ARRI AMIRA - all ProRes variants.
• Panasonic VariCam 35 - VRAW (UHD and 4K, 10-bit and 12-bit).
• Canon C700 and C500 - Canon Cinema RAW (UHD and 4K).
• Canon C300 Mark II - XF-AVC MXF.
• Sony EX3 - MPEG-2 MXF.
• Sony F5, F55, and F65 - Sony RAW MXF, XAVC MXF.
• GoPro Hero - H.264.
• RED - REDCODE RAW R3D.
• Phantom Flex 4K - Cine les.
• Codex Action Cam - CDX RAW.
*With the exception of ALEXA 65, which is only supported on RAID-3 Codex.
RAID-3 Codex
When formatted in this way, the Transfer Drive can only contain RAW material recorded to Capture Drives:
• ARRI ALEXA 65 - ARRIRAW.
• ARRI ALEXA Classic/XT/SXT/Mini - ARRIRAW (16:9, 4:3, Open Gate).
• Panasonic VariCam 35 - VRAW (UHD and 4K, 10-bit and 12-bit).
• Canon C700 and C500 Canon Cinema RAW (UHD and 4K).
• Codex Action Cam - CDX RAW.
Performance for Cloning this material is slightly higher to RAID-3 Codex than to RAID-5 XFS. However, exibility
for different workows is reduced. It is not possible to store material from other types of recording system, such
as SxS ProRes, Sony SR Memory, AXSM, RED drives, etc.
PAGE 9
CODEX USER GUIDE - CODEX XL-SERIES 27. 07. 17

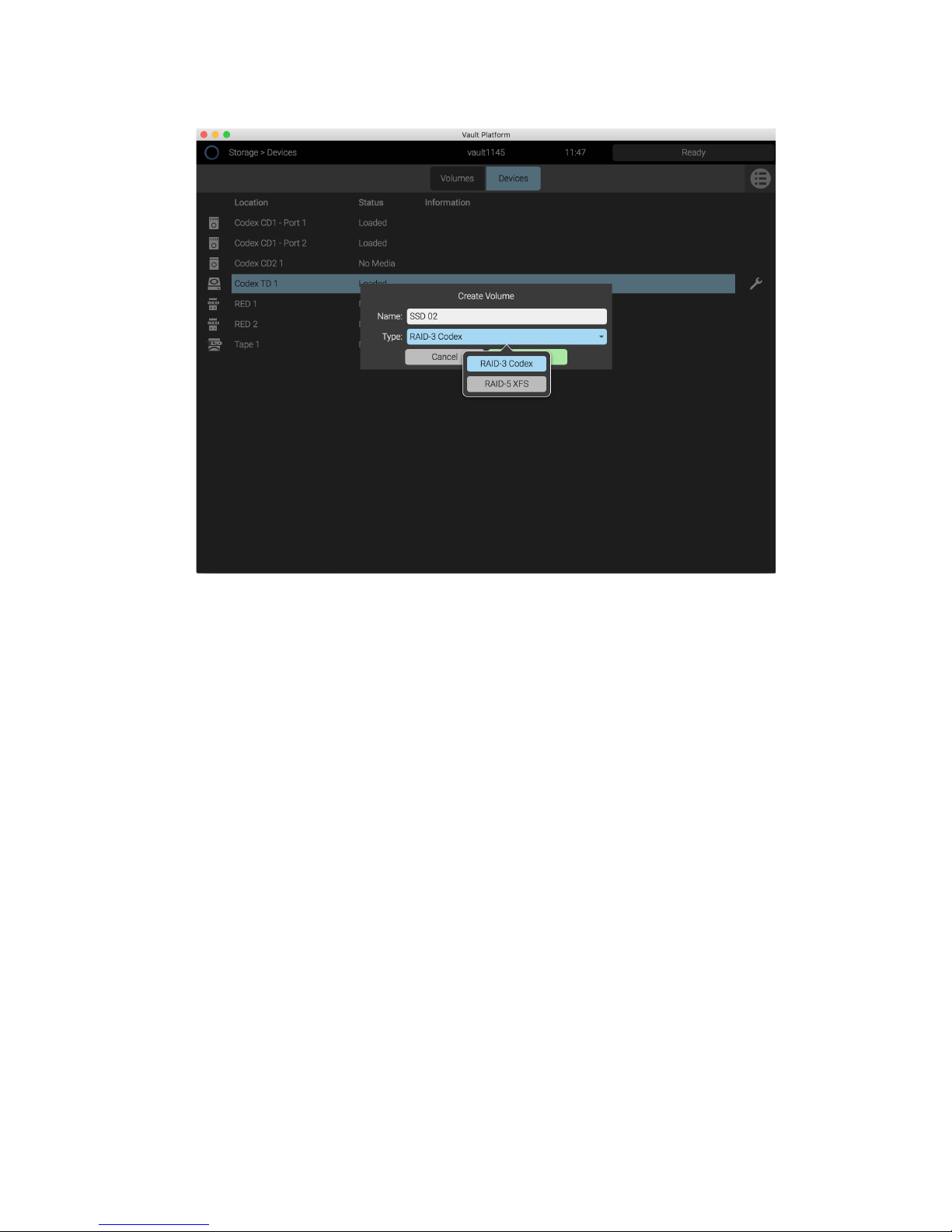

To format the Transfer Drive, from the Storage screen click the Devices tab. Select the Transfer Drive (“Codex TD 1”), then
click the Wrench symbol and click ‘Create’:
Enter a name for the volume, and select the lesystem type.
When a RAID-3 Codex lesystem is created, it can be used immediately and will build parity information as clips are
copied to it. The parity information means that if one disk has a problem, the data will not be compromised.
When a RAID-5 XFS lesystem is created, it can be used immediately but the parity information takes several hours to
build. During this time, the status in Storage -> Volumes will be shown as ‘Initialising’. When the initialising process has
completed then a problem with one disk will not compromise the data on the RAID. For this reason, it is recommended to
allow the RAID to nish initialising before copying data to it.
11. Network Setup

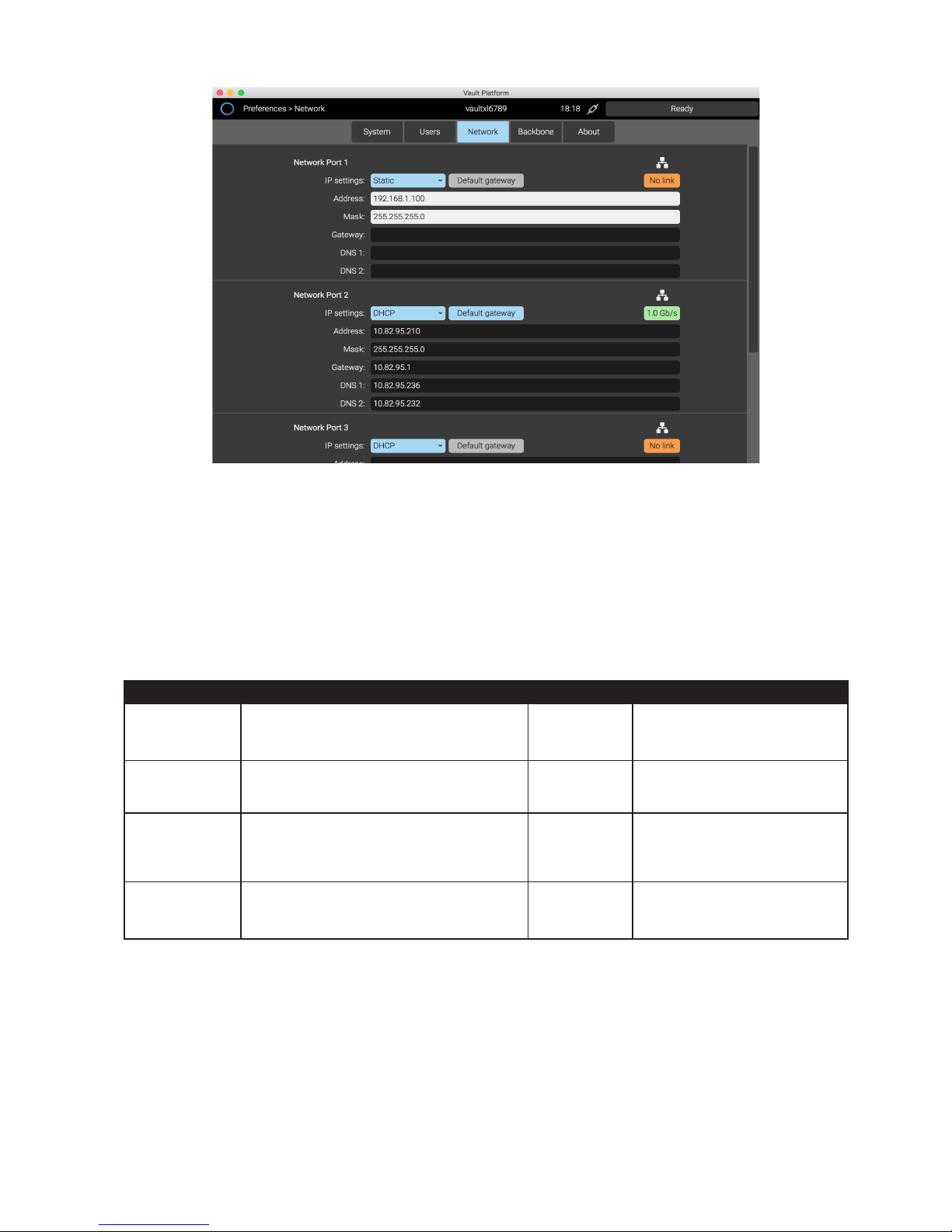

The XL-Series has 2 x 1GbE and 2 x 40GbE network ports. The network settings are congured from the Preferences ->
Network screen:
PAGE 10
CODEX USER GUIDE - CODEX XL-SERIES 27. 07. 17
The network interfaces can be congured as either DHCP or Static. If the network provides internet access, enable the
Default Gateway setting to allow Remote Connection (using TeamViewer - see later section for further details).
When there is no cable connected to a port, it will be shown as ‘No link’ (orange). When there is a cable connected, it will
be shown with a link speed, such as 1.0Gb/s or 40Gb/s (green).
12. Network Shares
The XL-Series has some network shares set up by default:
Share Name Description Protocol Username/Password
codexsettings
This share contains projectsettings.xml which
includes all settings within the ‘Project’ area of
Production Suite.
SMB user=codex, pw=codex (ro*)
user=root, pw=codex (rw**)
codexuser
This share contains folders for User luts,
burnins, and lecards. Copy les here to use
in Production Suite.
SMB user=codex, pw=codex (rw)
codexvfs
This share provides access to clips stored on
the system. The le format(s) in the ‘codexvfs’
are determined by the settings in the Project
-> VFS screen.
NFS and SMB user=codex, pw=codex (ro)
tmp This share is typically used for copying
over a new software version to the XL-
Series prior to installation.
SMB user=codex, pw=codex (ro)
user=root, pw=codex (rw)
*ro = read-only access. **rw = read and write access.
It is possible to set up additional custom network shares on the XL-Series, and also to congure the system to automatically
mount available network shares. If you require assistance in conguring network shares or mounts please contact
support@codex.online.
PAGE 11
CODEX USER GUIDE - CODEX XL-SERIES 27. 07. 17
13. Connecting with a remote User Interface
The XL-Series can either be operated locally with an attached display, mouse and keyboard, or otherwise a User Interface
can be opened on a computer on the same network and used to control the machine. This is particularly useful if the XL-
Series is located in a server room where it is not easily accessible.
To use this functionality:
• Note the software version of Codex Production Suite installed on the XL-Series.
• Install the corresponding version onto a Mac, which is on the same network. (Currently there is no support for the
software on Windows.)

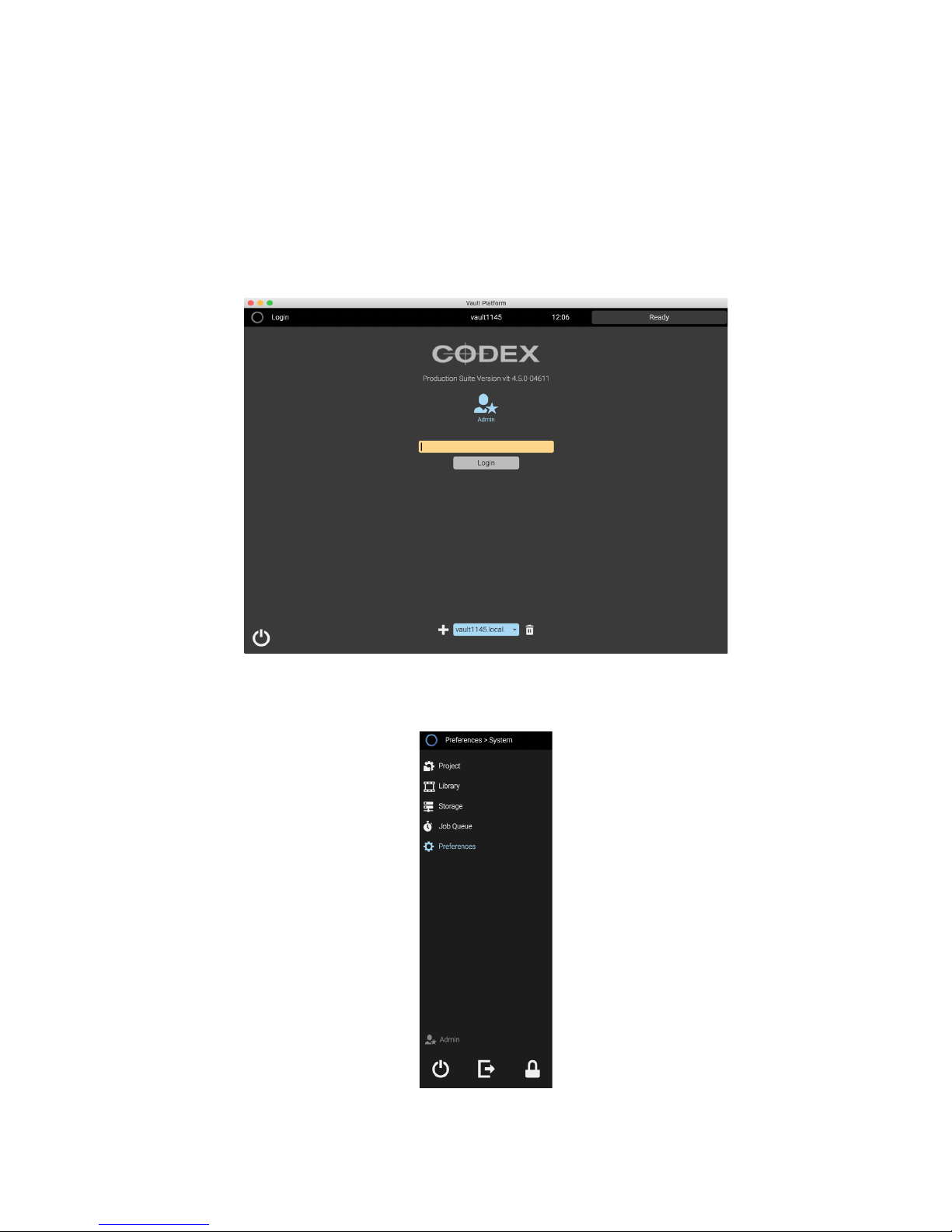

• Ensure that the local User Interface on the XL-Series is logged out (so that the ‘Login’ screen is shown).
• Open the Vault Platform software on the Mac.
• At the Login screen. click the + icon.
• Enter the network IP address of the XL-Series and click OK.
• Click ‘Login’ to access the XL-Series.
Note: only one User Interface can be logged into the XL-Series at a time. If the local User Interface is already logged in,
this will block the connection from the remote User Interface.
14. Preparing the XL-Series for a project
There are some important steps that should normally be completed before the start of a new project:
14.1. Saving Logs

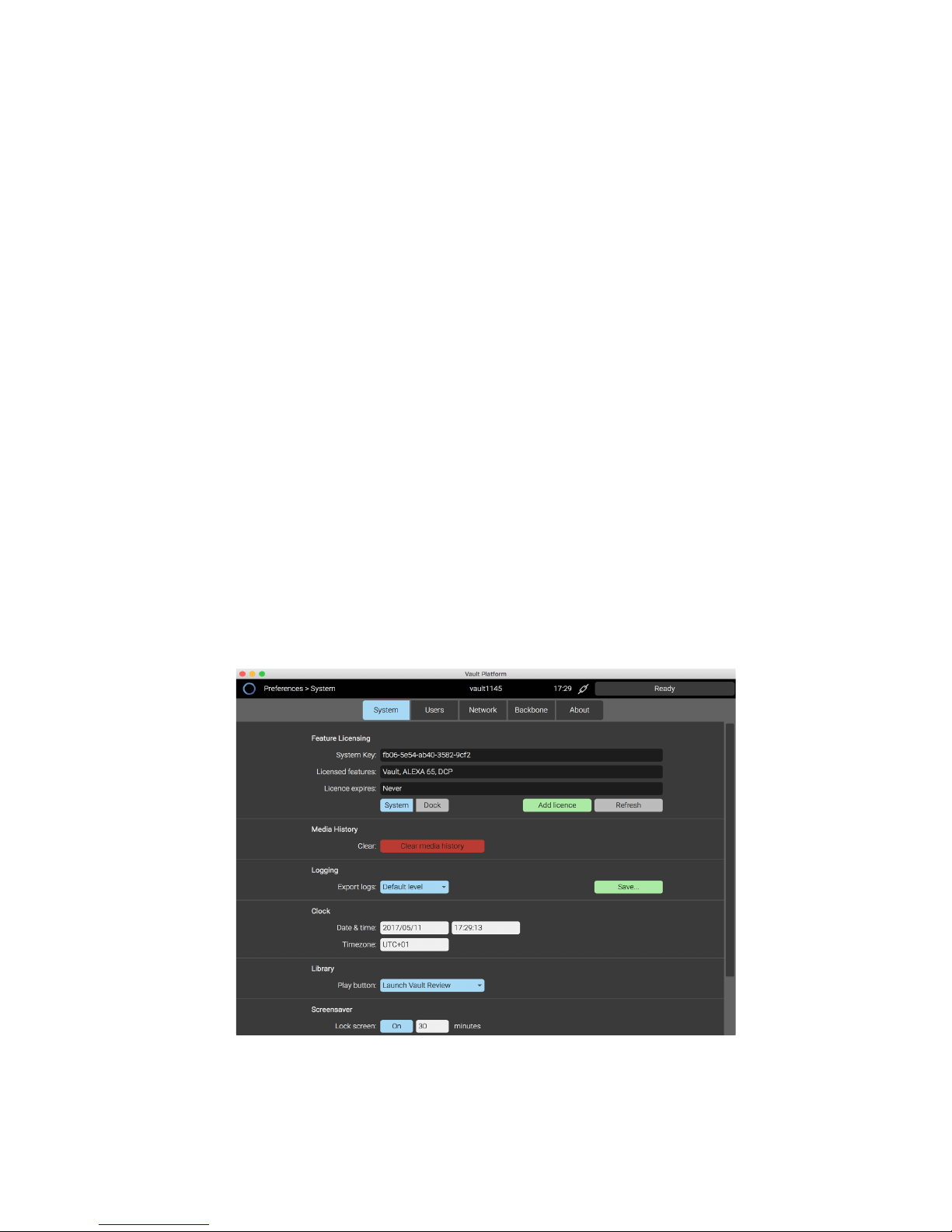

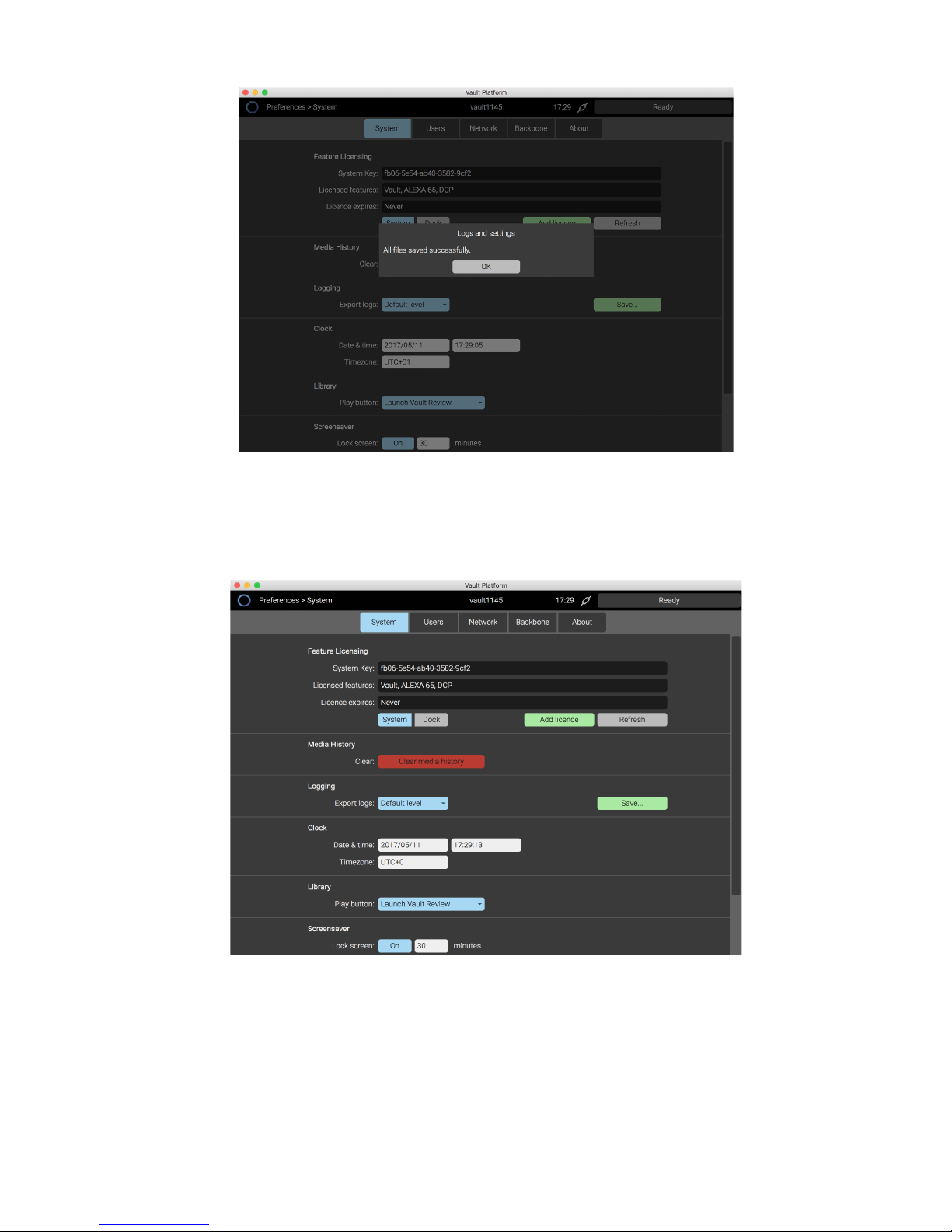

The rst step is to save the system log les, which includes all settings and the media history - a record of all the media
from a project. Connect a USB stick to save the logs to. From the Main Menu, click Preferences and then in the Logging
section select Default Level and then Save.
From the le browser select the USB stick, then click OK and the log les will be saved, e.g.
vaults1048_20130308_142631_logs.tgz
PAGE 12
CODEX USER GUIDE - CODEX XL-SERIES 27. 07. 17
This le is named as follows: vaultxl<SerialNumber>_<Date>_<Time>_logs.tgz
14.2. Clear media history
From the same Preferences screen, select ‘Clear media history’.
This will remove the record of media names used on the last project, and prevent warnings being shown if a media name
on the new project matches a media name from the previous project.
The warnings are a helper feature to avoid duplicate roll names during a project.
PAGE 13
CODEX USER GUIDE - CODEX XL-SERIES 27. 07. 17
14.3. Setting up Project information
From the Main Menu click Project.

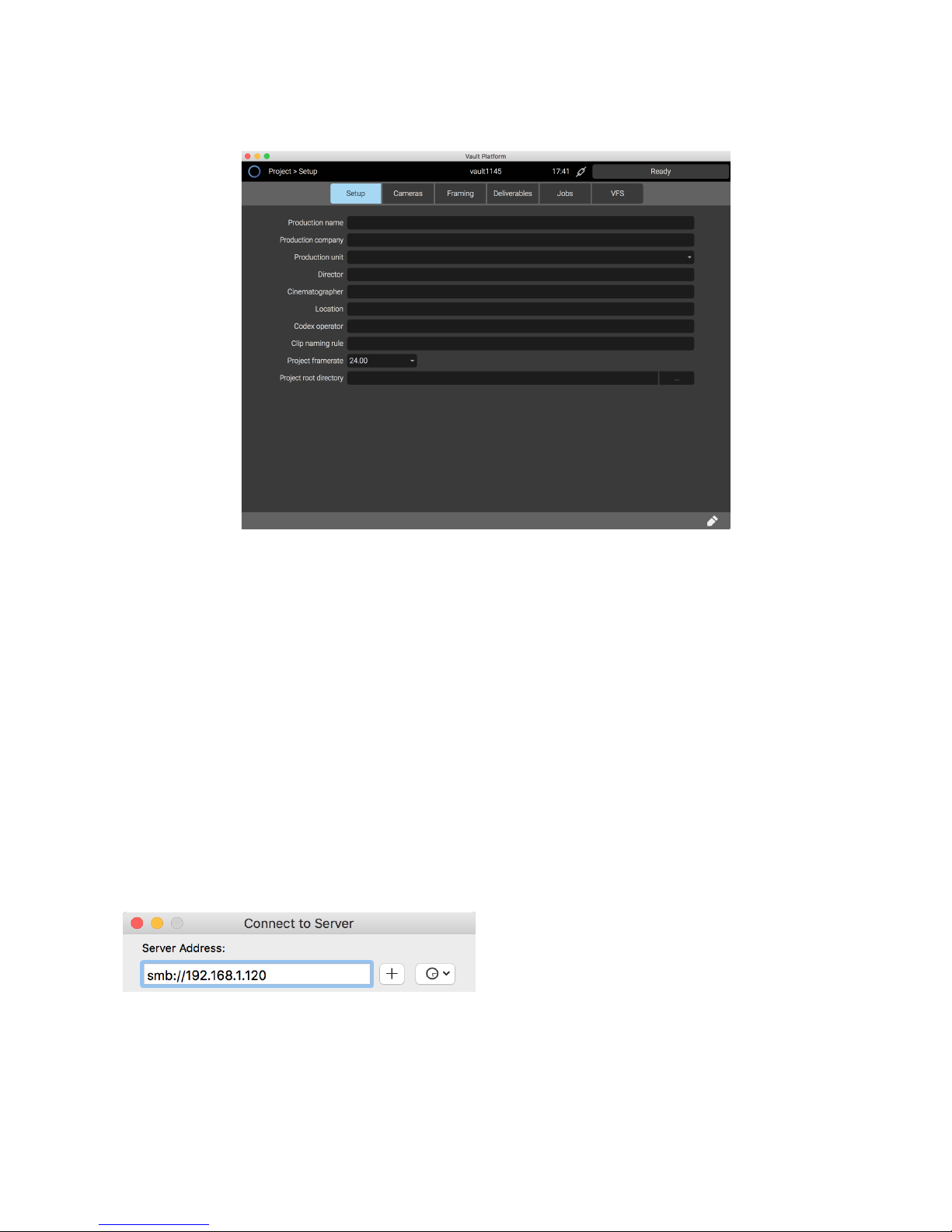

The rst tab is labelled Setup and here you can enter information about the production that the XL-Series will be used on.
Click the pencil icon (lower right) to edit the information. This information can easily be added to clip metadata with the
Media Check task.
14.4 Setting up templates
After the Setup tab, there are tabs for Cameras, Framing, Deliverables, Jobs and VFS. This is where the XL-Series is
congured for your workow. Refer to the Codex Production Suite User Guide for full details on the options available, and
how to congure the system for your requirements.
14.5. Loading LUTs
Please refer to the section about Network Shares. The network share ‘codexuser’ contains a folder for user LUTs.
To connect to this share on Mac:
- Ensure the Mac and XL-Series have compatible network settings.
- Use Finder on the Mac, and then the Cmd-K shortcut.
- In the ‘Connect to Server’ box, enter: “smb://<IpAddressOfXL>”. See the example below:
- Click ‘Connect’ and enter username ‘codex’ and password ‘codex’
- Copy your LUT le to the ‘luts’ folder.
PAGE 14
CODEX USER GUIDE - CODEX XL-SERIES 27. 07. 17
14.6. Setting up user accounts

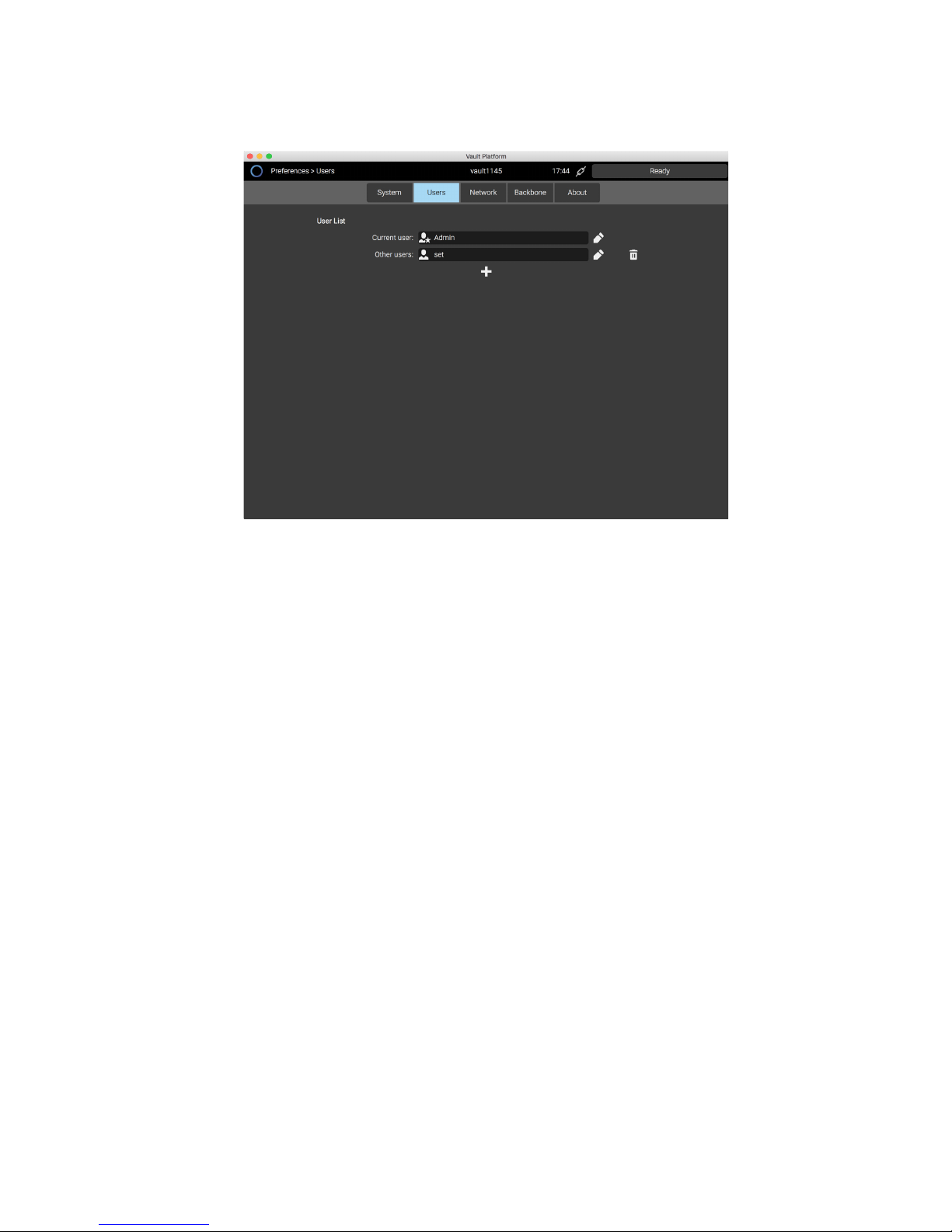

From the Main Menu, click Preferences and then click the Users tab.
By default there is an Admin user with no password. Click the pencil icon to edit the details and add a password if
required.
Click the + icon to add a new user. If the ‘Administrator’ button is highlighted blue, this means the user can edit all the
settings in the Project area. If the ‘Administrator’ button is grey, this means the user can operate the machine but not
change the settings, cannot access the Preferences area, and cannot delete clips in the Library.
15. Remote Connection (TeamViewer)
From the Main Menu, click Preferences and then click the System tab. There is a Remote Connection section - click the
Start button here to enable TeamViewer.
A 9-digit ID will be displayed, and you can then connect to the XL-Series from another machine with the free TeamViewer
software installed. The password to connect to the XL-Series is ‘codexvault’.
The TeamViewer software for Mac and Windows is available from https://www.teamviewer.com/en/
For the Remote Connection to work, the XL-Series must be connected to a network with internet access, and the network
port being used must be congured as the ‘Default gateway’ in Main Menu -> Preferences -> Network.
PAGE 15
CODEX USER GUIDE - CODEX XL-SERIES 27. 07. 17
Notes
24 hour support line +44 7985 467 665
CODEX 60 POLAND STREET LONDON ENGLAND W1F 7NT UK TEL +44 203 7000 999 CODEX.ONLINE INFO@CODEX.ONLINE
Codex reserve the right to alter the specification at any time and without prior notice. © Copyright Codex Digitial Limited June 2017.
Loading...
