Code Corporation Code Reader 3.0, CR3 User Manual

User Manual

This version of the manual supports firmware 3000 and greater.

Save Settings

C002332_02_CR3 User Manual - 1

Statement of Agency Compliance

The CR3 has been tested for compliance with FCC regulations and was

found to be compliant with all applicable FCC Rules and Regulations.

IMPORTANT NOTE: To comply with FCC RF exposure compliance

requirements, this device must not be co-located or operate in conjunction

with any other antenna or transmitter.

CAUTION: Changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate the

equipment.

The CR3 has been tested for compliance to CE standards and guidelines

and was found to conform to applicable CE standards, specifically the

EMC requirements EN 55024, ESD EN 61000-4-2, Radiated RF Immunity

EN 61000-4-3, ENV 50204, EFT EN 61000-4-4, Conducted RF Immunity

EN 61000-4-6, EN 55022, Class B Radiated Emissions, and Class B

Conducted Emissions.

The CR3 can be set to use targeting lasers. If the targeting lasers are

activated, do not stare into the beams. The CR3’s targeting lasers have

been rated as Class IIa Lasers by IEC 60825-1.

The CR3 has been tested by an independent electromagnetic compatibility

laboratory in accordance with the applicable specifications and instructions.

Save Settings

C002332_02_CR3 User Manual - i

Code Reader 3.0 User Manual

Copyright © 2005 Code Corporation.

All Rights Reserved.

The software described in this manual may only be used in accordance with the terms of its license
agreement.

No part of this publication may be reproduced in any form or by any means without written permission from
Code Corporation. This includes electronic or mechanical means such as photocopying or recording in
information storage and retrieval systems.

NO WARRANTY. This technical documentation is provided AS-IS. Further, the documentation does not
represent a commitment on the part of Code Corporation. Code Corporation does not warrant that it is
accurate, complete or error free. Any use of the technical documentation is at the risk of the user. Code
Corporation reserves the right to make changes in specifications and other information contained in this
document without prior notice, and the reader should in all cases consult Code Corporation to determine
whether any such changes have been made. Code Corporation shall not be liable for technical or editorial
errors or omissions contained herein; nor for incidental or consequential damages resulting from the
furnishing, performance, or use of this material. Code Corporation does not assume any product liability
arising out of or in connection with the application or use of any product or application described herein.

NO LICENSE. No license is granted, either by implication, estoppel, or otherwise under any intellectual
property rights of Code Corporation. Any use of hardware, software and/or technology of Code Corporation
is governed by its own agreement.

The following are trademarks or registered trademarks of Code Corporation:

CodeXML, Maker, QuickMaker, CodeXML Maker, CodeXML Maker Pro, CodeXML Router, CodeXML
Client SDK, CodeXML Filter, HyperPage, CodeTrack, GoCard, GoWeb, ShortCode, GoCode, Code Router,
QuickConnect Codes, Rule Runner

All other product names mentioned in this manual may be trademarks of their respective companies and
are hereby acknowledged.

The software and/or products of Code Corporation include inventions that are patented or that are the
subject of patents pending.

Code Corporation, 11814 S. Election Road, Suite 200, Draper, UT 84020

www.codecorp.com

Save Settings

C002332_02_CR3 User Manual - ii

Table of Contents

Chapter 1 - Getting Started ............................................................................................................... 1

1.1 - Introduction ............................................................................................................................ 2

1.2 - Unpacking .............................................................................................................................. 3

1.4 - Keypad/Icon Overview ........................................................................................................... 4

1.5 - Batch Operation ..................................................................................................................... 6

1.6 - Cabled Operation ................................................................................................................... 7

1.6.1 - Introduction .................................................................................................................. 7

1.6.2 - USB Cable Installation Guide ....................................................................................... 8

1.6.2.1 - USB Communication Settings ............................................................................ 9

1.6.3 - PS2 Cable Installation Guide ..................................................................................... 10

1.6.3.1 - PS2 Communication Settings .......................................................................... 10

1.6.4 - RS232 Cable Installation Guide ..................................................................................11

1.6.4.1 - RS232 Communication Data Bit Settings ........................................................ 12

1.6.4.2 - RS232 Communication Stop Bit Settings ........................................................ 12

1.6.4.3 - RS232 Communication Baud Rate Settings .................................................... 12

1.6.4.4 - RS232 Communication Parity Settings ............................................................ 12

1.6.5 - Cabled Reader - Time Out Settings ........................................................................... 13

1.7 - Bluetooth Radio Operation ................................................................................................... 14

1.7.1 - Introduction ................................................................................................................ 14

1.7.2 - Bluetooth Radio Auto Connect ................................................................................... 16

1.7.3 - Bluetooth Radio Auto Disconnect ............................................................................... 17

1.7.4 - Bluetooth Radio Time Out Settings (Uncabled Operations) ....................................... 17

1.7.5 - Bluetooth Radio Out of Range Notification Settings .................................................. 17

1.8 - Reader Feedback Guide ...................................................................................................... 18

1.9 - Targeting and Reading Techniques ...................................................................................... 19

1.10 - Imager Field of View and Resolution ................................................................................. 20

1.11 - Decode Zone ...................................................................................................................... 21

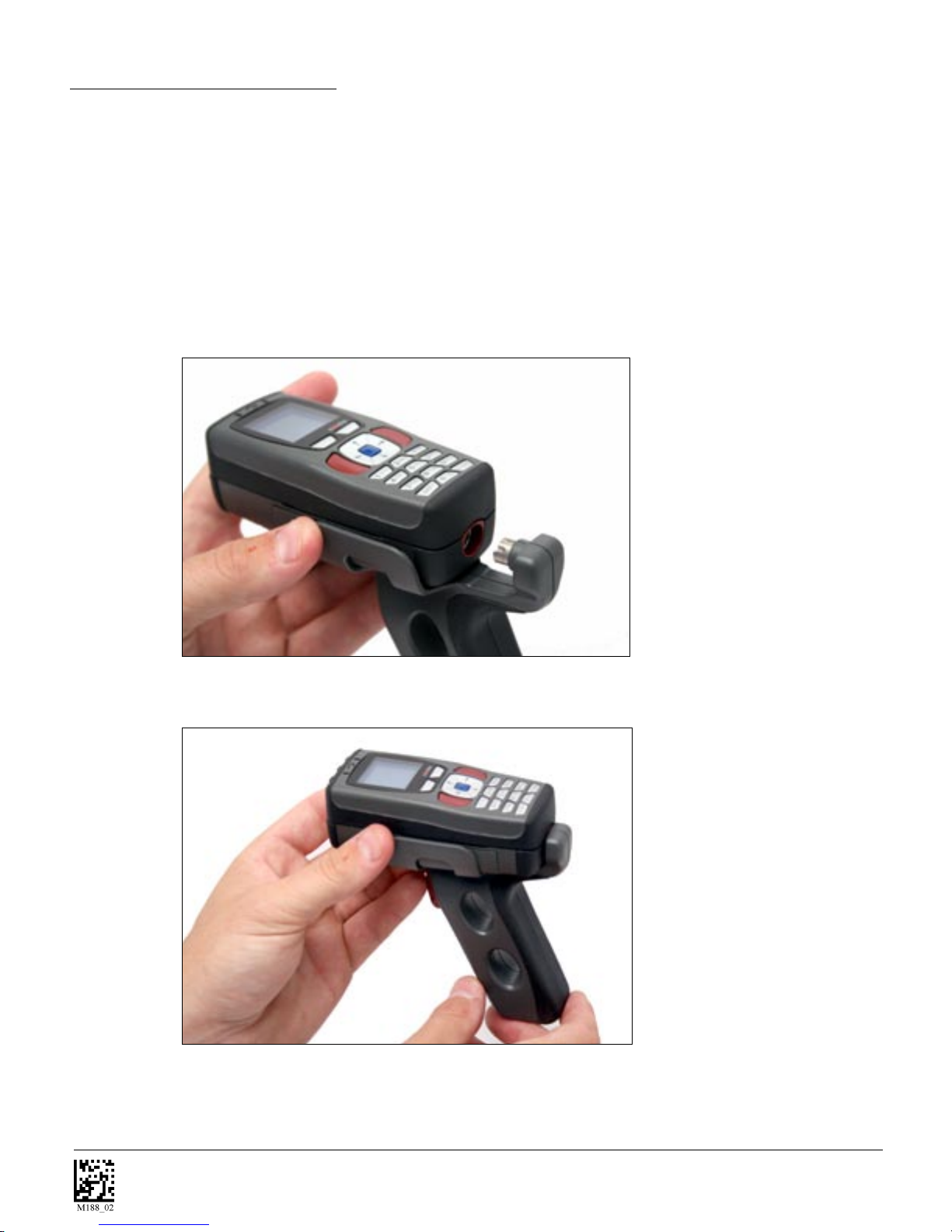

1.12 - Attaching Handle ................................................................................................................ 22

1.13 - Reader Battery Installation ................................................................................................. 23

Chapter 2 - Optimization and Trigger Programming .................................................................... 24

2.1 - Introduction .......................................................................................................................... 25

2.2 - Global Trigger Optimization Matrix ....................................................................................... 26

2.3 - Left Trigger Optimization Matrix ........................................................................................... 27

2.4 - Left Trigger Programming .................................................................................................... 27

2.5 - Right Trigger Optimization Matrix ......................................................................................... 28

2.6 - Right Trigger Programming .................................................................................................. 28

2.7 - Handle Trigger Optimization Matrix ...................................................................................... 29

2.8 - Right Trigger Programming .................................................................................................. 29

2.9 - Continous Trigger Optimization Matrix ................................................................................. 30

2.10 - Continous Scan .................................................................................................................. 30

Save Settings

C002332_02_CR3 User Manual - iii

2.11 - Continous Scan Settings .................................................................................................. 31

2.11.1 - Continous Scan - Sleep Time Out ............................................................................ 31

2.11.2 - Continous Scan - Trigger Delays .............................................................................. 31

2.11.3 - Continous Scan - Duplicate Scan Delay .................................................................. 31

2.12 - Motion Detection Scan Settings ....................................................................................... 31

Chapter 3 - CR3 Programming: Symbology Settings ................................................................... 32

3.1 - Introduction .......................................................................................................................... 33

3.2 - Aztec Symbology .................................................................................................................. 33

3.3 - Codabar Symbology ............................................................................................................. 33

3.4 - Codablock F Symbology ...................................................................................................... 34

3.5 - Code 11 Symbology ............................................................................................................. 34

3.6 - Code 39 Symbology ............................................................................................................. 34

3.7 - Code 93 Symbology ............................................................................................................. 35

3.8 - Code 128 Symbology ........................................................................................................... 35

3.9 - Composite Symbologies ...................................................................................................... 36

3.10 - Data Matrix Symbology ...................................................................................................... 36

3.11 - GoCode Symbology .......................................................................................................... 36

3.12 - Interleaved 2 of 5 Symbology ............................................................................................ 37

3.13 - Maxicode Symbology ......................................................................................................... 37

3.14 - Matrix 2 of 5 Symbology ..................................................................................................... 38

3.15 - Micro PDF417 Symbology ................................................................................................. 38

3.16 - MSI Plessy Symbology ...................................................................................................... 38

3.17 - NEC 2 of 5 Symbology ....................................................................................................... 39

3.18 - PDF 417 Symbology .......................................................................................................... 39

3.19 - Pharmacode ....................................................................................................................... 40

3.20 - Postal Symbologies ............................................................................................................ 40

3.21 - QR Code Symbology ......................................................................................................... 41

3.22 - RSS Symbology ................................................................................................................. 41

3.23 - Telepen Symbology ............................................................................................................ 42

3.24 - UPC/EAN/JAN ................................................................................................................... 42

Chapter 4 - Reader Feedback and Special Settings ..................................................................... 43

4.1 - Volume and Vibration Settings ............................................................................................. 44

4.2 - Code Readability Index ........................................................................................................ 44

4.3 - Backlight Intensity Settings .................................................................................................. 45

4.4 - Backlight Timeout Settings ................................................................................................... 46

4.5 - Laser Settings ...................................................................................................................... 46

4.6 - Reader Power Off Settings .................................................................................................. 46

4.7 - Reader ID and Firmware Version ......................................................................................... 47

4.8 - Reader Settings Lock ........................................................................................................... 47

4.9 - Keyboard Support ................................................................................................................ 48

Chapter 5 - Advanced Decode Performance ................................................................................. 49

Save Settings

C002332_02_CR3 User Manual - iv

5.1 - Continous Illumination .......................................................................................................... 50

5.2 - Set Targeting Zone Tolerances ............................................................................................. 50

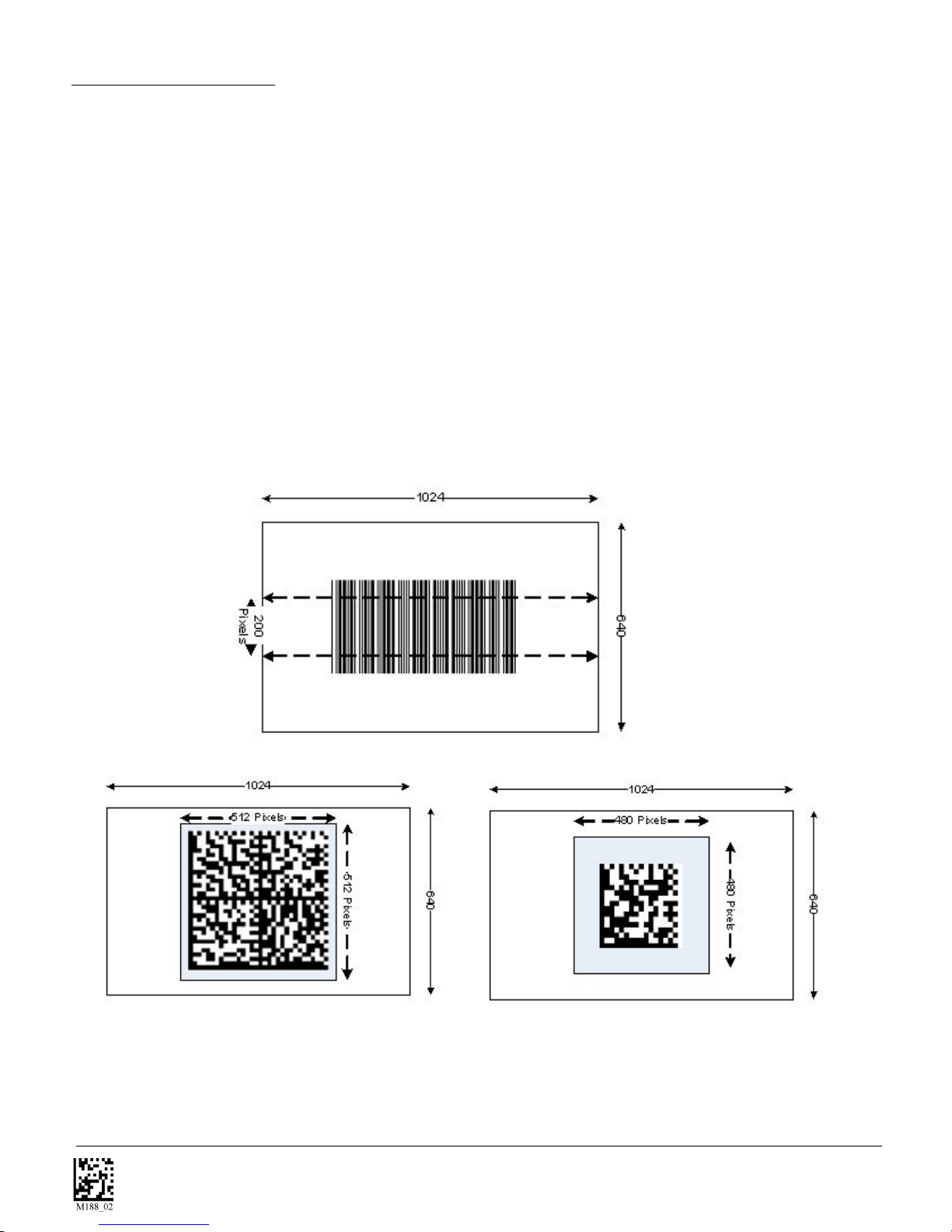

5.3 - Windowing ............................................................................................................................ 51

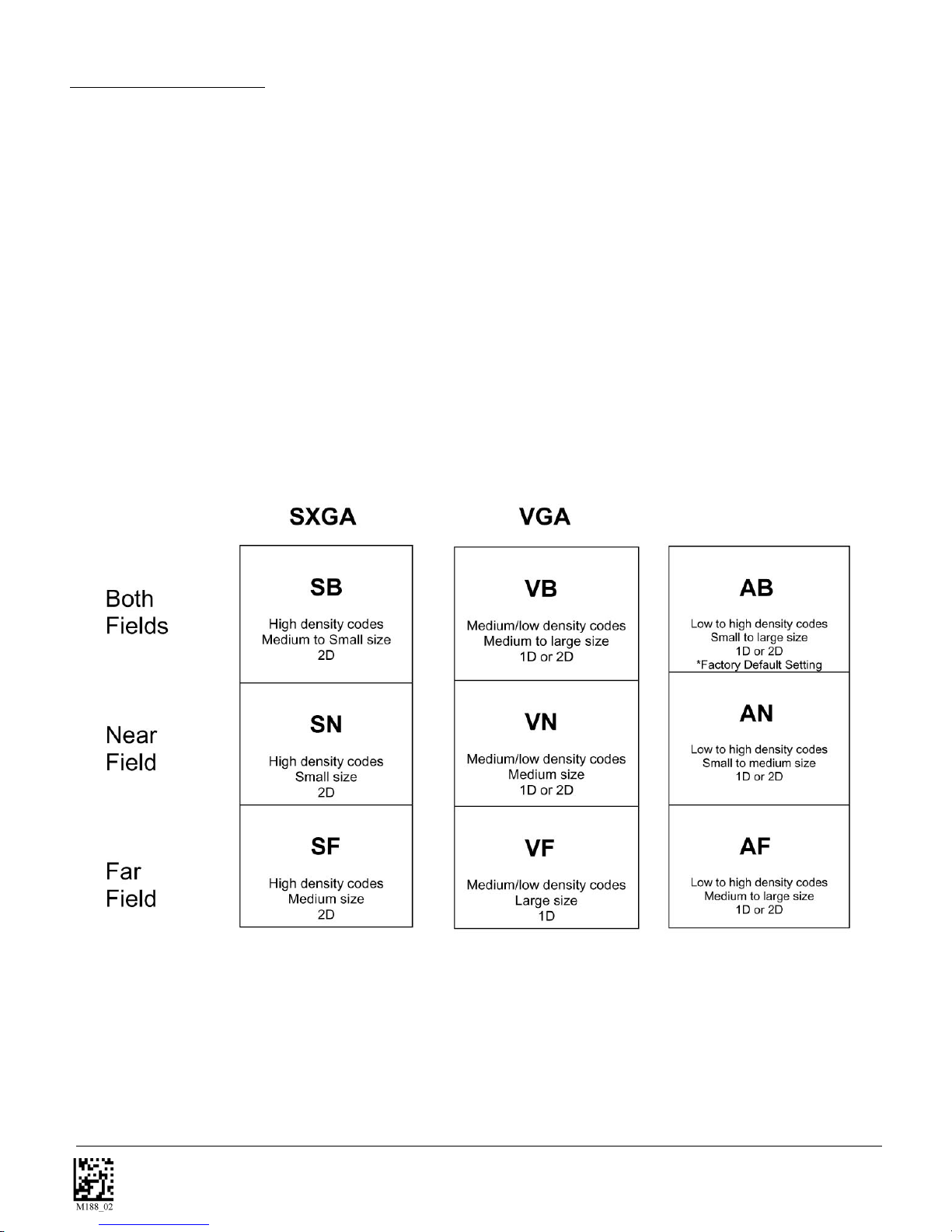

5.4 - VGA & Megapixel Settings ................................................................................................... 53

5.5 - Mirror Decoding .................................................................................................................... 53

Chapter 6 - Adding a Prefix or Suffix and Reader Text Commands ............................................ 54

6.1 - Prefix Settings ...................................................................................................................... 55

6.2 - Suffix Settings ...................................................................................................................... 55

6.3 - Reader Text Commands ...................................................................................................... 56

6.4 - Erase Prefix and Suffix Settings ........................................................................................... 56

Chapter 7 - CR3: Maintenance and Troubleshooting ................................................................... 57

7.1 - Reset Reader to Factory Defaults ........................................................................................ 58

7.2 - General Safety Information .................................................................................................. 58

7.3 - Warranty ............................................................................................................................... 59

7.4 - CR3 Accessories .................................................................................................................. 60

7.5 - Frequently Asked Questions ................................................................................................ 61

7.6 - CR3 Maintenance ................................................................................................................ 61

Save Settings

C002332_02_CR3 User Manual - v

Chapter 1 - Getting Started

Save Settings

C002332_02_CR3 User Manual - 1

1.1 - Introduction

The CR3 establishes a new benchmark for Portable Data
Terminals and Hand Held Computers by combining the
industry’s best imaging technology with a graphic display
and rugged keyboard to create the smallest and lightest
full-featured bar code reading terminal on the market.

Using the same ergonomic platform as the highly
successful Code Reader 2.0, the CR3 extends mobile
all-symbology bar code reading to include information
display and keyboard entry.

The CR3 instantly reads large linear as well as high density matrix symbols due to Code Corporation’s
unique Dynamic Optimization Technology (DOT), which continuously adapts the resolution, illumination,
and image field for the fastest automatic symbology identification and decoding over the widest range of
symbology types, sizes, recording surfaces and ambient lighting. With DOT, the CR3 achieves matrix
symbol decoding at speeds that are similar to linear bar code decoding, while preserving battery energy.
By monitoring each user’s reading patterns, DOT reduces training time and eliminates the need for manual
configuration optimization through parameter settings.

fe atur i ng

Code eliminates the need for costly, high-overhead operating systems by providing an open platform
JavaScript development environment within its CodeXML Applications Development Suite. With CodeXML
and JavaScript, Developers and Information Technology organizations no longer need to worry about ex­pensive porting of applications between Windows, Windows Pocket PC, Windows CE.Net, et.al.. A unique
feature of the Applications Development Suite is the ability to protect both development investment and
data security by a customer-unique key encryption, which allows the developer to control the distribution
and modification of applications to specific serial-numbered CR3 units.

The CR3 features a 1.3 MegaPixel dual-field
image collection engine, a 400MHz AMD Al­chemy au1100 CPU, and 4MB of non-volatile
memory. Portable operations are supported
by a 1950 mAH Lithium Ion Battery and a Real
Time Clock with its own battery backup sys­tem. For wireless communications, a 2.4 GHz
radio system is available and compatible with
a wide range of Bluetooth™ systems, as well
as the CodeXML Modem, with a unique data
and pairing encryption system for unsurpassed
wireless data security.

The CR3 will instantly decode all bar and 2D codes

Save Settings

C002332_02_CR3 User Manual - 2

1.2 - Unpacking

Remove the imager from its packing and inspect it for damage. If the scanner was damaged during
shipping, please call Code at [phone].

The standard CR3 unit is shipped with a USB cable interface. The unit also features a 1950 mAH battery
that must be installed in the unit at all times.

Various accessories are available for the CR3.

• 3 cable options (USB, RS232 or PS/2)

• Class 1 Bluetooth radio with 300 foot operating range

• Clip-on pistol grip handle

• External battery charger

• CodeXML Bluetooth modem

Please keep your packing materials. The CR3 is shipped in an approved shipping container and should be
used if you ever need to return your equipment for servicing.

1.3 - Powering On/Off Reader

To power up the reader, press and hold (for 1 second) any of the red trigger buttons (Figure 1.1).

The reader will power down after 2 hours of non-use. To change the default settings, please see Section

4.7 - Reader Sleep/Time Out settings.

Figure 1.1

Save Settings

C002332_02_CR3 User Manual - 3

1.4 - Keypad/Icon Overview

The chart below shows key/button functions.

Description of Button Function

Key Numeric Mode Upper Case Text

Mode

Toggles between
numeric characters,
upper case text, lower
case text, and symbol
character input

1 Space, 1 Space, 1 Space ‘ ; (

2 A, B, C, 2 a, b, c, 2 . “ \ )

3 D, E, F, 3 d, e, f, 3 @ + < ^

4 G, H, I, 4 g, h, i, 4 ? = > Space

5 J, K, L, 5 j, k, l, 5 ! / { Space

6 M, N, O, 6 m, n, o, 6 - $ } Space

7 P, Q, R, S, 7 p, q, r, s, 7 , * [ Space

Toggles between
numeric characters,
upper case text, lower
case text, and symbol
character input

Lower Case Text

Mode

Toggles between
numeric characters,
upper case text, lower
case text, and symbol
character input

Symbol Mode

Toggles between
numeric characters,
upper case text, lower
case text, and symbol
character input

8 T, U, V, 8 t, u, v, 8 & # ] Space

9 W, X, Y, Z, 9 w, x, y, z, 9 : % _ Space

0 0 0 Toggles between

4 sets of symbols
– when pressed,
each symbol set is
displayed

Backspace and clear
messages

Save Settings

Backspace and clear
messages

Backspace and clear
messages

Backspace and clear
messages

C002332_02_CR3 User Manual - 4

The chart below shows all of the icons for CodeViewer™ software and their definitions.

Icon Description

Power Icons

50% to 100% capacity of battery

20% to 50% capacity of battery

0% to 20% capacity of battery – recharge battery as soon as possible

Battery is recharging

No icon is displayed when battery blank is used with a cabled reader

Connection Icon

Reader is connected physically or wirelessly to a receiving device (computer, handheld, etc.)
Note: Some RS232 configurations can not be detected

No icon is displayed when the reader does not detect a connection

Communication Mode Icons

RS232 communication mode enabled

PS2 communication mode enabled

USB communication mode enabled

Bluetooth communication mode enabled

Packet Mode Icons

One way mode – no acknowledgement required

Two way mode – packetized, bidirectional communication between a CR3 and an application
(may also indicate download mode)

Keyboard mode – can be used as either USB keyboard or PS/2 keyboard input mode

Virtual COM port 1 mode – data can be sent in one way mode

Secure mode – data encryption mode enabled

Memory Icons

No stored data to send

Some stored data to send

Memory is full – no available memory

No batch mode – data is not being stored in the reader’s memory

Input Mode Icons

Caps Lock – data entered manually on the keypad will be in capital letters

Lower Case – data entered manually on the keypad will be in lower case letters

Numeric – data entered manually on the keypad will be numeric

Symbol – data entered manually on the keypad will be symbols

Locked – buttons pushed on the reader’s keypad will be ignored

Save Settings

C002332_02_CR3 User Manual - 5

1.5 - Batch Operation

1.5.1 - Introduction

Batch data storage and data transfer are controlled by the resident JavaScript application on your CR3
reader. Please consult the manual for the application on your CR3 for instructions on how to control data
storage and transfer.

1.5.2 - RS232 Considerations

In RS232 Cabled - No Power mode, the CR3 will behave as if it is always connected even though the
serial cable is disconnected or the power adapter is unplugged. Scanned data will be sent, regardless of
connection status. Data scanned in Cabled mode will be lost if the CR3 is not connected to the serial cable.
It will not buffer the data, unless Send & Store mode has been enabled.

In RS232 Cabled mode, the CR3 will detect if it is connected to a powered serial cable, and will send the
data. If a powered serial cable is not connected or if the power adapter is not connected to the serial cable,
the CR3 will buffer the data. When the CR3 is then connected to a powered serial cable, the data will
automatically upload.

Important Note: If you are in RS232 Cabled mode, when you place a unit in a charger the reader will
behave as it is being cabled, and download the data. THE DATA WILL BE ERASED FROM MEMORY. To
disable this feature, scan the RS232 Cabled - No Power code.

RS232 Cabled (Default) RS232 Cabled - No Power

Save Settings

C002332_02_CR3 User Manual - 6

1.6 - Cabled Operation

1.6.1 - Introduction

The CR3 is available with USB, RS232 and PS2 cables. All of the cables are connected to the CR3 with a
8-pin DIN connector. Different cables may be required for different hosts.

Hand Held CR3 - To install a cable on the standard palm-held unit, correctly line up the 8-pin DIN connec­tor into back end of the unit. The arrows on the connector should be facing down (Figure 1.2). When they
are lined up, firmly push the cable in. The cable has a locking mechanism that will firmly hold the cable in
place (Figure 1.3). To unattach the cable from the reader, YOU MUST pinch the plastic on the 8-pin din
(Figure 1.4) and pull back to disengage the connector.

CR3 with Attachable Handle - If you purchased the attachable handle accessory, the 8-pin DIN
connection is at the botton of the handle (Figure 1.5). Insert the 8-pin connector and firmly push cable
into the handle. The cable has a locking mechanism that will firmly hold the cale in place (Figure 1.6). To
unattach the cable from the reader, YOU MUST pinch the plastic on the 8-pin din (Figure 1.4) and pull back
to disengage the connector.

Figure 1.2

Figure 1.5

Figure 1.3

Figure 1.4

Figure 1.6

Save Settings

C002332_02_CR3 User Manual - 7

1.6.2 - USB Cable Installation Guide

To connect the CR3 to your host computer via USB interface:

1. Make sure the USB cable is sufficiently attached to your CR3 unit (Figure 1.7).

2. You DO NOT need to power off your host computer (Figure 1.8). The CR3 with USB interface can be
plugged into any host while the computer is powered up.

3. Connect the USB interface cable to the host (Figure 1.9). If you are unsure of the proper location to
connect the USB cable please consult the manual of your host computer.

4. The USB interface does not require additional power supply. If you are using 1950 mAH battery for
batch mode, the CR3 will automatically recharge the battery whenever the unit is a attached to a host
that is powered up.

5. The CR3 will power on automatically.

6. Scan the USB Keyboard Mode code to then the Save Setting code to configure reader:

USB Keyboard Mode Save Settings

7. Your CR3 unit should be ready for use. Open the application on your host computer that you wish to
send data to and begin scanning.

Figure 1.7

Figure 1.8

Figure 1.9

Save Settings

C002332_02_CR3 User Manual - 8

1.6.2.1 - USB Communication Settings

USB Keyboard Mode - Data is sent from the Reader and interpreted by the host just as if a US

keyboard was being used to enter data.

USB Downloader - This mode is the standard way of transferring unformatted, unpacketized data through
the USB port.

USB Native Two Way Mode - This mode is utilized when there is a need for bidirectional communication
between the CR3 and an application through the USB port (i.e. Time Stamp, Error Checking...)

USB Virtual COM 1 Way Mode - This mode allows a USB-cabled CR3 to function as a virtual COM port.
To use the CR3 in this mode, download the driver at www.codecorp.com/downloads/codexmltools.htm.

Scan the following codes to set the appropriate USB communication setting:

USB Keyboard USB Downloader USB Native Two Way Mode

USB Virtual COM 1 Way Mode Reset to USB Factory Defaults

You must first install the
virtual com port driver
before utilizing this mode.
You may download the driver
at: www.codecorp.com

Radio settings will
not be reset with
this code.

Save Settings

C002332_02_CR3 User Manual - 9

1.6.3 - PS2 Cable Installation Guide

1. Power off the host computer.

2. Attach the end of the PS2 cable with the single connector A to the CR3.

3. If external keyboard exists, unattach your keyboard from the host and connect the appropriate connec­tor to the PS2 cable B .

4. Connect the other connector to host computer into keyboard port C . The CR3 is powered by the
PS2 port and does not require a power supply.

C

B

A

Code does not guarantee compatibility

with all models of laptops.

A

B

C

5. Set the CR3 to PS2 mode by scanning the PS2 Mode code below.

6. Scan the Save Settings code.

7. Your CR3 unit is now ready. Open the appropriate application and begin scanning data.

WARNING: Code does not recommend using Batch or Bluetooth Radio modes with the PS2 interface.

You may need to disconnect the CR3 and the keyboard which may result in the host computer freezing.

1.6.3.1 - PS2 Communication Settings

Scan the following codes to set the reader to the PS2 communication setting:

PS2 Mode Save Settings Reset to PS2 Factory Defaults

Save Settings

C002332_02_CR3 User Manual - 10

1.6.4 - RS232 Cable Installation Guide

To connect the CR3 to your host computer via RS232 interface:

1. Make sure the RS232 cable is sufficiently attached to your unit.

2. Connect the RS232 interface cable to your host computer (Figure 1.10). If you are unsure of the proper
location to connect the RS232 cable please consult the manual of your host computer.

3. The RS232 interface should have come with a power supply. Plug the power supply adapter into the
RS232 interface cable (Figure 1.11) and then plug the power adapter into a wall socket (Figure 1.12). The
RS232 interface does not require additional power. However, if you are using the RS232 interface and
utilizing Batch functionality, please read the Important Note in batch section. If you are using the 1950 mAH
battery for batch mode, the CR3 will recharge the battery whenever the unit is a attached to a RS232 cable
that is plugged into a wall socket.

Figure 1.10

Figure 1.11

Figure 1.12

4. The CR3 will power on automatically.

5. Scan the RS232 One Way Mode code then the Save Settings code to configure reader:

RS232 One Way Mode Save Settings

RS232 Factory Default Settings
Mode: RS232 One Way Mode

Max Range

Baud Rate: 57600
Stop Bits: 1
Data Bits: 8
Parity: None

6. Your CR3 unit should be ready for use. Open the application on your host computer that will receive
scanned data and begin scanning.

Save Settings

C002332_02_CR3 User Manual - 11

1.6.4.1 - RS232 Communication Data Bit Settings

Scan the following codes to set the appropriate data bit:

7 Data Bits 8 Data Bits (Default)

1.6.4.2 - RS232 Communication Stop Bit Settings

Scan the following codes to set the appropriate stop bit data:

1 Stop Bit (Default) 2 Stop Bits

1.6.4.3 - RS232 Communication Baud Rate Settings

Scan the following codes to set the appropriate baud rate:

1200 2400 4800 9600

19200 38400 57600 (Default) 115200

1.6.4.4 - RS232 Communication Parity Settings

Scan the following codes to set parity:

Even Odd None (Default)

Save Settings

C002332_02_CR3 User Manual - 12

1.6.5 - Cabled Reader - Time Out Settings

Will only work in versions 2098 and above. Scan one of the codes below to set the amount of time a
cabled CR3 will be enumerated before entering sleep mode in order to charge the battery:

Cabled - 2 hours Cabled - Always (Default)

Save Settings

C002332_02_CR3 User Manual - 13

1.7 - Bluetooth Radio Operation

1.7.1 - Introduction

This CR3 features a Bluetooth® wireless radio. The radio allows for point to point wireless communica­tion with other Bluetooth devices that support serial port protocol (SPP). The following guide will give you
general instructions on connecting your CR3 to a desktop or laptop computer with a Bluetooth radio.

Connecting With A QuickConnect Code

The easiest way to connect to a Bluetooth device is to visit the Code website and create a QuickConnect
Code that is specific to your device (Figure 1.13). This code will link your CR3 directly to the desired

Bluetooth device. To create a QuickConnect Code, you will need to know the Bluetooth address (often
referred to as the BD_ADDR) of that device. You can usually find the 12-character Bluetooth address
somewhere on the device near the device’s serial number (see Figure 1.14).

Figure 1.13

Figure 1.14

If you purchased a CodeXML Bluetooth Modem or a Belkin® Bluetooth adapter from Code or from an
authorized distributor, a QuickConnect Code was included. If you bought a Bluetooth adapter separately
and wish to create a QuickConnect Code, please visit Code web site at:

http://www.codecorp.com/support/bdaddr.php.

Important Note: While installing the Bluetooth Configuration Manager software that was included with

your Bluetooth adapter, make sure to note the Virtual COM Port number the software assigned for the
adapter (e.g. COM 10). This is the COM Port your CR3 will connect through.

To connect your reader, scan the Reset to Factory Defaults below then the QuickConnect Code and your
CR3 will automatically connect. You should also scan the Save Settings code if you want to save these
settings (Note: If the CR3 unit powers off without scanning the Save Settings code, you will lose your
settings).

Reset to RF Factory Defaults QuickConnect Save Settings

Save Settings

C002332_02_CR3 User Manual - 14

Radio Range and Transferring Data

The CR3 radio is a Class 1 device. If connected to another Class 1 device the unit has roughly
a 300 foot line of sight operating range. If connecting to a Class 2 or Class 3 device, the operating
range may drop to match the lower range. Once a unit is connected, the application software on
the host must be open to receive data.

When the CR3 detects the radio is out of range, the CR3 will store data on the reader’s non-volatile
memory. The reader will continue to try and send data until radio is back in range. Once the data is sent
the data will be erased from the units memory. If the radio cannot connect in 90 seconds, it will give an
error beep. The reader will continue to try and connect until it has reached the programmable radio time out
setting.

The CR3 Bluetooth protocol allows for two (2) forms of communication:

1. One Way Mode - Defined as one way communication between the reader and host. One Way

mode only recommended when connecting to a device well within itse specified range or if
connected to a device without an operating system (i.e. printer). There are two settings in this mode:

• Max Range (Default) - Greater range but data reliability is lower

• Max Reliability - Limits range but reliability is improved

RF One Way Mode (Max Range) RF One Way Mode (Max Reliability)

Note: While robust, One Way Mode doesn’t guarantee data integrity and you may have data loss.

2. RF Two Way Mode - This is two way communication between the host and reader. This requires the

implementation of software at the application level.* The reader receives confirmation via packet
protocol verification and is 100% reliable. Data will be automatically retransmitted if necessary.

RF Two Way Mode

* Note: You will need to install application software that supports packet communication to operate

in RF Two Way Mode. Code offers the CodeXML Bluetooth Modem and a Windows or Pocket PC
version of software called CodeXML Router - Bluetooth Edition (BE) that provides for end-to-end
Bluetooth handshakes that eliminate out-of-range data loss. CodeXML Router - BE also offers
Bluetooth to keyboard wedge communication for applications that require keyboard port input.

If you are using the CodeXML Bluetooth modem, you must use RF Two Way Mode.

Save Settings

C002332_02_CR3 User Manual - 15
