Code CR1200 User Manual

User Manual

Code Reader 1200

™

Code Reader 1210™

Manual Version 6

C003525_06_CR1200_User Manual Release Date: 3/16/09

Save Settings

C003525_06_CR1200_User_Manual 1

Statement of Agency Compliance

The CR1200 has been tested for compliance with FCC regulations and was found to be compliant with

all applicable FCC Rules and Regulations.

IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, this

device must not be co-located or operate in conjunction with any other antenna or transmitter.

CAUTION: Changes or modications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

The CR1200 has been tested for compliance to CE standards and guidelines and was found to conform

to applicable CE standards, specically the EMC requirements EN 55022 Class BRadiated Emissions

and Class B Conducted Emissions.

NOTE: This equipment has been tested and found to comply with the limits or a Class B digital device

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio

or television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected

• Consult the dealer or an experienced radio/TV technician for help

Save Settings

C003525_06_CR1200_User_Manual i

Code Reader 1200 / Code Reader User Manual

The software described in this manual may only be used in accordance with the terms of its license agreement.

No part of this publication may be reproduced in any form or by any means without written permission from Code

Corporation. This includes electronic or mechanical means such as photocopying or recording in information storage and retrieval systems.

NO WARRANTY. This technical documentation is provided AS-IS. Further, the documentation does not represent a commitment on the part of Code Corporation. Code Corporation does not warrant that it is accurate, complete or error free. Any use of the technical documentation is at the risk of the user. Code Corporation reserves the right to make

changes in specications and other information contained in this document without prior notice, and the reader should

in all cases consult Code Corporation to determine whether any such changes have been made. Code Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material. Code Corporation does not assume any product liability arising out of or in connection with the application or use of any product or application described herein.

NO LICENSE. No license is granted, either by implication, estoppel, or otherwise under any intellectual property rights

of Code Corporation. Any use of hardware, software and/or technology of Code Corporation is governed by its own agreement.

The following are trademarks or registered trademarks of Code Corporation:

CodeXML, Maker, QuickMaker, CodeXML Maker, CodeXML Maker Pro, CodeXML Router, CodeXML Client SDK, CodeXML Filter, HyperPage, CodeTrack, GoCard, GoWeb, ShortCode, GoCode, Code Router, QuickConnect Codes.

All other product names mentioned in this manual may be trademarks of their respective companies and are hereby acknowledged.

The software and/or products of Code Corporation include inventions that are patented or that are the subject of patents pending. U.S. Patents: 6997387, 6957769, 7428981, 7392933, 7240831, 7353999, 7519239, 7204417, 6942152, 7070091, 7097099, 7621453

The Code Reader 1200 runs a Linux-based operating system, which is distributed under the terms of the GNU Public

License, version 2. The source code for the operating system is available at http://www.codecorp.com/source/cr1200-linux. (If you would like to receive the the source code on CD, you may request it from your distributor within three years of your purchase of the Code Reader 1200, and it will be provided for only the cost of packaging and shipping the CD to you.)

The Code Reader software uses the Mozilla SpiderMonkey JavaScript engine, which is distributed under the terms of

the Mozilla Public License Version 1.1. Source code for this version of Spider Monkey is available at:

http://www.codecorp.com/source/spidermonkey.

The Code Reader software is based in part on the work of the Independent JPEG Group.

Code Corporation, 14940 South Pony Express Road, Suite 500, Bluffdale, UT 84065

www.codecorp.com

Save Settings

C003525_06_CR1200_User_Manual ii

Table of Contents

Chapter 1 - Introduction .................................................................................................................... 1

1.1 - Introduction ............................................................................................................................ 2

1.2 - Operational Overview ............................................................................................................. 2

1.3 - About This Document ............................................................................................................. 3

Chapter 2 - Getting Started ............................................................................................................... 4

2.1 - Unpacking .............................................................................................................................. 5

2.2 - Installing ................................................................................................................................. 5

2.2.1 - USB Cable Connection and Settings ........................................................................... 5

2.2.1.2 - USB Cable Instructions ............................................................................................. 5

2.2.1.2 - Addional USB Communication Settings ............................................................. 6

2.2.1.3 - Keyboard Support .............................................................................................. 6

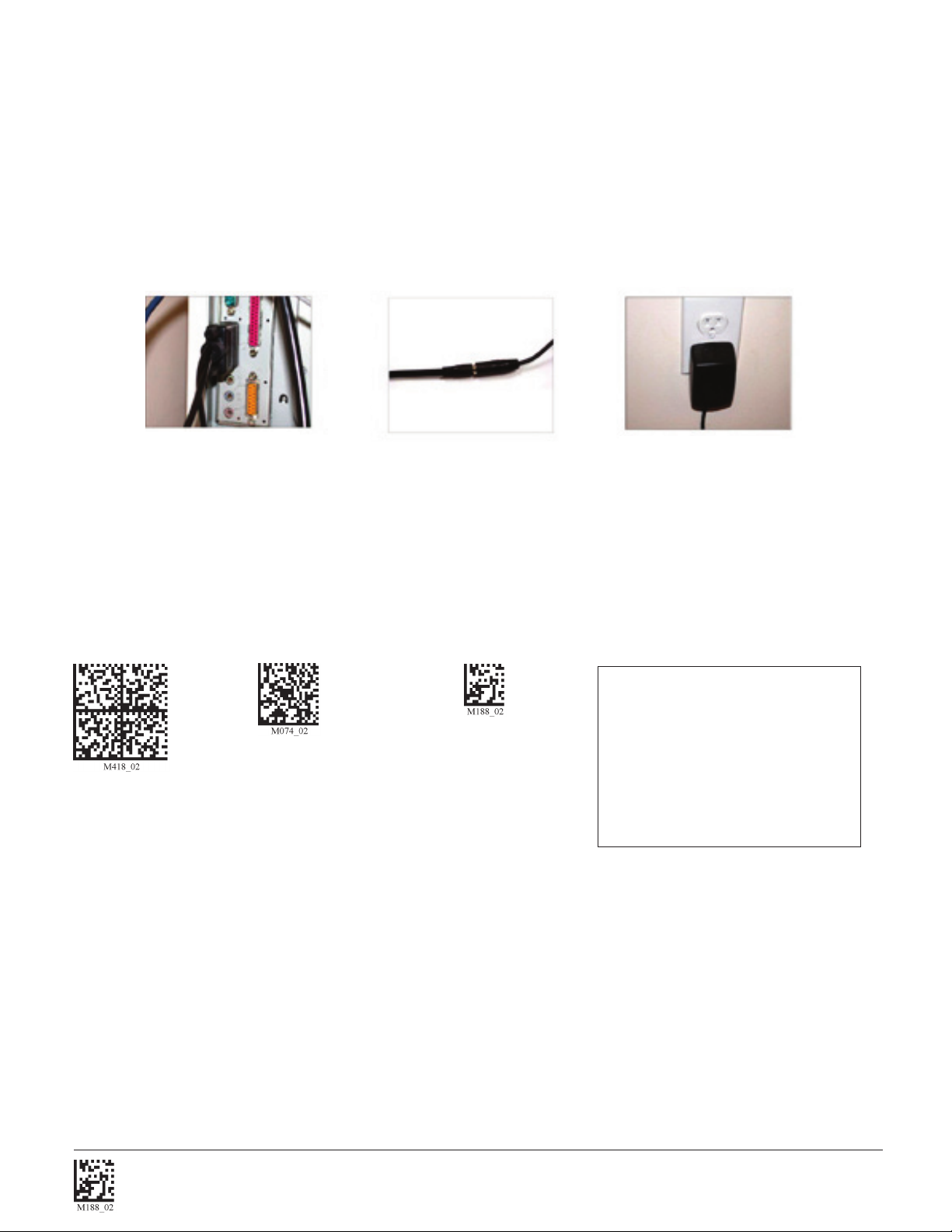

2.2.2 - PS/2 Cable Installation Guide ...................................................................................... 7

CR1200 must have a serial number greater than 10050561 and a rmware version greater than 4126

to use a PS/2 cable. ........................................................................................................................... 7

2.2.3 - RS-232 (Serial) Cable Installation Guide ..................................................................... 8

2.2.3.1 - Additional RS-232 (Serial) Communication Data Bit Settings ............................ 9

2.2.3.2 - Additional RS-232 (Serial) Communication Baud Rate Settings ........................ 9

2.2.3.3 - Additional RS-232 (Serial) Communication Parity Settings................................ 9

2.3.1 - Cabled Reader - Time Out Settings ............................................................................. 9

Chapter 3 - Optimization and Trigger Programming .................................................................... 10

3.1 - Specifying Feedback .............................................................................................................11

3.2 - Targeting............................................................................................................................... 12

3.2 - Targeting............................................................................................................................... 14

3.3 - Reading Techniques ............................................................................................................. 14

Chapter 4 - Optimization and Trigger Programming .................................................................... 15

4.1 - Operational Modes ............................................................................................................... 16

4.2.1 - Continuous Read Mode ............................................................................................. 16

4.2.1.1 - Read Delays.................................................................................................... 16

4.2.1.2 - Duplicate Rejection Period ............................................................................. 16

Chapter 5 - Setting Symbology ...................................................................................................... 17

5.1 - Aztec Symbology .................................................................................................................. 18

5.2 - Codabar Symbology ............................................................................................................. 18

5.3 - Codablock F Symbology ...................................................................................................... 18

5.4 - Code 11 Symbology ............................................................................................................. 19

5.5 - Code 39 Symbology ............................................................................................................. 19

5.6 - Code 93 Symbology ............................................................................................................. 20

5.7 - Code 128 Symbology ........................................................................................................... 20

5.8 - Composite Symbologies ...................................................................................................... 20

Save Settings

C003525_06_CR1200_User_Manual iii

5.9 - Data Matrix Symbology ........................................................................................................ 21

5.10 - GoCode Symbology .......................................................................................................... 21

5.11 - Interleaved 2 of 5 Symbology ............................................................................................ 21

5.12 - Maxicode Symbology ......................................................................................................... 22

5.13 - Matrix 2 of 5 Symbology ..................................................................................................... 22

5.14 - Micro PDF417 Symbology ................................................................................................. 22

5.15 - MSI Plessy Symbology ...................................................................................................... 22

5.16 - NEC 2 of 5 Symbology ....................................................................................................... 22

5.17 - Optical Character Recognition (OCR) ................................................................................ 23

5.18 - PDF 417 Symbology .......................................................................................................... 23

5.19 - Pharmacode ....................................................................................................................... 23

5.20 - Postal Symbologies ............................................................................................................ 23

5.21 - QR Code Symbology ......................................................................................................... 24

5.22 - GS1 data bar (formerly RSS) Symbology .......................................................................... 24

5.23 - Telepen Symbology ............................................................................................................ 25

5.24 - UPC/EAN/JAN ................................................................................................................... 25

Chapter 6 - Setting Operational Features ...................................................................................... 26

6.1 - Settings Lock ....................................................................................................................... 27

6.2 - Set Targeting Tolerances ..................................................................................................... 27

6.3 - Mirror Decoding .................................................................................................................... 28

6.4 - Adding Prex Settings .......................................................................................................... 28

6.4.1 - Prex Settings ............................................................................................................ 28

6.4.2 - Sufx Settings ............................................................................................................ 29

6.5 - Erase Prex and Sufx Settings ........................................................................................... 29

6.6 - Reader Text Commands....................................................................................................... 29

Chapter 7 - Maintenance and Troubleshooting ............................................................................. 30

7.1 - Reset Reader to Factory Defaults ........................................................................................ 31

7.2 - General Safety Information .................................................................................................. 31

7.3 - Reader ID and Firmware Version ......................................................................................... 32

7.4 - Downloading to the CR1200 ................................................................................................ 32

7.5 - Warranty ............................................................................................................................... 33

7.6 - CR1200 Accessories ............................................................................................................ 34

7.7 - Frequently Asked Questions ................................................................................................ 34

7.8 - CR1200 Maintenance .......................................................................................................... 34

Save Settings

C003525_06_CR1200_User_Manual iv

Chapter 1 - Introduction

Save Settings

C003525_06_CR1200_User_Manual 1

1.1 - Introduction

Simple, affordable and fast, the Code Reader 1200™ (CR1200) provides two-dimensional CMOS imaging at

a new low cost. Built for cabled applications, the CR1200 is Code Corporation’s (Code’s) low-cost addition to

its family of the highest performing hand-held bar code readers available. The CR1200 is bar code reading

simplicity redened. It is rugged, lightweight, and ﬂexible making it the ideal reader for all linear and two-

dimensional bar code reading applications.

CR1200’s wide angle lens captures and decodes all bar code types and symbologies. Working range and decode performance is increased with Code’s Dynamic Optimization Technology (DOT). The CR1200 non-laser targeting function utilizes two converging LEDs that intersect to help the user quickly determine target range. Revolutionary audible, tactile and visual user feedback systems include an advanced speaker, a vibration motor,

and LEDs for targeting and status. The CR1200 may be ordered with cables for USB, RS232, and PS2 host

communications.

Code’s software development kits provide programming tools that help you prepare decoded data to meet the requirements of existing software programs. While simple in design and function, the CR1200 is singularly adept in data capture and decoding performance.

The CR1200 includes the following features and benets:

• Affordability—it is Code’s least expensive bar code reader.

• Durable over-molded housing and secured cable improves drop-shock survivability.

• An exceptionally “smooth feel” trigger—good for more than 3 million activations.

• A vibration motor that provides tactile feedback in noisy or silent environments.

• A ruggedized design with a permanent lanyard hook.

• The ability to read and decode all symbologies.

• “Good read” feedback with vibration, audible tones and LED indicators.

• Field-upgradeable rmware; can be remotely managed from single location.

• DOT continuously improves reader performance by evaluation of reading environment.

• The JavaScript Application Development Suite, which allows program development to

prepare captured data for integration with enterprise software.

• The Linux Kernel 2.6.11, which allows vast OEM application possibilities.

1.2 - Operational Overview

The CR1200 code-reading system consists of a 1.3-megapixel imager and 400-MHz processor. It communicates

with the host computer via USB, RS232, and PS2 cables and protocols. It is precongured with Code’s own DOT technology, which continuously adapts the resolution and illumination. Because of DOT, CR1200 units achieve

decoding speeds with two-dimensional (2D) codes similar to speeds usually seen only in one-dimensional (1D) readers. CR1200 units can read all symbology types and sizes, as well as a variety of printed media, within a wide range of environmental factors including light (natural or ambient lighting). The CR1200 can be optimized further for

higher performance in applications with more specic needs and consistent environments.

In response to capturing data after reading a bar code, the CR1200 imaging rmware analyzes the bar code image, decodes the image resulting in data, and encodes that data into USB, RS232, and PS2 protocol packets. It then

writes that data to the output port of the CR1200 to which the cable is attached. A host computer application receives and processes the data packets.

In normal operation, the CR1200 is designed as a lightweight, rugged, hand-held device with a trigger and operator

feedback operation. The CR1200 can be recongured to other operational modes to support other applications—for

example, continuous read mode where a non-triggered device provides a better solution.

Save Settings

C003525_06_CR1200_User_Manual 2

1.3 - About This Document

This document provides the IT professional the information required to install and congure the CR1200 for use in the

workplace. Additional information required by System Engineering to integrate the CR1200 with enterprise software may be found in other documents provided by Code at: http://www.codecorp.com/support/manuals.htm.

This document is divided into the following sections:

1. Introduction (current section)

2. Getting Started—how to unpack, install, and congure the CR1200

3. Reading Bar Codes—techniques for using the CR1200 4 . Optimizing the Read—performance optimization in unique environments 5 . Setting Symbology—conguration codes for symbology specication 6 . Setting Operational Features—conguration codes for specifying CR1200 features 7 . Maintenance and Troubleshooting—maintenance of the CR1200 hardware and software

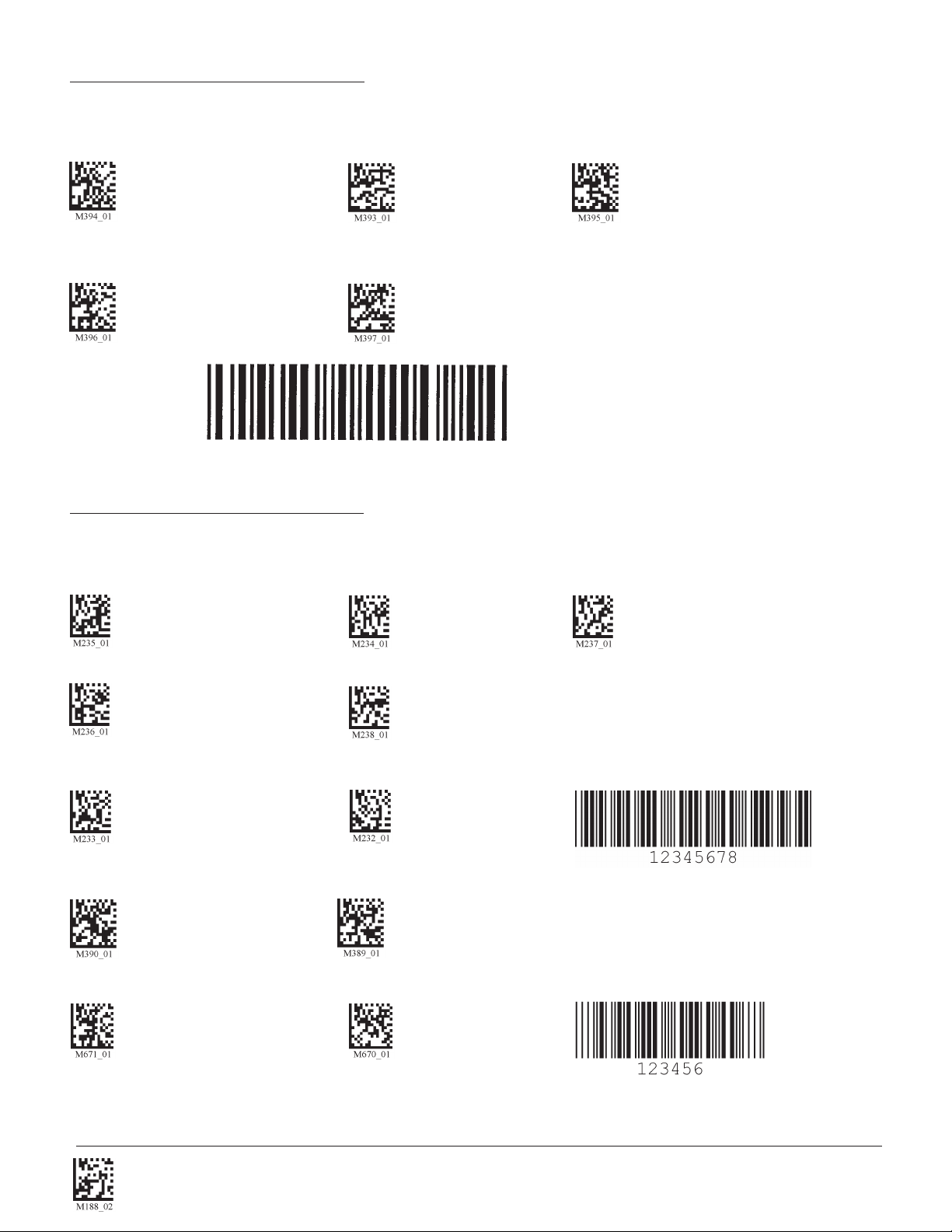

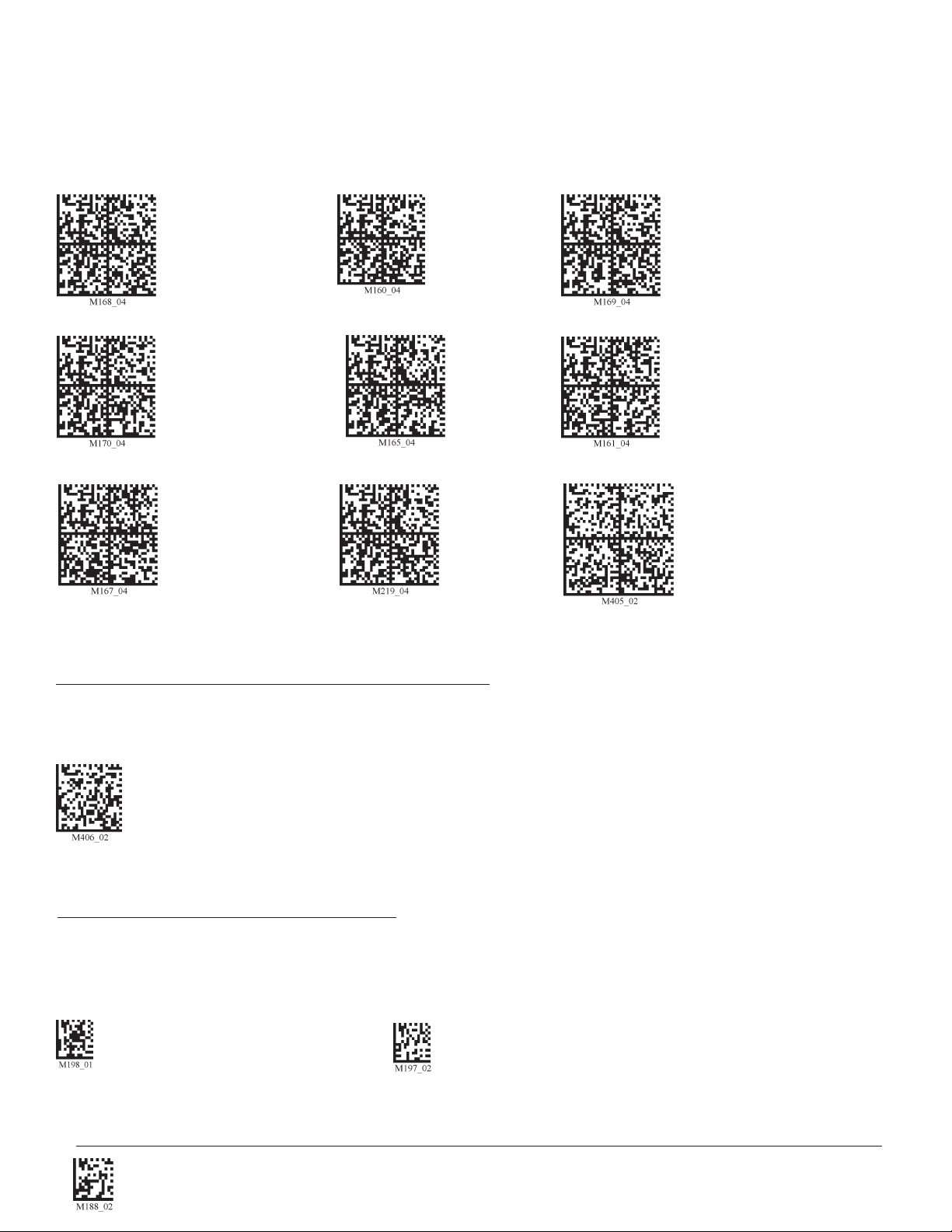

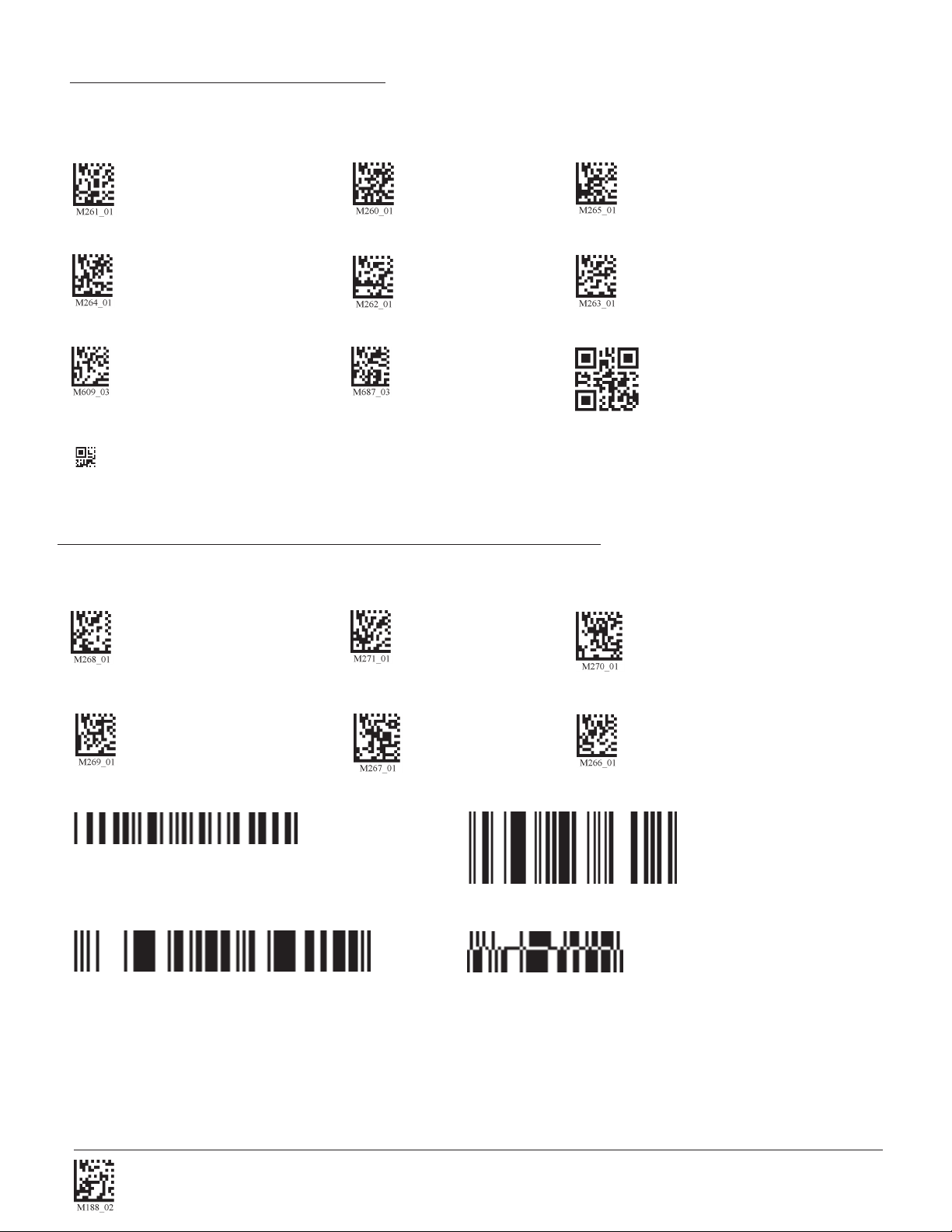

Throughout this document you will nd codes that you can read with the CR1200 to congure it and to turn various

features on or off.

Cautions: and Notes: provide important information about the use of CR1200 features.

Since any conguration changes are not saved when the CR1200 is powered down, a Save Settings code is provided

at the bottom of each page.

Save Settings

C003525_06_CR1200_User_Manual 3

Chapter 2 - Getting Started

Save Settings

C003525_06_CR1200_User_Manual 4

2.1 - Unpacking

Remove the CR1200 from its package and inspect it for damage. If the unit was damaged during shipping, call Code at (801) 495-2200.

The standard CR1200 was ordered and shipped with your choice of USB, RS232, or PS2 cable interface. The USB

version is available in 6 foot or 12 foot cable lengths. RS232 cabled units include a power supply (US/Europe/SA/UK/ Asia) designated at ordering. The connector to the power supply is integrated into the RS232 cable.

The CR1200 is shipped in an approved shipping container. Please keep your packing materials and use them if you need to return your equipment to Code for servicing.

2.2 - Installing

Figure 2.1 shows the connectors for the CR1200 cables. Cables are connected to the CR1200 with an 8-pin DIN connector. This section tells you how to attach the CR1200 to a host and congure the reader based on options

available for each cable type.

After installation, the CR1200 will be ready to operate in the Dynamic Optimization Technology (DOT) mode described in Section 4.1.

Figure 2.1

2.2.1 - USB Cable Connection and Settings

The USB Cabled CR1200 communicates with the host computer over a USB cable using the USB communications

protocol.

2.2.1.2 - USB Cable Instructions

To connect the CR1200 to your host computer via USB interface:

1. Attach the USB cable to CR1200.

2. There is no need to power of the computer. Connect the USB cable to a USB port on the computer (Figure 2.2).

3. Once properly connected, the CR1200 will power on and beep.

4. Scan the below code (M049_03) for USB Keyboard Mode:

USB Keyboard Factory Reset Save Settings

Figure 2.2

5. Scan the Save Settings Code (M188_02)

Save Settings

C003525_06_CR1200_User_Manual 5

2.2.1.2 - Addional USB Communication Settings

USB Keyboard Mode - Data is sent from the Reader and interpreted by the host just as if a USB

keyboard was being used to enter data.

USB Downloader - This mode is used when downloading rmware.

USB Native Two Way Mode - This mode is utilized when there is a need for error-corrected communication between the

CR1200 and an application through the USB port.

USB Virtual COM 1 Way Mode - This mode allows a USB-cabled CR1200 to function as a virtual COM port. To use the

CR1200 in this mode, download the driver at www.codecorp.com/downloads.php.

USB HID POS (Terminal ID 131) - This mode allows a USB-cabled CR1200 to communicate as a USB HID POS

(Terminal ID 131) device.

Scan the following codes to set the appropriate USB communication setting:

USB Keyboard USB Downloader USB Native Two Way Mode

USB Virtual COM 1 Way Mode USB HID POS (Terminal ID 131)

2.2.1.3 - Keyboard Support

Scan the following codes to set appropriate keyboard mapping:

US English (Default)

No Leading 0 US English - Leading 0 US English - ctrl + char

for non-printable characters for non-printable characters for non-printable characters

French German Japanese Universal Keyboard

Alternative OS

(Windows CE/MAC/Unix/Linux) Custom Keyboard Enable Alternative OS Disable

Requests map to

be installed

Save Settings

C003525_06_CR1200_User_Manual 6

2.2.2 - PS/2 Cable Installation Guide

CR1200 must have a serial number greater than 10050561 and a rmware version greater than 4126 to use a PS/2

cable.

1. Power off the computer. If you disconnect the computer’s keyboard while it is powered on, your computer will lock up.

2. Attach the the PS/2 cable to the CR1200.

3. If you have a cabled keyboard, detach the keyboard cable from the computer and connect that same connector to the

female connection on the CR1200 PS/2 cable (Figure 1.17).

4. Now connect the male CR1200 PS/2 connector into the keyboard port on the computer (Figure 1.18).

5. Power on the computer. The CR1200 is powered by the PS/2 port and does not require a power supply.

Figure 1.17

PS/2 Factory Reset

Figure 1.18

Save Settings

Code does not guarantee compatibility

with all models of computers.

Save Settings

C003525_06_CR1200_User_Manual 7

+ 27 hidden pages
