Codan NGT Getting Started Guide

NGT Transceiver

H F R A D I O C O M M U N I C A T I O N S

GETTING STARTED GUIDE

No part of this guide may be reproduced, transcribed, translated into any language or transmitted in any form whatsoever without the prior written consent of Codan Limited.

Codan part number 15-04127-EN Issue 5, May 2004

and CALM® are registered trademarks of Codan

NGT Limited. Other brand, product, and company names mentioned in this document are trademarks or registered trademarks of their respective holders.

The English version takes precedence over any translated versions.

Introduction

Accessing the CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1 NGT transceiver compliance

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

European Radio and Telecommunications Terminal Equipment

Directive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Electromagnetic compatibility and safety notices . . . . . . . . . . . . . . . . . . . . 7

FCC compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2 Installation

NGT mobile, AR Voice and VR Mobile stations. . . . . . . . . . . . . . . . . . . . . 12

Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Mounting an NGT mobile, AR Voice or VR Mobile station . . . . . . . . . 15

Connecting an NGT mobile, AR Voice or VR Mobile station. . . . . . . . 17

NGT fixed stations (AR, SR and VR transceivers only) . . . . . . . . . . . . . . . 20

Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Mounting an NGT fixed station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Connecting an NGT fixed station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

CODAN

3 The handset

The channel screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Selecting a channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

4 Getting started

Switching on the transceiver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Switching off the transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Changing the screen contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

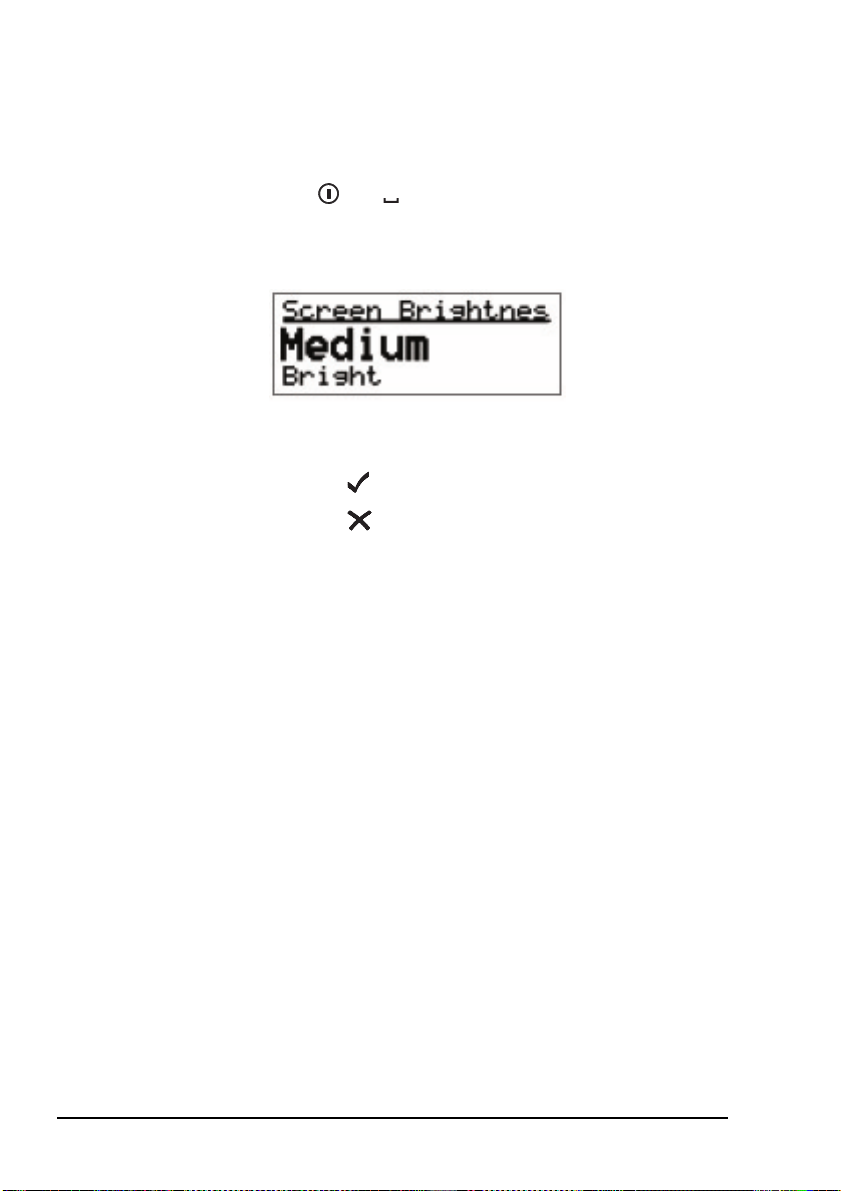

Changing the screen brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Using the keys on the handset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Accessing the Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

NGT Transceiver Getting Started Guide i

Table of contents

Using Quick Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Opening and closing Quick Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Adding/Editing a channel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Setting up a scan list. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Setting the time and date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Setting your station self address. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Adding/Editing an entry in the Address List or Call Book . . . . . . . . . . 44

Deleting an entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Switching scanning on or off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Pausing scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Switching mute on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Setting the mute type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Entering your station self address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Listen Before Transmit Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Testing a channel as part of a call in a Codan Selcall network . . . . . . . . . .52

Making a Channel Test call in a Codan Selcall network. . . . . . . . . . . . . . . 52

Making a Selective call from the Address List . . . . . . . . . . . . . . . . . . . . . . 53

Making a Phone call from the Address List . . . . . . . . . . . . . . . . . . . . . . . . 55

Making an emergency call using the emergency key . . . . . . . . . . . . . . . . . 58

Using the ALL address syntax to make a call . . . . . . . . . . . . . . . . . . . . . . . 60

Appendix A—Standard hot keys

Appendix B—Entering and editing text

Editing a screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Entering text. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Changing between alpha and numerical characters . . . . . . . . . . . . . . . . 67

Moving the cursor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Inserting text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Deleting text. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Entering special characters in messages and names . . . . . . . . . . . . . . .68

Entering text in an ALE call address . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Saving text changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

ii NGT Transceiver Getting Started Guide

Appendix C—Finding words and values

Appendix D—Creating an entry in a list

Appendix E—HF radio transmission

Frequency, distance and time of day. . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Channels and modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Networks and scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Etiquette for the use of HF radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Appendix F—Definitions

Standards and icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Acronyms and abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Unit multipliers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

About this issue. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Associated documents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Table of contents

Index

NGT Transceiver Getting Started Guide iii

Table of contents

This page has been left blank intentionally.

iv NGT Transceiver Getting Started Guide

List of figures

Figure 1: Typical NGT mobile station. . . . . . . . . . . . . . . . . . . . . . 13

Figure 2: Typical NGT AR Voice or VR Mobile station . . . . . . . . 14

Figure 3: Typical NGT fixed station . . . . . . . . . . . . . . . . . . . . . . . 20

Figure 4: The handset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Figure 5: The channel screen in the Channel List . . . . . . . . . . . . . 30

Figure 6: The channel screen during a call . . . . . . . . . . . . . . . . . . 31

Figure 7: The scanning screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Figure 8: The reflective properties of the ionosphere . . . . . . . . . . 78

CODAN

NGT Transceiver Getting Started Guide v

List of figures

This page has been left blank intentionally.

vi NGT Transceiver Getting Started Guide

List of tables

Table 1: Earth symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Table 2: Cables for a typical NGT mobile, AR Voice and

VR Mobile station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Table 3: Cables for a typical NGT fixed station. . . . . . . . . . . . . . 21

Table 4: Features of the handset. . . . . . . . . . . . . . . . . . . . . . . . . . 26

Table 5: Standard hot keys on the handset . . . . . . . . . . . . . . . . . . 63

Table 6: Examples of channels and modes. . . . . . . . . . . . . . . . . . 79

Table 7: The phonetic alphabet. . . . . . . . . . . . . . . . . . . . . . . . . . . 82

CODAN

NGT Transceiver Getting Started Guide vii

List of tables

This page has been left blank intentionally.

viii NGT Transceiver Getting Started Guide

Introduction

This guide provides instructions on how to connect up your NGT AR, SR, VR, AR Voice or VR Mobile transceiver, and how to perform basic setup and operating tasks. It assumes that you have limited knowledge of HF communication and of using an HF radio.

This guide contains the following sections:

Section 1 NGT transceiver compliance—compliance

Section 2 Installation—explains briefly how to connect

Section 3 The handset—describes the handset and the

Section 4 Getting started—explains how to use the basic

Appendix A Standard hot keys—describes the standard hot

Appendix B Entering and editing text—describes how to

CODAN

information and safety notices

the components of your transceiver

function of each key on the handset

operating features of your transceiver

keys on the handset

enter and edit text in editable screens

Appendix C Finding words and values—describes how to

find words and values using the key

Appendix D Creating an entry in a list—describes how to

create an entry in the Address List, Channel List, Network List and Phone Link List

Appendix E HF radio transmission—describes the medium

of HF communication and how to use it effectively

Appendix F Definitions—explains the terms and

abbreviations used in this guide

There is an index at the end of this guide and a CD containing extensive reference material.

NGT Transceiver Getting Started Guide 1

Introduction

Accessing the CD

To access the CD:

1 Place the CD in the CD drive of your computer.

The CD should automatically launch the NGT Transceiver Reference Manual as a fully textsearchable HTML help file.

2 NGT Transceiver Getting Started Guide

1 NGT transceiver compliance

This section contains the following topics:

Introduction (4)

European Radio and Telecommunications Terminal Equipment Directive (5)

Electromagnetic compatibility and safety notices (7)

FCC compliance (10)

CODAN

NGT Transceiver Getting Started Guide 3

NGT transceiver compliance

Introduction

This section describes how to ensure the NGT transceiver complies with the European Electromagnetic Compatibility Directive 89/336/EEC and the European Low Voltage Directive 73/23/EEC as called up in the European Radio and Telecommunications Terminal Equipment Directive 1999/5/EC.

This section also contains the requirements for FCC compliance.

4 NGT Transceiver Getting Started Guide

NGT transceiver compliance

European Radio and Telecommunications Terminal Equipment Directive

The NGT transceiver product range has been tested and complies with the following standards and requirements (articles of the R&TTE Directive):

• Article 3.1b: ETSI EN 301 489-1

• Article 3.1b: ETSI EN 301 489-15

• Article 3.2: Australian type approval according to AZ/NZS 4770:2000 and ECR 209

• Article 3.1a: Assessed against ICNIRP and FCC requirements

• Article 3.1a: EN 60950

Compliance with these standards is deemed sufficient to fulfil the requirements of the Radio and Telecommunications Terminal Equipment Directive 1999/5/EC.

Product marking and labelling

Any equipment supplied by Codan that satisfies these requirements is identified by the , or markings on the model label of the product.

Declaration of Conformity and Expert Letter of Opinion

The CE Declarations of Conformity and Expert Letter of Opinion for each specific product are listed on page 91,

Associated documents. These documents can be made

available upon request to Codan or a Codan-authorised supplier.

NGT Transceiver Getting Started Guide 5

0191 0191

NGT transceiver compliance

Protection of the radio spectrum

CAUTION

Most countries restrict the use of HF radio communications equipment to certain frequency bands and/or require such equipment to be licensed. It is the user’s responsibility to check the specific requirements with the appropriate communications authorities. If necessary, contact Codan for more information.

6 NGT Transceiver Getting Started Guide

NGT transceiver compliance

Electromagnetic compatibility and safety notices

Radiation safety

To ensure optimal transceiver performance and to avoid exposure to excessive electromagnetic fields, the antenna system must be installed according to the instructions provided.

WARNING

Electromagnetic compatibility

To ensure compliance with the EMC Directive is maintained, you must:

Do not touch the antenna while it is transmitting.

You should not transmit from your transceiver if people are within:

• 1.5 m of any part of a mobile antenna

• 2 m of any part of a fixed antenna in a data installation with < 125 W output

• 5 m of any part of a fixed antenna in a data installation with < 1 kW output

1 Use standard shielded cables supplied from Codan

(where applicable).

1 Ensure the covers for the equipment are fitted correctly.

If it is necessary to remove the covers at

CAUTION

any stage, they must be refitted correctly before using the equipment.

1 Cover unused connectors on the junction box (if fitted)

and RF unit with the protective caps supplied to prevent electrostatic discharge passing through your NGT equipment.

NGT Transceiver Getting Started Guide 7

NGT transceiver compliance

Electrical safety

To ensure compliance with the European Low Voltage Directive is maintained, you must install and use the NGT transceiver in accordance with the instructions in the

NGT Transceiver Getting Started Guide and the NGT Transceiver Reference Manual.

When using equipment that is connected directly to the AC mains these precautions must be followed and checked before apply AC power to the unit:

1 Use the standard AC mains cable supplied.

1 Ensure the covers for the equipment are fitted correctly.

CAUTION

WARNING

If it is necessary to remove the covers at any stage, they must be refitted correctly before using the equipment.

A protective earth connection must be included in the mains wiring to the 3020 Transceiver Supply (see page 8, Earth

symbols).

The protective cover must always be fitted when the 3020 Transceiver Supply is connected to the AC mains.

Earth symbols

Chassis earth connection points have been provided on the NGT transceiver and 3020 Transceiver Supply. A protective earth is provided in the AC mains wiring of the 3020 Transceiver Supply. This protective earth needs to be connected at the AC mains supply outlet. The symbols shown in Tabl e 1 are used to identify the earths on the equipment.

8 NGT Transceiver Getting Started Guide

NGT transceiver compliance

Table 1: Earth symbols

Symbol Meaning

Chassis earth

Protective earth

NGT Transceiver Getting Started Guide 9

NGT transceiver compliance

FCC compliance

FCC Part 90 certification

The NGT SR and VR transceivers have been tested and certified to FCC Part 90 (FCC identifier code DYYNGT-1).

FCC Part 15 compliance

Any modifications made to the NGT transceiver and 3020 Transceiver Supply that are not approved by the party responsible for compliance may void your equipment’s compliance under Part 15 of the FCC rules.

The NGT transceiver and 3020 Transceiver Supply have been tested and found to comply with the limits for a Class B device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by switching the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• reorient or relocate the receiving antenna

• increase the separation between the equipment and receiver

• connect the equipment into an outlet on a circuit different from that to which the receiver is connected

• consult the dealer or an experienced radio/TV technician for help

10 NGT Transceiver Getting Started Guide

2Installation

This section contains the following topics:

NGT mobile, AR Voice and VR Mobile stations (12)

NGT fixed stations (AR, SR and VR transceivers only) (20)

CODAN

NGT Transceiver Getting Started Guide 11

Installation

NGT mobile, AR Voice and VR Mobile stations

NOTE

An NGT mobile station typically consists of:

• a handset and cradle

• a junction box (AR and SR transceivers only)

• a speaker

• an RF unit and vehicle mounting cradle (includes DC power cable)

• a 12 V DC power supply (battery)

• an automatic tuning antenna

Figure 1 on page 13 shows a typical NGT mobile station.

Figure 2 on page 14 shows a typical NGT AR Voice or

VR Mobile station.

‘NGT mobile’ stations are available with AR and SR transceivers only.

12 NGT Transceiver Getting Started Guide

Figure 1: Typical NGT mobile station

Installation

9350 ANTENNA

NGT Transceiver Getting Started Guide 13

Installation

Figure 2: Typical NGT AR Voice or VR Mobile station

9350 ANTENNA

14 NGT Transceiver Getting Started Guide

Installation

Cables

Table 2: Cables for a typical NGT mobile, AR V oice and VR Mobile station

Cable Symbol Part number

CIB cable between RF unit and junction box

08-05610-006

Handset and speaker connector cable for AR Voice and VR Mobile

Coaxial cable between RF unit and antenna

Control cable between RF unit and antenna

DC power supply cable

a. The part number for this cable corresponds to a standard 6 m CIB cable. The cable is also

available in a number of shorter and longer lengths. This cable is not available with AR Voice and VR Mobile transceivers.

b. The part number for the cable corresponds to a standard 6 m cable.

08-06022-001

08-05103-006

08-05627-006

08-03255

Mounting an NGT mobile, AR Voice or VR Mobile station

Most components of an NGT mobile, AR Voice and VR Mobile station are provided with their own mounting cradles. For general guidance on suitable locations for equipment and installing these stations see the reference material on the enclosed CD.

Mounting the handset cradle

To mount the handset cradle:

1 Mount the handset according to the fitting instructions

(Codan part number 15-00129-001) provided with the handset cradle.

NGT Transceiver Getting Started Guide 15

Installation

Mounting the speaker

To mount the speaker:

1 Secure the mounting cradle to the surface with at least

two screws.

Ensure there is sufficient space at the rear for the cable.

1 Attach the speaker to the cradle with the two screws and

washers.

Mounting the junction box (AR and SR transceivers only)

To mount the junction box:

1 Use cable ties or screws to secure the junction box in a

suitable location.

Mounting the handset and speaker connector (AR Voice and VR Mobile transceivers only)

To mount the handset and speaker connector:

1 Use cable ties or screws to secure the handset and

speaker connector in a suitable location.

Mounting the RF unit

If you are transferring a fixed station to a mobile station and you have installed rubber feet to the

WARNING

The cradle can be mounted in any position that allows the RF unit to be inserted into the cradle.

16 NGT Transceiver Getting Started Guide

bottom of the RF unit, you must remove the rubber feet before installing it into the mounting cradle.

Installation

To mount the RF unit:

1 Secure the mounting cradle to the surface with at least

four screws, one in each corner of the cradle.

NOTE

Ensure there is sufficient space at the rear of the cradle to clear the RF unit heatsink.

1 If the key is locked to the base of the cradle, flip the key

away from the base until it can be rotated (see

Figure 1 on page 13), then rotate the key in a

counterclockwise direction.

1 Place the RF unit into the cradle and push it under the

tabs at the rear of the cradle, then hold the clamp against the front of the RF unit.

1 Rotate the key clockwise, then push the key toward the

base of the cradle to lock the RF unit into position.

Connecting an NGT mobile, AR Voice or VR Mobile station

Connecting an NGT mobile station (AR and SR transceivers only)

To connect an NGT mobile station:

1 Connect the plug of the handset cable to the socket on

the junction box, then secure the locking ring tightly into position.

1 Connect the plug at the end of the speaker cable to the

socket on the junction box.

1 Connect the socket at the end of the cable to the plug

at the end of the cable lead from the RF unit, then secure the locking ring tightly into position.

1 Connect the socket at the opposite end of the cable to

the plug on the junction box, then secure the locking ring tightly into position.

NGT Transceiver Getting Started Guide 17

Installation

1 Connect the plug at the end of the cable to the socket at

the end of the cable lead from the RF unit, then secure the locking ring tightly into position.

1 Connect the plug at the opposite end of the cable to the

socket located at the base of the antenna, then secure the locking ring tightly into position.

Connecting an NGT AR Voice or VR Mobile station

To connect an NGT AR Voice or VR Mobile station:

1 Connect the socket at the end of the handset and

speaker connector cable to the 10-way plug on the cable lead from the RF unit, then secure the locking ring tightly into position.

1 Connect the plug of the handset cable to the socket on

the handset and speaker connector, then secure the locking ring tightly into position.

1 Connect the plug at the end of the speaker cable to the

socket on the handset and speaker connector, then secure the cable by pushing it into the slot on the side of the connector (see Figure 2 on page 14).

1 Connect the plug at the end of the cable to the socket at

the end of the cable lead from the RF unit, then secure the locking ring tightly into position.

1 Connect the plug at the opposite end of the cable to the

socket located at the base of the antenna, then secure the locking ring tightly into position.

18 NGT Transceiver Getting Started Guide

Installation

Connecting the control cable to an automatic tuning antenna

To connect the control cable:

1 Connect the socket at the end of the cable into the plug

at the base of the antenna, then secure the locking ring tightly into position.

1 Fit the plug at the opposite end of the cable into the

socket at the end of the lead from the RF unit.

Connecting the power supply

To connect the transceiver to the battery power supply:

1 Connect the power supply cable (Codan part number

08-03255) to the plug at the end of the 12 V cable lead from the RF unit.

1 Route the power supply cable according to the

instructions supplied with the Vehicle Installation Kit (Codan part number 15-00112).

1 Insert the 32 A fuse and holder in the power supply cable

at a convenient location, as close as possible to the battery terminals.

1 Connect the power supply cable to the battery terminals,

black to negative, red to positive.

Connecting ancillary equipment

The NGT AR and SR mobile transceiver systems use the junction box for connecting to ancillary equipment.

The NGT AR Voice transceiver uses the 4-way connector on the RF unit for connecting to a limited range of ancillary equipment.

NGT Transceiver Getting Started Guide 19

Installation

NGT fixed stations (AR, SR and VR transceivers only)

An NGT fixed station typically consists of:

• a desk console, containing a handset, a goose neck microphone, a junction box, and a speaker

•an RF unit

• an AC transceiver supply

• a suitable fixed antenna (see the reference material on the enclosed CD)

Figure 3 shows a typical NGT fixed station.

Figure 3: Typical NGT fixed station

20 NGT Transceiver Getting Started Guide

Installation

The junction box is fitted inside the desk

NOTE

console. The connectors on the junction box are at the rear of the desk console.

Cables

Table 3: Cables for a typical NGT fixed station

Cable Symbol Part number

CIB cable between RF unit and console

08-05610-006

Coaxial cable between RF unit and antenna

a. The part number for this cable corresponds to a 6 m CIB cable. The cable is also available in a

number of shorter or longer lengths.

b. The part number for this cable corresponds to a 30 m coaxial cable. The cable is also available

in a number of shorter lengths.

08-05103-030

Mounting an NGT fixed station

An NGT fixed station is most commonly mounted using a desk console (Codan part number 15-10471). For general guidance on suitable locations for equipment and installing the fixed station see the reference material on the enclosed CD.

Desk console

The pre-assembled desk console combines a handset, a goose neck microphone, a junction box, an in-built speaker and a headphone jack (see Figure 3 on page 20).

NGT Transceiver Getting Started Guide 21

Installation

RF unit and transceiver supply

The RF unit and the transceiver supply are self-contained and are usually stacked loosely. If you want to mount the RF unit and/or the transceiver supply, contact your Codan representative to obtain a rack-mounting unit or the appropriate mounting cradles.

Rack-mounting unit

A rack-mounting unit consists of a 19 inch rack tray. It can be used in conjunction with a desk console to mount your fixed station. If you do not have a desk console, a cradle is available for mounting the handset on the front panel of the rack unit.

Mounting cradles

WARNING

If you are mounting an RF unit in a cradle, do not fit rubber feet to the bottom of the RF unit.

If you are transferring a mobile station to a fixed station, and you are not mounting the RF unit in

NOTE

a cradle, rubber feet can be fitted to the bottom of the RF unit. The rubber feet are available from Codan (Codan part number 30-11208-000).

If you want to mount components of your fixed station separately, customised mounting cradles exist for each component. Mounting cradles are not commonly used in an NGT fixed station, but they are available as options (see the reference material on the enclosed CD).

22 NGT Transceiver Getting Started Guide

Connecting an NGT fixed station

Installation

NOTE

To connect an NGT fixed station:

The handset is supplied connected to the desk console.

1 Connect the socket at the end of the cable to the plug

at the end of the cable lead from the RF unit, then secure the locking ring tightly into position.

1 Connect the socket at the opposite end of the cable to

the plug at the rear of the desk console, then secure the locking ring tightly into position.

1 Connect the plug at the end of the cable to the socket at

the end of the cable lead from the RF unit, then secure the locking ring tightly into position.

1 Connect the plug at the opposite end of the cable to the

socket located at the base of the antenna, then secure the locking ring tightly into position.

Connecting an automatic tuner to the RF unit and antenna (optional)

You may need to install a tuner to improve the

NOTE

efficiency of the antenna in your fixed station (see the reference material on the enclosed CD).

The tuner used in most applications has connectors at the end of the cables attached to

NOTE

NGT Transceiver Getting Started Guide 23

the tuner, as described below. However, you may have a tuner that has sockets on the connector panel of the tuner.

Installation

To connect the tuner to the RF unit:

If the connectors at the end of the control cables from the RF unit and tuner are incompatible,

NOTE

you may require an NGT adaptor cable (Codan part number 08-05655-001) to connect the tuner to the RF unit.

1 Connect the plug at the end of the coaxial cable from the

tuner to the socket at the end of the cable lead from the RF unit, then secure the locking ring tightly into position.

1 Connect the plug at the end of the control cable from the

tuner to the socket at the end of the cable lead from the RF unit, then secure the locking ring tightly into position.

1 Connect the antenna to the antenna connection on the

tuner, then secure it tightly into position.

Connecting the transceiver supply

To connect the transceiver to the transceiver supply:

1 Connect the DC output from the transceiver supply to the

plug at the end of the 12 V cable lead from the RF unit.

1 Connect the transceiver supply to the AC mains supply.

24 NGT Transceiver Getting Started Guide

3 The handset

Figure 4: The handset

CODAN

MUTE CALL SCAN

TUNE

EASI

TALK

GHI

PRS

CLAR

ABC

HELP JKL

SEC TUV

VIEW

MODE

DEF

MNO

WXY

CALL

LOGS

24 23

20 19

NGT Transceiver Getting Started Guide 25

The handset

Tabl e 4 explains the features of the handset and the tasks they

enable you to perform.

Table 4: Features of the handset

No. Feature Name Hot key function Normal function

1 Microphone

2Power

On/Off key

3 Press-to-talk button

4Mute key

Scroll keys scroll through items

speak to other stations

switch power to the transceiver on or off

communicate during voice calls, switch mute off, cancel voice calls prior to the point where voice can be transmitted, cancel calls where data is being transmitted, and exit out of editable screens without saving changes

switch mute on or off

in a list and scroll over text on a line

6Tick key

navigate down through lists, select items in lists, edit settings, save changes, and answer ‘yes’ to prompts

7 1QZ key Go to Manual Tune enter 1, Q and Z

26 NGT Transceiver Getting Started Guide

TUN

The handset

Table 4: Features of the handset (cont.)

No. Feature Name Hot key function Normal function

8 4GHI key enter 4, G, H and I

9 7PRS key Toggles between

GHI

PRS

Selcall mute and

enter 7, P, R and S

Voice mute

10 Asterisk key Toggles Easitalk on

EASI

or off

enter the upper-case text (A) punctuation marks . , ’ ? ! & # $ * ( ) - + / in editable text screens, and enter @?@ in address screens

11 Zero space key Toggles between

VIEW

Channel List and

enter 0 and a space

Address List

12 Programming jack

use a programming cable and a PC on which NSP software has been installed to upload/download information to/from the transceiver

13 Hash key Go to Calls Out

CALL LOGS

Log, Calls In Log, then return to the screen from which you began

display the Calls Out and Calls In Logs, and toggle between uppercase, lower-case and numeric characters when entering text

14 8TUV key Toggles Voice

SEC

TUV

Encryptor on or off,

enter 8, T, U and V

if installed

NGT Transceiver Getting Started Guide 27

The handset

Table 4: Features of the handset (cont.)

No. Feature Name Hot key function Normal function

15 9WXY key enter 9, W, X and Y

16 5JKL key Toggles Help Mode

17 6MNO key

18 2ABC key Go to Clarifier enter 2, A, B and C

19 3DEF key Selects USB, LSB

20 Cross key

WXY

HEL

JKL

MNO

CLAR

ABC

MOD

DEF

enter 5, J, K and L

on or off

enter 6, M, N and O

enter 3, D, E and F

or AM (if available)

navigate up through lists, backspace over text, remove messages on the screen, cancel changes, display the home screen, and answer ‘no’ to prompts

21 Find key

display the Find prompt

and open

the List Manager

22 Volume up/down

keys

increase or decrease the volume of the speaker

23 Hangup/Scan key

end a call if a call is in progress, or toggle scanning on or off

24 Call key

28 NGT Transceiver Getting Started Guide

start a call

The handset

Table 4: Features of the handset (cont.)

No. Feature Name Hot key function Normal function

25 Handset screen view the status of

the transceiver

26 Emergency key

begin an emergency call

NGT Transceiver Getting Started Guide 29

The handset

The channel screen

The channel screen is displayed when you open the Channel List. It displays:

• the name of the currently selected channel

• a bar graph that indicates the signal strength on receive and the output power on transmit

• the mode

• the transmit and receive frequencies, if applicable

• an arrow that indicates whether the transceiver is receiving or transmitting

Figure 5: The channel screen in the Channel List

signal

strength/output

power indicator

channel name

Tx freq on kHz

mute type

and status

indicator

Rx/Tx indicator

mode

Rx freq on kHz

If the transmit and receive frequencies are the same, the frequency is only displayed in the receive frequency position on the right side of the screen and the Rx indicator arrow is not used. The signal strength/output power indicator shows whether the transceiver is receiving or transmitting.

During a call the scan indicator is replaced with an icon that indicates the type of call being sent or received.

30 NGT Transceiver Getting Started Guide

The handset

Figure 6: The channel screen during a call

call type icon

When the transceiver is scanning the channel screen is replaced by the scanning screen.

Figure 7: The scanning screen

NGT Transceiver Getting Started Guide 31

The handset

Selecting a channel

To select a channel:

1 Go to the Channel List. 1 Scroll through the channels in the list. Stop scrolling

1 Press the key to return to the Main Menu.

when the channel you want is displayed.

The channel is selected.

If you want to change the mode, press the

MOD

key. If the mode does not change

DEF

there is only one mode for the channel.

You can also use the Find feature to find a

NOTE

channel (see page 71, Finding words and

values).

If you have an automatic antenna fitted, press the PTT button to tune the antenna to the currently selected channel.

32 NGT Transceiver Getting Started Guide

4 Getting started

This section contains the following topics:

Switching on the transceiver (34)

Changing the screen contrast (35)

Changing the screen brightness (36)

Using the keys on the handset (37)

Accessing the Main Menu (39)

Using Quick Start (40)

Switching scanning on or off (46)

Switching mute on or off (47)

Entering your station self address (48)

Listen Before Transmit Mode (50)

Testing a channel as part of a call in a Codan Selcall network (52)

Making a Channel Test call in a Codan Selcall network (52)

Making a Selective call from the Address List (53)

CODAN

Making a Phone call from the Address List (55)

Making an emergency call using the emergency key (58)

Using the ALL address syntax to make a call (60)

You should not transmit from your transceiver if people are standing within:

• 1.5 m of a mobile antenna

WARNING

NGT Transceiver Getting Started Guide 33

• 2 m of a fixed antenna in a data installation with < 125 W output

• 5 m of a fixed antenna in a data installation with < 1 kW output

Getting started

Switching on the transceiver

To switch on the transceiver:

1 Press the key.

If you are prompted to enter a password, enter your user or administrator password then press the key.

If you enter an incorrect password it is automatically erased. If you enter an incorrect password three times the transceiver automatically switches off.

Switching off the transceiver

To switch off the transceiver:

1 Hold the key down for two seconds then release.

The transceiver is switched off.

34 NGT Transceiver Getting Started Guide

Changing the screen contrast

To change the contrast of the screen:

Getting started

1 Press + to access the Screen Contrast entry in

the Control List.

The Screen Contrast slider screen is displayed.

WXY

1 Use the or key to increase or decrease the contrast. 1 Press the key to save the value. 1 Press the key repeatedly until you return to the Main

Menu.

NGT Transceiver Getting Started Guide 35

Getting started

Changing the screen brightness

To change the brightness of the screen:

VIEW

1 Press + to access the Screen Brightness entry

in the Control List.

The screen brightness setting is displayed.

1 Scroll through the values until the one you want is

displayed on the active line.

1 Press the key to save the value. 1 Press the key repeatedly until you return to the Main

Menu.

If the Screen Auto-Dim entry in the Control List

NOTE

is enabled then the brightness drops one level after the specified time.

36 NGT Transceiver Getting Started Guide

Using the keys on the handset

Detailed information on the function of the keys

NOTE

There are two ways to use the keys on the handset. You can:

•press a key

• hold a key

Pressing a key means to press a key until the handset makes a short beep sound, then release the key.

Holding a key means to press and hold a key until the handset makes a short beep followed by a higher pitched beep, then release the key.

on the handset is provided on page 25, The

handset and page 63, Standard hot keys.

Getting started

NOTE

The two actions perform different functions. The instructions in this guide specify whether you need to press or hold a key to perform a task.

The scroll keys

The and keys are the scroll keys. Use these keys to scroll up or down through any kind of list, to scroll left or right over text, and to increase or decrease a value.

The and keys

The and keys are context sensitive: their functions change according to the task you are performing. For example, to select an item and navigate down through the lists in the transceiver, press the key. To navigate up through the lists, press the key. To edit a setting, hold the key. To discard your changes, hold the key.

The keys will beep if the Key Beep entry in the Control List is set to On.

NGT Transceiver Getting Started Guide 37

Getting started

Press the key to:

• navigate down from the Main Menu to entries and then to settings by selecting the item on the active line in the list

• save changes

• answer ‘yes’ to prompts

Hold the key to edit settings.

Press the key to:

• navigate up from settings to entries and then to the Main Menu

• backspace over text

• remove messages on the screen

• cancel changes

• answer ‘no’ to prompts

Hold the key to go from any location to the home screen, and from the home screen to the Main Menu. If you have entered text into a setting and want to discard the changes you made, hold the key.

38 NGT Transceiver Getting Started Guide

Accessing the Main Menu

The Main Menu is easily accessed from the home screen. The home screen may be any screen that you choose however, by default the home screen is the channel screen. For information on setting the home screen see the reference material on the enclosed CD.

To access the home screen from any other screen:

1 Hold the key.

To access the Main Menu from the home screen:

1 Press the key.

Getting started

NGT Transceiver Getting Started Guide 39

Getting started

Using Quick Start

Quick Start will be available if your transceiver contains only one station self address and any of the following default network names:

•*Voice

• *Selcall

•*CALM

•!Default

Quick Start provides simple methods to configure your NGT to a basic operating state.

When you hold the key, you should see the Quick Start entries, e.g. Add/Edit channel, Set scan list etc. If these entries are not displayed, then Quick Start is not available to you.

Quick Start is not available in countries that do not permit programming of transmit frequencies using the handset, e.g. Australia.

NOTE

40 NGT Transceiver Getting Started Guide

If you do not have Quick Start and you want to:

• add entries to a list see page 75, Creating an

entry in a list

• enter your station self address see page 48,

Entering your station self address

For detailed information on programming your transceiver without Quick Start see the reference material on the enclosed CD.

Opening and closing Quick Start

To open Quick Start:

1 Hold the key.

To close Quick Start:

1 Press or hold the key.

Adding/Editing a channel

To add or edit a channel:

1 Open Quick Start. 1 Scroll to the Add/Edit channel entry, then press the

key to select it.

1 Enter the name of the channel that you want to use, then

press the key.

Getting started

NOTE

If you want to use an existing channel, scroll to the channel, then press the key.

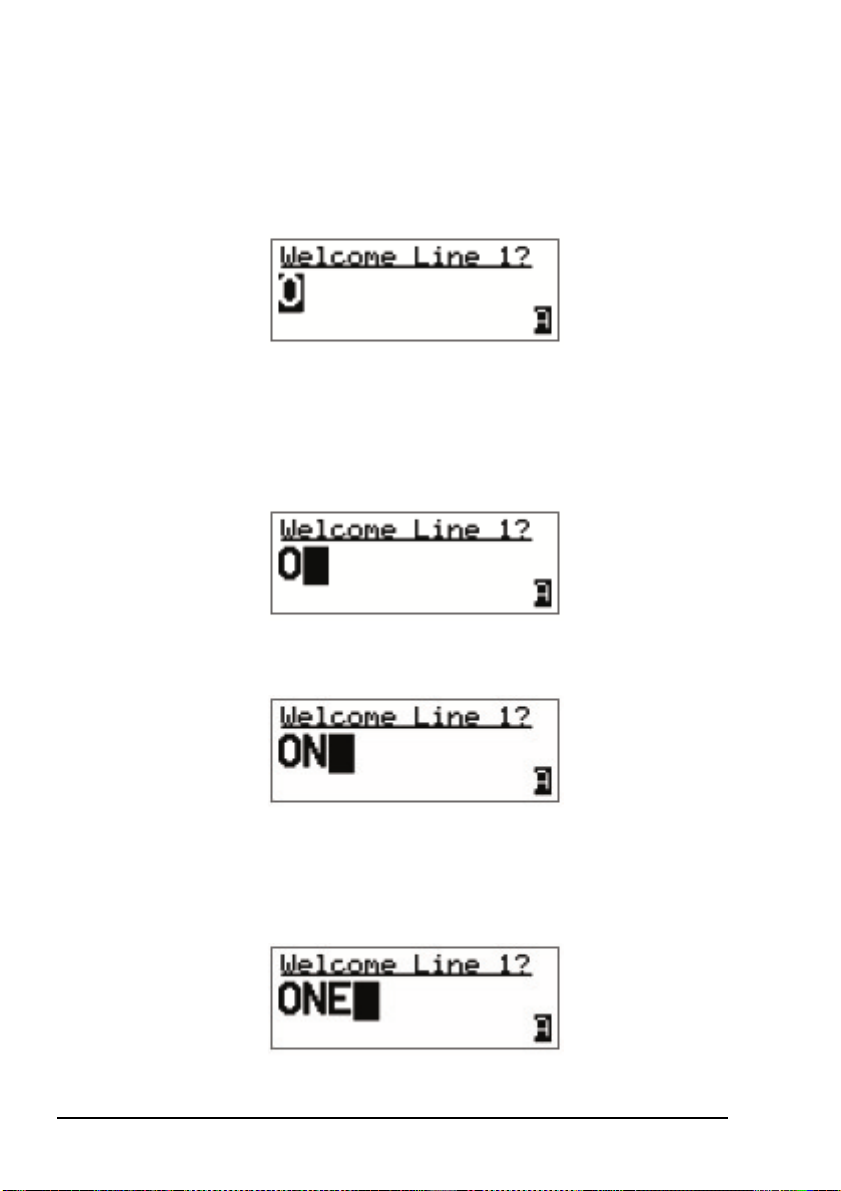

For help with entering text see page 65,

Entering and editing text.

1 Enter the receive frequency in kilohertz, then press the

key.

1 Enter the transmit frequency in kilohertz, then press the

key.

1 Scroll to the mode combination you want to use, then

press the key to select it.

The transceiver will return to Quick Start.

1 If you want to add more channels to your transceiver,

scroll to the Add/Edit channel entry and repeat this process.

1 Close Quick Start, if required.

NGT Transceiver Getting Started Guide 41

Getting started

NOTE

Setting up a scan list

To set up a scan list:

1 Open Quick Start. 1 Scroll to the Set scan list entry, then press the key to

select it.

The first channel in the transceiver will be displayed.

1 If you want to add this channel to the scan list, press the

If you do not want to add this channel to the scan list, press the key.

When all the channels have been viewed or you have added 20 channels to your scan list, the transceiver will return to Quick Start.

If you want to make or receive calls on this new channel, you must add it to your scan list.

key.

If you do not want to scroll through all the channels in your scan list, hold the key to return to Quick Start.

1 Close Quick Start, if required.

Each time you enter the Set scan list entry,

CAUTION

42 NGT Transceiver Getting Started Guide

the resulting scan list will overwrite the existing scan list.

Setting the time and date

To set the time and date:

1 Open Quick Start. 1 Scroll to the Set time/date entry, then press the key to

select it.

The display will appear with a line under the day of the month.

1 Use the or keys to change the current setting to the

correct value, then press the key.

The line will appear under the month.

1 Repeat the previous step until you have made all of the

changes to the time and date.

When all the changes have been made, the transceiver will return to Quick Start.

1 Close Quick Start, if required.

Getting started

Setting your station self address

When Quick Start is available, any self address that you enter using this method will replace the

NOTE

To set your station self address:

previous self address. If you want to enter more than one self address, and disable the Quick Start features, see page 48, Entering your

station self address.

1 Open Quick Start. 1 Scroll to the Set my address entry, then press the key

to select it.

1 Enter your station self address (maximum of

6 characters), then press the key.

NGT Transceiver Getting Started Guide 43

Getting started

NOTE

For help with entering text see page 65,

Entering and editing text.

1 Close Quick Start, if required.

Adding/Editing an entry in the Address List or Call Book

To add or edit an address that you call frequently:

1 Open Quick Start. 1 Scroll to the Address/CallBk entry, then press the key

to select it.

1 Enter the name of the station or person that you want to

add to the list, or use the and keys to select an existing entry, then press the key.

NOTE

For help with entering text see page 65,

Entering and editing text.

1 Scroll to the type of call that you want to make, enter the

station address that you want to call, then press the

key.

1 If you selected a Message call or No call type, enter the

message, then press the key.

If you do not want to select a message, press the key.

1 Scroll to the call system that you want to use to make the

call, then press the key to select it.

1 If you selected Phone call or No call type, select <blank>

for the phone link that you want to use, then press the

key to select it.

When all the changes have been made to the call address, the transceiver will return to Quick Start.

44 NGT Transceiver Getting Started Guide

1 If you want to add more call addresses to your Address

1 Close Quick Start, if required.

Deleting an entry

To delete addresses, channels or phone links:

1 Open Quick Start. 1 Scroll to the Delete... entry, then press the key to

1 Scroll to the list from which you want to delete, then

1 Scroll to the item you want to delete, then press the

Getting started

List or Call Book, scroll to the Address/CallBk entry and repeat this process.

select it.

press the key to select it.

key to delete it.

If you delete a channel from the Channel

NOTE

List, it is deleted from the scan list automatically.

1 Close Quick Start, if required.

NGT Transceiver Getting Started Guide 45

Getting started

Switching scanning on or off

To switch scanning on or off:

1 Press the key.

If a call is not in progress, scanning is toggled on or off.

If a call is in progress, the call is ended.

If the transceiver was scanning before the call was sent or received, it resumes scanning. If the transceiver was not scanning before the call, press the key to switch scanning on.

When scanning is switched on mute is also

NOTE

Pausing scanning

switched on.

You cannot use the PTT button while the transceiver is scanning.

To pause scanning:

1 Do one of the following:

• to pause scanning on the current channel/mode, press

the key

• to pause scanning and scroll to another channel/mode,

press the or key

The channel/modes through which you can scroll are those in the networks that were being scanned. They are not listed alphabetically but in the order in which they were being scanned.

If you do not press a key within 30 seconds the transceiver automatically resumes scanning.

1 While scanning is paused, do one or more of the

following:

• to converse, hold down the PTT button

• to resume scanning immediately, press the key

46 NGT Transceiver Getting Started Guide

Switching mute on or off

To switch mute on or off:

1 Press the key.

A message is displayed briefly to inform you that mute has been switched on or off.

When the channel screen is displayed the mute status is indicated by a V or S at the top centre of the screen. If the letter is highlighted, mute is on. If the letter is not highlighted, mute is off.

Setting the mute type

To select the mute type:

1 Press the key to toggle the mute type between

Voice mute (V) and Selcall mute (S).

PRS

Getting started

NGT Transceiver Getting Started Guide 47

Getting started

Entering your station self address

NOTE

To enter your station self address:

Use this method to enter a self address if Quick Start has been disabled.

1 Go to the Address entry in the Control List. 1 Select the entry.

If a self address has not yet been entered the screen displays (none). Press the key to open the List Manager.

If one or more self addresses have already been entered the screen displays the number of addresses (e.g. 1 items). Press the key to display the self addresses, then hold the key to open the List Manager.

1 Select Add item.

48 NGT Transceiver Getting Started Guide

Getting started

1 Enter the self address of your station. For example:

NOTE

In a Codan Selcall network, enter up to 6 numbers only. Do not enter a self address that ends with one or more zeros. Zeros are used to indicate that calls are to be made to groups of stations in a Codan Selcall network.

In an ALE/CALM network, enter up to 15 upper-case letters or numbers, or a combination of both.

For help with entering text see page 65,

Entering and editing text.

1 Press the key. 1 Select the network in which you want to use this self

address.

To use the self address in all networks, select <all>.

The self address is created and the List Manager remains open.

1 If you want to view the self address you have created,

close the List Manager by pressing the key.

1 Press the key repeatedly until you return to the Main

Menu.

NGT Transceiver Getting Started Guide 49

Getting started

Listen Before Transmit Mode

If you change the setting in the Cfg LBT Mode

NOTE

The NGT transceiver is capable of listening to a channel before initiating a call on the channel. If the Cfg LBT Mode in the Control List is enabled, the transceiver will detect whether or not there is traffic on the selected channel, i.e. the channel is occupied. The transceiver will listen on a channel for the length of time specified in the Cfg LBT Period entry in the Control List. The transceiver will try busy channels twice before reporting that they are busy.

The Cfg LBT Mode may be set to Enabled, Override allowed, or Disabled.

When the Cfg LBT Mode is set to Enabled, and the transceiver detects that the channel(s) tried is(are) busy, it will prompt you to try the call again. You can:

entry in the Control List you must switch the transceiver off then on again for the change to take effect.

• press the key to try the call again using LBT

• press the key to select a new channel, then press the

key to make a call on this channel using LBT

If only one channel was tried and found to be

NOTE

50 NGT Transceiver Getting Started Guide

busy using LBT, you can listen for traffic on the channel then, if clear, override LBT by holding the key.

Getting started

When the Cfg LBT Mode is set to Override allowed, and the transceiver detects that the channel(s) tried is(are) busy, it will prompt you to try the call again. You can:

• press the key to try the call again using LBT

• hold the key to try the call again without LBT (send the call regardless of any detected traffic)

• press the key to select a new channel, then press the

key to make a call on this channel using LBT

• hold the key to select a new channel and try the call on this channel without LBT (send the call regardless of any detected traffic)

Calls using the Emergency call type or calls made through the

key will override the LBT Mode if it is enabled at either

level.

NOTE

For information on setting up the key see the reference material on the enclosed CD.

NGT Transceiver Getting Started Guide 51

Getting started

Testing a channel as part of a call in a Codan Selcall network

To test a channel/mode as part of a call:

1 Start the call using your preferred method.

For example, go to the Address List then select the entry for the station you want to call.

1 When the transceiver prompts you to select a

channel/mode, scroll to the channel/mode you want to test then hold the key.

1 Listen for the revertive signal from the other station.

The volume and clarity of the signal indicates the quality of the channel/mode. You may need to try another channel.

1 When you have found a suitable channel/mode, press the

key to continue the call.

Making a Channel Test call in a Codan Selcall network

To make a Channel Test call:

1 Go to the home screen. 1 Press the key. 1 Type the address of the station you want to call and select

Channel Test as the call type.

1 Select the network in which you want to make the call. 1 Scroll to the channel/mode you want to test then press

the key.

1 Listen for the revertive signal from the other station.

The volume and clarity of the signal indicates the quality of the channel/mode.

52 NGT Transceiver Getting Started Guide

Getting started

Making a Selective call from the Address List

This section shows you how to make a Selective call from the Address List. It assumes that you have created an entry in the list to do this (for help see page 75, Creating an entry in a list and the reference material on the enclosed CD).

To make a Selective call from the Address List:

1 Go to the entry you want to call in the Address List.

Scroll to the entry or use the Find feature

NOTE

(for help see page 71, Finding words and

values).

1 Press the key. 1 If you are prompted for details about the call, use the

information in the following table to enter them, then press the key.

If this prompt is displayed...

Select network • select the network in which you want to make the call

My address? • select or enter the self address from which you want to send

NGT Transceiver Getting Started Guide 53

Do this...

the call

Getting started

If this prompt is displayed...

Select chan/mode In an ALE/CALM network:

Do this...

• select <auto> if you want the transceiver to select the best channel/mode for the call, starting with the channel on which the most recent successful link was established, or

• select the channel/mode you want to use to make the call

In a Codan Selcall network:

• select the channel/mode you want to use to make the call and check that it is clear of voice and data traffic

You can test the quality of the selected channel by

NOTE

sending a Channel Test call (see page 52, Testing a

channel as part of a call in a Codan Selcall network).

NOTE

To abort the call before a connection to the other station is made, press the PTT button.

1 If you made the call in:

• an ALE/CALM network, wait until a message informs you that the call has been successful (this means your call has been automatically answered by the other station)

• a Codan Selcall network, wait until a message informs you that the call has been sent and listen for audible beeps transmitted from the other station

1 Hold down the PTT button then speak.

Release the PTT button when you have finished speaking.

1 To end the call, press the key.

If the transceiver was scanning prior to the call it resumes scanning.

54 NGT Transceiver Getting Started Guide

Getting started

Making a Phone call from the Address List

This section shows you how to make a Phone call from the Address List. It assumes that you have created an entry in the list to do this (for help see page 75, Creating an entry in a list and the reference material on the enclosed CD).

To make a Phone call from the Address List:

1 Go to the entry you want to call in the Address List.

Scroll to the entry or use the Find feature

NOTE

(for help see page 71, Finding words and

values).

1 Press the key. 1 If you are prompted for details about the call, use the

information in the following table to enter them, then press the key.

If this prompt is displayed...

Select link • select the phone link station through which you want to

Phone link addr? • enter the address of the phone link station through which

Select network • select the network in which you want to make the call

My address? • select or enter the self address from which you want to send

NGT Transceiver Getting Started Guide 55

Do this...

make the call

you want to make the call (including @?@ for an ALL call)

the call

Getting started

If this prompt is displayed...

Select chan/mode In an ALE/CALM network:

Do this...

• select <auto> if you want the transceiver to select the best channel/mode for the call, starting with the channel on which the most recent successful link was established, or

• select the channel/mode you want to use to make the call

In a Codan Selcall network:

• select the channel/mode you want to use to make the call and check that it is clear of voice and data traffic

You can test the quality of the selected channel by

NOTE

sending a Channel Test call (see page 52, Testing a

channel as part of a call in a Codan Selcall network).

NOTE

To abort the call before a connection to the other station is made, press the PTT button.

1 Wait until you hear a reply from the person you called. 1 Hold down the PTT button then speak.

Release the PTT button when you have finished speaking.

1 To end the call, press the key.

56 NGT Transceiver Getting Started Guide

Getting started

If you made the call in:

• an ALE/CALM network and the transceiver was scanning prior to the call, it resumes scanning

• a Codan Selcall network, the transceiver asks if you want to send a hang up signal

To send a hang up signal, press the key. If the other party has sent a hang up signal via the phone line, press the key.

If the transceiver was scanning prior to the call it resumes scanning.

NGT Transceiver Getting Started Guide 57

Getting started

Making an emergency call using the emergency key

NOTE

To make a call using the key:

For information on setting up the key see the reference material on the enclosed CD.

1 Hold the key for at least 2 seconds. 1 If you are prompted for details about the call, use the

information in the following table to enter them, then press the key.

If this prompt is displayed...

Select network • select the network in which you want to make the call

My address? • select or enter the self address from which you want to send

Select chan/mode In an ALE/CALM network:

Do this...

the call

• select <auto> if you want the transceiver to select the best channel/mode for the call, starting with the channel on which the most recent successful link was established, or

• select the channel/mode you want to use to make the call

In a Codan Selcall network:

• select the channel/mode you want to use to make the call and check that it is clear of voice and data traffic

You can test the quality of the selected channel by

NOTE

58 NGT Transceiver Getting Started Guide

sending a Channel Test call (see page 52, Testing a

channel as part of a call in a Codan Selcall network).

NOTE

To abort the call before a connection to the other station is made, press the PTT button.

Getting started

1 To complete the call, use the information in the following

table.

If you are making an...

RFDS Emgcy call (AR and AR Voice transceivers only)

Emergency call In an ALE/CALM network:

Do this...

• wait until you hear a reply from RFDS personnel

• hold down the PTT button then speak, releasing the PTT button when you have finished speaking

• press the key to resume scanning

• wait until a message informs you that the call has been successful

• hold down the PTT button then speak, releasing the PTT button when you have finished speaking

• press the key to end the call and resume scanning

In a Codan Selcall network:

• wait until a message informs you that the call has been sent and listen for audible beeps transmitted from the other station

• hold down the PTT button then speak, releasing the PTT button when you have finished speaking

• press the key to end the call and resume scanning

You should test your transceiver’s emergency call facility on a regular basis. In doing this, the process of making an emergency call will

NOTE

NGT Transceiver Getting Started Guide 59

become familiar, so that in an emergency you will have confidence that the call is effective.

Before testing the emergency call, you should notify the recipients of the call that you are going to perform a test emergency call.

Getting started

Using the ALL address syntax to make a call

NOTE

To make a call using the ALL address syntax:

You must have the CALM option installed in your transceiver.

1 Press the key. 1 If you are prompted for details about the call, use the

information in the following table to enter them, then press the key.

If this prompt is displayed...

CallType–Address • select the Emergency, Message, Phone, Selective or Send

Select network • select the ALE network in which you want to make the call

My address? • select or enter the self address from which you want to send

Do this...

Position call type

• press the key to enter @?@

NOTE

the call

EASI

You must be in a screen that allows you to enter upper-case letters (A).

Select chan/mode • select <auto> if you want the transceiver to select the best

channel/mode for the call, starting with the channel on which the most recent successful link was established, or

• select the channel/mode you want to use to make the call

NOTE

60 NGT Transceiver Getting Started Guide

To abort the call before a connection to the other station is made, press the PTT button.

Getting started

When you use the ALL address syntax through the Selective call type, the call icon will change to the ALL icon when the call is started.

NOTE

Your transceiver will inform you when the call has been successful.

You may connect to:

• one other station if there is a Selective icon ( ) on the channel screen

• all stations scanning the channel if there is an ALL icon ( ) on the channel screen

1 If required, hold down the PTT button then speak.

Release the PTT button when you have finished speaking.

1 To end the call, press the key.

The transceiver resumes scanning.

NGT Transceiver Getting Started Guide 61

Getting started

This page has been left blank intentionally.

62 NGT Transceiver Getting Started Guide

Appendix A—Standard hot keys

Table 5: Standard hot keys on the handset

Key Hot key task

VIEW

Channel Screen: toggles between the Channel List and the Address

List.

TUNE

Manual Tune: displays the PTT to tune screen so you can manually

tune the antenna.

CLAR

Clarifier: displays the Clarifier setting in the Control List so you can

ABC

change it, if necessary.

MODE

Next Mode: switches to the next possible mode for the currently

DEF

selected channel. To see the name of the mode, go to the Channel List.

HELP

Help Mode: toggles Help Mode on or off.

JKL

PRS

SEC

TUV

EASI

Easitalk: toggles Easitalk on or off.

CALL

Call Logs: displays the Calls Out Log, the Calls In Log, then returns

LOGS

Mute Type: toggles between Selcall mute and Voice mute.

Secure: toggles voice encryptor on or off, if the hardware option is installed.

to the screen from which you began.

CODAN

+ Screen Contrast: displays the Screen Contrast setting in the Control

WXY

List so you can change it, if necessary.

VIEW

+ Screen Brightness: displays the Screen Brightness setting in the

Control List so you can change it, if necessary.

NGT Transceiver Getting Started Guide 63

Standard hot keys

This page has been left blank intentionally.

64 NGT Transceiver Getting Started Guide

Appendix B—Entering and editing text

Editing a screen

To gain access to an editable screen:

1 Hold the key.

1 Do one of the following:

CODAN

A question mark is displayed at the end of the heading to show that you can now enter and/or edit text in the setting.

NOTE

• To use the text displayed, press the key.

If text has already been entered on the line it is highlighted.

• To enter new text, start typing. When you have entered the text, press the key.

• To edit the text displayed, press the key. The cursor is placed at the end of the line so you can backspace over characters and/or enter new text. When the text is correct, press the key.

NGT Transceiver Getting Started Guide 65

Entering and editing text

Entering text

To enter text in an editable screen:

1 To enter one of the letters on a key, press the key

repeatedly until the letter is displayed.

NOTE

You can also hold the key until the letter you want is displayed, then release the key.

1 To enter another letter on the same key, wait until the

cursor moves to the next space...

...then press the key repeatedly until the letter you want is displayed.

1 To enter a letter on another key, press the key for the

letter.

You do not need to wait until the cursor moves to the next space.

66 NGT Transceiver Getting Started Guide

Entering and editing text

L S

Changing between alpha and numerical characters

To change between upper-case and lower-case letters and numbers in an editable screen:

1 Press the key to change the character/case

indicator at the bottom right of the screen from ‘A’ to ‘a’ to ‘#’.

NOTE

CAL

LOG

When you are prompted to enter a call address, the characters that you can enter are determined by the call systems installed in the transceiver.

Moving the cursor

To move the cursor across the text:

1 Use the and keys to move the cursor.

Inserting text

To ins e rt text :

1 Use the and keys to move the cursor to the point

where you want to insert text (or a space), then press the required character key.

If you want to insert a space, make sure

NOTE

that ‘A’ or ‘a’ is displayed at the bottom right of the screen before you press the

VIEW

key otherwise you will enter a zero.

Deleting text

To delete text:

1 Use the and keys to move the cursor one position to

the right of the character that you want to delete, then press the key.

NGT Transceiver Getting Started Guide 67

Entering and editing text

Entering special characters in messages and names

To enter special characters:

NOTE

The special characters that are available are:

. , ’ ? ! & # $ * ( ) - + /

1 Use the and keys to move the cursor to the point

where you want to insert a special character, then press

EASI

the key repeatedly until the symbol you want is

displayed.

Make sure that ‘A’ or ‘a’ is displayed at the

NOTE

To enter one of an extended range of special characters:

NOTE

bottom right of the screen before you press

EASI

the key otherwise you will enter a

decimal point.

The characters that are available are:

space , . ; ? : ¨ ‘ ’ / ! @ # $ % ^ & * ( ) _ - + = | \ ~ < > { } [ ] 0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z a b c d e f g h i j k l m n o p q r s t u v w x y z

1 Use the and keys to move the cursor to the character

or space where you want to replace a character.

NOTE

If you want to add a new character, enter a space then move the cursor to this space.

1 Press the key to place an underscore beneath the

current character or space.

1 Use the and keys to scroll through the character

choices.

68 NGT Transceiver Getting Started Guide

Entering and editing text

1 When you have selected the character that you want to

use, use the or keys to scroll left or right respectively.

TUNE

1 When you have made the changes, press the key to

exit the special character mode.

Entering text in an ALE call address

If the CALM option is installed in your

NOTE

To enter a special addressing character:

transceiver, the key may be used to enter the ALL address syntax (@?@) easily.

1 Ensure that you are in an editable address screen in

which you can enter upper-case letters (A).

1 Press the key to enter @?@.

EASI

MODE

DEF

EASI

Saving text changes

To save the changes you have made:

1 Press the key.

The question mark is removed from the heading.

If you do not want to save the text, hold the key to discard the changes.

NGT Transceiver Getting Started Guide 69

Entering and editing text

This page has been left blank intentionally.

70 NGT Transceiver Getting Started Guide

Appendix C—Finding words and values

CODAN

Finding a word

To find any word in the Main Menu or in the name of an entry:

1 From the Main Menu select the list in which you want to

search.

1 Press the key once.

The Find prompt is displayed on the top line.

1 Enter the first character of the word you want to find.

The first item that contains a word beginning with this character is displayed.

If there aren’t any words that begin with this character the character is deleted and an error beep is made.

To refine your search, enter more

NOTE

characters in the word you want to find.

To backspace over text, press the key.

1 Scroll through the list until the item you want is

displayed on the active line.

1 Press the key to exit Find at the entry.

NGT Transceiver Getting Started Guide 71

Finding words and values

Finding a value

To find a value that begins with a specific character:

1 From the Main Menu select the list in which the value is

stored.

NOTE

You cannot use this type of search in the Main Menu or in the Control List.

1 Press the key twice.

The Find prompt is displayed on the top line with the name of the first setting in the entry. For example:

The search for a value will be conducted in

NOTE

the setting displayed. To search for a value in a different setting, press the key until that setting is displayed.

1 Enter the first character of the value you want to find.

The first entry that contains a value beginning with this character is displayed, and the value is displayed beneath it.

If there aren’t any values that begin with this character the character is deleted and an error beep is made.

To refine your search, enter more

NOTE

72 NGT Transceiver Getting Started Guide

characters in the value you want to find.

To backspace over text, press the key.

Finding words and values

1 Scroll through the entries until the one you want is

displayed.

1 Press the key to exit Find at the entry.

NGT Transceiver Getting Started Guide 73

Finding words and values

This page has been left blank intentionally.

74 NGT Transceiver Getting Started Guide

Appendix D—Creating an entry in a list

CODAN

NOTE

To create an entry in a list:

This process does not apply to entries in the Control List.

1 Select the list in which you want to create an entry. 1 Hold the key to open the List Manager. 1 Select Create entry.

The transceiver suggests a name for the new entry based on the name of the entry you were on.

1 Enter the name that you want to use for the new entry.

The name must be unique to the list that you are in.

NOTE

For help with entering text see page 65,

Entering and editing text.

1 Press the key.

The transceiver will prompt you to enter settings for the entry.

For information on settings for your

NOTE

The new entry is created and the List Manager remains open.

NGT Transceiver Getting Started Guide 75

particular list see the reference material on the enclosed CD.

Creating an entry in a list

1 If you want to view the entry you have created, close the

List Manager by pressing the key.

1 Press the key repeatedly until you return to the Main

Menu.

76 NGT Transceiver Getting Started Guide

Appendix E—HF radio transmission

The HF band is the range of frequencies between 3 and 30 MHz. HF transceivers usually cover a frequency range of

1.6 to 30 MHz.

Codan HF transceivers transmit on single sidebands. This reduces the power required to send HF signals and increases the number of channels available within the HF spectrum.

HF transceivers are primarily used for long-range communication where distances of 3 000 km and more are possible. Obstructions such as buildings and mountains have little effect on long-range communication. HF radio can cover such large distances because of the way the transmitted radio signal propagates.

HF radio waves propagate in three ways simultaneously:

• ground wave

• direct wave

• sky wave

CODAN

Ground wave

The ground wave travels near the ground for short distances, typically up to 100 km over land and 300 km over sea. The distance covered depends upon the operating frequency, transmission power and type of terrain.

Direct wave

The direct wave travels in a direct line-of-sight from the transmitter to the receiver.

NGT Transceiver Getting Started Guide 77

HF radio transmission

Sky wave

The sky wave is the most important form of HF propagation. The radio wave is transmitted toward the sky and is reflected by the ionosphere to a distant receiver on earth.

The reflective properties of the ionosphere change throughout the day, from season to season, and yearly.

Figure 8: The reflective properties of the ionosphere

ionosphere

emitted HF wave

transmitter

Frequency, distance and time of day

The extent to which a radio wave is reflected depends on the frequency that is used. If the frequency is too low the signal is absorbed by the ionosphere. If the frequency is too high the signal passes straight through the ionosphere. Within the HF band, low frequencies are generally considered to be in the range of 2 to 10 MHz. High frequencies are above 10 MHz.

A frequency chosen for daytime transmission may not necessarily be suitable for night-time use. During the day the layers of the ionosphere are thick. The layers absorb lower frequencies and reflect higher frequencies. At night, the ionosphere becomes very thin. The low frequencies that were absorbed during the day are reflected and the high frequencies that were reflected during the day pass straight through.

Summer HF communications usually operate on higher frequencies than those used in winter over the same distance.

reflected HF wave

receiver

78 NGT Transceiver Getting Started Guide

Solar activity varies over an 11 year cycle. Higher frequencies need to be used during periods of peak activity.

It is important to remember that you may need to change the frequency you are using to achieve the best communication. The general rules of thumb for HF communication are:

• the higher the sun, the higher the frequency

• the further the distance, the higher the frequency

Channels and modes

A channel is a name that is given to a frequency or a pair of frequencies, e.g. ‘Channel 1’, ‘4500’ and ‘Headquarters’. The frequencies may be any frequencies within the HF range.

Each channel has one or more modes associated with it. Each mode indicates a sideband that can be used with the channel, such as USB or LSB. When you make a call you need to specify the channel and the mode you want to use.

Tabl e 6 shows examples of channels and the information

associated with them.

HF radio transmission

Table 6: Examples of channels and modes

Channel Receive frequency

(kHz)

Transmit frequency

(kHz)

Modes

Channel 1 10 600 10 600 LSB, USB

4500 4 500 – AM

Headquarters 22 758 23 000 USB

NGT Transceiver Getting Started Guide 79

HF radio transmission

Networks and scanning

A network is two or more stations that use the same frequencies and call system to communicate.

The frequencies are allocated by a government authority and enable the network to maintain HF communication throughout the day and night.

The call system is the method the network uses to make and receive calls. For example, networks that use the Codan Selcall call system make calls by entering the address of the station they want to call then selecting the channel/mode on which to make the call. In networks that use the ALE/CALM call system, the transceiver selects the best channel/mode for the call.

The transceiver can be set to scan the channel/modes used by your network to detect incoming calls. It is recommended that when you are not using the transceiver to communicate you switch scanning on. This ensures that you can receive calls from stations in your network.

The CALM option

If you want to use the ALE/CALM call system to automate the selection of channels you need to install the CALM option in the transceiver. CALM stands for Codan Automated Link Management.

The CALM option enables the transceiver to test the signal propagation qualities of your channels and build a profile of each channel’s suitability for use at different times of the day and night. The transceiver can then select the most suitable channel/mode for you when you make a call. You are able to make global ALE ALL calls with this option.

CALM is compatible with FED-STD-1045 ALE.

80 NGT Transceiver Getting Started Guide

Etiquette for the use of HF radio

There is a standard procedure for communicating over HF radio. Before you begin transmitting, switch off scanning, select a channel, then press the PTT button to initiate tuning of the antenna. Listen to the channel that you are going to use and ensure that there is no voice or data communication taking place. You may need to wait until the channel is clear or select another channel.

If you have the Cfg LBT Mode set to Enabled or

NOTE

When you first establish communication with another station it is customary to state their call sign and then your own using the phonetic alphabet (see Table 7 on page 82). For example:

‘Alpha Bravo One, this is Alpha Bravo Two. Do you receive me? Over.’

In this example your call sign is AB2 and you are calling a station with the call sign AB1. A call sign is a group of letters and numbers issued by a government authority to identify a station. The phonetic alphabet is used to ensure that your call sign is understood.

Override allowed, the transceiver searches for a channel that is not being used; you do not need to check any channels first.

HF radio transmission

The word ‘over’ is used to signify the end of your transmission. The transceiver may be set up to transmit a short beep when you release the PTT button on the handset. When your conversation with the other party is finished, the party that speaks last should say ‘out’.

Swearing or foul language should not be used—heavy penalties can apply.

Keep communication as short as possible.

NGT Transceiver Getting Started Guide 81

HF radio transmission

Table 7: The phonetic alphabet

Letter Word Letter Word

A Alpha N November

B Bravo O Oscar

CCharliePPapa

D Delta Q Quebec

EEchoRRomeo

F Foxtrot S Sierra

G Golf T Tango

HHotelUUniform

I India V Victor

J Juliet W Whiskey

K Kilo X X-ray

LLimaYYankee

M Mike Z Zulu

82 NGT Transceiver Getting Started Guide

Appendix F—Definitions

Standards and icons

The following standards and icons are used in this guide:

This typeface Means...

Italic a cross-reference or text requiring emphasis

This icon Means...

! a step within a task

CODAN

NOTE

CAUTION

WARNING

the text provided next to this icon may be of interest to you

proceed with caution as your actions may lead to loss of data, privacy or signal quality

your actions may cause harm to yourself or the equipment

NGT Transceiver Getting Started Guide 83

Definitions

Acronyms and abbreviations

This term Means...

ALE automatic link establishment

AM amplitude modulation

CALM Codan automated link management

DC direct current

HF high frequency

ID identification

LBT listen before transmit

LCD liquid crystal display

LED light emitting diode

LSB lower sideband

LQA link quality analysis

NSP NGT system programmer

PA power amplifier

PC personal computer

PTT press-to-talk

RF radio frequency

RFDS Royal Flying Doctor Service

Rx receive

SB sideband

tcvr transceiver

Tx transmit

84 NGT Transceiver Getting Started Guide

This term Means...

USB upper sideband

V firmware/software version

Definitions

NGT Transceiver Getting Started Guide 85

Definitions

Glossary

This term Means...

active line The line below the title of a list on the

handset screen. Items in the active line are selected by pressing the key.

address The HF transceiver equivalent of a

telephone number. Your station self address is used by other stations to call you, and it is sent when you make calls to identify you as the caller. It is sometimes referred to as an ID, a station ID, or a self ID.

ALL call An ALE address syntax used to broadcast to

any station that is tuned to the same frequency in an ALE/CALM network or scanning the network. The ALL call uses a special address syntax @?@ that ALE stations recognise. The ALL call does not request any automatic responses from stations that enter the link. Stations can be configured to enter a link on detecting an ALL call or to ignore an ALL call.

The ALL address syntax may be used in Emergency, Message, Phone, Selective, and Send Position calls if the CALM option is installed.

automatic tuning antenna

channel Frequencies programmed in the transceiver

Channel Test call

86 NGT Transceiver Getting Started Guide

An antenna designed for use with multichannel transceivers. It uses a microcontrolled stepper motor to give continuous tuning over the operating frequency range of the antenna.

to transmit and receive signals on air.

A call that enables you to test the quality of a channel in a Codan Selcall network.

Definitions

This term Means...

control cable A cable connecting two items of equipment

that allows control information to be passed between the equipment.

Emergency call A call that enables you to trigger an

emergency alarm at a specific station then speak to an operator there.

fixed base station

A transceiver that is permanently installed and cannot be moved without significant effort. It consists of a transceiver, a transceiver supply, an antenna, control and accessory devices, ancillary equipment, and appropriate connecting cables.

frequency The number of cycles per second of a radio

wave, usually expressed in kilohertz.

Get Position call A call that gets the GPS position of a

specific station.

Get Status call A call that gets diagnostic information

about the transceiver at a specific station.

handset A hand-held device that is used to control

the functions of a transceiver. It consists of a microphone, PTT button, display and keypad.

hot key A key on the handset or desk console that is

pre-programmed with a macro that enables you to perform a task quickly.

NGT Transceiver Getting Started Guide 87

Definitions

This term Means...

junction box The unit in a transceiver to which a handset,

RF unit, speaker and related devices are connected. The junction box receives the instructions that a user enters through the handset and sends these instructions to the relevant devices. In an AR Voice or VR Mobile transceiver, the junction box is no longer required; the handset and speaker connect directly to the handset and speaker connector. In this case, all instructions are processed by the RF unit.

listen before transmit

If enabled, the automatic process that the transceiver uses to detect whether or not there is traffic on a channel and, when necessary, select another channel or inform the user that the channel is busy.

macro A short set of instructions to automate a task

you perform with the transceiver. When a macro is assigned to a key, the key becomes a hot key.

Message call A call that enables you to send a message to

a specific station.

mobile station A station that is usually mounted in a

vehicle or is portable and easily transportable. It consists of a transceiver, a power supply, an antenna, control and accessory devices, ancillary equipment, and appropriate connecting cables.

mode A type of reception or transmission you can

use with a channel e.g. USB.

network Two or more stations that use the same

frequencies and call system to communicate.

Phone call A call that enables you to connect to a

public telephone network.

88 NGT Transceiver Getting Started Guide

Definitions

This term Means...

PTT button Press-to-talk button, located on the left side

of the handset. This button enables you to communicate during voice calls, switch mute off, cancel voice calls prior to the point where voice can be transmitted, cancel calls where data is being transmitted, and exit out of editable screens without saving changes.

revertive A signal sent by a station in response to a

call.

RF unit The unit in a transceiver that modulates

audio signals onto radio frequencies that can be transmitted on air, and that demodulates the radio frequencies it receives into audio signals.

RFDS Emgcy call

A call that enables you to contact the RFDS (AR and AR Voice transceivers only).

Selective call A call that enables you to contact a specific

station then speak to an operator.

Send Position call

A call that sends your GPS position to a specific station.

station A point of communication consisting of a

transceiver, a power supply, an antenna, ancillary equipment, and appropriate connecting cables.

transceiver An RF unit, handset, speaker, and

appropriate connecting cables. The AR, SR, and VR transceivers also include a junction box.

NGT Transceiver Getting Started Guide 89

Definitions

Units

Measurement Unit Abbreviation

Distance metre m

Frequency hertz Hz

Time second s

Voltage volt V

Unit multipliers

Unit Name Multiplier

Mmega10

kkilo10

m milli 10

–3

90 NGT Transceiver Getting Started Guide

Codan NGT Getting Started Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of contents

2 Installation

3 The handset

4 Getting started

Index

List of figures

List of tables

Introduction

Accessing the CD

Introduction

European Radio and Telecommunications Terminal Equipment Directive

Product marking and labelling

Declaration of Conformity and Expert Letter of Opinion

Protection of the radio spectrum

Electromagnetic compatibility and safety notices

Radiation safety

Electromagnetic compatibility

Electrical safety

Earth symbols

FCC compliance

2Installation

Cables

Mounting the handset cradle

Mounting the speaker

Mounting the RF unit

Connecting the control cable to an automatic tuning antenna

Connecting the power supply

Connecting ancillary equipment

Cables

Mounting an NGT fixed station

Desk console

RF unit and transceiver supply

Rack-mounting unit

Mounting cradles

Connecting an NGT fixed station

Connecting an automatic tuner to the RF unit and antenna (optional)

Connecting the transceiver supply

3 The handset

The channel screen

Selecting a channel

4 Getting started

Switching on the transceiver

Switching off the transceiver

Changing the screen contrast

Changing the screen brightness

Using the keys on the handset

The scroll keys

The and keys

Accessing the Main Menu

Using Quick Start

Opening and closing Quick Start

Adding/Editing a channel

Setting up a scan list

Setting the time and date

Setting your station self address

Adding/Editing an entry in the Address List or Call Book

Deleting an entry

Switching scanning on or off

Pausing scanning

Switching mute on or off

Setting the mute type

Entering your station self address

Listen Before Transmit Mode

Testing a channel as part of a call in a Codan Selcall network

Making a Selective call from the Address List

Making a Phone call from the Address List

Making an emergency call using the emergency key

Using the ALL address syntax to make a call

Appendix A—Standard hot keys

Appendix B—Entering and editing text

Editing a screen

Entering text

Changing between alpha and numerical characters

Moving the cursor

Inserting text

Deleting text
