Codan 3160 User Manual

Power Amplifier

HF RADIO COMMUNICATIONS

3160

INSTALLATION HANDBOOK

No part of this handbook may be reproduced, transcribed,
translated into any language or transmitted in any form
whatsoever without the prior written consent of Codan
Limited.

© Copyright 2008, 2009 Codan Limited.

Codan part number 15-04157-EN Issue 2, February 2009

Brand, product, and company names mentioned in this
document are trademarks or registered trademarks of their
respective holders.

The English version takes precedence over any translated
versions.

Table of contents

Introduction

1Overview

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Power supply options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Typical layouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Care and safety guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2 Installing the 3160

Disclaimer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

What you need to consider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Basic layout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Stacked layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Mobile station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Fixed station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Installing the 3160 in a basic layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Installing the 3160 in a stacked layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Attaching the 2110 amplifier adaptor panel to the rear of the

transceiver cradle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Attaching the 3160, voltage regulator and external speaker to a

mounting surface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Attaching a suitable power supply to the power supply cover . . . . . . . . . . 27

Attaching the power amplifier mounting bracket to the transceiver

cradle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Attaching the 3160 and external speaker to the power amplifier

mounting bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Connecting the equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Setting up the transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Power Amplifier 3160 Installation Handbook i

Table of contents

Grounding the 3160 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Installing the station. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

3 Specifications

4 Accessories

Appendix A—Connectors

Appendix B—Compliance

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

European R&TTE Directive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

EMC and safety notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

C-tick approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

FCC compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

FCC Part 90 certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

FCC Part 15 compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Compliance with RF exposure standards. . . . . . . . . . . . . . . . . . . . . . . . 50

Operating instructions to control RF exposure . . . . . . . . . . . . . . . . . . .50

Mobile antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Approved accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Contact information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

IC approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Register of hazardous substances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Appendix C—Definitions

Standards and icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Acronyms and abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Unit multipliers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

About this issue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Index

ii Power Amplifier 3160 Installation Handbook

List of figures

Figure 1: 3160 Power Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Figure 2: Power supply from a 3020 Transceiver Supply . . . . . . . . 6

Figure 3: Power supply from a 12 V battery . . . . . . . . . . . . . . . . . . 7

Figure 4: Power supply from a 24 V battery via a voltage

regulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Figure 5: Basic layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Figure 6: Stacked layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Figure 7: Process for installing the 3160 in a basic layout . . . . . . 21

Figure 8: Process for installing the 3160 in a stacked layout. . . . . 23

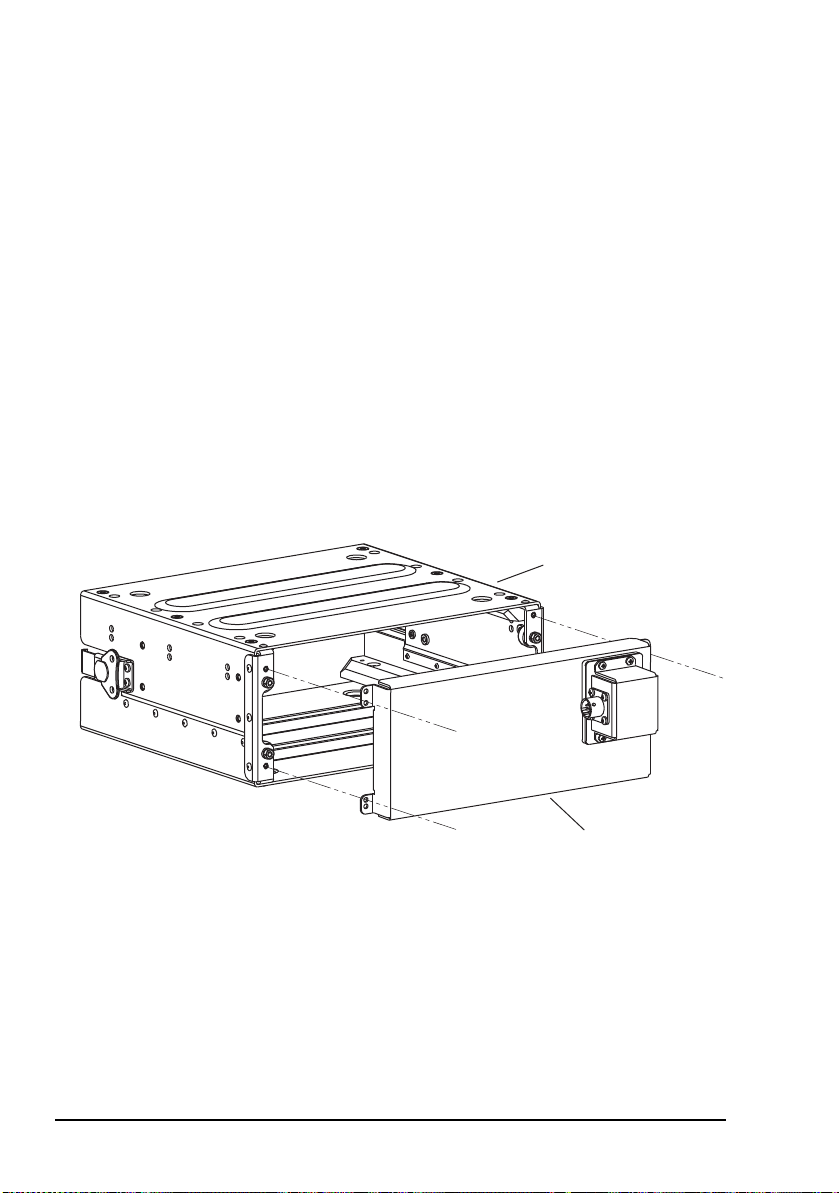

Figure 9: 2110 amplifier adaptor panel and cradle . . . . . . . . . . . . 24

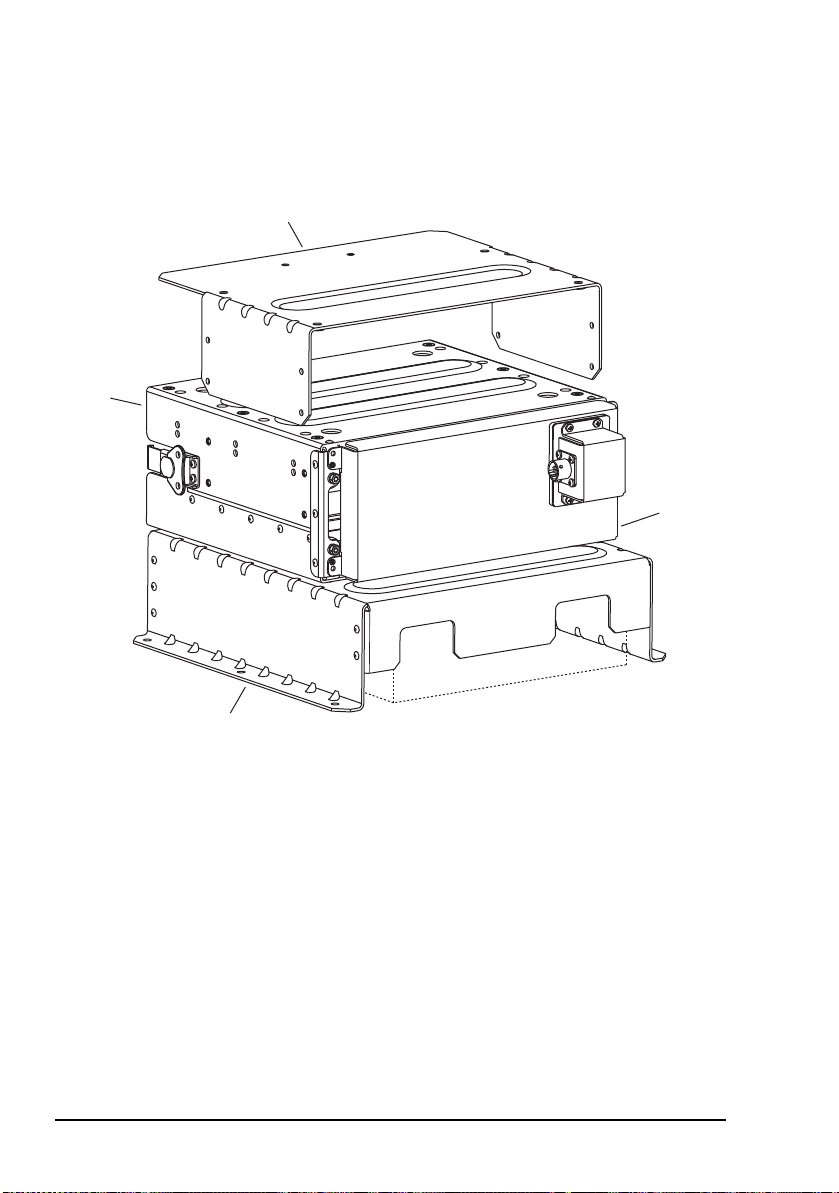

Figure 10: Power supply cover, cradle, and power amplifier

mounting bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

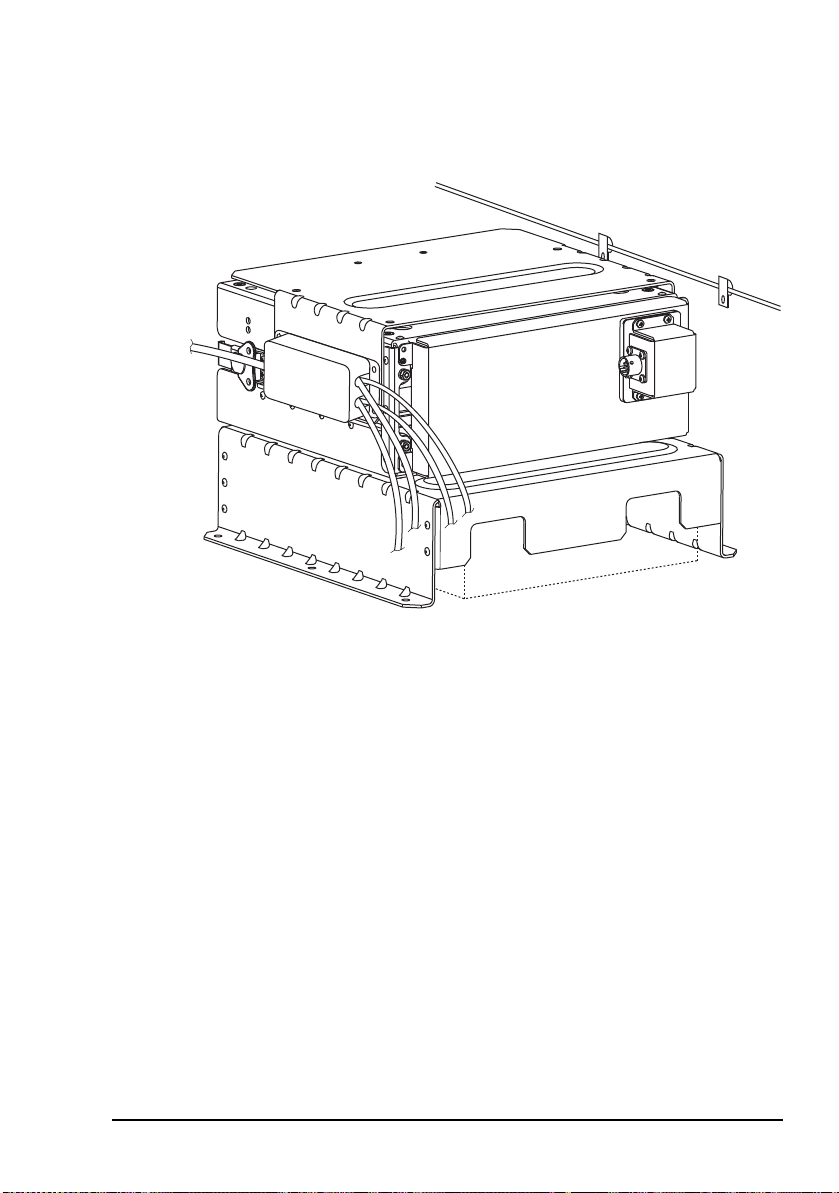

Figure 11: Power supply cover, cradle, power amplifier

mounting bracket, interface adaptor, and coaxial

cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Figure 12: Holes in the power amplifier mounting bracket . . . . . . . 31

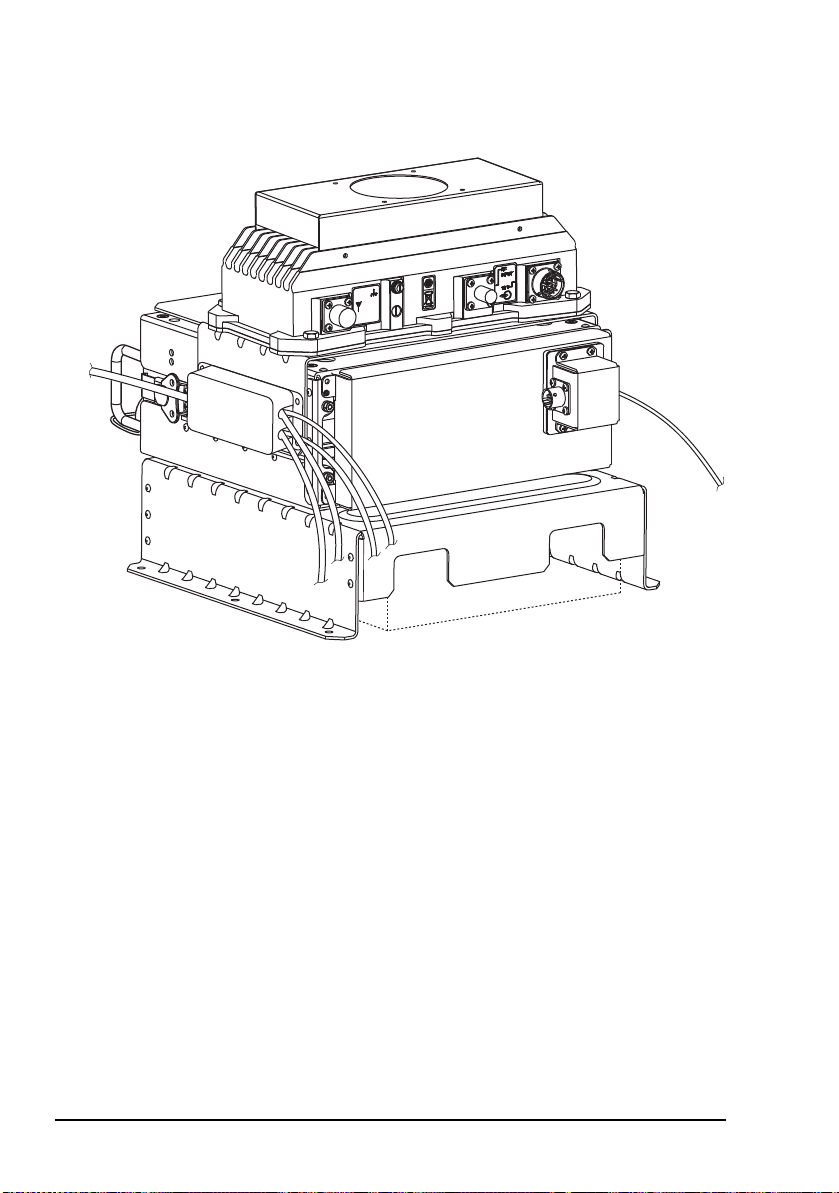

Figure 13: 3160 and power amplifier mounting bracket . . . . . . . . . 32

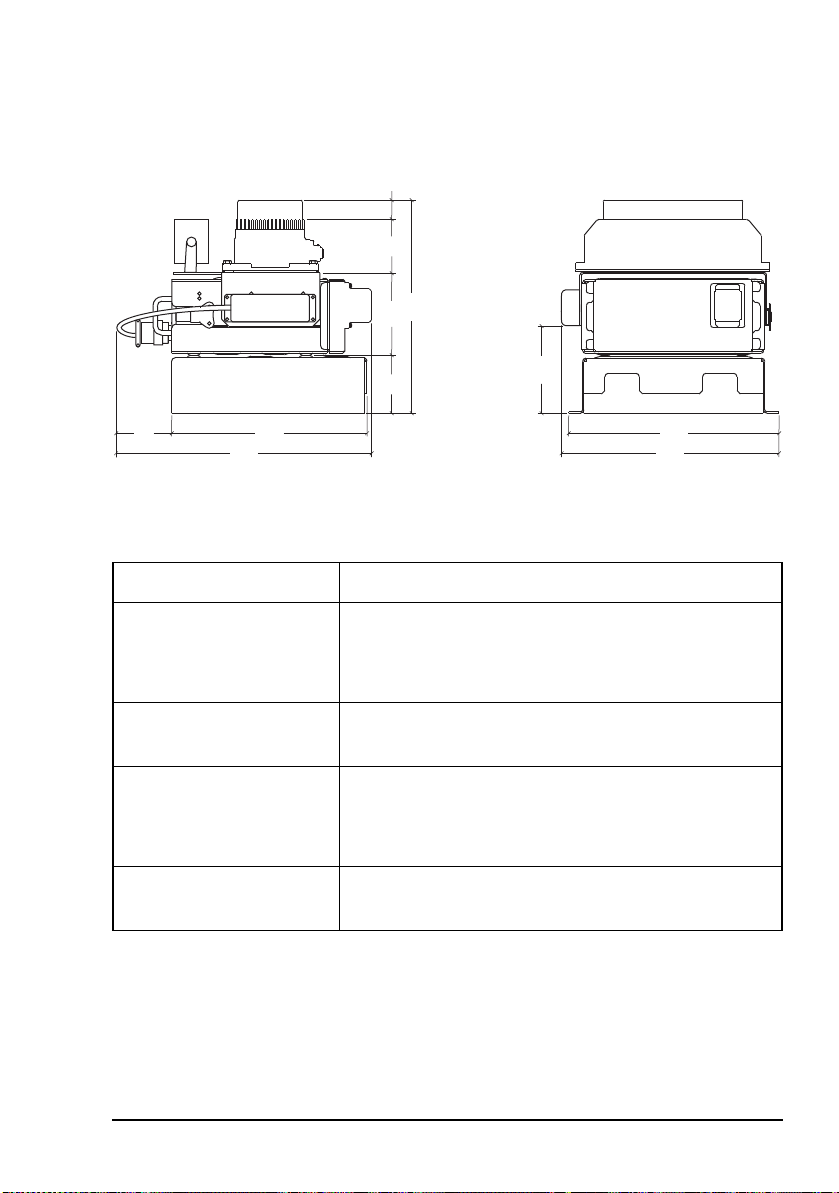

Figure 14: Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

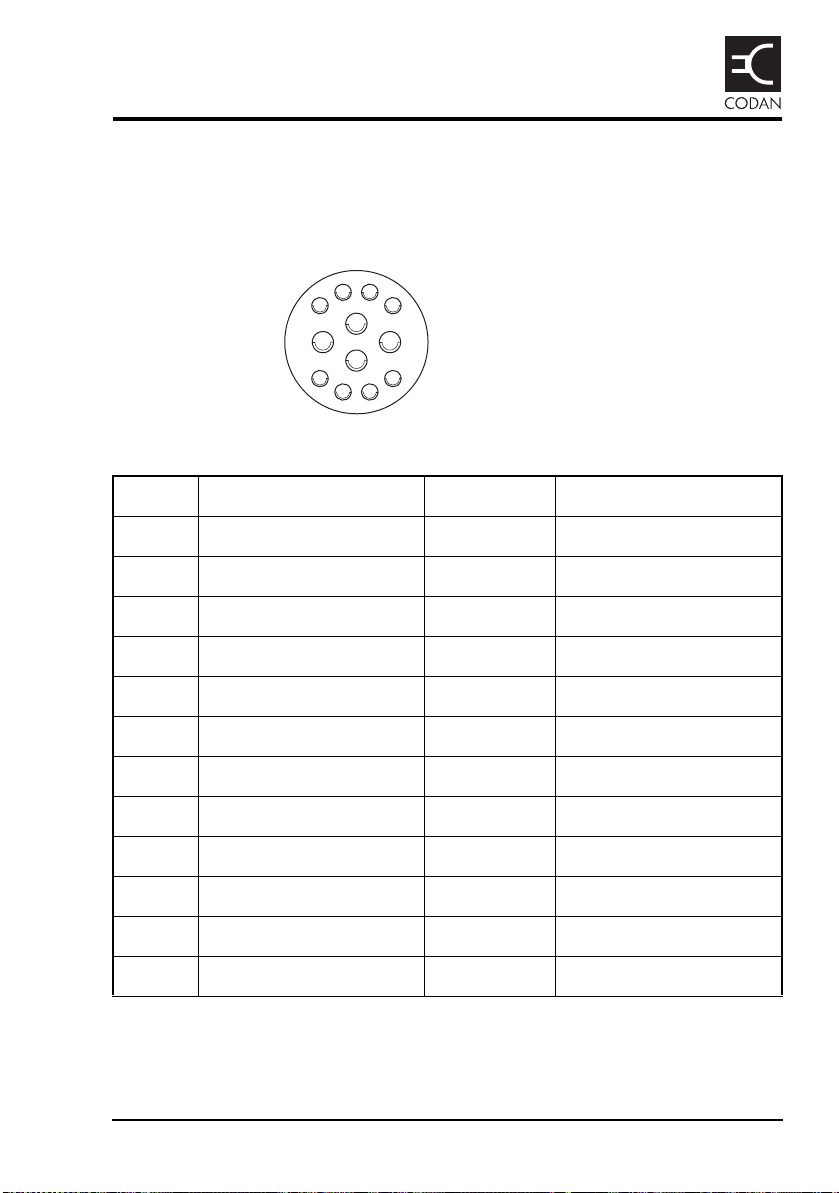

Figure 15: Front view of the 12-way connector on the 3160 . . . . . . 43

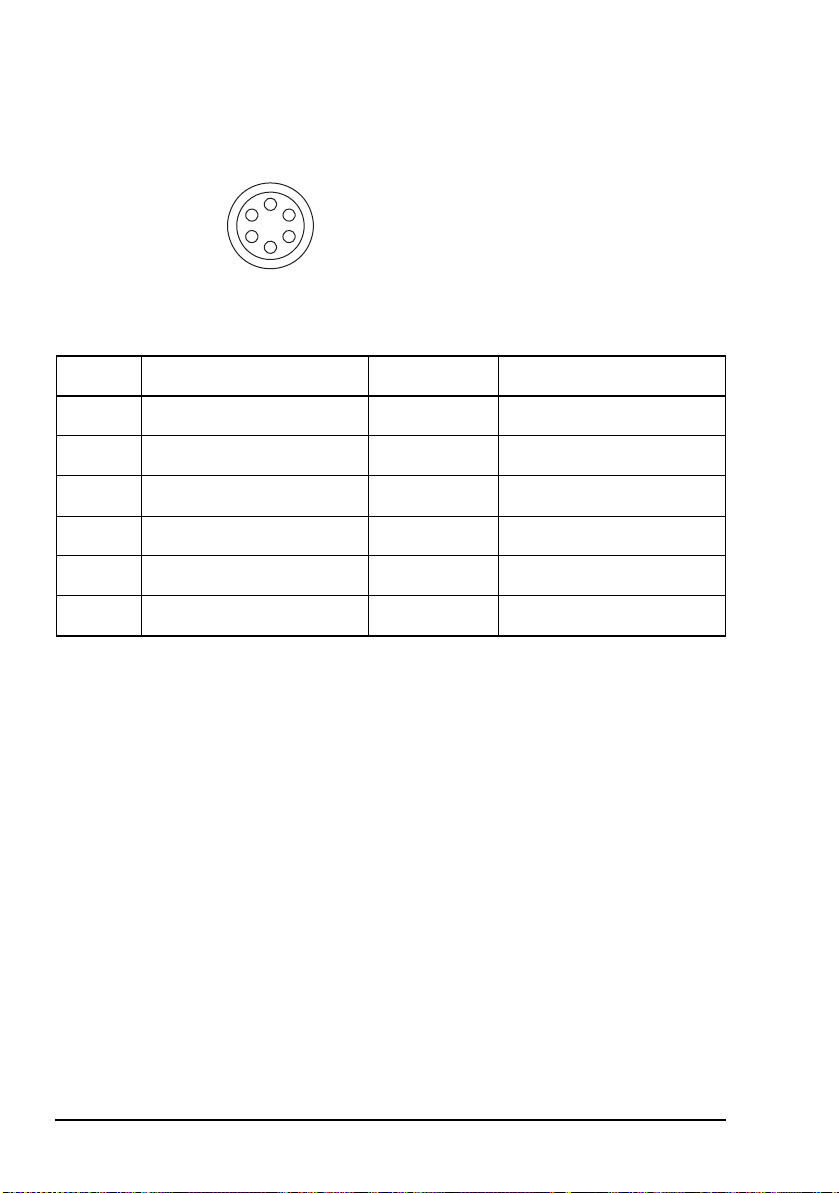

Figure 16: Front view of the 6-way connector on the 2110

amplifier adaptor panel. . . . . . . . . . . . . . . . . . . . . . . . . . 44

Power Amplifier 3160 Installation Handbook iii

List of figures

This page has been left blank intentionally.

iv Power Amplifier 3160 Installation Handbook

List of tables

Table 1: Functional specifications . . . . . . . . . . . . . . . . . . . . . . . . 37

Table 2: Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Table 3: Weights for accessories . . . . . . . . . . . . . . . . . . . . . . . . . 40

Table 4: Accessories for the 3160 Power Amplifier . . . . . . . . . . 41

Table 5: Pinouts for the 12-way connector on the 3160 . . . . . . . . 43

Table 6: Pinouts for the 6-way connector on the 2110

amplifier adaptor panel. . . . . . . . . . . . . . . . . . . . . . . . . . 44

Table 7: 有毒有害物质列表 (Register of hazardous

substances) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Power Amplifier 3160 Installation Handbook v

List of tables

This page has been left blank intentionally.

vi Power Amplifier 3160 Installation Handbook

Introduction

This handbook is for installers of the 3160 Power Amplifier. It
assumes that you have experience in installing RF equipment.

This handbook contains the following sections:

Section 1 Overview—provides an overview of the 3160,

Section 2 Installing the 3160—provides guidance on how

Section 3 Specifications—provides the common

Section 4 Accessories—lists the accessories available for

Appendix A Connectors—provides the pinouts for Codan-

Appendix B Compliance—provides compliance information

typical layouts, care and safety, and
compatibility

to position, install, and earth the 3160

operational, environmental, and physical
specifications of the 3160

the 3160

specific connectors

and safety notices for the 3160

Appendix C Definitions—explains the terms and

abbreviations used in this handbook

There is an index at the end of this handbook.

Power Amplifier 3160 Installation Handbook 1

Introduction

This page has been left blank intentionally.

2 Power Amplifier 3160 Installation Handbook

1 Overview

This section contains the following topics:

General (4)

Power supply options (6)

Typical layouts (8)

Care and safety guidelines (13)

Compatibility (14)

Power Amplifier 3160 Installation Handbook 3

Overview

3160 Power Amplifier

Serial No.Serial No.Serial No.Serial No.Serial No.

N101N101N101N101N101

General

The 3160 Power Amplifier is designed to provide 125 W
transmitting power for a 2110M or 2110 Manpack
Transceiver. The 3160 provides 12 V DC to the transceiver
from a suitable power source. When the 3160 is connected
into the transceiver system, it is automatically detected when
the transceiver is switched on.

NOTE A 100 W option is available.

For information on hardware and software

NOTE

compatibility requirements see page 14,

Compatibility.

Figure 1: 3160 Power Amplifier

4 Power Amplifier 3160 Installation Handbook

Overview

A typical 3160 Power Amplifier installation comprises:

• a 2110M Manpack Transceiver (build standard A or
later), or a 2110 Manpack Transceiver (build standard H
or later) with firmware V4.91 or later

• a 3160 Power Amplifier

• a 2110 series Manpack Transceiver cradle with interface
adaptor and external speaker

• a 2110 amplifier adaptor panel

• a power adaptor cable

• a coaxial cable

• a 12 V DC power source with appropriate cables

• an antenna system with appropriate cables and power
rating

• a grounding system

Optional equipment for the system includes:

• a power amplifier mounting bracket

• a power supply cover

•a fan

• an external antenna tuner

Power Amplifier 3160 Installation Handbook 5

Overview

earth strap

08-04515

3020 Transceiver Supply

AC

power adaptor cable

08-06808-xxx

Power supply options

The 3160 Power Amplifier requires a 12 V DC supply. This
may be supplied by one of the following sources:

• 3020 Transceiver Supply (fixed station only; this
requires connection to the AC mains supply)

• 12 V DC vehicle battery (see Figure 3 on page 7)

• 24 V DC vehicle battery via a 24 V to 12 V voltage
regulator (see Figure 4 on page 7)

You can mount the 3020 Transceiver Supply or

NOTE

Figure 2: Power supply from a 3020 Transceiver Supply

the voltage regulator within a power supply
cover (Codan part number 15-00147).

6 Power Amplifier 3160 Installation Handbook

Figure 3: Power supply from a 12 V battery

12 V

battery

+

fuse

power adaptor cable

08-06808-xxx

24 V

battery

+

24 V to 12 V

voltage

regulator

15-00508

fuse

power adaptor cable

08-06808-xxx

(or two 12 V batteries)

Figure 4: Power supply from a 24 V battery via a voltage regulator

Overview

Power Amplifier 3160 Installation Handbook 7

Overview

Typical layouts

The 2110M or 2110 Manpack Transceiver and a 3160 Power
Amplifier may be installed in a mobile station or a fixed
station.

The equipment may be arranged in one of two layouts:

• basic layout, in which items are located separately and

• stacked layout, in which all items are bolted together in a

A 2110 amplifier adaptor panel (supplied with the 3160) is
attached to the rear of the 2110 cradle. When the manpack
transceiver is inserted into the cradle, it connects with the
2110 amplifier adaptor panel. A special power adaptor cable
connects the 2110 amplifier adaptor panel to the 3160 and an
appropriate 12 V DC power source. A coaxial cable connects
the antenna output from the connector on the front panel of
the transceiver to the RF INPUT connector on the 3160. The
RF output from the 3160 is sent to an antenna system via a
coaxial cable connected to the connector.

bolted down, if required (see Figure 5 on page 10)

stack using a mounting bracket, and optional power
supply cover (see Figure 6 on page 12)

In a mobile station, all items must be bolted

WARNING

NOTE

8 Power Amplifier 3160 Installation Handbook

securely to rigid structures within the vehicle.
For more information on these requirements see

page 15, Installing the 3160.

For information on suitable power sources see

page 6, Power supply options.

Overview

Basic layout

The basic layout is shown in Figure 5. It includes:

• a 2110M or 2110 Manpack Transceiver

• a 3160 Power Amplifier

• a 2110 series Manpack Transceiver cradle with interface
adaptor and external speaker

• a 2110 amplifier adaptor panel

• a power adaptor cable

• a coaxial cable

• a suitable 12 V DC supply

Power Amplifier 3160 Installation Handbook 9

Overview

Rear view of the transceiver

Front view of the transceiver

to 12 V DC

power supply

12V

to antenna (RF)

to antenna (control)

VIEW

0

1

QZ

TUNE

2

ABC

FUNC

MODE

DEF

3

Rx

FREE

4

GHI

5

JKL

Tx

PWR

6

7

PRS

8

TUV

SEC

GPS

9

CALL
LOGS

EASI
TALK

HOP

3160 Power Amplifier

08-06809-001

08-06808-002

external speaker

2110 cradle interface

adaptor

2110 amplifier
adaptor panel

Figure 5: Basic layout

10 Power Amplifier 3160 Installation Handbook

Overview

Stacked layout

Please read the installation process before

CAUTION

assembling the stacked layout (see Figure 8 on

page 23).

The stacked layout is shown in Figure 6. It includes:

• a 2110M or 2110 Manpack Transceiver

• a 3160 Power Amplifier

• a 2110 series Manpack Transceiver cradle with interface
adaptor and external speaker

• a 2110 amplifier adaptor panel

• a power adaptor cable

• a coaxial cable

• a suitable 12 V DC supply

• a power amplifier mounting bracket (includes long
screws for attaching the interface adaptor to the cradle)

• a power supply cover (includes transceiver supply
brackets and various captive nuts, screws and washers)
(optional)

Power Amplifier 3160 Installation Handbook 11

Overview

to 12 V DC

power supply

to antenna

(RF)

to antenna

(control)

Front view of the stack

VIEW

0

1

QZ

TUNE

2

ABC

FUNC

MODE

DEF

3

Rx

FREE

4

GHI

5

JKL

Tx

PWR

6

7

PRS

8

TUV

SEC

GPS

9

CALL
LOGS

EASI
TALK

HOP

Rear view of the stack

12V

3160 Power

Amplifier

08-06809-002

08-06808-500

external speaker

2110

cradle

interface

adaptor

2110

amplifier

adaptor

panel

power

supply

cover

power

amplifier

mounting

bracket

Figure 6: Stacked layout

12 Power Amplifier 3160 Installation Handbook

Care and safety guidelines

The following guidelines are intended for best performance of
the equipment and operator safety:

• Ensure that the 3160 and manpack transceiver are in a
well-ventilated area.

• Check the mounting points regularly if the installation is
subject to continuous vibration.

• Ensure that the installation is grounded to a suitable earth
point.

• Check the safe working distance for the type of antenna
you are using at 125 W output.

Overview

Power Amplifier 3160 Installation Handbook 13

Overview

Compatibility

The following hardware build standards are required for
operation with the 3160:

Transceiver type Build standard

2110M Manpack Transceiver A or later

2110 Manpack Transceiver H or later

Both types of transceiver must have firmware V4.91 or later.

NOTE

Upgrades are available for the hardware and firmware. Please
contact your Codan representative for more information.

The build standard is indicated by the 8th
character in the serial number of the transceiver.
The serial number is located under the bar code.

14 Power Amplifier 3160 Installation Handbook

2 Installing the 3160

This section contains the following topics:

Disclaimer (16)

What you need to consider (17)

Installing the 3160 in a basic layout (21)

Installing the 3160 in a stacked layout (22)

Attaching the 2110 amplifier adaptor panel to the rear of the
transceiver cradle (24)

Attaching the 3160, voltage regulator and external speaker to a
mounting surface (26)

Attaching a suitable power supply to the power supply
cover (27)

Attaching the power amplifier mounting bracket to the
transceiver cradle (27)

Attaching the 3160 and external speaker to the power
amplifier mounting bracket (31)

Connecting the equipment (33)

Setting up the transceiver (34)

Grounding the 3160 (34)

Installing the station (35)

Power Amplifier 3160 Installation Handbook 15

Installing the 3160

Disclaimer

WARNING

WARNING

The 3160 Power Amplifier should be installed
by a suitably qualified technician, to the
relevant standards and approvals.

While the following instructions are intended to
assist with installation, it is the purchaser’s
responsibility to ensure that the 3160 is installed
with due regard to vehicle-occupant safety,
particularly in the event of a vehicle accident.
Codan accepts no responsibility or liability in
the event of injury to vehicle occupants or any
other damage due to insecure or otherwise
unsafe or inappropriate installation of the 3160.

16 Power Amplifier 3160 Installation Handbook

What you need to consider

There are different requirements that must be considered,
depending on the layout and type of station in which the 3160
is used, that is, basic or stacked layout, mobile or fixed station.
Please read the sections that are relevant to your installation.

Basic layout

When installing the 3160 you must consider:

• the location and mounting of the 3160

• the routing of the coaxial and control cables

• grounding requirements for the 3160

The basic layout (see Figure 5 on page 10) is connected using
a 2 m power adaptor cable between the 2110 amplifier adaptor
panel (and hence the transceiver cradle) and the 3160.
Therefore, these items need to be located within 2 m of each
other. For dimensions of each item see page 37,

Specifications.

Installing the 3160

The fins on the heatsink of the 3160 should be oriented so that
warm air can move easily away from the fins. Ideal
orientations for the 3160 are shown in Figure 5 on page 10 and

Figure 6 on page 12.

Power Amplifier 3160 Installation Handbook 17

Installing the 3160

Stacked layout

Mobile station

The stacked layout (see Figure 6 on page 12) provides a
mounting system that connects all items together in a rugged
stack.

The stacked layout must be assembled in a
specific order, as some holes become hidden

CAUTION

For overall dimensions of the stack see Figure 14 on page 39.

NOTE

The 3160 should be mounted in a location that:

during the assembly process. For more
information see page 22, Installing the 3160 in

a stacked layout.

The power supply cover is not required if the
system is powered from a 12 V DC vehicle
battery.

• is clear of surrounding body work

• does not interfere with car openings

• provides adequate air flow around the unit

The 3160 must have:

• a strong anchorage point

• a sound electrical connection to the vehicle chassis

For specific instructions on mounting a vehicle cradle see the
fitting instruction provided with the cradle.

18 Power Amplifier 3160 Installation Handbook

Installing the 3160

Cabling in a vehicle

The coaxial cable between the antenna and the 3160 should be
installed as far as possible from other vehicle wiring,
especially high-voltage ignition wiring or the engine
management computer.

The cabling must be in a position that:

• is away from the driver’s feet

• is secured and concealed as much as possible

• ensures the control and coaxial cables are separated from
the DC power cable by at least 200 mm (8 in) (except
over short distances, for example, to pass through the
same hole in a bulkhead)

• is secured behind protective metalwork (only if the
cables run under the vehicle)

Keep cables in the engine compartment away from:

• heat, for example, exhaust, air-conditioning systems, and
water pipes

• oils and corrosive liquids, for example, engine oil,
battery fluid, and brake fluid

Protect all the cables from sharp edges and mechanical
abrasions. Cables that pass through body panels or internal
bulkheads must be protected by rubber grommets. Holes in the
bulkhead need only be large enough to allow the end of the
cable with the smaller connector to pass through. Removing a
connector should be a last resort.

CAUTION

Removal of factory-fitted connectors may cause
cable or connector faults.

Crimp-style coaxial connectors are not suitable

CAUTION

for external locations because they are
susceptible to mechanical damage and are not
weatherproof.

NOTE

Power Amplifier 3160 Installation Handbook 19

Any cabling under carpet or floor mats should
be clear of foot traffic.

Installing the 3160

Fixed station

Mounting

There are no specific requirements for locating the transceiver
and 3160 in a fixed station.

The installed 3160 should enable easy access to the
connectors. The 3160 should be positioned with the fins on the
heatsink pointing upwards (as in the stacked layout), or if
mounted on a vertical surface, with the fins on the heatsink
running vertically (see Figure 5 on page 10).

In a mobile station, attach all items of the 3160 system to
structural components of the vehicle.

Grounding

WARNING

The 3160 Power Amplifier must be grounded using an earth
strap (08-04515-001). In a mobile station, this strap must be
connected to the vehicle chassis. For more information see

page 34, Grounding the 3160.

Do not attach any items to loose or plastic
panels in a vehicle.

20 Power Amplifier 3160 Installation Handbook

Installing the 3160 in a basic layout

Attach the 2110 amplifier adaptor panel and

interface adaptor to the transceiver cradle

Attach the transceiver cradle to

an appropriate mounting surface

Insert the transceiver into the cradle,

then lock in place

Attach the 3160, voltage regulator (if used), and

external speaker to appropriate mounting surfaces

Connect the 2110 amplifier adaptor panel,

3160, and power supply together

Connect the interface adaptor to the transceiver

Connect the RF and control cables between the

transceiver, 3160, and antenna as required

Connect the external speaker to the interface adaptor

Ground the 3160

See page 24, Attaching the 2110

amplifier adaptor panel to the rear
of the transceiver cradle and the

fitting instruction provided with the
cradle

See page 26, Attaching the 3160,

voltage regulator and external
speaker to a mounting surface

See page 33, Connecting the

equipment

See page 34, Grounding the 3160

The basic layout uses the transceiver cradle and 2110
amplifier adaptor panel, but does not use any mounting
brackets. For more information see Figure 5 on page 10.

Figure 7: Process for installing the 3160 in a basic layout

Installing the 3160

Power Amplifier 3160 Installation Handbook 21

Installing the 3160

NOTE

WARNING

The rear of the transceiver cradle and the 3160
must be within 2 m of each other.

If this layout is installed in a mobile station, all
items must be attached to appropriate mounting
surfaces according to the relevant standards and
approvals.

Installing the 3160 in a stacked layout

The stacked layout uses a power amplifier mounting bracket
to attach the 3160 and external speaker to the transceiver
cradle. For more information see Figure 6 on page 12.

NOTE

The power supply cover is not required if the
3160 is connected directly to a 12 V DC battery.

22 Power Amplifier 3160 Installation Handbook

Installing the 3160

Attach the 2110 amplifier adaptor panel to

the transceiver cradle

Attach the transceiver cradle to the power supply

cover (if used), or an appropriate mounting surface

Insert the transceiver into the cradle,

then lock in place

Attach the 3160 and external speaker to the

power amplifier mounting bracket

Connect the 2110 amplifier adaptor panel, 3160, and

power supply together

Attach the 3020 or voltage regulator to

the power supply cover (if used)

Attach the power amplifier mounting bracket and

the interface adaptor to the transceiver cradle

Connect the interface adaptor to the transceiver

Connect the RF and control cables between the

transceiver, 3160, and antenna as required

Connect the external speaker to the interface adaptor

Ground the 3160

See the fitting instruction provided
with the power supply cover
(15-00147-001)

See page 24, Attaching the 2110

amplifier adaptor panel to the rear
of the transceiver cradle

See page 27, Attaching the power

amplifier mounting bracket to the
transceiver cradle

See page 31, Attaching the 3160

and external speaker to the power
amplifier mounting bracket

See page 33, Connecting the

equipment

See page 34, Grounding the 3160

Figure 8: Process for installing the 3160 in a stacked layout

Power Amplifier 3160 Installation Handbook 23

Installing the 3160

cradle with mounting

domes facing down

2110 amplifier
adaptor panel

Attaching the 2110 amplifier adaptor panel to the rear of the transceiver cradle

To attach the panel to the cradle:

1 Place the cradle with the mounting domes facing down.

If you are mounting the cradle in a basic

NOTE

layout, orientate the cradle so that it meets
your requirements.

1 Position the 2110 amplifier adaptor panel as shown in

Figure 9.

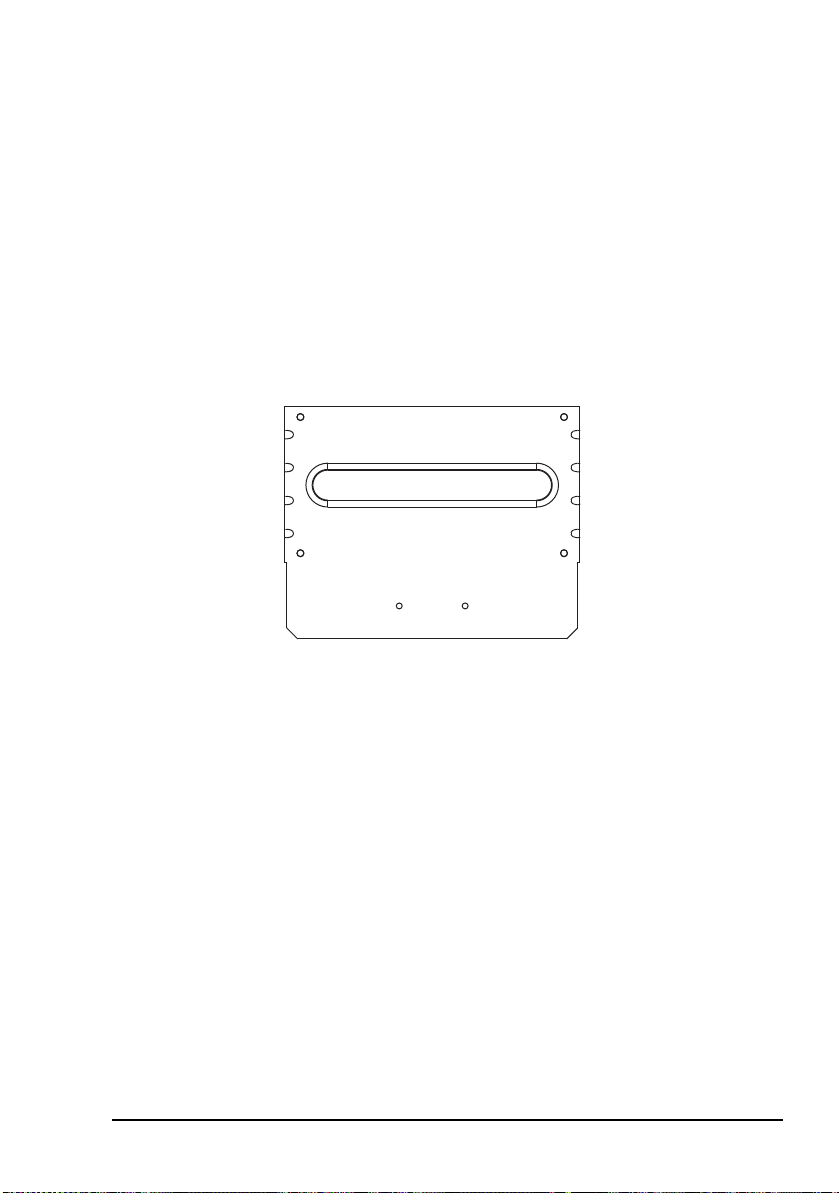

Figure 9: 2110 amplifier adaptor panel and cradle

1 Attach the 2110 amplifier adaptor panel to the rear of the

cradle using the four M3 × 12 mm long, black, stainless
steel, pan pozi screws provided.

24 Power Amplifier 3160 Installation Handbook

If you are using a... Continue from...

Installing the 3160

Basic layout Without power supply

cover

page 26, Attaching the 3160, voltage

regulator and external speaker to a
mounting surface

Stacked layout With power supply cover page 27, Attaching a suitable power

supply to the power supply cover

Without power supply
cover

page 27, Attaching the power

amplifier mounting bracket to the
transceiver cradle

Power Amplifier 3160 Installation Handbook 25

Installing the 3160

Attaching the 3160, voltage regulator and external speaker to a mounting surface

To attach the 3160, voltage regulator, and speaker to a
mounting surface:

1 Position the 3160 on a suitable mounting surface with the

fins either facing upwards or running vertically, and the
connectors easily accessible.

1 Do one of the following:

• Attach the 3160 to the mounting surface using a
12AB × 25 mm long, self-tapping, pan pozi screw in
each of the holes in the flanges of the 3160.

• Attach the 3160 to the mounting structure using an
M6 × 25 mm long, stainless steel Hex screw with an
M6 stainless steel spring washer, and M6 stainless steel
hex nut in each of the holes in the flanges of the 3160.

1 Attach the voltage regulator to a suitable mounting

surface using appropriate screws, washers, and nuts as
required.

1 Attach the mounting cradle of the speaker to the

mounting surface with appropriate screws, washers, and
nuts as required.

1 Attach the speaker to the mounting cradle with the two

thumb screws and rubber washers provided.

1 Continue from page 33, Connecting the equipment.

26 Power Amplifier 3160 Installation Handbook

Installing the 3160

Attaching a suitable power supply to the power supply cover

The power supply cover is an optional item of equipment that
is supplied with its own fitting instructions. For information
on power supply options see page 6, Power supply options.
Please read Fitting Instruction 15-00147-001 for information
on installing this item correctly.

If the mobile station is connected directly to a

NOTE

12 V DC vehicle battery, the power supply
cover is not required.

Attaching the power amplifier mounting bracket to the transceiver cradle

The transceiver cradle must be attached to the
power supply cover or a suitable mounting
structure before attaching the power amplifier

CAUTION

mounting bracket. When the mounting bracket
is in place, the access holes for mounting the
transceiver cradle are covered. For more
information see the fitting instructions provided
with the cradle and power supply cover.

WARNING

To attach the mounting bracket to the cradle:

All items must be mounted according to
relevant standards and approvals.

1 Position the power amplifier mounting bracket over the

top of the transceiver cradle (see Figure 10).

Power Amplifier 3160 Installation Handbook 27

Installing the 3160

power supply cover

2110

amplifier

adaptor

panel

power amplifier

mounting bracket

cradle

Figure 10: Power supply cover, cradle, and power amplifier mounting bracket

1 Insert the coaxial cable (08-06809-002) into the two

P-clips provided.

28 Power Amplifier 3160 Installation Handbook

1 Position the interface adaptor on the side of the power

amplifier mounting bracket (see Figure 11).

Installing the 3160

Figure 11: Power supply cover, cradle, power amplifier mounting bracket, interface adaptor, and coaxial cable

1 Align the holes in the flanges of the interface adaptor

with the holes in the power amplifier mounting bracket
and the cradle.

NOTE

Lift the mounting bracket to align the holes
with those on the transceiver cradle.

1 Insert an M4 × 12 mm long, black, stainless steel, pan

pozi screw into each of the holes for the interface adaptor
and power amplifier mounting bracket, then screw these
one turn into the transceiver cradle.

1 On the other side of the cradle, insert an M4 × 12 mm

long, black, stainless steel, pan pozi screw into each of
the P-clips, passing these through the power amplifier
mounting bracket into the transceiver cradle.

Power Amplifier 3160 Installation Handbook 29

Installing the 3160

1 Insert an M4 × 8 mm long, black, stainless steel, pan pozi

screw into the remaining holes in the power amplifier
mounting bracket to attach it to the transceiver cradle.

1 Tighten all screws.

30 Power Amplifier 3160 Installation Handbook

Installing the 3160

Rear

Front

power

amplifier

power

amplifier

power

amplifier

power

amplifier

external
speaker

external
speaker

Attaching the 3160 and external speaker to the power amplifier mounting bracket

The power amplifier mounting bracket has two sets of holes
drilled in the top.

Figure 12: Holes in the power amplifier mounting bracket

To attach the 3160 and speaker to the bracket:

1 Position the 3160 on top of the power amplifier

mounting bracket, with the connectors facing toward the
rear of the transceiver cradle (see Figure 13).

Power Amplifier 3160 Installation Handbook 31

Installing the 3160

Figure 13: 3160 and power amplifier mounting bracket

1 Attach the 3160 to the bracket using an M5 × 20 mm

long, black, stainless steel, pan pozi screw through each
hole in the flanges of the 3160 into the captive nut in the
bracket.

1 Attach the mounting cradle of the speaker to the power

amplifier mounting bracket using an M4 × 6 mm long,
stainless steel, pan pozi screw through each hole in the
cradle into the captive nut in the bracket.

1 Attach the speaker to the mounting cradle with the two

thumb screws and rubber washers provided.

32 Power Amplifier 3160 Installation Handbook

Connecting the equipment

The equipment is connected the same, regardless of the layout
that is used. The length of each cable used may vary
depending on the layout. See Figure 5 on page 10 and

Figure 6 on page 12 for more information.

To connect the equipment:

1 Connect the 12-way connector on the power adaptor

cable (08-06808-xxx) to the 12 V connector on the 3160.

1 Connect the 6-way connector on the power adaptor cable

to the connector on the 2110 amplifier adaptor panel.

1 Connect the BNC–BNC coaxial cable (08-06809-xxx)

between the connector on the front panel of the
transceiver and the RF INPUT connector on the 3160.

1 Connect the 12 V connector on the power adaptor cable

to a suitable 12 V DC supply (see page 6, Power supply

options).

Installing the 3160

1 Connect a coaxial cable between the connector on the

3160 and the appropriate connector on the antenna.

1 Connect the antenna control cable between the lead

from the interface adaptor and the appropriate connector
on the antenna or antenna tuner, if required.

Power Amplifier 3160 Installation Handbook 33

Installing the 3160

antenna

external power

supply indicator

selection

icon

Setting up the transceiver

To set up the transceiver for operation with the 3160:

1 Go to the Cfg Auto Tune Mode entry in the Control List.
1 Do one of the following:

• If the transceiver is installed permanently with the
3160, set the Cfg Auto Tune Mode entry to

50 Ohm.

• If the transceiver is installed for jerk-and-run
capability, set the Cfg Auto Tune Mode entry to

ATU/ 50/ Codan.

1 Switch the transceiver off then on again to activate the

change.

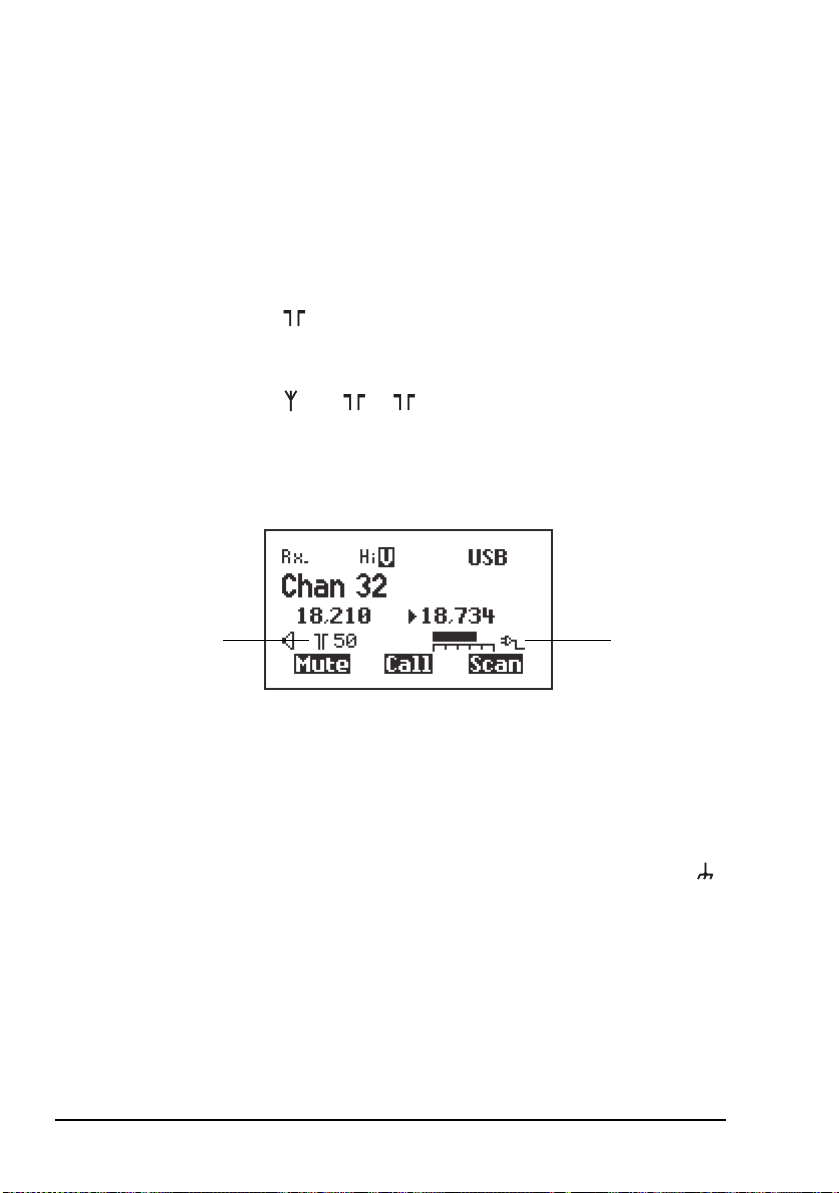

The screen should look similar to the following.

Grounding the 3160

To ground the 3160:

1 Attach one end of the earth wire to the earth terminal ( )

on the connector panel of the 3160.

1 Attach the other end of the earth wire to the earth system

for the station using the 25 mm long, self-tapping, pan
pozi screw provided.

34 Power Amplifier 3160 Installation Handbook

Installing the station

To install the 3160 in a mobile or fixed station:

1 Attach the transceiver cradle or the power supply cover

to an appropriate mounting surface according to any
relevant standards and approvals.

Installing the 3160

NOTE

In a mobile station, you may need to use a
mounting setup that absorbs vibration.

1 Connect an earth strap to a convenient location on the

bodywork or earth system for the building using the
25 mm long, self-tapping, pan pozi screw provided.

NOTE

Ensure a good electrical connection is
made.

1 Connect the antenna to the transceiver (see the fitting

instructions provided with the mounting cradle and or
equipment).

1 Protect any cables that pass through metal panels with

rubber grommets.

1 Tape the connectors on the antenna, and approximately

25 mm (1 in) of each cable, with two layers of self­amalgamating PIB tape (Rotunda 2501) or EPR tape (3M
Scotch™ 23).

1 Cover the self-amalgamating tape with two layers of

high-quality electrical tape (3M Scotch™ 33+, or
similar) to minimise aging of the self-amalgamating tape.

1 Test the installed 3160 (with connected transceiver) as

described in the Reference Manual provided with your
transceiver.

Troubleshooting for a 3160 and how to

NOTE

Power Amplifier 3160 Installation Handbook 35

install a transceiver are provided in the
Reference Manual.

Installing the 3160

This page has been left blank intentionally.

36 Power Amplifier 3160 Installation Handbook

3 Specifications

These specifications are accurate for a 13.6 V DC supply, with
50 Ω load resistances at 25°C (77°F).

Table 1: Functional specifications

Item Specification

Frequency range 1.6 to 30 MHz

Power output 125/100 W PEP reducing with frequency to 95 W PEP at

30 MHz ±1dB

CW or single tone: approximately 60% of PEP with average
PEP control (average control disabled on handset PTT)

Spurious and
harmonic emissions

Intermodulation
(Two-tone test)

RF input/output
impedance

Duty cycle 100%: normal speech over full temperature

Supply voltage 13.6 V DC nominal, negative earth

Better than 60 dB below PEP

125/100 W: 26 dB below each tone 32 dB below

PEP

50 Ω nominal

range

100%: ARQ up to 30°C (86°F)

25%: 16-tone continuous data mode

(5 minutes on maximum) at ambient
temperature up to 30°C (86°F)

100%: all data modes up to maximum ambient

temperature of 45°C (113°F) with
Option F

Normal operating
range:

Reverse polarity protected

10.8 to 15 V

Power Amplifier 3160 Installation Handbook 37

Specifications

Table 1: Functional specifications (cont.)

Item Specification

Overvoltage
protection

Shuts down at 16 V ±0.5 V DC nominal for duration of
overvoltage

Supply current Output power: 125 W or 100 W

Two-tone or CW: 9 to 17 A

Average speech: 8 A for battery life calculations

Receive: 65 mA

Protection Safe under all load conditions by limiting reflected power to

10 W PEP and limiting PA transistor collector voltage swing

Thermal protection against excessive heatsink temperature

Environment Ambient

temperature:

–30 to 60°C
(–22 to 140°F)

Relative humidity: 95% non-condensing

Derate upper ambient temperature by 1°C (33.8°F) per 330 m
(361 yd) above sea level.

MIL-STD-810F compliance:

Method 500.4: Low Pressure (Altitude)
Method 506.4: Rain
Method 507.4: Humidity
Method 508.5: Fungus
Method 509.4: Salt Fog
Method 510.4: Sand and Dust
Method 512.4: Immersion (IP68: immersion for 1 hour at a
depth of 1 m (3 ft))
Method 514.5: Vibration
Method 516.5: Shock

Cooling Convection or fan (option F)

Mounting Free standing

Flange mounting (power supply cover)
Enclosed mounting (transceiver cradle)

38 Power Amplifier 3160 Installation Handbook

Figure 14: Dimensions

80 282

372

85 119 77

29

310

Side view

317

304

121

Rear view

All dimensions in mm

Table 2: Dimensions

Item Size

Specifications

Power amplifier 286 mm W × 146 mm D × 77 mm H

Power amplifier with fan 286 mm W × 146 mm D × 106 mm H

Transceiver in cradle with
interface adaptor and 2110
amplifier adaptor panel

Power supply cover 304 mm W × 282 mm D × 83 mm H

Power Amplifier 3160 Installation Handbook 39

(11.3inW × 5.7inD × 3.0inH)

(includes allowance for connectors)

(11.3inW × 5.7inD × 4.1inH)

307 mm W × 372 mm D × 112 mm H
(12.1inW × 14.6inD × 4.4inH)

(includes allowance for connectors)

(12.0inW × 11.1inD × 3.3inH)

Specifications

Table 3: Weights for accessories

Item Weight

Power amplifier 2.2 kg

(4.9 lb)

2110 amplifier adaptor
panel

0.3 kg
(0.7 lb)

Fan 0.3 kg

(0.7 lb)

Power amplifier mounting
bracket

Power supply cover,
including brackets

0.5 kg
(1.1 lb)

1.0 kg
(2.2 lb)

40 Power Amplifier 3160 Installation Handbook

4 Accessories

Table 4: Accessories for the 3160 Power Amplifier

Codan part
number

15-00147 Power supply cover

15-00148 Power amplifier mounting bracket

08-06900-001 Fan

08-06808-500 Cable, control and power, 0.5 m

08-06808-002 Cable, control and power, 2 m

08-06809-002 Cable, coaxial, 0.7 m

08-06809-001 Cable, coaxial, 2.5 m

Description

Power Amplifier 3160 Installation Handbook 41

Accessories

This page has been left blank intentionally.

42 Power Amplifier 3160 Installation Handbook

Appendix A—Connectors

A

B

C

DE

F

G

H

J

K

L

M

Figure 15: Front view of the 12-way connector on the 3160

Table 5: Pinouts for the 12-way connector on the 3160

Pin no. Function Input/output Signal level

A ALC Output 3.5 V = ALC control

B Fan (–) switched Output 0 V

C DC supply ground (–) Input 0 V

D Fan (+) Output 13.6 V nominal

EI

FI

2

C clock Input 3.3 V data

2

C data Input/output 3.3 V data

G DC supply positive (+) Input 13.6 V nominal

H Screen ground Input 0 V

J DC supply positive (+) Input 13.6 V nominal

K DC supply ground (–) Input 0 V

L DC supply ground (–) Input 0 V

M DC supply positive (+) Input 13.6 V nominal

Power Amplifier 3160 Installation Handbook 43

Connectors

A
F
EDC

B

Figure 16: Front view of the 6-way connector on the 2110 amplifier adaptor panel

Table 6: Pinouts for the 6-way connector on the 2110 amplifier adaptor panel

Pin no. Function Input/output Signal level

A Screen ground Input 0 V

B DC supply ground (–) Input 0 V

CI

DI

2

C clock Input 3.3 V data

2

C data Input/output 3.3 V data

E ALC Output 3.5 V = ALC control

F DC supply positive (+) Input 13.6 V nominal

44 Power Amplifier 3160 Installation Handbook

Appendix B—Compliance

This section contains the following topics:

Introduction (46)

European R&TTE Directive (46)

EMC and safety notices (47)

C-tick approval (48)

IC approval (52)

Register of hazardous substances (53)

Power Amplifier 3160 Installation Handbook 45

Compliance

0191

0191

Introduction

This section describes how to ensure the 3160 Power
Amplifier complies with the European EMC Directive 89/336/
EEC and the European Low Voltage Directive 73/23/EEC as
called up in the European R&TTE Directive 1999/5/EC.

This section also contains the requirements for FCC
compliance.

European R&TTE Directive

The 3160 Power Amplifier has been tested and complies with
the following standards and requirements (articles of the
R&TTE Directive):

• Article 3.1b: ETSI EN301489-1 V1.4.1

• Article 3.1b: ETSI EN301489-15 V1.2.1

• Article 3.1a: EN60950-1

Product marking and labelling

Any equipment supplied by Codan that satisfies these
requirements is identified by the , , or

markings on the model label of the product.

Declaration of Conformity

The CE Declaration of Conformity for the product is listed on

page 60, Associated documents. This document can be made

available upon request to Codan or a Codan-authorised
supplier.

46 Power Amplifier 3160 Installation Handbook

EMC and safety notices

Non-ionising radiation safety

To ensure optimal transceiver performance and to avoid
exposure to excessive electromagnetic fields, the antenna
system must be installed according to the instructions
provided.

High voltages exist on the antenna during

WARNING

WARNING

WARNING

transmission and tuning. Do not touch the
antenna during these activities. RF burns may
result.

Install the earthing system or counterpoise as
directed to prevent RF burns from any metal
part of the transceiver.

You should not transmit from your transceiver
or tune the antenna unless people are beyond the
safe working distance of:

• 1.5 m (5 ft) of any part of a mobile antenna

• 2 m (7 ft) of any part of a fixed antenna in a
data installation of up to 125 W output

Compliance

Safe working distance is based on continuous exposure to
CW-type transmissions, as set out in the ICNIRP Exposure
Guidelines (1998) for occupational exposure. Safe working
distance can be reduced with normal voice communication.

Power Amplifier 3160 Installation Handbook 47

Compliance

EMC

To ensure compliance with the EMC Directive is maintained,
you must:

1 Use the standard shielded cables supplied from Codan

(where applicable).

Electrical safety

To ensure compliance with the European Low Voltage
Directive is maintained, you must install the 3160 Power
Amplifier in accordance with the instructions in this
handbook, and operate the 3160 Power Amplifier in
accordance with the instructions in the relevant Getting
Started Guide and Reference Manual for your transceiver.

C-tick approval

The 3160 Power Amplifier meets the requirements of the
Australian Communications and Media Authority:
Radiocommunications (MF and HF equipment—Land Mobile
Service) Standards 2003 (AS/NZS 4470).

48 Power Amplifier 3160 Installation Handbook

FCC compliance

FCC Part 90 certification

The 3160 Power Amplifier has been tested and certified to
FCC Part 90 (FCC identifier code DYY3160).

FCC Part 15 compliance

Any modifications made to the 3160 Power Amplifier that are
not approved by the party responsible for compliance may
void your equipment’s compliance under Part 15 of the FCC
rules.

The 3160 Power Amplifier has been tested and found to
comply with the limits for a Class B device, pursuant to
Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
switching the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:

Compliance

• reorient or relocate the receiving antenna

• increase the separation between the equipment and
receiver

• connect the equipment into an outlet on a circuit different
from that to which the receiver is connected

• consult the dealer or an experienced radio/TV technician
for help

Power Amplifier 3160 Installation Handbook 49

Compliance

Compliance with RF exposure standards

Your Codan HF transceiver system is designed and tested to
comply with a number of national and international standards
and guidelines (listed below) regarding human exposure to RF
electromagnetic energy. This transceiver system complies with
the IEEE and ICNIRP exposure limits for occupational/
controlled RF exposure environments at duty factors of up to
50% talk (100% listen), and is authorised by the FCC for
occupational use.

Your Codan HF transceiver system complies with the
following RF energy exposure standards and guidelines:

• United States Federal Communications Commission,
Code of Federal Regulations; 47 CFR§§ 2 sub-part J

• American National Standards Institute/Institute of
Electrical and Electronic Engineers C95.1–1992

• Institute of Electrical and Electronic Engineers C95.1–
1999 Edition

Operating instructions to control RF exposure

To control exposure of yourself and others and ensure
compliance with the occupational/controlled environment
exposure limits, always adhere to the following procedures:

• Transmit no more than the rated duty factor of 50% of
the time, and remain at least 1.5 m from the antenna.

• Do not transmit from the transceiver or tune the antenna
unless people outside the vehicle are beyond the safe
operating distance of 1.5 m (5 ft) of any part of a mobile
antenna.

50 Power Amplifier 3160 Installation Handbook

Mobile antennas

The antenna installation should be in accordance with the
supplied installation handbook. Use only Codan’s approved
supplied antenna.

Approved accessories

The Codan HF transceiver system has been tested and meets
the FCC RF exposure guidelines when used with the Codan
accessories supplied or designated for this product. Use of
other accessories may not ensure compliance with the FCC’s
RF exposure guidelines, and may violate FCC regulations.

Contact information

For additional information on exposure requirements or other
information, see Codan’s website (www.codan.com.au).

Compliance

Power Amplifier 3160 Installation Handbook 51

Compliance

IC approval

The 3160 Power Amplifier meets the requirements of
RSS-131.

The following information is relevant for the 3160 Power
Amplifier:

Nominal passband gain 10 dB

Nominal bandwidth 28.4 MHz

Rated mean output power 125 W

Input/output impedance 50 Ω

The manufacturer’s rated output power of this equipment is
for single carrier operation. For situations when multiple
carrier signals are present, the rating would have to be reduced
by 3.5 dB, especially where the output signal is re-radiated
and can cause interference to adjacent band users. This power
reduction is to be by means of input power or gain reduction
and not by an attenuator at the output of the device.

52 Power Amplifier 3160 Installation Handbook

Register of hazardous substances

Table 7: 有毒有害物质列表 (Register of hazardous substances)

Compliance

零件项目
(Component Name)

3160 功率放大器
(3160 Power Amplifier)

3160 主体装配
(3160 Main Assembly)

控制电缆
(Control Cable)

同轴电缆
(Coaxial Cable)

接地线 08- 04515- 001
(Earth Wire 08-04515-001)

功率放大器 3160 安装手册
(Power Amplifier 3160 Installation
Handbook)

有毒有害物质或元素

(Hazardous Substances or Elements)

铅

汞

镉

六价鉻

多溴联苯

多溴二苯醚

XOOOOO

OOOOOO

OOOOOO

OOOOOO

OOOOOO

Power Amplifier 3160 Installation Handbook 53

Compliance

表示该有毒有害物质在该部件的所有均质材料中的含量 , 均在 SJ/T

O

11363- 2006 标准所规定的限量要求以下 .

Indicates that this toxic or hazardous substance, contained in all of the
homogeneous materials for this part, is below the limit requirement in SJ/
T 11363-2006.

表示该有毒有害物质在该部件的至少一种均质材料中的含量 , 超出

X

SJ/T 11363- 2006 标准所规定的限量要求 .

Indicates that this toxic or hazardous substance, contained in at least one of
the homogeneous materials used for this part, is above the limit requirement
in SJ/T 11363-2006.

怎么阅读制造日期 - 方法如下 :
How to read the date of manufacture:

产品序列号中的第一个数字或字母表示该产品在 2000 年或以后的制造年份 .
举例来说 ( 数字 0-9) 0=2000, 1=2001... 之后接着以字母代表制造年份
A=2010, B=2011...

The first character of the serial number provides the year of manufacture starting
from the year 2000, that is, 0=2000, 1=2001...A=2010, B=2011...

产品序列号中的第二个数字或字母表示该产品的制造月份 . 举例来说 ( 数字
1-9) 1= 一月份 , 2= 二月份 ... 之后接着以字母 A,B,C 代表剩下的制造月
份 A= 十月份 , B= 十一月份 ,C= 十二月份 .

The second character of the serial number provides the month of manufacture, that
is, 1 to 9, A to C; A=10

th

month, B=11thmonth and C= 12th month.

54 Power Amplifier 3160 Installation Handbook

Appendix C—Definitions

Standards and icons

The following standards and icons are used in this handbook:

This typeface Means...

Italic a cross-reference or text requiring emphasis

This icon Means...

 a step within a task

NOTE

CAUTION

WARNING

the text provided next to this icon may be of
interest to you

proceed with caution as your actions may
lead to loss of data, privacy or signal quality

your actions may cause harm to yourself or
the equipment

Power Amplifier 3160 Installation Handbook 55

Definitions

Acronyms and abbreviations

This term... Means...

ANSI American National Standards Institute

CW continuous wave

DC direct current

EPR ethylene propylene rubber

ETSI European Telecommunications Standards

Institute

FCC Federal Communications Commission

HF high frequency

ICNIRP International Commission on Non-Ionizing

Radiation Protection

IEEE Institute of Electrical and Electronic

Engineers

PIB poly isobutylene

R&TTE radio and telecommunications terminal

equipment

RF radio frequency

56 Power Amplifier 3160 Installation Handbook

Glossary

Definitions

This term... Means...

fixed station A transceiver that is permanently installed

and cannot be moved without significant
effort. It consists of a transceiver, a
transceiver supply, an antenna, control and
accessory devices, a 3160, ancillary
equipment, and appropriate connecting
cables.

mobile station A station that is usually mounted in a

vehicle or is portable and easily
transportable. It consists of a transceiver, a
power supply, an antenna, control and
accessory devices, a 3160, ancillary
equipment, and appropriate connecting
cables.

basic layout The layout of the manpack transceiver and

3160 without frames and brackets.

stacked layout The layout of the manpack transceiver and

3160 with various frames and brackets.

Power Amplifier 3160 Installation Handbook 57

Definitions

Units

NOTE

Measurement Unit Abbreviation

Current ampere A

Frequency hertz Hz

Impedance ohm Ω

Length metre

Power watt W

Power ratio decibel dB

Temperature degrees Celsius

Voltage volt V

Weight gram

Imperial dimensions are in United States
Customary Units.

m

(inch/feet)

(Fahrenheit)

(pound)

(in/ft)

°C
(°F)

g
(lb)

58 Power Amplifier 3160 Installation Handbook

Unit multipliers

NOTE

Unit Name Multiplier

M mega 1000000

d deci 0.1

m milli 0.001

Definitions

Units are expressed in accordance with ISO
1000:1992 ‘SI units and recommendations for
the use of their multiples and of certain other
units’.

Power Amplifier 3160 Installation Handbook 59

Definitions

About this issue

This is the second issue of the Power Amplifier 3160
Installation Handbook. Requirements for FCC compliance and
IC approval have been added.

Associated documents

This handbook is one of a series of documents associated with
the 3160 Power Amplifier. The other documents are:

• Manpack Transceiver 2110M Getting Started Guide
(Codan part number 15-04152-EN)

• Manpack Transceiver 2110M Reference Manual (Codan
part number 15-04153-EN)

• Manpack Transceiver 2110 series Getting Started Guide
(Codan part number 15-04136-EN)

• Manpack Transceiver 2110 series Reference Manual
(Codan part number 15-04135-EN)

• Fitting Instruction: 2110 Manpack Transceiver cradle
15-00140 (c/w interface adaptor) (Codan part number
15-00140-001)

• Fitting Instruction: Power supply cover for 2110
Manpack Transceiver 15-00147 (Codan part number
15-00147-001)

• Declaration of Conformity for the 3160 Power Amplifier
(Codan part number 19-40330)

60 Power Amplifier 3160 Installation Handbook

Index

Numerics

3160

components 5
mounting cradle 20

B

basic layout 17

C

cabling 19
care and safety instructions 13
compliance

C-tick 48
EMC and safety notices 47

electrical safety 48
EMC 48
radiation safety 47

FCC 49

approved accessories 51
contact information 51
mobile antennas 51
Part 15 compliance 49
Part 90 certification 49
RF exposure

controlling 50

standards 50
IC 52
R&TTE Directive 46

declaration of conformity 46

product marking and labelling 46
connecting equipment 33
connectors 43
C-tick approval 48

E

EMC and safety notices

compliance

electrical safety 48

EMC 48

radiation safety 47

equipment

optional 5
typical 5

F

FCC compliance 49

approved accessories 51
contact information 51
mobile antennas 51
Part 15 compliance 49
Part 90 certification 49
RF exposure

controlling 50
standards 50

fixed station 20

G

grounding 20, 34

H

hazardous substances 53

I

IC approval 52
installation 15

2110 amplifier adaptor panel 24
3160 26, 31
basic layout 17, 21
cabling 19
external speaker 26, 31
fixed station 20
grounding 20
mobile station 18
mounting 20
power amplifier mounting bracket 27, 31
power supply 27
stacked layout 18, 22
transceiver cradle 24, 27
voltage regulator 26

Power Amplifier 3160 Installation Handbook Index-1

Index

L

layout

basic 17, 21
stacked 18, 22

M

mobile station 18
mounting cradle 20

O

optional equipment 5
overview 3

R

R&TTE Directive

compliance 46

declaration of conformity 46
product marking and labelling 46

S

safety

electrical 48

radiation 47
specifications 37
stacked layout 18
station

fixed 20

installing 35

mobile 18

T

transceiver

setting up 34
typical equipment 5

Index-2 Power Amplifier 3160 Installation Handbook

www.codan.com.au

Head Office

Codan Limited
ABN 77 007 590 605
81 Graves Street
Newton SA 5074
AUSTRALIA
Telephone [phone]
Facsimile [phone]

[e-mail]

Codan (UK) Ltd
Unit C4 Endeavour Place
Coxbridge Business Park
Farnham Surrey GU10 5EH
UNITED KINGDOM
Telephone [phone]
Facsimile [phone]

[e-mail]

Codan US, Inc.
8430 Kao Circle
Manassas VA 20110
USA
Telephone [phone]
Facsimile [phone]

[e-mail]
