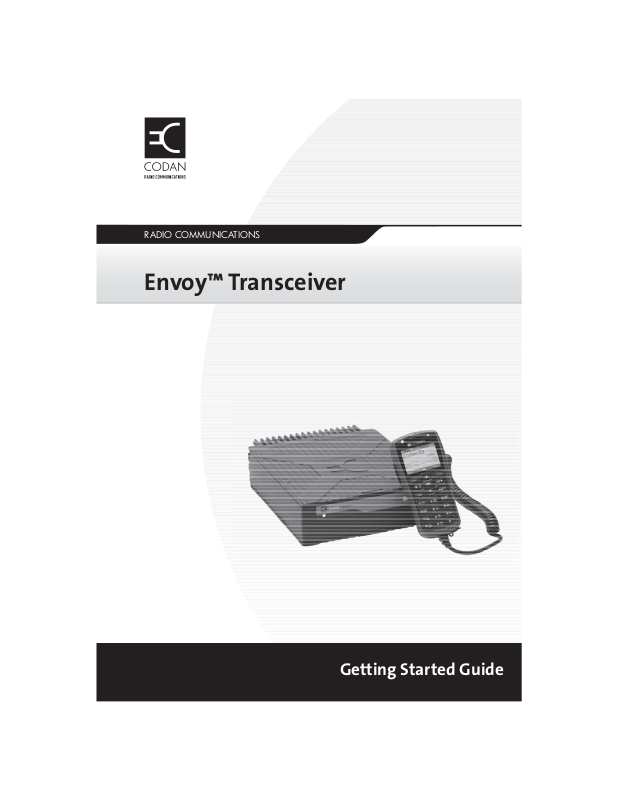

Codan 2210 User Manual

RADIO COMMUNICATIONS
Envoy™ Transceiver
Getting Started Guide
No part of this manual may be reproduced, transcribed, translated into any language or transmitted in any form whatsoever without the prior written consent of Codan Limited.
© Copyright 2012–2013 Codan Limited.
Codan part number 15-04177-EN Issue 3, June 2013.
The English version takes precedence over any translated versions.
Table of contents
Section 1 Introduction
Overview of this guide . . . . . . . . . . . . . . . . . . . . 1
The 2220 Handset . . . . . . . . . . . . . . . . . . . . . . 3
The 2221 Handset . . . . . . . . . . . . . . . . . . . . . . 5
The 2230 Desk Console . . . . . . . . . . . . . . . . . . . 7
Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Accessing the CD . . . . . . . . . . . . . . . . . . . . . . . 11
Standards and icons . . . . . . . . . . . . . . . . . . . . . . 12
TABLE OF CONTENTS
Section 2 Using the wizard
Overview of the wizard . . . . . . . . . . . . . . . . . . . . 14
Using the wizard . . . . . . . . . . . . . . . . . . . . . . . 16
Selecting a language . . . . . . . . . . . . . . . . . . . 17
Setting the time and date . . . . . . . . . . . . . . . . . 17
Setting the location of the desk console . . . . . . . . . 18
Adding a channel . . . . . . . . . . . . . . . . . . . . . 19
Entering a self address . . . . . . . . . . . . . . . . . . 21
Adding a contact . . . . . . . . . . . . . . . . . . . . . 22
Selecting an antenna . . . . . . . . . . . . . . . . . . . 29
Selecting a peripheral device . . . . . . . . . . . . . . . 30
Section 3 Navigating the menu structure
The basic menu structure . . . . . . . . . . . . . . . . . . . 32
Navigating the menu structure . . . . . . . . . . . . . . . . 34
Overview of basic and advanced views . . . . . . . . . . . 36
Basic view . . . . . . . . . . . . . . . . . . . . . . . . 36
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE i
TABLE OF CONTENTS
Advanced view . . . . . . . . . . . . . . . . . . . . . 36
Switching between basic and advanced views . . . . . . 37
Finding a word or value . . . . . . . . . . . . . . . . . . . 38
Selecting an icon . . . . . . . . . . . . . . . . . . . . . . . 41
Selecting a function from the menu bar . . . . . . . . . . . 42
Entering text in a field . . . . . . . . . . . . . . . . . . . . 44
Entering special characters . . . . . . . . . . . . . . . 46
Entering text in the 2221 Handset . . . . . . . . . . . . 47
Selecting a value from a list . . . . . . . . . . . . . . . . . 49
Selecting/deselecting a check box . . . . . . . . . . . . . . 50
Moving a slider . . . . . . . . . . . . . . . . . . . . . . . . 51
Changing the order of items in a list . . . . . . . . . . . . . 52
Saving your changes . . . . . . . . . . . . . . . . . . . . . 53
Section 4 Structure of information
Structure of user information . . . . . . . . . . . . . . . . . 56
Structure of contact and call information . . . . . . . . . . 58
Section 5 Operating the transceiver
Switching the transceiver on and off . . . . . . . . . . . . . 60
Switching on the transceiver . . . . . . . . . . . . . . . 60
Switching off the transceiver . . . . . . . . . . . . . . . 60
The channel screen . . . . . . . . . . . . . . . . . . . . . 61
Selecting a channel . . . . . . . . . . . . . . . . . . . . 63
Scanning channels . . . . . . . . . . . . . . . . . . . . . . 65
Switching scanning on or off . . . . . . . . . . . . . . . 65
Pausing scanning . . . . . . . . . . . . . . . . . . . . . 66
Muting the transceiver . . . . . . . . . . . . . . . . . . . . 67
Switching mute on or off . . . . . . . . . . . . . . . . . 67
Selecting the mute type . . . . . . . . . . . . . . . . . . 67
Using the microphone . . . . . . . . . . . . . . . . . . . . 68
Setting the basics . . . . . . . . . . . . . . . . . . . . . . . 69
Setting the date and time . . . . . . . . . . . . . . . . . 69
Setting the brightness of the display . . . . . . . . . . . 70
Calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Making a Selective call . . . . . . . . . . . . . . . . . . 71
Making a Message call . . . . . . . . . . . . . . . . . . 73
Making a call to a contact . . . . . . . . . . . . . . . . 76
Making a call from the Call History . . . . . . . . . . . 77
ii ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
Making a call from the Emergency key . . . . . . . . . 78
Using GPS . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Viewing GPS information . . . . . . . . . . . . . . . . 79
Using encryption . . . . . . . . . . . . . . . . . . . . . . . 81
Switching the encryptor on or off . . . . . . . . . . . . . 81
Selecting a secure key . . . . . . . . . . . . . . . . . . 84
Adding a secure key . . . . . . . . . . . . . . . . . . . 85
Selecting the data rate . . . . . . . . . . . . . . . . . . . 86
Using a crosspatch . . . . . . . . . . . . . . . . . . . . . . 88
Overview of the 3031 Crosspatch . . . . . . . . . . . . 88
Changing the operating mode of the crosspatch . . . . . 90
Upgrading the transceiver via a USB stick . . . . . . . . . . 91
Section 6 Contacts
Adding a contact . . . . . . . . . . . . . . . . . . . . . . . 94
Adding a simple call . . . . . . . . . . . . . . . . . . . 96
Adding a Message call . . . . . . . . . . . . . . . . . . 97
Adding a Phone call . . . . . . . . . . . . . . . . . . . . 98
Adding a Get Status call . . . . . . . . . . . . . . . . . 99
Adding an RFDS Emergency call . . . . . . . . . . . 100
Completing the contact . . . . . . . . . . . . . . . . . 101
Adding a contact from the Call Log, Call History, or
Last Heard Log . . . . . . . . . . . . . . . . . . . . . . . 102
TABLE OF CONTENTS
Section 7 Specifications
Appendix A Installing the transceiver
Overview of mobile stations . . . . . . . . . . . . . . . . 108
Cables in a mobile station . . . . . . . . . . . . . . . . 110
Mounting a mobile Envoy™ station . . . . . . . . . . 110
Connecting a mobile Envoy™ station . . . . . . . . . 112
Overview of fixed stations . . . . . . . . . . . . . . . . . 114
Cables in a fixed station . . . . . . . . . . . . . . . . 116
Mounting a fixed Envoy™ station . . . . . . . . . . . 116
Connecting a fixed Envoy™ station . . . . . . . . . . 117
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE iii
TABLE OF CONTENTS
Appendix B Compliance
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . 122
European R&TTE Directive . . . . . . . . . . . . . . . . 123
Product marking and labelling . . . . . . . . . . . . . 123
Radiation safety (EU installations only) . . . . . . . . 123
Declaration of Conformity and Notified Body Letter of
Opinion . . . . . . . . . . . . . . . . . . . . . . . . . 124
Protection of the radio spectrum . . . . . . . . . . . . 124
EMC and safety notices . . . . . . . . . . . . . . . . . . 126
Radiation safety (non-EU installations) . . . . . . . . 126
Sécurité des radiations (installations non-EU) . . . . . 127
EMC . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Electrical safety . . . . . . . . . . . . . . . . . . . . . 128
Earth symbols . . . . . . . . . . . . . . . . . . . . . 129
FCC compliance . . . . . . . . . . . . . . . . . . . . . . 130
FCC Part 90 certification . . . . . . . . . . . . . . . . 130
FCC Part 15 compliance . . . . . . . . . . . . . . . . 130
IC certification . . . . . . . . . . . . . . . . . . . . . . . 131
Product markings and labelling . . . . . . . . . . . . 131
RCM approval . . . . . . . . . . . . . . . . . . . . . . . 132
Index
iv ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
LIST OF FIGURES
List of figures
Figure 1: 2220 Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Figure 2: 2221 Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Figure 3: 2230 Desk Console . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Figure 4: Steps in the wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Figure 5: Wizard Startup screen . . . . . . . . . . . . . . . . . . . . . . . . 16
Figure 6: Typical menu screen . . . . . . . . . . . . . . . . . . . . . . . . . 32
Figure 7: Menu structure (user level, basic view) . . . . . . . . . . . 33
Figure 8: Navigation indicator showing navigation keys
that may be used . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Figure 9: Basic view (no advanced view indicator) . . . . . . . . . 36
Figure 10: Advanced view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Figure 11: Find function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Figure 12: Highlighted icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Figure 13: Functions on the menu bar . . . . . . . . . . . . . . . . . . . . . 42
Figure 14: Example of an editable text field . . . . . . . . . . . . . . . . 44
Figure 15: Character-entry mode indicator . . . . . . . . . . . . . . . . . 45
Figure 16: List of entries, with and without focus . . . . . . . . . . . 49
Figure 17: Entry with a check box . . . . . . . . . . . . . . . . . . . . . . . 50
Figure 18: A slider value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Figure 19: Screen that has changes to be saved . . . . . . . . . . . . . 53
Figure 20: Basic structure of information in the Envoy™
Transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Figure 21: Structure of call information for a contact in the
Envoy™ Transceiver . . . . . . . . . . . . . . . . . . . . . . . . . 58
Figure 22: Channel screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Figure 23: Scanning screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Figure 24: Call screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE v
LIST OF FIGURES
Figure 25: Crosspatch status . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89
Figure 26: Call Log, Call History and Last Heard Log . . . . . . . 102
Figure 27: Typical mobile station . . . . . . . . . . . . . . . . . . . . . . . . 109
Figure 28: Typical fixed station . . . . . . . . . . . . . . . . . . . . . . . . .115
vi ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
LIST OF TABLES
List of tables
Table 1: Keys and their function . . . . . . . . . . . . . . . . . . . . . . . . 8
Table 2: Character-entry mode . . . . . . . . . . . . . . . . . . . . . . . . 45
Table 3: GPS information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Table 4: Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Table 5: Cables for a typical mobile Envoy™ station . . . . . . 110
Table 6: Cables for a typical fixed Envoy™ station . . . . . . . 116
Table 7: Earth symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE vii
LIST OF TABLES
This page has been left blank intentionally.
viii ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
1
Congratulations on choosing a Codan Envoy™ Transceiver to meet your HF communications needs. You can expect many years of reliable high performance, and if ever assistance is required, Codan’s world-class after-sales support team is ready to help. Please read this guide thoroughly and retain it for future reference. There is an index at the end of this guide to assist you in finding information.
Overview of this guide
This guide provides instructions on how to connect up your Envoy™ Transceiver, and how to perform basic setup and operating tasks. It assumes that you have limited knowledge of HF communication and of using an HF transceiver.
Detailed information for setting up a particular system and extensive reference material are provided on the CD at the back of this guide.
This guide contains the following sections:
Introduction
Introduction—provides an overview of the components of the
transceiver system
Using the wizard—describes the steps in the wizard that are used
to set up the transceiver
Navigating the menu structure—describes how to navigate the
menu structure and perform basic selection and editing functions
Structure of information—describes the building blocks of
information in the transceiver
Operating the transceiver—describes how to operate the
transceiver and how to make calls
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 1
INTRODUCTION
OVERVIEW OF THIS GUIDE
Adding a contact—describes how to add a contact
Specifications—provides a list of specifications for the transceiver
Installing the transceiver—describes how to mount and connect
the transceiver in mobile and fixed stations
Compliance—provides mandatory compliance information
2ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
The 2220 Handset
The 2220 Handset is a control point for the Envoy™ Transceiver. The user interface provides an icon-based menu structure for easy setup and operation of the transceiver.
Figure 1: 2220 Handset
INTRODUCTION
THE 2220 HANDSET
navigation and
software keys
numeric keys
Power key Emergency key
microphone
screen
PTT
OK
CALL
TUNE
1
FREE Rx
4
GHI
VS
7
PQRS
EASI TALK
SCAN
MODE
FUNC
DEF
3
2
ABC
MNO
6
5
JKL
SEC
WXYZ
9
8
TUV
VIEW
0
USB connector
The 2220 Handset is a hand-held device that has a microphone, a PTT button, a screen, navigation keys, and numeric keys. The keypad enables you to control and configure the transceiver system via the user interface. The handset and an external speaker connect to the RFU via a special interface cable.
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 3
INTRODUCTION
THE 2220 HANDSET
The 2220 Handset is shipped from the factory with standard functions pre-programmed to specific keys. The standard function is written on the key in blue text. New user-defined functions may be assigned to most of the keys.
Related links:
Keypad on page 8 Navigating the menu structure on page 31
4ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
The 2221 Handset
The 2221 Handset is a control point for the Envoy™ Transceiver. The user interface provides an icon-based menu structure for easy operation of the transceiver. It has a condensed set of keys for use in simpler communication scenarios.
Figure 2: 2221 Handset
INTRODUCTION
THE 2221 HANDSET
navigation and
software keys
Power key Emergency key
PTT
microphone
OK
CALL
screen
SCAN
USB connector
The 2221 Handset is a hand-held device that has a microphone, a PTT button, a screen, and navigation keys. The navigation keys enable you to operate the transceiver system via the user interface using pre-defined profile information. Typically, this profile is fully configured using the TPS system programmer. The handset and an external speaker connect to the RFU via a special interface cable.
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 5
INTRODUCTION
THE 2221 HANDSET
The 2221 Handset is shipped from the factory with standard functions pre-programmed on the key, or in a list that is accessed via the Functions icon ( ). New user-defined functions may be assigned to this list.
Related links:
Keypad on page 8 Navigating the menu structure on page 31
6ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
The 2230 Desk Console
The 2230 Desk Console is a control point for the Envoy™ Transceiver. The user interface provides an icon-based menu structure for easy setup and operation of the transceiver. The desk console is standard for a fixed station.
Figure 3: 2230 Desk Console
THE 2230 DESK CONSOLE
INTRODUCTION
speaker
screen
navigation and
software keys
Desk Console
F1 F2 F3
function keys Power key
Emergency key
FUNC
MODE
TUNE
ABC
DEF
2
31
FREE Rx
MNO
JKL
GHI
4
6
5
V/S
SEC
PQRS
TUV
WXYZ
9
7
8
VIEW
OK
CALL
SCAN
EASI
0
TALK
numeric keys
boom microphone PTT
The 2230 Desk Console has an optional boom microphone, a built-in speaker, a PTT button, a screen, navigation keys, function keys, and numeric keys. The console also supports the use of headphones, a foot-switched PTT device, and a separate hand microphone with PTT. The keypad enables you to control and configure the transceiver system via the user interface.
The 2230 Desk Console is shipped from the factory with standard hot keys programmed to the numeric keys. The function that each standard hot key performs is written on the numeric key in blue text.
Related links:
Keypad on page 8 Navigating the menu structure on page 31
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 7
INTRODUCTION
KEYPAD
Keypad
Standard macros are programmed in the transceiver in the factory. You can also create a macro and assign it to a hot key.
NOTE: For more information, see the Reference Manual.
Table 1: Keys and their function
Key Function
Switches on the transceiver. Switches off the transceiver (hold for 2 sec). Performs a hot-key sequence with another key (hold + key):
+ 0 jumps to the Brightness screen
+ 2 toggles advanced view
+ 3 jumps to the Select Language screen (admin level)
• +
SEC performs secure erase
Starts a chain call of all calls for the selected emergency contact (hold for 2 sec).
PTT Press-to-talk.
Cancels out of editing and calls before they are connected.
Performs the function shown directly above the key in the menu bar of the screen.
Scrolls left in a list of values. Moves the cursor/highlight to the left. Reduces the volume when the indicator is shown in the menu bar of the screen.
Scrolls right in a list of values. Moves the cursor/highlight to the right. Increases the volume when the indicator is shown in the menu bar of the screen.
Scrolls up in a list of entries. Moves the highlight up a row.
8ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
INTRODUCTION
Table 1: Keys and their function (cont.)
Key Function
Scrolls down in a list of entries. Moves the highlight down a row.
OK Enters the submenu or list of entries represented by the
selected icon. Toggles the selection of a check box. Enters the virtual keypad in the user interface of a 2221 Handset.
CALL Starts the calling process by jumping to the call screen
(default behaviour). Jumps to Contacts/Call History/Emergency Contacts/Last Heard Log (hold for 2 sec).
SCAN Toggles scanning on and off.
Ends a call. Deletes the character to the left of the cursor. Deletes all characters (hold for 2 sec).
KEYPAD
TUNE Enters 1 in character-entry mode.
1
Tunes the antenna.
FUNC Enters 2, a, b, c, A, B, C in character-entry mode.
2
Access the clarifier for the currently selected channel.
MODE Enters 3, d, e, f, D, E, F in character-entry mode.
3
Selects the next allowed mode for the current channel.
FREE Rx Enters 4, g, h, i, G, H, I in character-entry mode.
4
Accesses the free-tune receive function.
5 Enters 5, j, k, l, J, K, L in character-entry mode.
Toggles the operating mode of a crosspatch, if connected. Shows the firmware version of a crosspatch, if connected (hold for 2 sec).
6 Enters 6, m, n, o, M, N, O in character-entry mode.
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 9
INTRODUCTION
KEYPAD
Table 1: Keys and their function (cont.)
Key Function
7 V/S Enters 7, p, q, r, s, P, Q, R, S in character-entry mode.
Toggles the type of mute selected.
SEC Enters 8, t, u, v, T, U, V in character-entry mode.
8
Toggles secure mode on and off. Enables you to enter a PIN for a secure session, or access secure information (hold for 2 sec).
9 Enters 9, w, x, y, W, X, Y in character-entry mode.
VIEW Enters 0 or a space in character-entry mode.
0
Toggles between the channel screen and Contacts/Call History.
EASITALK Enters a special character (repeated press, or hold for 2 sec).
Toggles Easitalk™ on or off.
Toggles character-entry mode. Enables you to select the input language (hold for 2 sec).
10 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
Accessing the CD
To access the CD:
Place the CD in the CD drive of your computer.
You can view and search the Reference Manual and Getting Started Guide using the Adobe® Reader® supplied on the CD.
INTRODUCTION
ACCESSING THE CD
E
NVOY™ TRANSCEIVER GETTING STARTED GUIDE 11
INTRODUCTION
STANDARDS AND ICONS
Standards and icons
The following standards and icons are used:
This typeface... Means...
Italic a cross-reference, text requiring emphasis, or variable
information
Bold a key on a computer keyboard
Bold a menu, submenu, tab, entry, a value in the user interface of
the control point, or key that you press on the control point
ACTION a hot key for a factory macro
NOTE:
CAUTION:
WARNING:
the text may be of interest to you
proceed with caution as your actions may lead to loss of data, privacy or signal quality
your actions may cause harm to yourself or the equipment
12 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
2
Using the wizard
This section contains the following topics:
Overview of the wizard on page 14
Using the wizard on page 16
Selecting a language on page 17
Setting the time and date on page 17
Setting the location of the desk console on page 18
Adding a channel on page 19
Entering a self address on page 21
Adding a contact on page 22
Selecting an antenna on page 29
Selecting a peripheral device on page 30
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 13
USING THE WIZARD
OVERVIEW OF THE WIZARD
Overview of the wizard
The wizard is available if the transceiver:
has not been programmed with a profile
has a basic profile that has a common self address for the default HF networks Selcall and CALM, and has one scan table
The wizard steps you through setting up information in the transceiver so that it may be operated at a basic level.
14 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
Figure 4: Steps in the wizard
USING THE WIZARD
OVERVIEW OF THE WIZARD
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 15
USING THE WIZARD
USING THE WIZARD
Using the wizard
The wizard should start automatically when a new transceiver is powered up for the first time.
Figure 5: Wizard Startup screen
NOTE: If the wizard screen doesn’t launch automatically,
follow the instructions below. If your transceiver has been profiled using TPS, the wizard may not be available.
NOTE: For information on specific entries in the wizard,
please see the Reference Manual.
To use the wizard:
Press PTT, then press (Menu) to return to the top
level of the menu structure.
Check that the icon for the wizard is highlighted ( ), then
press (OK).
16 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
Press (Yes) to confirm that you want to start the
wizard.
If you want to bypass the wizard, press (No).
Selecting a language
NOTE: This step in the wizard is shown if you have multiple
To select a language:
Press or to scroll to the language that you want to use
on the control point, then press OK.
Press (Save) to save the information.
Press (Yes) to confirm that you want to change the
language.
languages available.
USING THE WIZARD
USING THE WIZARD
Setting the time and date
To set the time and date:
Press or to select the time zone that you want to use.
Press to move to the Daylight Saving entry.
Press or to select the time that you want to use.
Press to move to the Local Time entry.
Press to enter edit mode for the local time.
Press or to scroll to the value that you want to set, then
press to move to the next item.
Repeat this for minutes, seconds and AM/PM values.
Press (Save) to save the local time.
Press to move to the Local Date entry.
Press to enter edit mode for the local date.
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 17
USING THE WIZARD
USING THE WIZARD
Press or to scroll to the value that you want to set, then
press to move to the next item.
Repeat this for the day/month and year, as required.
Press (Save) to save the local date.
Press to move to the Clock entry.
Press or to select the type of clock that you want to use.
Press to move to the Time Format entry.
Press or to select the format that you want to use.
Press to move to the Date Format entry.
Press or to select the format that you want to use.
If you want to review the information that you have entered,
press or to move through the entries.
Press (Save) to save the information.
If you have not changed any of the time and date information, press (Close).
Setting the location of the desk console
NOTE: This step in the wizard is shown if your control point
is a desk console.
To set the location of the desk console:
Press or to select the value that you want to use from
the following:
If the desk console is connected to the transceiver
using cable 08-07205-00x, select Local.
If the desk console is connected to the transceiver
using an Ethernet cable (08-07215-001), select Remote.
Press (Save) to save the information.
18 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
Adding a channel
NOTE: This step in the wizard is shown if you are permitted
To add a channel:
Press (Yes) to add a channel, if required.
Enter the name that you want to use for the channel.
Press to move to the Tx entry.
Enter the transmit frequency (in kHz) that you want to use
for this channel.
Press to move to the Rx entry.
The Rx entry is automatically filled with the transmit frequency.
Enter the receive frequency (in kHz), if required to be
different from the Tx frequency.
Press to move to the Mode entry.
To select a mode:
Press to view the list of available modes.
Press or to scroll to the mode that you want to
Select other modes, as required.
USING THE WIZARD
USING THE WIZARD
to add channels.
use, then press OK.
The check box contains a when the mode is selected.
NOTE: The modes that you select become the
allowed modes for this channel. In a scan table, you can duplicate a channel and select another of the allowed modes.
•Press (Save).
If you want to review the information that you have entered,
press or to move through the entries.
Press (Save) to save the information.
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 19
USING THE WIZARD
USING THE WIZARD
Do one of the following:
If you want to add another channel, press
(Yes), then repeat these steps.
If you do not want to add another channel,
press (No).
The channels that you enter may be notionally grouped into scan tables. A scan table enables you to manage how these channels are scanned using one set of properties. The same channel may be included in one or more scan tables. One or more scan tables may be allocated to an HF network. The same scan table may be allocated to different HF networks.
Do one of the following:
If you want to add a scan table, press (Yes).
If you do not want to add a scan table, press
(No), then continue from Entering a self address on
page 21.
Do one of the following:
If you want to scan all of the channels in the
transceiver that have a USB mode, press (Yes), then continue from Entering a self address on
page 21.
If you want to choose the channels and modes that
you want to scan, press (No), then continue from Adding channels to a scan table on page 20.
Adding channels to a scan table
To add channels to a scan table:
Press or to scroll to the channel that you want to add,
then press OK.
Press or to select the mode that you want to use.
Select more channels, as required.
20 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
Press (Save) to add these channel selections.
Continue from Entering a self address on page 21.
Entering a self address
A self address is used by other stations to call your station. For example, if the self address of your station is 1234, operators at other stations enter the address 1234 when they want to make a call to you.
To enter a self address:
Enter the address that you want to use.
You can enter up to six digits.
NOTE: Addresses ending in 99 and 00 have a special
Press (Save) to save the information.
USING THE WIZARD
USING THE WIZARD
function in Selcall HF networks.
NOTE: The wizard automatically allocates this self
address to the default HF networks: Selcall and CALM (if FED-STD-1045 ALE or MIL-STD-188-141B ALE option is installed).
Do one of the following:
If you want to add a contact, press (Yes), then
continue from Adding a contact on page 22.
If you do not want to add a contact, press (No),
then continue from Selecting an antenna on page 29.
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 21
USING THE WIZARD
USING THE WIZARD
Adding a contact
A contact is a person who you want to call, and for whom you want to pre-define the method of calling them. You may be able to contact the same person via a number of different methods. When you set up the contact, you define each method as a separate call for the contact.
NOTE: If you require more detail on adding a contact, see
To add a contact:
Enter the name that you want to use for the contact, then
press (Add Call).
The HF Network entry is highlighted.
The HF network defines the call system and self address that is used by your station when the call is made. For example, if you want to select a channel for the call, use a Selcall HF network. If you want the transceiver to automatically select a channel for the call, use a CALM HF network.
Press or to select the HF network that you want to use.
Contacts on page 93.
Press to move to the Call Type entry.
Press or to select the call type that you want to use.
NOTE: The call type that you select affects
information that you can enter for the remainder of this call.
If you are adding:
a Selective, Channel Test, Emergency, Get Position
or Send Position call Adding a simple call on page 23
a Message call Adding a Message call on page 24
a Phone call Adding a Phone call on page 26
a Get Status call Adding a Get Status call on page 27
22 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
USING THE WIZARD
USING THE WIZARD
Adding a simple call
A simple call is a call that requires an address only at this stage of the definition process.
To continue with adding a Selective, Channel Test, Emergency, Get Position or Send Position call:
Press to move to the Selcall|ALE Address entry.
Enter the address of the station that you want to call.
Continue from Completing the contact on page 28.
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 23
USING THE WIZARD
USING THE WIZARD
Adding a Message call
To continue with adding a Message call:
Press to move to the Selcall|ALE Address entry.
Enter the address of the station that you want to call.
Press to move to the Message entry, then press .
If you want to enter a message:
Start typing the message.
NOTE: Press OK to start a new line, if
required.
Press (Options), scroll to OK, then
press (Select) to add the message to the call.
24 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
USING THE WIZARD
USING THE WIZARD
If you want to select a message from a list of stored
messages:
•Press (Options), scroll to Stored, then press (Select).
Press or to scroll to the message that you want to use.
NOTE: If you want to view the message,
press (Details) to view the message, then press (Close).
•PressOK to select the message.
Edit the message, if required.
•Press (Options), scroll to OK, then press (Select).
Continue from Completing the contact on page 28.
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 25
USING THE WIZARD
USING THE WIZARD
Adding a Phone call
To continue with adding a Phone call:
Press to move to the Phone Number entry.
Enter the phone number.
Continue from Completing the contact on page 28.
26 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
USING THE WIZARD
USING THE WIZARD
Adding a Get Status call
To continue with adding a Get Status call:
Press to move to the Selcall|ALE Address entry.
Enter the address of the station that you want to call.
Press to move to the Status Type entry, then press .
Selcall HF network ALE/CALM HF network
ALE Site Manager:
Auto Manual Restricted
Press or to scroll to the status type that you want to
use, then press OK.
If you selected ?: Other as the status type, enter the
text/command that you want to send, press (Options), scroll to Save, then press (Select).
Continue from Completing the contact on page 28.
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 27
USING THE WIZARD
USING THE WIZARD
Completing the contact
To finish entering the information required for the contact:
Press to move to the Call Description entry.
By default, the call type is entered as the call description.
Enter the description that you want to use for this call.
Press (Save) to save the information.
If you want to add another call for the contact, press
(Yes), then repeat the steps for adding a call.
If you do not want to add another call, press (No).
If you want to add another contact, press (Yes), then
repeat the steps for adding a contact.
If you do not want to add another contact, press (No).
Do one of the following:
If you want to select an antenna, continue from
Selecting an antenna on page 29.
If you do not want to select an antenna, continue
from Selecting a peripheral device on page 30.
28 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
Selecting an antenna
Each type of antenna has a specific requirement for tuning, and the transceiver uses a different protocol for each one. You must select the type of antenna that is used in your station so that the transceiver knows how to tune the antenna. Some antennas, such as broadband antennas, do not require tuning.
To select an antenna:
Do one of the following:
Press or to scroll to the antenna type that you want to use, then press OK.
•Press (Close), then continue from Selecting a
peripheral device on page 30.
Press (Save) to save the information.
Do one of the following:
If you want to connect an accessory to the 15-way port of the RFU, press (Yes), then continue from Selecting a peripheral device on page 30.
If you do not want to connect an accessory, press (No), then press OK to close the wizard.
USING THE WIZARD
USING THE WIZARD
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 29
USING THE WIZARD
USING THE WIZARD
Selecting a peripheral device
When you select the peripheral device from the list, the transceiver automatically sets these properties.
NOTE: Codan peripheral devices are listed by their type
number, for example, 3031 Crosspatch. The type number for a Codan device is located on the front or serial number escutcheon.
To select a peripheral device:
Press or to scroll to the type of peripheral device that
is attached to the connector, then press OK.
If there are settings that you can change to optimise this peripheral for your requirements, is shown to the right of the peripheral name when it is selected.
If you want to change settings for the peripheral, press to
see the list of entries that you may change.
If you change the value of an entry for a peripheral device from the default value, is shown next to the title of the entry.
Press (Save) to automatically update settings for
correct operation of the connected peripheral device.
Press OK to close the wizard.
If you added a peripheral device, restart your transceiver to
activate the new settings.
30 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
Navigating the menu
3
structure
This section contains the following topics:
The basic menu structure on page 32
Navigating the menu structure on page 34
Overview of basic and advanced views on page 36
Finding a word or value on page 38
Selecting an icon on page 41
Selecting a function from the menu bar on page 42
Entering text in a field on page 44
Selecting a value from a list on page 49
Selecting/deselecting a check box on page 50
Moving a slider on page 51
Changing the order of items in a list on page 52
Saving your changes on page 53
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 31
NAVIGATING THE MENU STRUCTURE
title bar
menu bar
icon area
highlighted icon
navigation
indicator
left
software
key
right
software
key
THE BASIC MENU STRUCTURE
The basic menu structure
The menu structure comprises a main menu and a series of submenus that are accessed via the main menu. Each menu and submenu is represented by an icon. Some icons provide direct access to an input/view screen, while other icons provide a list of entries for the menu.
Figure 6: Typical menu screen
When an icon is highlighted, the name of the icon is shown in the title bar of the screen. For example, when the icon is highlighted, Setup Wizard is shown in the title bar.
32 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
NAVIGATING THE MENU STRUCTURE
THE BASIC MENU STRUCTURE
Figure 7: Menu structure (user level, basic view)
Setup Wizard
Add Channel
User Data
Settings
Admin Login/Logout
Advanced View
Information
General
Functions
(2221 only)
Channels
Scan Tables
HF Networks
Contacts
Messages
Modes
Peripherals
Control Point
Configuration
Connectors
Scan
Calling
GPS
Device Information
Option Password
Version
IP Connectivity
Licence
Time and Date
Secure
Brightness
Self Tests
Find RFU
GPS
The menu items may contain further submenus and lists of entries. Each entry either has specific values from which you may choose, or you may enter the information required.
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 33
NAVIGATING THE MENU STRUCTURE
NAVIGATING THE MENU STRUCTURE
Navigating the menu structure
The menu structure comprises a main menu and a series of submenus that are accessed via the main menu. Navigation keys enable you to highlight an icon, then press OK to select that menu. You can continue drilling down through the menu structure in this way. At the lowest level of the menu structure there is either an input/view screen, or a list of entries.
Navigation is available when the navigation indicator is shown in the menu bar at the bottom of the screen.
Figure 8: Navigation indicator showing navigation keys
that may be used
navigation
( keys may be used)
indicator
To navigate the menu structure:
To move down through the menu structure:
Press , , or to highlight the icon that you want to select.
The name of the icon appears in the title bar of the screen.
Press OK.
Continue moving down through the menu structure by highlighting the icon that you want, then pressing OK.
To move through a list of entries at the lowest level of the
menu structure, press or .
34 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
NAVIGATING THE MENU STRUCTURE
NAVIGATING THE MENU STRUCTURE
To go to the top level in the menu structure, do one of the
following:
Press PTT to exit to the channel screen, then
press (Menu) to enter the top level of the menu structure.
Press to return to the top level of the menu
structure, one level at a time.
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 35
NAVIGATING THE MENU STRUCTURE
OVERVIEW OF BASIC AND ADVANCED VIEWS
Overview of basic and advanced views
There are two views of information in the user interface of the control point: basic and advanced. The contents of basic and advanced views are pre-determined and cannot be changed.
Basic view
Basic view provides a condensed view of the user interface, and typically the view at which the control point is operated. When you power up the transceiver, the control point enters basic view. Basic view is indicated by the absence of an advanced view indicator in the menu bar.
Figure 9: Basic view (no advanced view indicator)
Basic view provides access to items that are likely to be changed on a regular basis, or the user may want to change to suit their preferences for the day-to-day operation of the transceiver. The user can switch to advanced view to access items that they may want to change occasionally. The user should switch back to basic view to simplify the view of information presented on the screen of the control point.
Advanced view
Advanced view provides access to additional settings that may need to be changed occasionally, but are not required in the day-to-day operation of the transceiver. Generally, the control point of the transceiver is in basic view so you must switch to advanced view. Advanced view is indicated by the presence of the advanced view indicator in the menu bar.
36 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
NAVIGATING THE MENU STRUCTURE
OVERVIEW OF BASIC AND ADVANCED VIEWS
Figure 10: Advanced view
advanced view
indicator
Switching between basic and advanced views
The user can switch between basic and advanced views to either:
simplify the user interface of the control point (basic view), or
access advanced settings that they are permitted to change (advanced view)
To switch between views:
Press until the main menu screen is shown.
From the main menu, select (Advanced View).
Press OK to toggle advanced view on or off as required.
Press (Save).
NOTE: You can also use the + 2 hot-key sequence to place
the user interface into advanced view.
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 37
NAVIGATING THE MENU STRUCTURE
FINDING A WORD OR VALUE
Finding a word or value
The quickest way to find an entry or a value in the user interface of the control point is to use the Find function, which is available via the key when the icon selected contains submenus or lists of entries. The feature searches for the sequence of characters (letter, numbers, or a combination of both) that you enter.
NOTE: The Find function only searches on words and values
that are visible to the operator at the current view and level of access.
38 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
Figure 11: Find function
NAVIGATING THE MENU STRUCTURE
FINDING A WORD OR VALUE
To find a word or value:
Highlight the icon that represents the highest level in which
you want to search, then press (Find).
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 39
NAVIGATING THE MENU STRUCTURE
FINDING A WORD OR VALUE
NOTE: If you select the icon by pressing OK, you
Enter the letter and/or number on which you want to search.
Any entries or values that contain the character you have entered are shown in a list, with the character highlighted.
NOTE: You may have to scroll through the list to
Enter more characters to refine your search.
The icon that is shown with each item in the list indicates the location of the information. For example, if appears next to the item, then it is located in Channels. If there is another item with next to it, then it is located in HF Networks.
Scroll to the entry or value that you want to select.
Press OK.
You are taken to the entry, or the name level of the user data containing the character.
will enter that menu level. If you do not want to search at the lower level, press (Close) to return to the higher level, then press (Find) again.
view all of the results.
40 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
Selecting an icon
The top levels of the menu structure are represented by icons. In order to enter the menu represented by the icon, you need to select the icon.
Figure 12: Highlighted icon
highlighted icon
To select an icon:
NAVIGATING THE MENU STRUCTURE
SELECTING AN ICON
Use , , and to highlight the icon that you want to
select.
Press OK or (OK) to select the icon.
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 41
NAVIGATING THE MENU STRUCTURE
indicates that several
functions may be selected
SELECTING A FUNCTION FROM THE MENU BAR
Selecting a function from the menu bar
The menu bar at the bottom of the screen provides varying functions, depending on the context. You can select a function directly, or activate a pop-up from the menu bar by pressing the corresponding key ( or ). A vertical line next to the text indicates that there are a number of choices from which to choose. Typically, you can add, edit, move, delete, save, duplicate, and clear items specific to your current location in the user interface.
Figure 13: Functions on the menu bar
To select a function from the menu bar:
Press or , corresponding to the function that you
want to select.
If the function in the menu bar does not have a vertical line next to it, the function is performed immediately.
If the function in the menu bar has a vertical line next to it, a pop-up is shown.
42 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
SELECTING A FUNCTION FROM THE MENU BAR
NAVIGATING THE MENU STRUCTURE
If a pop-up of available functions is shown:
Press or to scroll to the function that you want
to select.
•Press (Select).
The function is performed.
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 43
NAVIGATING THE MENU STRUCTURE
ENTERING TEXT IN A FIELD
Entering text in a field
You may need to enter text into a field within an entry. This may be a name given to some user data, or it may be a specific value, such as a frequency. When you first enter an editable text field, either by selecting a menu or using the and navigation keys, any existing text that you can edit is highlighted. You can use this text, edit this text, or delete this text and enter new text.
Figure 14: Example of an editable text field
To enter text in a field:
Navigate to a field in which you can edit text.
Do one of the following:
To use this text, press .
To delete this text, start entering new text.
To edit this text, press to place the cursor at the end of the text.
Press repeatedly to select the character-entry mode that
you want to use.
The indicator for the character-entry mode is shown in the centre of the menu bar.
44 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
NAVIGATING THE MENU STRUCTURE
ENTERING TEXT IN A FIELD
Figure 15: Character-entry mode indicator
character-entry mode
indicator
Table 2: Character-entry mode
Character-entry mode
All upper-case letters
All lower-case letters
Leading-capital letters
Numbers
Indicat or
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 45
NAVIGATING THE MENU STRUCTURE
ENTERING TEXT IN A FIELD
Do any of the following:
Press or to move the cursor to the point at
Press to delete text to the left of the cursor.
Hold to delete the whole entry.
Press the key on the keypad that corresponds to the
Press to move to the next entry.
which you want to enter text.
letter that you want to enter.
For example, if you want to enter the letter E, press 3 twice.
After a brief pause, the cursor moves to the next space, ready to enter another character.
NOTE: If you are in a letter-entry mode and
want to enter a number, hold the key corresponding to the number that you want to enter.
Entering special characters
You can enter special characters in messages and names, and in addresses of stations that you call.
NOTE: If the FED-STD-1045 ALE/CALM option or
MIL-STD-188-141B ALE option is installed in your transceiver, the key may be used to enter the global ALL address syntax (@?@) or special ALE addressing characters easily.
To enter a special character:
Press or to move the cursor to the point where you
want to insert a special character.
Press to cycle through the available choices or hold to
see the available special characters.
46 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
Depending on the context, you can select from:
Press , , or to highlight the character that you
want to use, then press (Insert).
Repeat as required.
Entering text in the 2221 Handset
The 2221 Handset does not have alphanumeric keys, however, you can still enter text into fields within the user interface.
CAUTION: This process describes how to enter text into an entry
field using the virtual keypad, then save the text back to the entry. At this point, the change to the entry itself has not been saved. Descriptions of processes in this document continue from the change to the entry.
NAVIGATING THE MENU STRUCTURE
ENTERING TEXT IN A FIELD
To enter text:
Navigate to an entry in which you can enter text, then
press OK to see the virtual keypad.
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 47
NAVIGATING THE MENU STRUCTURE
ENTERING TEXT IN A FIELD
Press , , or to move the highlight to the character
that you want to select, then press OK.
If you want to change case, enter a number, or enter a special character, scroll to , then press OK.
Continue entering text in this manner.
Press (Save) to save the information.
You are returned to the entry.
48 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
NAVIGATING THE MENU STRUCTURE
SELECTING A VALUE FROM A LIST
Selecting a value from a list
When you select an entry that has a list of values, either by selecting an icon or using the and navigation keys, the field is highlighted to show that it can be edited, and / indicators appear on one or both sides of the field to show that multiple values are available.
Figure 16: List of entries, with and without focus
entry with focus
entry without focus
multiple values available
To select a value from a list:
Navigate to an entry in which you can select a value.
Press or to select the value that you want to use.
Press to move to the next entry.
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 49
NAVIGATING THE MENU STRUCTURE
SELECTING/DESELECTING A CHECK BOX
Selecting/deselecting a check box
There are some entries in the menu structure that require you to enable or disable a particular feature via a check box. When the check box contains a , the feature is enabled. If the check box is clear, the feature is disabled.
Figure 17: Entry with a check box
To select or deselect a check box:
Highlight the entry.
Press OK to toggle the check box as selected or deselected.
When the check box is selected, the item is enabled. When the check box is clear, the item is disabled.
Press (Save) to save the information.
50 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
Moving a slider
Some values in the user interface of the control point are represented by a slider.
Figure 18: A slider value
To move a slider:
Press any of the navigation keys suggested in the navigation
key indicator to adjust the slider.
NAVIGATING THE MENU STRUCTURE
slider
navigation key indicator
MOVING A SLIDER
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 51
NAVIGATING THE MENU STRUCTURE
CHANGING THE ORDER OF ITEMS IN A LIST
Changing the order of items in a list
In some areas of the control point, you are able to change the order in which the items appear, which impacts how the item is viewed, or when each item may be used. For example, you may change the order in which the channels, scan tables, HF networks, contacts, phone links, and NETs are listed so that you don’t have to scroll to the item to select it. In areas where the order is important, such as NET members, you can move the items into the preferred response order.
To change the order of items in a list:
Highlight the item that you want to move.
Press (Options), scroll to Move, then press
(Select).
Press or to move the item to the new position in the
list, then press (Place).
52 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
Saving your changes
When information in an entry has been changed, either by editing existing text or selecting a different value from a list, an asterisk is added to the title of the screen.
Figure 19: Screen that has changes to be saved
asterisk indicates
that changes
have been made
NAVIGATING THE MENU STRUCTURE
SAVING YOUR CHANGES
To save changes:
Do one of the following:
•Press (Save).
•Press (Options), scroll to Save, then
press (Select).
•Press (Close) to discard the changes.
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 53
NAVIGATING THE MENU STRUCTURE
SAVING YOUR CHANGES
This page has been left blank intentionally.
54 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
Structure of
4
information
This section contains the following topics:
Structure of user information on page 56
Structure of contact and call information on page 58
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 55
STRUCTURE OF INFORMATION
STRUCTURE OF USER INFORMATION
Structure of user information
Information in the Envoy™ Transceiver is stored like blocks in a building. Basic blocks are populated with information first, then these blocks, along with different blocks, are assembled into larger blocks. Ultimately, one of the top-level blocks is used to make a call.
The most basic block is a frequency. A frequency is combined with a mode, say USB or LSB, and a name to become a channel. Channels may be grouped into scan tables. Scan tables may be allocated to HF networks. An HF network defines the call system by which a call is made.
Further blocks may be assembled for the convenience of the user. A contact stores information on the typical calls that can be made to a person. Each call is defined by the HF network and the call type.
How these blocks are assembled is up to the system administrator. There is, of course, finer detail that needs to be included, however, the basic structure of information in the transceiver is shown in
Figure 20.
56 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
Channels
STRUCTURE OF INFORMATION
STRUCTURE OF USER INFORMATION
Figure 20: Basic structure of information in the Envoy™
Transceiver
HF network
Scan table 1
Selected channels
Scan table 2
Selected channels
Call system (RFDS) Self address
Selected scan tables
HF network
Call system (ALE) Self address
Selected scan tables
HF network
Call system (Selcall) Self address
all channels)
Global (
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 57
STRUCTURE OF INFORMATION
STRUCTURE OF CONTACT AND CALL INFORMATION
Structure of contact and call information
A contact holds information on calls that you make to a particular person. You may have several methods of calling the same person. Each method that you use is bundled into a call for that contact. The basic building blocks that you require to define a call to a contact is the HF network that will be used, the type of call that you want to make, and the address or telephone number at which the person will answer the call. The basic structure of call information in a contact is shown in Figure 21.
Figure 21: Structure of call information for a contact in the
Envoy™ Transceiver
Contact
Call 1
HF network (RFDS)
Call type (RFDS)
Call 2
HF network
Call type (Selective)
Address
Call 3
HF network
Call type (Message)
Address
Call 4
HF network
Call type (Get Position)
Address
Call 5
HF network
Call type (Phone)
Phone number
Phone link
Available HF networks
HF network
Call system (RFDS) Self address
Selected scan tables
HF network
Call system (ALE) Self address
Selected scan tables
HF network
Call system (Selcall) Self address
all channels)
Global (
58 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
Operating the
5
transceiver
This section contains the following topics:
Switching the transceiver on and off on page 60
The channel screen on page 61
Scanning channels on page 65
Muting the transceiver on page 67
Using the microphone on page 68
Setting the basics on page 69
Calling on page 71
Using GPS on page 79
Using encryption on page 81
Using a crosspatch on page 88
Upgrading the transceiver via a USB stick on page 91
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 59
OPERATING THE TRANSCEIVER
SWITCHING THE TRANSCEIVER ON AND OFF
Switching the transceiver on and off
Switching on the transceiver
To switch on the transceiver:
Press .
The template screen, then the welcome screen (if set) are shown briefly, followed by the channel screen.
Switching off the transceiver
To switch off the transceiver:
Hold for 2 sec, then release.
The transceiver is switched off.
60 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
The channel screen
The channel screen shows the following information:
the name of the currently selected channel
the transmit and receive frequencies, if applicable
a bar graph that indicates the signal strength on receive (green) and the output power on transmit (red)
the transmit power level setting
the call type icon (when calling) or the scan indicator (when scanning)
the mute type indicator
the mode
OPERATING THE TRANSCEIVER
THE CHANNEL SCREEN
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 61
OPERATING THE TRANSCEIVER
THE CHANNEL SCREEN
Figure 22: Channel screen
signal strength indicator
Tx power
setting
call type
icon
mute type
indicator
(highlighted
when mute is on)
Rx/Tx
indicator
channel name
status areas
mode
title bar
Tx/Rx frequency
menu bar
left
software
key
volume
indicator
right
software
key
If the transmit and receive frequencies are the same, the frequency is only shown on the right side of the screen. The Rx/Tx indicator shows whether the transceiver is receiving (green) or transmitting (red). The more bars that are shown, the higher the signal strength.
Your transceiver may have the option of selecting high, medium, or low power. Hi, Med, or Lo is shown respectively to the right of the signal strength indicator.
While a call is being established, the transceiver shows that calling activity is in progress by flashing in place of the scan indicator. Once a call is established, these indicators are replaced with an icon that represents the type of call being sent or received.
When the transceiver is scanning, the channel screen is replaced by the scanning screen.
62 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
Figure 23: Scanning screen
scan indicator
Selecting a channel
To select a channel:
Press PTT to exit to the channel or scanning screen.
If the transceiver is scanning, press SCAN to switch off
scanning.
OPERATING THE TRANSCEIVER
THE CHANNEL SCREEN
Press or to scroll to the channel that you want to use.
The channel is selected.
NOTE: If you want to change the sideband, press
MODE. If the mode does not change, there is only one mode for the channel.
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 63
OPERATING THE TRANSCEIVER
THE CHANNEL SCREEN
Do any of the following:
NOTE: If you have an automatic antenna tuner fitted,
press PTT to tune the antenna to the currently selected channel.
Hold OK to edit the channel, if permitted.
Press OK to search for a channel.
Press CALL to start a call.
Hold CALL to go to Contacts.
64 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
Scanning channels
If you intend to receive calls on several channels, switch on scanning. When scanning is switched on, the transceiver sequentially selects each channel/mode in your scan tables to detect incoming calls. The channel are scanned in a continuous cycle. Mute is switched on automatically.
NOTE: Only those scan tables that are set to be scanned have
the channels scanned.
When the transceiver detects a call addressed to your station, it stops scanning and notifies you according to the type of call received. When you press SCAN to end the call, scanning resumes. If you do not press this key to end the call, or any other key within a pre-determined timeout, the transceiver automatically ends the call and resumes scanning.
NOTE: The default standby state for the transceiver is to
return to scanning so that it is ready to receive calls across a range of frequencies.
When the transceiver detects voice, it notifies you according to the mute setting selected. If your transceiver is set to notify you when voice is detected (V), you can pause scanning, select the channel/mode on which the voice was heard, then resume scanning when required. If your transceiver is set to Selcall mute (S), it only pauses scanning when it detects a call addressed to your station.
OPERATING THE TRANSCEIVER
SCANNING CHANNELS
It is recommended that scanning is switched on when you are not using the transceiver to communicate.
Switching scanning on or off
To switch scanning on or off:
Press SCAN.
If a call is not in progress, scanning is toggled on or off.
If a call is in progress, the call is ended and the transceiver begins scanning.
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 65
OPERATING THE TRANSCEIVER
SCANNING CHANNELS
NOTE: When scanning is switched on, mute is also
NOTE: If you press PTT while the transceiver is
Pausing scanning
To pause scanning:
Do one of the following:
To pause scanning on the last-selected channel,
To pause scanning and scroll to another channel,
The channel/modes through which you can scroll are those in the scan tables that are being scanned. They are not listed alphabetically but in the order in which they are being scanned.
If you do not press a key within 30 sec, the transceiver automatically resumes scanning.
While scanning is paused, do one of the following:
switched on.
scanning, the scan is stopped.
press OK.
press or .
To speak on the selected channel, hold down PTT.
To resume scanning immediately, press OK.
66 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
Muting the transceiver
When the transceiver is set to a channel or is scanning channels, and mute is switched off, you hear on-air signals on each channel. If you do not want to listen to this, you can silence the transceiver by switching mute on.
You can set the mute to open when a voice signal is detected (Voice mute V), or only when a call addressed to your station is received (Selcall mute S). If you have a digital voice encryptor fitted and active, you can also set the mute to open only when a digitally encrypted voice signal is detected (Digital Voice mute D).
Switching mute on or off
To switch mute on or off:
Press (Mute) on the channel, scanning or free-tune
screen.
OPERATING THE TRANSCEIVER
MUTING THE TRANSCEIVER
On the 2221, press (Options), scroll to Mute On|Off, then press (Select).
The V or S in the title bar of the channel screen is highlighted when mute is on.
Selecting the mute type
To select the mute type:
Press
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 67
V/S to toggle the mute type between Selcall mute (S)
and Voice mute (V).
NOTE: If you have the AES-256 digital voice
encryptor fitted and active, an additional mute type of Digital Voice mute (D) is available.
OPERATING THE TRANSCEIVER
USING THE MICROPHONE
Using the microphone
The microphone is located at the top centre of your handset. When you talk into the microphone:
hold the microphone side-on and close to your mouth
hold down PTT
speak clearly at your normal volume and rate
release PTT to return to receiving mode
NOTE: By default, the transceiver is set up to transmit a
short beep when you release PTT. This removes the need for you to say ‘over’ at the end of your transmission.
CAUTION: Your conversation can be monitored by anyone
tuned to your transmit frequency, unless you are using one of Codan’s encryption options. Your signal can potentially travel very large distances.
If PTT is held continuously for a certain length of time, the system stops transmission, switches to receive and shows an error message on the control point. This ensures that, even if the PTT button is being held down accidentally, the battery will not be flattened, and your transceiver is ready to receive calls.
You can set the length of time the system waits before it cuts transmission (default is 10 min), or switch this feature off.
68 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
Setting the basics
Setting the date and time
The transceiver is set to UTC time in the factory. You set the local time and time zone offset for the location of the control point. This feature is useful if you have a communication network that spreads over several time zones, or you need to time stamp your transmissions according to the current time at longitude zero.
To set the time and date:
From the main menu, select (General), then (Time
and Date).
Press (Set).
Press to move to the Time Zone entry.
Press or to select the time zone that you want to use.
Press to move to the Daylight Saving entry.
Press or to select the time that you want to use.
Press to move to the Local Time entry.
OPERATING THE TRANSCEIVER
SETTING THE BASICS
Press to enter edit mode for the local time.
Press or to scroll to the value that you want to set, then
press to move to the next item.
Repeat this for minutes, seconds and AM/PM values.
Press (Save) to save the local time.
Press to move to the Local Date entry.
Press to enter edit mode for the local date.
Press or to scroll to the value that you want to set, then
press to move to the next item.
Repeat this for the day/month and year, as required.
Press (Save) to save the local date.
Press to move to the Clock entry.
Press or to select the type of clock that you want to use.
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 69
OPERATING THE TRANSCEIVER
SETTING THE BASICS
Press to move to the Time Format entry.
Press or to select the format that you want to use.
Press to move to the Date Format entry.
Press or to select the format that you want to use.
If you want to review the information that you have entered,
press or to move through the entries.
Press (Save) to save the information.
Setting the brightness of the display
To set the brightness:
Do one of the following:
Press + 0.
From the main menu, select (General), then (Brightness).
Press or to scroll to the value that you want to set, then
press OK.
Press (Save) to save the information.
70 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
Calling
OPERATING THE TRANSCEIVER
CALLING
This section describes how to make the various types of calls from the transceiver.
Figure 24: Call screen
navigation
indicator
incoming call
outgoing call
select HF network
NOTE: Additional call types are discussed in the Reference
Manual.
Making a Selective call
If you want to speak with the operator at a particular station, make a Selective call to the address of that station. When the station receives the call, the transceiver sounds an alert tone to notify the operator.
call type HF network
address
To make a selective call:
Press CALL.
The call type and address of the last call are shown at the top of the call screen.
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 71
OPERATING THE TRANSCEIVER
CALLING
If you do not want to use the HF network shown at the top
Press or to select the Selective call type if it is not
Do one of the following:
right of the screen:
Press (Options).
Scroll to HF Networks, then press (Select).
Scroll to the HF network that you want to use, then press OK.
selected.
To repeat the call to the last address used, press CALL.
To call a different station, enter the address, then press CALL.
To repeat or return a call from the call log, press to scroll to the call, then press CALL.
If prompted, press or to scroll to the channel that you
want to use, then press CALL.
A is shown next to the currently selected channel/mode.
To abort the call before it is answered, press PTT or SCAN.
There will be audible beeps or a pop-up message to indicate that the call has been successful.
72 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
Making a Message call
If you want to send a text message to another station, make a Message call.
You can:
enter a message at the time that you make a call
store up to 10 messages in User Data > Messages for later use
store messages in a contact as part of a pre-programmed Message call
To make a Message call:
Press CALL.
The call type and address of the last call are shown at the top of the call screen.
OPERATING THE TRANSCEIVER
CALLING
If you do not want to use the HF network shown at the top
right of the screen:
•Press (Options).
Scroll to HF Networks, then press (Select).
Scroll to the HF network that you want to use, then
press OK.
Press or to select the Message call type if it is not
selected.
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 73
OPERATING THE TRANSCEIVER
CALLING
Do one of the following:
To repeat the call to the last address used, press CALL.
To call a different station, enter the address, then press CALL.
To repeat or return a call from the call log, press to scroll to the call, then press CALL.
74 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
OPERATING THE TRANSCEIVER
If you want to enter a message:
Start typing the message.
NOTE: Press OK to start a new line, if
required.
•Press (Options), scroll to OK, then
press (Select) to add the message to the call.
If you want to select a message from a list of stored
messages:
•Press (Options), scroll to Stored, then
press (Select).
CALLING
Press or to scroll to the message that you want
to use.
NOTE: If you want to view the message,
press (Details) to view the message, then press (Close).
•PressOK to select the message.
Edit the message, if required.
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 75
OPERATING THE TRANSCEIVER
CALLING
Press (Options), scroll to OK, then press (Select).
If prompted, press or to scroll to the channel that you
want to use, then press CALL.
A is shown next to the currently selected channel/mode.
To abort the call before it is answered, press PTT or SCAN.
There will be audible beeps or a pop-up message to indicate that the call has been successful.
Making a call to a contact
To make a call to a contact:
Hold CALL.
Press or to scroll to the contact who you want to call.
If required, press or to scroll to the call that you want
to make.
The call types that are available for the contact are set up in User Data > Contacts.
NOTE: If only one call has been set up for the
contact, you cannot select a different call type at the time of the call.
Press CALL.
76 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
If prompted, press or to scroll to the channel that you
want to use, then press CALL.
A is shown next to the currently selected channel/mode.
To abort the call before it is answered, press PTT or SCAN.
There will be audible beeps or a pop-up message to indicate that the call has been successful.
Making a call from the Call History
The Envoy™ Transceiver stores information on the calls that you send and receive. The detailed call history is accessed by holding CALL, then pressing to scroll to the Call History tab.
NOTE: A filtered call log is available in the call screen. This
log contains only the latest instance of a call to a specific station.
To make a call from the Call History:
OPERATING THE TRANSCEIVER
CALLING
Hold CALL.
Press or to select the Call History tab.
Press or to scroll to the call that you want to return or
repeat, then press CALL.
If you want to view the details of the call, press
(Options), scroll to Details, then press (Select).
Press (Close) to exit viewing the details.
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 77
OPERATING THE TRANSCEIVER
CALLING
Press CALL.
Press or to select the call type that you want to use.
Continue from making your chosen call type.
Making a call from the Emergency key
You can set up emergency contacts with calls that are chained together when you hold the key.
CAUTION: If you have more than one emergency contact, you
will be prompted to select the emergency contact that you want to call at the time of the call.
NOTE: For more information, see the Reference Manual.
To make a call from the key:
Hold for 2 sec.
If you have more than one emergency contact, scroll to the
contact that you want to call, then press CALL.
If prompted, press or to scroll to the channel that you
want to use, then press CALL.
A is shown next to the currently selected channel/mode.
To abort the call before it is answered, press PTT or SCAN.
There will be audible beeps or a pop-up message to indicate that the call has been successful.
78 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
Using GPS
Viewing GPS information
NOTE: You can view GPS information if the GPS Call
option is installed.
To view GPS information:
From the main menu, select (General), then (GPS).
Press to move to the tab that you want to view.
Table 3: GPS information
Tab Description
OPERATING THE TRANSCEIVER
Latitude and longitude readings from a GPS receiver, or from Settings > GPS > My Position. Altitude and speed readings are hidden by default. The spinning circle shows that the GPS receiver is active, and the Last Fix reading shows the time lapse from the last receipt of valid GPS information.
USING GPS
Distance and bearing from your location to a selected waypoint.
E
NVOY™ TRANSCEIVER GETTING STARTED GUIDE 79
OPERATING THE TRANSCEIVER
USING GPS
Table 3: GPS information (cont.)
Tab Description
Signal strength from each visible satellite. The number represents a particular satellite, and its location is shown on the Satellites Constellation tab. Satellites with a blue signal strength provide information for the GPS location.
Map of visible satellites. The satellites that are coloured blue are providing the strongest signals and this information is being used to establish the position of the receiver. The other satellites are visible, but the signal is weaker and information is ignored.
Press (Close).
80 E
NVOY™ TRANSCEIVER GETTING STARTED GUIDE
Using encryption
Switching the encryptor on or off
The 2220 Handset and 2230 Desk Console have hot keys that access the secure feature directly. With the 2221 Handset, you access the secure feature via Functions.
If you want secure to remain on at all times, you set this in Settings > Security > Secure Start State.
NOTE: For more information, see the Reference Manual.
To switch the encryptor on or off:
If you are using a 2220 Handset or 2230 Desk Console,
SEC.
press
If you are using a 2221 Handset:
•Press (Options).
Press or to scroll to the Secure On|Secure
Off option.
•Press (Select).
OPERATING THE TRANSCEIVER
USING ENCRYPTION
Secure is toggled on or off across all available encryptors.
For CIVS voice scrambling you will see:
Secure Clear
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 81
OPERATING THE TRANSCEIVER
USING ENCRYPTION
Secure Clear
Secure Clear
For CES-128 voice encryption you will see:
For AES-256 digital voice encryption you will see:
For AES-256 digital data encryption you will see:
Secure Clear
82 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
OPERATING THE TRANSCEIVER
USING ENCRYPTION
Change to the encryptor type that you want to use, if
permitted.
If you are using CES-128 voice encryption with a
2220 Handset or 2230 Desk Console, press to go to secure standby mode, if enabled and required.
Standby
If you are using CES-128 voice encryption with a
2221 Handset, do the following to go to secure standby mode:
•Press (Options).
Press or to scroll to the Standby On option.
•Press (Select).
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 83
OPERATING THE TRANSCEIVER
USING ENCRYPTION
Selecting a secure key
If an encryptor contains two or more keys, you have the option of selecting a different key for encryption, if permitted. When AES-256 digital voice and data encryptors are used together, the selected key is common to both.
To select a secure key:
If you are using a 2220 Handset or 2230 Desk Console, do
one of the following:
From the main menu, select (General), then (Secure).
Hold
If you are using a 2221 Handset:
From the main menu, select (Functions).
Press or to scroll to the Secure Info function.
Press (OK).
SEC.
Press or to scroll to the Select Key Index entry.
Press or to select the secure key index that you want to
use.
Hold the key to scroll rapidly through the secure key indexes.
Press (OK).
The transceiver goes secure on the selected key.
84 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
Adding a secure key
If you are permitted to add a secure key for a CES-128 or AES-256 encryptor, the transceiver automatically selects the next empty secure index into which you can enter a secure key. You cannot select the secure key index.
To add a secure key:
If you are using a 2220 Handset or 2230 Desk Console, do
one of the following:
From the main menu, select (General), then
Hold
If you are using a 2221 Handset:
From the main menu, select (Functions).
Press or to scroll to the Secure Info function.
•Press (OK).
(Secure).
SEC.
OPERATING THE TRANSCEIVER
USING ENCRYPTION
Press or to scroll to the Edit Keys entry.
Press .
Press (Options), scroll to Add, then press
(Select).
NOTE: If all secure key indexes contain a key, Add
is not shown as an option.
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 85
OPERATING THE TRANSCEIVER
USING ENCRYPTION
Enter the characters that you want to use for the secure key.
Press (Save) to save the information.
Press (Close).
Selecting the data rate
The data rate affects the speed with which digitally encrypted transmissions are sent.
To select a different data rate:
If you are using a 2220 Handset or 2230 Desk Console, do
one of the following:
From the main menu, select (General), then (Secure).
Hold
SEC.
If you are using a 2221 Handset:
From the main menu, select (Functions).
Press or to scroll to the Secure Info function.
Press (OK).
86 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
OPERATING THE TRANSCEIVER
USING ENCRYPTION
Press or to select the data rate that you want to use.
Press (OK).
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 87
OPERATING THE TRANSCEIVER
USING A CROSSPATCH
Using a crosspatch
Overview of the 3031 Crosspatch
The 3031 Crosspatch is a device that connects an HF communication system with a VHF or UHF communication system.
NOTE: For details on installing the crosspatch and its
operation, see the documentation provided with the device.
NOTE: You must select the 3031 Crosspatch as the
peripheral device for the 15-way connector.
The operating mode of the crosspatch may be controlled directly by the transceiver, or by using DTMF commands on a DTMF-capable VHF/UHF transceiver.
The crosspatch may be active, on standby, or switched off. The status of the crosspatch is shown in the title bar, and you can set the status to be shown in one of the status areas.
88 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
Figure 25: Crosspatch status
OPERATING THE TRANSCEIVER
USING A CROSSPATCH
crosspatch indicator
Off
crosspatch state
crosspatch indicator
Active
crosspatch state
crosspatch indicator
Standby
crosspatch state
ENVOY™ TRANSCEIVER GETTING STARTED GUIDE 89
OPERATING THE TRANSCEIVER
USING A CROSSPATCH
Changing the operating mode of the crosspatch
To change the operating mode of the crosspatch:
If you are using a 2220 Handset or 2230 Desk Console,
press 5.
If you are using a 2221 Handset:
From the main menu, select (Functions).
Press or to scroll to the Next Crosspatch State function.
Press (OK).
The crosspatch toggles between the following states:
•Off
•Active
Standby
NOTE: If the status shows XP: Disconnected, the
crosspatch may not be connected, or is connected but not selected as a peripheral device.
90 ENVOY™ TRANSCEIVER GETTING STARTED GUIDE
Loading...
