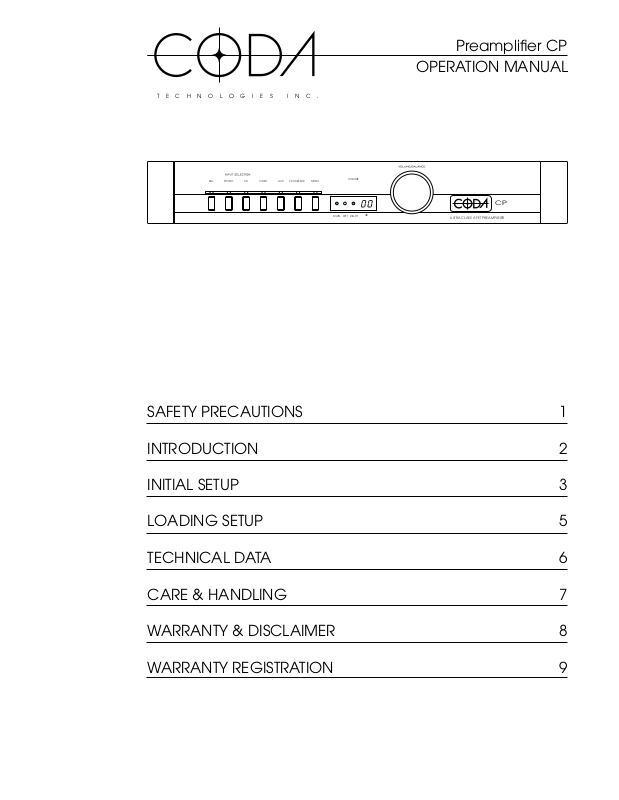

Coda CP Phono and Line Preamplifier User Manual

TECHNOLOGI ES I NC.

Preamplier CP

OPERATION MANUAL

BAL PHONO CD VIDEO AUX PROCESSOR MONO

VOLUME

MAIN LEFT RIGHT

CP

dB

ULTRA CLASS A FET PREAMPLIFIER

SAFETY PRECAUTIONS 1

INTRODUCTION 2

INITIAL SETUP 3

LOADING SETUP 5

TECHNICAL DATA 6

CARE & HANDLING 7

WARRANTY & DISCLAIMER 8

WARRANTY REGISTRATION 9

CAUTION

CAUTION

WARNING

WARNING

CAUTION: TO PREVENT ELECTRIC SHOCK,
DO NOT REMOVE COVER. NO USER

SERVICEABLE PARTS INSIDE, REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL.

THIS SYMBOL IS TO ALERT YOU OF THE
PRESENCE OF UNINSULATED DANGER­OUS VOLTAGE WITHIN THE UNIT'S
ENCLOSURE THAT MAY BE OF SUFFI­CIENT MAGNITUDE TO CONSTITUTE A
RISK OF ELECTRIC SHOCK.

!

1 SAFETY PRECAUTIONS

WARNING:

CAUTION -

THIS SYMBOL IS INTENDED TO ALERT
YOU OF THE PRESENCE OF IMPORTANT
OPERATING AND MAINTENANCE

!

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THIS UNIT TO RAIN OR MOISTURE. TO
AVOID ELECTRICAL SHOCK, DO NOT OPEN THE
UNIT. REFER SERVICING TO QUALIFIED PERSONNEL.

Never install or remove the power cord from the chassis
unless it has been disconnected from the AC power source
rst.
Never pull on the power cord when removing it from an AC

-

power source. Grasp it by the plug.
Do not leave the power cord connected to an AC power

-

source unless it is connected to the unit.

-

It is recommended that during extended periods of nonuse
the unit's power cord be unplugged from its AC power
source.
Route the AC power cord so that it will not be damaged or

-

walked on.

INSTRUCTIONS IN THE LITERATURE
ACCOMPANYING THE UNIT.

Thank you for purchasing the PREAMPLIFIER CP.

This preamplier is a precision device, designed in an eort to
provide the listener with unmatched sound quality through superb
design and construction.

Although its operation is fairly simple, in order to operate your
preamplier properly and to realize all of the capabilites of the CP
we recommend that you read this entire manual carefully.

2INTRODUCTION

INITIAL SETUP

Note: Many ampliers produce a local magnetic eld that can be picked up by the
sensitive circuitry of a preamplier. Try to provide at least a foot of space between
your amplier and your CP preamp.

The diagram below illustrates the rear connections of the CP.

USE ONLY WITH 25V FUSE

3

A B C D

A: The AC receptacle accepts any standard three-prong IEC line cord. Power input
can be adjusted for any country, but is set internally at the factory. Contact Coda or
your local Coda dealer if the voltage must be changed. Fuse specications are
listed below the receptacle, and the fuse can be changed by unplugging the line
cord, pulling out the fuse drawer and clipping in a new fuse.

B: Signal output is through two balanced XLR connectors and four unbalanced RCA
connectors. The XLR pinout is identical to the input receptacles.

C: The Processor loop connectors permit the connection of an external audio
device such as a surround sound processor or equalizer. Connect the output jacks to
the input of the processor, and the output of the processor to the processor input
jacks of the preamplier.

D: Signal input is through two balanced XLR connectors and eight unbalanced RCA
connectors. The XLR receptacle has ground on pin 1, positive on pin 2 and negative
on pin 3.
