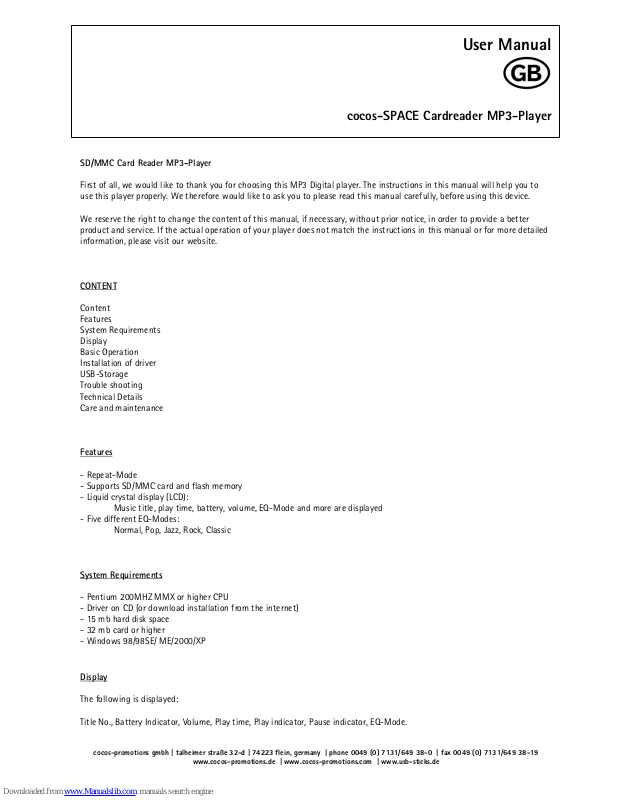

Cocos SPACE Cardreader User Manual

User Manual

cocos-SPACE Cardreader MP3-Player

cocos-promotions gmbh | talheimer straße 32-d | 74223 flein, germany | phone [phone] | fax [phone]-19

www.cocos-promotions.de | www.cocos-promotions.com | www.usb-sticks.de

SD/MMC Card Reader MP3-Player

First of all, we would like to thank you for choosing this MP3 Digital player. The instructions in this manual will help you to
use this player properly. We therefore would like to ask you to please read this manual carefully, before using this device.

We reserve the right to change the content of this manual, if necessary, without prior notice, in order to provide a better
product and service. If the actual operation of your player does not match the instructions in this manual or for more detailed
information, please visit our website.

CONTENT

Content
Features
System Requirements
Display
Basic Operation
Installation of driver
USB-Storage
Trouble shooting
Technical Details
Care and maintenance

Features

- Repeat-Mode

- Supports SD/MMC card and flash memory

- Liquid crystal display (LCD):
Music title, play time, battery, volume, EQ-Mode and more are displayed

- Five different EQ-Modes:
Normal, Pop, Jazz, Rock, Classic

System Requirements

- Pentium 200MHZ MMX or higher CPU

- Driver on CD (or download installation from the internet)

- 15 mb hard disk space

- 32 mb card or higher

- Windows 98/98SE/ ME/2000/XP

Display

The following is displayed:

Title No., Battery Indicator, Volume, Play time, Play indicator, Pause indicator, EQ-Mode.

cocos-promotions gmbh | talheimer straße 32-d | 74223 flein, germany | phone [phone] | fax [phone]-19

www.cocos-promotions.de | www.cocos-promotions.com | www.usb-sticks.de

2

Basic Operation

Keys

1. ▶ Power on / Power off / Play / Pause

Press and hold for 3 seconds to turn the player on/off.
Short press this button for Pause.
The player will be turned off automatically, if the battery is too low.

2. Stop playback

Short press ▶ (Play-button) to pause the playback, then press the button Last (◀┃ ) or Next (┃▶).

3. ◀┃ Last / Rewind

Short press this button to play the previous title.
Long press and hold to fast rewind.

4. ┃▶ Next / Forward

Short press this button to play the next title.
Long press and hold to fast forward.

5. EQ: EQ-Mode

Press and choose between Normal, Pop, Jazz, Rock and Classic.

6. A-B A-B Replay

While playing music, short press this button to set the starting point “A”. Short press this button again to set the ending point
“B”. The A-B replay is now set and the player starts playing the A-B segment repeatedly.

7. REP Repeat-Mode

Short press this button and choose your desired repeat-mode: Repeat one (plays this title repeatedly), normal, PRE (=Intro –
plays only the first 10 seconds of a title), Random (plays all songs randomly), All (plays all songs repeatedly).

8. + increase Volume

Short press this button to increase the volume step by step.
Press and hold to increase the volume continously.

9. - decrease Volume

Short press this button to decrease the volume step by step.
Press and hold to decrease the volume continously.
