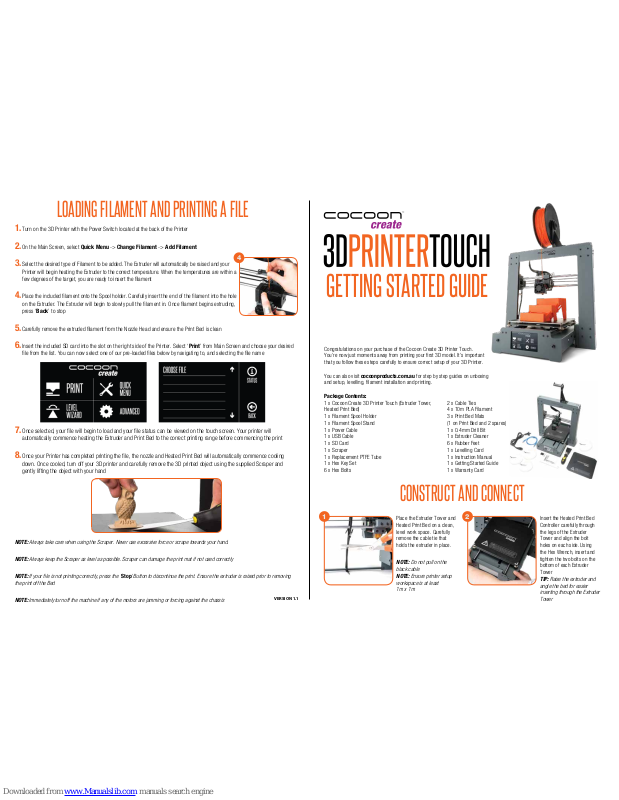

Cocoon Touch Getting Started Manual

Congratulations on your purchase of the Cocoon Create 3D Printer Touch.

You’re now just moments away from printing your rst 3D model. It’s important

that you follow these steps carefully to ensure correct setup of your 3D Printer.

You can also visit cocoonproducts.com.au for step by step guides on unboxing

and setup, levelling, lament installation and printing.

Package Contents:

1 x Cocoon Create 3D Printer Touch (Extruder Tower,
Heated Print Bed)
1 x Filament Spool Holder
1 x Filament Spool Stand
1 x Power Cable
1 x USB Cable
1 x SD Card
1 x Scraper
1 x Replacement PTFE Tube
1 x Hex Key Set
6 x Hex Bolts

2 x Cable Ties
4 x 10m PLA Filament
3 x Print Bed Mats
(1 on Print Bed and 2 spares)
1 x 0.4mm Drill Bit
1 x Extruder Cleaner
6 x Rubber Feet
1 x Levelling Card
1 x Instruction Manual
1 x Getting Started Guide
1 x Warranty Card

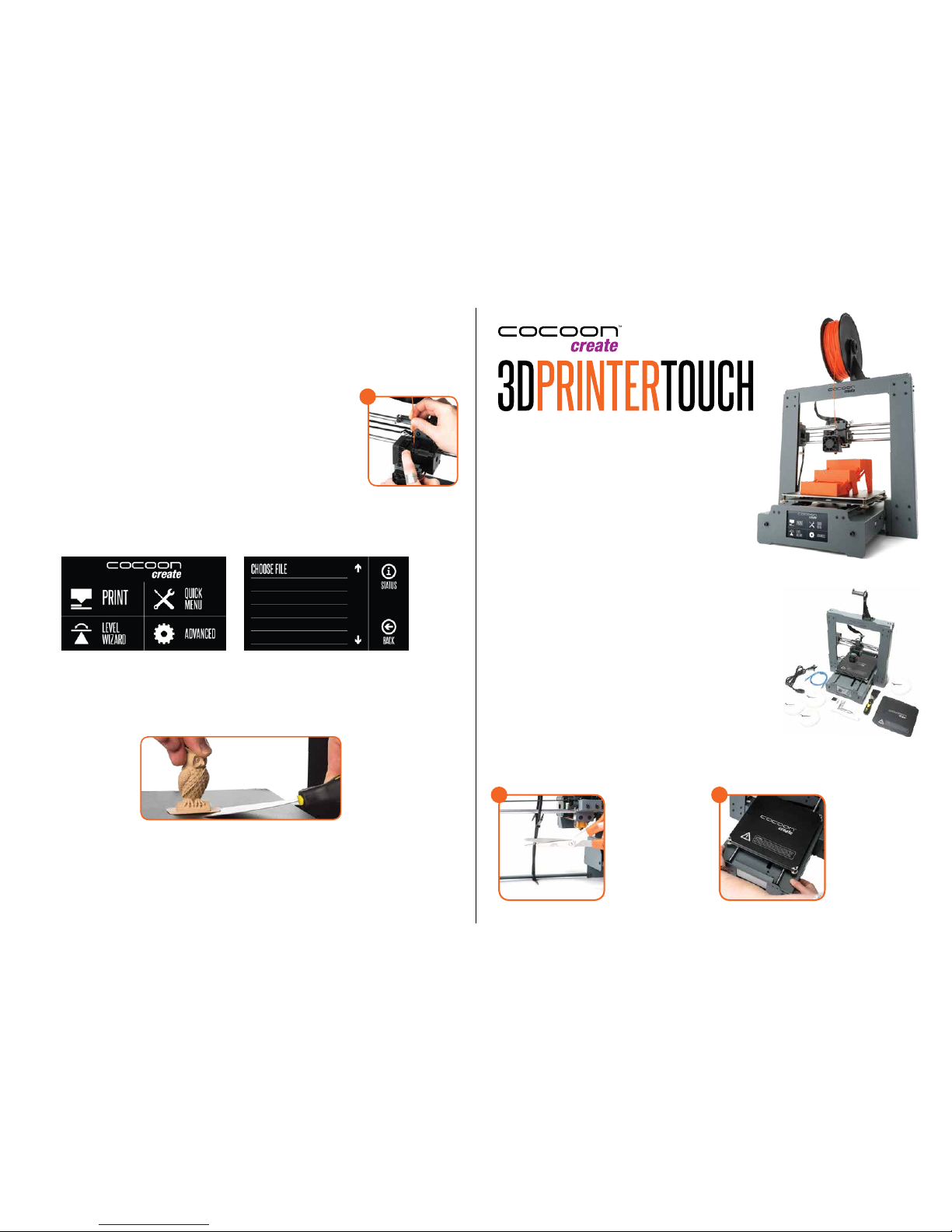

Place the Extruder Tower and
Heated Print Bed on a clean,

level work space. Carefully
remove the cable tie that

holds the extruder in place.

NOTE: Do not pull on the
black cable
NOTE: Ensure printer setup
workspace is at least
1m x 1m

Insert the Heated Print Bed

Controller carefully through

the legs of the Extruder
Tower and align the bolt
holes on each side. Using
the Hex Wrench, insert and

tighten the two bolts on the

bottom of each Extruder

Tower

TIP: Raise the extruder and
angle the bed for easier
inserting through the Extruder
Tower

CONSTRUCT AND CONNECT

GETTING STARTED GUIDE

1 2

1. Turn on the 3D Printer with the Power Switch located at the back of the Printer

2. On the Main Screen, select Quick Menu -> Change Filament -> Add Filament

3. Select the desired type of Filament to be added. The Extruder will automatically be raised and your

Printer will begin heating the Extruder to the correct temperature. When the temperatures are within a
few degrees of the target, you are ready to insert the lament

4. Place the included lament onto the Spool holder. Carefully insert the end of the lament into the hole

on the Extruder. The Extruder will begin to slowly pull the lament in. Once lament begins extruding,

press ‘Back’ to stop

5. Carefully remove the extruded lament from the Nozzle Head and ensure the Print Bed is clean

6. Insert the included SD card into the slot on the right side of the Printer. Select ‘Print’ from Main Screen and choose your desired

le from the list. You can now select one of our pre-loaded les below by navigating to, and selecting the le name

7. Once selected, your le will begin to load and your le status can be viewed on the touch screen. Your printer will

automatically commence heating the Extruder and Print Bed to the correct printing range before commencing the print

8. Once your Printer has completed printing the le, the nozzle and Heated Print Bed will automatically commence cooling

down. Once cooled, turn off your 3D printer and carefully remove the 3D printed object using the supplied Scraper and
gently lifting the object with your hand

NOTE: Always take care when using the Scraper. Never use excessive force or scrape towards your hand.

NOTE: Always keep the Scraper as level as possible. Scraper can damage the print mat if not used correctly

NOTE: If your le is not printing correctly, press the ‘Stop’ Button to discontinue the print. Ensure the extruder is raised prior to removing

the print off the Bed

NOTE: Immediately turn off the machine if any of the motors are jamming or forcing against the chassis

LOADING FILAMENT AND PRINTING A FILE

4

.

VERSION 1.1

IMPORTANT NOTE: Levelling the bed is an extremely important step and if it is not done correctly every time, your

prints will fail or be of poor quality

Before you begin to level the Heated Print Bed:

Ensure the springs on all 4 corners of the Heated Print Bed are tightened all the way to the bottom by turning each
thumbwheel anti-clockwise until you can no longer turn them. This reduces the distance between the 2 plates of the print
bed to a minimum. Wipe the top of the Heated Print Bed with a clean, lint-free cloth to ensure no dust particles or other
objects are on the Heated Print Bed

Check the Z axis alignment. The X rail (holding the Extruder) should be parallel to the Heated Print Bed. If it is not, manually
rotate individual z-axis stepper motors on the bottom of both shafts to adjust. Place a Hex Wrench on the z-axis rod and
run it across the Heated Print Bed to check the z-axis is aligned horizontally

Press ‘Level Wizard’ on the touch screen panel and follow the steps as indicated

NOTE: The distance between the Heated Print Bed and nozzle should be approximately 0.1mm

LEVELLING THE PRINT BEDCONSTRUCT AND CONNECT (CONT.)

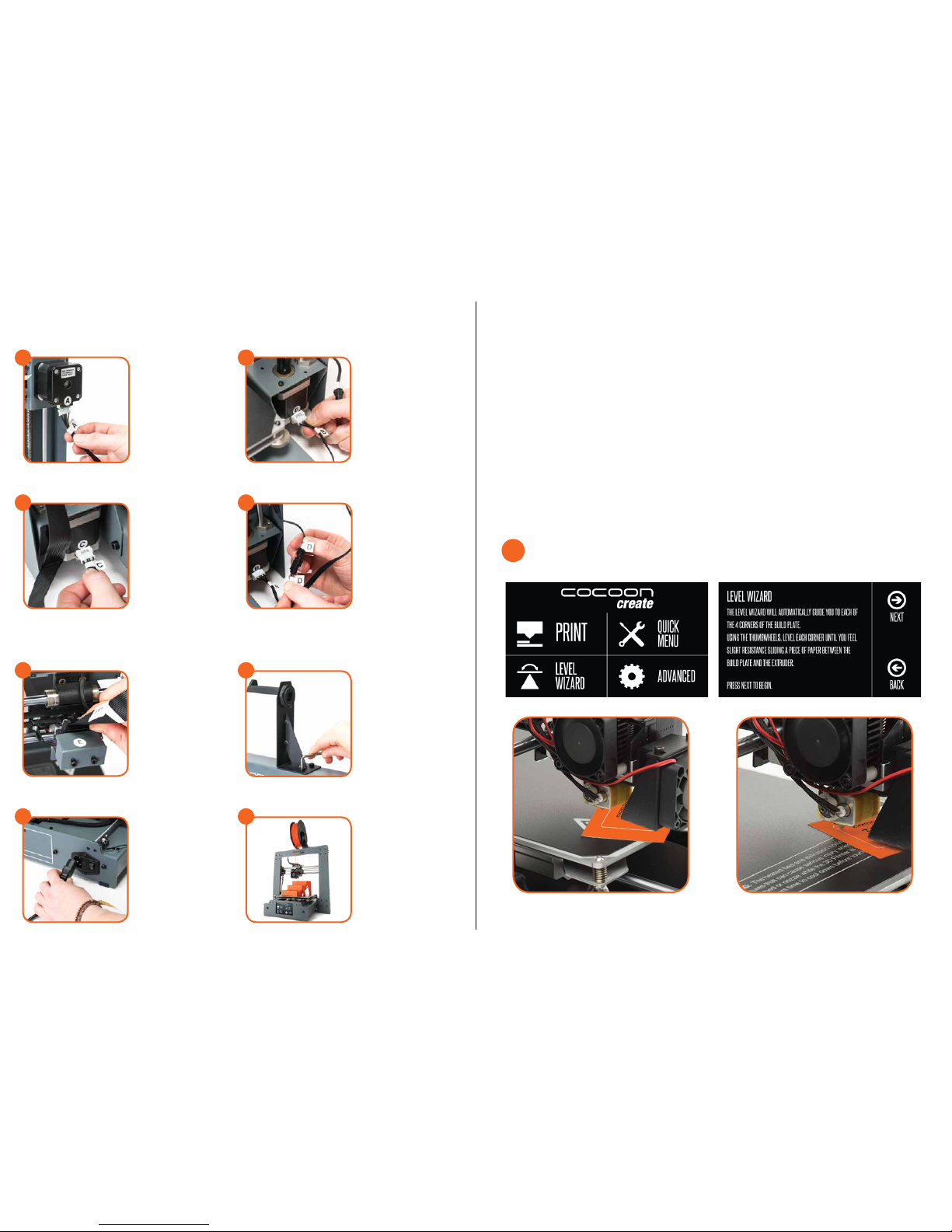

Insert the long cable
connector marked ‘A’ into

the motor connector of the

Extruder Tower marked ‘A’

Insert the short cable
connector marked ‘B’ into

the motor connector of the

Extruder Tower marked ‘B’

3 4

Insert the black connector
marked ‘D’ into the black
connector of the Extruder
Tower marked ‘D’

Insert the white connector
marked ‘C’ into the motor
connector of the Extruder
Tower marked ‘C’

5 6

Insert one end of the black
cable connector marked ‘E’

into the black connector of

the Extruder Tower marked
‘E’. Insert the other end to the
black connector marked ‘E’

into the black connector on

the side of the Heated Print
Bed marked ‘E’

Attach the upper arm of
the lament spool holder
by unscrewing the end cap,

then reattaching. Position the

Filament Spool Holder Stand
on top of the Extruder Tower,
then insert the bolts and
tighten with the Hex Wrench

7 8

Ensure the power switch is in
the OFF position, then insert
the Power Supply Cable into

the back of the 3D Printer

Base. Insert the other end into

a nearby mains power outlet.

Turn on the power outlet, then

turn on the power switch at
the back of the 3D Printer

Base

Wait for the printer to initialise,

with the home screen shown
on the Touch Screen.
You have successfully setup
your Cocoon 3D Printer Touch

9 10
