Cocoon IT114039 Instruction Manual

INSTRUCTION MANUAL

Model Number: IT114039

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

2

WARNING: Failure to follow these safety instructions could result in
fire, electric shock, or other injuries, or damage to your phone or other
property. Read all the safety information below before using your phone.

Handling

Handle your phone with care - it has sensitive electronic components inside.
Your phone can be damaged if dropped, burned, punctured, crushed, or if it
comes in contact with liquid.

Repairs

Don’t attempt to repair your phone by yourself. Disassembling your phone
will void your warranty. If your phone is damaged or malfunctions, contact
customer service immediately.

Battery

Only use the battery provided in the box with your phone, do not use a third
party battery. Do not leave the battery discharged for long periods, charge
the battery often. Do not attempt to fit the battery into another model of
mobile phone. Keep batteries away from children. Do not deform or attempt
to dismantle the battery. Do not expose the battery to extreme hot or
extreme cold conditions. If you are not using your phone for a long period of
time, please remove the battery.

Charging

Only charge your phone with the included power adaptor. Do not use a third
party charger. Always allow adequate ventilation around the power adaptor
when in use.

Distraction

Using your phone in some circumstances can distract you and may cause a
dangerous situation. Observe rules that prohibit or restrict the use of mobile
phones (for example, avoid texting while driving a car)

Hearing loss

Listening to sound at high volumes may damage your hearing. Use only
compatible ear buds, headphones, or earpieces with your phone. Turn on
the audio and check the volume before using headphones.

WARNING: To prevent possible hearing damage, do not listen at high
volume levels for long periods.

Safety Warnings & Cautions

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

3

Safety Warnings & Cautions Continued

Radio signals

Cocoon IT114039 has been tested and meets applicable limits for Radio
Frequency (RF) exposure.
Specific Absorption Rate (SAR) refers to the rate at which the body absorbs
RF energy. SAR exposure is limited at 1.6 Watts per Kilogram (over a volume
containing a mass of 1 gram of tissue) in Australia.
During testing, the Cocoon IT114039 is set to the highest transmission
level and placed in positions to simulate use near the body, with 10mm
separation. Carry the Cocoon IT114039 at least 10mm away from your body
to ensure exposure levels remain at or below the as-tested levels. Cases
with metal parts may change the RF performance of the device, including
conformance with RF exposure guidelines, in a manner that has not been
tested or certified.
Although this device has been tested to determine SAR in each band of
operation, not all bands are available in all areas. Bands are dependent on
your service provider’s wireless and roaming networks.

Radio frequency interference

Observe signs and notices that prohibit or restrict the use of mobile phones
(for example, in healthcare facilities or blasting areas). Turn off your phone
when use is prohibited, such as while travelling in aircraft, or when asked to
do so by authorities.

Medical devices

Your phone contains radios that emit electromagnetic fields.
These electromagnetic fields may interfere with pacemakers, defibrillators,
or other medical devices. Maintain at least 15 cm of separation between
your medical device and your phone. If you suspect your phone is interfering
with your medical device, stop using your phone and consult your doctor for
information specific to your medical device.

Explosive atmospheres

Do not charge or use your phone in any area with a potentially explosive
atmosphere, such as a fuelling area, or in areas where the air contains
chemicals or particles (such as grain, dust, or metal powders). Obey all
signs and instructions.

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

4

Safety Warnings & Cautions Continued

High-consequence activities

This device is not intended for use where the failure of the device could
lead to death or personal injury.

Mobile network

A current mobile service plan is required for correct operation. Mobile data
may be required for some features. The supplier is not responsible for any
charges incurred.

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

5

Safety Warnings & Cautions.........................................................................

Contents........................................................................................................

Package Contents/ Technical Specifications..............................................

Product Overview..........................................................................................

Instructions....................................................................................................

1. Inserting a Sim Card....................................................................

2. Inserting a MicroSD Card............................................................

3. Installing the Battery....................................................................

4. Charging the Battery....................................................................

5. Turning On/Off..............................................................................

6. Setting Time and Date.................................................................

7. Navigation Controls......................................................................

8. Phone Calls...................................................................................

9. During Call Options......................................................................

10. SMS Messaging..........................................................................

11. During Call options.....................................................................

12. SOS Function.............................................................................

13. Main Menu Options....................................................................

13.1. Messaging..................................................................

13.2. Call Logs ...................................................................

13.3. Contacts ....................................................................

13.4 .Profiles.......................................................................

13.5. Settings......................................................................

13.6. Tools...........................................................................

13.7. Multimedia.................................................................

13.7.1. Camera Application- Controls.........................

13.7.2. Video Recorder Application- Controls.............

13.7.3. Video Player Application- Controls..................

13.7.4. Audio Player Application- Controls..................

13.7.5. FM Radio Application- Controls.......................

13.7.6. Internet Application- Controls..........................

14. Torch Mode................................................................................

15. Connecting to a Computer........................................................

Troubleshooting............................................................................................

Support/ Warranty Details............................................................................

Contents

2-4
5
6
7-8
9-28
9
9
10
10
11
11
12
13
13-14
14
14-15
15-17
17-28
17
18
18-19
19-21
22-23
23-24
24-25
25
26
26
27
27
27
28
28
29-30
31

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

6

Package Contents

Technical Specifications

Congratulations on the purchase of your Cocoon Flip Mobile Phone.
This product is designed to help you keep in touch with friends and family and
provide reliable use. Please read and follow these instructions carefully. If you
experience any difficulties setting up or using this product, please see back
page for contact details.

1 x Flip Mobile Phone
1 x Li-ion Battery
1 x USB Cable
1 x Wall Charger

Platform: SC6531D ,64+64Mb
Network: GSM GPRS 850/ 900/1800/1900
SIM: Single SIM or Dual SIM Dual Standby
Phone type: Flip-open
Size: 100.8mm x 50mm x 17.8mm
Screen: 2.4” QVGA LCD, 240*320
Bluetooth: Yes
FM / FM recording: Yes
External Memory: Micro SD card up to 32GB
WAP/GPRS: Supported
Phone book: 300 contacts
SMS: 200 message storage
MMS: Supported
Camera: 1.3MP
Loudspeaker: Yes
USB: Micro USB (5 pin)
Battery: 800mAh
standby time: 250-300 hours
talk time: 150-200 mins
Earphone: 3.5mm Jack
Torch: Yes

Introduction

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

7

3

2

1

4

9

10

11

12

15

13

14

8

7

6

5

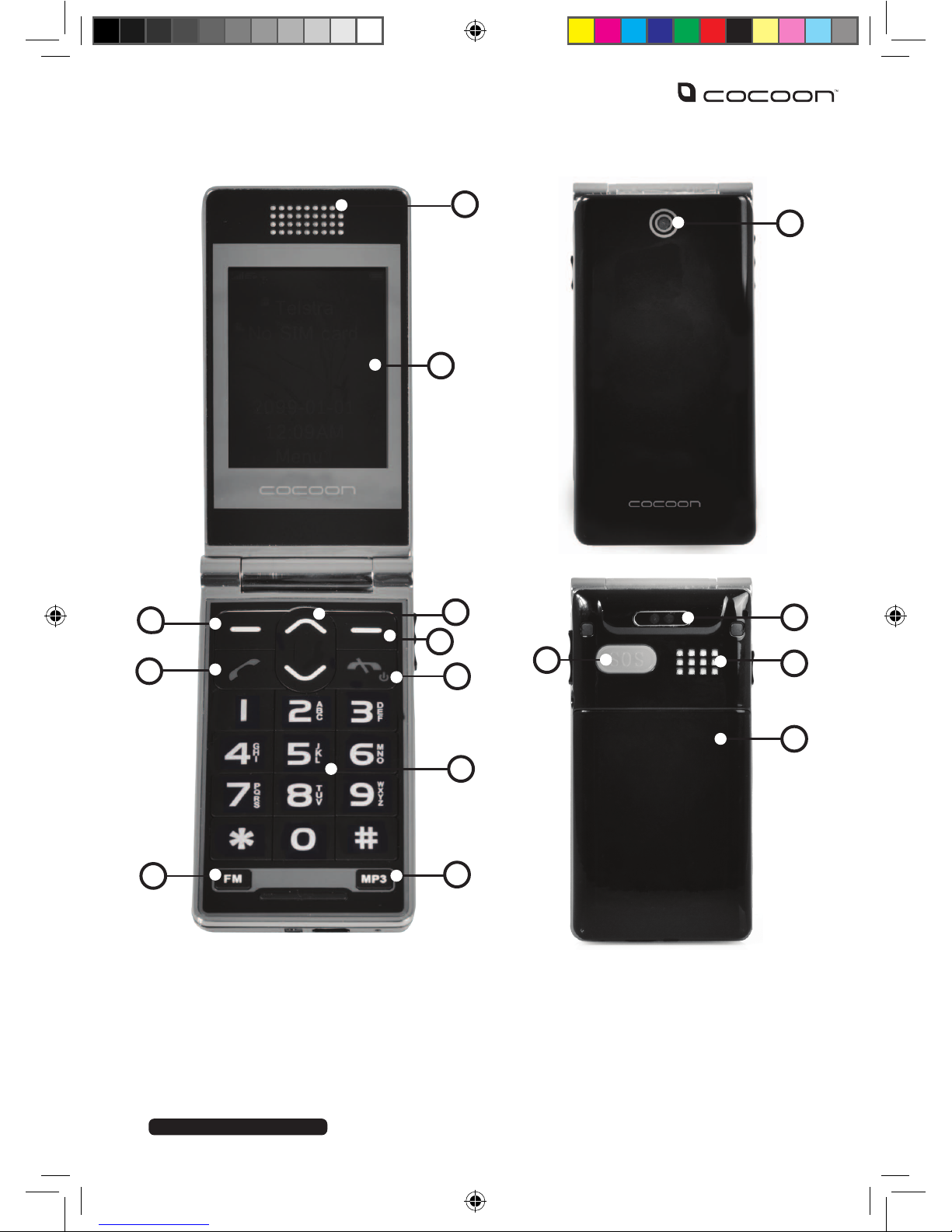

1. Speaker

2. LED Screen

3. Up/Menu

4. Back

5. End Call/Home/Power

6. Number Pad

7. MP3 Player

8. FM Radio

9. Dial

10. OK/Menu

11. Camera

12. LED Lights

13. Loud Speaker

14. Battery Cover

15. SOS Button

Product Overview

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

8

Product Overview

18

16

17

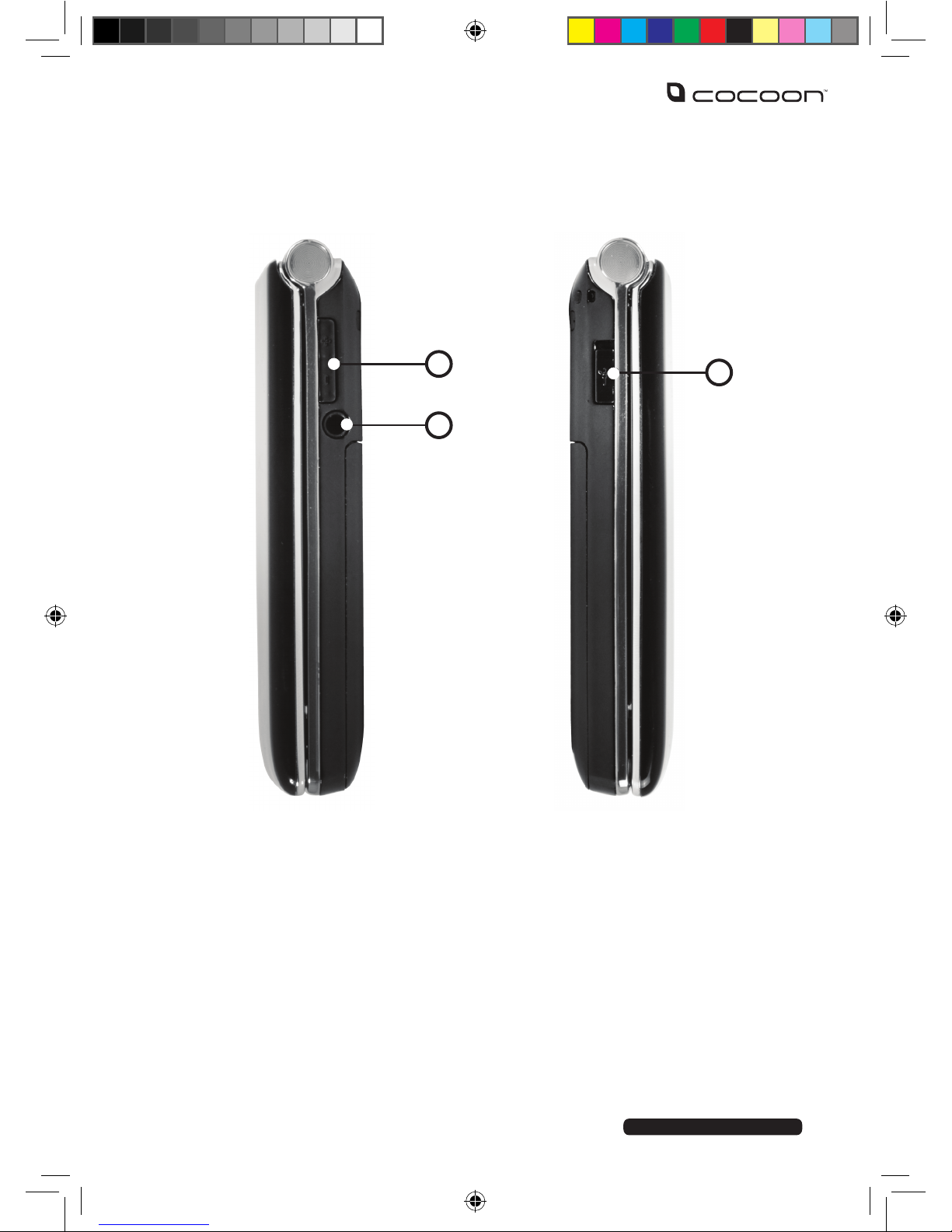

16. Volume Up/Down

17. Earphone Jack

18. Torch Switch

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

9

Instructions

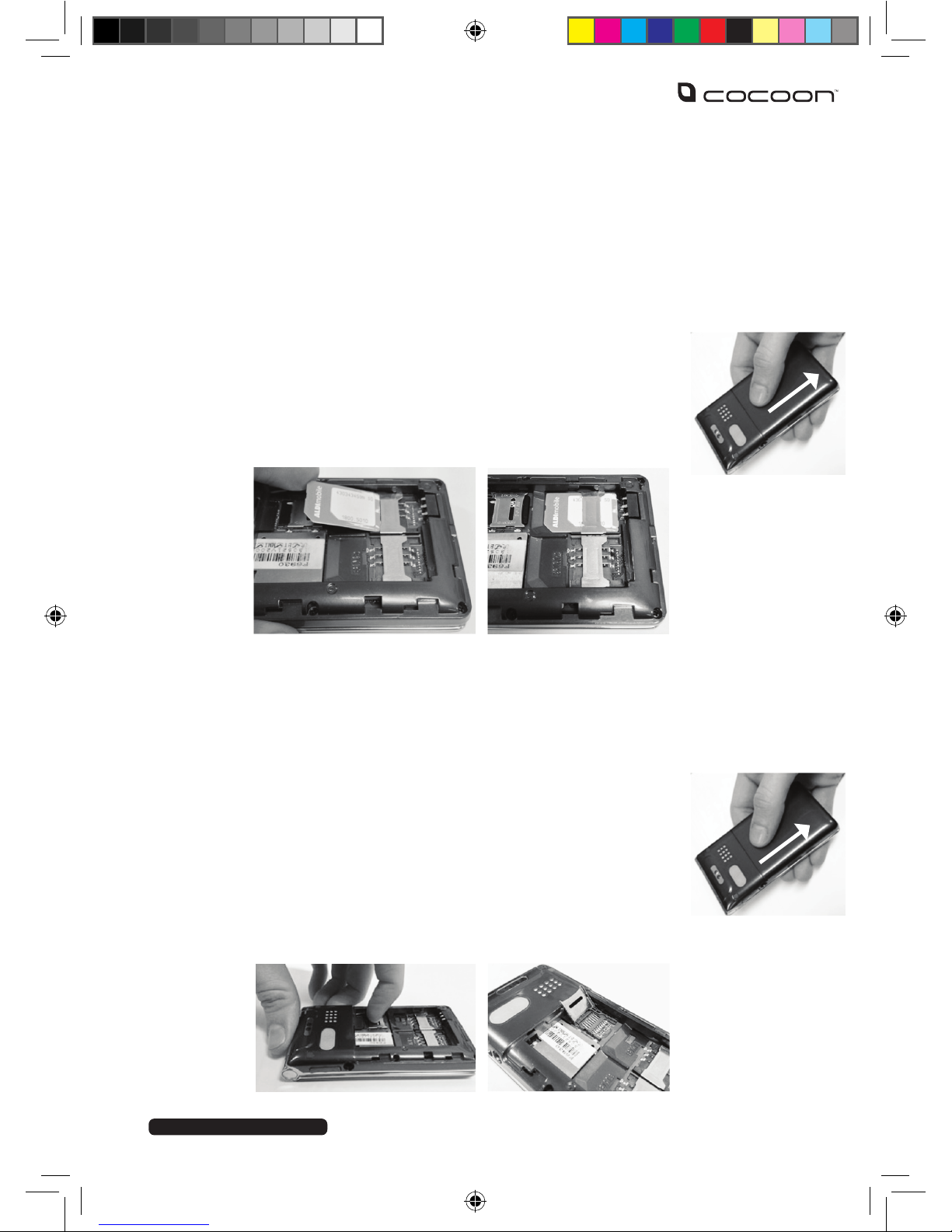

1. INSERTING A SIM CARD

You will need to purchase a SIM card in order to use this product. There are a variety
of plans available; it is recommended you contact a range of network providers to
find which plan is best suited to your needs.

Note: The Cocoon Flip Mobile Phone is designed for use with a standard size SIM card only.

To insert the SIM card:

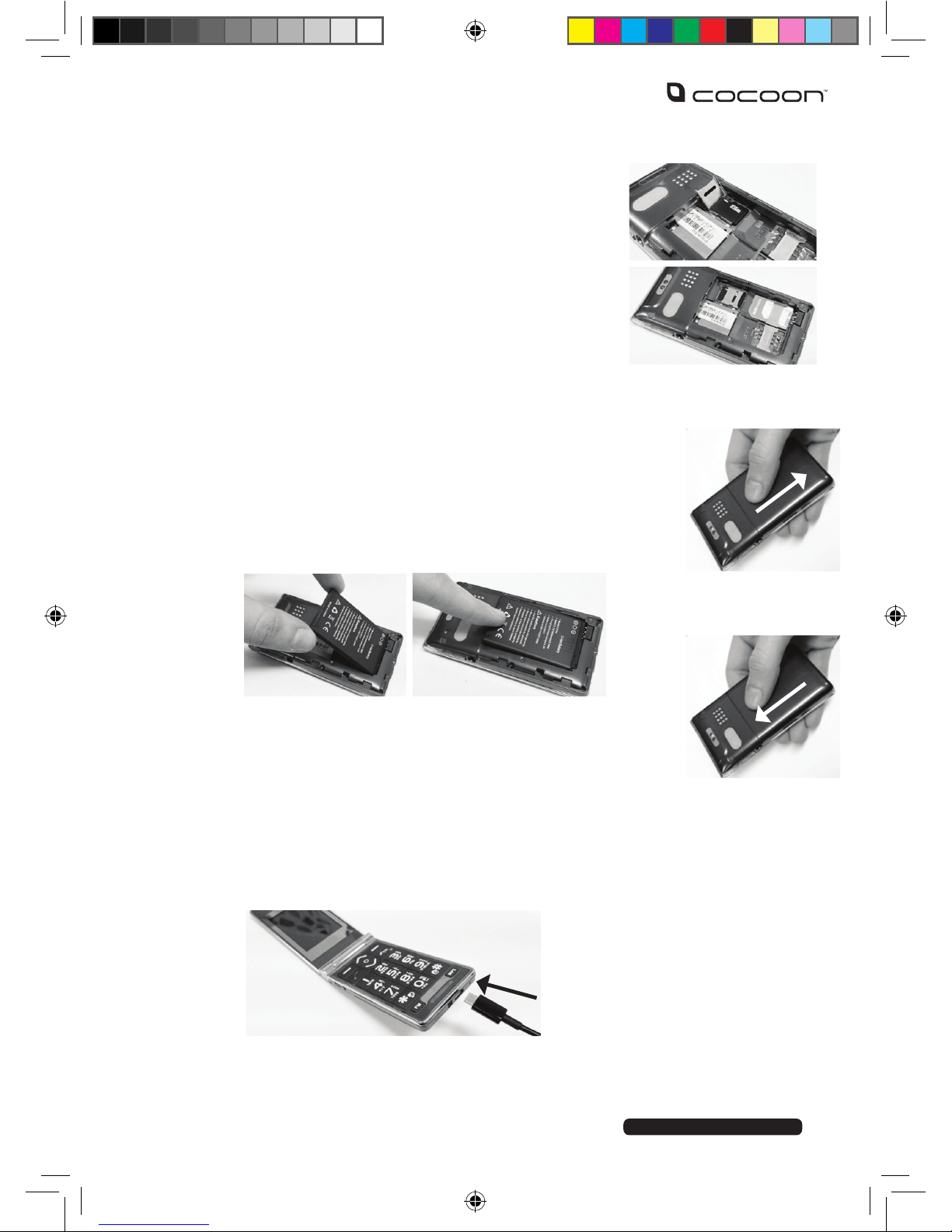

1. Slide the rear cover of the phone away from the flip hinge
to remove the cover.

2. If the battery is installed, remove the battery.

3. Slide your SIM card under the metal clasp, into the bay marked
“SIM1”. The copper contacts must face down,
and the cut corner of the SIM card must be inserted last.

Note: The SIM card must be inserted in SIM 1 in order to use the emergency SOS functions.
See page 22 for details on dual sim use.

2. INSERTING A MICRO SD CARD

You can store additional photos, music and videos on your phone by inserting a
Micro SD card (not included) up to 32GB.

To insert the Micro SD card:

1. Slide the rear cover of the phone away from the flip hinge
to remove the cover.

2. If the battery is installed, remove the battery.

3. Slide the metal cover of the Micro SD slot towards the hinge of the mobile phone,
as shown. Lift the metal cover up to expose the Micro SD connector.

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

10

4. Insert the Micro SD card into position, with the copper
contacts face down.

5. Lower the metal cover of the Micro SD card slot and
slide to the lock position, as marked.

3. INSTALLING THE BATTERY

Before installing the battery you should first insert your SIM card and Micro SD card
(if required) as described in the previous steps.

To insert the battery:

1. Slide the rear cover of the phone away from the flip hinge
to remove the cover.

2. Insert the battery, connecting the copper contacts first and then
pressing the top of the battery into place.

3. Replace the battery cover, sliding it up until you hear a soft click.

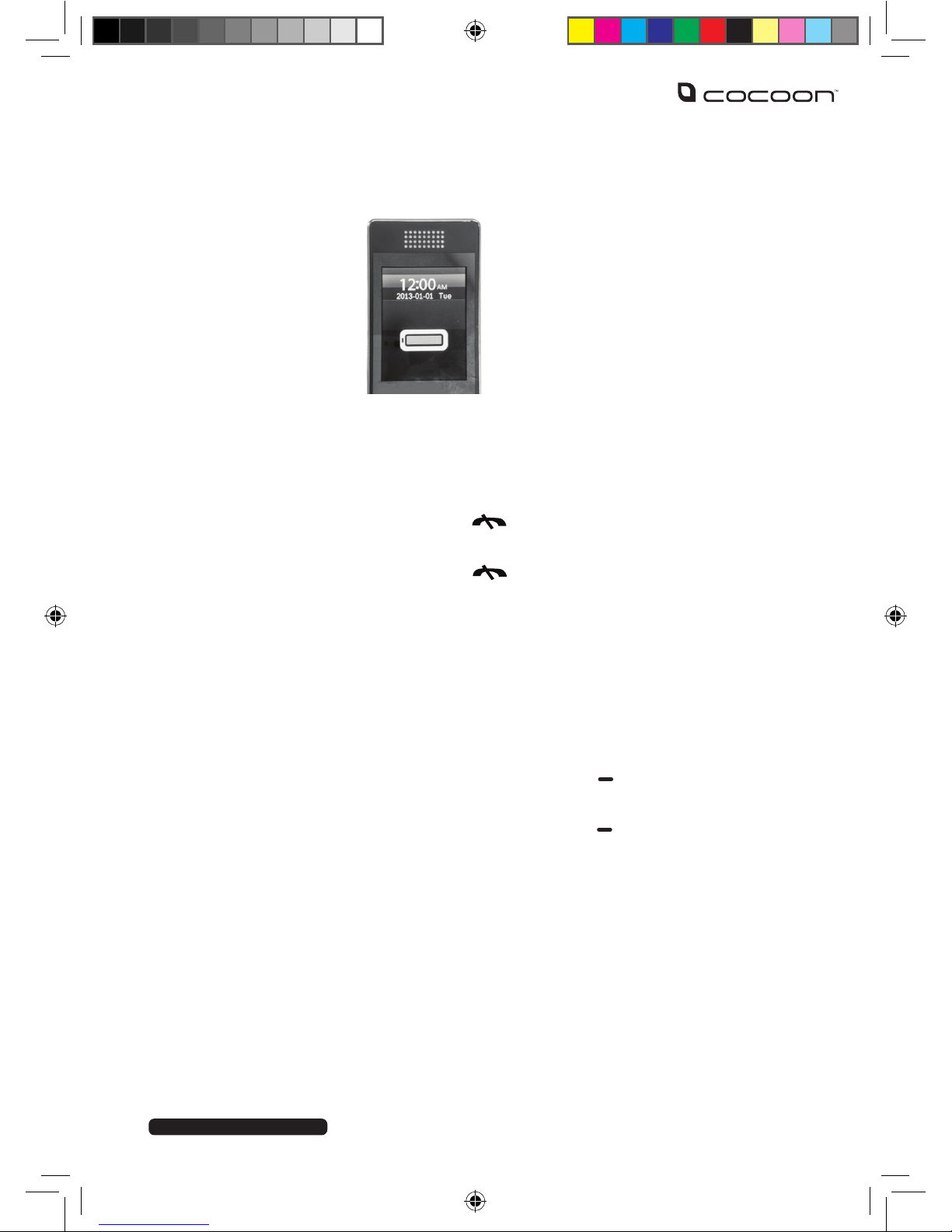

4. CHARGING THE BATTERY

Before you use the phone for the first time, charge the battery for a minimum
of 8 hours.

To charge the battery:

1. Connect the USB cable to the bottom of the phone.

2. Connect the other end of the USB cable to the wall charger.

3. Plug the wall charger into power outlet and switch on.

Instructions

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

11

4. The screen will automatically turn on when connected and display the charging
icon as shown.

Note: This screen indicates that the battery is charging. The mobile phone is not switched on.

5. TURNING ON/OFF

To turn on the phone, hold down the button for 3 seconds until the screen
turns on and the welcome sound plays.

To turn off the phone, hold down the button for 3 seconds until the screen
powers off.

6. SETTING THE DATE AND TIME

When you turn on your phone for the first time, you will be prompted to set the time
and date.

1. Enter the year, month and day using the numerical keypad.
Date format is YYYY/MM/DD.

2. Once you have entered the date, press the left side button to enter your selection

3. Enter the time using the numerical keypad. Time format is HH:MM AM/PM.

4. Use the Up and Down button to switch between AM and PM.

5. Once you have entered the time, press the left side button to enter your selection
and complete the setup process.

Tip: By default the phone is set to 12hr time. You can alter this later in the settings menu. See
page 22 for details.

Note: The time and date will be reset every time the battery is removed or the battery runs
completely flat. You will be prompted for the date and time when turning on each time a reset
has occurred.

Instructions

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

12

Instructions

7. NAVIGATION CONTROLS

When navigating the Cocoon Flip Mobile Phone menus, the function of the buttons
closest to the screen will change. The current function of each button is displayed
on the screen, closest to the relevant menu button.

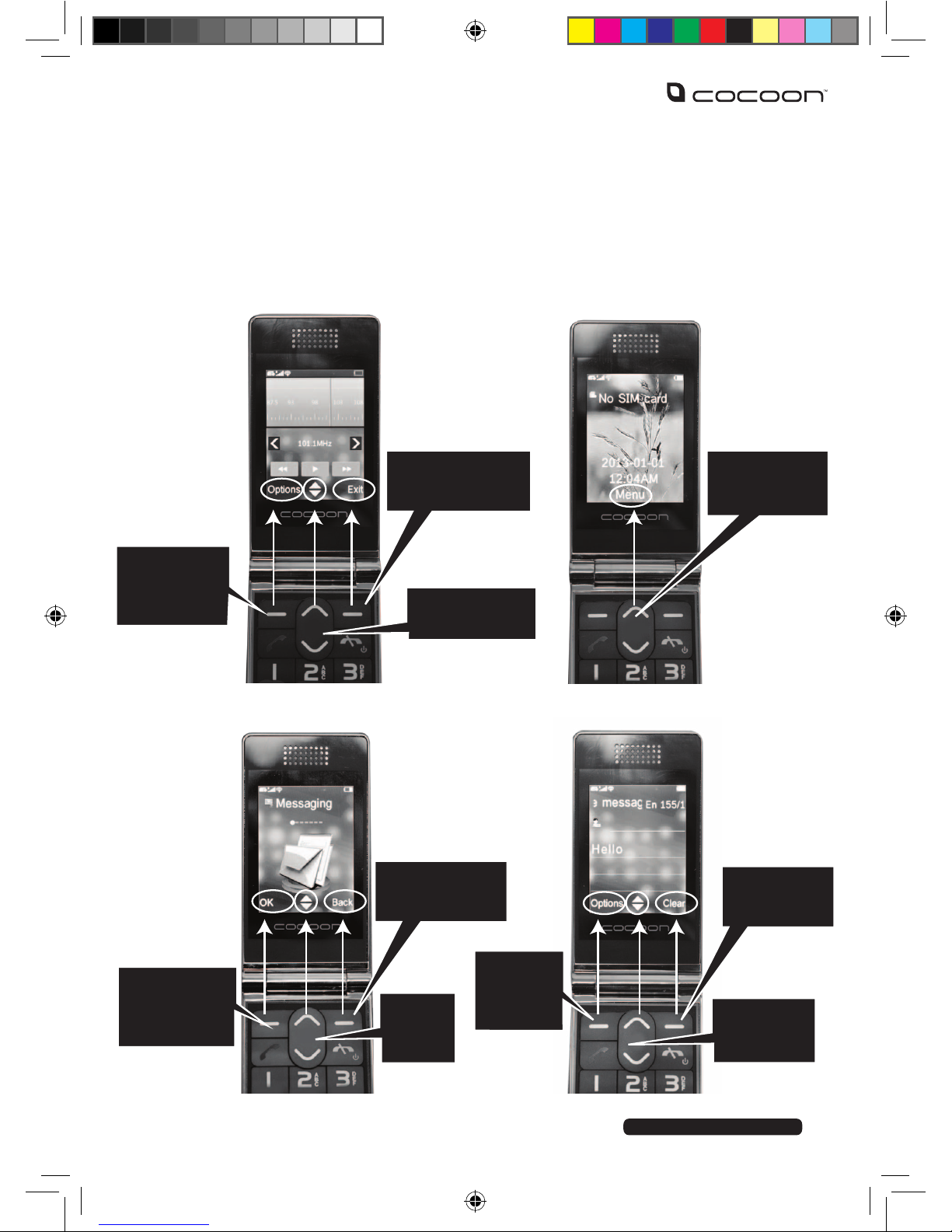

Here are some examples:

Exit

Exit the current
Application

Clear

Clear/
backspace

Back

Step back one
menu

Options

Open the
option menu

Options

Open the
option
menu

OK

Accept the
current
selection

Arrows

Up and Down

Arrows

Up and
Down

Arrows

Up and
Down

Menu

Access the
menu

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

13

Instructions

8. PHONE CALLS

Making a phone call

1. From the home screen, enter the phone number you wish to dial using the
numeric keypad

2. Press the green phone button to place the call.

Note: The screen will display “conditional call divert” when you are placing a call. This
means that for the period of time you are on the phone, your incoming calls will be diverted
according to your call divert settings. See your call divert settings in the “Settings>Call
Settings” menu on page 22.

3. To end the phone call, press the red phone button , or close the
flip phone.

Receiving a phone call

1. Using the “Normal” profile (default setting), the phone will make a ringing sound
when there is an incoming call. See page 19 for more details about customising
profiles.

2. Open the phone to answer the incoming phone call automatically.

 •Ifthemobilephoneisalreadyintheopenposition,youcanacceptthecallby

pressing the green phone button

3. To end the phone call, press the red phone button or close the
flip phone.

Tip: You can customise the ringtone by changing the settings in the profile menu. See
page 19 for more details.

9. DURING CALL OPTIONS

Adjusting the phone call volume

There are two options to adjust the volume during a call

 •Pressthebuttonorthebuttonduringaphonecalltoadjustthe 

volume up or down.

 •Pressthevolumebuttonsonthesideofthemobilephone.

Activating the loudspeaker

1. Press the right button to activate the loudspeaker function.

2. To switch back to regular earpiece mode, press the button again.

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

14

Accessing other functions

During the call you can press the left button to access more options. From here you can:

10. SMS MESSAGING

Sending an SMS

1. From the home screen, press the up arrow to access the main menu.

2. Use the UP and DOWN arrows to navigate to the Messages menu, press
the left button to confirm your selection or press the left button and select
contacts to enter from your phonebook.

3. Select New Message from the menu.

4. Use the keypad to enter the phone number you wish to SMS, then press the
DOWN button.

5. The cursor should display on the line below the phone number. Use the keypad
to write your text message.

Tip: See section 11 for further instructions about entering text using the keypad.

6. Press the left button, then select send from the menu.

Receiving an SMS

1. When a new SMS is received, the phone will play the message alert tone.
The message alert tone can be customised to suit your needs. See page 20 for
more details about customising profiles.

2. Open the phone, and you will be presented with a screen saying New Message

3. Select Read using the left button.

4. The message is now displayed. Use the UP and DOWN buttons to scroll through
the message text.

Tip: SMS messages can be read at any time, using the Messages menu. See page 17 for
more details about the Messages menu.

11. ENTERING TEXT

Several functions on the Cocoon Flip Mobile Phone will require you to enter text. To
enter text using the numeric keypad, the multi-tap method is used by default to
enter each character.

Instructions

FUNCTION DESCRIPTION

Add a new call Begin a new call. This will place the current call on hold

Hold Place the call on hold

Start Recording Start recording the call

Mute Mute your microphone

Adjust Volume Adjust the call volume

Contacts Access your contact list

Call Logs Access your call logs

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

15

Instructions

Text entry modes

When entering text, press # to access the text entry menu. You have the following
options:

En – Predictive text, first letter of each word capitalised
en – Predictive text, no capitalisation
EN – Predictive text, all capitalised
Abc – Multi-tap method, first letter of each word capitalised
abc – Multi-tap method, no capitalisation
ABC – Multi-tap method, all capitalised
123 – Number entry

Multi-tap method

Each numeric key on the keypad contains 3 or 4 letters, for example, the number
2 contains the letters A, B, C. To enter “C” into a text field, you will press the “2”
key 3 times quickly. You will see the letter “C” appears on the screen. You can then
enter the next letter by the same method.

Example:
HAPPY would be entered as text by pressing 44 2 7 7 999.

Predictive text method

Using predictive text, words are entered as a whole, rather than each letter. Each
numeric key on the keypad contains 3 or 4 letters, for example, the number 2
contains the letters A, B, C. To create a word, you press the button for each letter
in the word once – the phone then predicts the word you are trying to enter, and
displays it on the screen. To accept the word, press 0, and continue to type the next
word. Cycle through suggested words with the Up/Down buttons.

Example:
HAPPY CHILDREN would be entered as text by pressing 42779 0 24453736 0.

Special characters

Special characters, such as , . ? ! : ; “ ‘ ~ can be added by pressing the * button
when typing.

12. SOS FUNCTION

The Cocoon Flip Mobile Phone features a large SOS button for safety and security. The SOS
button activates voice dialling and SMS messaging to up to 5 programmable numbers. These
numbers can be close family or friends who may be able to provide swift assistance in times
of need. Note that this feature must not be programmed to dial “000” emergency services.

The SOS function is not a substitute for dialling emergency services on “000”. In the case
of a genuine emergency, always dial “000”.

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

16

A. SETTING SOS PHONE NUMBERS

1. From the main menu, navigate to the Tools menu.

2. Scroll down using the UP and DOWN navigation buttons until you reach
EmergNUM.

3. Press the left side button to access the selected menu.

4. Scroll up and down the menu to view the currently programmed emergency
contact numbers. You can have up to 5 different emergency contacts.

5. To edit an emergency contact number, scroll to it in the menu, then press the
left side button to edit.

6. Use the keypad to edit the phone number, then press the left side button to
accept the changes.

7. When you have completed editing the emergency contact numbers, press the
red phone to return to the home screen.

Tip: The numbers programmed into the EmergNUM list should be phone numbers of close
friends and family. You should discuss this feature with your friend or family member before
entering their number into the EmergNUM menu. SOS calls to the emergency services (000, or

112) are not allowed. Do not save 000 or 112 in the EmergNUM list.

B. SETTING UP SOS DIALLING

When enabled, pressing the emergency SOS button will automatically dial the
number(s) in your EmergNUM list. It will cycle through the numbers in the list until
cancelled or someone picks up the phone.

1. From the main menu, navigate to the Tools menu.

2. Scroll down using the UP and DOWN navigation buttons until you reach
SOS Ring.

3. Press the left side button to access the selected menu.

4. To enable the SOS function, highlight Activate, then press the left side
button to confirm your selection.

C. SETTING UP SOS MESSAGING

You can customise the emergency SMS text that will be sent to your emergency
contact list.

1. From the main menu, navigate to the Tools menu.

2. Scroll down using the UP and DOWN navigation buttons until you reach EmergMSG.

3. Press the left side button to access the selected menu.

4. Use the keypad to enter the text you would like to send when the SOS function
is activated.

5. Press the left side button to confirm your selection.

D. USING THE SOS BUTTON

1. To use the Emergency SOS button, simply hold down the large SOS button on the
rear of the phone for 2 – 3 seconds.

2. When the button is pushed, an alarm will sound.

Instructions

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

17

Instructions

3. If emergency SMS is active, the pre-programmed text will be sent to all the
numbers in your EmergNUM list.

4. If emergency dialling is active, the phone will commence dialling the numbers in
your EmergNUM list in sequence. Each number will be dialled for 15 seconds until
the phone is answered otherwise it will move on to the next number.

Tip: Pressing the SOS button while the SOS dialling is active, the phone will skip
to dialling the next number in the list.

5. To end the SOS emergency function, open the phone and press the red phone

button .

Warning: The dialling sequence will end once the phone is answered includes voicemail.
Ensure your emergency contacts’ ring length is longer than 15 seconds otherwise voicemail
may stop the SOS call feature. Your emergency contacts can consult their mobile carrier for
details on changing the ring length.

13. MAIN MENU OPTIONS

The main menu contains all the features, functions and settings which are available on
your phone.

1. You can access the main menu from the home screen by pressing the UP ARROW
or the left side button.

2. Use the UP and DOWN ARROWS to navigate the available sub menus.
You can press the left side button to access the selected sub menu.
Below is a summary of the available sub menus and their functions.

Tip: You may return to the home screen at any time by pressing the red phone button

.

13.1 Messaging

The messaging menu gives you access to SMS messaging services on
your phone.

FUNCTION DESCRIPTION

Write Message Write a new SMS message

Inbox Access your received SMS messages

Outbox SMS messages which failed to send

Drafts Draft (unsent) SMS messages

Sentbox Sent SMS messages

Templates Edit pre-written SMS message templates

Broadcast Messages Settings for cell broadcast messages

Voice mail server Voice mail service settings

SMS Settings Choose which SIM to send SMS’s from, to save sent SMS’s and

where to save stored SMS messages

Message Capacity Shows current phone memory usage for SMS messages

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

18

Instructions

13.2 Call Logs

The call logs menu gives you access to your call history

FUNCTION DESCRIPTION

Missed Calls Shows recent missed numbers

Dialled Calls Shows recently dialled numbers

Received Calls Shows last received call numbers

Delete All Calls Deletes all call records

Call Timers Shows call time history

Note: This menu is not available until you make or receive a call.

13.3 Contacts

The Cocoon Flip Mobile Phone can hold up to 300 contacts. Select the
Contacts icon from the main menu to access your phonebook.

To add a new contact

1. Open the contacts sub menu by navigating through the main menu, selecting
the contacts icon.

2. Press the left side button to access the options menu.

3. Highlight New in the menu and press the left side button.

4. You will be prompted to select whether you want to save the contact on
your phone or SIM card. Select your preferred location and press the left side
button.

5. Use the keypad to enter the details of the contact you wish to add, including
name, mobile phone number, home phone number, contact image, contact
grouping, and custom ringtone for the contact.

6. Once all details have been entered, select “done” by pressing the right side
button to confirm your selection.

7. You will be prompted to save your contact. Pressing the left side button
will confirm.

Searching for contacts

1. Open the contacts sub menu by navigating through the main menu, selecting
the contacts icon.

2. Begin typing the name of the contact you wish to search for using the keypad.

3. As you type, the list of contacts shown will be refined. The more detail you type,
the more refined your search results will become.

4. You can also scroll through the list of results by using the UP and DOWN
arrow button.

5. Press the left side button to access the options menu to call, write an
SMS or see more detail about a highlighted contact.

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

19

Instructions

To delete a contact

1. Open the contacts sub menu by navigating through the main menu, selecting the
contacts icon.

2. Use the UP and DOWN arrow buttons to highlight the contact you wish to delete.

3. Press the left side button to access the options menu

4. Highlight Delete and press the left side button to delete a contact

5. You will be prompted to confirm your selection. Pressing the left side button
will confirm your selection.

Note: Once you delete a contact you cannot retrieve it.

13.4 Profiles

Profiles set the way your phone will behave when receiving calls, messages,
alerts and notifications. You can select from 5 different profiles to suit your needs.
You can quickly check which profile is active by checking the icon which appears
in the top left corner of the screen, to the right of the reception indicator.

NORMAL SILENT MEETING INDOOR OUTDOOR

Icon shown No icon

During call
volume

Loud Quiet Quiet Medium Loud

Calls & SMS
Volume

Medium Silent Silent Medium Loud

Ring behaviour Ringtone only No ringtone

No vibrate

Vibrate only Ringtone

only

Ringtone and
Vibrate

Other Alerts &
Notifications

Activated
using default
Ringtones

Deactivated Deactivated Activated

using default
Ringtones

Activated
using default
Ringtones

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

20

You can customise the behaviour of each profile to suit your needs:

1. Open the profiles sub menu by navigating through the main menu,
selecting the profiles icon.

2. Use the UP and DOWN buttons to navigate to the profile you wish to edit.

Tip: The currently active profile is shown with a green dot next to it on the
right of the menu.

3. With the profile name highlighted, select “OK” by pressing the left side
button.

4. Use the UP and DOWN arrow buttons to highlight “Settings”, select “OK” by
pressing the left side button.

5. Navigate through the menus to change the settings as required. A summary of
the settings you are able to customise is shown in the table below.

MENU MENU ITEM DESCRIPTION NOTES

Ring
Settings

SIM 1 call ring Ringtone melody for

incoming calls through
SIM 1

The phone comes with
built-in ringtones, shown
under the “Fixed ringtones”
menu option. You are also
able to set an MP3 file as
your ringtone, by selecting
the “More ringtones” menu
option.

SIM 1 message ring Ringtone melody for

incoming SMS through
SIM 1

SIM 2 call ring Ringtone melody for

incoming calls through
SIM 2

SIM 2 message ring Ringtone melody for

incoming SMS through
SIM 2

Adjust
Volume

Caller ringtone Volume for incoming call

ringtone

Menu items shown in grey
are not active in the chosen
profile, and may not be
selected.

Message ringtone Volume for incoming

SMS message alert

Alarm & calendar
ringtone

Volume for alarms and
calendar notifications

Call volume In-call voice volume

Power ringtone Volume for power on/off

melody

Key read volume Volume for spoken

number key functions

Instructions

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

21

Instructions

MENU

MENU ITEM DESCRIPTION NOTES

Ring Type

SIM 1 call alert Alert behaviour for

incoming calls through
SIM 1

For each menu item, you
can choose from the
following behaviours:
Ringtone – Audible alert
only Vibrate – Vibration alert
only Silent – No vibration or
audible alert Vibrate then
Ring – Vibration alert first,
then audible alert sounds
Ring and Vibrate – Audible
alert and Vibration alert
concurrently

SIM2 call alert Alert behaviour for

incoming calls through
SIM 2

SIM 1 message alert Alert behaviour for

incoming SMS messages
through SIM 1

SIM 2 message alert Alert behaviour for

incoming SMS messages
through SIM 2

Alarm & Calendar
remind

Alert behaviour for
alarms and calendar
events

Other Alert
Rings

Key tone Silent or audible key

tones when typing

Battery low alert Turns battery alerts on

or off

Power ringtone Turns power on / off

ringtones on or off

Power ringtone Select the ringtone

desired for power on / off

Flip tone Turn the close flip tone

on or off

Flip on tone Turn the open flip tone

on or off

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

22

Instructions

13.5 Settings

The settings menu gives you access to a range of different options.

MENU SUB-MENU DESCRIPTION

Phone Settings

Date and Time Change your phones time and date settings

Language Settings Switch between languages

Shortcut Settings Edit shortcut settings

Auto Power Set auto-power on in the morning or auto-

power off in the evening

Restore Factory
Defaults

Resets the phone to factory defaults.
WARNING: This will erase all information
stored on the phone

Display

Animation Effects Change your power up and power off

animations

Wallpaper Settings Change your background wallpaper

Screen Saver Settings Change your screen saver settings

Contrast Settings Change the screen contrast

Keypad Backlight Select keypad backlight duration

Security

PIN Alter your SIM card PIN setting for added

security – contact your service provider for
further information

Modify PIN2 Alter your secondary SIM card PIN setting for

added security – contact your service provider
for further information

Call Settings

Dual SIM Edit SIM settings including standby mode, SIM

name and SIM colour

Call Divert Edit call diversion and call forwarding settings

Call Waiting Enable / disable call waiting service

Call Barring Block incoming/outgoing calls, placing calls

to international numbers, blocking calls when
international roaming Note: The call barring
settings can be password protected. Make
sure you remember your password.

Hide ID Enable/disable your caller ID from being

displayed

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

23

Instructions

MENU

SUB-MENU DESCRIPTION

Call settings
continued

Answer Mode Enable calls being answered when cover is

opened or any key is pressed

Others Set a call timer, automatic re-dialling if a call is

dropped, vibration alerts when placing a call,
and automatic voice recording for phone calls

Connections

Bluetooth Control Bluetooth visibility, pairing to headsets

and file sharing via Bluetooth

Network Account Settings for accessing data over the mobile

network

GPRS Service Activate / deactivate GPRS data service on the

handset

Data Connection Choose how often your mobile phone will

connect to the data provider

Network Selection Select which network provider to connect with

Pairing a Bluetooth Device

You can pair your Cocoon Flip Phone to your Bluetooth devices such as Bluetooth speaker
system or Car Handsfree Kit.

1. From the main menu navigate to the Settings menu

2. Open the Connections submenu and then Bluetooth.

3. Activate Bluetooth by pressing the left side – button. There will be a tick in the
box to confirm Bluetooth is active.

4. Navigate to the Paired Devices options and press the left side – button to open.

5. Select Add New Device to search for available Bluetooth devices nearby. A list
will show you all nearby devices.

6. Select the device you wish to pair to and select Pair using the left side button.

7. Depending on the device you are connecting to, you may be prompted to enter a
PIN code to confirm pairing.

8. Your phone will now automatically connect to the paired device whenever it is
in range.

13.6 Tools

The tools menu contains a variety of helpful applications for everyday use.
To access the applications in the table below, navigate to the tools menu and
select the application you want to use.

FUNCTION DESCRIPTION

Magnifier Turns your mobile phone camera into a magnifying glass. Using the

camera zoom function, an enlarged image is displayed on the screen. This
is ideal for viewing small text.

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

24

Medicine
Reminder

Set reminders to take medication, including the drug name, dose time, and
repeating doses. Up to 10 medication reminders can be set, each with a
custom reminder tone.

Calculator Basic calculator function. Use the arrow keys and numerical keypad to

perform mathematical calculations.

Alarm Set up to 3 alarms. Each may have a custom ringtone, and can be set

to repeat or only sound once. Custom text labels can be added to your
alarms.

Calendar Provides basic calendar function.

Add appointments and reminders to the calendar.
Button controls:
7 – Back 1 month 9 – Forward 1 month * - Back 1 day # - Forward 1 day ^ ­Back 7 days V – Forward 7 days

Memo Like a notepad in your pocket, you can make notes and save important

information using the Memo application.

Stop Watch Use your phone as a stopwatch. Accurate to 1/10th of a second.

Speed Dial Set one touch speed dialling for numbers 2-9 and the # and * keys on the

keypad. Once numbers have been set, it allows you to press and hold the
number key for 1 second to place a call from the home screen.

SOS Ring
Emergency
Numbers
Emergency SOS

Applications for control of the SOS dialling function. See section 9 for
more information about the correct use of this function.

13.7 Multimedia

Access and record movies, photos, audio and radio using these applications.

APPLICATION
NAME

DESCRIPTION

Internet Use to browse the internet for your favourite web pages.

* Data charges may apply-contact your service provider for details on your
data plan.

Camera Take photos using your phone’s digital camera. Use the UP and DOWN

keys to zoom, and press the green phone to capture a photo. For full
instructions, refer to page 25.

Image Viewer View photos taken using the camera application

Video Recorder Take videos using your phone’s digital camera. Use the UP and DOWN keys

to zoom, and press the green phone

to begin video capture. To end
video capture, press the left side button.
For full instructions, refer to page 26.

Video Player Play back video files recorded with the Video Recorder application

Instructions

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

25

Instructions

Audio Player Play back audio files contained on the micro SD card. All music files for

playback must be located in a folder called “My Music” on the micro SD card
for correct operation. MP3 and WAV formats are supported.

Record Voice recorder for taking voice memos. You can save the voice memo as

WAV or a compressed file type for listening later.

FM Radio In-built FM radio with recording capability.

To listen to the radio:

1. Plug in your earphones to the jack right side of the phone

2. In the FM radio application, select Options>Auto search to
begin scanning for radio stations

3. After search is complete, select Options>Channel list to see
select the channel you want to listen to

To record the radio:

1. When listening to the radio, select Options>Record.

My Files View files stored on the micro SD card. If no micro SD card is installed, the

internal memory is shown.

13.7.1 Camera Application - Controls

BUTTON FUNCTION

Up Arrow Zoom in

Down Arrow Zoom out

Right Menu
Button

Back/ Exit Camera

Left Menu
Button

Camera Options – Image Viewer/ Settings/ Help

End Call Button Close all and return to the home screen

Answer Call
Button

Capture Image

No. 1 Button Set save destination as micro SD card

No. 2 Button Activate digital video mode

No. 3 Button Change resolution – 1600*1200/1280*960/640*480/320*240/240*320

No. 4 Button Toggle between Day and Night mode

No. 5 Button Alter White Balance setting – Auto/ Fluorescent/ Cloudy/ Tungsten/ Daylight

No. 6 Button Timer – Off/ 3 seconds/ 10 seconds

No. 7 Button Set save destination as internal phone memory

No. 8 Button Multiples shots – Off/ 3/ 6

* Button Increase brightness

# Button Decrease brightness

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

26

Instructions

13.7.2 Video Recorder Application - Controls

BUTTON FUNCTION

Up Arrow Zoom in

Down Arrow Zoom out

Right Menu
Button

Back/ Exit Camera

Left Menu
Button

Camera Options –Video Directory/ Settings/ Help End video capture when
recording video

End Call Button Close all and return to the home screen

Answer Call Button Begin recording video

No. 2 Button Activate image capture mode (see Camera Application)

No. 3 Button Change resolution: 352*288/320*240/176*144/160*128/128*96

No. 4 Button Change recording colour:

Blue/ Green/ Yellow/ Red/ Sepia(old)/ Negative

No. 5 Button Alter White Balance setting – Auto/ Fluorescent/ Cloudy/ Tungsten/

Daylight

* Button Toggle brightness up

# Button Toggle brightness down

13.7.3 Video Player Application - Controls

BUTTON FUNCTION

Up Arrow Rewind

Down Arrow Fast Forward

Right Menu
Button

Back/ Exit/ Stop Video

Left Menu
Button

Video Player Options –Play/Open/Full Screen/Repeat/Shuffle/Set As/ Play
Mode/ Details/ Settings Reset/ Help/ Exit

End Call Button Close all and return to the home screen

Answer Call Button Record Video

No. 2 Button Toggle between full screen and window view

* Button Mute Video

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

27

Instructions

13.7.4 Audio Player Application - Controls

BUTTON FUNCTION

Up Arrow Play/ Pause

Down Arrow Start audio from beginning

Right Menu
Button

Back/ Exit

Left Menu
Button

Audio Player Options –Play/ Pause/Music List/ Music Mark/ Add/ Set As
Ringtone/ Shuffle/Repeat/ Settings/ Open Review/ Exit

End Call Button Close all and return to the home screen

No. 2 Button Toggle between full screen and semi screen

* Button Skip to next audio track

# Button Go back to previous audio track

13.7.5 FM Radio Application - Controls

BUTTON FUNCTION

Up Arrow Play/Pause

Phone Book Button Back/Exit

Menu Button FM Radio Options –Play/ Auto Search/Channel List/ Save/ Manual Search/

Close Speaker/ Background Play/ Record/ Record File List/ Storage/ Help

End Call Button Close all

* Button Skip to next station

# Button Go back to previous station

13.7.6 Internet Application - Controls

Note: Browsing the web may incur additional data usage costs. Please check with
your service provider before using the Internet application.

BUTTON FUNCTION

Green Phone Button Use to select links, enter text boxes. The same as a left mouse button

Red Phone Button Exit the browser

Keypad Used to enter text, the same as you would in sending an SMS

Right Menu Button Stop or cancel page loading or data being sent

Left Menu Button Enter the options menu, use to enter a new website URL

Up/Down Arrow Use to navigate the website

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

28

14. TORCH MODE

The torch function is designed to provide extra illumination when performing small
tasks. When activated, the LEDs on the rear of the phone will be switched on to
provide light.

1. You can access the torch function at any time – even when the phone flip
is closed.

2. Slide the switch on the left side of the phone towards the phone hinge.

3. The LEDs will now be switched on.

4. When you have finished using the light, slide the switch back to the original
position, switching off the LEDs.

Note: If the LEDs are left on for long periods of time, the battery may run flat quickly.

15. CONNECTING TO A COMPUTER

Charging from a computer

The Cocoon Flip Mobile Phone can be connected to a computer to charge the battery

1. Insert one end of the USB cable into the mobile phone

2. Insert the other end of the USB cable into the computer

3. Select “Charging” from the menu displayed on the mobile phone screen

Using your phone as a storage device

The Cocoon Flip Mobile Phone can be connected to a computer to access the photos,
videos and music files on the micro SD card or the internal memory.

1. Insert one end of the USB cable into the mobile phone

2. Insert the other end of the USB cable into the computer

3. Select “U Disk” from the menu displayed on the mobile phone screen

4. Your computer will now see the phone as a removable storage device. If you have
a micro SD card inserted, then the phone will appear as two removable devices –
one for internal memory, and one for SD card.

5. Drag and drop your videos, photos, and music files using your computer’s default
file browser

6. When you are finished organising files, you must eject the disks before
disconnecting
a. Windows: select “safely remove hardware” from the bottom-right corner of
the screen
b. Mac: drag the removable disk to the trash

7. You may now unplug the phone safely

Instructions

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

29

Troubleshooting

PROBLEM SOLUTION

Phone won’t turn on - Ensure the battery is fully charged.

- Ensure the battery is inserted in the phone correctly.

- Check the copper battery terminals show no signs of
damage

Phone won’t make calls or send
text messages

- Check the SIM card is inserted into the phone
correctly. (See instructions on page 9)

- If your SIM card is on a prepaid service, check that
there is credit on your account by contacting your
network provider.

- Check the primary SIM is connected to the position
marked “SIM 1”

My music files won’t play - Only MP3 and WAV format are supported. Check that

your files are in MP3 format or WAV format.

- Make sure that your music files are contained in the
folder marked “My Music” on your micro SD card

- Check the volume is turned up -If listening though
earphones, check they are functioning correctly

My video files won’t play Only MP4, AVI and 3GP format are supported. Check

that your files are in MP4, AVI and 3GP format.

My phone doesn’t ring during an
incoming call

Check the profile is set to normal or outdoor. If the
profile is set to silent or meeting, then there will be no
ringtone. More information about profiles can be found
on page 19

How do I turn the torch off? Flip the switch on the left hand side of the phone.

How do I activate the torch? Use the dedicated switch on the left side of the mobile

phone. Slide the switch to activate the torch feature.

The alarm will not turn off Open the flip phone and press the red phone button.

How do I stop the SOS function? If you have accidentally pressed the SOS button, and

activated the SOS dialling feature, you can abort the
dialling sequence by opening the phone, and pressing
the red phone button

.

When pressing the keys in dialling
mode, each number is not read
aloud as I expected.

The audible number key tones feature can be modified
in the profile settings:
Navigate to Profiles>Profile name>Settings>Adjust
Volume>Key Read Volume. Adjust the volume level to
your desired level.

Tip: The currently active profile determines the
behaviour of your phone. It is shown with a green
dot to the right of its name in the Profiles menu. For
more information about profiles, see page 19

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

30

Troubleshooting

PROBLEM SOLUTION

How do I set a custom MP3
ringtone?

Ringtones can be modified in the profile settings:
Navigate to Profiles>Profile name>Settings>Ring
Settings Select the ringtone you wish to modify
(usually “SIM 1 call ring”) then press the left menu
button to edit the setting. Select “More ringtones”,
then navigate to the location on your memory card
where the MP3 file is stored, and select the MP3. Press
“Done” to save your changes.

Tip: The currently active profile determines the
behaviour of your phone. It is shown with a green
dot to the right of its name in the Profiles menu. For
more information about profiles, see page 19

How do I select between SIM 1
and SIM 2?

You can insert two SIM cards into the phone.
Operation of the phone is identical to use with only
SIM1, except that where two SIM cards are installed
you will be prompted to select which SIM card to use
to place a call or send a SMS message.

How do I change the behaviour of
my second SIM card?

2 SIM cards are supported. The primary SIM is always
inserted into the bay marked “SIM1”. The secondary
SIM is inserted into the bay marked “SIM2” To access
the Dual-SIM menu, press the DOWN arrow button
from the home screen. You will see the following
options: Standby mode – Select which SIM cards are
active Reply by original SIM – Reply to SMS or calls
using a particular SIM card Set SIM name – You can
rename your SIM cards. eg: “Work” and “Personal”
Set SIM colour – You can choose a colour code system
to show which SIM is currently active

How do I activate flight mode? From the home screen, press the DOWN arrow

to access the Dual-SIM menu. Navigate to Dual­SIM>Standby Mode>Flight mode When flight mode
is active, you will see an aeroplane icon in the top left
corner of the screen.

What if I have a micro SIM? Contact your network provider for assistance in

obtaining a standard size SIM card.

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

31

For additional support including helpful guides and videos, visit the
Cocoon support website at www.winplus.com.au

Telephone: [phone]
Email: [e-mail]

Warranty Details

This product is warranted against defects for a period of One year If
the product is faulty, Winplus will repair or replace the product (at its
discretion) at no cost to you provided the Cocoon Flip Mobile Phone has
been used in accordance with instructions provided. The benefits under
our Warranty are in addition to other rights and remedies under consumer
law in relation to these goods. Our goods come with guarantees that
cannot be excluded under the Australian Consumer Law. You are entitled
to a replacement or refund for a major failure and for compensation for any
other reasonably foreseeable loss or damage. You are also entitled to have
the goods repaired or replaced if the goods fail to be of acceptable quality
and the failure does not amount to a major failure.

Winplus Australasia Pty Ltd
PO Box 537
Bayswater Business Centre Vic 3153
03 8727 7600

Support

After Sales Support

Telephone: [phone]
Internet: www.winplus.com.au

32

IT114039V2
