Nucleus® CR210 Remote Control
User Guide
Symbols
Note
Important information or advice. Can save
inconvenience.
Tip
Time saving hint or saves inconvenience.
Caution (no harm)
Special care to be taken to ensure safety and
effectiveness.
Could cause damage to equipment.
Warning (harmful)
Potential safety hazards and serious adverse
reactions.
Could cause harm to person.
Contents
About ...............................................................................................................................4
Turn on.............................................................................................................................6
Turn on and off ........................................................................................................6
Pair ............................................................................................................................. 7
Out of range ............................................................................................................8
Use ....................................................................................................................................9
Change programs ....................................................................................................9
Change volume or sensitivity ............................................................................. 10
Talk on the phone ..................................................................................................11
Battery ........................................................................................................................... 13
Care ................................................................................................................................ 15
General warnings and cautions ...............................................................................16
Other information ....................................................................................................... 17
About
Cochlear Nucleus CR210 Remote Control
The Cochlear Nucleus CR210 Remote Control is a simple hand-held controller for
your Cochlear Nucleus CP900 Series Sound Processors. The remote allows you to:
1. change programs
2. turn volume or sensitivity up and down
3. turn the telecoil on and off
4. turn auto telecoil on and off
5. turn audio accessories on and off
If you are a bilateral recipient, your remote control can communicate with both
your processors at once. For more information on your sound processor, refer to
the Cochlear Nucleus CP900 Series Sound Processor User Guide.
About
Note
"Volume" describes the level of the sounds you hear.
"Sensitivity" describes the range of sounds you hear
e.g. soft, background, close or far away. Usually, your
clinician will set up your remote control to control
volume. But your clinician can set it up to control
sensitivity instead.
On/Off
Program number
Volume or
sensitivity up
Volume or
sensitivity up
Volume or
sensitivity down
Next program
Previous program
Teleco il On /
Auto/Off
Tel ecoi l
Volu me/se nsitiv ity
level
Cochlear CR210 Basic Remote Control
Low battery indicator
Auto Telecoil
Left/Right
processor (paired)
Volume/sensitivity l abel
Program label
4 - CR210 User Gu ide © Cochlear Limited 2012 © Cochlear Limited 2012 CR210 User Gu ide - 5
Turn on
Turn on and off
Slide the switch up to turn on.
Slide the switch down to turn off.
When the switch is in the up position, the
display will "go to sleep" when not in use. Press
any button on the keypad to "wake" it again.
Pair
Your clinician may have already paired your remote with your sound processor. If
not, you will need to pair it the fi rst time you use it.
If your remote is not paired to any
processor, the screen appears as above
and the display "blinks" when you press
keys.
Turn on your processor and remote
control. They must both be "awake"
and on at all times when pairing.
Place the coil on the back of your
remote control.
1
2
To pair your processor and remote:
Image of coil over battery will
be briefed into next version.
Tip
Turn off your remote to stop it
"waking" and draining the battery
when not in use e.g. when carried
in your pocket.
6 - CR210 User Gu ide © Cochlear Limited 20 12
Tur n On
© Cochlear Limited 2012 CR210 U ser Guide - 7
The screen will show pairing in
progress.
The screen then shows successful
pairing of left (L) or right (R)
processor.
3
4
Use
Change programs
Your clinician may program your sound processor with up to four programs
to control with your remote.
Press to move to the
next program
Press to move to the
previous program
Bilateral users only - repeat step 2 for
your second sound processor.
5
Out of range
The screen above displays when
the processor is out of range or
experiencing interference.
Ask your clinician to write your programs below
8 - CR210 User Gu ide © Cochlear Limited 2012
Tur n On
© Cochlear Limited 2012 CR210 User Guid e - 9
Change volume or sensitivity
Press to turn up the volume
or change sensitivity.
Press to turn down the volume
or change sensitivity.
Usually, your clinician will set up your remote control to control the volume of
the sound you hear. But your clinician can instead set it up to control sensitivity.
"Sensitivity" describes the range of sounds you hear e.g. soft, background, close or
far away.
Your sound processor's telecoil (t-switch) lets you listen to hearing loops and hear
voices on the telephone more clearly. You can control it with the telecoil button
on your sound processor. Your clinician will set up your remote with ONE of the
following functions:
1. No telecoil function - you can not control the telecoil with your remote. The
telecoil button on your remote will not do anything.
2. Telecoil only function - you can turn the telecoil on manually with the remote
when you want to listen with the telecoil, and turn it off when you are fi nished.
You will not be able to turn on Auto Telecoil.
Talk on the phone
To turn on the telecoil: Press the
button to display the telecoil icon.
To turn off the telecoil: Press again
to turn the telecoil off.
To use the telecoil only function:
10 - CR210 User G uide © Cochlear Limited 2012 © Cochlear Limited 2012 CR210 User Guide - 11
To turn on the telecoil: Press the
button to display the telecoil icon.
To turn off the telecoil: Press again
to turn the telecoil off.
To turn on auto telecoil: Press again
to display the auto telecoil icon.
3. Telecoil AND auto telecoil function - you will be able to to turn both the
telecoil and the auto telecoil feature on and off with the remote as needed.
When auto telecoil is left on, the telecoil in your sound processor turns on
automatically whenever a hearing loop or phone is in range, and turns off a few
seconds after you move the processor away from the source.
To control the Telecoil and Auto Telecoil feature:

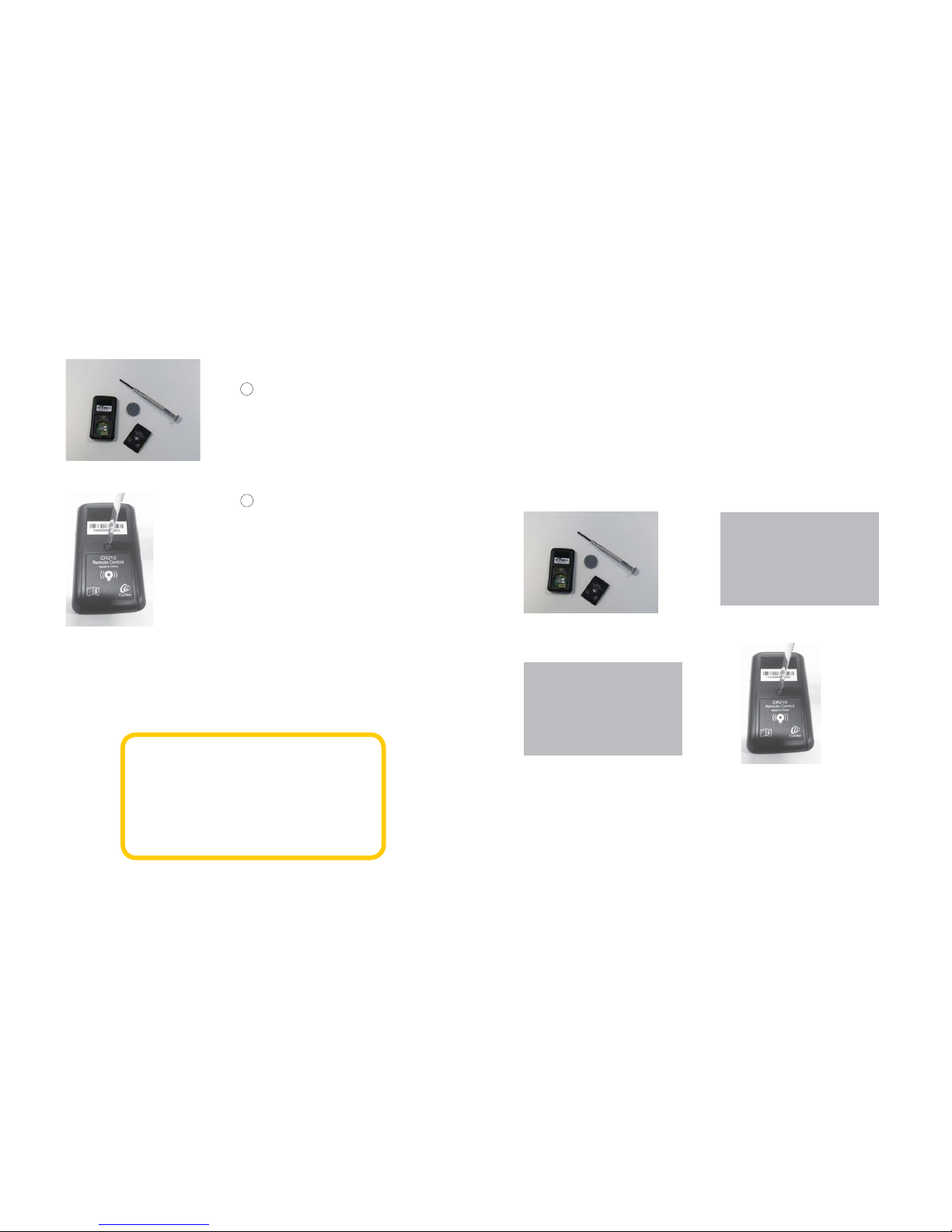

Battery
Battery
Unlock the battery cover by turning
the screw anticlockwise with a
Phillips head screwdriver.
1
Slide off the battery cover and
remove the battery.
2
Change the batteries whenever you can see the low battery indicator or the screen
stays blank when you push the side switch upwards into the unlock position.
To change the battery:
Display showing
low battery
12 - CR210 User Guid e © Cochlear L imited 2012 © Cochlear Limited 2012 CR210 User Gu ide - 13
Insert the new battery. Make sure
the plus sign "+" is facing up.
3
Replace the battery cover bottom
edge fi rst and turn the screw
clockwise to lock the cover in place.
4
Caution
Use disposable CR2032/5004LC 3V standard lithium
coin cell batteries ONLY in your remote control.
Cochlear does not recommend any other battery
type. Do not use rechargeable batteries.
Care
Every day
To keep your remote control clean, wipe its display and buttons with a soft
dry cloth.
Keep your remote dry. If it ever gets wet:
Remove the battery immediately.
Dry it with a soft dry cloth.
Leave it in a well ventilated place
to dry for 12 hours. Do not use a
drying kit.
Put a fresh battery in place.
Insert shot of drying
with a soft cloth
Insert shot of drying
on a shelf next to a window with
no battery
Final render to reinforce plus
side up
14 - CR210 User Guid e © Cochlear Limited 2 012 © Coch lear Limited 2012 CR 210 User Guide - 15
General warnings and cautions
• Use a soft dry cloth ONLY to clean the surface of your remote control.
• Do not use alcohol, household cleaners or abrasive materials to clean your
remote control.
• Do not use the Zephyr dry aid kit or any household appliance to dry your
remote control.
• Do not bend or compress the display on your remote control.
• Do not disassemble, modify, deform or immerse your remote control in water.
If your remote control is not working, return it to your clinician. Warranty will
be void if opened.
• Dispose of electrical components in accordance with your local regulations.
• Do not allow metal objects e.g. keys near the display screen.
• The coin battery could pose a choking hazard to small children. Keep the
battery cover locked at all times. Keep the remote out of reach of very young
children.
The remote control wireless communication link operates in the 2.4 GHz ISM
band using GFSK (Gaussian Frequency Shift Keying) on 10 channels. The link uses
a proprietary bi-directional communication protocol and operates over a distance
of up to 2m from the CP900 series processor. When interference is present, the
wireless communication link switches between the 10 channels to fi nd a channel
where the interference least affects the operation of the link. The remote control
indicates via its display when the processor is not within operating distance, and
when the link has been interrupted due to interference.
Specifi cations
Physical confi guration
The remote control comprises:
• Custom analogue and digital integrated circuits based on a micro-processor
design, with bi-directional wireless communication capabilities.
• Push-buttons and a slider for control of processor features and its own system
features.
• A display for indicating system status and activity.
• In-built coil sensor.
• Lanyard pin.
Materials
The remote control housing and buttons are made of Polycarbonate and
Acrylonitrile Butadiene Styrene (ABS). The display is made of ABS.
Other information
16 - CR210 User Gu ide © Cochlear Limited 2 012
Other information
© Cochlear Limited 20 12 CR210 User Guide - 17
Dimensions
Length Width Height
66 mm 36 mm 10.5 mm
Weight
The remote control with battery in place weighs approximately 35 g.
Operating characteristics
Characteristic Range
Wireless technology Proprietary Low Power Bidirectional Wireless
Link
RF frequency 2.4 GHz
Operating battery voltage 2.0 V - 3.0 V
Battery capacity 230 mAh
Push-key functions Remote control lock and unlock, telecoil/auto
telecoil on and off, program change, volume
or sensitivity settings change
Wireless transmission range Up to 2 m
Display Custom, icon based monochrome LCD
Environmental conditions
Condition Minimum Maximum
Storage temperature -30 ºC (-40 ºF) +50 ºC (+122 ºF)
Storage relative humidity 0% RH 90% RH
Operating temperature +5 ºC (+41 ºF) +50 ºC (+122 ºF)
Operating relative humidity 0% RH 90% RH
Certifi cation and applied standards
The CR210 Remote Control fulfi ls the essential requirements listed in Annex 1
of the EC directive 90/385/EEC on Active Implantable Medical Devices as last
amended by EC Directive 2007/47/EEC.
Equipment classifi cation
Your remote control is internally powered equipment Type B as described in the
international standard IEC 60601-1:2005, Medical Electrical Equipment - Part 1
Basic Safety and Essential Performance.
FCC (Federal Communications Commission) and Canadian IC
compliance
This device complies with part 15 of the FCC Rules and with RSS-210 of Industr y
Canada. Operation is subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that
may cause undesired operation.
Changes or modifi cations made to this equipment not expressly approved by
Cochlear Limited may void the FCC authorization to operate this equipment.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC ID: WTOR200BA
IC ID: 8039A-R200BA
18 - CR210 User Gu ide © Cochlear Limited 2012
Other information
© Cochlear Limited 2012 CR210 User Guid e - 19
Labelling symbols
Consult instructions for use
Storage temperature limits
Relative humidity limits
Disposal - do not dispose in fi re
Disposal – dispose of electrical components in
accordance with your local regulations
Certifi cation - Japan
Certifi cation - Australia
Certifi cation - New Zealand
Serial number
Date of manufacture
Type B applied part
This device restricted to sale by or on the
order of a physician.
Recycle
CE Registration Mark
%
0
90
Legal statement
The statements made in this guide are believed to be true and correct as of
the date of publication. However, specifi cations are subject to change without
notice.
Nucleus® cochlear implant systems are covered by one or more international
patents.
© Cochlear Limited 2012
20 - CR210 User G uide © Cochlear Limited 2012
Printed in Australia
323650 ISS2 APR12
Nucleus is a re gistered trad emark of Cochlea r Limited.
Cochlear a nd the elliptica l logo are tradem arks of Cochlea r Limited.
The state ments made in thi s guide are believe d to be true and cor rect in every d etail as of the date of pu blication. Ho wever,
specifi cations are subjec t to change witho ut notice.
Cochlear Ltd (ABN 96 002 618 073) 14 Mars Road, Lane Cove NSW 2066, Australia Tel: 61 2 9428 6555 Fax: 61 2 9428 6352
Cochlear Americas 13059 E Peakview Avenue, Centennial, CO 80111, USA Tel: 1 303 790 9010 Fax: 1 303 792 9025
Cochlear AG European Headquarters, Peter Merian-Weg 4, CH - 4052 Basel, Switzerland Tel: 41 61 205 0404 Fax: 41 61 205 0405
Cochlear Deutschland GmbH & Co. KG Karl-Wiechert-Allee 76A, D-30625 Hannover
Germany Tel: 49 511 542 770 Fax: 49 511 542 7770
Cochlear Europe Ltd
6 Dashwood Lang Road, Bourne Business Park, Addlestone, Surrey KT15 2HJ, United Kingdom Tel: 44 1932 87 1500 Fax: 44 1932 87 152
6
Nihon Cochlear Co Ltd
Ochanomizu-Motomachi Bldg, 2-3-7 Hongo, Bunkyo-Ku, Tokyo 113-0033, Japan Tel: 81 3 3817 0241 Fax: 81 3 3817 024
Cochlear (HK) Ltd
Unit 1810, Hopewell Centre, 183 Queens Road East, Wan Chai, Hong Kong SAR Tel: 852 2530 5773 Fax: 852 2530 518
3
Cochlear Medical Device (Beijing) Co Ltd Unit 2208 Gemdale Tower B, 91 Jianguo Road, Chaoyang District, Beijing 100022
P.R. China Tel: 86 10 5909 7800 Fax: 86 10 5909 7900
Cochlear Ltd (Singapore Branch) 6 Sin Ming Road, #01-16 Sin Ming Plaza Tower 2, Singapore 575585 Tel: 65 6553 3814 Fax: 65 6451 4
Cochlear Korea Ltd 1st floor, Cheongwon building, 828-5, Yuksam dong, Kangnam gu, Seoul, Korea Tel: 82 2 533 4663 Fax: 82 2 533 8
Cochlear Benelux NV Schaliënhoevedreef 20i, B - 2800 Mechelen, Belgium Tel: 32 1579 5511 Fax: 32 1579 5500
Cochlear Italia S.r.l. Via Larga 33, 40138 Bologna, Italia Tel: 39 051 601 53 11 Fax: 39 051 39 20 62
Cochlear France S.A.S.
Route de l’Orme aux Merisiers, Z.I. Les Algorithmes - Bât. Homère, 91190 Saint Aubin, France Tel: 33 811 111 993 Fax: 33 160 19
6
Cochlear Nordic AB Konstruktionsvägen 14, SE - 435 33 Mölnlycke, Sweden Tel: 46 31 335 14 61 Fax: 46 31 335 14 60
Cochlear Tıbbi Cihazlar ve Sağlık Hizmetleri Ltd. Sti. Cubuklu Mah. Bogazici Cad., Bogazici Plaza No: 6/1, Kavacik
TR - 34805 Beykoz-Istanbul, Turkey Tel: 90 216 538 5900 Fax: 90 216 538 5919
Cochlear Canada Inc 2500-120 Adelaide Street West, Toronto, ON M5H 1T1 Canada Tel: 1 416 972 5082 Fax: 1 416 972 5083
Cochlear Medical Device Company India Pvt Ltd Ground floor Platina Bldg, Plot no C 59, G Block, Bandra Kurla Complex,
Bandra East, Mumbai 400051, India Tel: 91 22 61121111 Fax: 91 22 61121100
Loading...
