TF-TV3207
32” Widescreen TFT LCD High-Denition Television
Instruction Manual
Please read this manual carefully before operation.
Page 2 Coby Electronics Corporation www.cobyusa.com Page 3
www.cobyusa.com Page 3
PRECAUTIONS
For Customer Use:
Enter below the serial number that is located on the
rear of the unit. Retain this information for future reference.
Model No. TF-TV3207
Serial No.
The lightning ash with arrowhead symbol within an equilateral triangle is intended to alert
the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufcient magnitude to c onstitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of impor tant operation and servicing instructions in the literature accompanying
the appliance.
WARNING:
To prevent re or sh ock hazard, do not expo se this devic e to rain or mo isture. Dan gerous high voltage is present ins ide the
enclos ure. Do not open the cabinet.
FCC Noti ce:
This equi pment has be en tested and found to com ply with th e limits for a C lass B digital device p ursuant wi th the FCC Rule s,
Part 15. Th ese limits are designed to provide r easonable protect ion against harmful in terference in a resi dential installati on.
This equi pment gene rates, uses, and can rad iate radio f requency energy, and if not installed a nd used in accordanc e with the
instru ctions may c ause harm ful inter ference to radio com munication.
CAUTION :
To prevent electric shoc k, match wide blade of plu g to wide slot of outlet and f ully inser t.
NOTE:
Before plugging the power cord into an AC outlet, make sure that all the con nections have been made.
NOTE:
The LCD panel use d in this televisio n contains mil lions of thin lm transistors th at have been manufac tured using a high -technology proc ess to deli ver a crisp, cl ear, and detailed picture. Occasionally, a few of thes e transist ors may become stuck or n on-ac tive; plea se note that this does not a ffect th e performance of t he televisi on.
For recycling or disposal information about this product, please
contact your local authorities or the Electronics Industries Alliance:
www.eiae.org.
IMPORTANT SAFETY INSTRUCTIONS
Read Instructions: All the safety and operating instructions should be read before the product
1.
is operated.
Retain Instructions: The safety and operating instructions should be retained for future refer-
2.
ence.
Heed Warnings: All warnings on the product and in the operating instructions should be
3.
adhered to.
Follow Instructions: All operating and usage instructions should be followed.
4.
Cleaning: Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners
5.
or aerosol cleaners. Use a damp cloth for cleaning.
Attachments: Use only attachments recommended by the manufacturer. Use of other attach-
6.
ments may be hazardous.
Water and Moisture: Do not use this product near water (e.g., near a bath tub, washbowl,
7.
kitchen sink, laundry tub, in wet basements, or near a swimming pool and the like).
Accessories: Do not place this product on an unstable cart, stand, tri-
8.
pod, bracket, or table. Use only with carts, stands, tripods, brackets,
or tables recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer’s
instructions and should use a mounting accessory recommended
by the manufacturer.
A product and cart combination should be moved with care.
9.
Quick stops, excessive force, and uneven surfaces may cause the
product and cart combination to overturn.
Ventilation: Slots and openings in the cabinet are provided for ven-
10.
tilation to ensure reliable operation of the product and to protect it from overheating. These
openings should never be blocked by placing the product on a bed, sofa, rug, or other similar
surface. This product should not be placed in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufacturer instructions have been adhered to.
Power Sources: This product should be operated only from the type of power source indi-
11.
cated on the rating label. If you are not sure of the type of power supply to your home, consult
your product dealer or local power company. For products intended to operate from battery
power or other sources, refer to the operating instructions.
Grounding or Polarization: This product may be equipped with a polarized alternating-current
12.
line plug that has one blade wider than the other. This plug will only t into the power outlet in
one direction. This is a safety feature. If you are unable to insert the plug fully into the outlet,
try reversing the direction of the plug. If the plug should still fail to t, contact an electrician to
replace the obsolete outlet. Do not defeat the safety purpose of the polarized plug.
Power-Cord Protection: Power supply cords should be routed so that they are not likely to
13.
be walked on or pinched by items placed upon or against them, paying particular attention to
cords at plugs, convenience receptacles, and at the point which they exit from the product.
Protective Attachment Plug: The product may be equipped with an attachment plug with
14.
overload protection. This is a safety feature. See the operating instructions for replacement
or directions to reset the protective device. If replacement of the plug is required, be sure the
service technician has used a replacement plug that has the same overload protection as the
original plug as specied by the manufacturer.
www.cobyusa.com Page 3
Page 4 Coby Electronics Corporation www.cobyusa.com Page 5
www.cobyusa.com Page 5
IMPORTANT SAFETY INSTRUCTIONS
Outdoor Antenna Grounding: If an outside antenna is connected to the product, be sure the
15.
antenna system is grounded so as to provide some protection against voltage surges and
built-up static charges. Ar ticle 810 of the National Electrical Code, ANS/NFPA 70 provides
information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna-discharge unit, size of grounding conductors, location
of antenna-discharge unit, connection to grounding electrodes, and requirements for the
grounding electrode (see gure).
Lightning: For added protection for this product, unplug it from the wall outlet and disconnect
16.
the antenna or cable system during a lightning storm or when it is left unattended and unused
for long periods of time. This will prevent damage to the product due to lightning or power-line
surges.
Power Lines: An outside antenna system should not be located in the vicinity of overhead
17.
power lines or other electric light or power circuits, or where it can fall into such power lines
or circuits. When installing an outside antenna system, extreme care should be taken to keep
from touching such power lines or circuits, as contact with them might be fatal.
Overloading: Do not overload wall outlets, extension cords, or integral convenience recep-
18.
tacles as this can result in a risk of re or electric shock.
Object and Liquid Entry: Never push objects of any kind into this product through openings
19.
as they may touch dangerous voltage points or shout-out parts that could result in a re or
electric shock. Never spill liquid of any kind on the product.
Servicing: Do not attempt to service this product yourself as opening or removing covers may
20.
expose you to dangerous voltage or other hazards. Refer all servicing to qualied service
personnel.
Damage Requiring Service: Unplug this product from the wall outlet and refer servicing to
21.
qualied service personnel under the following conditions: a) when the power-supply or plug
is damaged; b) if liquid has been spilled or if objects have fallen into the product; c) if the
product has been exposed to rain or water; d) if the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating
instructions as improper adjustment of other controls may result in damage and will often
require extensive work by a qualied technician to restore the product to its normal operation;
e) if the product has been dropped or damaged in any way; f) when the product exhibits a
distinct change in performance —this indicates a need for service.
IMPORTANT SAFETY INSTRUCTIONS
Replacement Parts: When replacement parts are required, be sure that your service techni-
22.
cian has used replacement par ts specied by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in re, electric shock, or
other hazards.
Safety Check: Upon completion of any service or repairs to this product, ask the service tech-
23.
nician to per form safety checks to ensure that the product is in proper operating condition.
Wall or Ceiling Mounting: The product should be mounted to a wall or ceiling only as recom-
24.
mended by the manufacturer.
Heat: The product should be situated away from heat sources such as radiators, heat regis-
25.
ters, stoves, or other products (including ampliers) that produce heat.
www.cobyusa.com Page 5
Page 6 Coby Electronics Corporation www.cobyusa.com Page 7
www.cobyusa.com Page 7
TABLE OF CONTENTS
PRECAUTIONS ................................................................................................................................2
IMPORTANT SAFETY INSTRUCTIONS .............................................................................................3
TABLE OF CONTENTS ......................................................................................................................6
FEATURES ........................................................................................................................................8
PACKAGE CONTENTS ....................................................................................................................9
LOCATION OF CONTROL S ..........................................................................................................10
Front View ......................................................................................................................................10
Right Panel View ............................................................................................................................10

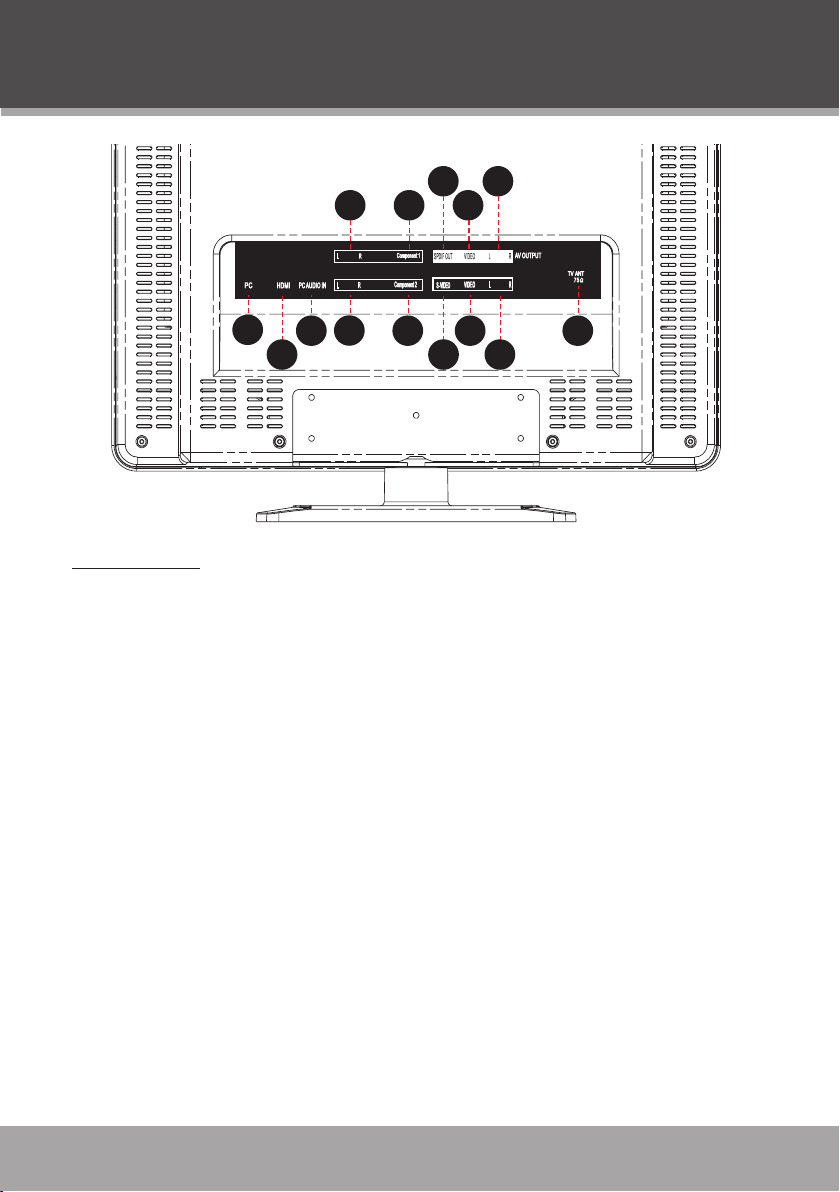

Rear Panel View ............................................................................................................................ 11
Remote Control ..............................................................................................................................12
GETTING STARTED ........................................................................................................................14
Audio/Video Input Connections .....................................................................................................14
TV Antenna (DTV, TV) ........................................................................................................... 14

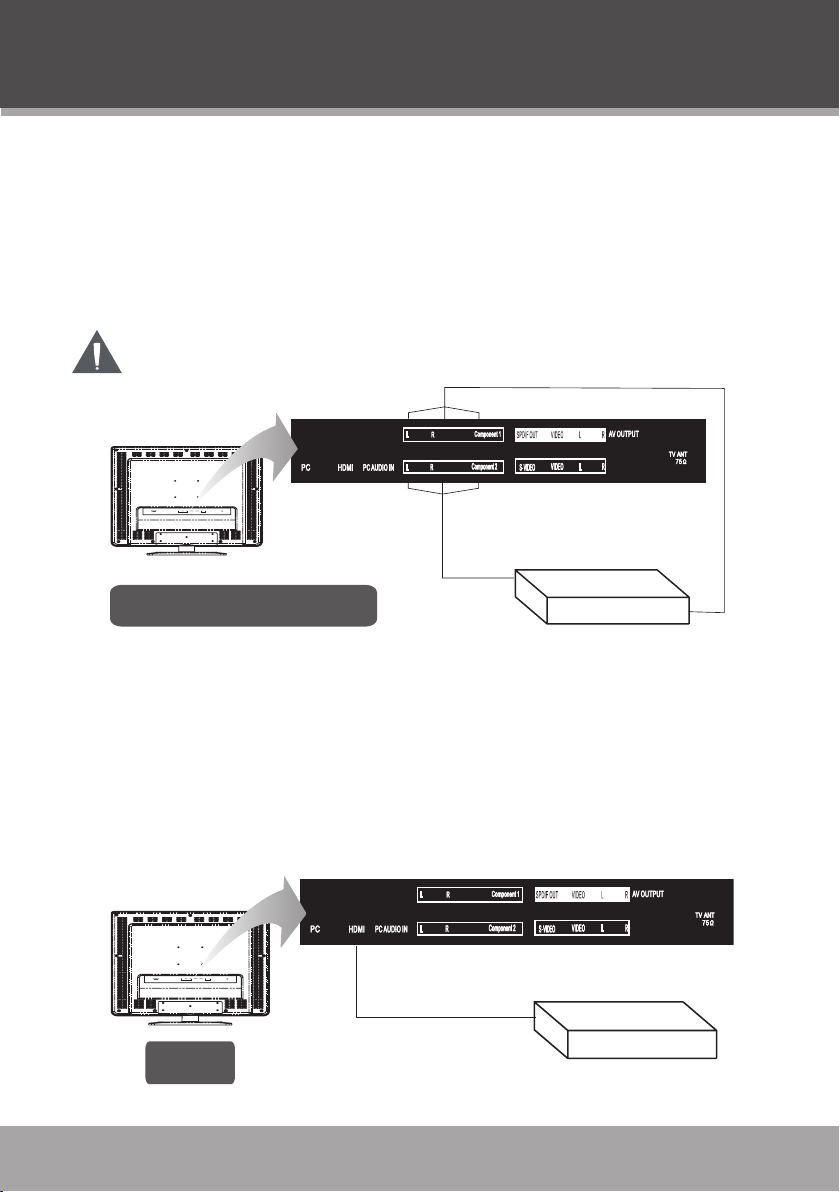

Composite Video or S-Video (Video, S-Video) .....................................................................14
Component Video (Component 1, Component 2) .................................................................15
HDMI (HDMI) .........................................................................................................................15
15-Pin D -Sub (PC) .................................................................................................................16
Audio/Video Output Connections ..................................................................................................16
Power Connection ..........................................................................................................................16
Remote Control ..............................................................................................................................17
Power Management .......................................................................................................................17
TV FUNCTION ...............................................................................................................................18
Basic Operation .............................................................................................................................18
System Setup Menu .......................................................................................................................18
Picture Options Menu ............................................................................................................18
Audio Options Menu ..............................................................................................................19
Channel Options Menu ..........................................................................................................19
Setup Options Menu ..............................................................................................................19
Time Options Menu ................................................................................................................20
Favorite Channels List ...................................................................................................................20
Parental Control (V-Chip Lock) ......................................................................................................21
Parent Guide Options (TV Rating) .........................................................................................22
MPAA Options (Movie Rating) ...............................................................................................22
AV FUNCTION ............................................................................................................................. 23
Basic Operation .............................................................................................................................23
System Setup Menu (AV Mode) .....................................................................................................23
Picture Options Menu ............................................................................................................23
Audio Options Menu ..............................................................................................................24
Setup Options Menu ..............................................................................................................24
Time Options Menu ................................................................................................................24
TABLE OF CONTENTS
PC VGA FUNCTION .................................................................................................................... 25
Basic Operation .............................................................................................................................25
System Setup Menu (PC Mode) ....................................................................................................25
Picture Options Menu ............................................................................................................25
Audio Options Menu ..............................................................................................................26
Setup Options Menu ..............................................................................................................26
Time Options Menu ................................................................................................................26
TROUBLESHOOTING .....................................................................................................................27
SPECIFICATIONS ..........................................................................................................................29
www.cobyusa.com Page 7
Page 8 Coby Electronics Corporation www.cobyusa.com Page 9
www.cobyusa.com Page 9
FEATURES
32” Widescreen TFT LCD Color Display
•
Fast 8ms Pixel Response Time
•
ATSC and NTSC Tuner Receives HD and Regular TV Broadcasts
•
Native 720p Resolution (Accepts HDTV Signals up to 1080i)
•
HDMI Digital Connection for Perfect Digital AV Signal Transmission
•
HDCP Compliance for HDCP Content Support
•
Digital and Analog AV Connections for use with Home Theater Systems
•
15-pin VGA Interface for use with Computer Systems
•
Full-Range Stereo Speakers (10W x 2)
•
Digital Comb Filter and Noise Reduction
•
V-Chip Parental Control
•
Electronic Program Guide Support
•
Multi-Language On-Screen Display
•
Wall-Mountable Design
•
PACKAGE CONTENTS
2
3
4
Please make sure the following items are included with your LCD TV/monitor. If any items are
missing, contact your local dealer.
TF-TV3207
1.
Remote Control
2.
AV Cable
3.
AC Power Cord
4.
www.cobyusa.com Page 9
Page 10 Coby Electronics Corporation www.cobyusa.com Page 11
www.cobyusa.com Page 11
LOCATION OF CONTROLS
4
2
3
1
4
6
1
2
3
5
7
Front View
TFT LCD Display
1.
Remote Sensor
2.
Power Indicator
3.
Stereo Speakers
4.
Right Panel View
Mode/Enter Button /
1.
Menu Button
2.
Channel Up Button
3.
Channel Down Button
4.
Volume Up Button
5.
Volume Down Button
6.
Power Button
7.
LOCATION OF CONTROLS
1
6
4
5
9
8
10
7
12
14
3
2
11
13
Rear Panel View
15-pin D-sub VGA In (PC)
1.
HDMI In (HDMI)
2.
3.5mm Audio In (PC Audio)
3.
Component 1
RCA Audio In (L /R): Use with Component Video 1
4.
Component Video 1 In (Y, Cb/Pb, Cr/Pr)
5.
Component 2
RCA Audio In (L /R): Use with Component Video 2
6.
Component Video 2 In (Y, Cb/Pb, Cr/Pr)
7.
AV Out
SPDIF Digital Audio Out
8.
Composite Video Out
9.
RCA Audio Out (L/R):
10.
AV In (S-Video, Video, DTV, TV)
S-Video In
11.
Composite Video In
12.
RCA Audio In (L /R): Use with S-Video or Composite Video In
13.
75Ω Coaxial Antenna In (DTV, TV)
14.
www.cobyusa.com Page 11
Page 12 Coby Electronics Corporation www.cobyusa.com Page 13
www.cobyusa.com Page 13
LOCATION OF CONTROLS
Remote Control
POWER
1.
Turn the TV On/Off.
MODE
2.
Change the Video Input mode
(Component, TV, Composite Video,
S-Video, VGA).
NUMERIC KEYPAD
3.
Change the channel directly.
Enter numeric input data.
RETURN
4.
Return to the most recently viewed
channel.
S.MODE
5.
Change the Sound (audio) mode.
P.MODE
6.
Change the Picture (image) mode.
Volume Up/Down /
7.
Adjust the Volume level.
Channel Up/Down /
8.
Change the channel.
MENU
9.
Access the System Setup Menu.
Navigation Keypad
10.
Move the selection cursor in the direction
of the arrow: .
Enter (conrm) a selection: .
SLEEP
11.
Set the Sleep timer.
EXIT
12.
Exit the System Setup menu.
DTV/ATV
13.
Change the TV Tuner mode (DTV or
ATV).
FAV
14.
Access the Favorite Channels list.
CH-LIST
15.
Access the Channel Setup menu.
MTS
16.
TV Mode: Change the TV broadcast
audio mode.
DTV Mode: Change the DTV broadcast
language mode.
ADD/DEL
17.
Add or Delete a channel.
EPG
18.
Access the Electronic Program Guide.
CAPTION
19.
Change the Closed-Caption mode.
V-CHIP
20.
Change the V-Chip settings (this option is
password protected).
SCALE
21.
Change the aspect-ratio mode (AUTO or
16:9)
STILL
22.
Freeze the picture.
INFO
23.
Display status information.
MUTE
24.
Turn the sound off or on.
2
4
8
12
10
6
14
18
22
9
5
13
17
21
15
19
23
16
20
24
11
1
3
7
LOCATION OF CONTROLS
www.cobyusa.com Page 13
Page 14 Coby Electronics Corporation www.cobyusa.com Page 15
www.cobyusa.com Page 15
GETTING STARTED
External Video Source
(DVD/Cable/VCR)
Video or S-Video
Antenna Source
(Cable/Satellite/Aerial)
DTV or TV
Audio/Video Input Connections
TV Antenna (DTV, TV)
Connect TV sources to the Coaxial T V Antenna In jack. T V sources may include ATSC or NTSC
cable/satellite lines, TV Tuner boxes, or Over-the-Air receiving antennas. You may use a 75 ohm
coaxial cable to connect an outdoor antenna.
Composite Video or S-Video (Video, S-Video)
The Composite Video and S-Video jacks of the TV are capable of accepting signals from standard
video sources (e.g., cable/satellite boxes, DVD players, VCRs, camcorders).
Composite Video In (standard quality). Connect the yellow end of the AV cable to the yellow
•
Video jack on the rear panel of the TV.
S-Video In (better quality). If the video source has an S-Video output jack, use an S-Video
•
cable (not supplied) to connect it to the input jack on the rear panel of the TV.
RCA Stereo Audio. Connect the red and white end of the AV cable to the red and white Audio
•
jacks on the rear panel of the TV.
Use either the Composite Video OR S-Video Connection. Do not use both
connections at the same time.
Make sure you use the audio jacks that correspond with the Composite
Video/S-Video jacks (AV In).
GETTING STARTED
External Video Source
(DVD/Cable/VCR)
Component 1 or Component 2
External Video Source
(DVD/Cable/VCR)
HDMI
Component Video (Component 1, Component 2)
The Component Video jacks of the TV are capable of accepting high-denition signals from standard video sources (e.g., cable/satellite boxes, DVD players, game consoles).
Component Video In (best quality). If the video source has Component Video output jacks
•
(Y/Pb/Pr), use a component video cable (not supplied) to connect it to the input jacks on the
rear panel of the TV.
RCA Stereo Audio. Connect the red and white end of the AV cable to the red and white Audio
•
jacks on the rear panel of the TV.
Make sure you use the audio jacks that correspond with the Component
Video jacks your are using (Component 1 or Component 2).
HDMI (HDMI)
HDMI (High Denition Multimedia Interface) is a new type of connection that transmits digital
audio and video signals simultaneously over a single cable.
The HDMI jack of the TV is capable of accepting high-denition signals from audio/video sources
equipped with an HDMI output jack (e.g., cable/satellite boxes, AV receivers, DVD players).
HDMI In (best quality). If the video source has an HDMI output jack, use an HDMI cable (not
•
supplied) to connect it to the input jack on the rear panel of the TV.
www.cobyusa.com Page 15
Page 16 Coby Electronics Corporation www.cobyusa.com Page 17
www.cobyusa.com Page 17
GETTING STARTED
Computer with VGA Output
PC (VGA)
15-Pin D-Sub (PC)
The VGA jack of the TV is capable of accepting high-denition signals from computers with a VGA
output jack.
15-Pin D-Sub (best quality). If the computer has a VGA output jack, use a VGA cable (not
•
supplied) to connect it to the input jack on the rear panel of the TV.
•
3.5mm Stereo Audio. If the computer has a 3.5mm Stereo output jack, use a 3.5mm male-tomale cable (not supplied) to connect it to the input jack on the rear panel of the TV.
The recommended output resolution setting on your computer is 1366 x 768.
Audio/Video Output Connections
The AV output jacks of the TV are capable of transmitting audio or video signals to AV receivers,
ampliers or other TVs/monitors.
Use the Digital Audio (SPDIF) out connection to output digital audio signals.
•
Use the RCA Stereo Audio out connection to output analog audio signals.
•
•
Use the Composite Video out connection to output analog video signals.
AV Output is available only in Video or TV mode.
•
Power Connection
Insert one end of the AC power cord to the Power input jack on the rear panel of the TV and the
other end to an AC 100 -240V wall outlet.
Make all Audio/Video Input or Output connections prior to connecting power.
GETTING STARTED
2 x “AAA” 1.5V batteries
Remote Control
Remove the battery compartment cover located
•
on the rear of the remote control. Insert 2 x “AAA”
batteries, making sure to match their polarities (+/-)
to the markings on the inside of the compartment.
Replace the cover.
To use the remote, point it at the remote sensor of
•
the player. Operate the remote within 15 feet of the
sensor and at an angle of ±30 degrees.
Batteries in the remote will last for approximately 6
•
months under normal use. Replace the batteries if
the remote control does not work. Do not mix old
with new batteries, or dif ferent types of batteries.
Remove the batteries from the remote if it will not
•
be used for a long period of time.
Thebatteryusedinthisdevicemaypresentareorchemicalburnifmistreated.Do
not recharge, disassemble, incinerate, or heat the battery (~212ºF).
Keepbatteriesawayfromchildren.
Do not point bright lights directly at the remote control sensor.
Do not place objects between the remote control unit and the remote control sensor.
Do not use this remote control unit while simultaneously operating the remote control
unitofanyotherequipment.
Power Management
If the TV will not be in use for a long period of time, turn the TV off and unplug it, and remove the
batteries from the remote control.
www.cobyusa.com Page 17
Page 18 Coby Electronics Corporation www.cobyusa.com Page 19
www.cobyusa.com Page 19
TV FUNCTION
Basic Operation
Prepare the antenna and power connections (see the Getting Started section for details).
1.
Press to turn the TV on.
2.
Set your TV to the display the desired signal.
3.
Press to change between Digital TV tuning (ATSC) or Analog TV tuning (NTSC).
•
Press to change between AV Input or Output modes (Component 1, Component
•
2, AV Out, etc.). You should see the desired signal on-screen.
Press or to change the channel, or use the numeric keypad on the remote
4.
control to input a channel number directly.
Prior to viewing over-the-air or cable/satellite television, it is recommended that you set
thetelevisiontoauto-scanforavailablestationchannels.Toauto-scan,press to
enter the System Setup Menu, and then select “Channel > Auto Program”.
System Setup Menu
Access the System Setup Menu to adjust the internal options and features of your TV.
Press . The System Setup Menu will
1.
appear on-screen.
Use the Navigation keypad ( or ) to
2.
select a setup menu categor y. Press to
enter the selected setup menu.
With a setup menu, press or to
•
select (highlight) a desired option. Press
to conrm the selection.
Press or to adjust an option.
•
Press to return to a previous menu and to exit the System Setup Menu.
3.
Picture Options Menu
Item Description
Mode Select a Picture Mode preset (User, Standard, Movie, Sports)
Brightness Adjust the brightness of the display.
Contrast Adjust the contrast of the display.
Saturation Adjust the color saturation of the display.
Tint Adjust the tint of the display.
Sharpness ATV Mode only: Adjust the sharpness of the display.
Noise Reduce
ATV Mode only: Select the Noise Reduction mode (Off, Lower,
Middle, Strong).
Color Temp. Adjust the color temperature of the display.
TV FUNCTION
Audio Options Menu
Item Description
Effect Select an Audio Effect preset (Speed, Music, User, Standard, Movie).
EQ120,500,1500, 5K, 10K Adjust the audio equalizer bands.
Balance Adjust the channel balance of the audio mix.
MTS Set the MTS (Multi-channel Television Sound) audio mode.
S/PDIF Set the Digital Audio output mode (Dolby or PCM).
Channel Options Menu
Item Description
TV Source
DTV Source
Auto Program Select to search and store all available broadcast channels.
Auto Searching Select to search and store all available broadcast channels.
Favorites Edit the Favorite Channels list to skip unwanted channels.
Fine Tune ATV Mode only: Adjust the tuning of a station channel
Set the ATV (NTSC) tuning mode: AIR Cable (STD), Cable (HRC),
Cable (IRC).
Set the DTV (ATSC) tuning mode: AIR Cable (STD), Cable (HRC),
Cable (IRC).
Setup Options Menu
Item Description
Language Select the OSD menu language
Input
Screen Format Set the screen format: Full, Auto.
Closed Caption Set the Closed Caption mode.
V-Chip Set the Parental Lock Controls.
Transparents Adjust the menu transparency effect.
Miscellaneous Display rmware information.
www.cobyusa.com Page 19
Select the input mode: Video, S-Video, Component 1, Component 2,
HDMI, PC, DTV, TV.
Page 20 Coby Electronics Corporation www.cobyusa.com Page 21
www.cobyusa.com Page 21
Channel
ATV Source IRC
DTV Source AIR
Auto Program
Favorites
Fine Tune 30
Channel
DTV TV
Channel 1 Skip Fav
P2-1 No No
TV FUNCTION
Time Options Menu
Item Description
Time Zone Select the OSD menu language
Day Light Saving Toggle the automatic daylight savings time adjustment on or off.
Sleep Set the Sleep Timer function.
Favorite Channels List
Press to access the Favorite Channels list. To save frequently accessed channels to the list:
Enter the System Setup menu (press ).
1.
Enter the Channel Options menu and select “Favorites”.
2.
Use the Navigation keypad to adjust the Favorites option for the selected channel.
3.
TV FUNCTION
Parental Control (V-Chip Lock)
Lock selected channels or program types to restrict access to objectionable content. To set the
Parental Control options:
The Parental Control menu is password-protected. When the Parental Control menu is selected:
Enter the System Setup menu (press ).
1.
Enter the Setup Options menu and select “V-Chip”.
2.
A Password Input screen will appear. Use the Numeric Keypad to enter the 4-digit password
3.
to access the V-Chip options..
Theinitialdefaultpasswordis“0000”.
DO NOT FORGET THE PASSWORD; the V- Chip password cannot be reset.
When the correct password has been entered, the V-Chip option screen will appear.
4.
Consult the following table for a description of the V-Chip options.
www.cobyusa.com Page 21
Page 22 Coby Electronics Corporation www.cobyusa.com Page 23
www.cobyusa.com Page 23
TV FUNCTION
Item Description
Parental Lock Turn the Parental Lock controls On or Off.
Clear All Remove current Parental Lock restrictions
Parent Guide Set TV rating restrictions: TV-Y, TV-Y7, TV-G, TV-PG, TV-14, TV-MA.
MPAA Set Movie rating restrictions: G, PG, PG13, R, NC17, X, NR.
Change the Parental Lock password. You will need to enter the old
Change PIN
Parent Guide Options (TV Rating)
TV broadcasts include a signal that classies the contents of the program. When the TV Rating
control is set, TV broadcasts that have been classied with a higher rating will be blocked.
None/Off: no restrictions (lowest rating)
•
TV-Y: All children
•
TV-Y7: For children aged 7 and above
•
TV-G: General Audience
•
TV-PG: Parental Guidance suggested
•
TV-14: Not intended for ages under 14
•
TV-MA: For mature audiences only (highest rating).
•
password rst to access this option. DO NOT FORGET THE PASSWORD; this password cannot be reset.
The TV broadcast rating may include the following sub-categories:
D: Suggestive dialogue
•
L: Indecent language
•
S: Sexual situations
•
V: Violence
•
MPAA Options (Movie Rating)
TV broadcasts include a signal that classies the contents of the program. When the Movie Rating
control is set, movie broadcasts that have been classied with a higher rating will be blocked.
NA: no restrictions (lowest rating)
•
G: General Audience
•
PG: Parental Guidance suggested
•
PG-13: Not intended for ages under 13
•
R: Restricted
•
NC-17: Not intended for ages under 17
•
X: For adults only (highest rating).
•
AV FUNCTION
Basic Operation
Use the AV Input modes to view external video sources on the T V. Video sources may include
satellite/cable boxes, DVD players, video game consoles, VCRs, DVRs, camcorders, and more.
Connect the external video source to the proper input jacks and prepare the power connec-
1.
tions (see the Getting Star ted section for details).
Press to turn the TV on. Turn on the external video source.
2.
Set your TV to the display the desired signal.
3.
Press to change between AV Input or Output modes (Component 1, Component
•
2, HDMI, AV Out, etc.). You should see the external video signal on-screen.
System Setup Menu (AV Mode)
Access the System Setup Menu to adjust the internal options and features of your TV.
Press . The System Setup Menu will
1.
appear on-screen.
Use the Navigation keypad ( or ) to
2.
select a setup menu categor y. Press to
enter the selected setup menu.
With a setup menu, press or to
•
select (highlight) a desired option. Press
to conrm the selection.
Press or to adjust an option.
•
Press to return to a previous menu and to exit the System Setup Menu.
3.
Picture Options Menu
Item Description
Mode Select a Picture Mode preset (User, Standard, Movie, Sports)
Brightness Adjust the brightness of the display.
Contrast Adjust the contrast of the display.
Saturation Adjust the color saturation of the display.
Tint Adjust the tint of the display (Component 1 and Component 2 only).
Sharpness ATV Mode only: Adjust the sharpness of the display.
Noise Reduce ATV Mode only: Select the Noise Reduction mode (Off, Lower, Middle, Strong).
Color Temp. Adjust the color temperature of the display.
www.cobyusa.com Page 23
Page 24 Coby Electronics Corporation www.cobyusa.com Page 25
www.cobyusa.com Page 25
AV FUNCTION
Audio Options Menu
Item Description
Effect Select an Audio Effect preset (Speed, Music, User, Standard, Movie).
EQ120, 500, 1500,
5K, 10K
Balance Adjust the channel balance of the audio mix.
MTS Set the MTS (Multi-channel Television Sound) audio mode.
S/PDIF Set the Digital Audio output mode (Dolby or PCM).
Setup Options Menu
Item Description
Language Select the OSD menu language
Input
Screen Format Set the screen format: Full, Auto.
Closed Caption Set the Closed Caption mode (Video and S-Video mode only).
V-Chip
Transparents Adjust the menu transparency effect.
Miscellaneous Display rmware information.
Adjust the audio equalizer bands.
Select the input mode: Video, S-Video, Component 1, Component 2, HDMI,
PC, DTV, TV.
Set the Parental Lock Controls (Video and S-Video mode only).
Please refer to the section “TV Function > Parental Control (V-Chip Lock)”
for more information.
Time Options Menu
Item Description
Sleep Set the Sleep Timer function.
PC VGA FUNCTION
Basic Operation
You can use this TV as a display monitor for a computer through a 15-pin D-Sub VGA connection.
With both the TV and computer off, prepare the VGA Input and power connections (see the
1.
Getting Started section for details). You will need to use an optional VGA cable.
Press to turn the TV on. Turn on your PC.
2.
Press to set the TV to VGA mode. You should see the PC VGA video input signal
3.
on-screen.
System Setup Menu (PC Mode)
Access the System Setup Menu to adjust the internal options and features of your TV.
Press . The System Setup Menu will
1.
appear on-screen.
Use the Navigation keypad ( or ) to
2.
select a setup menu categor y. Press to
enter the selected setup menu.
With a setup menu, press or to
•
select (highlight) a desired option. Press
to conrm the selection.
Press or to adjust an option.
•
Press to return to a previous menu and to exit the System Setup Menu.
3.
Picture Options Menu
Item Description
Mode Select a Picture Mode preset (User, Standard, Movie, Sports)
Brightness Adjust the brightness of the display.
Contrast Adjust the contrast of the display.
Saturation Adjust the color saturation of the display.
Display Adjust Adjust the quality of the display.
Color Temp. Adjust the color temperature of the display.
www.cobyusa.com Page 25
Page 26 Coby Electronics Corporation www.cobyusa.com Page 27
www.cobyusa.com Page 27
PC VGA FUNCTION
Audio Options Menu
Item Description
Effect Select an Audio Effect preset (Speed, Music, User, Standard, Movie).
EQ120, 500, 1500,
5K, 10K
Balance Adjust the channel balance of the audio mix.
S/PDIF Set the Digital Audio output mode (Dolby or PCM).
Setup Options Menu
Item Description
Language Select the OSD menu language
Input
Screen Format Set the screen format: Full, Auto.
Transparents Adjust the menu transparency effect.
Miscellaneous Display rmware information.
Time Options Menu
Adjust the audio equalizer bands.
Select the input mode: Video, S-Video, Component 1, Component 2, HDMI,
PC, DTV, TV.
Item Description
Sleep Set the Sleep Timer function.
TROUBLESHOOTING
If you have a problem with this TV, please read the troubleshooting guide below and check our
website at www.cobyusa.com for Frequently Asked Questions (FAQs) and rmware updates. If
these resources do not resolve the problem, please contact Technical Support.
COBY Electronics Technical Support
Address: 56-65 Rust St.
Hours: 8:00 AM–11:00 PM EST, seven days a week
Phone: 718-416-3197 or 800- 681-2629
Email: techsupport@cobyusa.com
Web: ww w.cobyusa.com
There is no power to the device.
Ensure that the Power Switch is physically set to the ON position.
•
Ensure that the AC adapter cord is securely connected to the TV and the proper wall outlet.
•
Ensure that the main power has been switched on.
•
There is no picture.
Ensure that the connections between the player and the TV are secure and correct.
•
Ensure that the T V set has been powered on and is set to the correct AV mode.
•
Try another TV broadcast channel.
•
Ensure that the Parental Guide (TV) and MPAA (Movie) rating levels do not exceed that of
•
the TV broadcast.
Check if the connection cables are damaged.
•
Maspeth, NY 11378
The picture is noisy or distorted.
Reset your TV’s color system.
•
If an antenna is in use, try repositioning it for better reception.
•
Ensure that the aspect ratio of the television matches the aspect ratio of the video source
•
(e.g., TV antenna, cable box, VCR, etc.). To set the aspect ratio of the TV, enter the System
Setup Menu by pressing Menu, and then change Setup > Screen Format option.
There is no sound or distorted sound.
Ensure that the T V and amplier have been turned on and properly set up.
•
Ensure that the T V and amplier connections are secure and correct.
•
Ensure that the MUTE function of the TV, Amplier, or Player is not engaged.
•
The remote control doesn’t work.
Ensure that there are no obstacles between the remote and the player.
•
Point the remote at the remote sensor on the main unit.
•
Ensure that the batteries in the remote retain a charge and have been installed correctly.
•
Try replacing the remote’s batteries.
•
www.cobyusa.com Page 27
Page 28 Coby Electronics Corporation www.cobyusa.com Page 29
www.cobyusa.com Page 29
TROUBLESHOOTING
The unit has malfunctioned.
Unplug the TV and let it rest for 30 minutes. Plug it back in; the restore function should reset
•
the TV.
SPECIFICATIONS
Display Type 32” Widescreen TFT LCD
Display Resolution 1366 x 768
Display Contrast 1600:1
Brightness 500 cd/m
Pixel Pitch 0.1455mm (H) x 0.4365mm (V)
Pixel Response Time 8ms
TV System ATSC, NTSC-M
Antenna Impedance 75Ω unbalanced
Audio/Video Input HDMI-HDCP
15-pin D-Sub (PC VGA) + 3.5mm Stereo (PC Audio)
Component Video 1 + RCA Stereo Audio
Component Video 2 + RCA Stereo Audio
Composite Video / S-Video + RCA Stereo Audio (shared)
Audio/Video Output Composite Video + RCA Stereo Audio
Coaxial Digital Audio (SPDIF)
Speakers: 10W x 2
Operating Temperature 50ºF - 104ºF
Power Supply AC 100-240V 50/60Hz
Power Consumption Working: 35W (max)
Standby: <1.1W
Unit Dimensions 18.6” x 15.1” x 6.1” (WHD)
Weight 11.7 lbs
2
Design, specications, and manual are subject to change without prior notice.
www.cobyusa.com Page 29
