TF-DVD7307
7” Wide Screen TFT LCD
Portable DVD/CD/MP3 Player with Swivel Screen
Instruction Manual
Please read this manual carefully before operation.
- 2 -
SAFETY INSTRUCTIONS
CAUTION
RISK OF E LECTRIC S HOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK , DO NOT R EMOVE THE COVER (OR BACK)
OF THE UNIT. REFER SERVICING ONLY TO QUALIFI ED
SERVIC E PERSONN EL.
For Customer Use:
Enter below the serial number that is located on the
bottom of the unit. Retain this information for future
reference.
Model No. TF-DVD73 07
Serial No.
The lightning ash with arrowhead symbol within an equilateral triangle is intended to aler t
the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufcient magnitude to c onstitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operation and servicing instructions in the literature accompanying the
applianc e.
WARNING:
To prevent re or sh ock hazard, do not expo se this devic e to rain or mo isture. Dan gerous high voltage is present ins ide the
enclos ure. Do not op en the cabinet.
CAUTION :
This Dig ital Vide o Disc player employs a las er system. To prevent direct expo sure to the laser beam, do not try to ope n the
enclos ure or defeat t he safety i nterlocks. When open and the inter locks are defeated, visible laser radiation is present.
Use of con trols, adj ustments , or perfo rmance of procedur es other than those spe cied herein may resul t in hazard ous radia -
tion exposure. DO NOT STARE INTO THE BEAM.
FCC Noti ce:
This equi pment has be en tested and found to com ply with th e limits for a C lass B digital device p ursuant wi th the FCC Rule s,
Part 15. Th ese limits are designed to provide r easonable protect ion against harmful in terference in a resi dential in stallati on.
This equi pment gene rates, uses, and can rad iate radio f requency e nergy, and if not installed a nd used in accordanc e with the
instru ctions may c ause harm ful inter ference to radio com munication.
WARNING:
Handlin g the cords on this prod uct will exp ose you to lead, a chemical known to th e State of Cal ifornia to cause can cer, and
birth defects or other repro ductive ha rm. Wash hands afte r handli ng.
CAUTION :
To prevent electric shoc k, match wide blade of plu g to wide slot of outlet and f ully inser t.
NOTICE:
This pro duct inco rporate s copyright protect ion technology that i s protecte d by U.S. patent s and other int ellectua l proper ty
rights . Use of this copyright p rotectio n technol ogy must be au thorized by Macrovis ion, and is intended for home and other
limited v iewing use s only unles s otherwise autho rized by Mac rovision. Reverse eng ineering o r disasse mbly is proh ibited.
For recycling or disposal information about this product, please
contact your local authorities or the Electronics Industries Alliance:
www.eiae.org.
SAFETY INSTRUCTIONS
Read these instructions carefully. Keep these instructions for future reference.
1.
Heed all warnings and follow all instructions.
2.
Do not expose to water or moisture.
3.
Clean only with a dry cloth.
4.
Keep objects away from ventilation openings. Do not block ventilation openings at any time.
5.
Do not install near any apparatus that produces heat such as stoves, radiators, ampliers,
6.
etc.
Do not force the power plug into a wall outlet. If the plug provided does not t into your
7.
outlet, consult an electrician for replacement of the obsolete outlet. (A polarized plug has
two blades where one is wider than the other; the wide blade is provided for your safety.)
Do not place heavy objects on the power cord. Protect the cord from being walked on,
8.
pinched by objects, or torn and exposed to liquids (especially at plugs, convenience
receptacles, and the point at which they exit from the device).
Use only with attachments/accessories specied by the manufacturer. Use of attachments/
9.
accessories not recommended by the product manufacturer may be hazardous.
Unplug the device during lightning storms. Unplug the device and remove any batteries
10.
when the device will be unused for long periods of time.
Do not use this device near water. Do not place objects lled with liquids (eg, vases) on the
11.
device. Never spill liquid of any kind on the device.
Never push objects of any kind into this device through openings as they may touch danger-
12.
ous voltage points or short out parts that could result in a re or electric shock.
Do not use headphones/earphones while cycling, driving, or operating a motorized vehicle.
13.
Do not use headphones/earphones at high volume.
14.
Do not drop or otherwise subject the device to impact.
15.
Do not open or attempt to repair this device. Refer all repairs to authorized service person-
16.
nel.
When replacements parts are required, be sure the service technician has used replace-
17.
ment parts specied by the manufacturer or that have the same characteristics as the
original part. Unauthorized substitutions may result in re, electric shock, or other hazards.
Upon completion of any service or repairs to this device, ask the service technician to
18.
perform safety checks to determine that the device is in proper operating condition.
Note:
The main plug is used to disconnect the device. It should remain within reach and should not be
obstructed during intended use.
The rating label is located on the bottom enclosure of the device.
- 3 -
- 4 -
TABLE OF CONTENTS
SAFETY INSTRUCT IONS ................................................................................................................... 2
TABLE OF CON TENT S ...................................................................................................................... 4
ABOUT O PTICA L DISC S .................................................................................................................. 6
Disc Requirements ...................................................................................................................6
Disc Care and Maintenance ....................................................................................................6
Handling a Disc ................................................................................................................6
Cleaning a Disc ................................................................................................................6
PACKAGE CONTEN TS .................................................................................................................... 7
LOCATION O F CONTROL S ............................................................................................................ 8
Main Unit ..................................................................................................................................8
Remote Control ........................................................................................................................9
CONNE CTIO NS ............................................................................................................................ 10
Audio/Video (AV) Connections ..............................................................................................10
AV OUT ..........................................................................................................................10
AV IN ..............................................................................................................................10
Dolby Pro Logic Surround (Optical Audio) Connection ......................................................... 11
Remote Control ......................................................................................................................12
Power Supply .........................................................................................................................12
Using the AC/DC Adapter ..............................................................................................12
Using the Battery Pack (DC) .........................................................................................13
BASIC OPERATI ONS ..................................................................................................................... 14
Basic Playback .......................................................................................................................14
Play/Pause/Stop ............................................................................................................14
Forward/Back (Skip) ......................................................................................................14
Fast-Forward/Fast-Reverse (Search) ............................................................................14
Slow ...............................................................................................................................14
Menu Navigation ....................................................................................................................15
Numeric Keypad.....................................................................................................................15
Adjusting the Volume .............................................................................................................15
Disc Error Messages .............................................................................................................15
Power Management ...............................................................................................................15
FUNCTION BU TTONS .................................................................................................................... 16
LCD Mode ..............................................................................................................................16
Display ...................................................................................................................................16
Menu / Title / Return ..............................................................................................................16
Setup ......................................................................................................................................16
MORE FU NCTIONS ....................................................................................................................... 17
Search .................................................................................................................................... 17
DVD Chapter/Title Search: ............................................................................................17
DVD Time Search (within a specied title): ...................................................................17
CD Time Search: ...........................................................................................................17
TABLE OF CONTENTS
Repeat Mode..........................................................................................................................17
Repeat A-B Mode ..................................................................................................................17
Multi-Angle/Subtitle/Audio .....................................................................................................18
Zoom ......................................................................................................................................18
Program .................................................................................................................................18
DVD Program Mode .....................................................................................................18
CD Program Mode .........................................................................................................19
MP3 Program Mode .......................................................................................................19
SETUP .............................................................................................................................................20
Language Setup .....................................................................................................................20
Screen Setup .........................................................................................................................20
Audio Setup ............................................................................................................................21
Custom Setup ........................................................................................................................21
SPECI FICATIONS ........................................................................................................................... 2 2
TROUB LESHO OTING ..................................................................................................................... 23
- 5 -
- 6 -
ABOUT OPTICAL DISCS
Disc Requirements
This DVD player supports playback of the following discs.
Type Disc Mark Content Type Disc Size Max. Playback Time
133 min (SS- SL)
DVD-Video Discs
Audio Compact Discs (CDs) Audio 12 cm 74 min
Audio + Video
(moving picture)
12 cm
242 min (SS- DL)
266 min (DS-SL)
484 min (DS-DL)
MP3 CDs
JPEG CDs -- Still Picture 12 cm --
(CD-R, CD- RW)
Audio 12 cm ~14 hours
This unit can play back CD-R and CD-RW discs that contain audio titles, MP3 les, or JPEG
picture les. Discs not listed above are not supported by this unit (eg, PC CD-ROM, CD-Extra,
CD-G, CD-I, etc.)
Disc Care and Maintenance
Optical discs (DVDs, CDs) contain high-density compressed data and need proper handling.
Handling a Disc
Hold a DVD/CD by its edges. Avoid touching the recorded side of the disc. To remove a
•
DVD/CD from its storage case, press down on the center retention mechanism of the case
and lift the disc out.
Do not subject discs to prolonged exposure to di-
•
rect sunlight, high humidity, or high temperatures.
Do not bend or press discs.
•
To reduce the risk of scratches, always put discs back in their case after use. Store discs
•
vertically in a cabinet.
Do not place stickers or labels on either side of a disc.
•
Cleaning a Disc
Use a dry, soft cloth to wipe off any ngerprints and dusts from the playing surface of the disc.
Wipe in a straight line radially from the center to the outside edge of the disc. Small dust particles
and light stains will not affect playback quality.
Never use chemicals such as record sprays, anti-static sprays, benzene, or thinners to clean
•
a disc. Doing so will damage the surface of the disc permanently.
PACKAGE CONTENTS
Step
Clear
Mute
TF-DVD7307
Remote Control
Rechargeable Battery Pack
AC Power Adapter Power Cord
AV Cable (RCA) Headphones
Car/Boat DC Power Adapter
- 7 -
- 8 -
POWER Switch
DC 9V IN
Battery Charge Indicator
Speaker
TFT LCD
AV Switch
VIDEO In/Out
OPTICAL/AUDIO In/Out
HEADPHONE Jack
VOLUME Control
POWER ON
Indicator
Remote Sensor
PLAY/PAUSE
SLOW
NEXT
STOP
PREVIOUS
RETURN
MENU
LCD MODE
DISPLAY
SCREEN
SETUP
DIRECTION &
ENTER
OPEN
TITLE
Main Unit
LOCATION OF CONTROLS
Note:
The Power On Indicator lights green
during normal playback, and red
when in Standby mode.
The Batter y C harge Indicator lights
red while the battery is c harging,
and green when it is fully charged.
Step
Clear
Mute
Title
Power
Menu
Enter
Direction Buttons
Mute
Numeric Buttons
Repeat A-B
Repeat
Audio
Subtitle
Angle
Program
PBC
Slow
Step
FF/FR (Search)
PREV/NEXT (Skip)
Zoom
Stop
Play/Pause
Setup
LCD Mode
Display
Remote Control
LOCATION OF CONTROLS
- 9 -
- 10 -
CONNECTIONS
(TV or monitor with audio/video input or output)
To OPTICAL/AUDIO In/Out
To VIDEO In/Out
To Audio/Video
Input or Output
Audio/Video RCA cable
(supplied)
Audio/ Video (AV) Connections
AV OUT
Set the AV Switch to the AV OUT position.
1.
Connect the player to a TV with the supplied AV Cable (RCA).
2.
Press the AV mode button on your TV to display your player’s output signal on the screen.
3.
AV IN
Set the AV Switch to the AV IN position.
1.
Connect the player to an external audio/video device (eg, TV, Video Game, Portable Media
2.
Player, etc).
NOTE:
Refer to your TVs instruction manual for more information on setting it to the proper AV
•
mode.
Be sure to turn off and unplug your player and TV before making these connections.
•
CONNECTIONS

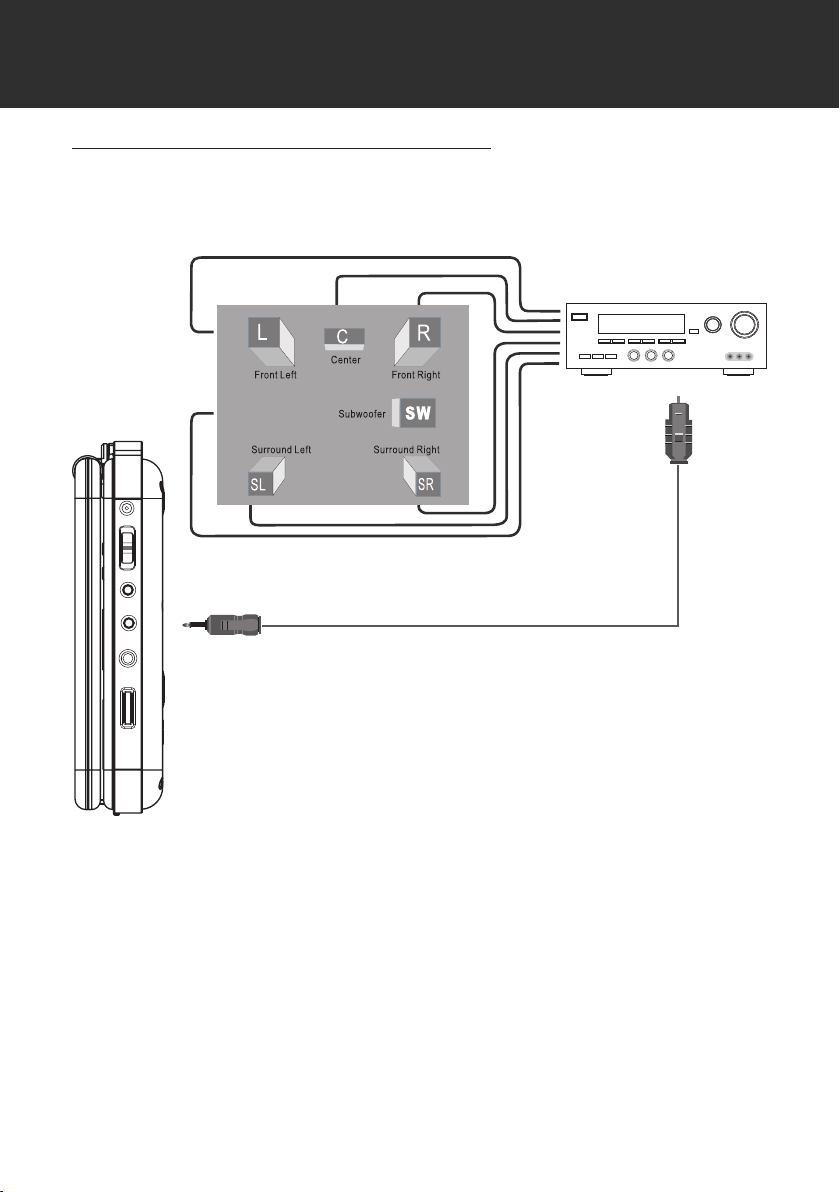

To OPTICAL/AUDIO Out
Optical Cable
(not supplied)
Dolby Pro Logic Surround Amplifier
To Optical Input
Dolby Pro Logic Surround (Optical Audio) Connection
Your player can output 5.1-channel surround sound audio through the Optical/Audio jack. You will
need a Dolby Pro Logic Surround amplier and an optical cable to use this feature.
Note:
Please refer to your receiver’s instruction manual for more information on how to properly set up your surround sound system.
- 11 -
- 12 -
GETTING STARTED
2 x “AAA” 1.5V batteries
To DC 9V IN
To wall outlet
(100-240V 50/60Hz)
Remote Control
Refer to the diagram. Remove the bat-
•
tery compartment cover located on the
rear of the remote control. Insert batter-
ies, making sure to match their polarities (+/-) to the markings on the inside of
the compartment. Replace the cover.
To use the remote, point it at the remote
•
sensor of the player. Operate the remote within 15 feet of the sensor and at
an angle of +/- 60 degrees.
Batteries in the remote will last for ap-
•
proximately 1 year. Replace the batteries if the remote control does not work.
Do not mix old with new batteries, or
different types of batteries.
Remove the batteries from the remote
•
if it will not be used for a long period
of time.
WARNING
The batter y used in this device may present a re or chemical burn if mistreated. Do not
•
recharge, disassemble, incinerate, or heat the battery (~212○F).
Keep batteries away from children.
•
Power Supply
Using the AC/DC Adapter
This AC/DC adapter should be used
with 100-240V 50/60Hz AC wall out-
lets.
DC Out: 9V
•
DC Current: 2.0A min.
•
Caution:
Do not connect the power plug
•
to a power outlet other than that
which is indicated here and on the
label as this may result in the risk
of re or electric shock.
Do not handle the power plug with wet hands. Doing so may cause electric shock.
•
Only use AC adapters of the type specied here. Failure to do so may case a re or damage
•
the player.
GETTING STARTED
OPEN Switch
(release)
battery hooks
battery cradle

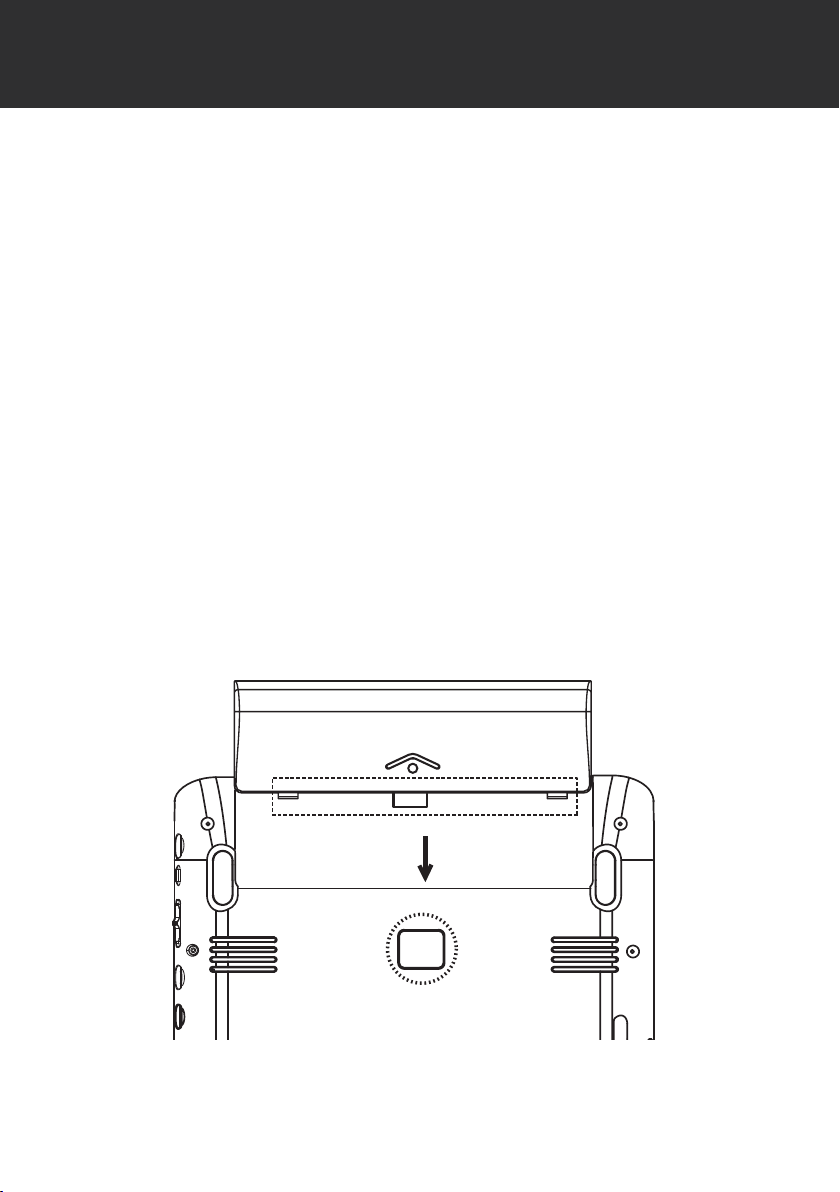

Using the Battery Pack (DC)
The rechargeable battery pack can be used for approximately 300 charge-cycles without any
noticeable change in per formance.
Impor tant: The batter y should be charged fully (minimum 4 hours) before its initial use to
ensure optimum lifetime per formance.
To install the batter y pack:
Place the battery into the recessed cradle located on the bottom of the player.
1.
Insert the battery hooks into their slots and slide the battery into place. Slide the OPEN
2.
(release) button up to lock the battery in place.
To release the batter y, slide the OPEN (release) button down in the direction of the arrow,
3.
and then slide the battery out.
To charge the battery pack:
Install the battery in the manner described above.
1.
Connect the player to an AC power source with the AC/DC adapter as described above.
2.
(The Battery Charge indicator will light red while it is charging; it will light green when the
battery is fully charged.)
Note:
When the battery charge level is low, the unit will enter STANDBY mode automatically.
- 13 -
- 14 -
BASIC OPERATIONS
Basic Playback
Prepare the power supply.
1.
Set the Power Switch to the ON position to turn the player on.
Load a disc.
2.
Press the Open button to open the disc compartment lid. Insert a disc with the label-side
up. Close the lid by hand (the lid will click into place).
If a single-sided disc is inserted upside-down, the player will display “NO DISC” or
•
“BAD DISC”.
Start playback.
3.
Make sure the AV Switch is set to AV OUT to use the player’s built-in LCD screen. Press
PLAY to start playback (some discs may start playing automatically).
Play/Pause/Stop
Press to play the disc for the rst time.
•
Press during playback to pause. Press again to resume playback.
•
Press during playback to stop the disc (“Pre- Stop”). Press to resume playback at the
•
time-point at which the disc was stopped.
Press when the disc is “Pre-Stopped” to stop playback completely. (When is pressed,
•
the disc will start playing from the beginning.)
Forward/Back (Skip)
Press to skip forward one track (DVD, CD, MP3, etc).
•
Press to skip back one track (DVD, CD, MP3, etc).
•
Normal
Normal
x2 x4 x8 x16 x32
x1/2 x1/4 x1/8 x1/16 x1/32
Fast-For ward/Fast-Reverse (Search)
Press to fast-forward through the disc. Each successive press of will change the rate
•
of fast-for ward playback.
Press to fast-reverse through the disc. Each successive press of will change the rate
•
of fast-reverse playback.
Slow
Press SLOW for slow-motion playback. Each successive press of SLOW will change the rate
•
of slow-motion playback. Press to resume normal playback.
Press STEP frame-by-frame playback. Each successive press of STEP will advance the
•
video one frame. Press to resume normal playback.
Note:
Audio will be muted during fast-forward, fast-reverse, and slow-motion playback.
BASIC OPERATIONS
Menu Navigation
To navigate DVD disc menus or the player’s setup menus:
Press the DIRECTION buttons to select a desired feature or option in
•
the menu.
Press ENTER to conrm a selection in the menu.
•
For some menu options, you may be able to use the numeric key-
•
pad to input data.
Clear
Press
•
Numeric Keypad
Use the numeric keypad to skip directly to a DVD chapter or CD track.
•
Use the numeric keypad to input numeric data in menu option elds when
•
possible.
Adjusting the Volume
Turn the Volume Control dial to adjust the volume level up or down.
•
Press MUTE to turn the volume off completely; press mute again to restore the volume to its
•
previous level.
Disc Error Messages
The following messages will be displayed on-screen if there is a problem with the format of the
loaded disc.
WRONG REGIONAL DISC. The region code of the disc does not match the player’s region
•
code (Region 1).
WRONG PASSWORD. The parental rating level of the disc is higher than the parental rating
•
level setting of the player. The player will not play the disc.
WRONG DISC. The player is equipped with automatic disc quality detection software. If the
•
player detects a disc that is damaged or has a format problem, it may play the disc at a lower
quality or stop play completely, depending on how damaged the disc is.
to cancel an entry.
Note:
DVD disc production quality may vary; some discs may deviate from the industry standard.
Some incorrectly-formatted discs may still play, however, the playback and operational quality of
the disc may be substandard.
Power Management
If the player will not be in use for a long period of time, set the Power Switch to the OFF position,
remove the battery, and unplug the player.
- 15 -
- 16 -
FUNCTION BUTTONS
SC REE N 1 6 : 9 4 : 3
RE SET
LCD Mode
Press the LCD MODE button to adjust the brightness, contrast, and color of
the LCD screen.
Press the up/down DIRECTION buttons to select the desired setting
1.
to adjust. From top to bottom, the settings are: Screen, Brightness,
Contrast, Color, and Reset.
Press the lef t/right DIRECTION buttons to adjust the
2.
selected setting.
Use the SCREEN adjustment to switch between 4:3
•
(standard) and 16:9 (wide screen) aspect ratios.
Use the BRIGHTNESS adjustment to make the screen
•
brighter or darker.
Use the CONTRAST adjustment to display a picture
•
with higher or lower contrast.
Use the COLOR adjustment to display a picture with higher or lower color saturation.
•
Select RESET and press ENTER to return the LCD mode adjustments to their factor y-
•
default settings.
Display
Press the DISPLAY button once to show time information on-screen;
•
press it twice to show status information on-screen; press it a third time
to exit the on-screen display mode.
When the player is in AV IN mode, press the DISPLAY button to toggle
•
between T V System modes (NTSC or PAL).
Menu / Title / Return
Press the MENU button during DVD playback to return to the DVD’s
•
Main menu.
Press the TITLE button during DVD playback to return to the DVD’s Title
•
menu.
Press the RETURN button during VCD playback to return to the disc’s Root menu.
•
Setup
Press the SETUP button to enter the player’s setup menu. Enter the Setup
menu to adjust the player’s internal settings; please see the SETUP section
for more details.
MORE FUNCTIONS
Track Disc Off
Track Folder Off
Disc
Chapter Title Disc Off
Search
Press SEARCH to go directly to a desired point of a disc (eg, Title, Chapter, Time).
DVD Chapter/Title Search:
Press SEARCH once to display the Chapter/Title Search Bar
•
shown to the right.
Press the lef t/right DIRECTION buttons to select (highlight) an entr y eld.
•
Use the Numeric keypad to input the desired chapter/title number, or press the up/down DI-
•
RECTION buttons to increase/decrease the chapter/title number.
Press ENTER to conrm and execute the search or press SEARCH to exit search mode.
•
DVD Time Search (within a specied title):
Press SEARCH twice to display the Time Search Bar shown to
•
the right.
Use the Numeric keypad to input the desired time (hours, minutes, seconds).
•
Press CLEAR to cancel any input errors.
•
Press ENTER to conrm and execute the search or press SEARCH to exit search mode.
•
0 03 30
Hour
Minute
Second
CD Time Search:
Press SEARCH once to display the CD Time Search Bar shown to
•
Hour
the right.
Use the Numeric keypad to input the desired time (hours, minutes, seconds).
•
Press CLEAR to cancel any input errors.
•
Press ENTER to conrm and execute the search or press SEARCH to exit search mode.
•
Repeat Mode
Press REPEAT to change the repeat mode of the player. Each successive press of REPEAT will
change the mode as follows:
Note:
Some DVD discs do not allow Repeat mode.
Repeat A-B Mode
To repeat playback of a specic section of a disc (loop):
Press A- B to set the desired start point (“A”) of the section to be repeated.
1.
Press A- B again to set the desired end point (“B” of the section to be repeated.
2.
The section “A-B” will now play repeatedly as a loop. Press A- B again to resume normal
3.
playback.
- 17 -
0 03 30
Minute
Second
- 18 -
MORE FUNCTIONS
Multi-Angle/Subtitle/Audio
During playback of a DVD that has been mastered with multiple angles, press ANGLE to view
•
the available alternate camera angles. (A DVD may have up to 9 selectable angles.)
During playback of a DVD that has been mastered with subtitles, press SUBTITLE to view the
•
available subtitle tracks. (A DVD may have up to 32 selectable subtitles.)
During playback of a DVD that has been mastered with alternate language/audio tracks, press
•
AUDIO to hear the alternate tracks. (A DVD may have up to 8 selectable audio tracks.)
Zoom
Press ZOOM to change the magnication level of the picture.
During DVD playback, each successive press of ZOOM will change the level of magnication
•
to: Zoom 2x, Zoom 4x, Normal.
During JPEG CD playback, each successive press of ZOOM will change the level of magni-
•
cation to: 25%, 50%, 100%, 150%, 200%.
When the magnication level is greater than Normal/100%, use the DIRECTION buttons to pan
around the magnied picture.
Note: The picture quality will decrease as the zoom level increases.
Program
Enter Program mode to create a custom sequence of tracks to be played.
(Program mode is available only when the player is in NAVIGATE OFF mode. Press the PBC
button to set the player to NAVIGATE OFF mode.)
Note:
You can also use the numeric keypad to enter numbers directly in the elds. Use the direction
buttons to move between entry elds.
DVD Program Mode
Load a DVD and press PROGRAM.
1.
Press the right DIRECTION button to select the
2.
“Title” column; press the up/down DIRECTION
buttons to select a title.
Press the right DIRECTION button to select the
3.
“Chapter” column; press the up/down DIRECTION buttons to select a chapter.
Press PLAY (or ENTER) to conrm the selec-
4.
tion.
Repeat steps 2-4 until you have nished pro-
5.
gramming your selections or when you have programmed the maximum 20 tracks.
Press PLAY to start playback. Press PROGRAM to cancel.
6.
Title Chapter
MORE FUNCTIONS
CD Program Mode
Load a CD and press PROGRAM.
1.
Press the right DIRECTION button to select the
2.
“Track” column; press the up/down DIRECTION
buttons to select a track.
Press PLAY (or ENTER) to conrm the selec-
3.
tion.
Repeat steps 2-3 until you have nished pro-
4.
gramming your selections or when you have
programmed the maximum 20 tracks.
Press PLAY to start playback. Press PRO-
5.
GRAM to cancel.
MP3 Program Mode
Load an MP3 -CD and press PROGR AM.
1.
Use the DIRECTION buttons to select the de-
2.
sired le.
To navigate through subfolders: press the
•
left/right DIRECTION buttons to enter/exit
a folder.
Press the right DIRECTION button to conrm.
3.
The conrmed le will be marked as a programmed le.
Repeat steps 2-3 until you have nished pro-
4.
gramming your selections or when you have programmed the maximum 20 tracks.
Press PLAY (or ENTER) to conrm the selection.
5.
Press PLAY to start playback. Press PROGRAM to cancel.
6.
- 19 -
- 20 -
SETUP
Enter Setup mode to adjust the various internal settings of the player. Make sure the player has
been completely stopped before entering Setup mode.
Press SETUP to enter Setup mode.
1.
Use the DIRECTION buttons to select a desired item.
2.
Press ENTER to conrm a selection.
3.
Press SETUP to exit Setup mode (or select EXIT and press ENTER).
4.
Language Setup
Use the DIRECTION buttons to highlight the desired language selection and press ENTER to
conrm.
Item Description Options (Default is in Bold)
OSD
Menu
Audio
Subtitle
Sets the language of the player’s onscreen display.
Sets the default menu language of
loaded DVDs.
Sets the default language audio track
of loaded DVDs.
Sets the default subtitle track of
loaded DVDs.
English, French, German, Italian
English, Chinese, Japanese, French,
German, Italian, Spanish, Portuguese, Hindi, Thai, Russian, Korean,
Others
English, Chinese, Japanese, French,
German, Italian, Spanish, Portuguese, Hindi, Thai, Russian, Korean,
Others
English, Chinese, Japanese, French,
German, Italian, Spanish, Portuguese, Hindi, Thai, Russian, Korean,
Others
Screen Setup
Use the DIRECTION buttons to highlight the desired screen selection and press ENTER to conrm.
Item Description Options (Default is in Bold)
TV Type
Screen Saver
TV System
Brightness Select a preset screen brightness. Normal, Bright, Soft
Contrast Adjust the screen’s contrast. -4 to +4 (0 is default)
Sets the aspect ratio of the display.
(The TF-DVD7307 screen is 16:9.)
The screensaver prevents burn-in
damage to the player’s screen.
Sets the player’s Video Out signal
type. Set this to correspond with your
TV.
4:3 (PS), 4:3 (LB), 16:9
On, Off
NTSC, PAL, Auto
SETUP
Audio Setup
Use the DIRECTION buttons to highlight the desired audio selection and press ENTER to conrm.
Item Description Options (Default is in Bold)
Sets the player’s Optical Out (audio)
Digital Out
Custom Setup
Use the DIRECTION buttons to highlight the desired Custom Setup selection and press ENTER
to conrm.
Item Description Options (Default is in Bold)
Parental Ctrl
Password
Angle Mark
Default
signal. For use with 5.1-channel re-
ceivers (see your receiver’s manuals
for more details).
Sets the maturity rating level of the
player. The player will not play any
discs rated higher than this setting.
This setting is password protected
(the default password is: 8888).
Change the Parental Ctrl password. Enter the old password, the new pass-
word, and then the new password again to verify. DO NOT FORGET THE
PASSWORD; this password cannot be reset.
Displays an on-screen prompt whenever an alternate angle becomes
available for viewing (press ANGLE
to view).
Resets all settings to their factory-
default state. This will not reset the
Parental Ctrl password.
SPDIF/RAW, SPDIF/PCM, Off
Levels 1 to 8. (8: ADULT is default)
On, Off
Read
- 21 -
- 22 -
SPECIFICATIONS
Power Supply AC: 100 -240V UL Listed Adapter
Power Consumption ≤ 9.8W
Video Signal System NTSC / PAL
Video Output 3.5mm mini-jack to RCA Composite Video
Audio Output 3.5mm Stereo Headphone
Video Input 3.5mm mini-jack to RCA Composite Video
Audio Input 3.5mm Stereo Line-In
S/N Ratio 90dB Typical
Dynamic Range (Audio) 90dB Typical
Display Type 7” TFT LCD (16:9 Wide Screen)
Display Resolution 480 x 234
Unit Dimensions 7.76” x 1.57” x 6.61” (WHD)
Weight 2.14 lbs (main unit)
DC: 9V, 2A
3.5mm Stereo Line-Out
Optical Out
TROUBLESHOOTING
If you have a problem with this player, please read the troubleshooting guide below and check
our website at www.cobyusa.com for Frequently Asked Questions (FAQs) and rmware updates.
If these resources do not resolve the problem, please contact Technical Support.
COBY Electronics Technical Support
Hours: Monday to Friday, 8:30 AM–11:00 PM EST
Email: techsupport@cobyusa.com
Phone: 800-681-2629 or 718-416-3197
Web: www.cobyusa.com
There is no power to the device.
•
•
•
The device does not play.
•
•
•
•
Saturday to Sunday, 9:00 AM–11:00 PM EST
Ensure that the Power Switch is physically set to the ON position.
Ensure that the AC adapter cord is securely connected to the player and the proper wall outlet.
Ensure that the battery pack is fully charged.
Ensure that a supported disc is loaded in the player label-side up.
Ensure that the disc’s rating level does not exceed the player’s.
Ensure that the disc is not damaged or too dirty. Clean the disc or try another disc.
Moisture may have condensed inside the player. Remove the disc and leave the player on for
1-2 hours and then try again.
There is no picture.
Ensure that the AV switch is set to the correct mode (AV IN or AV OUT).
•
Ensure that the T V set has been powered on and is set to the correct AV mode.
•
Ensure that the connections between the player and the TV are secure and correct.
•
Check if the connection cables are damaged.
•
The picture is noisy or distorted.
The disc may be damaged or dirty. Clean the disc or try another one.
•
Reset your TV’s color system.
•
Ensure that the player is connected directly to the TV (and not through a VCR, cable box,
•
satellite receiver, etc.)
There is no sound or distorted sound.
Ensure that the T V and amplier have been turned on and properly set up.
•
Ensure that the T V and amplier connections are secure and correct.
•
Try a different Audio track of the DVD by pressing AUDIO.
•
Ensure that the MUTE function of the TV, Amplier, or Player is not engaged.
•
- 23 -
TROUBLESHOOTING
The remote control doesn’t work.
Ensure that the Power Switch has been physically set to the ON position.
•
Ensure that there are no obstacles between the remote and the player.
•
Point the remote at the remote sensor on the main unit.
•
Ensure that the batteries in the remote retain a charge and have been installed correctly.
•
Try replacing the remote’s batteries.
•
The player has malfunctioned.
Unplug the player and remove the battery pack for 30 minutes. After that, reinstall the battery
•
and plug in the player. Power on the player -- the restore function should reset the player.
- 24 -
Loading...
