TF-DVD7060
7” Widescreen TFT LCD Portable DVD/CD/MP3 Player with
Integrated FM Transmitter and Wireless Headphones
Instruction Manual
Please read this manual carefully before operation.
2
PRECAUTIONS
CAUTION
RISK OF E LECTRIC S HOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK , DO NOT R EMOVE THE COVER (OR BACK)
OF THE UNIT. REFER SERVICING ONLY TO QUALIFI ED
SERVIC E PERSONN EL.
For Customer Use:
Enter below the serial number that is located on the
bottom of the unit. Retain this information for future
reference.
Model No. TF-DVD70 60
Serial No.
The lightning ash with arrowhead symbol within an equilateral triangle is intended to aler t
the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufcient magnitude to c onstitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operation and servicing instructions in the literature accompanying the
applianc e.
WARNING:
To prevent re or sh ock hazard, do not expo se this devic e to rain or mo isture. Dan gerous high voltage is present ins ide the
enclos ure. Do not op en the cabinet.
CAUTION :
This Dig ital Vide o Disc player employs a las er system. To prevent direct expo sure to the laser beam, do not try to ope n the
enclos ure or defeat t he safety i nterlocks. When open and the inter locks are defeated, visible laser radiation is present.
Use of con trols, adj ustments , or perfo rmance of procedur es other than those spe cied herein may resul t in hazard ous radia -
tion exposure. DO NOT STARE INTO THE BEAM.
FCC Noti ce:
This equi pment has be en tested and found to com ply with th e limits for a C lass B digital device p ursuant wi th the FCC Rule s,
Part 15. Th ese limits are designed to provide r easonable protect ion against harmful in terference in a resi dential in stallati on.
This equi pment gene rates, uses, and can rad iate radio f requency e nergy, and if not installed a nd used in accordanc e with the
instru ctions may c ause harm ful inter ference to radio com munication.
CAUTION :
To prevent electric shoc k, match wide blade of plu g to wide slot of outlet and f ully inser t.
NOTICE:
This pro duct inco rporate s copyright protect ion technology that i s protecte d by U.S. patent s and other int ellectua l proper ty
rights . Use of this copyright p rotectio n technol ogy must be au thorized by Macrovis ion, and is intended for home and other
limited v iewing use s only unles s otherwise autho rized by Mac rovision. Reverse eng ineering o r disasse mbly is proh ibited.
For recycling or disposal information about this product, please
contact your local authorities or the Electronics Industries Alliance:
www.eiae.org.
3
SAFETY INSTRUCTIONS
Read Instructions: All the safety and operating instructions should be read before the
1.
product is operated.
Retain Instructions: The safety and operating instructions should be retained for future
2.
reference.
Heed Warnings: All warnings on the product and in the operating instructions should be
3.
adhered to.
Follow Instructions: All operating and usage instructions should be followed.
4.
Cleaning: Unplug this product from the wall outlet before cleaning. Do not use liquid clean-
5.
ers or aerosol cleaners. Use a damp cloth for cleaning.
Attachments: Use only attachments recommended by the manufacturer. Use of other
6.
attachments may be hazardous.
Water and Moisture: Do not use this product near water (e.g., near a bath tub, washbowl,
7.
kitchen sink, laundry tub, in wet basements, or near a swimming pool and the like).
Accessories: Do not place this product on an unstable cart, stand, tripod, bracket, or table.
8.
Use only with carts, stands, tripods, brackets, or tables recommended by the manufacturer
or sold with the product. Any mounting of the product should follow the manufacturer’s
instructions and should use a mounting accessory recommended by the manufacturer.
A product and cart combination should be moved with care. Quick stops, excessive force,
9.
and uneven surfaces may cause the product and cart combination to over turn.
Ventilation: Slots and openings in the cabinet are provided for ventilation to ensure reliable
10.
operation of the product and to protect it from overheating. These openings should never
be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product
should not be placed in a built-in installation such as a bookcase or rack unless proper
ventilation is provided or the manufacturer instructions have been adhered to.
Power Sources: This product should be operated only from the type of power source
11.
indicated on the rating label. If you are not sure of the type of power supply to your home,
consult your product dealer or local power company. For products intended to operate from
battery power or other sources, refer to the operating instructions.
Grounding or Polarization: This product may be equipped with a polarized alternating-cur-
12.
rent line plug that has one blade wider than the other. This plug will only t into the power
outlet in one direction. This is a safety feature. If you are unable to insert the plug fully into
the outlet, try reversing the direction of the plug. If the plug should still fail to t, contact an
electrician to replace the obsolete outlet. Do not defeat the safety purpose of the polarized
plug.
Power-Cord Protection: Power supply cords should be routed so that they are not likely to
13.
be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and at the point which they exit from the
product.
Protective Attachment Plug: The product may be equipped with an attachment plug with
14.
overload protection. This is a safety feature. See the operating instructions for replacement
or directions to reset the protective device. If replacement of the plug is required, be sure
the service technician has used a replacement plug that has the same overload protection
as the original plug as specied by the manufacturer.
4
SAFETY INSTRUCTIONS
Outdoor Antenna Grounding: If an outside antenna is connected to the product, be sure the
15.
antenna system is grounded so as to provide some protection against voltage surges and
built-up static charges. Article 810 of the National Electrical Code, ANS/NFPA 70 provides
information with regard to proper grounding of the mast and supporting structure, grounding
of the lead-in wire to an antenna-discharge unit, size of grounding conductors, location
of antenna-discharge unit, connection to grounding electrodes, and requirements for the
grounding electrode (see gure).
Lightning: For added protection for this product, unplug it from the wall outlet and discon-
16.
nect the antenna or cable system during a lightning storm or when it is left unattended and
unused for long periods of time. This will prevent damage to the product due to lightning or
power-line surges.
Power Lines: An outside antenna system should not be located in the vicinity of overhead
17.
power lines or other electric light or power circuits, or where it can fall into such power lines
or circuits. When installing an outside antenna system, extreme care should be taken to
keep from touching such power lines or circuits, as contact with them might be fatal.
Overloading: Do not overload wall outlets, extension cords, or integral convenience recep-
18.
tacles as this can result in a risk of re or electric shock.
Object and Liquid Entry: Never push objects of any kind into this product through openings
19.
as they may touch dangerous voltage points or shout-out parts that could result in a re or
electric shock. Never spill liquid of any kind on the product.
Servicing: Do not attempt to service this product yourself as opening or removing covers
20.
may expose you to dangerous voltage or other hazards. Refer all servicing to qualied
service personnel.
Damage Requiring Service: Unplug this product from the wall outlet and refer servicing to
21.
qualied service personnel under the following conditions: a) when the power-supply or
plug is damaged; b) if liquid has been spilled or if objects have fallen into the product; c) if
the product has been exposed to rain or water; d) if the product does not operate normally
by following the operating instructions. Adjust only those controls that are covered by the
operating instructions as improper adjustment of other controls may result in damage
and will often require extensive work by a qualied technician to restore the product to its
normal operation; e) if the product has been dropped or damaged in any way; f) when the
product exhibits a distinct change in performance—this indicates a need for service.
Replacement Parts: When replacement parts are required, be sure that your service
22.
technician has used replacement parts specied by the manufacturer or have the same
characteristics as the original par t. Unauthorized substitutions may result in re, electric
shock, or other hazards.
Safety Check: Upon completion of any service or repairs to this product, ask the service
23.
technician to perform safety checks to ensure that the product is in proper operating condition.
Wall or Ceiling Mounting: The product should be mounted to a wall or ceiling only as recom-
24.
mended by the manufacturer.
Heat: The product should be situated away from heat sources such as radiators, heat
25.
registers, stoves, or other products (including ampliers) that produce heat.
Note:
The main plug is used to disconnect the device. It should remain within reach and should not be
obstructed during intended use.
5
TABLE OF CONTENTS
PRECAUTIONS ................................................................................................................................. 2
SAFETY INSTRUCTIONS ................................................................................................................... 3
TABLE OF CONTENTS ...................................................................................................................... 5
ABOUT OPTICAL DISCS ..................................................................................................................7
Disc Requirements ...................................................................................................................7
Disc Care and Maintenance ....................................................................................................7
Handling a Disc ................................................................................................................7
Cleaning a Disc ................................................................................................................7
PACKAGE CONTENTS .................................................................................................................... 8
LOCATION OF CONTROL S ............................................................................................................ 9
Main Unit ..................................................................................................................................9
Remote Control ......................................................................................................................10
CONNECTIONS .............................................................................................................................11
Audio/Video (AV) Output .......................................................................................................11
Dolby Pro Logic Surround Connection ..................................................................................12
Headphone Connection .........................................................................................................12
Wireless FM Transmitter Connection ....................................................................................13
Remote Control ......................................................................................................................14
Power Supply .........................................................................................................................14
Using the AC Power Adapter .........................................................................................14
Using the DC (Car) Power Adapter................................................................................15
Using the Battery Pack (DC) .........................................................................................15
Power Management .......................................................................................................15

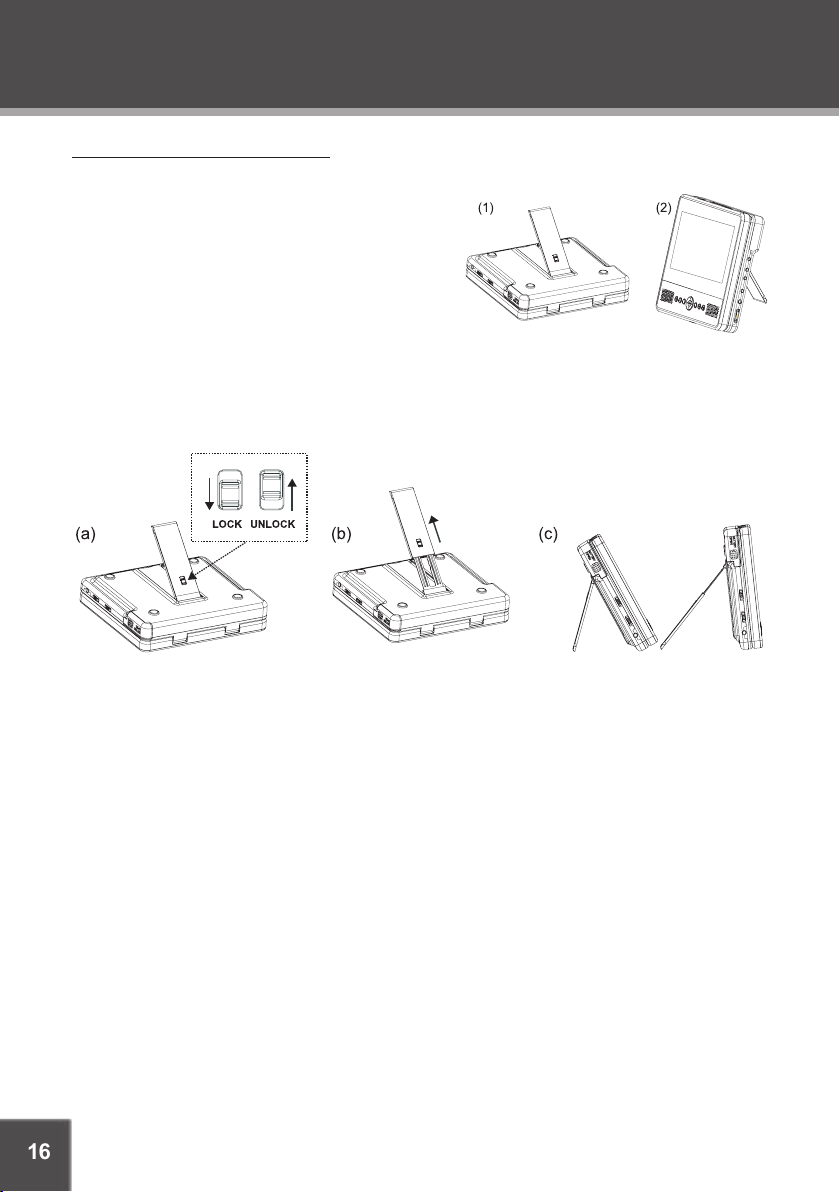

Using the Retractable Kick Stand ..........................................................................................16
BASIC OPERATIONS ..................................................................................................................... 17
Basic Disc Playback ...............................................................................................................17
Play/Pause/Stop ............................................................................................................17
Previous/Next (Skip) ......................................................................................................17
Reverse/For ward (Scan) ................................................................................................17
Slow ...............................................................................................................................17
Menu Navigation ....................................................................................................................18
Numeric Keypad.....................................................................................................................18
Adjusting the Volume .............................................................................................................18
Disc Error Messages .............................................................................................................18
6
TABLE OF CONTENTS
DVD/DISC FUNCTIONS ................................................................................................................ 19
Search ....................................................................................................................................19

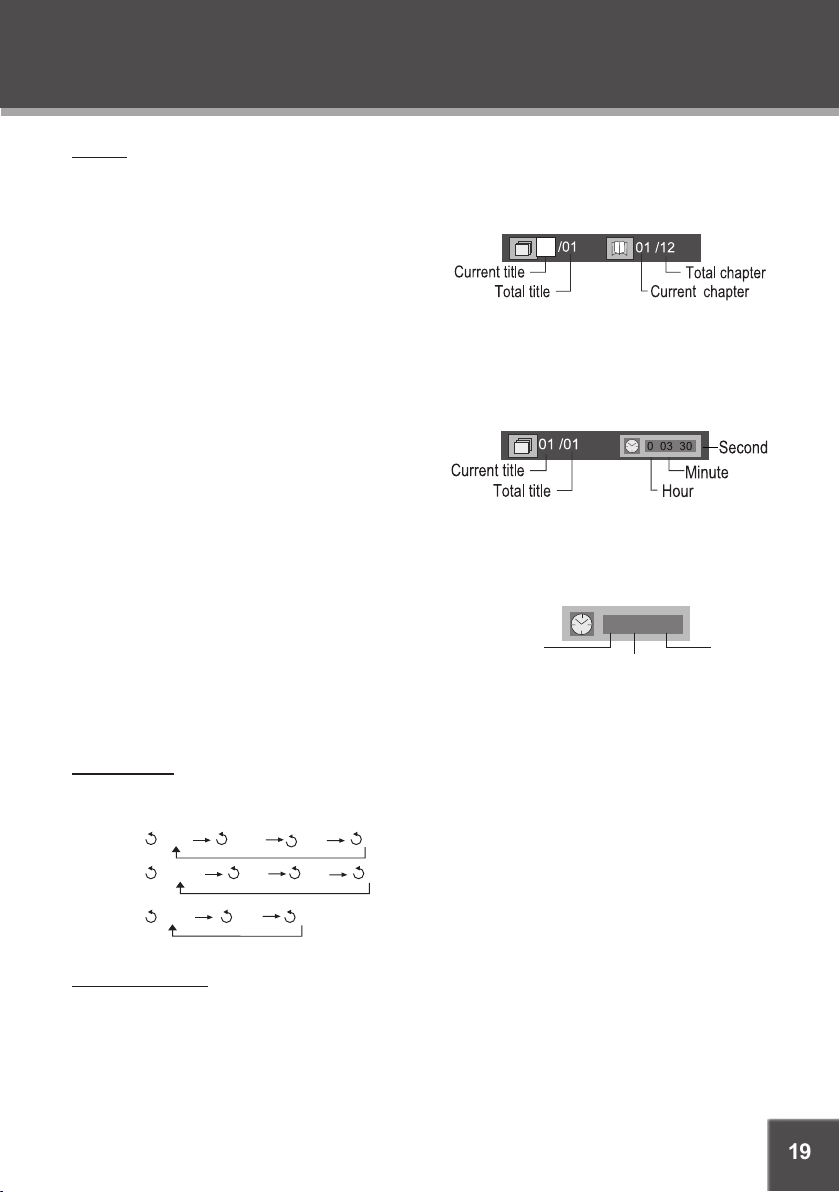

DVD Chapter/Title Search .............................................................................................19
DVD Time Search (within a specied title) ....................................................................19
CD Time Search: ...........................................................................................................19
Repeat Mode..........................................................................................................................19
Repeat A-B Mode ..................................................................................................................19
Multi-Angle/Subtitle/Audio .....................................................................................................20
Zoom ......................................................................................................................................20
Program .................................................................................................................................20

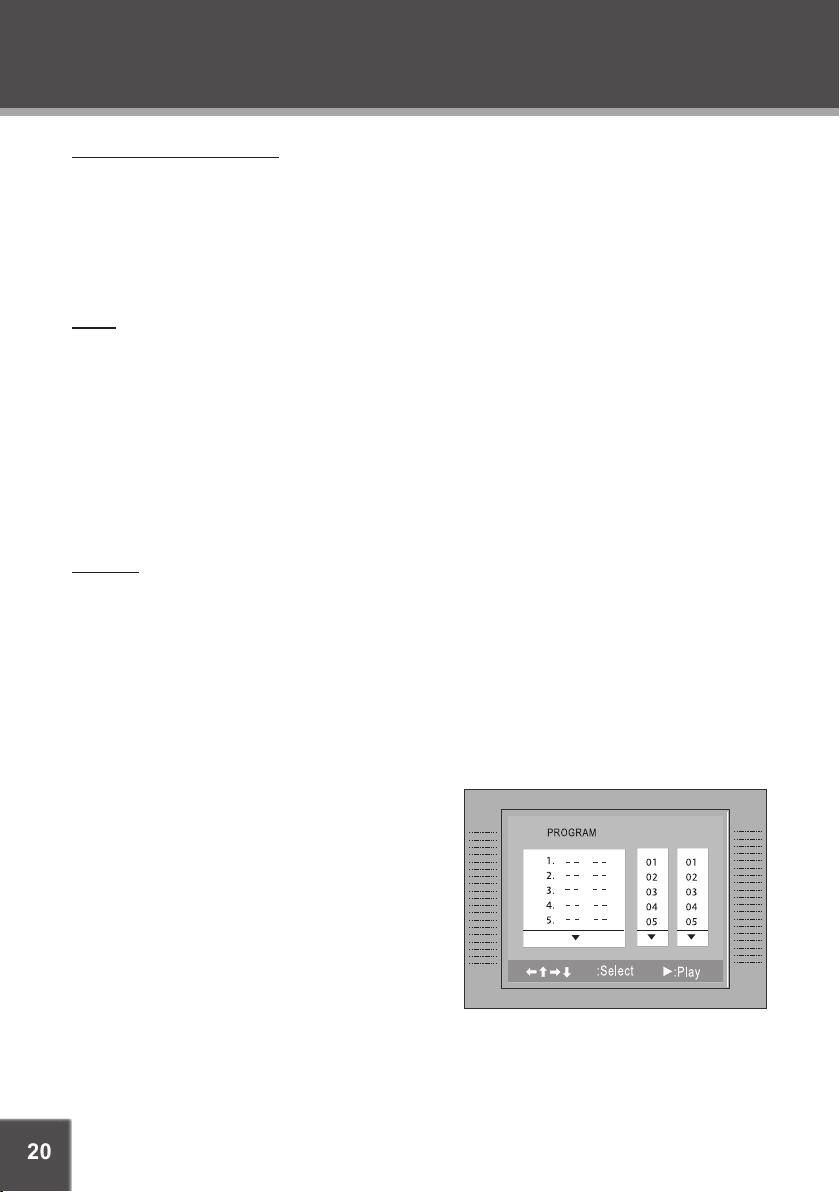

DVD Program Mode.......................................................................................................20

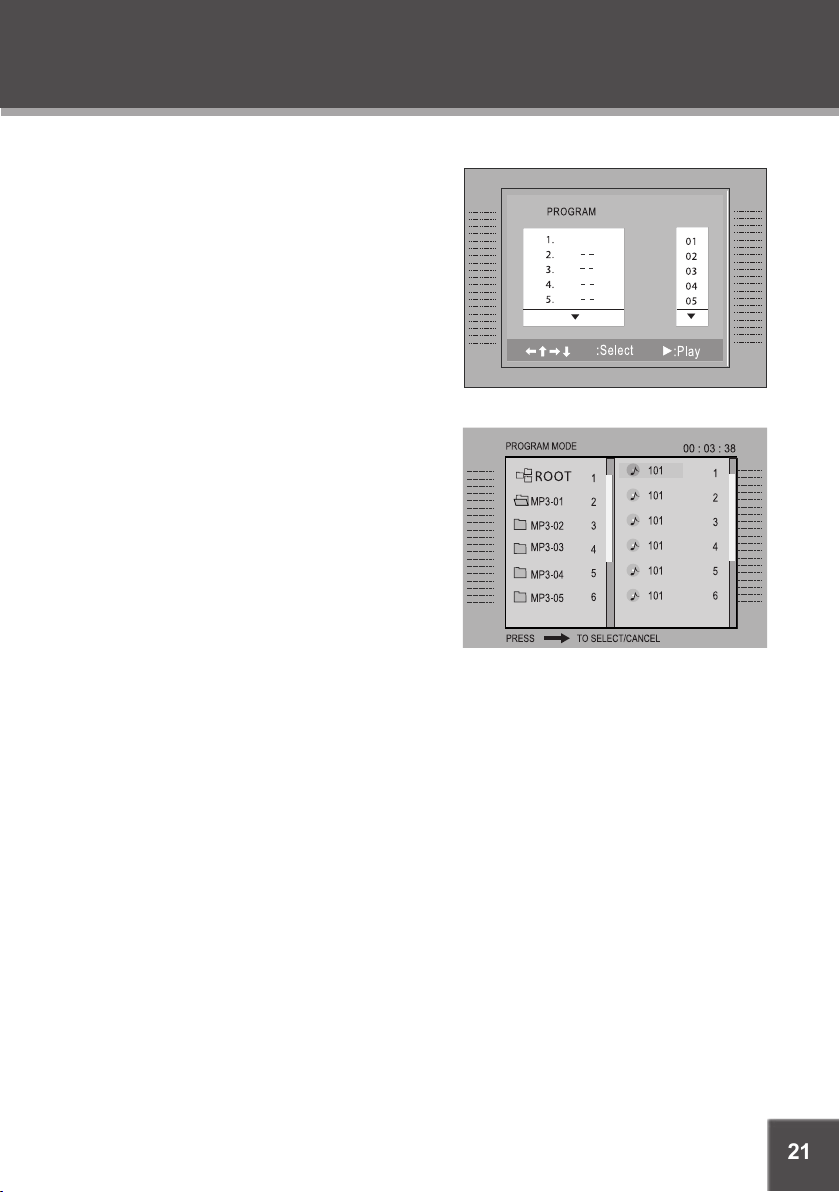

CD Program Mode .........................................................................................................21
MP3 Program Mode .......................................................................................................21
FUNCTION BUTTONS
Mode / LCD Mode ..................................................................................................................22
LCD Display On/Off ...............................................................................................................22
Display ...................................................................................................................................22
Menu and Title .......................................................................................................................22
Setup ......................................................................................................................................22
DVD SETUP .................................................................................................................................... 23
Language Setup .....................................................................................................................23
Screen Setup .........................................................................................................................23
Audio Setup ............................................................................................................................24
Custom Setup ........................................................................................................................24
SPECIFICATIONS ........................................................................................................................... 25
TROUBLESHOOTING ..................................................................................................................... 26
....................................................................................................................22
7
ABOUT OPTICAL DISCS
Disc Requirements
This DVD player supports playback of the following discs.
Type Disc Mark Content Type Disc Size Max. Playback Time
133 min (SS- SL)
DVD-Video Discs
Audio Compact Discs (CDs) Audio 12 cm 74 min
Audio + Video
(moving picture)
12 cm
242 min (SS- DL)
266 min (DS-SL)
484 min (DS-DL)
MP3 CDs
JPEG CDs -- Still Picture 12 cm --
(CD-R, CD- RW)
Audio 12 cm ~14 hours
This unit can play back CD-R and CD-RW discs that contain audio titles, MP3 les, or JPEG
picture les. Discs not listed above are not supported by this unit (eg, PC CD-ROM, CD-Extra,
CD-G, CD-I, etc.)
Disc Care and Maintenance
Optical discs (DVDs, CDs) contain high-density compressed data and need proper handling.
Handling a Disc
Hold a DVD/CD by its edges. Avoid touching the re-
•
corded side of the disc. To remove a DVD/CD from
its storage case, press down on the center retention mechanism of the case and lift the disc out.
Do not subject discs to prolonged exposure to direct sunlight, high humidity, or high tempera-
•
tures.
Do not bend or press discs.
•
To reduce the risk of scratches, always put discs back in their case after use. Store discs
•
vertically in a cabinet.
Do not place stickers or labels on either side of a disc.
•
Cleaning a Disc
Use a dry, soft cloth to wipe off any ngerprints and dusts from the playing surface of the disc.
Wipe in a straight line radially from the center to the outside edge of the disc. Small dust particles
and light stains will not affect playback quality.
Never use chemicals such as record sprays, anti-static sprays, benzene, or thinners to clean
•
a disc. Doing so will damage the surface of the disc permanently.
8
PACKAGE CONTENTS
1
2
3
6
4
5
1.000SCALE
Step
Clear
Mute
TF-DVD7060
7
8
TF-DVD7060
1.
Battery Pack
2.
Remote Control
3.
AV Cable
4.
AC Adapter + Cord
5.
DC Car Adapter
6.
FM Wireless Stereo
7.
Headphones (2)
Headrest Mounting Bag
8.
9
3
4
1
2
Up
ENTER
5
7
6
10
9
8
171918
12
13
14
15
16
11
20
22
23
21
25
26
24
Main Unit
LOCATION OF CONTROLS
Left View
Battery Compartment Release Latch
1.
Frequency Selector Switch
2.
Hold Switch
3.
Power /
4.
Transmitter Switch
Headphone Out (1)
5.
Front View
Left Speaker
6.
LCD Display
7.
Remote Sensor
8.
Power Indicator
9.
Right Speaker
10.
Play / Pause
11.
Stop
12.
LCD Display On/Off
13.
Enter Key
14.
Navigation Keypad
15.
(Left, Right, Up, Down)
Disc Compartment Latch
16.
Mode
17.
Previous/Reverse
18.
Next/Forward
19.
Right View
Battery Indicator
20.
DC 9V Power In
21.
Composite Video Out
22.
Stereo Audio Out
23.
Coaxial Digital Audio Out
24.
Headphone Out (2)
25.
Volume Control Dial
26.
10
Step
Clear
Mute
TF-DVD7060
Title
Power
Menu
Enter
Navigation Keypad
Mute
Numeric Keypad
Repeat A-B
Clear
Repeat
Audio
Subtitle
Angle
Program
PBC
Slow
Search
Step
Forward /
Reverse (Scan)
Next /
Previous (Skip)
Zoom
Stop
Play/Pause
Setup
LCD Mode
Display
Remote Control
LOCATION OF CONTROLS
The keys on the remote control that are also on the main unit control the same functions.
11
CONNECTIONS
TV or monitor with audio/video input
(or other External AV Source)
AUDIO OUT
VIDEO OUT
To Audio/Video Input
AV Cable
Audio/ Video (AV) Output
Your player comes equipped with AV output jacks.
Use the AV Output connection to output your player’s DVD signal to an external display (e.g., a
TV or monitor).
Refer to your TVs instruction manual for more information on setting it to the proper AV
•
mode.
Be sure to turn off and unplug your player and TV before making these connections.
•
12
CONNECTIONS
To Coaxial Digital Audio Out
Coaxial Cable
(not supplied)
Dolby Pro Logic Surround Amplifier
To Coaxial Audio
Input
To Headphone Jack
Headphones
Dolby Pro Logic Surround Connection
Your player can output 5.1-channel surround sound audio through the Coaxial Digital Audio Out
jack. You will need a Dolby Pro Logic Surround amplier and an coaxial adapter cable to use this
feature.
Headphone Connection
Connect headphones to the headphone jacks for private
listening.
Lower the volume level before connecting head-
•
phones, then gradually increase the volume for comfortable listening.
Hearing experts advise against the constant use of
•
personal stereos played at high volume.
Constant high-volume use can lead to hearing loss.
•
If you experience ringing in your ears or hearing
loss, discontinue use immediately and seek medical
advice.
Note:
Please refer to your receiver’s instruction manual
for more information on how to properly set up your
surround sound system.
13
CONNECTIONS
Wireless FM Transmitter Connection
Your player comes equipped with an integrated wireless FM transmitter.
Use the FM transmitter with the wireless headphones for private listening without wires.
•
Use the FM transmitter with the car radio for shared listening without wires.
•
To use the FM transmitter:
Set the Power / Transmitter Switch to the TRAN
1.
position.
Set the Frequency Selector switch to a frequency
2.
clear of radio broadcasts (88.1, 88.3, 88.5, or 88.7).
Lower the volume and then put on the wireless head-
3.
phones. Turn on the headphones.
Press the SCAN button on the headphones repeat-
4.
edly to scan to the frequency selected in Step 2.
You may also tune your car radio to the fre-
•
quency selected in Step 2.
Adjust the volume level on the player or on the headphones.
5.
Note:
The maximum receiving distance is approximately 6 feet.
14
GETTING STARTED
2 x “AAA” 1.5V batteries
To DC 9V IN
To wall outlet
(100-240V 50/60Hz)
AC adapter:
This AC adapter operates on
100-240V~~50/60Hz 2A Min
DC OUT: 9V
DC current: 2.0A Min
Remote Control
Refer to the diagram. Remove the battery
•
compartment cover located on the rear of the
remote control. Insert batteries, making sure
to match their polarities (+/-) to the markings
on the inside of the compartment. Replace
the cover.
To use the remote, point it at the remote sen-
•
sor of the player. Operate the remote within
15 feet of the sensor and at an angle of +/- 60
degrees.
Batteries in the remote will last for approxi-
•
mately 1 year. Replace the batteries if the
remote control does not work. Do not mix
old with new batteries, or different types of
batteries.
Remove the batteries from the remote if it will
•
not be used for a long period of time.
WARNING
The batter y used in this device may present a re or chemical burn if mistreated. Do not
•
recharge, disassemble, incinerate, or heat the battery (~212ºF).
Keep batteries away from children.
•
Power Supply
Using the AC Power Adapter
This AC adapter should be used with
100-240V 50/60Hz AC wall outlets.
DC Out: 9V
•
DC Current: 2.0A min.
•
Caution:
Do not connect the power plug
•
to a power outlet other than that
which is indicated here and on
the label as this may result in the
risk of re or electric shock.
Do not handle the power plug with wet hands. Doing so may cause electric shock.
•
Only use AC adapters of the type specied here. Failure to do so may case a re or damage
•
the player.
15
GETTING STARTED
To DC 9V IN
To DC Socket in Car
1.000SCALE
Using the DC (Car) Power Adapter
This DC adapter should be used with DC car sockets.
Do not connect the DC power adapter to the bat-
•
tery recharge jack.
The DC power adapter is for in-car use, only.
•
Using the Battery Pack (DC)
To install the batter y pack:
Slide the battery compartment release latch
1.
in the direction of the arrow to open it.
Insert the battery pack and then close the
2.
battery compartment lid.
To charge the batter y pack:
Install the battery pack and then connect the AC adapter to the DC 9V Power In jack.
1.
The Battery Indicator will light red while the battery is charging; it will light green when the
2.
battery is fully charged.
The battery should be charged fully (minimum 4 hours) before its initial use to
ensure optimum lifetime per formance.
The rechargeable battery pack can be used for approximately 300 charge-cycles without any noticeable change in per formance.
When the battery charge level is low, the unit will enter STANDBY mode automatically.
Power Management
If the player will not be in use for a long period of time, set the Power Switch to the OFF position,
remove the battery, and unplug the player.
For units purchased outside of the United States only: When using the battery as a power source,
please connect the supplied antenna to the unit’s DC 9V jack to achieve better reception.
16
GETTING STARTED
1.000SCALE
1.000SCALE
1.000SCALE
1.000SCALE
1.
0
0
0
S
CA
LE
S
C
A
L
E
1
.
0
0
0
Using the Retractable Kick Stand
There is a retractable kick stand located on the back of your player. Use the stand for convenient
table-top viewing.
To open the stand, simply lift the stand up from
1.
its groove.
Stand the player up using the open stand as a
2.
brace.
To adjust the viewing angle:
3.
Slide the stand lock switch upwards to
a.
unlock the stand.
Extend the stand to its desired length, then relock the stand with the switch.
b.
Stand the player up. The longer the stand is, the steeper the viewing angle will be.
c.
17
BASIC OPERATIONS
Basic Disc Playback
Prepare the power supply.
1.
Set the Power Switch to the ON position to turn the player on.
Load a disc.
2.
Press the Open button to open the disc compartment lid. Insert a disc with the label-side
up. Close the lid by hand (the lid will click into place).
If a single-sided disc is inserted upside-down, the player will display “NO DISC” or
•
“BAD DISC”.
Start playback.
3.
Make sure the AV Switch is set to AV OUT to use the player’s built-in LCD screen. Press
PLAY to start playback (some discs may start playing automatically).
Play/Pause/Stop
Press to play the disc for the rst time.
•
Press during playback to pause. Press again to resume playback.
•
Press during playback to stop the disc (“Pre- Stop”). Press to resume playback at the
•
time-point at which the disc was stopped.
Press when the disc is “Pre-Stopped” to stop playback completely. (When is pressed,
•
the disc will start playing from the beginning.)
Previous/Next (Skip)
Press to skip back one track (DVD, CD, MP3, etc).
•
Press to skip forward one track (DVD, CD, MP3, etc).
•
Reverse/Forward (Scan)
Normal
Press to reverse through the disc. Each successive press of will change the rate of
•
reverse playback.
Press to fast-forward through the disc. Each successive press of will change the rate
•
of forward playback.
Slow
Normal
Press SLOW for slow-motion playback. Each successive press of SLOW will change the rate
•
of slow-motion playback. Press to resume normal playback.
Press STEP frame-by-frame playback. Each successive press of STEP will advance the
•
video one frame. Press to resume normal playback.
Note:
Audio will be muted during fast-forward, fast-reverse, and slow-motion playback.
x2 x4 x8 x16 x32
x1/2 x1/4 x1/8 x1/16 x1/32
18
BASIC OPERATIONS
Menu Navigation
To navigate DVD disc menus or the player’s setup menus:
Use the Navigation keys (Up/Down/Left /Right) to select a desired feature
•
or option in the menu.
Press ENTER to conrm a selection in the menu.
•
For some menu options, you may be able to use the numeric key-
•
pad to input data.
Clear
Press
•
Numeric Keypad
Use the numeric keypad to skip directly to a DVD chapter or CD track.
•
Use the numeric keypad to input numeric data in menu option elds when pos-
•
sible.
Adjusting the Volume
Turn the Volume Control dial to adjust the volume level up or down.
•
Press MUTE to turn the volume off completely; press mute again to restore the volume to its
•
previous level.
Disc Error Messages
The following messages will be displayed on-screen if there is a problem with the format of the
loaded disc.
WRONG REGIONAL DISC. The region code of the disc does not match the player’s region
•
code.
WRONG PASSWORD. The parental rating level of the disc is higher than the parental rating
•
level setting of the player. The player will not play the disc.
WRONG DISC. The player is equipped with automatic disc quality detection software. If the
•
player detects a disc that is damaged or has a format problem, it may play the disc at a lower
quality or stop play completely, depending on how damaged the disc is.
to cancel an entry.
DVD disc production quality may vary; some discs may deviate from the industry
standard. Some incorrectly-formatted discs may still play, however, the playback and
operational quality of the disc may be substandard.
19
DVD/DISC FUNCTIONS
Track Disc Off
Track Folder Off
Disc
Chapter Title Disc Off
Search
Press SEARCH to go directly to a desired point of a disc (e.g., Title, Chapter, Time).
DVD Chapter/Title Search
Press SEARCH once to display the Chap-
•
ter/Title Search Bar.
Press the LEFT/RIGHT navigation keys to
•
select (highlight) an entry eld.
Use the Numeric keypad to input the desired chapter/title number, or press the UP/DOWN
•
navigation keys to increase/decrease the chapter/title number.
Press ENTER to conrm and execute the search or press SEARCH to exit search mode.
•
DVD Time Search (within a specied title)
Press SEARCH twice to display the Time
•
Search Bar.
Use the Numeric keypad to input the desired
•
time (hours, minutes, seconds).
Press CLEAR to cancel any input errors.
•
Press ENTER to conrm and execute the search or press SEARCH to exit search mode.
•
CD Time Search:
Press SEARCH once to display the CD Time Search
•
Bar shown to the right.
Use the Numeric keypad to input the desired time
•
(hours, minutes, seconds).
Press CLEAR to cancel any input errors.
•
Press ENTER to conrm and execute the search or press SEARCH to exit search mode.
•
Hour
0 03 30
Minute
Second
Repeat Mode
Press REPEAT to change the repeat mode of the player. Each successive press of REPEAT will
change the mode as follows:
Note:
Some DVD discs do not allow Repeat mode.
Repeat A-B Mode
To repeat playback of a specic section of a disc (loop):
Press A- B to set the desired start point (“A”) of the section to be repeated.
1.
Press A- B again to set the desired end point (“B” of the section to be repeated.
2.
3.
The section “A-B” will now play repeatedly as a loop. Press A- B again to resume normal
playback.
20
DVD/DISC FUNCTIONS
Multi-Angle/Subtitle/Audio
During playback of a DVD that has been mastered with multiple angles, press ANGLE to view
•
the available alternate camera angles. (A DVD may have up to 9 selectable angles.)
During playback of a DVD that has been mastered with subtitles, press SUBTITLE to view the
•
available subtitle tracks. (A DVD may have up to 32 selectable subtitles.)
During playback of a DVD that has been mastered with alternate language/audio tracks, press
•
AUDIO to hear the alternate tracks. (A DVD may have up to 8 selectable audio tracks.)
Zoom
Press ZOOM to change the magnication level of the picture.
During DVD playback, each successive press of ZOOM will change the level of magnication
•
to: Zoom 2x, Zoom 4x, Normal.
During JPEG CD playback, each successive press of ZOOM will change the level of magni-
•
cation to: 25%, 50%, 100%, 150%, 200%.
When the magnication level is greater than Normal/100%, use the navigation keys (UP/DOWN/
LEFT/RIGHT) to pan around the magnied picture.
Note: The picture quality will decrease as the zoom level increases.
Program
Enter Program mode to create a custom sequence of tracks to be played.
(Program mode is available only when the player is in NAVIGATE OFF mode. Press the PBC
button to set the player to NAVIGATE OFF mode.)
Note:
You can also use the numeric keypad to enter numbers directly in the elds. Use the navigation
keys to move between entr y elds.
DVD Program Mode
Load a DVD and press PROGRAM.
1.
Press the RIGHT navigation key to select the
2.
“Title” column; press the UP/DOWN navigation
keys to select a title.
Press RIGHT to select the “Chapter” column;
3.
press UP/DOWN to select a chapter.
Press ENTER to conrm the selection.
4.
Repeat steps 2-4 until you have nished pro-
5.
gramming your selections or when you have
programmed the maximum 20 tracks.
Press PLAY to start playback. Press PRO-
6.
GRAM to cancel.
Title Chapter
21
DVD/DISC FUNCTIONS
CD Program Mode
Load a CD and press PROGRAM.
1.
Press the RIGHT navigation key to select the
2.
“Track” column; press the UP/DOWN navigation keys to select a track.
Press ENTER to conrm the selection.
3.
Repeat steps 2-3 until you have nished pro-
4.
gramming your selections or when you have
programmed the maximum 20 tracks.
Press PLAY to start playback. Press PRO-
5.
GRAM to cancel.
MP3 Program Mode
Load an MP3 -CD and press PROGR AM.
1.
Use the navigation keys to select the desired le.
2.
To navigate through subfolders: press the
•
LEFT/RIGHT navigation keys to enter/exit
a folder.
Press RIGHT to conrm. The conrmed le will
3.
be marked as a programmed le.
Repeat steps 2-3 until you have nished pro-
4.
gramming your selections or when you have
programmed the maximum 20 tracks.
Press ENTER to conrm the selection.
5.
Press PLAY to start playback. Press PROGRAM to cancel.
6.
22

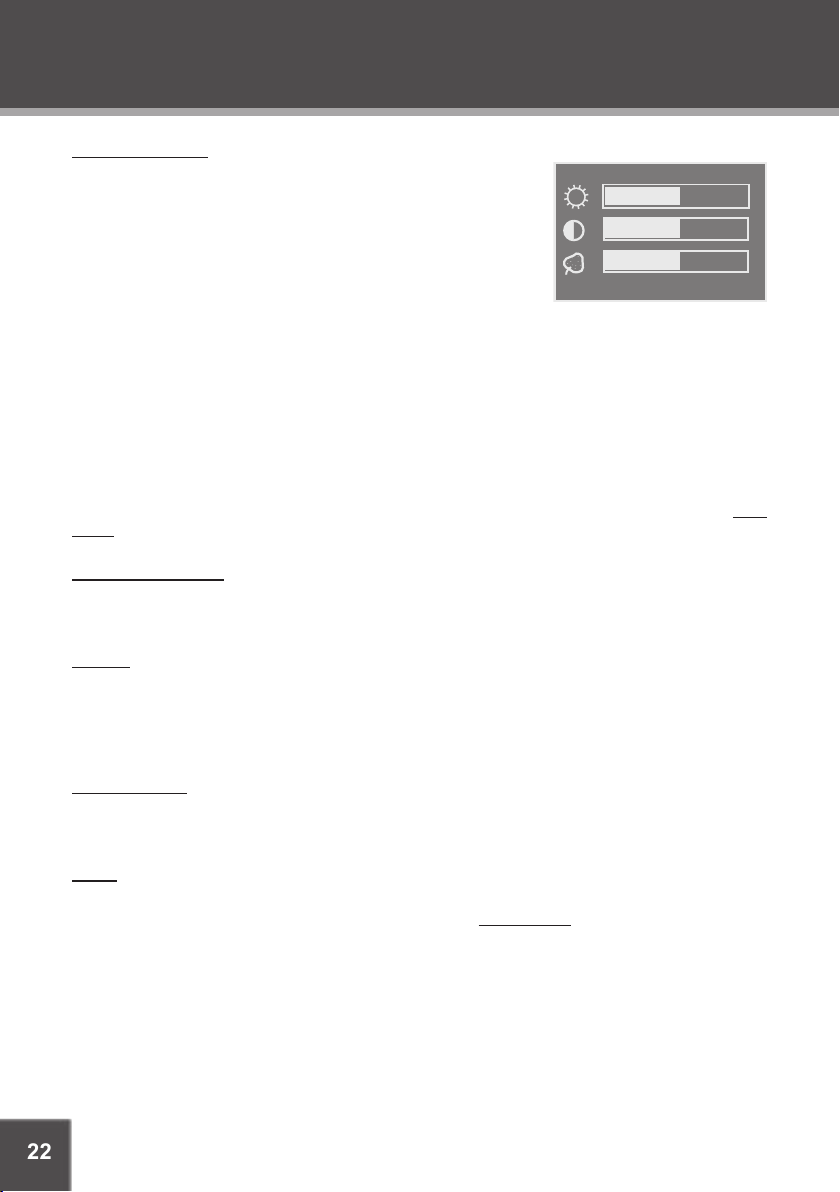

FUNCTION BUTTONS
SC REE N 1 6 : 9 4 : 3
RE SET
Mode / LCD Mode
Press the MODE button once (or LCD MODE on the remote) to
adjust the brightness, contrast, and color of the LCD screen.
Press the UP/DOWN navigation keys to select the desired
1.
setting to adjust. From top to bottom, the settings are:
Screen, Brightness, Contrast, Color, and Reset.
Press the LEFT/RIGHT navigation keys to adjust the
2.
selected setting.
Use the SCREEN adjustment to switch between 16:9 (widescreen) and 4:3 (standard)
•
aspect ratios.
Use the BRIGHTNESS adjustment to make the screen brighter or darker.
•
Use the CONTRAST adjustment to display a picture with higher or lower contrast.
•
Use the COLOR adjustment to display a picture with higher or lower color saturation.
•
Select RESET to return the LCD mode adjustments to their factory-default settings.
•
Press the MODE button on the main unit twice to enter DVD Setup mode (please see the DVD
Setup section for more information).
LCD Display On/Off
Press the LCD Display On/Off to turn the LCD Display on or off. You may turn the LCD display off
to conser ve battery life during MP3 or CD playback.
Display
Press the DISPLAY button once to show time information on-screen; press it twice to show
•
status information on-screen; press it a third time to exit the on-screen display mode.
When the player is in AV mode, press the DISPLAY button to toggle between TV System
•
modes (NTSC or PAL).
Menu and Title
Press the MENU button during DVD playback to return to the DVD’s Main menu.
•
Press the TITLE button during DVD playback to return to the DVD’s Title menu.
•
Setup
Press the SETUP button to access the player’s DVD setup menu. Enter the DVD setup menu to
adjust the player’s internal DVD settings; please see the DVD SETUP section for more details.
23
DVD SETUP
Enter DVD Setup mode to adjust the various internal DVD settings of the player. Make sure the
player has been completely stopped before entering Setup mode.
Press SETUP while the player is in DVD mode to access the DVD Setup menu.
1.
Use the NAVIGATION keys to select a desired item.
2.
Press ENTER to conrm a selection.
3.
Press SETUP to exit Setup mode (or select EXIT and press ENTER).
4.
Language Setup
Use the NAVIGATION keys to highlight the desired language selection and press ENTER to conrm.
Item Description Options (Default is in Bold)
OSD
Menu
Audio
Subtitle
Sets the language of the player’s onscreen display.
Sets the default menu language of
loaded DVDs.
Sets the default language audio track
of loaded DVDs.
Sets the default subtitle track of
loaded DVDs.
English, French, German, Spanish
English, Chinese, Japanese, French,
German, Italian, Spanish, Portuguese, Hindi, Thai, Russian, Korean,
Others
English, Chinese, Japanese, French,
German, Italian, Spanish, Portuguese, Hindi, Thai, Russian, Korean,
Others
English, Chinese, Japanese, French,
German, Italian, Spanish, Portuguese, Hindi, Thai, Russian, Korean,
Others
Screen Setup
Use the NAVIGATION keys to highlight the desired screen selection and press ENTER to conrm.
Item Description Options (Default is in Bold)
TV Type Sets the aspect ratio of the display. 4:3 (PS), 4:3 (LB), 16:9
Screen Saver
TV System
Brightness Select a preset screen brightness. Normal, Bright, Soft
Contrast Adjust the screen’s contrast. -4 to +4 (0 is default)
The screensaver prevents burn-in
damage to the player’s screen.
Sets the player’s Video Out signal
type. Set this to correspond with your
TV.
On, Off
NTSC, PAL, Auto
24
DVD SETUP
Audio Setup
Use the NAVIGATION keys to highlight the desired audio selection and press ENTER to conrm.
Item Description Options (Default is in Bold)
Sets the player’s Coaxial Digital Au-
Digital Out
To minimize circuit interference, set the Digital Out option to “Off ” when the coaxial digital audio
connection is not in use.
Custom Setup
Use the NAVIGATION keys to highlight the desired Custom Setup selection and press ENTER to
conrm.
Item Description Options (Default is in Bold)
Parental Ctrl
Password
Angle Mark
Default
dio Out signal. For use with 5.1-chan-
nel receivers (see your receiver’s
manuals for more details).
Sets the maturity rating level of the
player. The player will not play any
discs rated higher than this setting.
This setting is password protected
(the default password is: 8888).
Change the Parental Ctrl password. Enter the old password, the new pass-
word, and then the new password again to verify. DO NOT FORGET THE
PASSWORD; this password cannot be reset.
Displays an on-screen prompt whenever an alternate angle becomes
available for viewing (press ANGLE
to view).
Resets all settings to their factory-
default state. This will not reset the
Parental Ctrl password.
SPDIF/RAW, SPDIF/PCM, Off
Levels 1 to 8. (8: ADULT is default)
On, Off
Read
25
SPECIFICATIONS
Power Supply Rechargeable Battery
Power Consumption ≤ 9W
Video Signal System NTSC
Video Output Composite Video
Audio Output 3.5mm Headphone (x2)
S/N Ratio 90dB Typical
Dynamic Range (Audio) 90dB Typical
Display Type 7” TFT LCD (16:9)
Display Resolution 480 x 234
Operating Temperature 32ºF - 95ºF
Unit Dimensions 6.50” x 1.97” x 5.98” (WHD) (main unit + battery)
Weight 1.96 lbs (main unit + battery)
DC: 9V, 2.5A
AC: 100-240V UL Listed Adapter
3.5mm Stereo
Coaxial Digital Audio
Specications and manual are subject to change without prior notice.
26
TROUBLESHOOTING
If you have a problem with this player, please read the troubleshooting guide below and check
our website at www.cobyusa.com for Frequently Asked Questions (FAQs) and rmware updates.
If these resources do not resolve the problem, please contact Technical Support.
There is no power to the device.
Ensure that the Power Switch is physically set to the ON position.
•
Ensure that the AC adapter cord is securely connected to the player and the proper wall outlet.
•
Ensure that the battery pack is fully charged.
•
The device does not play.
Ensure that a supported disc is loaded in the player label-side up.
•
Ensure that the disc’s rating level does not exceed the player’s.
•
Ensure that the disc is not damaged or too dirty. Clean the disc or try another disc.
•
Moisture may have condensed inside the player. Remove the disc and leave the player on for
•
1-2 hours and then try again.
There is no picture.
Press the LCD On/Off button to ensure that the LCD Display has been turned on.
•
Ensure that the T V set has been powered on and is set to the correct AV mode.
•
Ensure that the connections between the player and the TV are secure and correct.
•
Check if the connection cables are damaged.
•
The picture is noisy or distorted.
The disc may be damaged or dirty. Clean the disc or try another one.
•
Reset your TV’s color system.
•
Ensure that the player is connected directly to the TV (and not through a VCR, cable box,
•
satellite receiver, etc.)
Try adjusting the antenna for better reception, or connect the player to an external antenna.
•
There is no sound or distorted sound.
Ensure that the T V and amplier have been turned on and properly set up.
•
Ensure that the T V and amplier connections are secure and correct.
•
Try a different Audio track of the DVD by pressing AUDIO.
•
Ensure that the MUTE function of the TV, Amplier, or Player is not engaged.
•
The remote control doesn’t work.
Ensure that the Power Switch has been physically set to the ON position.
•
Ensure that there are no obstacles between the remote and the player.
•
Point the remote at the remote sensor on the main unit.
•
Ensure that the batteries in the remote retain a charge and have been installed correctly.
•
The player has malfunctioned.
Unplug the player and remove the battery pack for 30 minutes. After that, reinstall the battery
•
and plug in the player. Power on the player -- the restore function should reset the player.
27
NOTES
COBY Electronics Corp.
56- 65 Rust Street
Maspeth, NY 11378
