COBY electronic TF-DVD1570 User Manual

TF-DVD1570

Please read this manual before connection and use.

Important Safety Instruction

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OF MOISTURE.

NOT EXPOSE THIS APPLIANCE TO RAIN OF MOISTURE.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

IMPORTANT FOR LASER PRODUCTS CLASS 1 LASER PRODUCT

DANGER:

 Visible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

CAUTION:

These servicing instructions are for use by qualified service personnel only. To reduce the risk  of electric shock, do not perform any servicing other than that contained in the operating 

 instructions unless you are qualified to do so. Refer to manual for servicinginstructions.

FCC NOTICE:

 This equipment has been tested and found to comply with the limits for a Class B digital device.   Pursuant with the FCC Rules,Part 15. These limits are designed to provide reasonable protection   against harmful interference in a residential installation.  This equipment generates, uses and can radiate radio frequency energy and if not installed and   used in accordance with the instruction may cause harmful interference to radio communication.

POWER SUPPLY:

 Connect the supplied adapter to the backside of the DVD player in the slot marked “Power In”.   Plug the two-prong end of the power cord to an AC100-240V outlet. If you have difficulty inserting   the plug, turn it over and reinsert it, if the unit will not be used for a long time, disconnect the   plug from the outlet. NOTE:  Before plugging the power cord into an AC outlet, make sure that all the connections have   been made.

Important Safety Instruction

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Maintain well ventilated conditions around the product. Do 

not put product on bed, sofa or anything that blocks ventilation. Install according to instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two 

blades with one wider than the other. If the provided plug does not fit into your outlet, consult an 

electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,

and the point where they exit from the apparatus.

11.Only use attachments/accessories specified by the manufacturer.

12.Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the 

apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid

injury from tip-over.

13.Unplug this apparatus during lightning storms or when unused for long periods of time.

14.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has 

been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled 

or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, 

does not operate normally, or has been dropped.

15.Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as 

vases, shall be placed on the apparatus.

Unauthorized copying, broadcasting, public performance, and lending of disks are prohibited. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Table of Contents

Table Of Contents

Important Safety Instruction

Unpacking -----------------------------------------------------------------------------------------------------------------------1

Main Features ------------------------------------------------------------------------------------------------------------------2

Disc Information-----------------------------------------------------------------------------------------------------------------3

Unit View-----------------------------------------------------------------------------------------------------------------------4-5

Remote Control --------------------------------------------------------------------------------------------------------------6-8

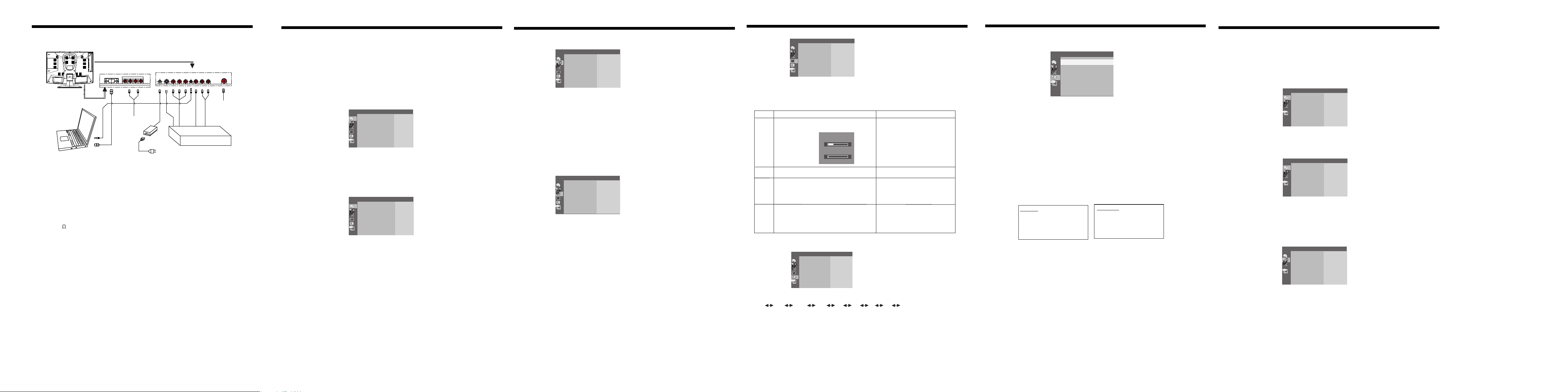

Cable Connections-------------------------------------------------------------------------------------------------------------9

TV Function----------------------------------------------------------------------------------------------------------------10-13

AC Function----------------------------------------------------------------------------------------------------------------14-15

PC Function----------------------------------------------------------------------------------------------------------------16-18

Play Operation ------------------------------------------------------------------------------------------------------------19-20

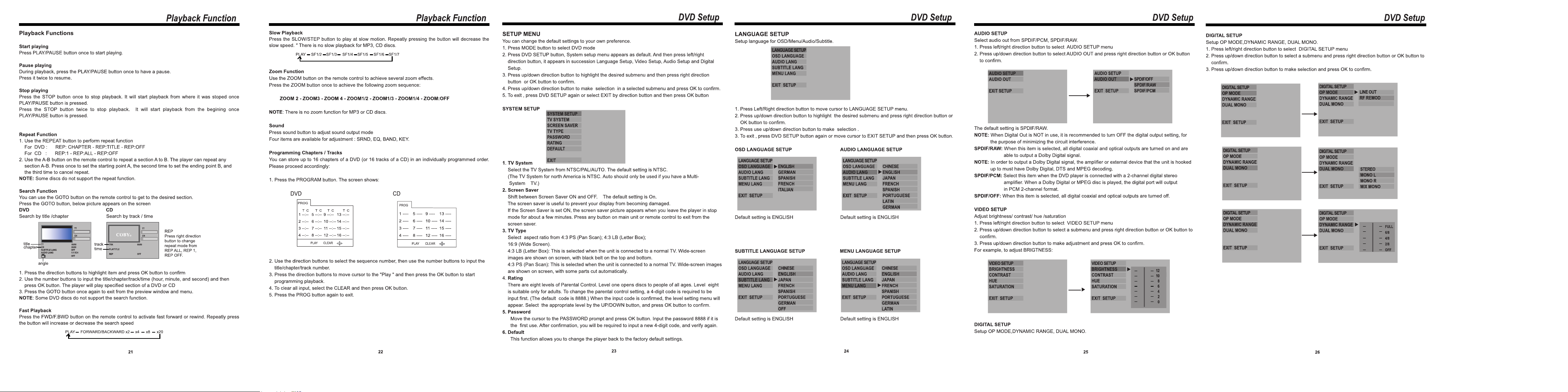

Playback Functions ----------------------------------------------------------------------------------------------------- 21-22

DVD Setup----------------------------------------------------------------------------------------------------------------- 23-26

LCD Setup for DVD----------------------------------------------------------------------------------------------------- 27-28

Troubleshooting -------------------------------------------------------------------------------------------------------------- 29

Specifications ----------------------------------------------------------------------------------------------------------------- 30

Unpacking

Please make sure the following items are included with your LCD TV/monitor. if any items are missing, contact your dealer.

OPEN

POWER

TITLE

-/--

LCD SETUP

VOL

PLAY/PAUSE STOP

PROGRAM

DVD SETUP

SLOW/STEP MUTE

F.BWD

F.FWD

GOTO

SOUND

ZOOM

COBY

TFT-DVD REMOTE

ANGLE

SUBTITLE

RETURN

AUDIO

MODE

REPEAT

A-B

DISPLAY

P/N.SYS

Main Features

This product incorporates DVD player, LCD display and TV receiver in one system.

Multiple Mode

DVD mode VGA mode VIDEO mode S-VIDEO mode TV mode COMPONENT mode

High Quality Property

High Resolution Adopt an MPEG2 decoding format to achieve horizontal resolution more than 500 lines. Superior sound Built-in Dolby Digital decoder to output high quality sound effects.

Screen

Support the picture size of a normal screen (4:3). Special playback Support multi-angle, multi-language and multi-subtitle playback.

LCD (Liquid Crystal Display)

Designed with color TFT liquid crystal display clearly shows the data. Stereo amplifier Built-in 2x3w speakers.

Advanced Playing Features

Compatibility

DVD, CD, MP3, CD-R, CD-RW, JPEG discs compatible.

Zoom Function

Enlarge the picture to enhance your enjoyment. All Playback Functions Fast forward and reverse, repeat playback, program playback.

Search By Time

Ability to search disc contents via time code.

NOTE: It is normal for a TFT screen to experience some light or dark spots appearing on the LCD 

screen.

Disc Information

Discs Formats Supported By This Player



The operating method of some DVD discs is specified by the software maker.  Please refer to the instruction manual of the disc.  The DVD Player will play most recordable (CD-R) or erasable (CD-RW) CDs, but 

playback of CD-R or CD-RW discs created on a computer requires proper formatting  and finalization of the disc for audio playback. programs may not be capable of creating compatible discs.

About Disc Terms

Title

Generally, pictures or music compressed on a DVD are divided into several sections, "title".

Chapter

The smaller section unit of picture or music in a DVD under the title, usually one title is comprised of one or more chapters and each of them is numbered for easy searching. But some discs may not have a recording chapter.

Track

A segment of picture or music on a CD. Each track is numbered for searching.

Care of Disc

Video disc contains high-density compressed data that needs proper handling.

1. Hold the disc with fingers by outer edge and/or the center spindle hole. Do not touch the disc surface.

2. Do not bend or press the disc.

3. Do not expose the disc to direct sunlight or heating sources. Store discs in cabinet vertically, and in dry condition. Prevent exposure to : Direct sunlight Heat or exhaust from a heating device Extreme humidity

Clean the disc surface with a soft, dry cleaning cloth. Wipe the disc surface gently and radically from center toward the outer edge.Do not apply thinner, alcohol , chemical solvent, or sprays when cleaning. Such cleaning fluids will permanently damage the disc surface.

Disc mark Contents Size Maximum playback time

DVD video discs

MP3

JPEG Still high resolution 600min

Audio+Video (moving picture)

Audio

12cm

12cm/8cm

12cm 600min

133 min (SS-SL) 242 min (SS-DL) 266 min (DS-SL) 484 min (DS-DL)

74min/20min

Some computers and/or software



Front/Top/Side Panel

12 3 4 5 6 7

1. MUTE button Press to turn on/off the speaker output.

2. ENTER button

3. MENU button The same function as the LCD SETUP  button on the remote control.

4. CH -/+ button Press to select channels backward/forward While in TV mode, the same function as DOWN/UP direction button when in LCD menu set up.

5. VOL-/+ button Press to decrease / increase the volume.

6. MODE button Press to shift modes among DVD, VGA, CATV,VIDEO, S-VIDEO,COMPONENT mode.

7. POWER button Press to access to or exit from the STANDBY mode.

8. LCD Screen Present high resolution pictures.

9. Speakers

Unit View

11 12

13 14

10. Disc Loading Slot Used for loading discs.

11. PREV/NEXT Button Press to skip backward /forward DVD chapter or CD track

12. PLAY/PAUSE Button Press it once to start playback. Press it twice to pause playing. Press it the third time to resume playback. 13 .STOP Button Press the Stop button once to have a stop. It will start playing from where it is stop once PLAY/PAUSE button is pressed. Press the Stop button twice to have a stop It will start playing from the beginning once PLAY/PAUSE button is pressed.

14. EJECT button Press to eject /take in the disc.

15. Power On Indicator In normal playback status, it turns green

16. Remote sensor

Rear Panel

2 3

4 5

6 7

11 10

1. Antenna in jack Connected to external antenna to receive TV program in TV mode.

2. L/R audio input jacks Connection for external audio input under VIDEO, S-VIDEO or COMPONENT mode.

3. Video input jack Connection for external video input.

4. PC Audio Input jack Connection to the audio output jack on a personal computer.

5. Y/Cb/Cr Component Video Input

6. S-Video input jack Connection for S-Video input.

7. DC 12V power supply cord

8. L/R audio output jacks

9. Video output jack

10. Coaxial digital audio jack

11. VGA Input jack Connection to the VGA output jack on a personal computer.

Unit View

Remote Control

Remote Control Drawing

1. POWER button Press to access to or exit the STANDBY mode.

2. Open button Press to open or close the disc tray.

3. TITLE button When a DVD disc is playing, press to go to title menu if the disc contains.

4. ANGLE button Press to access various camera angles (if the DVD disc contains multiple camera angles).

5. SUBTITLE button When a DVD is playing, press to select a subtitle

POWER

-/--

LCD SETUP

DVD SETUP

language (if the DVD disc contains multiple subtitles).

6. AUDIO button Press to access various audio languages (if the DVD disc contains multiple audio languages). Press to  select Sound effect from STEREO/MONO under TV mode (if there is an ASP signal detected, the TV audio will turn to ASP mode automatically)

7. MENU button Press to access the disc menu during DVD playback.

8. MODE button Press to shift modes among DVD, VGA, VIDEO,S- VIDEO, TV, COMPONENT mode.

9. DVD SETUP button Press to access the DVD setup menu under DVD

VOL

PLAY/PAUSE STOP

F.BWD

PROGRAM

ZOOM

TFT-DVD REMOTE

mode.

10. LCD SETUP button Press to access to LCD functional setup menu.

11. DIRECTION BUTTON Press to move cursor.

12. OK button Press to make confirmation

13. NUMERIC KEY PAD Select numbers by pressing these buttons.

14. -/-- button Under TV mode press to chose channel. For example if you want to select channel 52, you can  press the button twice repeatedly until OSD display --, and then input number buttons 5, 2.

15. CH+/- BUTTON Under TV mode, press to choose the channel.

16. VOL+/_ button Press to increase or decrease the speaker volume level.

17. Play/Pause button Press to play/pause the disc under DVD mode.

SLOW/STEP MUTE

F.FWD

GOTO

SOUND

COBY

RETURN

MODE

A-B

P/N.SYS

OPEN

TITLE

ANGLE

SUBTITLE

AUDIO

REPEAT

DISPLAY

Remote Control

18. Stop button Press to stop playback, then press the PLAY button to resume normal playback.

19. F.BWD Button Press to search forward under DVD mode.

20. F.FWD Button Press to search backward under DVD mode.

21. SLOW /STEP button Press to activate slow forward or slow rewind or start step frame by frame under DVD mode.

22. MUTE button Press to turn on/off the speaker output.

23. PREV Button Press to skip to the previous chapter/track for some discs under DVD mode.

24. NEXT Button Press to skip to the next chapter/track for some discs under DVD mode.

25. PROG button Allows the player to play the contents in a programmed sequence under DVD mode.

26. ZOOM button When a DVD is playing, press this button to activate zoom funciton.

27. GOTO Button To search specified section of a DVD disc or a CD disc.

28. A-B Button Repeat certain portion of a performance

29. REPEAT Button  Repeat a title ,chapter or track .

30. DISPLAY Button Press to show current playback status. To quit display mode, just keep on pressing until all the infomations disappear from the screen.

31. SOUND Button Press sound button to adjust sound output mode

32. P/N.SYS Button Press to select NTSC or PAL system under DVD mode.

NOTE: Refer to playback function for detailed descriptions.

Remote Control

Preparation of Remote Control

1. Take the back cover off of the remote control and insert two AAA batteries and put on the cover.  Insert the batteries while observing the correct (+) and (-) polarities.

2. Under normal use, the battery will last for six months.

Using of Remote control

Point the remote control unit from no more than about 7meter from the remote control sensor and within about 60 degrees of the front of the unit.

OPEN

POWER

TITLE

ANGLE

SUBTITLE

RETURN

AUDIO

-/--

MODE

DVD SETUP

VOL

PLAY/PAUSE STOP

F.BWD

PROGRAM

ZOOM

TFT-DVD REMOTE

F.FWD

GOTO

SOUND

COBY

SLOW/STEP MUTE

P/N.SYS

REPEAT

A-B

DISPLAY

LCD SETUP

The operating distance may vary depending to the brightness around.

Notes:

Do not point bright lights directly at the remote control sensor. Do not place objects between the remote control unit and the remote control sensor. Do not use this remote control unit while simultaneously operating the remote control unit of any other equipment.
