COBY electronic NBPC1220 User Manual
NBPC1220
Ultra-slim Netbook PC
EN
ES
FR
DE
PT
Please read carefully before use • Léa el manual antes de usar • Veuillez lire ce livret avant utilisation •
Instruction Manual ....................................................................... Page 2
Ultra-delgado PC Netbook
Manual de instrucciones ...............................................................Page 28
Ultra-mince PC Netbook
Manuel d’instruction ...................................................................Page 56
Ultra-schlank Netbook PC
Gebrauchsanweisung ...................................................................Page 84
Ultra-magro PC Netbook
Manual de Instruções ................................................................. Page 110
Bitte sorgfältig vor Gebrauch gelesen • Lido por favor com cuidado antes de usar
Page 2 Coby Electronics Corporation
www.cobyusa.com Page 3
Table of Contents
PACKAGE CONTENTS ........................................................ 4
SAFETY PRECAUTIONS ..................................................... 5
General Operation ..................................................................................................5
Battery .........................................................................................................................6
Power Connection ................................................................................................... 6
Unit Components .................................................................................................... 7
NETBOOK AT A GLANCE ................................................... 8
Top View ..................................................................................................................... 8
Left View ................................................................................................................... 10
Bottom View ............................................................................................................ 11
BASIC OPERATION ...........................................................12
Power ......................................................................................................................... 12
AC Power ................................................................................................... 12
Battery Power ........................................................................................... 12
Getting Started ....................................................................................................... 14
Turning On Your Computer .................................................................14
Sleep Mode ............................................................................................... 14
Shut Down ................................................................................................14
Keyboard Functions .............................................................................................. 15
Numeric Keypad ...................................................................................... 15
Function Key Combinations ................................................................15
Using the Touchpad ............................................................................... 16
FEATURES .........................................................................17
Using Memory Cards ............................................................................................ 17
Using the Web Camera ........................................................................................ 17
Using the Internet .................................................................................................. 18
LAN Port .....................................................................................................18
Wireless ...................................................................................................... 18
www.cobyusa.com Page 3
Table of Contents
Installing Device Drivers ...................................................................................... 18
EXTERNAL DEVICES .........................................................19
Connecting a Universal Serial Bus (USB) Device .......................................... 19
Connecting an External Display ........................................................................20
Connecting an Audio Device ............................................................................. 20
Connecting an External Microphone ..............................................................20
TROUBLESHOOTING ........................................................21
SPECIFICATIONS .............................................................. 26
Page 4 Coby Electronics Corporation
www.cobyusa.com Page 5
Package Contents
Congratulations on your purchase of a Coby netbook computer. This
instruction manual guides you in setting up and using your new computer. Please read the manual carefully before operation, and keep it for
future reference.
This package contains:
Coby NBPC computer unit
–V AC adapter
Lithium-ion battery
This package may contain plastic bags or other materials that
pose a hazard to children. Be sure to safely dispose of all packing materials after opening.
Product names used herein are for identication purposes only
and may be the trademarks of their respective companies. Microsoft, Windows XP, Windows MCE, Windows Vista, and Windows
Sound System are trademarks of Microsoft Corporation. AMD,
the AMD Arrow logo, AMD Sempron and combinations thereof
are trademarks of Advanced Micro Devices, Inc. All other brands
or product names mentioned in this manual are trademarks or
registered trademarks of their respective companies.
www.cobyusa.com Page 5
Safety Precautions
Follow the guidelines below to ensure the safe operation of
your computer.
General Operation
Set up and store the computer on a rm, at surface. Make sure that
your workspace allows for proper ventilation.
To avoid overheating, do not operate the computer on a soft surface,
such as a bed, for long periods of time.
Keep the computer away from water. Exposure to moisture may
cause malfunction or risk of electric shock.
Do not expose the computer to excessive heat, including direct
sunlight and heat-producing appliances.
To avoid potential damage to the hard drive, do not expose the com-
puter to electromagnetic elds from stereos, microwaves, or other
household appliances.
If liquid is spilled on or into the computer, unplug it immediately and
contact customer service.
Clean with a damp cloth or mild detergent; do not use harsh chemi-
cals.
Handle your computer gently to avoid hard drive damage. Do not
drop the computer.
Back up your hard drive regularly to avoid loss of data in the event of
damage.
Page 6 Coby Electronics Corporation
www.cobyusa.com Page 7
Safety Precautions
Battery
Use only the recommended battery pack.
Keep metallic objects, such as keys and clips, away from the battery
pack.
To avoid risk of re, keep electrical appliances away from the battery
pack.
Do not expose the battery pack to heat or moisture.
Do not short-circuit the battery terminals.
To avoid damage to the battery, make sure that the battery catch
locks rmly in place upon installation.
Power Connection
Connect to a properly grounded outlet of the recommended volt-
age, only.
Do not use the power cord if it is damaged or frayed.
Do not connect the power cord to a loose or damaged socket.
To unplug the power cord, hold the body of the plug and pull gently.
Do not yank or stress the cord.
Disconnect the cord before cleaning the computer.
Disconnect the cord during electrical storms.
www.cobyusa.com Page 7
Safety Precautions
Unit Components
Do not connect the modem to a telephone line.
Connect only appropriate devices and drives to the SD, USB and mo-
dem ports on the unit. Do not insert other objects into these ports.
Do not stress, bend, or scratch the LCD. Doing so may cause it to
break.
Do not touch or ingest the liquid that spills from a broken LCD.
Do not operate the wireless internet within meters of a microwave
oven or plasma lamp.
Page 8 Coby Electronics Corporation
www.cobyusa.com Page 9
Netbook at a Glance
1
2
3
4
5
6
7
9
1 0
1 1
8
1 2
Illustrations in this manual may dier from the actual product.
Top View
Web camera1.
Display panel2.
System status indicators3.
Power button4.
LAN connection (broadband or 5.
cable internet)
USB Port (x2)6.
Microphone jack7.
Headphone jack8.
Integrated mouse (left/right 9.
click)
Touchpad10.
System status indicators11.
Keyboard12.
www.cobyusa.com Page 9
Netbook at a Glance
These indicators display your computer’s current status. Please refer to
the table below for more information.
Indicator
Symbol
Power
Button
Indicator
Typ e
Charge Solid blue Charging
Wireless LAN O No power to wireless card/
Power Solid white Power on
HDD
Number Lock Solid white Number lock on/numeric keypad active
Caps Lock Solid white Caps lock on
Appearance Status
O Full charged
RF deactivated
Flashing blue Wireless on/connecting
Flashing Standby
The HDD indicator will ash when data is being written to/read
from the hard disk.
Page 10 Coby Electronics Corporation
www.cobyusa.com Page 11
Netbook at a Glance
Left View
Security key port (security cable not included)1.
AC Adapter jack2.
Air vent3.
VGA connnection (monitor or projector)4.
HDMI output5.
SD Card Slot (SDHC compatible)6.
To avoid overheating, do not block this vent when the computer
is in use.
www.cobyusa.com Page 11
1
2
3
4
2
5
6
Netbook at a Glance

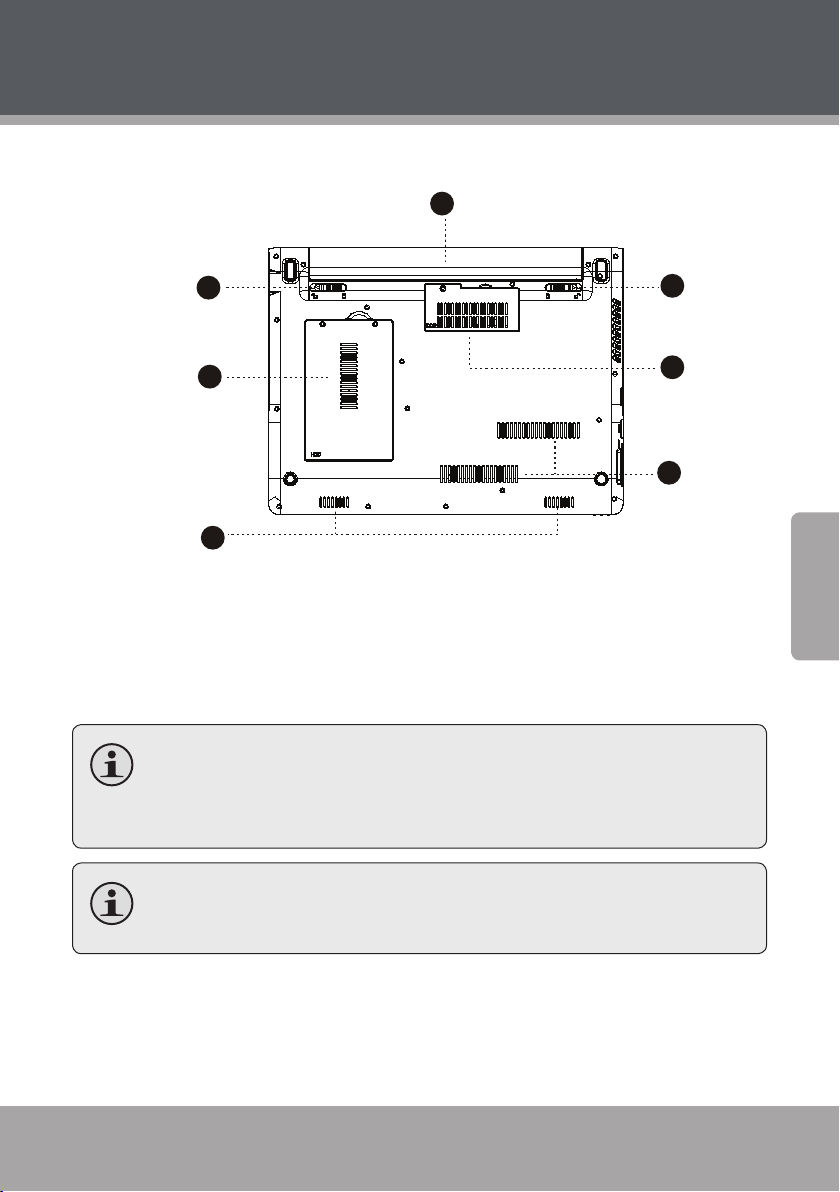

Bottom View
Battery pack1.
Battery latch 2.
Hard drive compartment3.
Do not attempt to disassemble or replace your hard drive. For
assistance with hard drive replacement and repair, contact a
qualied service professional.
To avoid overheating, do not block this vent when the computer
is in use.
Stereo speakers4.
Air vents5.
Memory compartment6.
Page 12 Coby Electronics Corporation
www.cobyusa.com Page 13
Basic Operation
Power
Your computer includes both an AC adapter and rechargeable lithiumion battery for maximum portability.
AC Power
Use the AC adapter to run your computer on AC power and charge the
battery. To connect the AC adapter:
Connect the power cord to the transformer pack.
Plug the power cord into an electrical outlet.
Connect the AC adapter to the AC power adapter jack of the com-
puter.
Battery Power
Make sure the battery is fully charged before rst use. The battery
power status indicator will ash when the battery is low. Connect the AC
adapter as instructed above to charge the battery.
To replace the battery:
Shut down the computer and disconnect all cables, including the AC
power cord.
Turn the computer over to access the battery release. Slide the bat-
tery release latch to the unlock position and hold.
Slide the battery out.
Slide the replacement battery into the bay until it clicks into place.
Slide the release latch to the locked position.
www.cobyusa.com Page 13
Basic Operation
The components and programs on your computer consume
power at dierent rates. Using power-intensive components/
programs will cause the battery to drain faster.
Your computer’s operating system may run more slowly when
operating on battery power.
Use only approved battery packs to power your computer. Us-
ing an incompatible battery may increase the risk of re or explosion.
Do not attempt to disassemble or modify the battery pack. A
battery pack other than the one specied by us, or a disassembled or modied battery pack, is not covered by the warranty.
When disposing of the battery, comply with local ordinances
and regulations. Do not attempt to dispose of the battery in
your household trash.
Getting Started
Open the display panel and adjust it for comfortable viewing.
Turning On Your Computer
Press the power button to turn on the computer.
Sleep Mode
When you nish working with your computer, you can put it to sleep or
shut it down.
Use sleep mode if you will be away from your computer for only a short
time. To enter sleep mode:
Page 14 Coby Electronics Corporation
www.cobyusa.com Page 15
Basic Operation
Click the Start menu and select Sleep, or
Press Fn + Esc.
To wake the computer, press the Power button.
Wait until the power indicator light starts blinking (indicating
that the computer is in sleep) before you move your computer.
Moving your computer while the hard disk is spinning may cause
damage or loss of data.
Shut Down
Your computer should be shut down when not in use for hours or more.
Enter the Start menu and select Shut Down to turn o the computer.
Keyboard Functions
Your computer’s standard keyboard incorporates a numeric keypad and
function keys.
Numeric Keypad
When enabled, the keys indicated below can be used as a -key numeric keypad. To enable or disable the numeric keypad, press Fn+Ins/
NumLk.
Function Key Combinations
The function keys allow you to change your computer’s operating
features instantly. See below for more information on using function key
combinations.
www.cobyusa.com Page 15
Basic Operation
Key Description
Fn + Esc Put your computer in sleep mode.
Fn + F1 Enable/disable the built-in wireless internet.
Fn + F3 Mute.
Fn + F4 Enable/disable the touch pad.
Fn + F5 Shift to other connected display devices, i.e. another monitor.
Fn + F6 Decrease display brightness.
Fn + F7 Increase display brightness.
Fn + F8 Decrease computer volume.
Fn + F9 Increase computer volume.
Fn + F10 Turn on/o the LCD screen.
Fn + Ins/NumLk Enable/disable the Numeric keypad.
Page 16 Coby Electronics Corporation
www.cobyusa.com Page 17
Basic Operation
Using the Touchpad
Use the touchpad and integrated mouse to navigate your computer’s
operating system. To move the cursor on the screen, slide your ngertip over the touchpad in the direction in which you want the cursor to
move.
Use the left/right click buttons on the integrated mouse just as you
would the left/right click on a conventional mouse to select objects,
open programs, or retrieve information.
Use one nger only to navigate the touchpad. Moisture or dirt
may cause the touchpad to function incorrectly.
Sharp objects or excessive pressure may damage the touchpad’s
surface.
Do not attempt to remove the cover of the touchpad.
www.cobyusa.com Page 17
Features
Using Memory Cards
Your computer includes an SD memory card slot for easy transfer of
data. To insert a memory card, orient the memory card with the label
upward. Gently slide the card into the slot.
When a memory card is fully inserted, the rear half of the card will
remain outside of the card slot.
To remove a memory card, grasp it by the end and pull gently.
Using the Web Camera
The built-in web camera can be used for capturing photos, recording
video, or as a component of chat and conferencing applications.
Windows users may need to install a third-party dedicated ap-
plication in order to take pictures and video using the webcam.
Page 18 Coby Electronics Corporation
www.cobyusa.com Page 19
Features
Using the Internet
Your computer comes with LAN port for Ethernet connection or local
area network (LAN), as well as a built-in wireless connection.
LAN Port
The LAN port supports a standard RJ- connector, and allows you to connect the computer to an Ethernet connection and local area network (LAN).
Do not attempt to connect a telephone cable (types RJ11, RJ14,
RJ25, RJ61) to the LAN port. Doing so may short-circuit your
computer.
Wireless
An isotropic antenna system is built into the display for optimal reception, enabling wireless communication wherever you are. To connect to
the internet wirelessly, press Fn + F. The computer will automatically
search and connect to an available network.
Installing Device Drivers
A compatible device driver is required to ensure correct operation and
performance of each component in your computer.
Most installations require a reboot to update the driver. Be sure to
perform this step when prompted.
Failing to reboot may compromise the system’s stability and re-
quire reinstallation of the operating system.
www.cobyusa.com Page 19
External Devices
Your computer includes multiple connection ports for maximum performance and productivity.
Do not connect or disconnect any external device cables other than
USB cables while the computer power is on. To avoid possible damage
to attached devices, wait at least ve seconds after the computer is shut
down to disconnect external devices.
Connecting a Universal Serial Bus (USB) Device
Your computer comes with three Universal Serial Bus Ports compatible
with USB . or USB . devices such as a keyboard, mouse, camera, hard
disk drive, printer, and scanner. USB devices may be connected and
disconnected without rebooting the computer (hot swapping), and allow specic classes of hardware to be used without requiring individual
device drivers to be installed.
When using a high power consumption USB device such as a
USB HDD, use an external device power adapter to avoid system
damage.
Connecting an External Display
You can connect a VGA monitor via the computer’s built-in VGA port.
To connect a VGA monitor, plug the -pin display cable into the corresponding VGA port on your computer.
To shift to other connected display devices, press Fn + F. You may also
select a device using the Control Panel > Display menu.
Connecting an Audio Device
Page 20 Coby Electronics Corporation
www.cobyusa.com Page 21
External Devices
Your computer includes one headphone jack for use in connecting
headphones, speakers, or other audio output devices. To connect, insert
the audio device plug into the jack.
Connecting an External Microphone
Your computer includes one external jack for connecting a microphone.
To connect, insert the microphone plug into the jack.
www.cobyusa.com Page 21
Troubleshooting
If you have a problem with this device, please check our website at
www.cobyusa.com for Frequently Asked Questions (FAQ) and product
updates. If these resources do not resolve the problem, please contact
Technical Support.
Email
PCsupport@cobyusa.com
Web
www.cobyusa.com
Phone
--: Monday–Friday, :AM–:PM EST
Page 22 Coby Electronics Corporation
www.cobyusa.com Page 23
Troubleshooting
Problem Solution
Display
Computer does not turn on. If using AC power, check that the AC adapter is securely connect-
ed to the computer and the power cord is plugged into a working
electrical outlet.
If using battery power, check that the battery is charged.
Computer turns on, but
there is no screen image.
Screen goes blank while
the computer is on.
A number appears when
you enter a letter.
All or some of the keys
on the external numeric
keypad do not work.
Conrm that the screen brightness level is not at its minimum
setting. (To increase brightness, press Fn +F7.)
If using battery power, check that the battery is installed corre ctly.
If using AC power, check that the AC adapter is connected to the
computer and the power cord is plugged into a working electrical
outlet.
Screen saver may be enabled; touch the touchpad or any key to
exit screen saver mode.
If power management is enabled, the computer may have entered sleep mode. Press the power button to exit sleep mode.
Keyboard
The numeric lock function is enabled. To disable it, press Fn +
Insert.
Make sure that the external numeric keypad is securely connected to the computer.
www.cobyusa.com Page 23
Troubleshooting
Problem Solution
Sleep/Hibernation Mode
The computer enters sleep
mode unexpectedly.
The critical low-battery error message appears, and
the computer immediately
turns o.
The computer does not
return from sleep mode,
or the sleep indicator stays
on and the computer does
not work.
Check that the battery is charged.
If the processor overheats, the computer will automatically enter
sleep mode to allow the computer to cool and to protect the processor and other internal components. Check that the computer
is properly ventilated and not hot to the touch.
Check the sleep mode settings. The computer enters sleep mode
(the sleep indicator turns on) immediately after Power-on selftest (POST).
Connect the AC adapter to the computer, or replace the battery
with a fully charged one.
Check the sleep indicator light to conrm that your system is
in sleep mode. If it has turned o, your computer has gone into
hibernation mode. Press the power button to exit hibernation
mode.
Check that the battery is charged. A depleted battery will cause
the computer to automatically enter hibernation mode. If the
battery is depleted, connect to AC power and press the power
button to exit hibernation mode.
If the system still does not return from sleep mode, your system
has stopped responding. Reset the computer by pressing and
holding the Power button for 4 seconds or more. Unsaved data
may be lost.
If the computer fails to reset, unplug the AC adapter and remove,
then reinsert, the battery.
Page 24 Coby Electronics Corporation
www.cobyusa.com Page 25
Troubleshooting
Problem Solution
The screen is unreadable or
distorted.
Incorrect characters appear
on the screen.
Missing, discolored, or
bright dots appear on the
screen every time you turn
on your computer.
No sound can be heard from
the speaker even when the
volume is turned up.
Check that screen resolution and color quality are correctly set.
Check that the monitor type is correct. This information is avail-
able under the menu Display Settings Monitor.
Conrm that the display device driver is installed correctly. This
information is available under the menu Personalize Display
Settings Advanced Settings Adapter. The Adapter Information window should display the correct device driver name.
NOTE: The device driver name depends on the video chip that has
been installed on your computer. Click the Properties button and
check the “Device status” box to conrm that the device is working
properly. If not, click the Troubleshoot button.
Check that your application and operating system are correctly
installed.
Check that the surface of the screen is not scratched or damaged.
If there is no visible damage, these small idiosyncrasies are a
standard element of TFT screen technology and will not aect
the computer’s performance.
Sound
Conrm that the Mute function is o.
Check that no external device, such as a headphone or speaker, is
plugged into the audio output (headphone) jack.
Check that speakers are selected as a playback device.
www.cobyusa.com Page 25
Troubleshooting
Problem Solution
Battery
Your computer shuts down
before the battery status indicator turns on, or continues
to operate after the battery
status indicator lights.
The operating time for a
fully charged battery is
short, or the computer
does not operate with a
fully charged battery.
The battery does not
charge.
The hard disk drive does
not work.
The computer does not
respond.
Remove and reinsert the battery. If the problem persists, you
may need to replace the battery.
Remove and reinsert the battery. If the problem persists, you
may need to replace the battery.
The surge protector in the battery might be active. Turn o the
computer for one minute to reset the protector; then turn on the
computer again.
Replace the battery.
Hard Drive
In the Boot menu in AMI Setup Utility, make sure that the hard
disk drive is included in the Boot Sequence.
Other Problems
Turn o the computer by pressing and holding the power button
for 4 seconds or more. If the computer still does not respond,
remove the AC adapter and the battery.
Your computer may lock if it enters sleep mode during a communication operation. To prevent this from happening, disable the
sleep timer when you are working on the internet or network.
For your safety, never attempt to repair the device yourself. Attempting
to do so will invalidate the warranty. Internal components of the device
carry a risk of electric shock.
Page 26 Coby Electronics Corporation
www.cobyusa.com Page 27
Specications
Display Type 12.1” TFT LCD
Display Resolution 1366x768 pixels
CPU AMD Sempron™ 1.5GHz (210U)
Hard Drive 2.5” SATA 160 GB (5400 RPM)
Memory 1 GB DDRII RAM
RAM Type: PC2-5300 DDRII SO-DIMM (667 MHz)
Installed: 1024 MB (single SO-DIMM)
Maximum: 2048 MB (single SO-DIMM)
Networking Wi-Fi 802.11 b/g
Ethernet 10/100 Mb
Connectivity USB 2.0 Hi-Speed (x2)
A/V Connections VGA Video Out
HDMI Out
3.5 mm Headphone Out
3.5 mm Microphone In
Additional Features Integrated Web Camera, 0.3 MP Resolution
Integrated Microphone
SD Memory Card Reader (SDHC compatible)
Keyboard US-International
Battery Li-ion (6-cell)
Unit Dimensions 11.69” x 8.74” x 1.22” (WHD)
Specications are subject to change without notice.
www.cobyusa.com Page 27
Notes
Page 28 Coby Electronics Corporation
Español
www.cobyusa.com Page 29
Índice
CONTENIDOS DEL PAQUETE .......................................... 30
MEDIDAS DE SEGURIDAD ................................................31
Funcionamiento general .................................................................................... 31
Batería ....................................................................................................................... 32
Conexión de alimentación..................................................................................32
Componentes de la unidad ................................................................................32
NETBOOK DE UN VISTAZO ............................................. 34
Vista Superior ..........................................................................................................34
Indicadores del estado del sistema ...................................................35
Vista Izquierda ........................................................................................................36
Vista Inferior .............................................................................................................37
OPERACIÓN BÁSICA ....................................................... 38
Alimentación ...........................................................................................................38
Alimentación de CA ................................................................................38
Alimentación por batería ......................................................................38
Para empezar .......................................................................................................... 39
Encendido de la computadora ...........................................................39
Modo de espera .......................................................................................39
Apagado ....................................................................................................40
Funciones del teclado ..........................................................................................40
Teclado numérico ....................................................................................40
Combinaciones de teclas de funciones ........................................... 41
Uso del panel táctil ................................................................................................41
www.cobyusa.com Page 29
Español
Índice
CARACTERÍSTICAS .......................................................... 43
Uso de tarjetas de memoria ...............................................................................43
Uso de la cámara Web ..........................................................................................43
Uso de Internet ....................................................................................................... 43
Puerto LAN ................................................................................................44
Inalámbrica ...............................................................................................44
Instalación de controladores de dispositivo .................................................44
DISPOSITIVOS EXTERNOS .............................................. 45
Conexión de un dispositivo de bus serie universal (USB) ........................ 45
Conexión de un visor externo ........................................................................... 45
Conexión de un dispositivo de audio .............................................................46
Conexión de un micrófono externo ................................................................46
SOLUCIÓN DE PROBLEMAS ............................................ 47
ESPECIFICACIONES ......................................................... 54
Page 30 Coby Electronics Corporation
Español
www.cobyusa.com Page 31
Contenidos del paquete
Felicitaciones por su compra de una computadora subportátil Coby.
Este manual de instrucciones lo guiará para congurar y utilizar su
nueva computadora. Lea cuidadosamente el manual antes de usar el
producto y guárdelo para consultarlo en el futuro.
Este paquete contiene:
Unidad de computadora NBPC de Coby
Adaptador de a VCA
Batería de ión-litio
Este paquete puede contener bolsas plásticas u otros materiales
que son riesgosos para los niños. Asegúrese de eliminar todo el
material de empaque de forma segura luego de abrirlo.
Los nombres de productos utilizados en el presente documento
son exclusivamente para nes de identicación y pueden ser
marcas registradas de sus empresas respectivas. Microsoft,
Windows XP, Windows MCE, Windows Vista y Windows Sound
System son marcas comerciales de Microsoft Corporation.
AMD, el logotipo de AMD, AMD Sempron y sus combinaciones
son marcas comerciales de Advanced Micro Devices, Inc. Todas
las otras marcas u otros nombres de productos mencionados
en este manual son marcas comerciales o marcas comerciales
registradas de sus respectivas empresas.
Loading...
