COBY electronic DVD606 User Manual

Please read carefully before operation

Please read carefully before operation

Dear Customers

May we take this opportunity to thank you for
purchasing this DVD/VIDEO CD/CD player.
We strongly recommend that you carefully
study the operating instructions before
attemting to operate the unit and that you note
the listed precautions.

Safety information

Note:
This unit can be used only where the power
supply is AC 110V/60Hz ~ AC 240V/50Hz .It
cannot be used elsewhere.

CAUTION:

1. DVD PLAYER IS A CLASS 1LASER
PRODUCT:
HOWEVER THIS PLAYER USES A VISIBLE
LASER BEAM WHICH COULD CAUSE
HAZARDOUS RADIATION EXPOSURE IF
DIRCETED. BE SURE TO OPERATE THE
PLAYER CORRECTLY AS INSTRUCTED.

2. WHEN THIS PLAYER IS PLUGGED TO THE
WALL OUTLET, DO NOT PACE YOUR EYES
CLOSE TO THE OPENINGS TO LOOK INTO
THE INSIDE OF THIS PLYER.

3. USE OF CONTROLS OR ADJUSTMENTS
OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT ON HAZARDOUS RADIATION
RXPOSURE.
DO NOT OPEN COVER OR ATTEMPT TO REPAIR
THIS PRODUCT BY YOURSELF. ALWAYS REFER
SERVICING TO QUALIFIED PERSONNEL.

WARNING:

1. TO REDUCE THE RISK OF FIRED OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.

2. TO REDUCE THE RISK OF FIRE ELECTRIC
SHOCK OR PICTURE & SOUND
INTERFERENCE, USE THE
RECOMMENDED ACCESSORIES ONLY.

Manfactured under license from Dolby Laboratories.
"Dolby" and the double-D symbol are trademarks of
Dolby laboratories,Confidential Unpublished Works,

c

1992-1997 Dolby laboratories Inc. All rights reserved.

Precaution

Please read these precautions before operating this unit.

Power cord protection

To avoid a malfunction of this product and to protect
against electric shock .fire or personal injury, please
observe the following.

1. Hold the plug firmly when connecting or disconnecting
the AC power supply to this unit.

2. Do not connect or disconnect the AC power supply
when your hands are wet.

3. Keep the AC power cord away from heating appliances.

4. Never put heavy Objects on the power cord

5. Do not attempt to repair or reconstruct the power cord
in any way.

Placement

Avoid placing the unit in areas of:

1. Direct sunlight.

2. High temperature (over 35 ) or high humidity
(over 90%)

3. High levels of dust
The internal parts may be damaged as a result.

Non-use Periods

When not in use, switch off the unit.
When left unused for a long period of time, the unit should
be unplugged from the household AC supply.

Foreign Objects

1. Touching internal parts of this unit is dangerous and may
damage the player. Never attempt to disassemble the unit.

2. Do not put any foreign objects on the disc tray.
Keep away from water / magnetic fields

1. Keep the unit away from flower vases, tubs, sinks, etc. if
liquids are spilled into the unit , serious damage will occur.

2. Do not magnetic objects (such as speakers) close to this
unit

Stacking

1. Place the unit in a horizontal position. Do not place
anything heavy on top of it.

2. DO not place the unit on amplifiers or other appliances
which may generate heat.

Condensation

Moisture may form on the lens in the following conditions:-

1. Immediately after a heater has been turned on.

2. In a steamy or very humid room.

3. When the unit is moved from a cold environment to a
warm one .if moisture forms inside this unit, it may not
operate properly. In this case, turn o the power and wait
about one hour for the moisture to evaporate.

If there is noise interference on your TV channels

Depending on the reception conditions of the broadcast,
interference may appear on the TV while you are watching
a channel with the DVD player on. This is not a malfunction
of the unit or the TV. Should this occur, simply switch off
the DVD player.

c

IMPORTANT:
AS SOON AS THE EQUIPMENT HAS BEEN
CONNECTED, PLEASE REFER TO THE INITIAL
SETTINGS CHAPTER AT PAGE 17.

1

Features

Selecting the type of disc compatible with your TV

DVD: a completely new dimension in video
entertainment

1. Subtitles may be displayed in one of a maximum of 32
languages.

2. The audio soundtrack can be heard in up to 8 languages.

3. The multi-angle function allows you to choose the viewing
angle of which scenes were shot from many different angles
(limited to DVD discs recorded with multiple camera angles).
The number of the languages recorded is dependent on the
software.

High quality digital audio

1. The Dolby Digital / MPEG2 audio/Linear PCM decoder is
built into the player which makes it possible to enjoy
Multi-channel surround sound.

2. With linear PCM sound of a 48 kHz/16 bit through 96 kHz/24
bit, audio quality exceeding that of Audio CD becomes
possible.

3. The unit has a built-in MP3 audio file decoder

May convenient features

1. Direct access of favorite scenes (title/chapter/time/track
search).

2. Programming of up to 3 scenes in memory (marker) [DVD
only]

3. Parental lock setting to prevent play of discs unsuitable for
some audiences. [DVD only]

Compatible with PLA DVD/VCD and NTSC DVD/VCD

1. This player can play discs recorded in either PAL or NTSC
format however, the player must be connected to a
Multi-system TV to play both PLA DVD/VCD and NTSC
DVD/VCD.
The use of Multi-system TV is recommended.

Both DVD discs and Video CDs (VCDs) have material recorded in
either PAL or NTSC format. Refer to the table below to select the
disc type compatible with your TV.

The type of
connected TV

Multi-system

NTSC

PAL

Disc
PAL

NTSC

PAL

NTSC

PAL

NTSC

TV Monitor

Played in the PAL system
Played in the NTSC system
No clear images are showed

on the screen

Played in the NTSC system

Played in the PAL system

No clear images are showed

on the screen



Compatible with video CDs (VCD) and audio CDs as well

as DVD.

Disc formats supported by this player

MP3

CD recorded in MP3 file

DVD
(8cm disc/12cm disc)

VCD
(8cm disc/12cm disc)

CD

DIGITAL AUDIO

(8cm disc/12cm disc)

2

Table of contents



Getting Started:



Safety information . . . . . . . . . . . . . . . . . . . . .1

Features . . . . . . . . . . . . . . . . . . . . . . . . . 2

Selecting the type of disc compatible with your TV . . . .2

Table of contents . . . . . . . . . . . . . . . . . . . . 3

Control reference guide . . . . . . . . . . . . . . . . . 4

Main unit . . . . . . . . . . . . . . . . . . . . . . .. . 4

Remote control unit . . . . . . . . . . . . . . . . . . 4

Connection to TV & Audio Players(inc.Advanced Setup). 5

Audio connections. . . . . . . . . . . . . . . . . . . . 6

Digital audio connections. . . . . . . . . . . . . . . . . 7

Remote control preparation. . . . . . . . . . . . . . . . 8

Connecting headphones . . . . . . . . . . . . . . . . . 8

Basic operation:

Basic play. . . . . . . . . . . . . . . . . . . . . . . . 9

Basic play. . . . . . . . . . . . . . . . . . . . . . . . 9

Stopping play. . . . . . . . . . . . . . . . . . . . . .10

Prev/Next. . . . . . . . . . . . . . . . . . . . . . . .10

Fast FWD/RWD. . . . . . . . . . . . . . . . . . . . . 10

Pause/Step picture. . . . . . . . . . . . . . . . . . . .11

MENU and TITLE. . . . . . . . . . . . . . . . . . . . 11

Changing SUBTITLE language. . . . . . . . . . . . . 12

Change audio soundtrack ANGLE. . . . . . . . . . . 12

Viewing from another ANGLE. . . . . . . . . . . . . . 13

Control the VOLUME of voice. . . . . . . . . . . . . . 13

On screen DISPLAY. . . . . . . . . . . . . . . . . . . 13

How to use CLEAR button. . . . . . . . . . . . . . . .14

PAL/NTSC Setting. . . . . . . . . . . . . . . . . . . .14

REPEAT . . . . . . . . . . . . . . . . . . . . . . . . 14

RANDOM. . . . . . . . . . . . . . . . . . . . . . . . 14

PROGRAM . . . . . . . . . . . . . . . . . . . . . . 14

Repeat A-B. . . . . . . . . . . . . . . . . . . . . . . 15

GOTO function. . . . . . . . . . . . . . . . . . . . . .16

RETURN function . . . . . . . . . . . . . . . . . . . 16

ZOOM picture. . . . . . . . . . . . . . . . . . . . . . 16

VOLUME CONTROL. . . . . . . . . . . . . . . . . . 16

Playback of MP3 files. . . . . . . . . . . . . . . . . . 16

   

Initial setting

LANGUAGE SETUP. . . . . . . . . . . . . . .17

SCREEN SETUP. . . . . . . . . . . . . . . . 17

TV TYPE . . . . . . . . . . . . . . . . . . . .17

SCRN SAVER. . . . . . . . . . . . . . . . . 17

TV STSTEM. . . . . . . . . . . . . . . . . . 17

BRIGHTNESS. . . . . . . . . . . . . . . . . 18

CONTRAST. . . . . . . . . . . . . . . . . . 18

VIDEO OUT. . . . . . . . . . . . . . . . . . 18

AUDIO SETUP. . . . . . . . . . . . . . . . . 18

OUTPUT. . . . . . . . . . . . . . . . . . . . 18

DNR. . . . . . . . . . . . . . . . . . . . . . 18

KARAOKE. . . . . . . . . . . . . . . . . . . 18

CUSTOM SETUP. . . . . . . . . . . . . . . . 19

PARENTAL CONTROL. . . . . . . . . . . . .19

CHNGEPASSWORD. . . . . . . . . . . . . .19

ANGLE MARK. . . . . . . . . . . . . . . . . 19

DEFAULT. . . . . . . . . . . . . . . . . . . . 19

For your reference:

Disc handing and maintenance. . . . . . . . . 20

Troubleshooting . . . . . . . . . . . . . . . . 21

Definition of terms. . . . . . . . . . . . . . . . 23

Specifications. . . . . . . . . . . . . . . . . . 23

3

Control reference guide

1

2

3

4

7

5

6

POWER

ECHOMIC VOL1 MIC 1

9

Main unit

8



11

10

1. POWER ON/OFF

2. DISC TRAY

3. OPEN/CLOSE

4. FAST REWIND

5. CHANNEL SELECT

6. PREVIOUS TRACK

7. FAST FORWARD

8. MIC INPUT1

Remote control unit

 

1. POWER button

2. NUMERIC buttons

3. Repeat 1/ALL

4. Repeat A-B

5. MENU button

6. PBC buttons

7. SUBTITLE buttons

8. AUDIO button

9. SKIP button( )

10. PAUSE button

11. CURSOR buttons

12. SLOW button

13. STEP button

14. INFO buttons

15. GAME button

16. SETUP button

17. EJECT button

18. PROGRAM button

19. CLEAR button

20. GOTO button

21. MUTE button

22. TITLE button

23. VOLUME button

24. ANGLE button

25. FAST FORWARD/FAST BACKWARD button

26. STOP button

27. PLAY/SEL button

28. RETURN button

29. ZOOM button

30. TV.SYS button



12

9. MIC INPUT 2

10. MIC VOL

11. MIC ECHO

12. VFD DISPLAY

13. PLAY

14. PAUSE

15. STOP

16. NEXT TRACK

1

2

3

4

5
6

7
8

9

10

11

12

13

14

OPEN/CLOSE

13 14

POWER GAME SETUP EJECT

PROGRAM

1 2 3
4 5 6

CLEAR

7 8 9

REPEAT GOTO MUTE

A-B

1/ALL

PBC MENU TITLE

0

+

ANGLEAUDIOSUBTITLE VOLUME

-

F.BWD F.FWDPREV NEXT

PAUSE

PLAY/SEL

SLOW RETURN

STEP INFO TV.SYS ZOOM

STOP

<

><

<



PREV

FWD

REV

L/R

STOPPAUSEPLAY

15

NEXT

16

15
16

17

18

19

20

21

22

23

24

25

26

27
28

29
30

4

Connection to TV and Audio players

IMPORTANT! Ensure that ALL equipment to be connected is
SWITCHED OFF before proceeding

We also recommend that you consult with the connecting
instructions of any equipment to be connected before you proceed.

Connecting to Stereo TV (configuration [A] )

1. TV set

2. DVD player

3. L/R (Front ) Audio Output

4. S-video Output (Video option 1 )

5. To Audio In on Stereo Amp

6. To S-video input connector on TV (Video option 1 )

7. Video In on TV (Video option 2)

8. Video Out on DVD (Video option 2)

S-video output connector

The S(separate) video output connector separates the color (C) and
luminance (Y) signals before transmitting them to the TV set in order
to achieve a sharper picture.
Use the S-video cord when connecting the player to a TV set equipped
whit an S-video input connector for optimum picture clarity.

VIDEO

S-VIDEO

 

AUDIO

Y

CB

CR





Y



CB



CR



AUDIO OUT



RMAIN

LMAIN

  

RREAR

LREAR

  

SW

CENT

MIXED L



MIXED R



COAXIAL









OPTICAL



VIDEO OUT





VIDEO



8





S-VIDEO





4

7



VIDEO LINE

S-VIDEO LINE



5

6

 

AUDIO LINE

5

Audio connections

Connecting to a TV amplifier with 5.1ch
input connector supporting Dolby Digital
decoder

This player contains Dolby Digital decoder.This enables the playback
of DVDs recorded in Dolby Digital surround without the need for an
external decoder with Dolby Digital processing.
When the player is connected to an AV amplifier with 5.1ch input
connectors you can enjoy cinema quality audio in your home when
playing discs recorded Digital Surround Sound.

1. TV set

2. DVD/VCD/CD player

3. Video connector

4. Amplifier with 5.1ch input connector

5. Audio cords (optional)

VIDEO

1

VIDEO OUT

VIDEO

S-VIDEO

RMAIN LMAIN MIXED L

Y

RREAR LREAR MIXED R

CB

CR

SW CENT COAXIAL

AUDIO OUT

2

OPTICAL

5

3

LMAIN

SW

LREAR

RREAR

CENT

RMAIN

The surround speakers should be installed at an equal distance to
(or further away from) the front speakers relative to the listening
position.

Front left speaker

Left surround speaker

4

Front right speaker

Right surround speaker

6

Digital audio connections

Connecting to a decoder with Dolby Digital
processing or MPEG processing



When DVDs recorded in Dolby Digital or MPEG audio are played, Dolby
Digital bitstream or MPEG audio bitstream is sent to the player's
OPTICAL digital audio output connector or COAXIAL digital audio output
connector. When the player is connected to a Dolby Digital or MPEG audio
decoder via one of these output sockets, you can enjoy theater quality
audio in you home. An optical digital cable or coaxial audio cable(both
optional) is required when a Dolby Digital decoder or MPEG audio decoder
is used.

A

VIDEO

S-VIDEO

VIDEO

VIDEO OUT

RMAIN LMAIN MIXED L

Y

RREAR LREAR MIXED R

CB

CR

SW CENT COAXIAL

AUDIO OUT

OPTICAL

Audio output from the optical/coaxial digital audio output connectors:

Disc

DVD

VCD

CD

Sound recording
format

Dolby Digital
Linear PCM (48/96

kHz 16/20/24 bit)

MPEG 1 MPEG2

MPEG1

Linear PMC

Optical/coaxial digital audio output
from connector

Dolby Digital bitstream(2-5.1ch)
or PCM(2ch)(48kHz/16bit)

Linear PCM(2ch)
(48/kHz sampling/16 bit only)*2
or no output*1

MPEG2 audio bitstream or
PCM(2ch)(16 bit)*1

PCM (44.1kHz sampling)

Linear PCM (44.1kHz sampling)

*1.The type of audio output from the connector can be selected by the
initial settings.
*2.Audio having 96kHz sampling is converted into 48kHz sampling when
it is output from the players optical/coaxial digital audio output connector.

For your reference :

Dolby Digital is a digital sound compression technique developed by the
Dolby Laboratories Licensing Corporation.
Supporting 5.1-channel surround sound, as well as stereo (2-channel) sound,
this technique enables a large quantity of sound data to be efficiently
recorded on a disc.
Linear PCM is a signal recording format used in CDs. While Cds are
recorded in 44.1 kHz/16 bit, DVDs are recorded in 48kHz/16 bit up to 96kHz/24 bit .
If you have a Dolby Pro Logic Surround decoder, you will obtain the full benefit
of Pro Logic from the same DVD movies that provide full 5.1channel Dolby
Digital soundtracks, as well as from titles with the Dolby Surround mark.

Caution for the optical/coaxial digital audio output connector:

Do not connect an amplifier (with an optical/coaxial digital input connector)
which does not contain the Dolby Digital or MPEG audio decoder.
An attempt to play DVDs through an amplifier without the correct or MPEG
decoder, may produce extreme levels of noise. This could damage both your
ears & your loudspeakers.
VCD and Audio CDs can be played as normal.

Front left speaker

Left surround speaker

COAXIAL

OPTICAL

Front right speaker

Right surround speaker

A

7

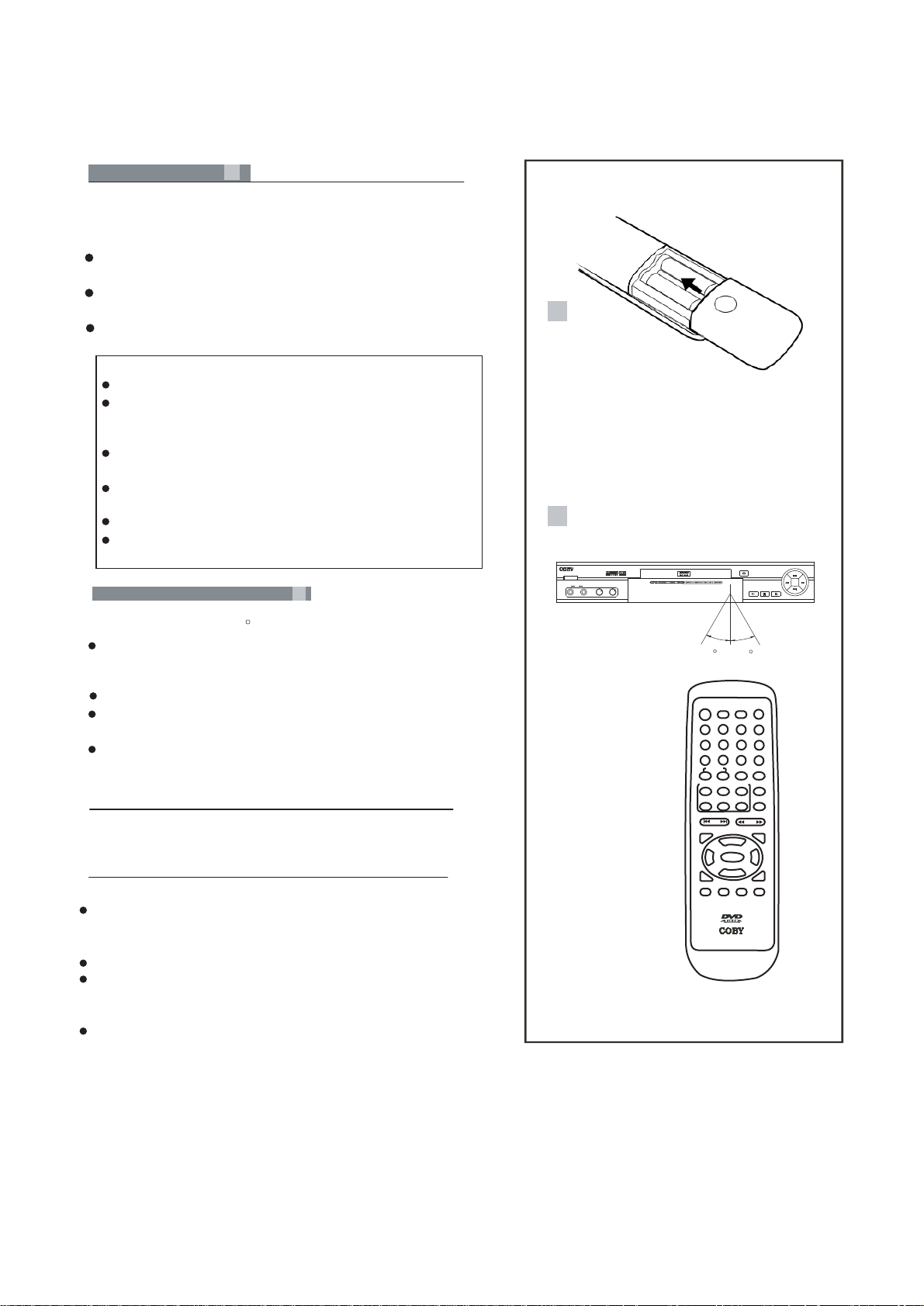

Remote control preparation

  

A

Insert the batteries while observing the correct (+) and (-) polarities as
illustrated.
Service life of batteries
The batteries normally last for about one year although this depends
on how often and for what operations the remote control is used.
If the remote control unit fails to work even when it is operated near
the player, replace the batteries.
Use 2*'AAA' type batteries.

Notes:
Do not use rechargeable (Ni-cd) batteries.
Do not attempt to recharge, shot-circuit or disassemble batteries.
Never place batteries close to a heat source such as radiators or
heaters.
Dispose of batteries in a responsible manner. Never throw
batteries on a fire.
Do not drop or step on the remote control unit. This may damage
the parts or lead to malfunction.
Do not mix old and new batteries.
If the remote control unit is not going to be used for long time,
always remove the batteries to prevent leakage.

Remote control operation range ( )

B

Point the remote control unit no more than about 7 m from the remote
control sensor and within 60 from the front of the unit.
The operating distance may vary according to the brightness of the
room.

Notes:

Do not point bright lights at the remote control sensor.
Do not place objects between the remote control unit and the remote
control sensor.
Do not use this remote control unit while simultaneously operating the
remote control unit of any other equipment.

Before enjoying DVD/Video CD/CD

The On-Screen menu language of your player has been factory
pre-set to English. There is another available OSD language
selected.

Playing Audio CD's

Press the Power button then the OPEN/CLOSE button to open the CD
drawer. Place the audio CD on the tray with the label facing up. Press the
OPEN/CLOSE button once again to close the CD drawer.
The player will read the disc contents and automatically play.
To view the CD information such as track number and track time on the
TV (OSD),press the STOP button twice on the remote control. Press the
ENTER button again to play.
You should use PREV/NEXT to choose next or previous song, also you
could use number key to select song directly.

A

B

POWER

ECHOMIC VOL1 MIC 1



OPEN/CLOSE

30

30

POWER GAME SETUP EJECT

PROGRAM

1 2 3
4 5 6
7 8 9

A-B

PBC MENU TITLE

PAUSE

SLOW RETURN

STEP INFO TV.SYS ZOOM

REPEAT GOTO MUTE

1/ALL

ANGLEAUDIOSUBTITLE VOLUME

F.BWD F.FWDPREV NEXT

<

PLAY/SEL

<



CLEAR

><

PREV

FWD

REV

L/R

STOPPAUSEPLAY

NEXT

0

+

-

STOP

8

Basic operation

Preparations

Switch the on the TV and select "Video" as the input source.

.

Switch on the stereo system if the player has been connected to

.

a stereo audio amplifier.

Basic play

1.Press POWER by the main unit to switch on the power.

2. Press OPEN/CLOSE by the main unit or EJECT on the remote control unit
to open the disc tray.

3. Place a disc onto the disc tray.

Hold the disc without touching either of its surfaces, position it with

the printed side facing up, align it with the guides and place it on the
disc tray.
(1) 8cm disc
(2) 12cm disc

4. Press the OPEN/CLOSE button again or PLAY on the main unit or
remote control will close the disc tray and display:

Open Loading..

Open

POWER

ECHOMIC VOL1 MIC 1



OPEN/CLOSE

PREV

FWD

REV

L/R

STOPPAUSEPLAY

NEXT

The player will automatically play.

When a menu screen appears on the TV monitor:­ In case of interactive DVDs or VCDs with playback control, a menu
screen appears on the TV. With DVDs, you can use CURSOR to
select which item you want to enjoy and press ENTER. With VCDs,
you will need to press the NUMERIC key, then press ENTER.
Press POWER button on the front panel or remote control to switch the
unit from ON to STANDBY mode (or vice versa). In standby mode, the
unit is still consuming a small amount of power.

Note:

The disc continues to rotate while the menu is displayed even after the
player has finished playing a particular item. When no further selections
are to be played, be sure to press the STOP button to clear the menu
display.
If the disc is placed in the tray upside down (and it is a single sided disc),
the DVD display will indic ate "NO DISC".

For your reference:

When appears while a button is being operated, it means that the
corresponding operation is prohibited by the player or the disc.

POWER

POWER GAME SETUP EJECT

1/ALL

PLAY/SEL

ANGLEAUDIOSUBTITLE VOLUME

F.BWD F.FWDPREV. NEXT

<

<



PROGRAM

CLEAR

STOP

><

1 2 3
4 5 6
7 8 9

REPEAT GOTO MUTE

A-B

PBC MENU TITLE

PAUSE

SLOW RETURN

STEP INFO TV.SYS ZOOM

OPEN
CLOSE

0

+

-

9

Stopping play

Press STOP
For you convenience;

Memory Stop DVDs and VCDs (without PBC), can utilize a function
called Memory Stop. This allows you to temporarily stop a movie and
restart it from the same point later. While playing a disc, pressing STOP
once will set the player into Memory Stop mode. At this point, pressing
PLAY re-starts the movie from the same point. Pressing STOP a second
time will stop the disc completely (i.e. the Stop Memory is lost). Note that
some DVD discs will not allow the use of Memory Stop.

POWER GAME SETUP EJECT

PROGRAM

1 2 3

CLEAR

4 5 6

PREV/NEXT

NEXT
press NEXT during play.
A chapter (DVD) or a track (VCD / CD) is skipped each time the button is
pressed.
PREV
Press PREV during play.
When the button is pressed once midway through a chapter/track, play
returns to the start of that chapter/track. When it is pressed again, a
chapter/track is skipped each time the button is pressed.

For your reference:

.When PREV/NEXT is pressed during menu play of VCD, a menu

screen may sometimes be recalled

Fast FWD/BWD

Using either the Remote Control or the Front Panel controls, press
FAST FWD( )or FAST BWD( )during play.

X2

X8

PREV/NEXT

7 8 9

REPEAT GOTO MUTE

A-B

1/ALL

PBC MENU TITLE

0

+

ANGLEAUDIOSUBTITLE VOLUME

-

F.BWD F.FWDPREV. NEXT

PAUSE

<

PLAY/SEL

SLOW RETURN

STEP INFO TV.SYS ZOOM

STOP

><

<



FAST BWD
FAST FWD

For you reference:

Press FAST FWD or FAST RWD button once, the disc will be played
forward or backward at double (x 2) speed. With each subsequent press,
the disc will be played back at x4, x8, x16 or x32 speed and PLAY.
Press PLAY button to return to normal play.

10

Pause picture

Press PAUSE during play

For your reference:

. When playing, pressing the PAUSE button pause playback. Press the

PAUSE button again to enter step status. The picture will go ahead
frame by frame. To return to normal play, press the PLAY button.

Step picture

Press STEP during play

For your reference:
When playing,pressing the STEP button step playback. Press PLAY

button to return to normal play.

SLOW PLAY

Press SLOW button when playing, you can play the disc at 1/2. 1/4, 1/8,
1/16,1/32 of normal speed. If you want stop it, you can press PLAY button
to play normally again.

MENU and TITLE

Press MENU or TITLE by the remote control unit

.DVD discs usually are divided into several titles and subdivided into

chapters. VCD / CD discs are divided into tracks.

PAUSE

SLOW

STEP

POWER GAME SETUP EJECT

PROGRAM

1 2 3
4 5 6

7 8 9

REPEAT GOTO MUTE

A-B

1/ALL

PBC MENU TITLE

CLEAR

0

+

ANGLEAUDIOSUBTITLE VOLUME

-

F.BWD F.FWDPREV. NEXT

PAUSE

PLAY/SEL

SLOW RETURN

STEP INFO TV.SYS ZOOM

STOP

<

><

<



MENU
TITLE

.Press TITLE on the remote and the disc playing will automatically

return to the title program. Press the CURSOR buttons on the remote
to select the option, then press ENTER button to play it. Note it is
possible that some DVD discs will not have this function

. Press MENU button on the remote, the disc playing will automatically

return to the chapter menu. Press CURSOR buttons on the controller
to select chapter and then press the ENTER button to play,

.For and VCD with PBC, pressing MENU will turn the PBC function off.

Pressing MENU again turns the PBC back on.



11

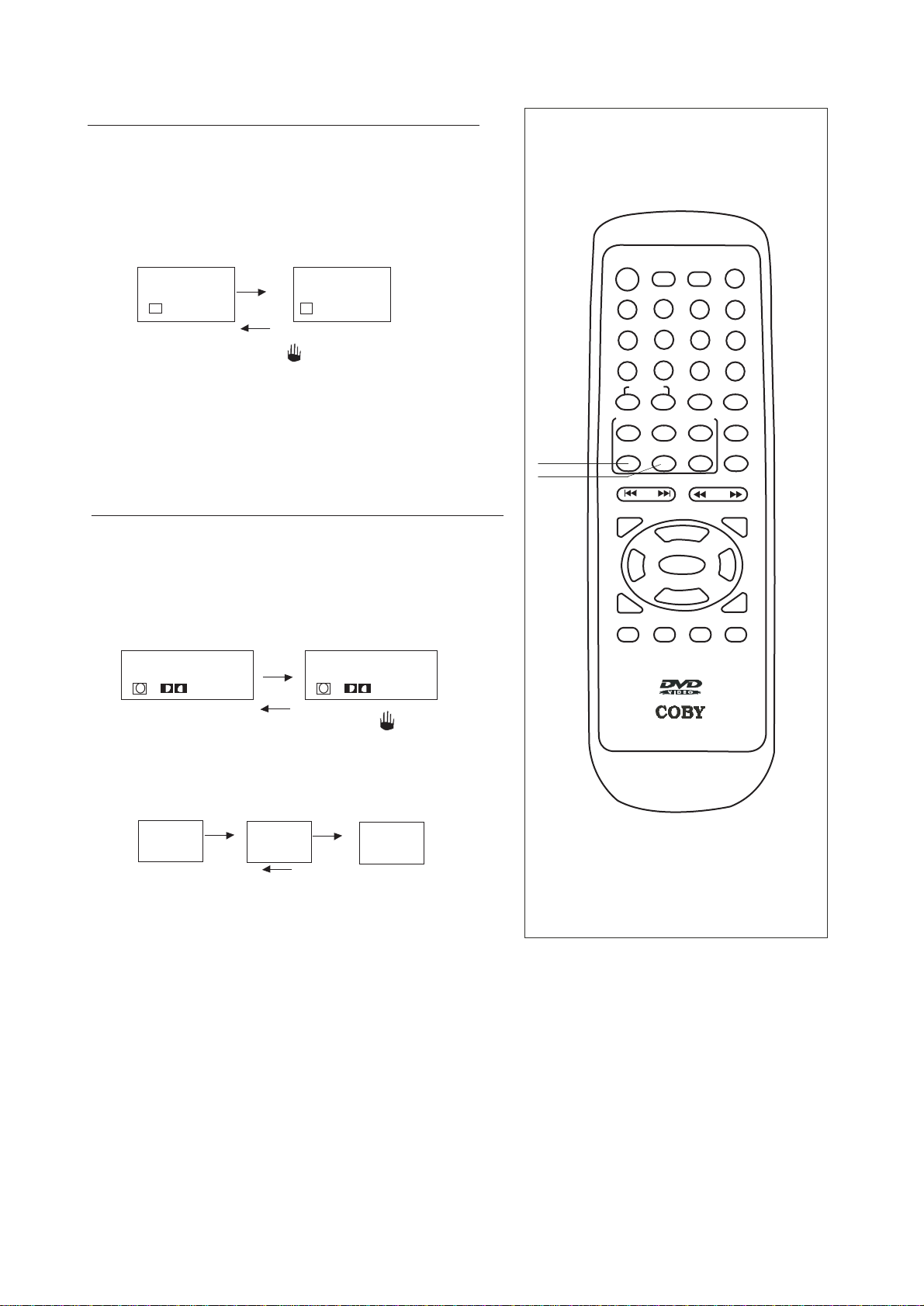

Changing SUBTITLE language [DVDs only]

.it is possible to change the subtitle language from the one selected, if

available This operation works only with discs on which multiple subtitle
languages have been recorded).

.Press the SUBTITLE button on the remote. The alternative language

subtitle will appear wffh each press, <SUBTILE 1>, <SUBTILE 2>, (The
different disc have different display.)

POWER GAME SETUP EJECT

1:ENGLISH 2:FRANCH

... ...

.When no subtitles are recorded." "will be displayed on the TV

screen

For your reference:

. If the power is reset or the disc is removed, subtitles will appear in

the default language set by the DVD player. If this language is not
recorded on the disc, they will appear in the disc's default language.

Changing the audio soundtrack language

. It is possible to change the audio soundtrack language from the default

standard to another, if available. This operation works only with discs
on which different audio soundtrack languages are recorded.

.DVD:

Some DVDs have multi-audio output function. Pressing the AUDIO button
on the controlrer repeatedly selects the available audio tracks.

1: 5.1CH ENGLISH 2: 2CH DANISH

When no audio soundtrack language are recorded, " " will be displayed

on the TV screen.

.VCD,CD, MP3:

For VCD pressing the AUDIO button on the controller repeatedly selects
the available audio tracks.

SUBTITLE
AUDIO

PROGRAM

1 2 3

4 5 6

7 8 9

REPEAT GOTO MUTE

A-B

1/ALL

PBC MENU TITLE

CLEAR

0

+

ANGLEAUDIOSUBTITLE VOLUME

-

F.BWD F.FWDPREV. NEXT

PAUSE

<

PLAY/SEL

SLOW RETURN

STEP INFO TV.SYS ZOOM

STOP

><

<



L/R

L/L

R/R

12

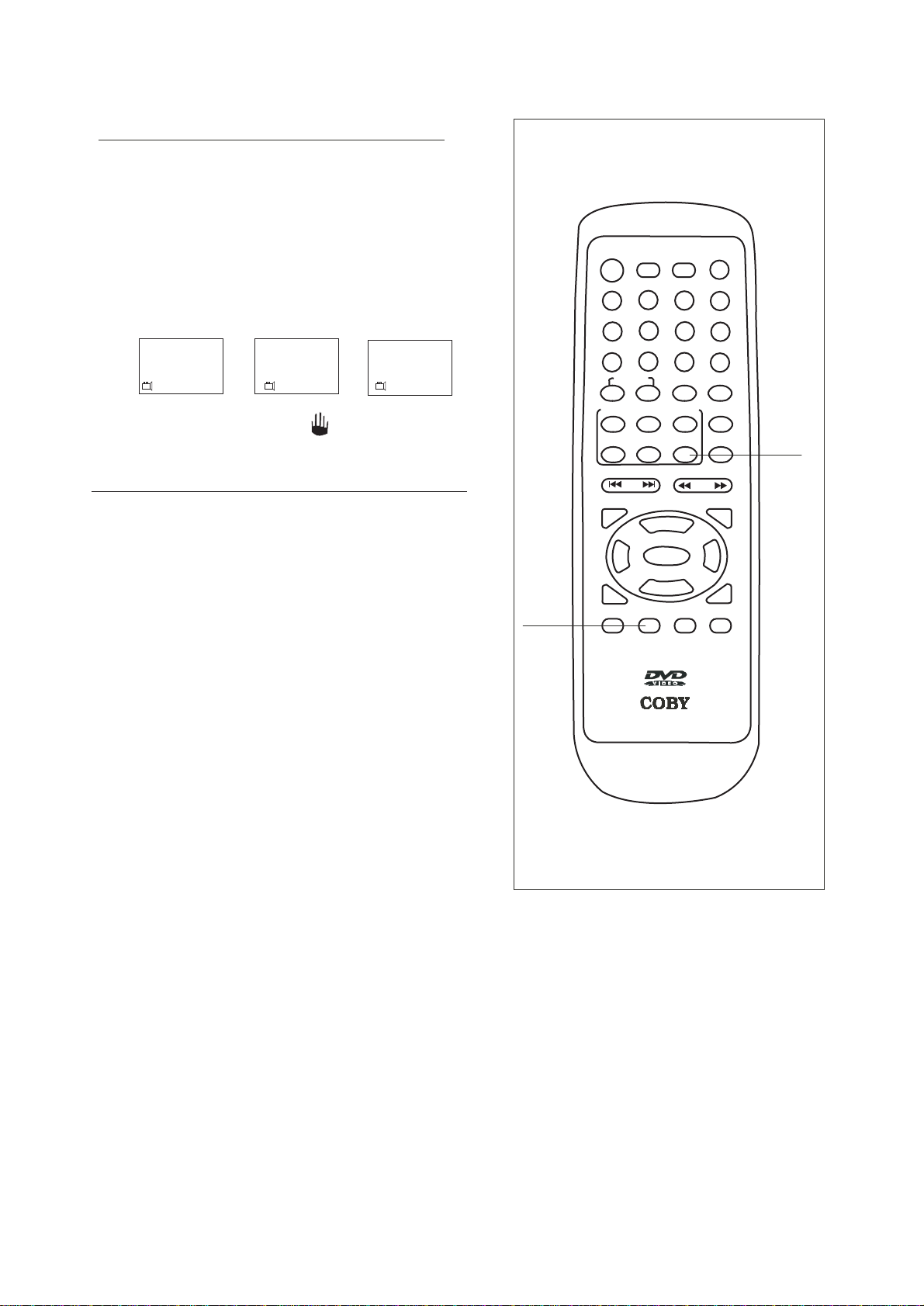

Viewing from another ANGLE [DVDs only]

. Some DVDs may contain scenes that have been shot simultaneously

from a number of different angles. For these discs, the same scene
can be viewed from each of these different angles using the ANGLE
button. The recorded angles will differ depending on the disc being
played.

. When playing a DVD with multi-angle viewing, " / " will appear on the

screen. For example, if the disc has two angles available, pressing the
ANGLE button on the controller will step you through all available
views. The screen OSD will show 1/3 then 2/3 then 3/3 and then back
to 1/3 again etc.

POWER GAME SETUP EJECT

PROGRAM

1 2 3

CLEAR

4 5 6

1/3 2/3 3/3

.When no multi-angle are recorded, " "will be displayed on the TV

screen.

On screen DISPLAY

During playback, you can press the INFO button on the remote to
show the various information available.

.For DVDs, the INFO function button will allow you to view:

Press INFO on the remote once, you will see three lines on the 'IV
screen: At the first line they are disc type, subtitle and audio playing from
left to right; at the second line it is playing time; at third line they are TITLE
and CHAPTER playing,
Press INFO twice, you will see more information on the TV screen: At
the first llne are TITLE and CHAPTER (numbers of playing/total); at the
second line it is playing time; at the third line the output TV format of DVD
and AUDIO (numbers of playing/total); at the fourth line the SUBTITLE
and ANGLE (numbers of playing/total); at the fifth line it is output audio
format.
Press the INFO button to no display and cancel this function.

.For VCD & CD discs, the DISPLAY functions allows you to view on the

screen: at the first line is disc type and track(numbers of playing/total); at
the second line is playing time; at the third line is output TV format.

INFO

7 8 9

REPEAT GOTO MUTE

A-B

1/ALL

PBC MENU TITLE

0

+

ANGLEAUDIOSUBTITLE VOLUME

-

F.BWD F.FWDPREV. NEXT

PAUSE

PLAY/SEL

SLOW RETURN

STEP INFO TV.SYS ZOOM

STOP

<

><

<



ANGLE

13

How to use CLEAR button

.If you enter a wrong number in selecting a track, title, or passwords etc,

you can press CLEAR to delete the number you have entered.

TV.SYS setting

.This function is TV TYPE If you press this button it will allow you to

select three TV types:

AUTO

NTSC PAL

POWER GAME SETUP EJECT

PROGRAM

1 2 3

CLEAR

4 5 6

CLEAR

REPEAT

If you play a DVD disc, the screen will display:

REP CHAPTER

If you play a VCD(PBD OFF) or CD disc, the screen will display:

REP CANCEL REP TRK REP DISC

REP TITLE

REP CANCEL

REP DISC

Program

To the VCD & CD, if you want to play songs such as 5, 6, 3, etc, press
PROGRAM button on the remote, and then number key 5, 6, 3, you'll see
on the TV screen like:

005 --- ---

--- --- ---

--- --- ---

PROGRAMPROGRAM PROGRAM
005 006 ---

--- --- ---

--- --- ---

005 006 003

--- --- ---

--- --- ---

REPEAT

7 8 9

REPEAT GOTO MUTE

A-B

1/ALL

PBC MENU TITLE

0

+

ANGLEAUDIOSUBTITLE VOLUME

-

F.BWD F.FWDPREV. NEXT

PAUSE

<

PLAY/SEL

SLOW RETURN

STEP INFO TV.SYS ZOOM

STOP

><

<



TV.SYS

etc.
Up to 9 tracks can be programmed, and at last press ENTER to start
program play,

14

Repeat A-B (allows you to play a small section of
the disc repeatedly)

. press the A-B button on the remote at the point where you wish the

repeat play to start. The display will show REP A. Press A-B button
again at the point where you wish the repeat play to finish. The display
will show REP A-B. The A-B segment will now repeat continuously until
the A-B button is pressed for a third time.

REP A REP A-B REP CANCELLED

GOTO function

You may directly enter a time, title or chapter number to search fast
on a disc, the player plays from that point.

. For DVD discs, press GOTO button on the remote, the display will

show the following:

: 1 / 8

:9 / 12

: 1 / 8

--:--:--

REPEAT

POWER GAME SETUP EJECT

PROGRAM

1 2 3

CLEAR

4 5 6

7 8 9

REPEAT GOTO MUTE

A-B

1/ALL

PBC MENU TITLE

0

+

ANGLEAUDIOSUBTITLE VOLUME

-

F.BWD F.FWDPREV. NEXT

GOTO

1.GO to a title or a chapter. For example, to chapter 6 in title 2.
(1) Press GOTO on the remote, the screen shows:

:9 / 12

: 1 / 8

(2) Press the CURSOR (left or right) button and move. The cursor to
illuminate the title number. Press button 2 to select title 2, the screen
shows:

Repeat the steps above, select chapter 6, and then press ENTER to
selected point.

2. TIME SEARCH
(1) Press GOTO button twice on the remote until the screen shows:

(2) Press number buttons to enter hour, minute and second. For
example, enter 1,2,2,2,2.then press ENTER, After setting, the disc is
played from 1:22:22
NOTE: some DVD disc will not TIME SEARCH.

: 1 / 8

: 1 / 8

:6 / 12

--:--:--

. For VCD(PBC off status) & CD discs, press GOTO button on the

controller, the following will be displayed: -

--:--:--

GO

PAUSE

STOP

<

PLAY/SEL

><

<

SLOW RETURN

STEP INFO TV.SYS ZOOM



For the GOTO option, enter the digits on the remote for the required
start time, Press ENTER button to start playback.

15

RETURN function

. For Video CD with PBC and multiple menus, press RETURN button on

the controller, playback will return to the previous menu automatically.

ZOOM picture

. Depending on the disc being played, you can press the ZOOM button

repeatedly allowing the picture to increase accordingly: ZOOM1.5,
ZOOM2 and ZOOM OFF,

POWER GAME SETUP EJECT

2 4 OFF

. In the ZOOM mode, you can use CURSOR buttons to move the picture

for optimum viewing.

VOLUME control

. Press VOLUME + on the controller continuously to increase volume.

Press VOLUME - continuously to decrease volume.
Note: This is the line level output to TV or connected Amplifier

Playback of MP3 Files

This unit is compatible for the reproduction of recorded pieces in MP3
format. Refer to the following instructions for a correct use:

1) Press the Power button and then the OPEN/CLOSE button to open the
drawer. Insert the disc containing the recorded passages in MPg format
with the label facing upwards. Press the OPEN/CLOSE button again to
close the drawer. After some seconds, on the TV screen will appear
MP3 LIST menu

2) In this menu, the first line is current page/total pages of current
directory; the second line is current directory name and the numbers
current directory/total directories; the third line is the number of current
song/total songs of disc and time of current song; next five lines are the
name of 10 songs.

3) Press the CURSOR button you can move the hightlight to the song you
want and press ENTER to play it. You can use UP and DOWN
CURSOR to gate previous or next page You can also press PREV/NEXT
button to play the previous or next song.

4) Another way to select songs is acting directly on the numerical
keyboard of the remote control. Input number and press play button.

5) Press RETURN button you can gate MP3 FOLDER menu. In this menu,
the first line is current page/total page of the folders; the second line is
the song's number of the disc; next five lines is the name of the folder,
you can operate it as at MP3 LIST menu. If you select one folder you
may enter MP3 LIST menu.

NOTE:

Some button could not be used when playing MP3 disc, they are FAST
BWD, FAST FWD, MENU, GOTO, SLOW, TITLE, A-B, PROGRAM,
DISPLAY etc.

PROGRAM

1 2 3
4 5 6

7 8 9

REPEAT GOTO MUTE

A-B

1/ALL

PBC MENU TITLE

CLEAR

0

+

ANGLEAUDIOSUBTITLE VOLUME

-

F.BWD F.FWDPREV. NEXT

PAUSE

PLAY/SEL

SLOW RETURN

STEP INFO TV.SYS ZOOM

STOP

<

><

<



VOLUME

RETURN

ZOOM

16

Initial settings

Once the initial setting have been set, the player will always operate with
the same parameters. The setting will be retained in the memory even
after switching off the power.
Initial settings must be in the setup mode, but function can be set in all
mode.
Using the setup menu, you may choose the play mode setting, the
various outputs, etc.
During STOP or PLAY mode, press SETUP button on the remote, you
will see on the screen like picture 1. In the PLAY mode or different disc
some item could not be choosed.
Select the menu item desired by using up/down CURSOR button, and
then press the ENTER button. You should see such as picture 2. In
each menu page, the menu items are showed on the left. Use the right
CURSOR button on the remote to the option list or setting on the right.
Use the left CURSOR button to go back to the left menu item.
Press the button SETUP to leave the setup menu and return to the TV
DISPLAY.

NOTE:

When you select the function on the Menu, the notation of the function is
showed at left bottom.

LANGUAGE SETUP

Press SETUP on the remote control, the screen shows SETUP MENU­MAIN PAGE. Press LANGUAGE SETUP to select OSD, MENU, AUDIO,
SUBTITLE setup menu(picture 2). If you choose one language, the OSD,
MENU, AUDIO, SUBTITLE's language will be this one first. If the disc has
not it, the DVD player will use default language of the disc.

SCREEN SETUP

SETUP MENU

LANGUAGE SETUP
SCREEN SETUP
AUDIO SETUP
CUSTOM SETUP
VER:W--XQ--M

EXIT

LANGUAGE SETUP

PICTURE 1

LANGUAGE SETUP

OSD >>ENGLISH
MENU GERMAN
AUDIO GERMAN
SUBTITLE

EXIT

OSD LANGUAGE

PICTURE 2

SCREEN SETUP

TV TYPE >>4:3 PS
SCRN SAVER 4:3 LB
TY SYSTEM 16:9
BRIGHTNESS
CONTRAST

TV TYPE(picture 3)
4:3 PS~4X3 Pan Scan
Choose this setting you will see the movie fill
the entire screen of your TV, But you won't
see part of the picture (particularly the right
and left edge).

4:3 LB--4x3 Letterbox
Choose this setting if you want to see
movies in their original aspect ratio. You will
see the entire frame of the movie, but it will
occupy a smaller portion of the screen.

16:9 --16x9 Wide screen
Choose this setting if your DVD player is
connected to a widescreen TV.

SCRN SAVER (picture 4)

You can choose turn on or off the screen saver.

TV SYSTEM (picture 5)

According to the system of TV to be connected, set the type of the video
output to match the TV:

1. Ifthe TV used is PAL, select PAL output signal;

2. If it is NTSC, select NTSC output signal;

3. Or select AUTO if TV is multi-system

Note:

To obtain the best DVD picture, it is strongly recommended to use
Multi-system TV to play DVD movie at 'Auto' mode

RETURN

TV TYPE

PICTURE 3

SCREEN SETUP

TV TYPE
SCRN SAVER >>ON
TY SYSTEM OFF
BRIGHTNESS
CONTRAST

RETURN

SCREEN SAVER

PICTURE 4

SCREEN SETUP

TV TYPE
SCRN SAVER
TY SYSTEM >>NTSC
BRIGHTNESS PAL
CONTRAST AUTO

RETURN

TV SYSTEM

Picture 5

17

BRIGHTNESS (picture 6)

You can choose the brightness of the video output.

CONTRAST (picture 7)

You can choose the contrast of the video output. 0 is normal.



AUDIO SETUP



OUTPUT (picture 8)
2 CH : the output signal is Analogue 2 ch format. You should select this

when you are playing the disc through the AUDIO OUT Right & Left jacks
on your DVD player. In this format CENTRE, REAR and SUBWOOFER will
not be heard.

5.1 CH: the output signal is ANALIGUE 5.1 CH format. When you play a
disc with Dolby Digital, you should choose this in this format, you can turn
CENTRE, REAR and SUBWOOFER on or off.
SPDIF/RAW: select this when the DVD player is connected with a power
amplifier though DIGITAL OUT coaxial or optical port. The power amplifier
to be connected must have Dolby Digital decoding.
SPDIF/PCM: Select this when the DVD player is connected with a
2-CHANNEL DIGITAL MODE OR STEREO AMPLIFIER. When a Dolby
Digital or MPEG disc is played, the coaxial port will output in PCM
2-channel format. These program features an uncompressed digital stereo
sound track for improved fidelity, when played, discrete stereo sound will
be heard from the front right and left speakers.

SCREEN SETUP

TV TYPE
SCRN SAVER
TY SYSTEM
BRIGHITNESS >>NORMAL
CONTRAST BRIGHT

RETURN



BRIGHINESS

PICTURE 6

SCREEN SETUP

TV TYPE --4
SCRN SAVER --3
TY SYSTEM --2
BRIGHTNESS --1
CONTRAST >>0

RETURN

CONTRAST

PICTURE 7

AUDIO SETUP

OUTPUT >>2 CH
CENTER 5.1CH
REAR SPDIF/PCM
SUBWOOFER SPDIF/RAW
DNR
KARAOKE

KARAOKE (picture 9)

Press CURSOR button on the remote to select KARAOKE, you can
choose turn off KARAOKE (select OFF item),or turn on KARAOKE
(select KARAOLE item).If you turn on KARAOKE function, insert MIC1
MIC2 and adjust MIC VOLUME or MIC ECHO button on the front panel,
you can enjoy yourself now.

RETURN

OUTPUT

PICTURE 8

AUDIO SETUP

OUTPUT
CENTER
REAR
SUBWOOFER
DNR ON
KARAOKE OFF

KARAOKE

PICTURE 9



18

CUSTOM SETUP

PARENTAL CONTROL(picture 10)

When selecting PARENTAL CONTL items,
the screen will be changed to the
PASSWORD INPUT page Input the correct
password, you will enter PARENTAL
CHANGE page(picture 11). When playing
disc with parent lock function, you may select an age control grade
according to grade of disc and your desired. For example: Select PG13,
and then you cannot play DVD video disc rate higher the PG13 grade.
Parental control grades are listed from Iow to high, 1 is lowest grade
adults is the highest grade.

INPUT PASSWORD
THEN PRESS ENTER

CANCEL: RETURN KEY

CUSTOM SETUP

PARENTAL CONTL8
CHANGE PASSWORD
ANGLE MARK
DEFAULT

RETURN

PARENTAL CONTROL

PICTURE 10

CUSTOM SETUP

CHANGE PASSWORD(the default password Is 8888)(picture 12)

Select CHANGE PASSWORD item, you wfil
see picture like right, you enter old password
first and press ENTER, and then you you will
see another picture, input new password
and press ENTER. Now you change the
password.

Notes:

The original password is 8888 when the unit
is first time turned on.

ANGLE MARK(picture 12)

You can choose display ANGLE character or not.

DEFAULT (picture 13)

If you select the READ, each function setting returns to the initial status
setting by the factory.

INPUT PASSWORD
THEN PRESS ENTER

CANCEL: RETURN KEY

INPUT NEW PASSWORD
WITH NUMBERS

CANCEL: RETURN KEY

LEVEL >>3: PG
4: PG13
RETURN 5
6: R
7: NC17
8

LEVEL

PICTURE 11

CUSTOM SETUP

PARENTAL CONTL8
CHANGE PASSWORD
ANGLE MARK >> ON
DEFAULT OFF

RETURN

ANGLE MARK DISPLAY

PICTURE 12

CUSTOM SETUP

PARENTAL CONTL8
CHANGE PASSWORD
ANGLE MARK
DEFAULT >> READ

RETURN

19

DEFAULT VALUE

PICTURE 13

For Your Reference:

Disc handling and maintenance

Handling precautions

Hold the disc by the edges so the surface will not soiled with
fingerprints.(A)
Fingerprints, dirt and scratches can cause skipping and distortion.
Do not write on the lable side with a ballpoint pen or other writing utensils
Do not use record cleaning sprays, benzine, thinner, static electricity
prevention liquids or any other solvent.
Be careful not to drop or bend the disc.
Do not install more than 1 disc on the disc tray.
Do not try to close the disc tray when the disc is not installed
properly.( B )
Be sure to store the disc in its exclusive case when not in use .

If the surface is soiled ( C )

Wipe gently with a soft, damp (water only ) cloth.
When wiping discs, always move the cloth from the center hole toward the
outer edge.
(if the wipe the discs using a circular motion, circular scratches are likely to
occur, which will cause noise.)

If the disc is brought from a cold to a warm environment, moisture may form
on the disc.
Wipe this moisture off with a soft, dry, lint-free cloth before using the disc.

Improper disc storage

You can damage discs if you store them in the following places:
Areas exposed to direct sunlight
Humid or dusty areas
Areas directly exposed to a heat outlet or heating appliance

     

Do not try to play Photo CD best

Maintenance

Be sure to turn the unit off and disconnect the AC power cord before
maintaining the unit.
Wipe this unit with a dry soft cloth.
If the surfaces are extremely dirty, wipe clean with a cloth, which has been
dipped in a weak soap-and-water solution and wrung out thoroughly. Then
wipe again with a dry cloth.
Never use alcohol, benzine, thinner, cleaning fluid or other chemicals.
Do not use compressed air to remove dust.

Disc Disctray

20

Troubleshooting

Before requesting service for this unit, check the chart below for a possible cause of the problem you are experiencing. Some simple checks or
a minor adjustment on your part may eliminate the problem and restore proper operation.

Symptom (common)

No power

Play fails to start even
when PLAY is pressed.

Play commences but
then stops immediately.

No sound.
Distorted sound.

Picture is distorted during rapid
advance or rapid reverse.

No rapid advance
(or rapid reverse) play.

  

Insert the power plug securely into the power outlet.

Condensation has formed: wait about 1 to 2 hours to allow
the player to dry out.
This player cannot play discs other than DVDs, Video CDs
and CDs.
This disc may be dirty and may require cleaning.
Ensure that the disc is installed with the label side up.

Ensure that the equipment is connected properly.
Ensure that the input setting for the TV is "Video".

Ensure that the equipment is connected properly.
Ensure that the input setting for the TV and stereo system
are properly made.
Adjust the master volume using the buttons on the remote
control.

The picture will be somewhat distorted at times: this is normal.

Some discs may have sections, which prohibit rapid advance
(or rapid reverse).

Remedy

 

No 4:3 (16:9) picture.

No surround sound.

No operations can be performed
with the remote control.

No key operation (either front
panel and/or remote control).

OSD menu not displayed or only
partially displayed on the TV Screen.

Choose the correct setup "TV TYPE" item that matches
the TV set used.

Choose the correct setup at the "Audio Output" which
matches you stereo system.

Check the batteries are installed with the correct
polarities (+/-).
The batteries are depleted: replace them with new ones.
Point the remote control unit at the remote sensor
and operate.
Operate the remote control unit at a distance of not
more than 7 meters from the remote control sensor.

Remove the obstacles between the remote control unit
and remote control sensor.
Turn the unit off and then back to on.
Alternatively, turn off the unit, disconnect the AC power
cord and then reconnect it (The player may not be
operating properly due to lightning, static electricity or
some other external factor.)

Select the appropriate TV screen type by consulting the
operation manual of the TV.

21

Symptom (DVD)

Remedy

Play does not commence even
when title is selected.

Audio soundtrack and/or subtitle
language is not the one selected
at the initial settings.

The menu is displayed in
French(for example).

No subtitles.

Alternative audio
soundtrack (or subtitle)
languages fail to be selected.

Angle cannot be changed

Confirm the "Ratings" setting.

If the audio soundtrack and/or subtitle language does not exist on
the disc, the language selected at the initial settings will not be
seen/head

The setup "Menus" of "Disc Languages" is set to
French: select English

Subtitles appear only with discs, which contain them.
Subtitles are cleared from the TV monitor.
Press "SUBTITLE' button to display the subtitles.

An alternative language is not selected with discs, which do
not contain more than one language.
In the case of some discs, the alternative language cannot
be selected by operating the AUDIO or SUBTITLE button.
Try selecting it from the DVD menu if one is available.

This function is dependent on software availability. Even if
a disc has a number of angles recorded, these angles may
be recorded for specific scenes only (when the ANGLE
indicator on the unit illuminates.)

Symptom(Video CD)

No menu.

  

Remedy

This function work only for Video CDs with playback control.

22

Definition of terms

Angle

Recorded onto some DVD discs are scenes, which have been
simultaneously shot from a number of different angles (the same scene
is shot from the front, from the left side, from the right side, etc.).With
such discs, the ANGLE button can used to view the scene from different
angles.

Chapter number

These numbers are recorded on DVD discs. A title is subdivided into
many sections, each of which is numbered, and specific parts of video
presentations can be searched quickly using these numbers.

DVD

This refers to a high-density optical disc on which high-quality pictures
and sound have been recorded by means of digital signals.
lncorporating a new video compression technology(MPEG)
and high-density recording technology, DVD enables esthetically
pleasing full-motion video to be recorded over long periods of time
(for instance, a whole movie can be recorded).

PBC(playback control)

This is recorded on a video CD (VERSION 2.0).the scenes or
information to be viewed (or listened to ) can be selected interactively
with the TV monitor by looking at the menu shown on the TV monitor.

Subtitle

These are the printed lines appearing at the bottom of the screen,
which translate or transcribe the dialogue. They are recorded on
DVD discs.

Time number

This indicates the playtime recorded on DVD discs. When a disc
contains two or more movies, these movies these movies are
numbered as title 1, title 2,etc.

Track number

These numbers are assigned to the tracks which are recorded on
video CDs and CDs. They enable specific tracks to be located
quickly.

Video CD

This contains recordings of pictures and sound whose quality is on
a par with that of videotape. This player also supports video CDs
with playback control (version 2.0 ) .

Specifications

Power Requirements: AC 110V/220V, 60Hz/50Hz
Power Consumption: 25w(approx.3.5W when power is OFF by the
power button or the remote control)

Signal system: PAL/NTSC
Weight:
Dimensions: 290(W)X430(D)X95(H)mm(excluding protrusions)
Operating temperature range: +5 to 35 C
Operating humidity ranger: 5 to 90%(no condensation)
Discs played :

(1) DVD-VIDEO disc
12cm single-sided, single-layer
12cm single-sided, double-layer
12cm double-sided,double-layer(one layer per side )
8cm single-sided, single-layer
8cm single-sided, double-layer
8cm double-sided, double-layer (one layer per side )
(2) compact disc (CD-DA,VIDEO CD)
12cm disc
8cm disc

S-video output:

Y output level: 1 Vp-p(75 )
C output level: 0.300Vp-p(75 )(PAL)

0.286 Vp-p(75 )(NTSC)
Output connector: S terminal (1 system)
Video output: Output level: 1 Vp-p(75 )
Output connector: pin jack (2 systems)
Audio output: Output level: 2 Vrms (1kHz,0dB)
Output connector: Pin jack

5.1ch mixed output:1 system (2ch)

5.1ch discrete output:1 system (5.1ch.)

Audio signal output characteristics:

(1) Frequency response :
DVD (linear audio);
4Hz-22kHz(48kHz sampling)
4Hz-22kHz(96kHz sampling)
CD audio:
2Hz-20kHz(EIAJ)
(2) S/N ratio:
CD audio:115dB(EIAJ)
(3) Dynamic range:
DVD(linear audio):102dB
CD audio:99dB(EIAJ)
(4) Total harmonic distortion:
CD audio:0.0025%(EIAJ)

Digital audio output:

Optical digital output: Optical connector
Coaxial digital output: Pin jack

Pickup: Wave length:655nm
Phone Jack : Stero,3.5jack
Laser power: CLASS1

Specifications are subject to changer without notice
Weight and dimensions approximate.

23

COBY

COBY ELECTRONICS CORP.(”COBY”) warrants this product to the
original purchaser to be free from defects in material or workmanship
under normal use for 90 days from the date of original purchase.
COBY agrees under this warranty, torepair or replace it with a new or
reconditioned product at no additional charge. Our warranty does not
cover any product which has been subject to neglect, unreasonable
use, accident, violation of operating instruction or any product that has
been repaired or modified by an unauthorized service agent. To obtain
factory service, return this unit freight-prepaid to the address shown
below within the duration of this warranty. Enclose $6.00 for each item
in the form of money order made payable to COBY ELECTRONICS
CORP. to cover the cost of shipping and handing. Also, include a copy
of the sales receipt to show proof of purchase and a detailed description
of the problem. The unit(s) must be packaged in such a way as to rea­sonably protect it frompossible shipping damage. For further information
write to.

90 DAYS LIMITED WARRANTY

COBY ELECTRONICS CORP.

Customer Service Dept.

56-65 Rust Street

Maspeth, N.Y. 11378

COBY’S liability under any legal theory for any loss damage in any way
related to this product shall not exceed the sales price of this product.
In no event shall COBY be liable for any incidental or consequential
damages resulting from the use of this product, or inability to use this
product. Repair or replacement as provided under this warranty is the
exclusive right of the consumer.

Except to the extent prohibited by law, no express or implied warranty
of merchant ability or fitness for a particular purpose on this product
shall be extended beyond the period of this warranty. Some States
prohibit the exclusion or limitation of incidental or consequential
damages, so that the above limitation or exclusion may not apply
to you. This warranty gives you specific rights, and you may also
have other rights which may vary from State to State.
