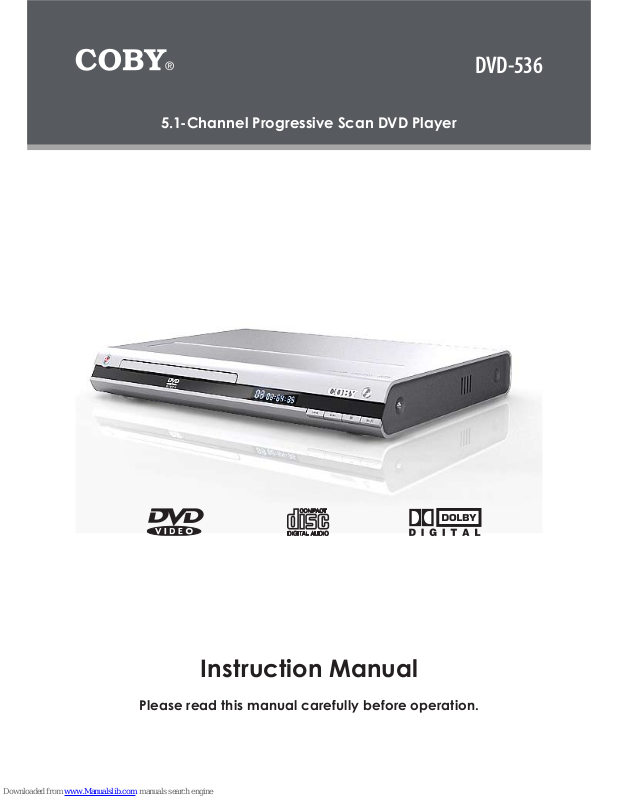

Coby DVD-53, DVD-536 Instruction Manual
Instruction Manual
Please read this manual carefully before operation.
DVD-536
5.1-Channel Progressive Scan DVD Player
Page 2 Coby Electronics Corporation www.cobyusa.com Page 3
For Customer Use:
Enter below the serial number that is located on the
bottom of the unit. Retain this information for future
reference.
Model No. DVD-536
Serial No.
The lightning ash with arrowhead symbol within an equilateral triangle is intended to alert
the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufcient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operation and servicing instructions in the literature accompanying the
appliance.
WARNING:
To prevent re or shock hazard, do not expose this device to rain or moisture. Dangerous high voltage is present inside the
enclosure. Do not open the cabinet.
CAUTION:
This Digital Video Disc player employs a laser system. To prevent direct exposure to the laser beam, do not try to open the
enclosure or defeat the safety interlocks. When open and the interlocks are defeated, visible laser radiation is present.
Use of controls, adjustments, or performance of procedures other than those specied herein may result in hazardous radia-
tion exposure. DO NOT STARE INTO THE BEAM.
FCC Notice:
This equipment has been tested and found to comply with the limits for a Class B digital device pursuant with the FCC Rules,
Part 15. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the
instructions may cause harmful inter ference to radio communication.
CAUTION:
To prevent electric shock, match wide blade of plug to wide slot of outlet and fully insert.
NOTICE:
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual proper ty
rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other
limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
PRECAUTIONS
Manufactured under license from Dolby Laboratories. Dolby and
the double-D symbol are trademarks of Dolby Laboratories.
Condential Unpublished Works.
© 1992-1997 Dolby Laboratories. All rights reserved.
For recycling or disposal information about this product, please contact your local authorities or the Electronics Industries Alliance:
www.eiae.org.
IMPORTANT SAFETY INSTRUCTIONS
Read Instructions: All the safety and operating instructions should be read before
the product is operated.
Retain Instructions: The safety and operating instructions should be retained for
future reference.
Heed Warnings: All warnings on the product and in the operating instructions
should be adhered to.
Follow Instructions: All operating and usage instructions should be followed.
Cleaning: For your safety, always unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol cleaners. Use a dry or slightly damp
(not wet) cloth for cleaning or dusting.
Attachments: Use only attachments recommended by the manufacturer. Use of other attachments may be hazardous.
Accessories: Do not place this product on an unstable cart,
stand, tripod, bracket, or table. Use only with carts, stands,
tripods, brackets, or tables recommended by the manufacturer
or sold with the product. Any mounting of the product should follow the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer.
A product and cart combination should be moved with care. Quick stops, excessive
force, and uneven surfaces may cause the product and cart combination to overturn.
Water and Moisture: Water is a natural conductor of electricity. To avoid the possibility of shock or severe injury, do not use this product in or near any sources of
water (e.g., a bath tub, washbowl, kitchen sink, laundry tub, in wet basements, a
swimming pool and the like).
Object and Liquid Entry: Never push objects of any kind into this product, through
openings or otherwise; this may result in objects touching dangerous voltage points
or short-out parts that could result in a personal or property damage or injury,
including re or electric shock. Never spill liquid of any kind on the product.
Ventilation: Any electrically powered consumer electronic product generates heat
while in use, thereby requiring proper ventilation. To ensure reliable operation of the
product and to protect it from overheating, do not operate the product on a bed, sofa,
rug, or other similar soft surface, and never block any ventilation slots or openings
provided for the unit. This product should not be operated in any enclosed area such
as a cabinet, bookcase or rack unless proper ventilation is provided for the unit.
Heat: The product should be situated away from any heat sources such as radiators,
heat registers, stoves, or other products (including ampliers) that produce heat.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
Page 4 Coby Electronics Corporation www.cobyusa.com Page 5
Power Sources: This product should be operated only from the type of power source
indicated on the rating label. If you are not sure of the type of power supply to your
home, consult your product dealer or local power company. For products intended
to operate from battery power or other sources, refer to the operating instructions.
Grounding or Polarization: This product may be equipped with a polarized alternating-current line plug that has one blade wider than the other. This plug will only t
into the power outlet in one direction. This is a safety feature. If you are unable to
insert the plug fully into the outlet, try reversing the direction of the plug. If the plug
should still fail to t, your outlet may be obsolete; contact a licensed electrician to
replace it. Never attempt to defeat the safety purpose of the polarized plug.
Power-Cord Protection: Care must be taken to ensure that power supply cords are
routed so as to avoid being damaged, such as by being walked on or pinched by
items placed upon or against them. You should pay particular attention to cords at
plugs, convenience receptacles, and at the point where they exit from the product.
Protective Attachment Plug: The product may be equipped with an attachment plug
with overload protection. This is a safety feature. See the operating instructions for
replacement or directions to reset the protective device. If replacement of the plug
is required, please consult an authorized service technician, and make sure s/he
has used a replacement plug that has the same overload protection as the original
plug as specied by the manufacturer.
Outdoor Antenna Grounding: If an outside antenna is connected to the product, be
sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code,
ANS/NFPA 70 provides information with regard to proper grounding of the mast and
supporting structure, grounding of the lead-in wire to an antenna-discharge unit,
13.
14.
15.
16.
17.
IMPORTANT SAFETY INSTRUCTIONS
size of grounding conductors, location of antenna-discharge unit, connection to
grounding electrodes, and requirements for the grounding electrode (see gure).
Lightning: Lightning can cause power surges, which may damage or destroy your
product. For added protection, unplug it from the wall outlet and disconnect the
antenna or cable system during a lightning storm or when it is left unattended and
unused for long periods of time. Power Lines: An outside antenna system should
not be located in the vicinity of overhead power lines or other electric light or power
circuits, or where it can fall into such power lines or circuits. When installing an
outside antenna system, extreme care should be taken to keep from touching such
power lines or circuits, as contact with them might be fatal.
Overloading: Always operate any electrical device in accordance with applicable
electrical codes. Never overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of personal or property damage or
injury, including re or electric shock.
Servicing: Do not attempt to service this product yourself as opening or removing
covers may expose you to dangerous voltage or other hazards, including the risk of
injury or damage to persons or property. Your warranty will also be voided. Refer
all servicing to qualied service personnel.
Damage Requiring Service: Unplug this product from the wall outlet and refer servicing to qualied service personnel if: a) the power-supply or plug is damaged
in any way; b) liquid has been spilled or if objects have fallen or been introduced
into the product; c) the product has been exposed to rain, water or other sources
of moisture; d) the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and/or require
extensive work by a qualied service technician to restore the product to its normal
operation; e) the product has been dropped or damaged in any way; f) the product
exhibits a distinct change in performance indicative of a need for service.
Replacement Parts: When replacement parts are required, be sure that your service technician has used replacement parts specied by the manufacturer or have
the same characteristics as the original part. Unauthorized substitutions may result
in injury to property or persons including the risk of re, electric shock, or other
hazards, and your warranty will be voided.
Safety Check: Upon completion of any service or repairs to this product, ask the
service technician to perform appropriate safety checks to ensure that the product
is in proper operating condition.
Wall or Ceiling Mounting: the product should only be mounted to a wall or ceiling
only as recommended in this Manual.
18.
19.
20.
21.
22.
23.
24.
IMPORTANT SAFETY INSTRUCTIONS
Page 6 Coby Electronics Corporation www.cobyusa.com Page 7
TABLE OF CONTENTS
PRECAUTIONS ..................................................................................................2
IMPORTANT SAFETY INSTRUCTIONS ...............................................................3
TABLE OF CONTENTS .......................................................................................6
ABOUT OPTICAL DISCS ...................................................................................8
Disc Requirements ........................................................................................... 8
DVD Features ................................................................................................... 8
DVD Region Codes .......................................................................................... 9
Disc Care and Maintenance ............................................................................. 9
Handling a Disc .......................................................................................... 9
Cleaning a Disc .........................................................................................10
FEATURES .......................................................................................................11
GETTING STARTED .........................................................................................12
DVD-536 at a Glance ......................................................................................12
Front Panel ................................................................................................12
Rear Panel ................................................................................................12
Remote Control .........................................................................................13
CONNECTIONS .............................................................................................15
Composite Video or S-Video Connection .......................................................15
Component Video Connection (Progressive Scan) .........................................17
Audio Connections ..........................................................................................18
2-Channel Stereo ......................................................................................18
5.1-Channel Surround ...............................................................................19
Coaxial Digital Audio .................................................................................19
Optical Digital Audio ................................................................................ 20
Power Supply ..................................................................................................21
Power Management ..................................................................................21
BASIC OPERATIONS ..................................................................................... 22
Basic Playback ............................................................................................... 22
Play/Pause/Stop ....................................................................................... 22
Next/Previous (Skip) ................................................................................ 23
Forward/Reverse (Search) ....................................................................... 23
Slow/Step ................................................................................................. 23
Disc Error Messages ...................................................................................... 24
Menu Navigation ............................................................................................ 24
Numeric Keypad ............................................................................................. 25
Adjusting the Volume ...................................................................................... 25
PLAYER FUNCTIONS ......................................................................................26
Menu / Title ..................................................................................................... 26
Setup .............................................................................................................. 26
On-Screen Display ......................................................................................... 26
Repeat Mode .................................................................................................. 26
Repeat A-B Mode ........................................................................................... 27
Multi-Angle/Subtitle/Audio .............................................................................. 27
Zoom .............................................................................................................. 27
Program .......................................................................................................... 28
Customizing a Program List ..................................................................... 28
SETUP ............................................................................................................. 30
Language Settings ......................................................................................... 30
Display Settings ...............................................................................................31
Audio Settings ................................................................................................ 32
Parental Settings ............................................................................................ 32
TROUBLESHOOTING ..................................................................................... 34
SPECIFICATIONS ...........................................................................................37
TABLE OF CONTENTS
Page 8 Coby Electronics Corporation www.cobyusa.com Page 9
ABOUT OPTICAL DISCS
Disc Requirements
This DVD player supports playback of the following discs.
Type Disc Mark Content Type Disc Size Max. Playback Time
Digital Video Disc (DVD)
Audio + Video
(moving
picture)
12 cm
133 min (SS-SL)
242 min (SS-DL)
266 min (DS-SL)
484 min (DS-DL)
Audio Compact Discs (CD) Audio 12 cm 74 min
JPEG Picture CD -- Still Picture 12 cm --
This unit can play back CD-R and CD-RW discs that contain audio titles or
JPEG picture les. Discs not listed above are not supported by this unit (e.g.,
PC CD-ROM, CD-Extra, CD-G, CD-I, etc.)
DVD Features
Each DVD disc contains features that may vary depending upon the production
of the disc. Some of the icons you may see that represent these features are
shown below.
Number of Audio Tracks
Number of Subtitles
Angle Indicator
Screen Format (Aspect Ratio)
Zoom
Some of the DVD features enabled by this player depend on how the
DVD was produced. Some features may not be enabled if the disc
does not support the feature, or it may require special settings. Check
the features printed on the DVD package or follow the instructions
found on the disc’s on-screen menu.
DVD Region Codes
DVD discs and DVD players are manufactured under a compulsory worldwide
agreement, the DVD Regional Code System. DVD players will only operate with
DVD discs encoded with the same corresponding Regional Code.
Region
Code
Region
1 Canada, USA
2
Europe (including Poland, Romania, Czech Republic), Japan, Middle East (including Saudi Arabia, Egypt, Iran, South Africa)
3 East Asia (including Hong Kong, Taiwan, South Korea), Southeast Asia
4 Australia, Caribbean, Central America, South America, Mexico, New Zealand
5 Africa, the former Soviet Union, India, North Korea, Pakistan, Turkmenistan
6 China
Disc Care and Maintenance
Optical discs (DVDs, CDs) contain high-density compressed data and need
proper handling.
Handling a Disc
Hold a DVD/CD by its edges. Avoid
touching the recorded side of the disc. To
remove a DVD/CD from its storage case,
press down on the center retention mechanism of the case and lift the disc out.
•
ABOUT OPTICAL DISCS
Page 10 Coby Electronics Corporation www.cobyusa.com Page 11
Do not subject discs to prolonged exposure to direct sunlight, high humidity,
or high temperatures.
Do not bend or press discs.
To reduce the risk of scratches, always put discs back in their case after
use. Store discs vertically in a cabinet.
Do not place stickers or labels on either side of a disc.
Cleaning a Disc
Use a dry, soft cloth to wipe off any ngerprints and dusts from the playing
surface of the disc. Wipe in a straight line radially from the center to the outside
edge of the disc. Small dust particles and light stains will not affect playback
quality.
Never use chemicals such as record sprays, anti-static sprays, ben-
zene, or thinners to clean a disc. Doing so will damage the surface of
the disc permanently.
•
•
•
•
ABOUT OPTICAL DISCS
FEATURES
Progressive Scan DVD Player
Compact and Slim Design
DVD, DVD±R/RW, CD, CD-R/RW, and JPEG Compatible
Dolby Digital Decoder
5.1-Channel Audio for Surround Sound Systems
Optical, Digital, and Analog AV Outputs for Home Theater Use
NTSC/PAL Compatible
Convenient Front Panel and On-Screen Display
Multiple Language, Subtitle, and Camera Angle Support
Picture Zoom Function
Parental Lock Control
100-240V Automatic Power Switching
•
•
•
•
•
•
•
•
•
•
•
•
Page 12 Coby Electronics Corporation www.cobyusa.com Page 13
GETTING STARTED
3 4 7 8 9
10
5
6
1 2
11
15 16 17 18
12 13 14
DVD-536 at a Glance
Front Panel
Power Button
Power Indicator
Disc Tray
Front Panel Display
Open/Close Button
Remote Sensor
Previous/Reverse Button
Next/Forward Button
Stop Button
Play/Pause Button
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Rear Panel
AC Power Cord
Component Video Out
(Progressive Scan - 480p)
Composite Video Out
(Interlaced - 480i)
S-Video Out
(Interlaced - 480i)
2-Channel Audio Out:
L (Left Channel)
R (Right Channel)
Coaxial Digital Audio Out
Optical Digital Audio Out
5.1-Channel Audio Out:
FL (Left Channel)
FR (Right Channel)
CENT (Center Channel)
SL (Surround Left Channel)
SR (Surround Right Channel)
SW (Subwoofer Channel)
11.
12.
13.
14.
15.
16.
17.
18.
Loading...
