Introduction

Our Thanks to You and Customer Assistance

VHF MARINE RADIO

MR HH125

Printed in China Part No. 480-426-P Version C

Nothing Comes Close to a Cobra

Owner’s Manual

English

Our Thanks to You

Thank you for purchasing a CobraMarine®VHF radio. Properly used, this Cobra

product will give y ou

many years of reliable service.

How Your CobraMarine VHF Radio Works

This radio is a battery-powered portable transceiver for use afloat. It gives you two-way vessel-to-vessel and vessel-to-shore station communications, primarily for safety and secondarily for navigation and operational purposes. With it, you can call for help, get information from other boaters, talk to lock or bridge tenders, and make radiotelephone calls to anywhere in the world through a marine operator.

Besides two-way communications, the radio can provide quick access to receive all the NOAA (National Oceanographic and Atmospheric Administration) weather channels and alert you to weather emergencies with a tone on a weather channel you can select for your area.

Customer Assistance

Should you encounter any problems with this product, or not understand its many features, please refer to this owner’s manual. If you require further assistance after reading this manual, Cobra Electronics offers the following customer assistance services:

For Assistance in the U.S.A.

Automated Help Desk English only. 24 hours a day, 7 days a week 773-889-3087 (phone).

Customer Assistance Operators English and Spanish. 8:00 a.m. to 6:00 p.m. Central Time Mon. through Fri. (except holidays) 773-889-3087 (phone).

Questions English and Spanish. Faxes can be received at 773-622-2269 (fax).

Technical Assistance English only. www.cobra.com (on-line: Frequently Asked Questions). English and Spanish. productinfo

@cobra.com (e-mail).

For Assistance Outside the U.S.A.

Contact Your Local Dealer

English

6500 West Cortland Street

Chicago, Illinois 60707 USA

www.cobra.com

•

Introduction

Radio Controls and Indicators

Introduction

Backlit LCD Screen and Product Features

Push to

Talk Button

(Talk)

Backlight/

Key Lock

Button

Dual Watch/ Scan Button

Squelch

Defeat

Button

Memory/ Escape Button

Enter/Setup Button

Antenna

Backlit

LCD

Screen

Speaker

External Speaker/

Microphone Jack

ON/OFF/ Volume Control

Wrist Strap

Connector

Engagement

Compartment

Belt Clip

Battery

Battery Door Latch

Channel Down Button

Channel Up Button

Power Level/ Weather Button

Instant Channel 16/9 Button

Microphone

Charge Jack

Backlit LCD (Liquid Crystal Display) Screen

Receive & Transmit Icons

Signal Strength Icon

Low/High Power Icons

Roger Beep Icon

Scan Icon

UIC Active Channel Map Icons

Active Channel Numbers

Simplex Operation Icon

Product Features

Power Settings

Select 1 or 3 watts of output power for near or distant calling.

USA/International/Canada Channels

Operate on any of the three (3) different channel maps set up for these areas.

All NOAA Weather Channels

Instant access to all National Weather Channels, 24 hours a day.

Emergency Weather Alert

Receive NOAA alerts when threatening weather is nearby.

Waterproof

Meets JIS4 waterproof standards.

Key Lock

Prevents accidental setting changes when key lock is set.

Channel Scan/Memory Scan

Scan through all or memorized channels to find conversations in progress.

Instant Channel 16/9

Provides instant access to priority Channel 16 and calling Channel 9.

Dual-Watch

Use to monitor two (2) channels at once – Channel 16 and one programmable channel.

Roger Beep Tone (Selectable)

Confirmation tone indicates the completion of the user’s transmission and signals to others it is clear to talk. On or Off selectable.

Rechargeable NiMH (Nickel-Metal Hydride) Batteries

Five (5) rechargeable NiMH batteries supplied with the unit provide extended operating time compared to alkaline batteries and have no memory effect. Five (5) AAA alkaline batteries may also be used for emergency backup power.

12V Power Cord Included

Charge the NiMH batteries in a car or boat.

Speaker/Mic Jack

Allows connecting optional Cobra Lapel Speaker/Mic.

Memory Channels

Allows programming of up to ten (10) VHF memory channels.

Signal Strength Meter

Shows the strength of incoming or outgoing signals.

Illuminated Buttons

Allows high visibility of all function buttons.

Key Tone Icon Button Lock Icon Weather Icon

Weather Alert Icon

Battery Power Icon

Memory Channel Icon

Dual Watch Icon

Broadcast Receive Icon

•

English

Introduction

Table of Contents

Introduction

Our Thanks to You .......................................... A1

Customer Assistance ........................................ A1

Radio Controls and Indicators ................................. A2

Backlit LCD (Liquid Crystal Display) Screen ....................... A3

Product Features ........................................... A3

Important Safety Information ....................................2

Recommendations for Marine Communication ......................4

FCC Licensing Information ......................................4

Installation

Included in this Package .......................................6

Wrist Strap, Belt Clip and External Speaker/Mic .....................7

Batteries and Charging .........................................8

Operating Your Radio

Getting Started ..............................................10

Setup Mode Programming .....................................14

Standby, Receive and Transmit .................................18

NOAA All Hazards/Weather Radio and Alert ........................19

Advanced Operation ..........................................21

Maintenance ................................................27

Troubleshooting .............................................27

VHFMarineRadioProtocols

VHF Marine Radio Procedures ..................................28

Voice Calling ...............................................30

Radiotelephone Calls .........................................31

Emergency Messages and Distress Procedure .....................32

Warranty and Trademark

Limited 1-Year Warranty ......................................35

Trademark Acknowledgement ..................................35

Customer Service

Product Service .............................................36

Specifications ...............................................37

Appendix – English/Español

VHF Marine Channel Assignments ...............................48

Weather Channel Assignments .................................53

Accessories ................................................54

Nothing Comes Close to a Cobra

Introduction

Introduction Introduction

Important Safety Information

Before installing and using your CobraMarine®VHF radio, please read these general precautions and warnings.

Warning and Notice Statements

To make the most of this radio, it must be installed and used properly. Please read the installation and operating instructions carefully before installing and using the radio. Special attention must be paid to the WARNING and NOTICE statements in this manual.

WARNING

Statements identify conditions that could result in personal injury or loss of life.

NOTICE

Statements identify conditions that could cause damage to the radio or other equipment.

Safety Training Information

This CobraMarine®radio has been tested and found to comply with the FCC RF exposure limits for use by the “General Population” and Industry Canada RF exposure limits for use by the “General Public.” This CobraMarine VHF radio also complies with the following guidelines and standards regarding RF energy and electromagnetic energy levels as well as evaluation of those levels for human exposure:

■

FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields.

■

American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.

■

American National Standards Institute (C95.3-1992), IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields — RF and Microwave.

General Precautions

The following WARNINGS and NOTICE information on the following page will make you aware of RF exposure hazards and how to assure you operate the radio within the FCC RF exposure limits established for the radio.

•

WARNINGS

Your radio generates electromagnetic RF (radio frequency) energy when it is transmitting. To ensure that you and those around you are not exposed to excessive amounts of that energy, DO NOT touch the antenna when transmitting. KEEP the radio at least two (2) inches (5cm) away from yourself and others when transmitting.

DO NOT operate with more than a duty cycle of 5% transmit, 5% receive and 90% standby. The radio is transmitting when the Talk button is pressed and the transmit information shows on the LCD screen.

ALWAYS use only Cobra authorized accessories. DO NOT operate the radio in an explosive atmosphere, near blasting sites,

or in any area where signs are posted prohibiting radio transmissions. NEVER place the transceiver or microphone/speaker where they might interfere

with operation of your vessel or cause injury. DO NOT allow children or anyone unfamiliar with proper procedures to operate

the radio without supervision. Failure to observe any of these warnings may cause you to exceed FCC RF

exposure limits or create other dangerous conditions.

NOTICE

Your radio is waterproof only when the batteries are properly installed. AVOID using or storing the radio at temperatures below -4˚F (-20˚C)

or above 140˚F (60˚C). KEEP your radio at least 3 ft (0.9 m) away from your vessel’s magnetic

navigation compass. DO NOT attempt to service any internal parts yourself. Have any necessary

service performed by a qualified technician. This radio is supplied with NiMH (Nickel-Metal Hydride) rechargeable batteries.

■

Use only the Cobra power cord to recharge NiMH batteries in the radio.

•

■

Do not short circuit the batteries.

■

When replacing the batteries, dispose of the old batteries properly. The NiMH

batteries may explode if disposed of in a fire.

English

Changes or modifications to your radio MAY VOID its compliance with FCC (Federal Communications Commission) rules and make it illegal to use.

Nothing Comes Close to a Cobra

Introduction

Marine Communication, Procedures & FCC Licensing

Introduction

FCC Licensing

Recommendations for Marine Communication

The frequencies your radio uses are set aside to enhance safety afloat and for vessel navigation and operational messages over a range suitable for nearshore voyages. If the 3 watt maximum output of your radio is not sufficient for the distances you travel from the coast, consider a higher powered handheld or installing a Cobra Marine fixed mount radio with up to 25 watts of output power. (Visit www.cobra.com or your local dealer for model availability.)

If traveling far offshore, you should consider adding even more powerful radio equipment such as HF single side band or satellite radio for your vessel.

The U.S. Coast Guard does not endorse cellular telephones as substitutes for marine radios. They generally cannot communicate with rescue vessels and, if you make a distress call on a cellular telephone, only the party you call will be able to hear you. Additionally, cellular telephones may have limited coverage over water and can be hard to locate. If you do not know where you are, the Coast Guard will have difficulty finding you if you are using a cellular telephone.

However, cellular telephones can have a place on board where cellular coverage is available — to allow social conversations and keep the marine frequencies uncluttered and available for their intended uses.

VHF Marine Radio Procedures

If you are not familiar with or need to brush up on the protocols that must be followed when using a VHF Marine Radio, please study the section beginning at page 28 before putting your radio into service.

FCC Licensing Information

CobraMarine VHF radios comply with the FCC (Federal Communications Commission) requirements that regulate the Maritime Radio Service.

The radio operates on all currently allocated marine channels and is switchable for use according to U.S.A., International or Canadian regulations. It features instant access to emergency Channel 16 and calling Channel 9 as well as NOAA (National Oceanic and Atmospheric Administration) All Hazards Radio with Alert that can be accessed by pressing one (1) button.

Station License

An FCC ship station license is no longer required for any vessel traveling in U.S.A. waters which uses a VHF marine radio, RADAR, or EPIRB (Emergency Position Indicating Radio Beacon), and which is not required to carry radio equipment. However, any vessel required to carry a marine radio on an international voyage, carrying an HF single side band radiotelephone, or carrying a marine satellite terminal must obtain a station license.

English

FCC license forms and applications for ship and land stations can be downloaded

•

through the Internet at www.fcc.gov. Forms can also be obtained by calling the FCC at 888-225-5322.

International Station License

If your vessel will be entering the sovereign waters of a country other than the U.S.A. or Canada, you should contact that country’s communications regulatory authority for licensing information.

Radio Call Sign

Currently, the FCC does not require recreational boaters to have a license. The United States Coast Guard recommends that the boat’s registration number and state of registry (e.g., IL 1234 AB) be used as a call sign and be clearly visible on the vessel.

Canadian Ship Station License

You need a Radio Operator’s Certificate if your vessel is operated in Canadian waters. Radio Operator training and certification is available from the Canadian Power Squadron. Visit their website (http://www.cps-ecp.ca/english/newradiocard.html), contact the nearest field office or write: Industry of Canada, Radio Regulatory Branch, Attn: DOSP, 300 Slater Street, Ottawa, Ontario, Canada K1A 0C8.

•

User Responsibility and Operating Locations

All users are responsible for observing domestic and foreign government regulations and are subject to severe penalties for violations. The VHF frequencies on your radio are reserved for marine use and require a special license to operate from land, including when your boat is on its trailer.

NOTE

This device complies with part 15 of the FCC Rules. Operation is subject to the following two (2) conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

FCC Warning: Replacement or substitution of transistors, regular diodes or other parts of a unique nature, with parts other than those recommended by Cobra may cause a violation of the technical regulations of part 80 of the FCC Rules, or violation of type acceptance requirements of part 2 of the rules.

Nothing Comes Close to a Cobra

VHF Marine Radio ProtocolsInstallation

Included in this Package

VHF Marine Radio ProtocolsInstallation

Wrist Strap, Belt Clip and External Speaker/Mic

Included in this Package

You should find all of the following items in the package with your CobraMarine VHF radio.

Radio Wrist Strap

Operating Instruction Manual

Spring-Loaded Belt Clip

12V Power Cord

For connection to 12-volt power sources.

5 Rechargeable NiMH Batteries

•

Wrist Strap and Belt Clip

Wrist Strap

•

Wrist Strap

The radio comes with the wrist strap already attached. It can be easily removed if you choose not to use it.

Belt Clip Secured to Belt

Belt Clip

Use the spring-loaded belt clip to carry the radio on your person.

1. Press open the belt clip, slide it over the belt and release the clip.

2. Insert the round guide on the back of the radio into the guide channel on the belt clip. The radio must be upside-

Removing the Radio

down, as shown, to remove it from the belt clip.

3. Once the knob is inserted all the way into the belt clip channel, the radio swings free but remains secure.

Secure Radio

English

External Speaker/Microphone Jack

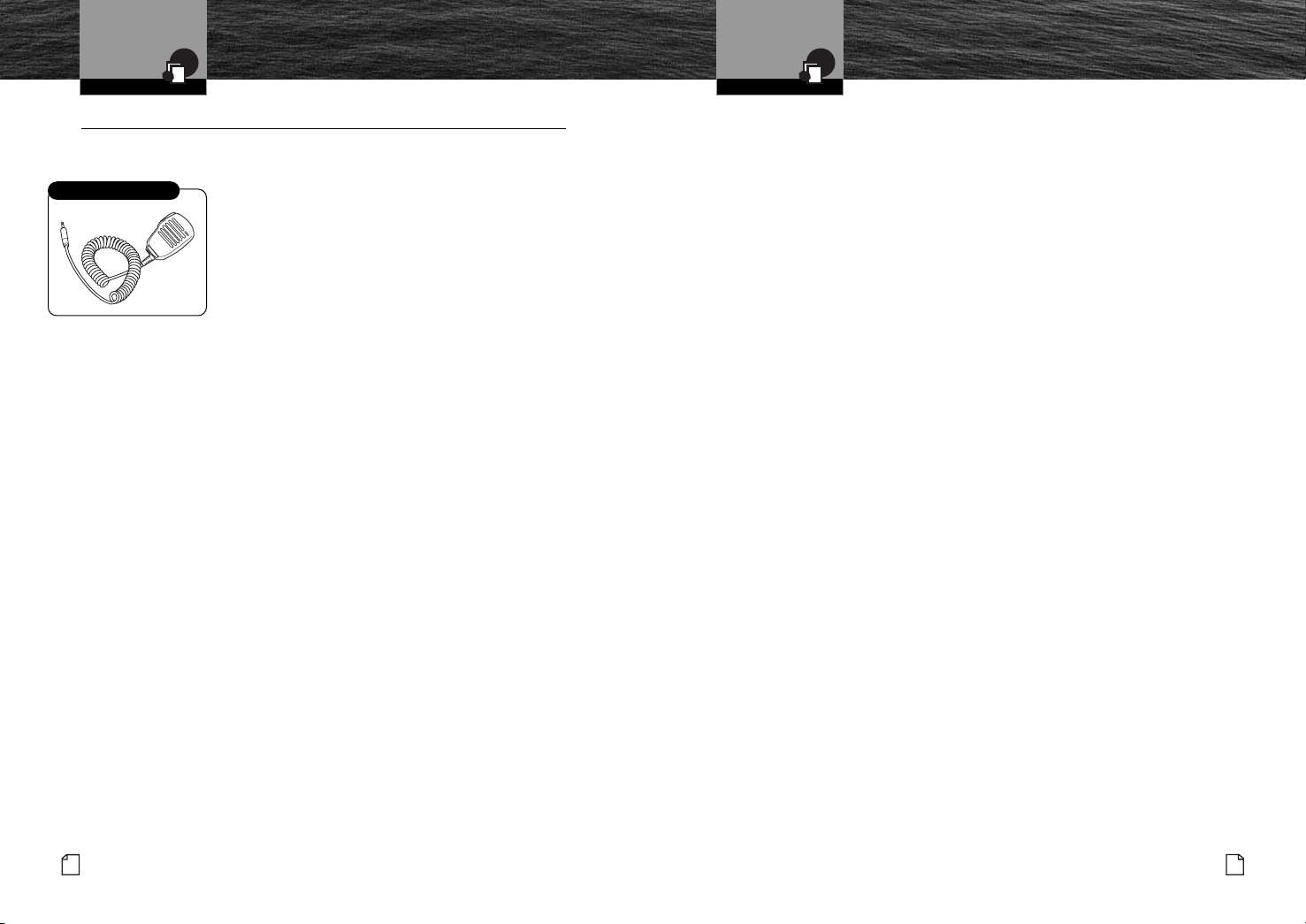

Speaker/Microphone Jack

Your radio can be fitted with an optional External Speaker/Microphone (not included), freeing your hands for other tasks. Contact your local CobraMarine

or Cobra

directly for optional accessories.

To attach the external speaker/microphone:

1. Open the speaker/microphone tab on top

of the radio.

2. Insert the plug into the speaker/microphone jack.

dealer

Nothing Comes Close to a Cobra

•

VHF Marine Radio ProtocolsInstallation VHF Marine Radio ProtocolsInstallation

Batteries and Charging Batteries and Charging

Batteries and Charging

Install Batteries

Power Source

The radio is is shipped with five (5) NiMH rechargeable batteries.

WARNING

The 12V power cord supplied with this radio is only to be used with its rechargeable batteries. Do not attempt to charge any other type of batteries in the radio as fire, explosion or battery damage will occur. Rechargeable battery life will be prolonged if extreme ambient temperatures are avoided.

When your rechargeable batteries begin to discharge too quickly, it is time to install new batteries. Your radio will also operate with five (5) high-quality AAA alkaline batteries.

Installing the Batteries

Install the AAA batteries in the slots in the battery compartment with the batteries oriented according to the polarity (+ & -) marks in the slots.

Initial Charge

The Cobra-provided NiMH batteries may be charged in a car or boat using the appropriate 12V power cord.

1. Insert the power cord into the side of the radio.

2. Insert the other end of the power cord into a 12V power

source.

3. Observe that the red light on the power cord glows to indicate that power is present.

4. Allow the batteries to charge for 12 to 14 hours before use.

•

Locking Tab

To Remove Batteries from Radio

1. Pivot the locking tab on the battery cover and remove it.

2. Pull the individual batteries out of the radio housing.

NOTICE

NiMH batteries are toxic. Please dispose of properly. Some marine suppliers accept old batteries for recycling and some municipal waste disposal agencies have special provisions for battery disposal.

Fully Charged

Maintaining the Battery Charge

As you use your radio, the battery power icon will show the battery power remaining. When the icon begins to flash, it is time to recharge or change the batteries.

NOTICE

Partially Charged

Use only the 12V power cord provided by Cobra. Do not use the power cord with alkaline batteries; only the NiMH batteries are rechargeable. Spent alkaline batteries must be discarded and replaced.

It is a good idea to keep a set of fresh, high-quality AAA alkaline batteries with your radio. Should the rechargeable

Fully Discharged

batteries become discharged and no electrical power source be available, you can insert fresh alkaline batteries and continue to use your radio.

English

WARNING

Only the rechargeable NiMH batteries can be recharged. You MUST use the charging device provided with this radio. Do not substitute any other type of charging adapter. Battery damage, fire or explosion may result. It is equally important to prevent the NiMH batteries from freezing to obtain best performance from them.

Nothing Comes Close to a Cobra

VHF Marine Radio ProtocolsOperating Your Radio VHF Marine Radio ProtocolsOperating Your Radio

Getting Started Getting Started

Getting Started

MR HH125 Radio

Refer to the foldout at the front of this manual to identify the various controls and indicators on your radio. Throughout this manual you will be instructed to “Press” or to “Press and Hold” various buttons (except “Push to Talk”) on the radio. “Press” means a momentary press of approximately one (1) second. “Press and Hold” means to hold the button down for approximately three (3) seconds.

Whenever you press any button except the Talk button on your radio, a brief tone (beep) will sound to confirm the button press. With all button presses, the appropriate icon will appear on the LCD and the backlight will turn On. The backlight will stay On for 10 seconds after the button is released.

At times, you will hear two (2) other sounds. Two (2) beeps will sound to confirm your setting changes and three (3) beeps will sound to notify you of an error.

Common Radio Functions

The following procedures define common operating functions of the radio when in either Marine Standby or Weather (WX) Standby modes.

On/Off/Volume Control (Clockwise)

On/Off/Volume Control (Counterclockwise)

English

Power/Volume Control

Power On/Off Control

The On/Off/Volume control is located at the upper right side of the radio. Turning the On/Off/Volume control past the detent position will turn the radio On or Off.

Power Saver

Your radio has a unique circuit designed to extend battery life. If there are no transmissions, signals, or button presses for ten (10) seconds, the radio will automatically switch to Power Save mode. Signal reception or any button press will take the radio out of Power Save mode.

Volume Control Volume is controlled by turning the On/Off/Volume control.

■ To increase the volume, turn the On/Off/Volume control

clockwise.

■ To decrease the volume, turn the On/Off/Volume control

counterclockwise.

•

Speaker/Mic Jack

Radio Speaker and Microphone

The internal Radio Speaker and Microphone are located on the bottom front face of the radio below the lower control buttons.

An optional

Speaker/Microphone jack is located at the top of the radio between the antenna and the On/Off/Volume control. Flip the protective cap open and insert the plug into the jack.

Talk Button

Press and hold the Talk button to transmit messages. Release the Ta lk button to stop transmitting. If the Talk button is pressed while on a receive only channel, a three beep error signal will sound.

Squelch Control

This radio is equipped with an automatic squelch control. Squelch filters weak signals and radio frequency (RF) noise so you can hear the main signal clearly.

To receive weak signals, the automatic squelch can be turned Off (opened) by pressing the Squelch Defeat button. You will likely hear a lot of static and RF noise along with the weak signal.

Press the Squelch Defeat button for up to five (5) seconds to briefly open squelch. To hold squelch open for longer periods, press and hold the Squelch Defeat button for more than five (5) seconds. Squelch will remain open until you press the Squelch Defeat button again or you change channels.

Nothing Comes Close to a Cobra

VHF Marine Radio Protocols VHF Marine Radio Protocols

VHF Marine Radio ProtocolsOperating Your Radio VHF Marine Radio ProtocolsOperating Your Radio

Getting Started Getting Started

Backlight/Key Lock Button

Key Locked Buttons

Key Lock Icon

Channel Up/Down Buttons

Currently On Channel 88

English

Backlight/Key Lock Button

The LCD will be illuminated by the backlight as long as any button is pressed and will remain On for 10 seconds after the button is released.

To Display the Backlight Momentarily:

Press the Backlight/Key Lock button. The backlight will remain On for 10 seconds. If the backlight is already On, a press of the Backlight/Key Lock button will turn it Off.

Key Lock

To prevent accidental changes to your settings, you can lock all of the buttons on the front of the the radio along with the Squelch Defeat button.

To Lock or Unlock the Buttons:

Press and hold the Backlight/Key Lock button for two (2) seconds. The Key Lock icon will appear or disappear in the LCD. When Key Lock is On, pressing any of the buttons on the front of the radio will result in a three (3) beep error message.

Both the Backlight/Key Lock button and the Tal k button are active — you can Receive (Rx) or Transmit (Tx) amessage with Key Lock On, but you cannot change the channel.

Channel Up/Down Buttons

Your radio will Receive (Rx) and Transmit (Tx) VHF signals on the channel indicated on the LCD display. You can change the channel at any time using the Channel Up/Down buttons.

To Change Channels:

Press the Channel Up/Down buttons. If you are on Channel 88, pressing the Channel Up button

will advance to Channel 01. If you are on Channel 01, pressing the Channel Down button will advance to Channel 88.

You can press and hold the Channel Up/Down button for fast advance. The beep sound will occur only at the first press of the buttons and not during fast advance.

If the new channel selected is restricted to low power, the radio will automatically switch to Low Power mode and the Low Power icon will appear on the LCD.

If the radio is in the Key Lock mode, the channel will not change and the three (3) beep error signal will sound.

Scan Button

HI/LO Power Button

SCAN Button

Press and release the SCAN button to scan all channels. The SCAN icon will display on the LCD display. Scanning begins at lower channels, and scans to higher channels. Press Channel Up/Down button to change the scan direction.

When a signal is received in SCAN mode, the radio will pause 10 seconds before resuming SCAN operation. The scan will stop when the Talk button is pressed.

NOTE

Memory channels need to be saved to effectively enter the Memory Channel mode and scan all memory channels. See page 25.

High/Low (HI/LO) Power Button

Your radio can transmit selectively at 1 or 3 watts of power. Cobra suggests you maintain the low power setting for short-range communication. You will conserve battery life and avoid overpowering nearby stations by using a low power signal. Use the High Power setting for long-range communications or when you do not receive a response toasignalsentat1watt.

To Toggle Between HI/LO Power Modes:

Press the Power Level/Weather button. The LCD will show which mode is in effect. Some channels are restricted for a maximum use of 1 watt. Your radio will automatically set the power to Low Power mode when you select those channels.

NOTE

Some channels, frequency bands and countries of use might not be able to operate in High Power mode.

Nothing Comes Close to a Cobra

VHF Marine Radio Protocols VHF Marine Radio Protocols

VHF Marine Radio ProtocolsOperating Your Radio VHF Marine Radio ProtocolsOperating Your Radio

Setup Mode Programming Setup Mode Programming

Setup Mode Programming

The following series of procedures is designed to allow you to set the programmable features of your radio. Correctly following these steps results in a minimal amount of radio setup programming time.

NOTE

When in the Setup mode, if you stop programming for longer than 15 seconds, your entry will be saved and the radio will go back to the Marine Standby mode. Pressing any of the non-programming buttons (Talk, Dual-Watch/Scan, Power Level/Weather, Instant Channel 16/9) will also exit Setup mode and invoke the button function or return the radio to Marine Standby mode.

When you return to Setup mode and continue programming you will see the last “value” displayed. While in the Setup mode, you will not receive any signal reception.

Marine (VHF) Mode Programming

Programming these features will allow you to customize certain features of this radio to enhance your “On-Water” audio needs.

Enter/Setup Button

Start from Marine Standby mode to begin Marine (VHF) Setup programming. Press and hold the Enter/Setup button

for three (3) seconds to enter the programming mode.

•

U.S.A./International/Canada Channel Maps

Three (3) sets of VHF Channel Maps have been established for marine use in the U.S.A., Canada, and the rest of the world (International). Most of the channels are the same for all three (3) maps, but there are definite differences (see table in the Appendix). Your radio has all three (3) maps built into it and will operate correctly in whichever area you choose.

Set Channel Map

To Set Channel Map Operating Area:

1. The Channel Map mode is the first mode that begins the Marine (VHF) Setup programming.

2. U, I and C will display, with the current setting (the U icon is the default) flashing.

3. Press Channel Up/Down buttons to select the U, I or C icon.

Active Channel Map Icon

4. Press Enter/Setup button to save this entry and move to the next setup programming mode – Roger Beep.

NOTE

One or two of the channel maps might have been disabled for sales of this radio in some countries.

Channel Up/Down Buttons

English

Nothing Comes Close to a Cobra

VHF Marine Radio ProtocolsOperating Your Radio VHF Marine Radio ProtocolsOperating Your Radio

Setup Mode ProgrammingSetup Mode Programming

Roger Beep Mode

Key Tone Mode

Roger Beep Mode

In Roger Beep mode, your listener will hear an audible tone when you release the Talk button. This alerts your listener that you are finished talking and it is OK for them to speak.

To Set Roger Beep On or Off:

1. Display will show ROG icon and ON or OFF flashing.

2. Press Channel Up/Down buttons to select ON or OFF. ROG will be displayed when On.

3. Press Enter/Setup button to save this entry and move to the next setup programming mode – Key Tone.

Key Tone Mode

In Key Tone mode, an audible tone will sound each time a button is pressed or you change a setting.

To Set Key Tone On or Off:

1. Display will show Key Tone icon and ON or OFF flashing.

2. Press Channel Up/Down buttons to select

ON or OFF.

3. Press Enter/Setup button to save all entries.

You have now ended Marine (VHF) Setup programming mode and will enter Marine Standby mode.

Weather (WX) Alert Mode Programming

Programming these features will allow your radio to listen to all NOAA Hazard Alert radio signals and warnings.

Start from WX Standby mode (see page 20) to begin WX Alert Setup programming. Press and hold the Enter/Setup button for three (3) seconds to enter the programming mode.

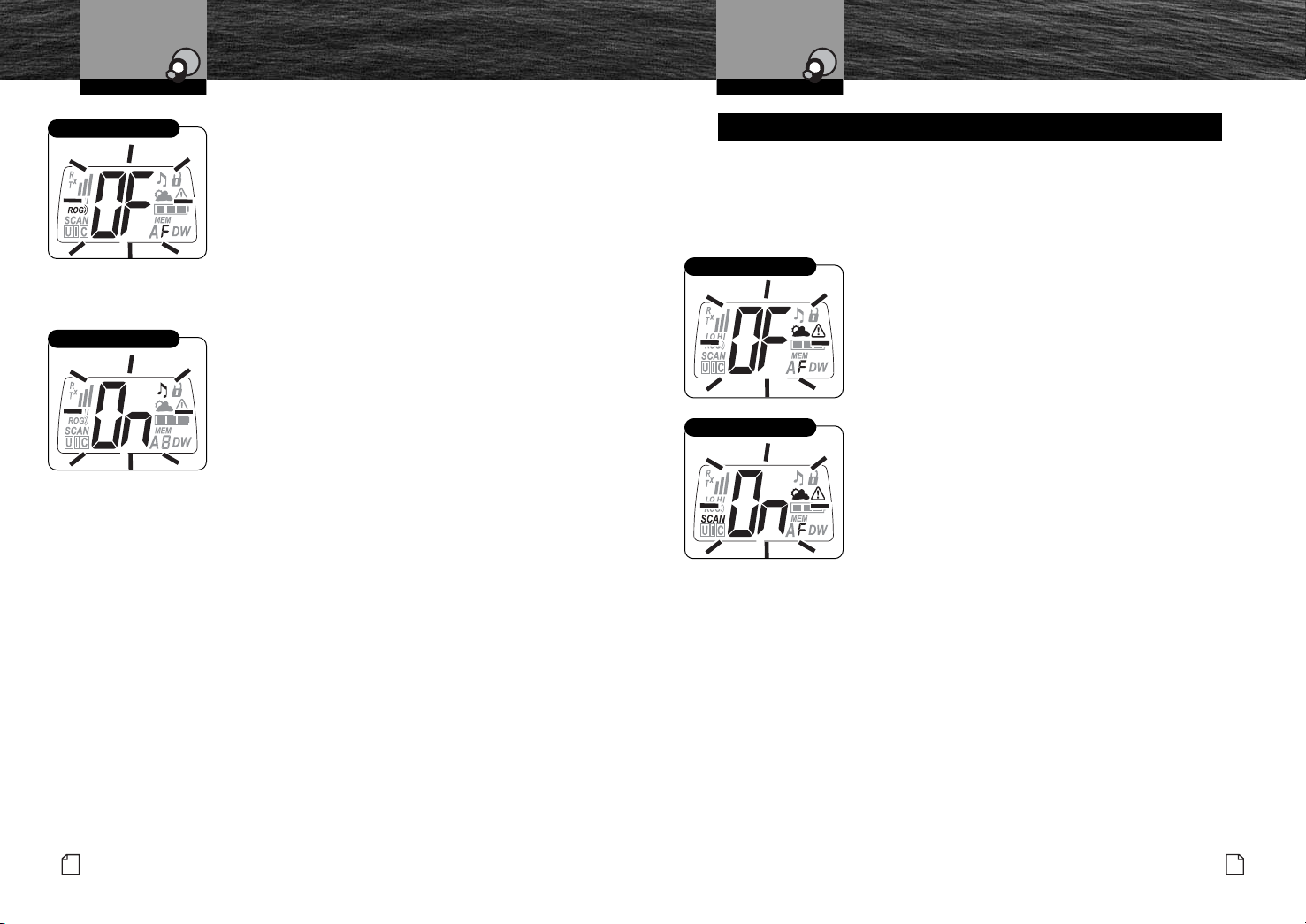

WX Alert On/Off

WX Auto Search (SCAN)

You have now ended the WX Alert Setup programming mode and will enter the WX Alert Standby mode.

When WX Alert is On and WX Auto Search (SCAN) is Off, the unit will continuously check the selected WX channel from Marine or WX Standby for the WX Alert tone. When the tone is detected, the radio will sound an alert tone and flash the WX Alert icon. The unit will remain on that WX channel until you switch back to Marine Standby mode.

When WX Auto Sear ch (SCAN) is On, the unit will periodically check all ten (10) weather channels from Marine Standby for the WX Alert tone.

To Set WX Alert On or Off:

1. WX Alert mode is the first mode that begins WX Alert Setup programming.

2. Display will show WX Alert icon and ON or OFF flashing.

3. Press Channel Up and Channel Down buttons

to select ON or OFF.

4. Press Enter/Setup button to save this entry and move to

the next setup programming mode.

To Set WX Auto Search (SCAN) On or Off:

1. Display will show WX Alert icon and SCAN,

ON or OFF is flashing.

2. Press Channel Up and Channel Down buttons

to select SCAN,ONorOFF.

3. Press the Enter/Setup button to save entry.

English

Nothing Comes Close to a Cobra

Standby, Receive

VHF Marine Radio ProtocolsOperating Your Radio VHF Marine Radio ProtocolsOperating Your Radio

and Transmit

NOAA All Hazards/Weather Radio and Alert

Standby , Receive and T ransmit

Marine Standby and Receive (Rx) Mode

Marine Standby mode is the default mode for the radio whenever it is turned On. From this mode, you can change current settings by becoming familiar with the different key functions that are active in Marine Standby mode. While in Marine Standby mode, the user will be able to transmit by pressing the Push to Talk (Talk) button. Users will hear signals on the selected channel(s) in Receive (RX) mode and can hear alerts broadcast by the Coast Guard and NOAA.

NOTE Coast Guard alerts are broadcast on Channel 16 and you need to have the WX Alert turned On to receive NOAA weather alerts. While in Marine Standby mode,

you will receive any messages sent on the channel to which you are tuned.

Transmit (Tx) Mode

Transmit (Tx) mode gives you the ability to interact with safety services, other vessels and shore stations. When you use this capability, be sure to follow the procedures and to observe the courtesies that govern its use so everyone benefits. See Appendix to help you select the proper channels.

Check Channel Number

Low Power Mode

Talk Button

English

To Transmit a Message:

1. Check to see that your radio is set to a proper channel for

the type of message you plan to send.

2. Toggle to the Low Power setting.

3. With the microphone about 2 in. [51 mm] from your

mouth, press and hold the Ta lk button and speak into the microphone. The Transmit icon will appear on the LCD.

4. Release the Ta l k button when you are finished speaking. Your radio can only operate in either Transmit (Tx) or Receive (Rx) mode at any given time. You will not hear the response to your message unless the Talk button is released. If the Battery Power icon begins blinking on the LCD when the Ta l k button is pressed, the radio will NOT transmit.

NOTE

If the Talk button is held down for five (5) minutes, the radio will automatically sound a series of beeps and cease transmitting to prevent unwanted signal generation and battery drain. As soon as the Talk button is released, it can be pressed again to resume transmission.

•

NOAA Weather Channels

Monitoring the weather will probably be a frequent use of your radio. NOAA provides continuous, around-the-clock broadcasts of the latest weather information. Taped weather messages run every four (4) to six (6) minutes and are revised every two (2) or three (3) hours, or as needed. The Coast Guard also announces weather and other safety warnings on Channel 16. Smart boaters keep an eye on safety and an ear to the radio — and never let the weather catch them unaware.

NOAA Emergency Weather Alert

In the event of a major storm or other weather condition requiring vessels at sea or on other bodies of water to be notified, NOAA broadcasts a 1050 Hz tone that receivers such as your CobraMarine VHF radio can detect and warn you of a weather alert condition. When the Weather Alert mode on your radio is On, this signal will produce a loud tone from the speaker in the radio and will automatically switch to the alerting weather channel so the alert broadcast can be heard.

NOAA Test Alert System

To test this system, NOAA broadcasts the 1050 Hz signal every Wednesday sometime between 11 a.m. and 1 p.m. in each local time zone. Any receiver that can detect the weather alert tone may use this service to verify that this system is functioning properly.

These signals will be received in Marine or Weather Standby modes as described below.

WX Standby Display

Weather (WX) Standby Mode

To enter the WX Standby mode, press and hold the Power Level/Weather button. All common operating

functions of the radio will work the same in WX Standby mode as they do in the normal Marine Standby mode. The radio will be monitoring for all alerts in the background when in the WX Standby mode.

Nothing Comes Close to a Cobra

NOAA All Hazards/Weather

VHF Marine Radio ProtocolsOperating Your Radio VHF Marine Radio ProtocolsOperating Your Radio

Radio and Alert

Advanced Operation

WX Alert Standby Mode

When NOAA broadcasts a weather alert signal and your radio is in WX Alert Standby mode, the following items will be displayed on the LCD display:

■ The WX icon (cloud/sun) icon will be displayed.

■ The last used weather channel will be displayed.

■ The bar graph will display received signal strength level.

■ The WX Alert icon (safety triangle) will be displayed.

NOTE

Only one (1) or two (2) of the weather channels will be operating in any given location (only in Receive (Rx) mode). You will need to select the channel with the strongest signal in your location.

NOTE

When in the WX Alert mode, and NOAA sends the 1050Hz alert tone, the radio will sound a series of loud beeps regardless of the volume control setting.

WX Auto Search (SCAN)

WX Auto Search (SCAN) Mode Function:

The purpose of the WX Auto Search (SCAN) function is to enable the receiver to automatically scan for Weather Alerts on all ten (10) WX channels while the radio is in Marine Standby status. This allows use of the communication functions of the radio without missing a Weather Alert when:

■ WX Auto Search (SCAN) function is On.

■ WX Alert is On.

■ The radio is tuned to a Marine VHF channel and

has entered Power Save mode (meaning there is no signal activity or user input for 10 seconds).

■ The radio software has detected that the current

WX channel signal level has dropped below a preset minimum level or is gone completely.

Under these conditions, the software will scan the WX channels looking for an active WX channel. When an active WX channel is found, it will stop the scan and use the new WX channel to look for the standard 1050Hz alert tone.

Advanced Operation

Several capabilities of your radio can add to its versatility and ease of use even though they are not needed for its basic operation.

Channel 16/9 Mode

Channel 16/9 mode gives you quick access to calling on Channel 16 and Channel 9 from any operational mode.

Channel 16/9 Button

To Switch to Channel 16 or Channel 9:

1. Press the Channel 16/9 button to change

to Channel 16.

2. Press the Channel 16/9 button again to change to Channel 9.

3. Press the Channel 16/9 button a third time and return to the last used Standby channel.

NOTE

This key is labeled as “16” for maximum visibility.

•

English

Nothing Comes Close to a Cobra

VHF Marine Radio ProtocolsOperating Your Radio VHF Marine Radio ProtocolsOperating Your Radio

Advanced Operation

Dual-Watch Mode

Dual-Watch mode gives you one (1) button access to scan a total of two (2) channels of most importance to you. Channel 16 is preprogrammed and will always be one (1) of the scanned locations. The other channel can be any marine VHF channel of your choice.

DUAL-WATCH Button

Dual-Watch Scan Mode

Using Dual-Watch

1. In Marine Standby mode, select the desired channel for Dual-Watch scanning.

2. Press the Dual-Watch button. The DW icon will appear on the LCD display and the radio will scan channel 16 and the selected channel.

3. A signal on any one (1) of the two (2) channels will stop the scan for 10 seconds to allow you to listen to the traffic on that location.

NOTE

After the Dual-Watch scan stops to monitor a channel, as long as you do not press any buttons within 10 seconds, your radio will automatically resume scanning the Dual-Watch channels.

4. Press the Channel Up or Channel Down buttons to resume scanning the Dual-Watch channels or to change the scan direction.

5. To EXIT the Dual-Watch scan, press the Dual-Watch button again. The DW icon will disappear from the LCD and the radio will return to Marine Standby mode.

Memory Location Mode

Your radio has ten (10) memory locations (numbered 0 to 9) for your most frequently used channels. These memory locations can be selected individually or can be scanned.

MEM/ESC Button

Memory Location Number

Channel Up/Down Buttons

Channel Number

To enter Memory mode, press Memory/Escape button. The display will show the MEM icon and the Memory Channel bank will be activated and displayed.

To Program Memory Locations:

1. Press and hold the Memory/Escape button for

two (2) seconds. The memory location number will start flashing and the MEM icon will be turned On.

2. Use the Channel Up and Channel Down buttons to advance to the memory location (0-9) you want to program.

3. Press the Memory/Escape button to select the memory location. The memory channel number will stop flashing and the channel number will start flashing.

4. Use the Channel Up and Channel Down buttons to change to the channel you want to store into the selected memory location.

5. Press the Memory/Escape button to program that channel. The memory location number will flash again.

Repeat steps 2 through 5 to program as many additional memory locations as you want [up to ten (10) VHF memory channels].

6. Press and hold the Memory/Escape button for

two (2) seconds. This will return the radio to

Memory mode.

7. Press and release the Memory/Escape button again to return to Marine Standby mode.

English

Nothing Comes Close to a Cobra

VHF Marine Radio ProtocolsOperating Your Radio VHF Marine Radio ProtocolsOperating Your Radio

Advanced Operation

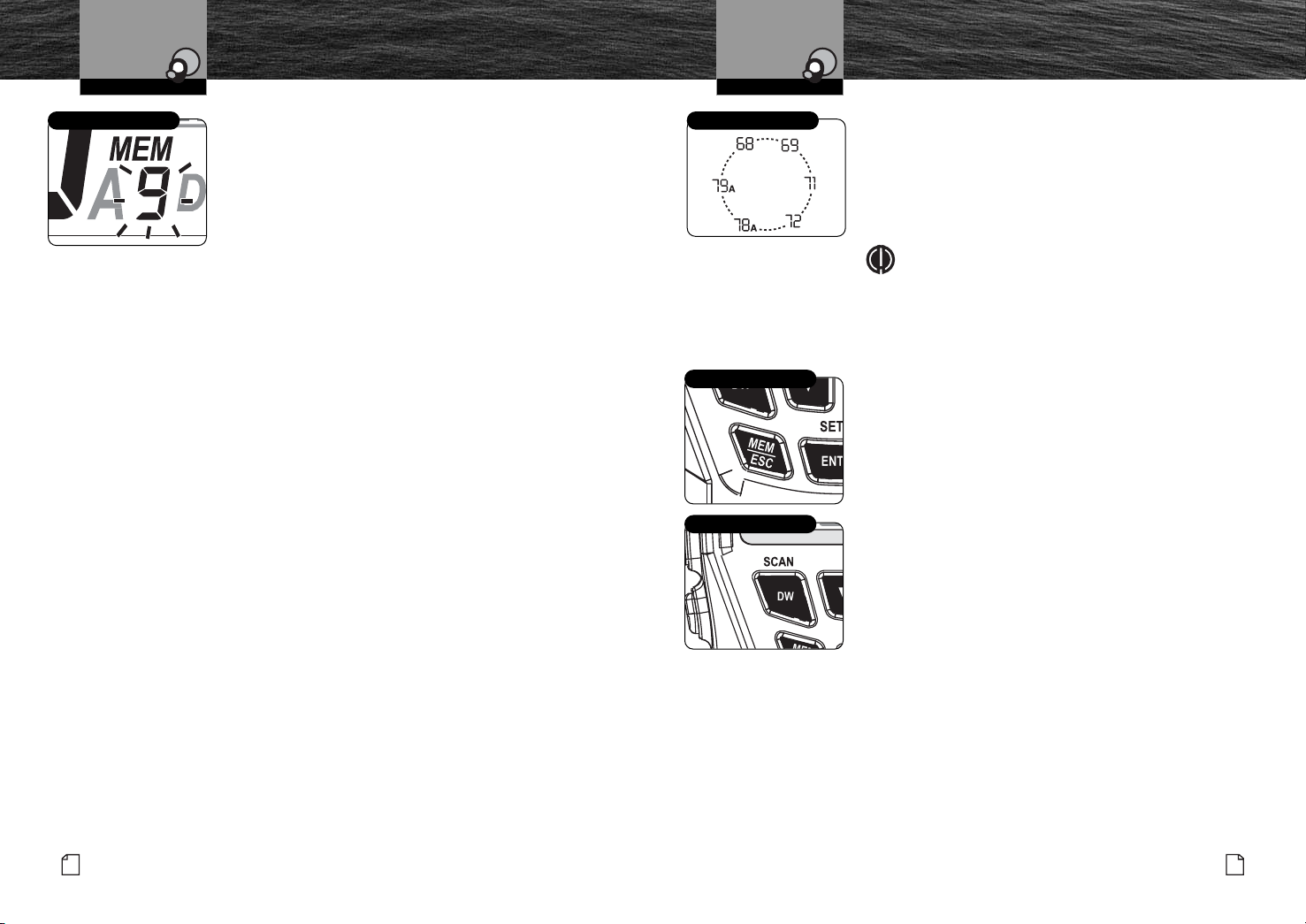

MEM Icon

To Recall a Stored Memory Location:

1. Press the Memory/Escape button. The MEM icon will be

turned On.

2. Press the Channel Up or Channel Down button to select the memory location. If a memory location has been programmed, its associated channel will display on the LCD. Your radio is now in Marine Standby mode on the selected memory location.

To Exit Memory Location Mode:

Press the Memory/Escape button to return the radio to Marine Standby mode. The last channel used in Marine Standby mode will now be displayed on the LCD and the MEM icon will disappear.

To Erase Stored Memory Locations:

1. Press and hold the Memory/Escape button for two (2)

seconds. The memory location number will start flashing and the MEM icon will be turned On.

2. Use the Channel Up and Channel Down buttons to advance to the memory location you want to erase.

3. Press the Memory/Escape button to select the memory location. The memory channel number will stop flashing and the channel number will start flashing.

4. Use the Channel Up and Channel Down buttons to change the channel to read “00” at the selected memory location.

5. Press the Memory/Escape button to erase that memory location.

Repeat steps 2 through 5 to erase as many additional memory locations as you want.

6. Press and hold the Memory/Escape button for two (2) seconds. This will return the radio to Memory mode.

7. Press and release the Memory/Escape button again to return to Marine Standby mode.

Memory Location Scan

MEM/ESC Button

Scan Button

Memory Location Scan Mode

During Memory Location Scan mode, the radio will rapidly scan through all programmed memory channels. Whenever any activity is detected on a channel, the radio will stop the scan for 10 seconds to allow you to listen briefly on that channel. It will then continue to scan unless you switch out of Memory Location Scan mode.

NOTE

If there are fewer than two (2) memory locations programmed in the radio, the Memory Location Scan option will not be available. At least two (2) memory locations need to be programmed to use the Scan button.

To Enter Memory Location Scan:

1. From Marine Standby mode, press the Memory/Escape

button.

2. Press the DUAL WATCH/SCAN button. The radio will immediately begin to scan all pre-assigned memory channels. The SCAN and MEM icons will show on the LCD.

3. A signal on any channel will stop the scan for 10 seconds to allow you to listen to the traffic on that location.

4. Press the Channel Up or Channel Down button to resume scanning the Memory Location Scan channels or to change the scan direction.

5. To EXIT Memory Location Scan mode, press the DUAL WATCH/SCAN button again. The SCAN and MEM

icons will disappear from the LCD and the radio will return to Marine Standby mode.

English

Nothing Comes Close to a Cobra

VHF Marine Radio Protocols

Operating Your Radio VHF Marine Radio ProtocolsOperating Your Radio

Advanced Operation

Maintenance and Troubleshooting

Scanning

SCAN Button

SCAN Icon

Channel Up/Down Buttons

Channel Scan Mode

During Channel Scan mode, the radio will rapidly switch from channel to channel through ALL the channels. Whenever any activity is detected, the radio will stop the scan for 10 seconds to allow you to listen briefly on that channel. The radio will then continue to scan unless you switch out of the Channel Scan mode.

To Enter Channel Scan:

1. From Marine Standby mode, press and hold the DUAL WATCH/SCAN button. The radio will immediately

begin to scan the entire channel map selected in the active channel map. The SCAN icon will show on the LCD.

2. A signal on any channel will stop the scan for 10 seconds to allow you to listen to the traffic on that location.

3. Press the Channel Up or Channel Down button to resume scanning the Channel Scan channels or to change the scan direction.

4. To EXIT Channel Scan mode, press and hold the DUAL WATCH/SCAN button again. The SCAN icon

will disappear from the LCD and the radio will return to Marine Standby mode.

Maintenance

Very little maintenance is required to keep your CobraMarine VHF radio in good operating condition:

■

Keep the radio clean by wiping with a soft cloth and mild detergent. Do not use solvents or harsh or abrasive cleaners, which could damage the case or scratch the LCD screen.

■

If the radio is exposed to salt water, wipe with a soft, moist cloth at least once a day to prevent buildup of salt deposits, which could interfere with button operation.

■

If the radio will be stored for a long period, such as over the winter, remove the batteries from the battery tray and store them in a separate package. This is especially important if you are using alkaline batteries.

T r oubleshooting

Problem Possible Cause(s) Solution(s)

No display on LCD when radio is turned On

NiMH batteries run down quickly

Will transmit at one (1) watt, but not at three (3) watts

Will not transmit Selected channel is

No sound from speaker Volume level is too low Re-adjust volume

Batteries are exhausted

Batteries not installed properly

Batteries are at the end of their life

Batteries are low

Selected channel is limited to one (1) watt

limited to receive only

Recharge or replace batteries

Remove batteries and reinstall according to polarity markings

Replace with new batteries

Recharge or replace batteries

Switch to another channel

•

English

No response to button press

No answer to calls Outofrangeof

Button lock is On Press Backlight/

other station Signal is blocked

by terrain

Key Lock button

Switch to three (3) watts or move closer

Move until you have a “lineof-sight” to the other station

Nothing Comes Close to a Cobra

VHF Marine Radio Procedures

VHF Marine Radio

VHF Marine Radio ProtocolsVHF Marine Radio Protocols

Procedures

VHF Marine Radio Procedures

Maintain Your Watch

Whenever your boat is underway, the radio must be turned On and be tuned to Channel 16 except when being used for messages.

Power

Try 1 watt first if the station being called is within a few miles. If there is no answer, switch to 3 watts and call again. Remember, the lower wattage output will conserve your battery and minimize interference to other users.

Calling Coast Stations

Call a coast station on its assigned channel. You may use Channel 16 when you do not know the assigned channel.

Calling Other Vessels

Call other vessels on Channel 16 or on Channel 9. (Channel 9 is preferred for recreational vessel use.) You may also call on ship-to-ship channels when you know that the vessel is listening on a ship-to-ship channel.

Initial Calling on Channel 16 or 9

The use of Channel 16 is permitted for making initial contact (hailing) another vessel. The limits on calling must be followed. Be reminded, Channel 16’s most important function is for Emergency Messages. If for some reason, Channel 16 is congested, the use of Channel 9, especially in U.S. waters, may be used as the initial contact (hailing) channel for non-emergency communication.

Limits on Calling

You must not call the same station for more than 30 seconds at a time. If you do not get a reply, wait at least two (2) minutes before calling again. After three (3) calling periods, wait at least 15 minutes before calling again.

Change Channels

After contacting another station on a calling channel, change immediately to a channel which is available for the type of message you want to send.

Station Identification

Identify, in English, your station by your FCC call sign, vessel name or the state registration number, at both the beginning and at the end of the message.

•

Prohibited Communications

You MUST NOT transmit:

■

False distress or emergency messages.

■

Messages containing obscene, indecent or profane language.

■

General calls, signals or messages (messages not addressed to a particular station) on Channel 16, except in an emergency or if you are testing your radio.

■

When you are on land.

English

Nothing Comes Close to a Cobra

Voice Calling

You are required to listen to Channel 16 while standing by. Channel 16 is the distress and safety channel used for establishing initial contact with another station and for emergency communication. The Coast Guard also monitors Channel 16 for safety purposes for everyone on the water.

NOTE

Channel 9 may be used by recreational vessels for general-purpose calling. This frequency should be used whenever possible to help relieve congestion on Channel 16. The Coast Guard generally does not make urgent marine information broadcasts or weather warnings on Channel 9. Boaters are still asked to “keep watch” on Channel 16 whenever the radio is turned on and not in use with another station.

To call another vessel or shore installation (e.g, lock or bridge tender):

■

Make sure the radio is On.

■

Make sure you are in standby listening mode on Channel 16. Make sure Channel 16 is not in use.

■

When the channel is open (quiet), press the Talk button and call a vessel. Hold the radio or microphone several inches from your face and speak clearly and distinctly in a normal voice tone. Say “name or station being called,” “THIS IS [your vessel name or call sign].”

■

Once contact is made, you must leave Channel 16 and go to another working channel. See channel listing in the appendix.

For Example

The vessel Corsair is calling the vessel Vagabond: Corsair: “Vagabond, this is Corsair. Over.” Vagabond: “Please switch and answer on Channel 68 (or any proper working

channel). Over.” Corsair: “Switching to Channel 68. Over.”

Voice Calling &

VHF Marine Radio ProtocolsVHF Marine Radio Protocols

■

•

If the other party does not respond, wait two (2) minutes and repeat. You are permitted to attempt contact three (3) times, two (2) minutes apart. If you still have not made contact, wait 15 minutes before trying again.

■

After communications are completed, each vessel must sign off with its call sign or vessel name and the word “out” and return to Channel 16.

NOTE

For best sound quality at the station you are calling, hold the microphone on the front of the radio at least 2 in. (51 mm) from your mouth and slightly off to one (1) side. Speak in a normal tone of voice.

NOTE

“Over and Out” The most commonly misused procedure words are “over and out” within the same transmission. “Over” means you expect a reply. “Out” means you are finished and do not expect a reply.

Radiotelephone Calls

Boaters may make and receive radiotelephone calls to and from any number on the telephone network by using the services of public coast stations. For a fee, calls can be made between your radio and telephones on land, sea and in the air. See the appendix for the public correspondence (marine operator) channels.

If you plan to use these services, consider registering with the operator of the public coast station that you plan to work through. These services can provide you with detailed information and procedures to follow.

NOTICE

You may disclose privileged information during a radiotelephone call.

Keep in mind that your transmission is NOT private, as it is on a regular

telephone. Both sides of the conversation are being broadcast and can be

heard by anyone who has a radio and tunes to the channel you are using.

Radiotelephone Calls

•

English

Nothing Comes Close to a Cobra

Emergency Messages and Distress Procedure

Emergency Messages and

VHF Marine Radio ProtocolsVHF Marine Radio Protocols

Distress Procedure

Emergency Messages and Distress Procedure

The ability to summon assistance in an emergency is the primary reason to have a VHF marine radio. The marine environment can be unforgiving, and what may initially be a minor problem can rapidly develop into a situation beyond your control.

The Coast Guard monitors Channel 16, responds to all distress calls, and coordinates all search and rescue efforts. Depending on the availability of other capable vessels or commercial assistance operators in your vicinity, Coast Guard or Coast Guard Auxiliary craft may be dispatched.

In any event, communicate with the Coast Guard as soon as you experience difficulties and before your situation becomes an emergency. Use the emergency message procedures only after your situation has become grave or you are faced with a sudden danger threatening life or property and requiring immediate help. Use Channel 16 to communicate your emergency message. Make sure you transmit on high power. If you are merely out of gas, do not send an emergency message. Drop your anchor and call a friend or marina to bring the fuel you need or to give you a tow.

Marine Emergency Signals

The three (3) spoken international emergency signals are:

MAYDAY

The distress signal MAYDAY is used to indicate that a station is threatened by grave and imminent danger and requests immediate assistance.

PAN PA N

The urgency signal PAN PAN is used when the safety of the vessel or person is in jeopardy. (This signal is properly pronounced pahn pahn.)

SECURITE

The safety signal SECURITE is used for messages about the safety of navigation or important weather warnings. (This signal is properly pronounced see-cure-ee-tay.)

When using an international emergency signal, the appropriate signal is to be spoken three (3) times prior to the message.

•

If You Hear a Distress Call

You must give any message beginning with one (1) of these signals priority over any other messages. ALL stations MUST remain silent on Channel 16 for the duration of the emergency unless the message relates directly to the emergency.

If you hear a distress message from a vessel, stand by your radio. If it is not answered, YOU should answer. If the distressed vessel is not nearby, wait a short time for others who may be closer to acknowledge. Even if you cannot render direct assistance, you may be in a position to relay the message.

Marine Distress Procedure

Speak slowly — clearly — calmly.

1. Make sure your radio is On.

2. Select Channel 16.

3. Press Talk button and say:

“MAYDAY — MAYDAY — MAYDAY.” (Or “PAN PAN— PAN PAN— PAN PAN,” or “SECURITE — SECURITE — SECURITE.”)

4. Say:

“THIS IS [your vessel name or call sign],” repeated three (3) times.

5. Say:

“MAYDAY (or “PAN PAN” or “SECURITE”) [your vessel name or call sign].

6. Tell where you are:

(what navigational aids or landmarks are nearby).

7. State the nature of your distress.

8. State the kind of assistance needed.

9. Give number of persons aboard and conditions of any injured.

10. Estimate present seaworthiness of your vessel.

11. Briefly describe your vessel (length, type, color, hull).

12. Say:

“I WILL BE LISTENING ON CHANNEL 16.”

13. End message by saying:

“THIS IS [your vessel name or call sign]. OVER.”

14. Release Talk button and listen. Someone should answer. If not, repeat the call, beginning at step 3 above.

Keep the radio nearby. Even after your message has been received, the Coast Guard can find you more quickly if you can transmit a signal for a rescue boat to hone in on.

English

Nothing Comes Close to a Cobra

Emergency Messages and Distress Procedure

Warranty and Trademark

WarrantyVHF Marine Radio Protocols

Acknowledgement

For Example

“Mayday — Mayday — Mayday” “This is Corsair — Corsair — Corsair” [or “IL 1234 AB,” repeated three (3) times] “Mayday Corsair (or IL 1234 AB)” “Navy Pier bears 220 degrees magnetic — distance 5 miles” “Struck submerged object and flooding — need pump and tow” “Four (4) adults, three (3) children aboard — no one injured” “Estimate we will remain afloat one-half hour” “Corsair (or IL 1234 AB) is 26 ft sloop with blue hull and tan deck house” “I will be listening on Channel 16” “This is Corsair (or IL 1234 AB)” “Over”

It is a good idea to write out a script of the message form and post it where you and others on your vessel can see it when an emergency message needs to be sent.

Limited 1-Year Warranty

For Products Purchased In The U.S.A.

Cobra Electronics Corporation warrants that its CobraMarine VHF radio, and the component parts thereof, will be free of defects in workmanship and materials for a period of One (1) year from the date of first consumer purchase. This warranty may be enforced by the first consumer purchaser, provided that the product is used within the U.S.A.

Cobra will, without charge, repair or replace, at its option, defective radios, products or component parts upon delivery to the Cobra Factory Service department, accompanied by proof of the date of first consumer purchase, such as a duplicated copy of a sales receipt.

You must pay any initial shipping charges required to ship the product for warranty service, but the return charges will be at Cobra’s expense, if the product is repaired or replaced under warranty. This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state.

Exclusions: This limited warranty does not apply:

1. To any product damaged by accident.

2. In the event of misuse or abuse of the product, or as a result

of unauthorized alterations or repairs.

3. If the serial number has been altered, defaced, or removed.

4. If the owner of the product resides outside the U.S.A.

All implied warranties, including warranties of merchantability and fitness for a particular purpose are limited in duration to the length of this warranty. Cobra shall not be liable for any incidental, consequential or other damages; including, without limitation, damages resulting from loss of use or cost of installation.

Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you.

For Products Purchased Outside The U.S.A.

Please contact your local dealer for warranty information.

•

English

T rademark Acknowledgement

Cobra®, CobraMarine®, Nothing Comes Close to a Cobra®, and the snake design are registered trademarks of Cobra Electronics Corporation, U.S.A..

Cobra Electronics Corporation™ is a trademark of Cobra Electronics Corporation, U.S.A.

Nothing Comes Close to a Cobra

•

VHF Marine Radio Protocols Introduction

Customer Service

Product Service

Specifications

Product Service

For any questions about operating or installing this new Cobra product, or if parts are missing…PLEASE CALL COBRA FIRST…

do not return this

•

product to the store.

If this product should require factory service, please call Cobra first before sending the product. This will ensure the fastest turnaround time on any repair. If Cobra asks that the product be sent to its factory, the following must be furnished to have the product serviced and returned:

1. For Warranty Repair include some form of proof-of-purchase, such as a mechanical reproduction or carbon of a sales receipt. Make sure the date of purchase and product model number are clearly readable. If the originals are sent, they cannot be returned;

2. Send the entire product;

3. Enclose a description of what is happening with the product. Include a typed or

clearly printed name and address of where the product is to be returned, with phone number (required for shipment).

4. Pack the product securely to prevent damage in transit. If possible, use the original packing material;

5. Ship prepaid and insured by way of a traceable carrier such as United Parcel Service (UPS) or Priority Mail to avoid loss in transit to:

Cobra Factory Service Cobra Electronics Corporation 6500 West Cortland Street Chicago, Illinois 60707 U.S.A.;

6. If the product is in warranty, upon receipt of the product, it will either be repaired or exchanged depending on the model. Please allow approximately 3 – 4 weeks before contacting Cobra for status. If the product is out of warranty, a letter will automatically be sent with information as to the repair charge or replacement charge.

For any questions, please call 773-889-3087 for assistance.

Specifications

General

Number of Channels All U.S., Canadian, International and

NOAA Weather Channels Channel Spacing 25 kHz Modulation 5 kHz Max. Input Voltage 6.0 VDC Battery Life: NiMH: 9.4 hours @ 3 watts

5% TX, 5% RX, 90% Standby 12 hours @ 1 watt

Alkaline: 26 hours @ 3 watts

33 hours @ 1 watt

Current Drain:

Standby 40 mA Receive (Rx) 100 mA

Transmit (Tx) 1.1 A @ High Power, 700 mA @ Low Power Temperature Range -20˚C to 50˚C Radio Dimensions 4.0" x 2.4" x 1.2"

(102 mm x 62 mm x 31 mm) not including antenna

Radio Weight 0 lbs 5 oz. (228 g) without batteries

Receiver

Frequency Range 156.050 to 163.275 MHz Receiver Type Double Conversion Super-Heterodyne Sensitivity:

20 dB Quieting 0.35 uV

12 dB Sinad 0.30 uV Adjacent Channel Selectivity -60 dB Intermodulation and Rejection -60 dB Spurious and Image Rejection -60 dB AF Output 250 mW @ 8 Ohms

Transmitter

Frequency Range (Tx): 156.025 to 157.425 MHz RF Output Power 1 or 3 watts Spurious Emissions -60 dB @ High Power, -55 dB @ Low

Power Microphone Type Condenser Frequency Stability +/-10 ppm FM Hum and Noise 40 dB

•

English

Nothing Comes Close to a Cobra

VHF Marine Channel Assignments

Asignación de canales de VHF

ApéndiceAppendix

para radiocomunicación marítima

VHF Marine Channel Assignments

Three (3) sets of VHF channels have been established for marine use in the U.S.A., Canada and the rest of the world (International). Most of the channels are the same for all three (3) maps, but there are definite differences (see table on the following pages). Your radio has all three (3) maps built into it and will operate correctly in whichever area you choose.

The following is a brief outline of the channel assignments in the U.S.A. Channel Map.

•

Asignación de canales de VHF para radiocomunicación marítima

Existen tres (3) juegos de canales VHF para uso marítimo en los EE.UU., Canadá y el resto del mundo (internacional). La mayoría de los canales coinciden en los tres (3) mapas, pero sin duda existen diferencias (consulte las tablas en las páginas siguientes). El radio incorpora los tres (3) mapas y funcionará correctamente en cualquiera de las tres áreas.

A continuación presentamos en forma resumida las asignaciones de canales del Mapa de canales para EE.UU.

Channel Assignments (English) Asignaciones de canales (Español)

Distress, Safety, and Calling

Channel 16

Getting the attention of another station (calling) or in emergencies (distress and safety).

Calling

Channel 9

General-purpose (non-emergency) calling by non-commercial vessels. Recreational boaters are urged to use this channel to reduce congestion on Channel 16.

Intership Safety

Channel 6

Ship-to-ship safety messages and for search and rescue messages to Coast Guard ships and aircraft.

Coast Guard Liaison

Channel 22A

To talk to the Coast Guard, Canadian Coast Guard (non-emergency) after making contact on Channel 16.

Auxilio, seguridad y llamadas

Canal 16

Para ser oídos por otra estación (llamadas) o en casos de emergencia (auxilio y seguridad).

Llamadas

Canal 9

Llamadas de carácter general (excepto casos de emergencia) para embarcaciones no comerciales. Se le pide encarecidamente a la tripulación de las embarcaciones recreativas usar este canal para reducir la congestión del canal 16.

Seguridad entre embarcaciones

Canal 6

Para mensajes de seguridad entre embarcaciones y para mensajes de búsqueda y rescate enviados a barcos y aviones de la guardia costera.

Enlace con la guardia costera

Canal 22A

Para hablar con las guardias costeras estadounidenses y canadienses (excepto casos de emergencia) tras haber establecido contacto por el canal 16.

•

Non-Commercial

Channels 68*, 69, 71, 72, 78A, 79A*, 80A*

Working channels for small vessels. Messages must be about needs of the vessel, such as fishing reports, berthing and rendezvous. Use Channel 72 only for ship-to-ship messages.

Commercial

Channels 1A, 7A, 8, 9, 10, 11, 18A, 19A, 63A, 67, 72, 79A, 80A, 88A*

Working channels for working ships only. Messages must be about business or needs of the ship. Use Channels 8, 67, 72 and 88A only for ship-to-ship messages.

English/Español

No comerciales

Canales 68*, 69, 71, 72, 78A, 79A*, 80A*

Canales activos para pequeñas embarcaciones. Los mensajes deberán estar relacionados con necesidades de las embarcaciones, como por ejemplo, informes de pesca, atraques y agrupamientos. Use el canal 72 solamente para mensajes entre embarcaciones.

Comerciales

Canales 1A, 7A, 8, 9, 10, 11, 18A, 19A, 63A, 67, 72, 79A, 80A, 88A*

Canales activos para embarcaciones activas solamente. Los mensajes deberán estar relacionados con la actividad comercial o las necesidades de la embarcación. Use los canales 8, 67, 72 y 88A solamente para mensajes entre embarcaciones.

Nothing Comes Close to a Cobra®/Nada se compara a Cobra

VHF Marine Channel Assignments

Channel Assignments (English) Asignaciones de canales (Español)

ApéndiceAppendix

Asignación de canales de VHF para radiocomunicación marítima

Public Correspondence (Marine Operator)

Channels 24, 25, 26, 27, 28, 60, 61, 84, 84A, 85, 85A, 86, 86A, 87, 87A, 88*

For calls to marine operators at public coast stations. You can make and receive telephone calls through these stations.

Port Operations

Channels 1A*,5A*,12*,14*, 18, 19, 20A, 21, 22, 63A*, 65A, 66A, 73, 74, 75, 76, 77*, 79, 80, 81, 82

Used for directing the movement of ships in or near ports, locks or waterways. Messages must be about operational handling, movement and safety of ships.

Navigational

Channels 13, 67

Channels are available to all vessels. Messages must be about navigation, including passing or meeting other vessels. These are also the main working channels for most locks and drawbridges. You must keep your messages short and power output at no more than 1 watt.

Maritime Control

Channel 17

For talking to vessels and coast stations operated by state or local governments. Messages must be about regulation and control, boating activities, or assistance.

Digital Selective Calling

Channel 70

This channel is set aside for distress, safety and general calling using only digital selective calling techniques. Voice communication is prohibited; your radio cannot transmit voice messages on this channel.

Correspondencia pública (operador marítimo)

Canales 24, 25, 26, 27, 28, 60, 61, 84, 84A, 85, 85A, 86, 86A, 87, 87A, 88*

Para llamadas a operadores marítimos en estaciones costeras públicas. Usted puede realizar y recibir llamadas telefónicas a través de estas estaciones.

Operaciones portuarias

Canales 1A*,5A*,12*,14*, 18, 19, 20A, 21, 22, 63A*, 65A, 66A, 73, 74, 75, 76, 77*, 79, 80, 81, 82

Usados para dirigir el movimiento de las embarcaciones dentro de áreas portuarias, esclusas o canales. Los mensajes deberán estar relacionados con maniobras operacionales, movimientos y seguridad de las embarcaciones.

Navegación

Canales 13, 67

Estos canales están disponibles para todas las embarcaciones. Los mensajes deberán estar relacionados con la navegación, incluidas las maniobras para pasar o alcanzar otras embarcaciones. Éstos también son los principales canales activos para la mayoría de las esclusas y puentes levadizos. Usted deberá transmitir mensajes cortos y mantener la potencia de salida en un vatio como máximo.

Control marítimo

Canal 17

Para comunicarse con embarcaciones y estaciones costeras operadas por entidades gubernamentales locales o estatales. Los mensajes deberán estar relacionados con regulación y control, asistencia o actividades de navegación.

Llamadas selectivas digitales

Canal 70

Este canal está reservado para solicitudes de auxilio, seguridad y llamadas de carácter general que usen solamente técnicas de llamadas selectivas digitales. Las comunicaciones verbales están prohibidas; el radio no puede transmitir mensajes de voz por este canal.

Weather

Channels Wx 1 Thru 10

Receive-only channels for NOAA and Canadian weather broadcasts. You cannot transmit on these channels.

NOTE

These channels are restricted to the listed uses in certain parts of the country or for certain types of users only. Consult FCC rules or a knowledgeable radio operator before using them.

English/Español

Meteorología

Canales Wx 1 a 10

Canales de recepción únicamente para difusión de información meteorológica NOAA y canadiense. Usted no puede transmitir por estos canales.

NOTA

* El uso de estos canales está dedicado a las aplicaciones que aparecen en la lista, en

ciertas partes del país o para ciertos tipos de usuario solamente. Consulte las normas de la FCC o a un operador de radio con experiencia antes de usarlos.

Nothing Comes Close to a Cobra

/Nada se compara a Cobra

VHF Marine Channel Assignments

VHF Marine

AppendixAppendix

Channel Assignments

Channel Number

Número de canal

01A

Channel Map

Mapa de canales

USA Int’l Cana da T ransmit Receive

EE.UU. Internac Canadá T ransm. Recepción

••

•

Frequency

Frecuencia

156.050 160.650 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)

156.050 156.050 Port Operations and Commercial, Operaciones portuarias y comerciales;

Power Limits

Límites de potencia

Channel Use (English) Uso de canales (Español)

VTS in selected areas VTS en áreas selectas

02 ••156.100 160.700 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo) 03 ••156.150 160.750 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)

03A • 156.150 156.150 Government Only Entidades gubernamentales solamente

04 • 156.200 160.800 Public Correspondence (Marine Operator), Correspondencia pública (operador marítimo)

Port Operations, Ship Movement operaciones portuarias,movimiento de embarcaciones

04A • 156.200 156.200 West Coast (Coast Guard Only); Costa occidental (guardia costera solamente);

East Coast (Commercial Fishing) Costa oriental (pesca comercial)

05 • 156.250 160.850 Public Correspondence (Marine Operator), Correspondencia pública (operador marítimo)

Port Operations, Ship Movement operaciones portuarias,movimiento de embarcaciones

05A ••156.250 156.250 Port Operations, VTS in selected areas Operaciones portuarias; VTS en áreas selectas

06 •••156.300 156.300 Intership Safety Seguridad entre embarcaciones 07 • 156.350 160.950 Public Correspondence (Marine Operator), Correspondencia pública (operador marítimo)

Port Operations, Ship Movement operaciones portuarias,movimiento de embarcaciones

07A ••156.350 156.350 Commercial Comerciales

08 •••156.400 156.400 Commercial (Intership Only) Comercial (entre embarcaciones solamente) 09 •••156.450 156.450 Boater Calling Channel, Canal de llamada de la tripulación,

Non-Commercial (Recreational) no comercial (recreativo)

10 •••156.500 156.500 Commercial Comerciales 11 •••156.550 156.550 Commercial, VTS in selected areas Comercial; VTS en áreas selectas 12 •••156.600 156.600 Port Operations, VTS in selected areas Operaciones portuarias; VTS en áreas selectas 13 •••156.650 156.650 1 watt USA andCAN Intership Navigation Safety (Bridge-to-

1 vatio EE.UU. y Canadá

Bridge). In U.S. waters, large vessels maintain a listening watch on this channel.

Seguridad marítima entre embarcaciones (de puente de mando a puente de mando). En aguas estadounidenses, las grandes embarcaciones se mantienen vigilantes con sus radios sintonizados en este canal

English/Español

Nothing Comes Close to a Cobra

/Nada se compara a Cobra

VHF Marine Channel Assignments

VHF Marine

AppendixAppendix

Channel Assignments

Channel Number

Número de canal

18A

19A

20A

21A

21B

22A

23A

English/Español

Channel Map

Mapa de canales

USA Int’l Cana da T ransmit Receive

EE.UU. Internac Canadá T ransm. Recepción

Frequency

Frecuencia

Power Limits

Límites de potencia

Channel Use (English) Uso de canales (Español)

14 •••156.700 156.700 Port Operations, VTS in selected areas Operaciones portuarias; VTS en áreas selectas 15 • Rx Only 156.750 Environmental (Receive Only). Medioambiental (recepción solamente).

Usado por radiobalizas de localización de siniestros (EPIRB) clase C

15 ••156.750 156.750 1 watt CAN and INT Canada (EPIRB Buoys Only); International Canadá (boyas de EPIRB solamente);

1 vatio Canadá y Internac.

(On-Board Communication) Internacional (comunicación de a bordo)

16 •••156.800 156.800 International Distress, Safety and Calling Llamadas, seguridad y solicitud

de auxilio internacional

17 •••156.850 156.850 1 watt USA andCAN State Controlled (U.S.A. Only) Controlado a nivel estatal (EE.UU. solamente)

1 vatio EE.UU. y Canadá

•

••

•

••

•••

•

••

•

••

•

156.900 161.500 Port Operations, Ship Movement Operaciones portuarias,

156.900 156.900 Commercial Comerciales

156.950 161.550 Port Operations, Ship Movement Operaciones portuarias,

156.950 156.950 Commercial Comerciales

157.000 161.600 1 watt CAN Canada (Coast Guard Only); International Canadá (guardia costera solamente); 1 vatio Canadá

157.000 157.000 Port Operations Operaciones portuarias

157.050 161.650 Port Operations, Ship Movement Operaciones portuarias,

157.050 157.050 U.S. (Government Only); EE.UU. (entidades gubernamentales solamente);

RX only 161.650 Coast Guard Only – Weather Broadcasts Solamente Guardacostas –

•

157.100 161.700 Port Operations, Ship Movement Operaciones portuarias,

157.100 157.100

157.150 161.750 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)

157.150 157.150 Government Only Entidades gubernamentales solamente

(Port Operations, Ship Movement) Internacional (operaciones portuarias,

Canada (Coast Guard Only) Canadá (guardia costera solamente)

U.S. and Canadian Coast Guard Liaison and Enlace entre las guardias costeras estadounidenses Maritime Safety Information Broadcasts that y canadienses, y difusión de información sobre are announced on Channel 16 seguridad marítima anunciada por el canal 16

movimiento de embarcaciones

movimiento de embarcaciones)

movimiento de embarcaciones

Transmisiones Meteorológicas

movimiento de embarcaciones

Nothing Comes Close to a Cobra

/Nada se compara a Cobra

VHF Marine Channel Assignments

VHF Marine

AppendixAppendix

Channel Assignments

Channel Number

Número de canal

25B

28B

61A

62A

63A

64A

65A

English/Español

24 25

26 27 28

60 61

Channel Map

Mapa de canales

USA Int’l Cana da T ransmit Receive

EE.UU. Internac Canadá T ransm. Recepción

•••

•

•••

•

••

•

••

•

••

•

•••

•

Frequency

Frecuencia

157.200 161.800 Public Correspondence (MarineOperator) Correspondencia pública (operador marítimo)

157.250 161.850 Public Correspondence (MarineOperator) Correspondencia pública (operador marítimo)

RX only 161.850 Safety: Continuous Marine Broadcast (CMB) Segur idad: Transmisión Marítima Continua (CMB)

157.300 161.900 Public Correspondence (MarineOperator) Correspondencia pública (operador marítimo)

157.350 161.950 Public Correspondence (MarineOperator) Correspondencia pública (operador marítimo)

157.400 162.000 Public Correspondence (MarineOperator) Correspondencia pública (operador marítimo)

RX only 162.000 Safety: Continuous Marine Broadcast (CMB) Segur idad: Transmisión Marítima Continua (CMB)

156.025 160.625 Public Correspondence (MarineOperator) Correspondencia pública (operador marítimo)

156.075 160.675 Public Correspondence (MarineOperator) Correspondencia pública (operador marítimo),

156.075 156.075

156.125 160.725 Public Correspondence (Marine Operator), Correspondencia pública (operador marítimo),

156.125 156.125 West Coast (Coast Guard Only); Costa occidental (guardia costera solamente);

156.175 160.775 PublicCorrespondence (Marine Operator), Correspondencia pública (operador marítimo),

156.175 156.175 Port Operations and Commercial, Operaciones portuarias y comerciales;

156.225 160.825 PublicCorrespondence (Marine Operator), Correspondencia pública (operador marítimo),

156.225 156.225 U.S. (Government Only); EE.UU. (entidades gubernamentales

156.275 160.875 PublicCorrespondence (Marine Operator), Correspondencia pública (operador marítimo),

156.275 156.275 Port Operations Operaciones portuarias

156.325 160.925 PublicCorrespondence (Marine Operator), Correspondencia pública (operador marítimo),

Power Limits

Límites de potencia

Channel Use (English) Uso de canales (Español)

service by MCTS Canada servicio por MCTS Canadá

Por t Ope ration, Ship Mov ement operaciones portuarias, movimiento de embarcaciones

U.S. (Government Only); Canada (Coast Guard Only); West Coast (Coast Guard Only); East Coast (Commercial Fishing)

Port Operations, Ship Movement operacionesportuarias,movimiento de embarcaciones

East Coast (Commercial Fishing) Costa oriental (pesca comercial)

Port Operations, Sh ip Movement operaciones portuarias, movimiento de embarcaciones

VTS in selected areas VTS en áreas selectas

Port Operations, Sh ip Movement operaciones portuarias, movimiento de embarcaciones

Canada (Commercial Fishing) solamente); Canadá (pesca comercial)

Port Operations, Sh ip Movement operaciones portuarias, movimiento de embarcaciones

EE.UU. (entidades gubernamentales solamente); Canadá (guardia costera solamente); Costa occidental (guardia costera solamente); Costa oriental (pesca comercial)

Nothing Comes Close to a Cobra

/Nada se compara a Cobra

VHF Marine Channel Assignments

VHF Marine

AppendixAppendix

Channel Assignments

Channel Number

Número de canal

66A

Channel Map

Mapa de canales

USA Int’l Cana da T ransmit Receive

EE.UU. Internac Canadá T ransm. Recepción

•••

•

•••

Frequency

Frecuencia

156.325 156.325 1 watt CAN Port Operations Operaciones portuarias

156.375 156.375 1 watt USA

156.425 156.425 Non-Commercial (Recreational) No comercial (recreativo)

156.475 156.475

RX only 156.525 Digital Selective Calling Llamadas selectivas digitales

156.575 156.575

156.625 156.625 Non-Commercial (Intership Only) No comercial (entre embarcaciones solamente)

156.675 156.675

156.725 156.725

156.775 156.775 1 watt OnlyInt. Port Operations (Intership Only) Operaciones portuarias

156.825 156.825 1 watt OnlyInt. Port Operations (Intership Only) Operaciones portuarias

156.875 156.875 1 wattUSA and CAN

Power Limits

Límites de potencia

1 vatio Canadá

1 vatio EE.UU.

Sólo 1 vatio Int.

1 vatio EE.UU. y Canadá

Channel Use (English) Uso de canales (Español)

U.S. (Commercial). Used for bridge-to-bridge communications in lower Mississippi River (Intership Only); Canada (Commercial Fishing), S&R

U.S. (Non-Commercial, Recreational); Canada (Commercial Fishing Only); International (Intership, Port Operations, Ship Movement)

(Voice communications not allowed) (las comunicaciones verbales están prohibidas)

U.S. and Canada (Non-Commercial, Recreational); EE.UU. y Canadá (no comercial, recreativo); International (Port Operations, Ship Movement) Internacional (operaciones portuarias,

U.S. (Port Operations); Canada (Commercial EE.UU. (operaciones portuarias); Canadá (pesca Fishing Only); International (Intership, comercial solamente); Internacional (comunicaciones Port Operations, Ship Movement) entre embarcaciones, operaciones portuarias,

Port Operations (Intership only). Restricted to Operaciones portuarias (entre embarcaciones communications with pilots for movement and solamente). Restringido a comunicaciones con docking of ships. pilotos para el movimiento y atraque de

EE.UU. (comercial). Usado para comunicaciones de puente de mando a puente de mando en la parte baja del Río Misisipí (entre embarcaciones solamente); Canadá (pesca comercial) (transmisión y recepción)

EE.UU. (no comercial, recreativo); Canadá (pesca comercial solamente); Internacional (comunicaciones entre embarcaciones, operaciones portuarias, movimiento de embarcaciones)

movimiento de embarcaciones)

(entre embarcaciones solamente)

embarcaciones.

English/Español

Nothing Comes Close to a Cobra

/Nada se compara a Cobra

VHF Marine Channel Assignments

VHF Marine

AppendixAppendix

Channel Assignments

Channel Number

Número de canal

78A

79A

80A

81A

82A

83A

83B

84A

85A

86A

87A

88A

Channel Map

Mapa de canales

USA Int’l Cana da T ransmit Receive

EE.UU. Internac Canadá T ransm. Recepción

•

••

•

••

•

••

•

••

•

••

•

•••

•

•••

•

•••

•

•••

•

•••

•

Frequency

Frecuencia

156.925 161.525 Public Correspondence (MarineOperator) Correspondencia pública (operador marítimo)

156.925 156.925 Non-Commercial (Recreational) No comercial (recreativo)

156.975 161.575 Port Operations, Ship Movement Operaciones portuarias,

156.975 156.975 Commercial (Also Non-Comercial Comercial (en los Grandes

157.025 161.625 Port Operations, Ship Movement Operaciones portuarias,

157.025 157.025 Commercial (Also Non-Commercial Comercial (en los Grandes

157.075 161.675 Port Operations, Ship Movement Operaciones portuarias,

157.075 157.075 U.S. (Government Only; Environmental EE.UU. (entidades gubernamentales solamente;

157.125 161.725 PublicCorrespondence (Marine Operator), Correspondencia pública (operador marítimo),

157.125 157.125 U.S. (Government Only); Canada EE.UU. (entidades gubernamentales solamente);

157.175 161.775 Canada (Coast Guard Only) Canadá (guardia costera solamente))

157.175 157.175 U.S. (Government Only); Canada EE.UU. (entidades gubernamentales solamente);

RX only 161.650 Coast Guard Only – Weather Broadcasts Solamente Guardacostas –

157.225 161.825 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)

157.225 157.225 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)

157.275 161.875 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)

157.275 157.275 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)

157.325 161.925 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)

157.325 157.325 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)

157.375 161.975 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)

157.375 157.375 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)

157.425 162.025 Public Correspondence (Ship toCoast). Correspondencia pública (entre embarcación y costa).

157.425 157.425 Commercial Intership only Comercial entre embarcaciones solamente

Power Limits

Límites de potencia

Channel Use (English) Uso de canales (Español)

movimiento de embarcaciones

only in Great Lakes) Lagos también no comercial)

movimiento de embarcaciones

only in Great Lakes) Lagos también no comercial)

movimiento de embarcaciones

Protection Operations) operaciones de protección medioambiental)

Port Operation, Shi p Movement operaciones portuarias, movimiento de embarcaciones

(Coast Guard Only) Canadá (guardia costerasolamente)

(Coast Guard Only) Canadá (guardia costera solamente)

Transmisiones Meteorológicas

In U.S. only within 75 miles of Canadian Border. En los EE.UU., solamente dentro de los casi

121 kilómetros (75 millas) de la frontera canadiense

English/Español

Nothing Comes Close to a Cobra

/Nada se compara a Cobra

Appendix

VHF Marine Channel Assignments

Appendix

Weather Channel Assignments

VHF Marine Channel Assignments (English)

NOTE

Many of the plain-numbered channels, such as 01, 02 and 03, transmit and receive on different frequencies. This is termed duplex operation. The rest of the plain-numbered channels and all of the A channels, such as 01A, 03A and 04A, transmit and receive on a single frequency, which is termed simplex operation. Your radio automatically adjusts to these conditions. When in simplex operation, the A icon will appear on the LCD (see illustration on page A3).

NOTE

All channels are preprogrammed at the factory according to international regulations and those of the FCC (U.S.A.) and Industry Canada (Canada). They cannot be altered by the user nor can modes of operation be changed between simplex and duplex.

Asignación de canales de VHF para radiocomunicación marítima (Español)

NOTA

Muchos de los canales de números simples, como 01, 02 y 03, transmiten y reciben en diferentes frecuencias. A esto se le llama operación dúplex. El resto de los canales de números simples y todos los canales A, como 01A, 03A y 04A, transmiten y reciben en una sola frecuencia, a la que se le llama operación simple (simplex). Su radio se ajusta automáticamente a estas condiciones. Cuando esté en operación simple, el icono A aparecerá en la pantalla de cristal líquido (vea la ilustración de la página A3).

Weather Channel Assignments

Asignaciones de canales meteorológicos

Channel Number

Número de canal

RX Frequency MHz

Frecuencia de recepción(MHz)

1 162.550 NOAA 2 162.400 NOAA 3 162.475 NOAA 4 162.425 NOAA 5 162.450 NOAA 6 162.500 NOAA 7 162.525 NOAA 8 161.650 Canada 9 161.775 Canada

10 163.275 NOAA

•

Weather Channel

English/Español

NOTA

Todos los canales vienen programados previamente de fábrica conforme a los reglamentos internacionales y a los de la FCC (EE. UU) e Industry Canada (Canadá). No pueden ser alterados por el usuario, así como tampoco pueden cambiarse los modos de operación entre simple y dúplex.

Nothing Comes Close to a Cobra

/Nada se compara a Cobra

VHF Marine Radio Protocols

Accessories

VHF Marine Radio Protocols

Accessories

Optional Cobra accessories can enhance the use of the radio and offer convenience to the end user.

Lapel Speaker/Microphone

A speaker/microphone, that attaches to your lapel. Order P/N CM 330-001.

This unique accessory allows you to wear the radio on your belt while still being able to communicate with other vessels. A small Push to Talk button on the lapel speaker/ microphone allows you to answer any incoming call.

•

This page intentionally left blank.

English

Nothing Comes Close to a Cobra

Cobra Electronics MR HH125 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
