MC 600Ci or MC 600Cx
chartplotter.
Properly used, this product will give you many years of reliable
service.
How Your Cobra
The
CobraMarineTM chartplotter is a state-of-the-art computerized electronic
®
Chartplotter Works
chart system, designed as a sophisticated navigation aid. User friendly
operations make the chartplotter easy to operate. All calculations and
information necessary for the navigation are performed and displayed on the
screen quickly and accurately providing all of the capabilities of a conventional
GPS but with the added benefit of a powerful electronic chart display. The
cartographic information is obtained from C-MAP
TM
C-CARDs (cartography
data cards) that are available through your local dealer. For additional
information on C-MAP
TM
Cartography visit web site at www.c-map.com.
CUSTOMER ASSISTANCE INFORMATION
Should you encounter any problems with this product, or not understand its
many features, please refer to this Owner’s Manual. If you require further
assistance after reading this Owner’s Manual, Cobra Electronics
Corporation
TM
offers the following customer assistance services:
For Assistance in the U.S.A
Automated Help Desk English only.
24 hours a day, 7 days a week 773-889-3087 (phone).
Customer Assistance Operators English and Spanish.
8:00 a.m. to 6:00 p.m. through Fri. (excepth holidays) 773-889-3087 (phone).
Questions English and Spanish.
Faxes can be received at 773-622-2269 (fax).
Technical Assistance
English only: www.cobra.com (on-line: Frequently Asked Questions).
English and Spanish: productinfo@cobra.com (e-mail).
For Assistance Outside the U.S.A
Contact Your Local Dealer or Distributor. Please see www.cobra.com
for contact information.
A1
Owner's ManualNothing Comes Close to a Cobra
®
Control and Indicators
SOFTWARE BUTTONS FUNCTIONALITY
The software buttons have different functions according to the modes of
operation: their labels for the current functions, are shown on the screen right
above the buttons. They can also be used like FM radio preset buttons to
save quick access to your favorite pages.
When pressing the ESC button the four software button, labels disappear.
A2
Owner's ManualNothing Comes Close to a Cobra
®
Software Features and
Technical Specifications
SOFTWARE FEATURES
Detailed Base Map Included
3D Mapping (view charts in either top down or new 3D perspective modes)
12 Channel WAAS GPS with iASAP
Sunlight and NightWatchTM Modes
Easy surfing among the available pages (Data, Highway, Sun & Moon,
Split, GPS Status, System and Welcome pages)
Fish Finder and Combo pages (available with Fish Finder device connected)
DSC Calling integration
1000 Waypoints and 50 Routes (50 Waypoints/Route)
Create, Move, Insert, Edit or Erase Waypoint
Create, Save, Name, Edit or Follow a Route
Navigation to Goto
Route Data Report and User Points (Marks/Waypoints) List pages
Find Ports Services, Ports, Tide Stations, Wrecks, Obstructions,
Coordinates and User Points
Display Tide Info and Tide Graph page
Automatic Info on cartographic objects and User Points
Display vessel's position, direction and Track
10 Tracks with 16 Color Options
Alarms Handling (Anchor Drag, Arrival, Off Course, Proximity, Depth, Etc.)
Man OverBoard (MOB) to navigate back to a missing person or object
Demo Modes
TM
TECHNICAL SECIFICATIONS
Power Consumption: 10 - 35 V
Interface: NMEA-0183
Autopilot Interface: NMEA-0180, NMEA-0180/CDX, NMEA-0183
Display: 6” Color TFT with Anti-Reflective Coating(Active Area 5.7”)
Display Resolution: 240 x 320 pixels
Cartography: C-MAP NT MAXTM or C-MAP NT
Operating Range: 0/+55 degree Celsius
Water Proof Specification : Submersible to IPX7 or JIS7
Memory: Non volatile with battery back-up
Keyboard: Silicon rubber, backlight
Weight: 630 gr.
A3
Owner's ManualNothing Comes Close to a Cobra
+
TM
C-CARDs
®
Warnings and Cautions
WARNINGS AND CAUTIONS
Before using your
CobraMarineTM MC 600C chartplotter please read these
general precautions and warnings.
Electronic charts displayed by the chartplotter are believed to be accurate and
reliable, but they are not intended to replace official charts which should remain your
main reference for all the matters related to the execution of a safe navigation. For
this reason we would like to remind you that you are required to carry on board and
use the officially published and approved nautical charts.
Please read through this manual before the first operation. If you have any
questions, please contact the customer service or your local chartplotter dealer or
distributor.
Extensive exposure to heat may result in damage to the chartplotter.
Connection to the power source with reversed polarity will damage the
chartplotter severely. This damage is not covered by the warranty.
Do not disassemble. The chartplotter contains dangerous high voltage circuits
which only experienced technicians MUST handle.
The C-MAPTM C-CARDs are available from your local dealer.
Exposure of the display to UV rays may shorten the life of the liquid crystals used
in your plotter. This limitation is due to the current technology of the LCD displays.
Avoid overheating which may cause loss of contrast and, in extreme cases, a
darkening of the screen. Problems which occur from overheating are reversible
when temperature decreases.
SCREEN CLEANING PRECAUTIONS
Cleaning your chartplotter screen is a very important operation and must be done
carefully, as the window's surface is covered with and antireflective coating. The
following is the cleaning procedure: you use a tissue or lens tissue and a cleaning
spray containing Isopropanol (a normal spray cleaner sold for PC screens, for
example PolaClear by Polaroid). Fold the tissue or lens tissue into a triangular
shape, moisten the tip and use the index finger behind a corner to move the tissue
across the surface, in overlapping side to side strokes. If the tissue is too wet, a
noticeable wet film will be left in its path and you will need to repeat the process. If
too dry, the tissue won’t glide easily, and may damage the surface.
®
Nothing Comes Close to a Cobra
1
Included in This Package and
C-MAP C-CARD
WHAT IS IN THE BOX?
When the package containing the chartplotter is first opened, please check it
for the following contents (if any parts are missing contact the dealer the
chartplotter was purchased from):
CobraMarineTM MC 600C chartplotter
Power Data Cable
Tilt and Swivel Mounting Bracket
Two Removable Faceplates
Owner’s Manual
Quick Reference Guide
External GPS Antenna with 10 Meter Cable (ONLY on MC 600Cx model)
Flush Mount Kit (ONLY on MC 600Cx with model)
MC 600C Chart Details
The chartplotter has a built-in world map that can be used for Route planning.
To use the chartplotter as a navigation aid, charts are required with detailed
information for the area. This chart cartridge is called a C-CARD. C-CARDs
are available from your local C-MAP

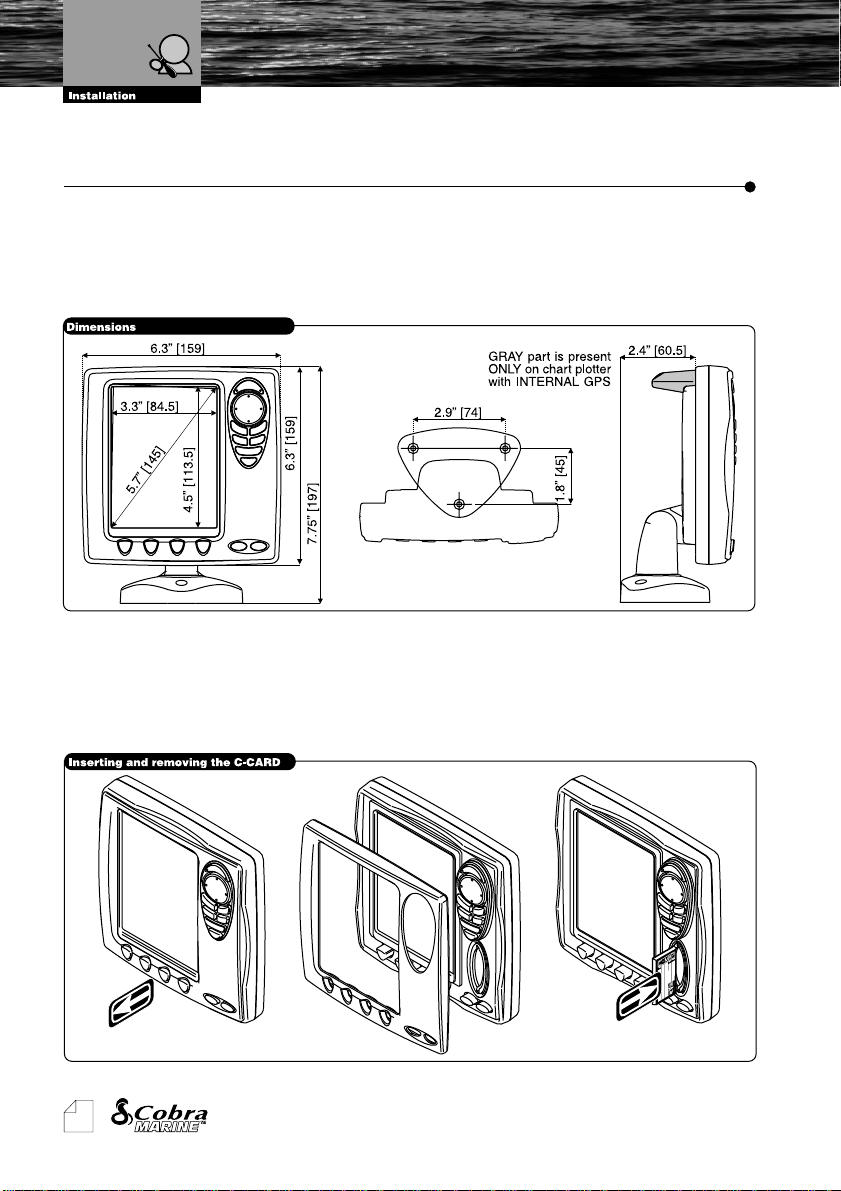

remove C-CARD procedure. The C-CARD can be inserted by removing the
faceplate.
OUR THANK S TO YOU ................................................................................................................................. A1
WHAT IS IN THE BOX? ....................................................................................................................................2
MC 600C Chart Details....................................................................................................................................2
3.11. SYSTEM PAGE .................................................................................................................................. 48
Throughout this Owner’s Manual, the hardware buttons on the MC 600C are
shown in bold capital letters, for example ENTER; the software buttons are shown
in bold small capital letters, for example E
DIT
. See the following pictures.
Any menu operation and function activation in this Owner’s Manual is related
to both MC 600Cx and MC 600Ci chartplotter models. Whenever it is
necessary, a note has been inserted for the model with differences.
1.2.2.Menu Description
Many of the options listed under the Page Information and Operation
Instructions should be read from start to finish. Duplicate items are not
mentioned for each Page Operation. Example, Menu Item descriptions will not
be listed for each page if they have already been described on the previous
pages.
1.2.3.Selecting an option
When a menu window is shown on the screen, the procedure to follow for
selecting the desired option is the same for every menu. For example, if you
®
Nothing Comes Close to a Cobra
7
General Operation
have activated the menu from the CHART Page (by pressing the MENU
button) to select the option you want, “NUMBER OF DATA FIELDS” option,
follow the procedure listed below:
1. Use the UP and DOWN CURSOR buttons to select the desired option,
“NUMBER OF DATA FIELDS”.
2. Press the ENTER button: a drop down box appears with the available
selections “2”, “4”, “6”, “HIDE”.
3. Use the UP and DOWN CURSOR buttons to select a desired choice.
4. Press the ENTER button to confirm, or the ESC button to abort and return
to the previous settings.
Pressing the RIGHT CURSOR button will sometimes perform like the ENTER button
during this operation.
1.2.4.Alphanumeric Input Procedure
Information is keyed into the chartplotter for example when editing a Waypoint
(see the following picture), or when entering Setup information.
8
Owner's Manual
General Operation
When the field is highlighted:
1. Use the R
you would like to change.
2. Use the UP, DOWN, RIGHT or LEFT CURSOR buttons to step through
the available characters until the desired character is highlighted.
3. Press the ENTER button to confirm; the selected character appears in the
highlighted field on the top line.
4. Repeat this procedure until you complete your entry.
5. Press the S
IGHT
or L
EFT
software buttons at the bottom to highlight the field
AVE
software button when the entry is complete.
This keypad is designed to reduce the number of button presses needed naming
points and entering data. It can be disabled and the more conventional method
used. If desired, it is disabled from the General settings of the SYSTEM Page.
®
Nothing Comes Close to a Cobra
9
Switching On/Off
2.BASIC OPERATION
Refer to the foldout on the front cover to identify the various controls and indicators
on your chartplotter.
2.1.SWITCHING ON/OFF
Before powering On the chartplotter, check for the correct voltage (10-35 volt dc).
2.1.1Switching On
Press and hold the PWR button for one (1) second. The chartplotter shows
you the Logo Screen, Caution Notice (press the ENTER button) and then the
WELCOME Page in sequence. See the INITIAL SETUP Page instruction for
first time switch On instructions.
2.1.2Switching Off
Press and hold the PWR button for three (3) seconds. A countdown timer
appears on the screen, if you release the button before the countdown timer
reaches zero, the chartplotter will remain On.
2.1.3.Auto power On Description
If you power Off the chartplotter during the normal working using an accessory
switch (not pushing the PWR button), then the chartplotter will power On
automatically when that same switch is turned back On.
2.2.INITIAL SETUP
Initial power on settings page that asks the user to input crucial setup
information. The FIRST TIME - GPS SETUP Page appears at power On after
the Logo Screen.
10
Owner's Manual
Initial Setup
2.2.1.Definitions of Selections
This menu allows you to select some of the basic setup information the first
time the chartplotter is powered On. This information can be changed at any
time either from the SYSTEM Page (see Chapter 5) or by resetting the
chartplotter. Select the correct setup option and select “DONE” and press the
ENTER button when complete. Please refer to section 1.2 for more
information on how to enter information.
“LANGUAGES” - Selects the language in which you wish information to
be displayed (for screen labels, menus and options, but it does not affect
the map information).
“BOAT MANUFACTURER” (optional) - Enters the boat manufacturers
name to be displayed on the initial Logo Screen.
“BOAT MODEL” (optional) - Enters the Model Name/Number of your
boat to be displayed on the Logo Screen.
“BOAT NAME” (optional) - Enters the boat name to be displayed on the
Logo Screen.
“COMPASS BEARINGS” - Selects either degrees magnetic or degrees
true. If magnetic readings are selected the variation is computed
automatically for every zone as soon as the chart is displayed.
“DISTANCE UNITS” - Sets the distance unit among the available choices.
The default setting is Nm (Nautical Miles). Other options are Statute Miles
(Sm) and Kilometers (Km).
“SPEED UNITS” - Sets the speed unit among the available units. The
default setting is Knots (Nautical Miles/Hour). Other options are Miles per
Hour (Mph) and Kilometers per Hour (Kph).
“DEPTH UNITS” - Sets the depth units among the available units. The
default setting is Ft (Feet). Other options are Meters (Mt) and Fathoms (Ft).
“GPS ALTITUDE UNITS” - Sets the altitude of GPS Antenna on the
Nothing Comes Close to a Cobra
®
11
Initial Setup
medium sea level unit among the available units. The default setting is Ft
(Feet). Other options are Meters (Mt) and Flight Level (FL).
“TIME REFERENCE” - Allows switching the Time Reference between
UTC or Local. After entering the Local Time offset, your local time will be
displayed. See Par. 5.2.6 for more detailed information.
“TIME FORMAT” - Sets you preferred time format. The default setting is
24 hour time.
“DATE FORMAT” - Sets you preferred date format between MM-DD-YY
(month-day-year) and DD-MM-YY (day-month-year). The default setting is
MM-DD-YY.
“WIND SPEED UNITS” - Sets the Wind Speed units among the available
units. The default setting is Knots (Nautical Miles/Hour). Other options are
M/S, BFT, Miles per Hour (Mph) and Kilometers per Hour (Kph).
“APPROXIMATE MAX SPEED” - This information will be used to set up
the analog style speedometer gauge.
“CURRENT ENGINE HOURS” (optional) - Starting value that will be
used for the engine hours gauge.
“WAYPOINT ARRIVAL ALARM” - Sets the distance you would like to
have alarm sound when approaching a Waypoint.
“XTE ALARM” - Sets the distance you go off course before an off course
alarm will sound.
“RESET DEFAULTS” - Changes all the settings on this page back to the
original settings.
2.3.ADJUSTING THE BACKLIGHTING AND CONTRAST
You can change the level of backlight and contrast for the screen.
1. Press the PWR button. On the screen appears:
2. Use the software buttons to adjust the backlight and contrast levels.
12
Owner's Manual
Backlight and Contrast
Page Surfing
3. Wait or press the ENTER button to return to the chart screen with the new
light levels retained.
Continuously pressing the PWR button from this screen will toggle you through the
available color palettes.
2.4.PAGE SURFING
There are many different pages of data and information available. You can
select the page you wish “by surfing” among the available pages.
2.4.1.Pages selection
Pressing the PAGE button causes TABs to appear with the pages that you
can scroll through. Continually pressing the PAGE button or the RIGHT and
LEFT CURSOR buttons allow you to scroll forwards or backwards through the
available pages. The TABs disappear after several seconds allowing you to
resume full operation of the selected page.
Please note that these available pages can be customized from the settings page
(see Par. 3.1).
The option of having the page TABs appear at the top of the page can be turned Off
from the SYSTEM Page in the General settings menu.
®
Nothing Comes Close to a Cobra
13
Demo Mode
2.5.DEMO MODE
DEMO MODE is great for practicing the actual use of a product when the
satellites signals and internal alarms are not available. When the device is in
DEMO MODE, the GPS receiver is turned Off, so it is impossible to navigate.
Do not try to navigate in a DEMO MODE. While the DEMO MODE is turned On, the
GPS receiver is not active. All satellite signal strength bars are only a simulation and
do not indicate any actual satellite signals.
DEMO MODE can be selected from the WELCOME Page (see Par. 3.2) or
from the SYSTEM Page (see Par. 5.2.9) .
Selecting the DEMO MODE would bring up the choice of three options for
demo. The DEMO MODEs are:
2.5.1.Full Demo
This mode is designed for in store or on display demonstration. This unit will
automatically scroll through various displays and demonstrate the product.
2.5.2.Demo a Route
This mode allows the user to select a Route that they have already planned.
2.5.3.Custom Demo
This mode allows you to enter a desired course and speed for the
demonstration. The simulated GPS position will start directly from the Pointers
position on the chart.
2.6.MOVING AND ZOOMING ON CHART
Use the CURSOR buttons to move around or Pan the chart. Also use the
ZOOM IN and ZOOM OUT buttons to change the chart scale so that a smaller
or larger area is shown on the chart.
2.6.1.Pan
Controlled by the CURSOR buttons, the Pointer is an important tool that can
be used to pan to other map locations, mark and edit Waypoints and Routes
and review information about on-screen map items and Waypoints. Use the
14
Owner's Manual
Moving and Zooming on Chart
map Pointer to pan away from your present position and scroll to other map
areas even outside of your current detail coverage. While panning past the
edge of the current map display, the screen actively scrolls forward to provide
continuous map coverage.
2.6.2.Zoom
Zoom function is generally used to change a map scale and show relevant
detail content.
ZOOM OUT - Press the ZOOM OUT button to change the scale and show
less details of a larger area.
ZOOM IN – Press the ZOOM IN button to show more details of a smaller
area.
2.6.3.Esc back to chart
The function of the ESC button is to come back to the CHART Page from
every other page. The ESC button will also move back from a selection menu
or to clear the screen.
Please note that the ESC button is used to come back to original map Pointer
location and a map scale after zooming and panning.
2.7.CHANGING DATA FIELDS ON MOST PAGES
It is possible to change the number of data fields shown at the bottom of most
Pages. The number of fields and the value displayed in the field can be
changed by selecting the MAIN Menu and then either the “NUMBER OF
DATA FIELDS” or “CHANGE DATA FIELDS” option.
2.7.1.Number of Data Fields
Most pages give the ability to adjust the number of fields displayed on a given
page. The available choices are predefined in the MAIN Menu. To change the
number of data fields follow the procedure below:
1. Press the MENU button. The MAIN Menu will be activated.
2. Use the UP and DOWN CURSOR buttons to select the “NUMBER OF
DATA FIELDS” option.
3. Press the ENTER button to access the available selections.
4. Use the UP and DOWN CURSOR buttons to select a desired choice.
5. Press the ENTER button to confirm, or the ESC button to abort and return
to the previous settings.
®
Nothing Comes Close to a Cobra
15
Changing Data Fields
2.7.2.Change Data Fields
Each data field present on a given page (no matter the number of data fields)
can be customized to obtain the best navigational information.
1. Press the MENU button. The MAIN Menu will be activated.
2. Use the UP and DOWN CURSOR buttons to select the “CHANGE DATA
FIELDS” option.
3. Press the ENTER button to confirm. A yellow frame appears around one of
the data fields.
4. Use the UP, DOWN, RIGHT and LEFTCURSOR buttons to highlight and
choose an individual data field.
5. Press the ENTER button to display the available data options for the
chosen data field.
6. Use the UP and DOWN CURSOR buttons move through the options.
7. Press the ENTER button to select the on screen option or the ESC button
to cancel and return to the previously selected data.
You can also complete this by holding the MENU button. This will place a yellow
frame around one of the fields as per step 3 above.
16
Owner's Manual
Available Data Options
Creating a User Point
2.7.3.Available Data Options
All the available choices for the Data Fields are presented in the table below.
Keep in mind that some of them are characteristic only to one specified page.
The yellow bar on the right will scroll down as you move down the list.
2.8.CREATING A USER POINT
A User Point is an object that you can place on the charts to mark a specific
point. The chartplotter features two types of User Points: Marks and
Waypoints.
2.8.1.Creating a New Waypoint
A Waypoint is created when entering a Route:
1. Move the Pointer to the desired location on the chart.
2. Press the ENTER button.
3. Use the UP or DOWN CURSOR button to select “NEW WAYPOINT” and
press the ENTER button. The new Waypoint is placed.
®
Nothing Comes Close to a Cobra
17
Creating a Basic Route
4. Move the Pointer off the location to accept.
2.8.2.Creating a New Mark
A Mark can be created at anytime. Marks are used for marking points outside
of a Route.
1. Move the Pointer to the desired location on the chart.
2. Press the ENTER button.
3. Use the UP or DOWN CURSOR button to select “NEW MARK” and pressthe ENTER button. The new Mark appears on your Pointer.
4. Move the Pointer off the location to accept.
You can also use the shortcut software buttons that appear when moving the
Pointer. See the following picture:
2.9.CREATING A BASIC ROUTE
To create a Route:
1. Move the Pointer to the desired location on the chart.
2. Press the ENTER button.
3. Use the UP or DOWN CURSOR button to select “NEW WAYPOINT” and
press the ENTER button. This places the first Waypoint of the new Route
on your Pointer position. To place the next Waypoints of the Route repeat
the above procedure.
4. Move the Pointer off the location to accept or press the ENTER button to
edit.
18
Owner's Manual
Using Goto and Find
2.10. USING GOTO
The GOTO function allows instant plotting of course to selected target. After
pressing the GOTO button on most of the pages, the sub-menu on a Pointer
position appears and it is possible to choose beneath mentioned options:
“GOTO POINTER” - Sets the Pointer location as the destination.
“GOTO POINT” - Shows the “User Point” list, that gives information on all
stored User Points.
“FOLLOW ROUTE” - Brings up the “Select Route” list with the most
recently used highlighted.
“NEW ROUTE” - Brings up the “Selected Route” list but with the next
open Route highlighted. Software button choices are: E“NEW WAYPOINT” - A new Waypoint is created and set as the
destination Waypoint.
“NEW MARK” - A new Mark is created.
“MOB” - Man OverBoard (MOB) function. See Par. 2.12 for details.
“FIND” - Find function. See Par. 2.11 for details.
DIT
, A
CCEPT
.
2.11. USING FIND
The Find function allows searching for the nearest Ports, Port Services, Tide
Stations, Wrecks, Obstructions loaded on the C-CARD or it centers the screen
over a selected User Point or at desired Coordinates. When you press the
FIND button (or choose Find from a menu option) a list of available objects to
search is shown.
A Warning message is shown when activating the Find function if no C-CARD
inserted.
®
Nothing Comes Close to a Cobra
19
Using MOB
2.12. USING MOB
If a person or object is lost overboard and you need to return to the location,
use the MOB (Man OverBoard) function. This function enables you to
simultaneously mark and set a course to a location for quick response to
emergency situations.
To activate the MOB function, a valid GPS fix must be available.
2.12.1. Inserting MOB
To activate a MOBfunction follow the procedure below:
1. Press the MOB button. A dialog box with a message “MOB is activated”
will appear on a screen and a MOB Waypoint will be created.
2. If the NMEA output is turned On, the warning dialog box is given: “Turn off
autopilot before setting MOB point as destination”
2.12.2. Deleting MOB
To cancel the MOB function
1. Use the CURSOR button to move the Pointer over the MOB icon.
2. Choose the D
display.
ELETE
or S
TOP NAV
software buttons at the bottom of the
20
Owner's Manual
Page Selection and Presets
3.PAGE INFORMATION AND OPERATION
3.1.PAGE SELECTION AND PRESETS - SETUP
Any page can be turned ON or OFF using the following procedure:
1. Press the PAGE button several times to select “SYSTEM” and then press
the ENTER button.
2. Use the UP and DOWN CURSOR buttons to select the “PAGES ON/
OFF” option and then press the ENTER button.
3. Press the ENTER button to change the page status (On or Off).
4. Press one of the bottom software buttons to assign it as a short cut to the
desired page. The RIGHT and LEFT CURSOR buttons can also be used
to change the selection if the page has already been assigned a button.
During future operations the ON pages can be selected using the PAGE
button which is generally used to scroll through all available pages.
Pages containing certain data like the Fish Finder and Combo are not accessible
unless that optional module is connected.
Press and hold one of the software buttons from any of the main pages to save that
as one of quick access pages.
®
Nothing Comes Close to a Cobra
21
Welcome Page
3.2.WELCOME PAGE
The WELCOME Page is activated by default on Power On and appears after
the GPS position lock. Use the WELCOME Page to go to the most commonlyused features on the chartplotter that are otherwise more difficult to access.
All of the options in these large selection boxes are also available from other
pages and selections.
3.2.1.Operations
The CURSOR buttons are used to choose an individual feature box. Press the
ENTER button to display the available feature’s options. After selection use
the PAGE button to return to the WELCOME Page. 8 different options are
available from this page:
“MY BOAT ON CHART”: Goes back to the CHART Page, centered on
the vessel’s position.
“CLOSEST FUEL”: Goes right to the list of closest Fuel Stations with
distance and bearing listed.
“PICK A POINT”: Goes to the predefined User Point list with the closest
point highlighted.
“GAUGES AND DATA”: Goes to the DATA Page.
“FIND MARINE SERVICES”: Shows an icon selection table. Use the
CURSOR button to highlight an icon. A description of the type of service is
listed. Press the ENTER button to search for this type of service.
“SYSTEM SETTINGS”: Goes directly to the SYSTEM Page for setup info.
22
The System Page can also be accessed by pressing the MENU button twice
from most pages.
Owner's Manual
Welcome Page
“DEMO MODE”: Links to a secondary set of selection boxes. The DEMO
Mode is specified in further detail in Par. 2.5.
“DAY OR NIGHTWATCHTM MODE”: Selection toggles between Day and
Nightwatch
selection.
TM
depending on what mode the display is in at the time of
The screen will be difficult to read if the chartplotter is in Nightwatch
sun is to bright. With the chartplotter on, continuously pressing the PWR button will
get the chartplotter out of Nightwatch
TM
mode.
TM
mode and the
Nothing Comes Close to a Cobra
®
23
Chart Only Page
3.3.CHART ONLY PAGE
The CHART Page is the main page of the chartplotter. From this page the
user can select the desired map, get information about cartographic objects
on the maps, see the vessel position, its direction and speed, place points
(Marks, Waypoints), set a destination point and display additional features.
The chartplotter is provided with worldwide background cartography while the
detailed charts of the desired area are available on data cartridges.
3.3.1.Description
The picture below shows the CHART Page layout with displayed data fields
and a steering compass added at the top. It is possible to customize all fields
shown in the page as described later in this paragraph. The central section of
the screen provides visual guidance of a chart and the bottom of the page is
designed for navigation data display.
3.3.2.Operations
The CHART Page is used for display of electronic cartography, creating and
using the User Points, plotting position and navigational data.
3.3.2.1. Available Layouts of CHART Page
The data fields of the CHART Page can be customized as HIDE, 2, 4 or 6
through the MENU button. By default the CHART Page is specified for 2 data
fields and a Steering Compass added over a Horizon. The Compass can be
turned Off in the Main Menu of the CHART Page by pressing the MENU button.
3.3.2.2. Changing Data Options
The content of each data field can be adjusted to the user’s requirements. To
customize data options follow the procedure described in Par. 2.7.2 Changing
Data Fields.
24
Owner's Manual
Chart Only Page
3.3.2.3. Operations on User Points
Using the ENTER button we are able to create, edit and delete various User
Points used during further navigation. Those advanced operations are
explained in detail in Chapter 4.
3.3.2.4. Software Buttons
The functional software buttons are activated when moving the Pointer with
the CURSOR buttons. They acts as a shortcuts for the GOTO functions
including: G
functions time out after several seconds. The ESC button disables these
software buttons for several more seconds.
O TO POINTER
, NEW R
OUTE
, NEW W
AYPOINT
, and NEW M
ARK
. These
3.3.3.Menu
The MAIN Menu (selected through the MENU button) o f the CHART Page
provides the operations for the chart display.
Some of the more commonly accessed features are listed first.
Nothing Comes Close to a Cobra
®
25
Loading...
+ 72 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
