Introduction

Staying in touch with your family and friends is convenient and easy when using your microTALK radio. Some of the many uses you will discover include:

Making Life Easier and Safer

Communicating with others while hiking, biking and working;

Owner’s Manual

keeping track of family and friends at a crowded public event; checking with travel companions in another car; talking with neighbors; arranging meeting spots with others while shopping at the mall.

Belt Clip

Secure your microTALK radio while on the go.

Carrying your microTALK®radio with you is easy when using the belt clip.

The belt clip easily attaches to your belt, purse or backpack.

Customer Assistance

For Assistance in the U.S.A.

In this user’s manual, you should find all the information you need to operate your microTALK assistance after reading this manual, Cobra Electronics offers the following customer assistance services:

radio. If you require further

Automated Help Desk

English only. 24 hours a day, 7 days a week 773-889-3087 (phone).

Customer Assistance Operators

English and Spanish. 8:00 a.m. to 6:00 p.m. Central Time, Monday through Friday (except holidays) 773-889-3087 (phone).

Questions

English and Spanish. Faxes can be received at 773-622-2269 (fax).

Technical Assistance

English only. www.cobra.com (on-line: Frequently Asked Questions). English and Spanish. productinfo

For more information or to

order any of our products,

please visit our website:

www.cobra.com

English

TWO-WAY RADIO MODEL

LI 7200 WX

Nothing Comes Close to a Cobra

Printed in China

Part No. 480-413-P

Version B

English

For Assistance Outside the U.S.A.

Contact Your Local Dealer

@cobra.com (e-mail).

est Cortland Str

6500 W

Chicago, Illinois 60707 USA

www.cobra.com

eet

Assistance

Warranty

Assistance

Warranty

10293_LI7200WX_vB.qxd 9/5/07 10:55 AM Page A2

Introduction

Product Features

1. Antenna

2. External Speaker/ Microphone/Charge Jack

3. Backlit LCD Display

4. On/Off Power Button

5. Hi-Low Power Button

6. Channel Up/Down Buttons

7. Mode Button

8. Lock/Enter Button

10. Volume Up/Down Buttons

11. Light/Max Range Button

12. Talk Button

13. Call Button

14. Wrist Strap Connector

15. Belt Clip

16. Battery Compartment

17. Battery Door Latch

9. Speaker/Microphone

Introduction

Features

• 22 Channels

Seven shared with FRS/GMRS, seven FRS only, eight GMRS only

10 Channel NOAA

•

ALL Hazards Radio

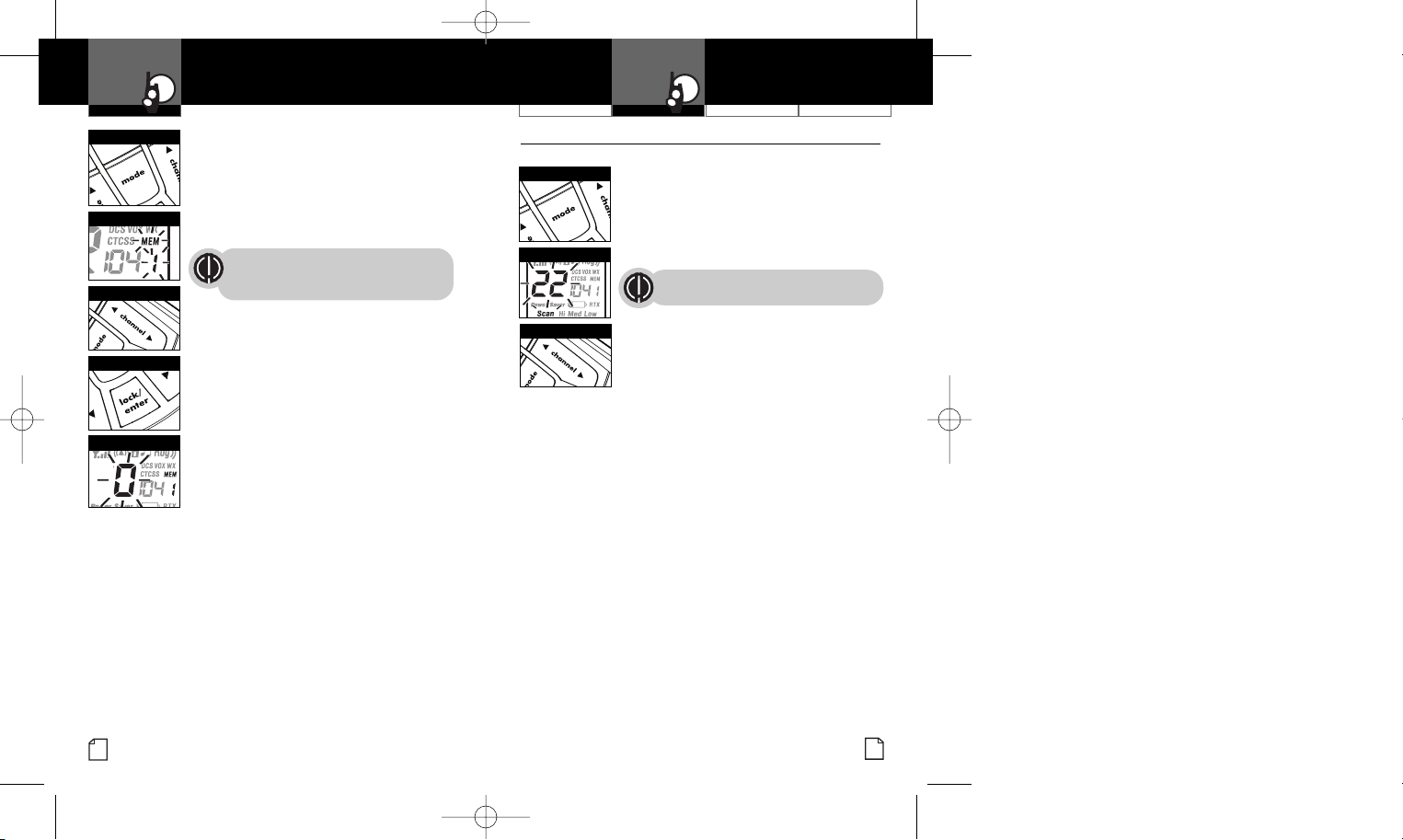

• 142 Privacy Codes

(38 CTCSS codes/ 104 DCS codes)

Hands-Free

•

Operation (VOX)

• VibrAlert Silent Paging

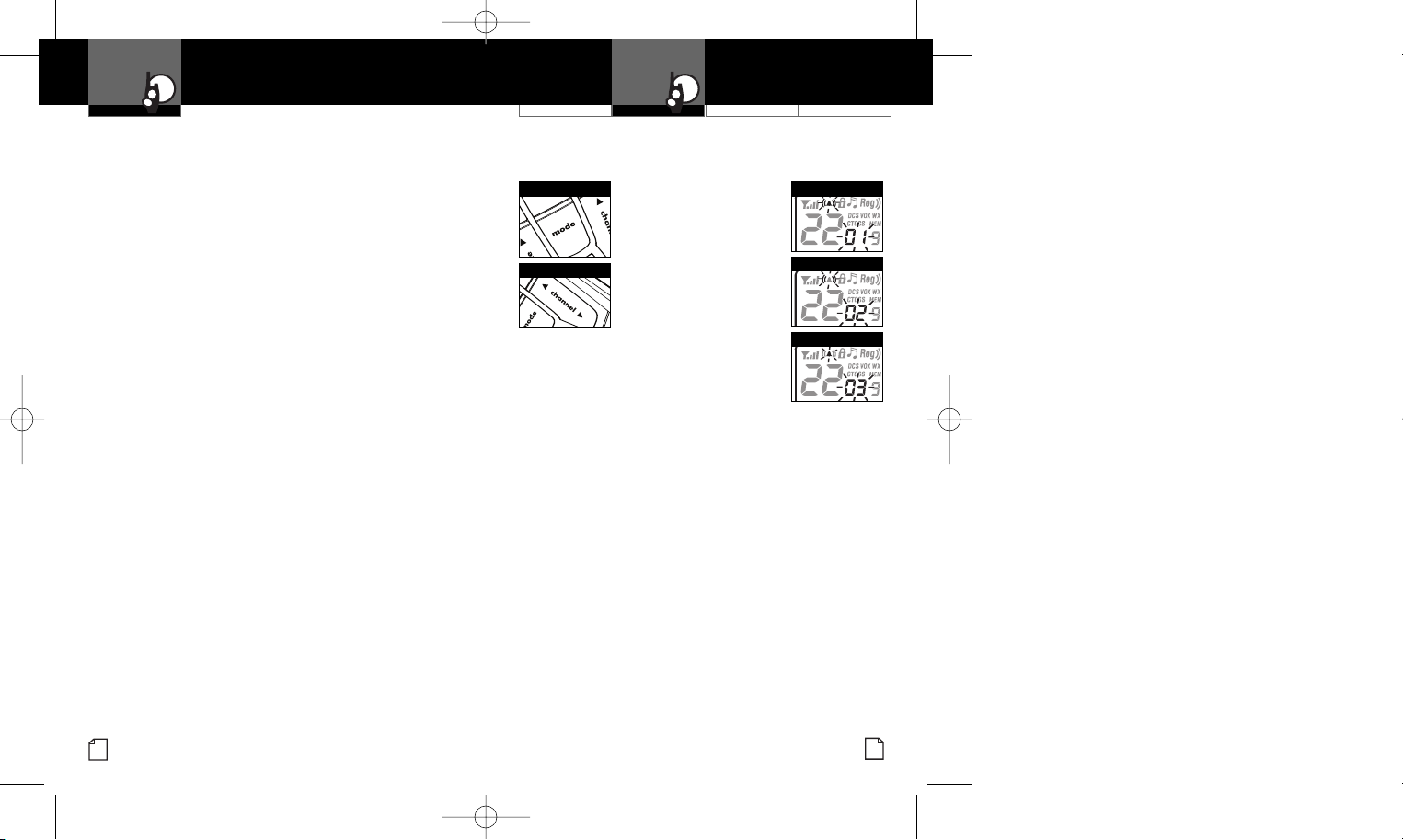

• 10 Channel Memory

• Signal Strength Meter

• Scan Channels, privacy codes, memory

•

Selectable Hi•Med•Low Power

In GMRS

Backlit

•

LCD Display

• Button Lock

• Call Alert 10 selectable tones

Speaker/

•

Microphone/ Charge Jack

• Roger Beep Selectable on/off

Battery/

•

Power Saver

• Keystroke Tones Selectable on/off

Auto Squelch

•

• Maximum Range

Extender

• Belt Clip

Product Features

Backlit LCD Display

1516

11. Memory Location

12. Privacy Code

13. Receive/Transmit

14. Hi-Med-Low Power

15. Battery Low

16. Scan Icon

17. Power Saver Icon

18. Channel Numbers

1. Signal Strength Meter Icon

2. Call Alert and VibrAlert®Icon

3. Lock Icon

4. Keystroke Tones Icon

5. DCS Icon

6. Roger Beep Icon

7. VOX Icon

8. NOAA All Hazards Radio Icon

9. Memory Icon

10. CTCSS Icon

Maximum range may vary and is based on unobstructed line-of-sight communication under ideal conditions.

Important FCC Licensing Information

This radio operates on General Mobile Radio Service (GMRS) frequencies which require a Federal Communications Commission (FCC) license. See page 27 for licensing and other

elated information.

Number

Numbers

Icon

Icons

Indicator

Warranty and Trademark

Warranty

Limited One-Year Warranty on Radio(s) & Charger

For Products Purchased in the U.S.A.

Cobra Electronics Corporation warrants that its Cobra microTALK

radios and charger, and the component parts thereof, will be free of defects in workmanship and materials for a period of one year from the date of first consumer purchase. This warranty may be enforced by the first consumer purchaser, provided that the product is utilized within the U.S.A.

Cobra will, without charge, repair or replace, at its option, defective microTALK to the Cobra Factory Service department, accompanied by proof of the date of first consumer purchase, such as a duplicated copy of a sales receipt.

You must pay any initial shipping charges required to ship the product for warranty service, but the return charges will be at Cobra’s expense, if the product is repaired or replaced under warranty. This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state.

Exclusions: This limited warranty does not apply: 1) T damaged by accident; 2) In the event of misuse or abuse of the product or as a result of unauthorized alterations or repairs; 3) If the serial number has been altered, defaced, or removed; 4) If the owner of the product resides outside the U.S.A.

All implied warranties, including warranties of mer fitness for a particular purpose are limited in duration to the length of this warranty. Cobra shall not be liable for any incidental, consequential or other damages; including, without limitation, damages resulting from loss of use or cost of installation.

Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you.

For Products Purchased Outside the U.S.A.

Please contact your local dealer for warranty information.

90-Day Warranty on Cobra Lithium Ion Rechargeable Batter

For products purchased in the U.S.A. and Canada.

Trademark Acknowledgement

Cobra®, microTALK®, Nothing Comes Close to a Cobra®, VibrAlert and the snake design are registered trademarks of Cobra Electronics Corporation, USA. Cobra Electronics Corporation™ is a trademark of Cobra Electronics Corporation, USA.

Acknowledgement

radios, chargers, products or component parts upon delivery

o any product
